Lightforce Switch Connector to suit Mazda/Ford
$13.00
In Stock

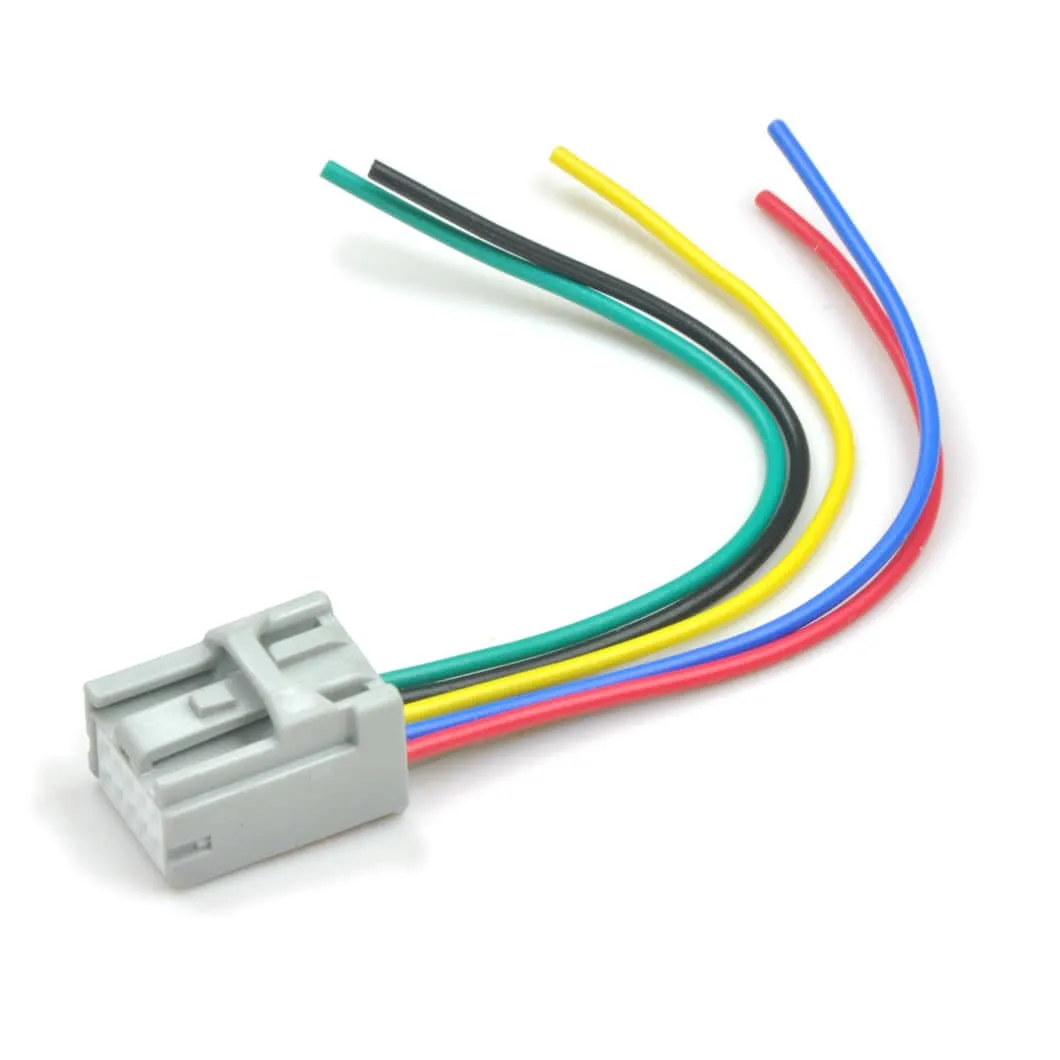

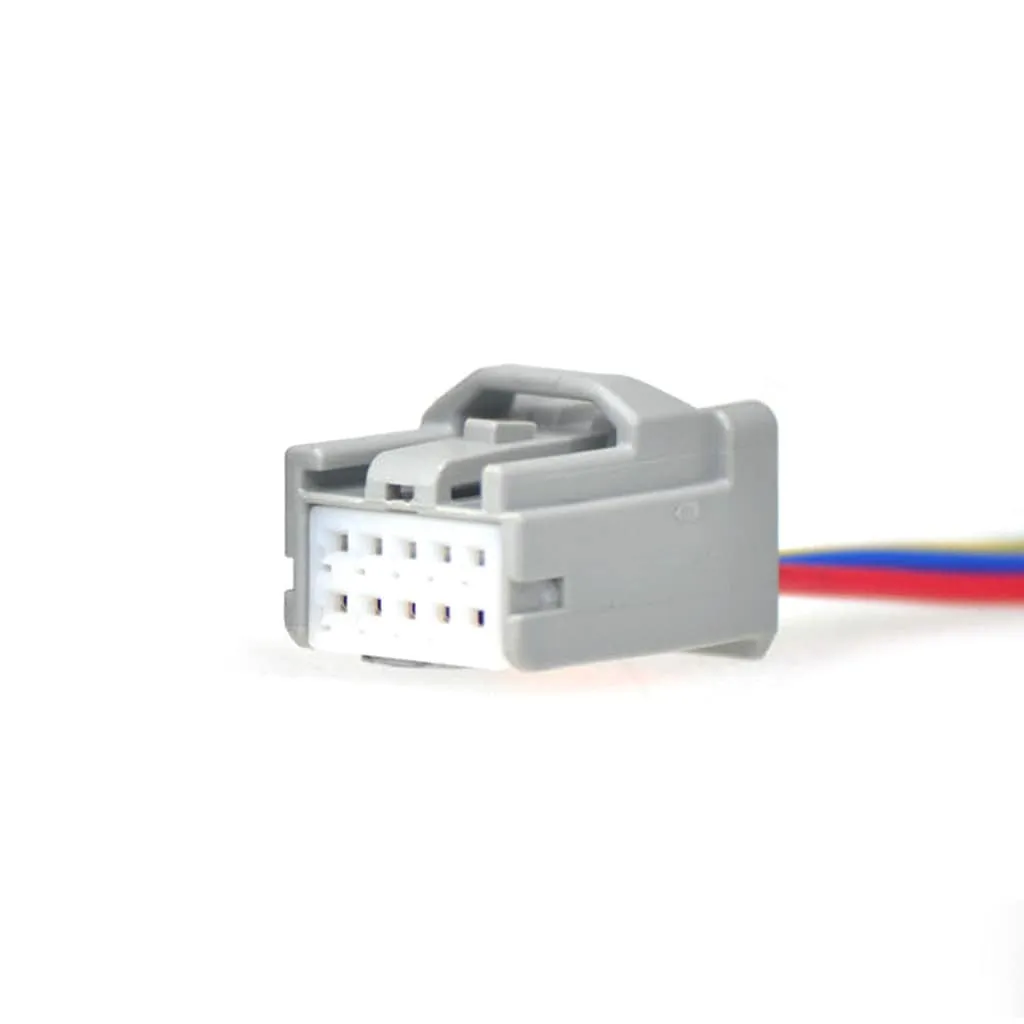

Switch connector only (100mm in length) suitable for use with the Ford Ranger PX1 and second-generation Mazda BT50 October 2011 onwards OEM driving light switch.
Wiring instructions:
• Red wire - Illuminates the blue indicator on the switch (when in the on position) for this to function connect with the yellow wire
• Blue wire - 12v in from high beam circuit
• Yellow wire - 12v switched out, connect with the red wire, then connect to relay {87}
• Black wire - Connect to earth circuit (negative)
• Green wire - From 12v dash light circuit (illuminates Roo logo or image)
(CBSWRC)
| SKU | CBSWRC |
| Barcode # | 9335712025777 |
| Brand | Lightforce |
