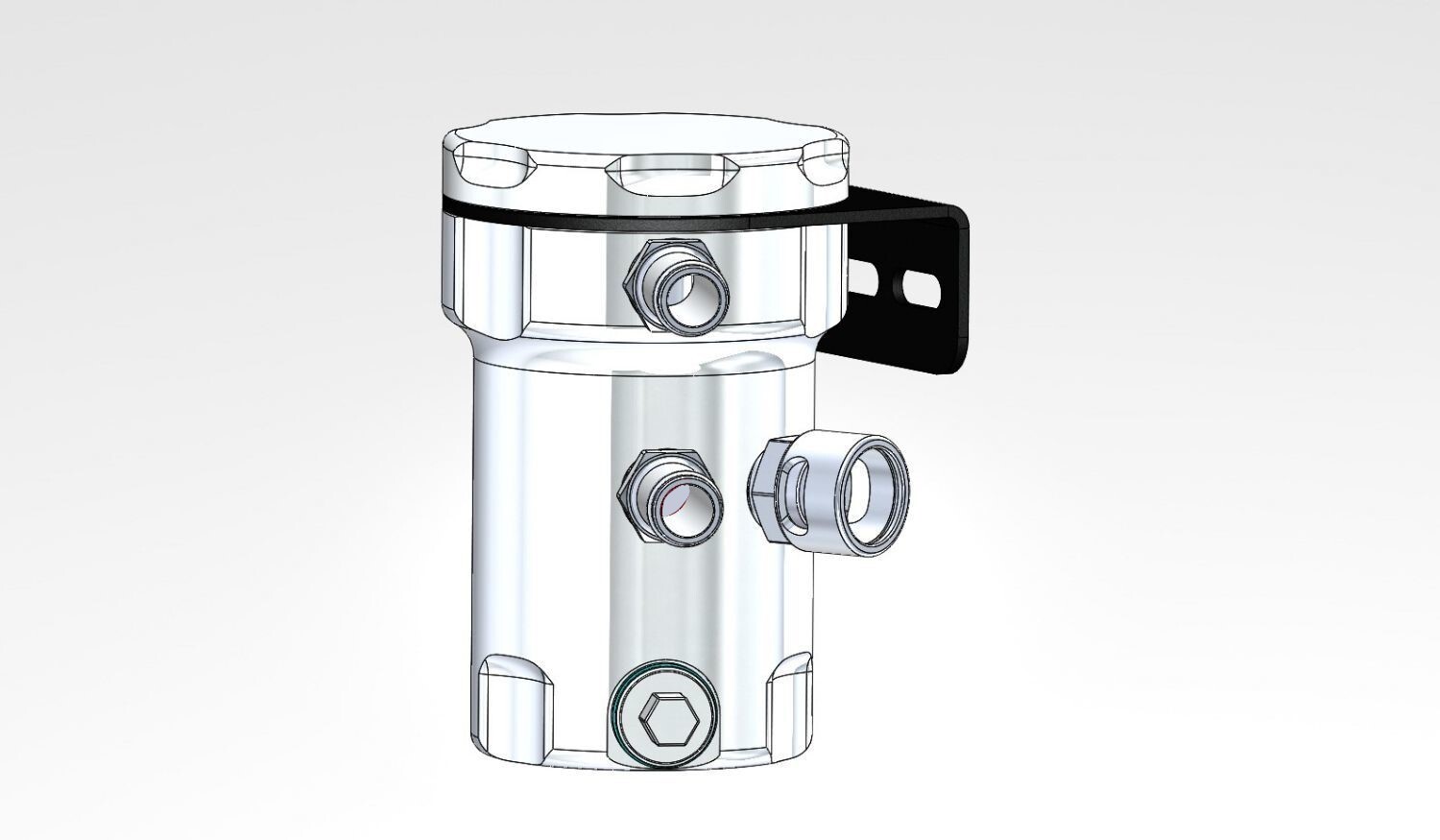

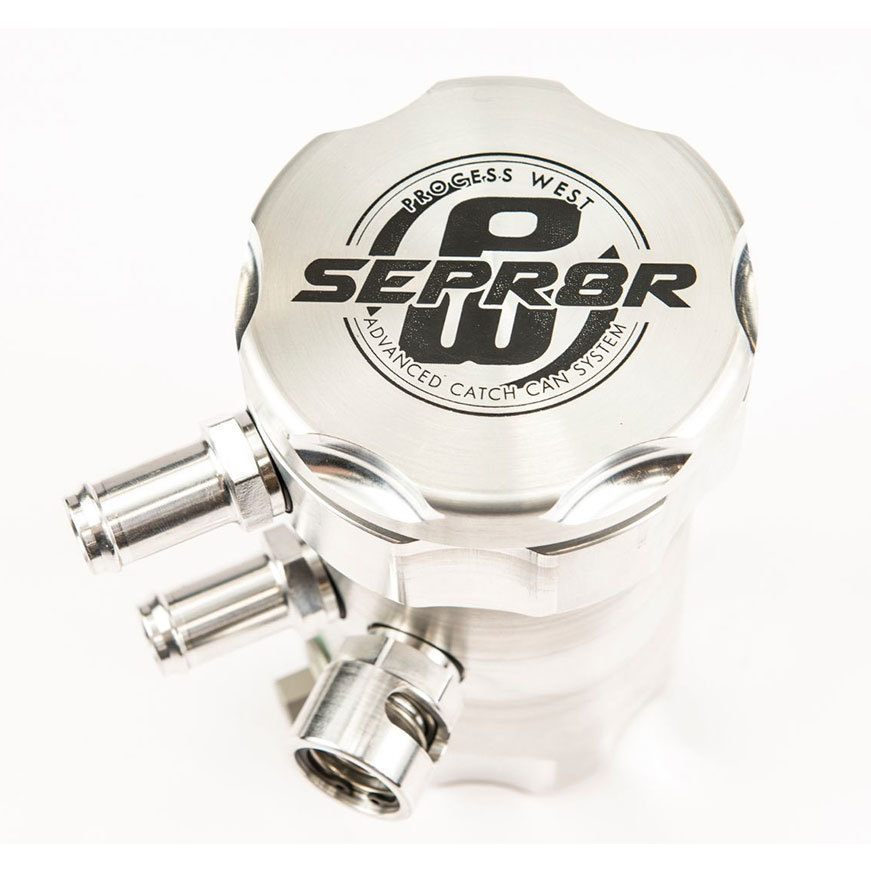

Terratuff SEPR8R Oil Catch Can - Universal

Inlet manifold pollution is the enemy of any diesel engine, particularly the Common Rail high efficiency engines that make up the majority of current 4x4s. To counter this Process West have developed the TERRATUFF SEPR8R, an advanced catch can system for your 4x4 that uses state of the art industrial filtration methods and integrates them into a seamless and properly engineered kit that will bolt directly to your 4x4.

Specs:

• Billet Aluminium Construction
• High flow internal filter system
• Washable filter system
• No ongoing costs after fitment (no need to purchase replacement filters)

Suits:

• Universal Application

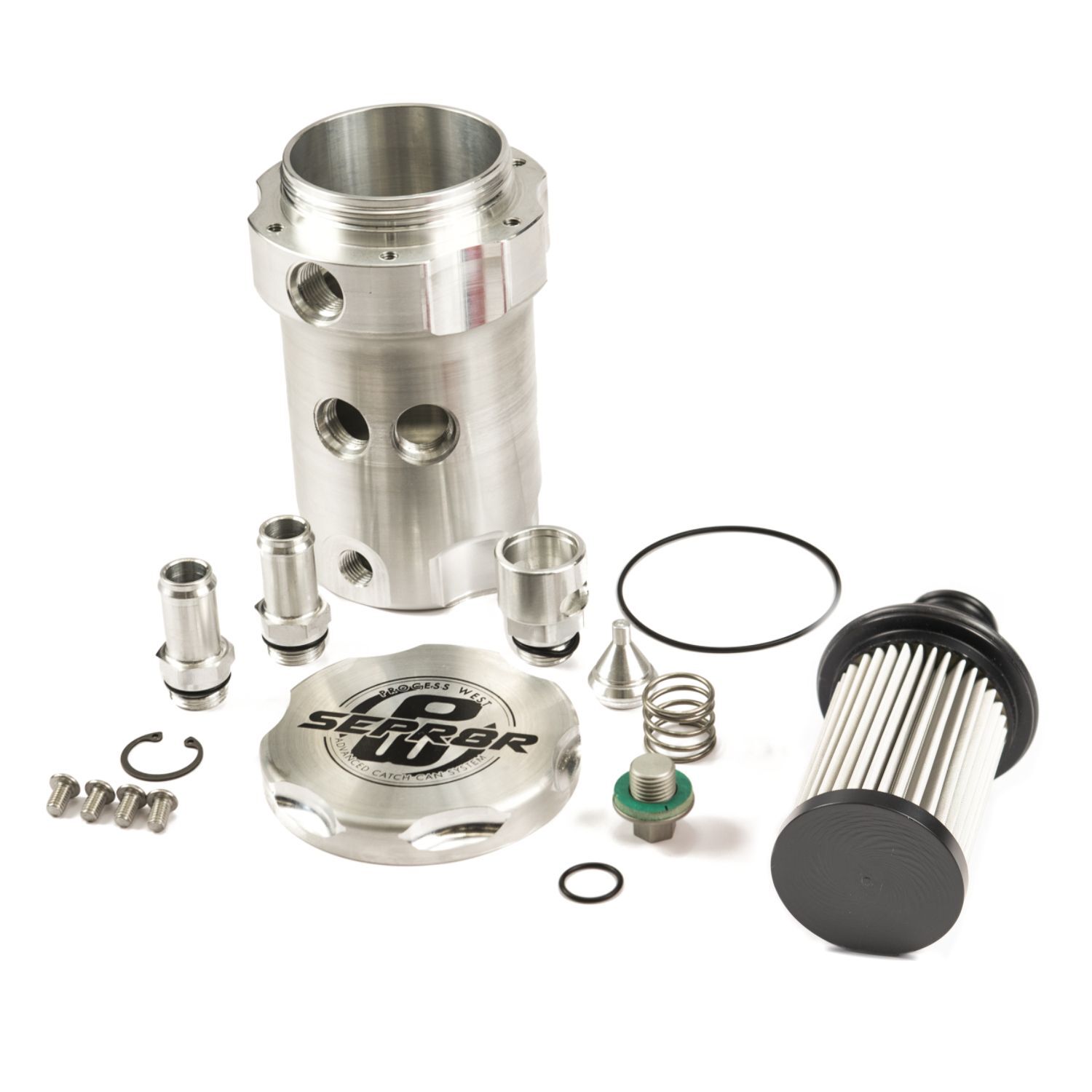

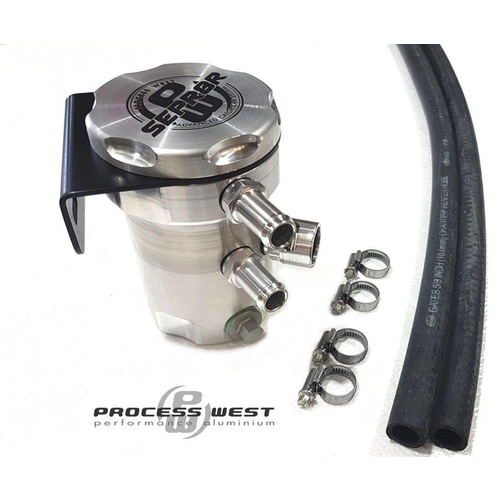

Included:

• Terratuff SEPR8R Billet Universal Catch Can with Washable filter & All Fittings
• Terratuff Universal Bracket Kit
• Hose, Clamps & Fittings

TERRATUFF SEPR8R Design Philosophy

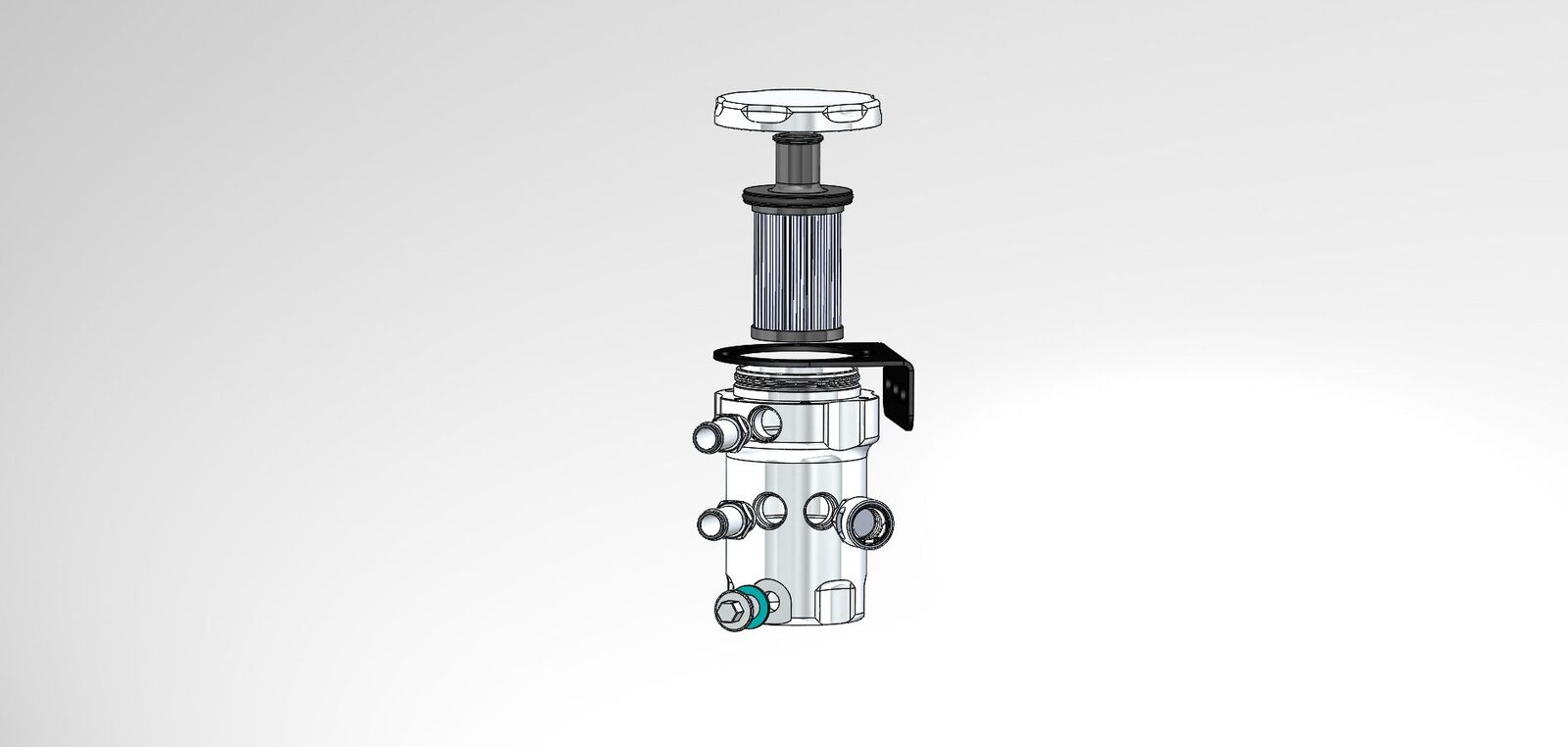

The heart of the Process West SEPR8R system is a uniquely designed Catch Can with a sophisticated internal filtration system that takes the oil polluted air coming from the rocker cover of your diesel and scrubs the oil mist from it before the gas then goes back into the inlet manifold. From the factory this 'air cleaning' doesn't take place, so the oil that comes out of the rocker cover ends up filling the intercooler and inlet system resulting in both reduced performance and economy over time.

TERRATUFF SEPR8R Technical Specifications

TERRATUFF SEPR8R offers the following features

• Manufactured from Billet Aluminium with removable lid and filtration assembly of 650ml capacity
• Over Pressure relief valve incorporated to prevent system malfunction in the case of blockage
• Drain port incorporated into main housing with optional drain valve available
• Unique Washable filtration system that is anti-clog and also washable/reusable with low restriction filtering
• Laser cut bracket
• High quality clamps and mounting hardware
• Installation instructions included
