TJM 4X4 Equipped Pro Series Fascia Panel Kit

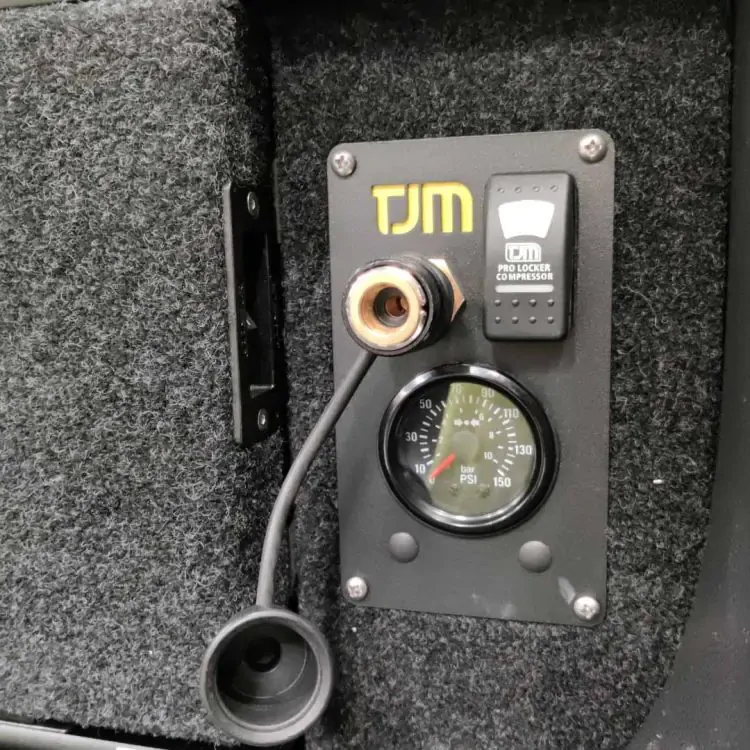

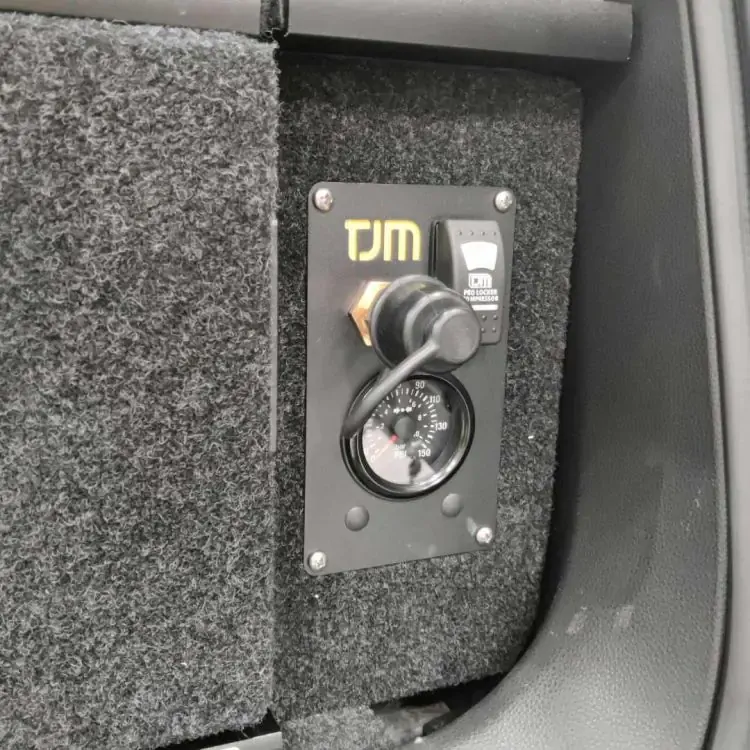

The TJM Pro Series Fascia Panel Kit lets you mount a pneumatic outlet and pressure gauge away from the compressor for easier access and monitoring. It includes a range of fittings, tubing and mounting hardware to connect and route your pneumatic system.

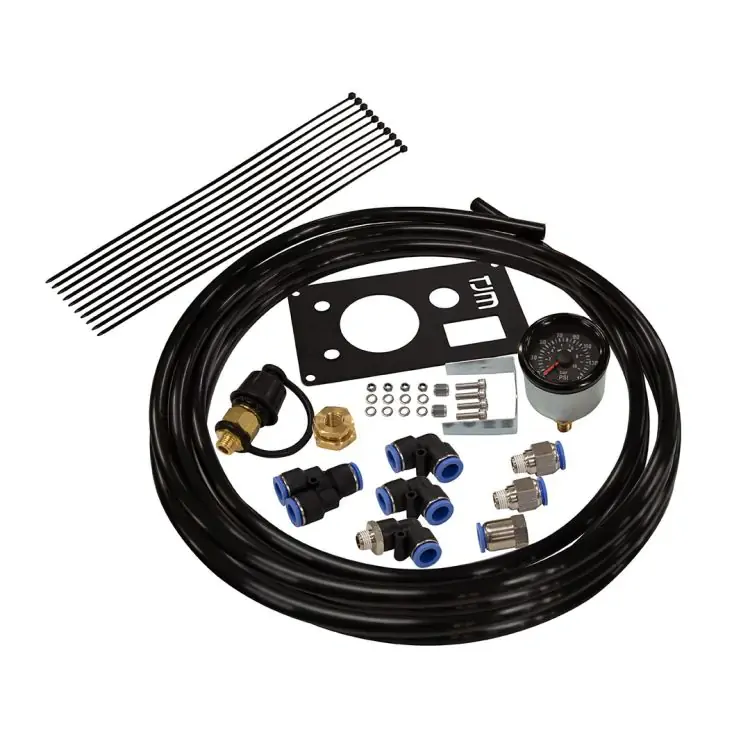

Features

• Nitto female one-touch quick connect fitting, 1/4" BSPT thread
• Bulkhead fitting, 1/4" BSPP
• 2 x straight male 1/4" BSPT push-in fittings, 12mm OD
• 90 degree push-in fitting elbow, 1/4" BSPT, 12mm OD
• 2 x 90 degree push-in elbows (both ends)
• Push-in Y-union fitting, 12mm OD
• 1/8" NPT female to 12mm push fitting
• Black dust cover for Nitto air fitting
• Analogue pressure gauge 0-150 PSI with mounting kit
• 12mm OD nylon pneumatic tube, length 6 m
• 2 x 8mm blanking plug
• 4 x M5 x 0.8 x 16 Allen head cap screw, stainless steel
• 8 x M5 x 10 x 1.2 washers, stainless steel
• 4 x M5 x 0.8 nyloc nuts, stainless steel
• 10 x cable ties (300 mm)
• Note: rocker switch is not included in the kit.

Specifications

• Weight: 1.0 kg
• Dimensions (L x W x H): 70 mm x 350 mm x 350 mm
• Suits: TJM Pro Series Air Tank, TJM Pro Series Twin Compressor, TJM Pro Series Single Compressor
