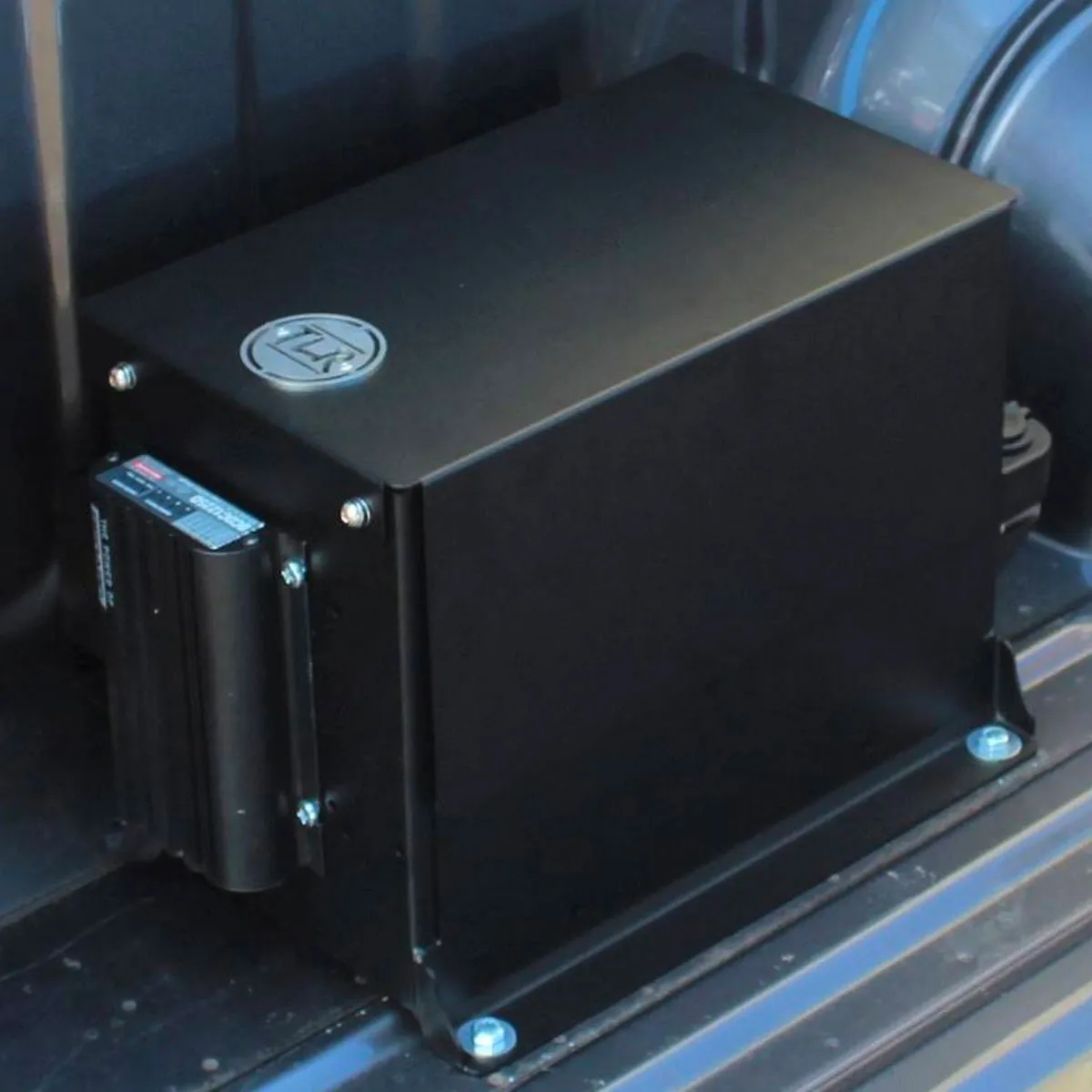

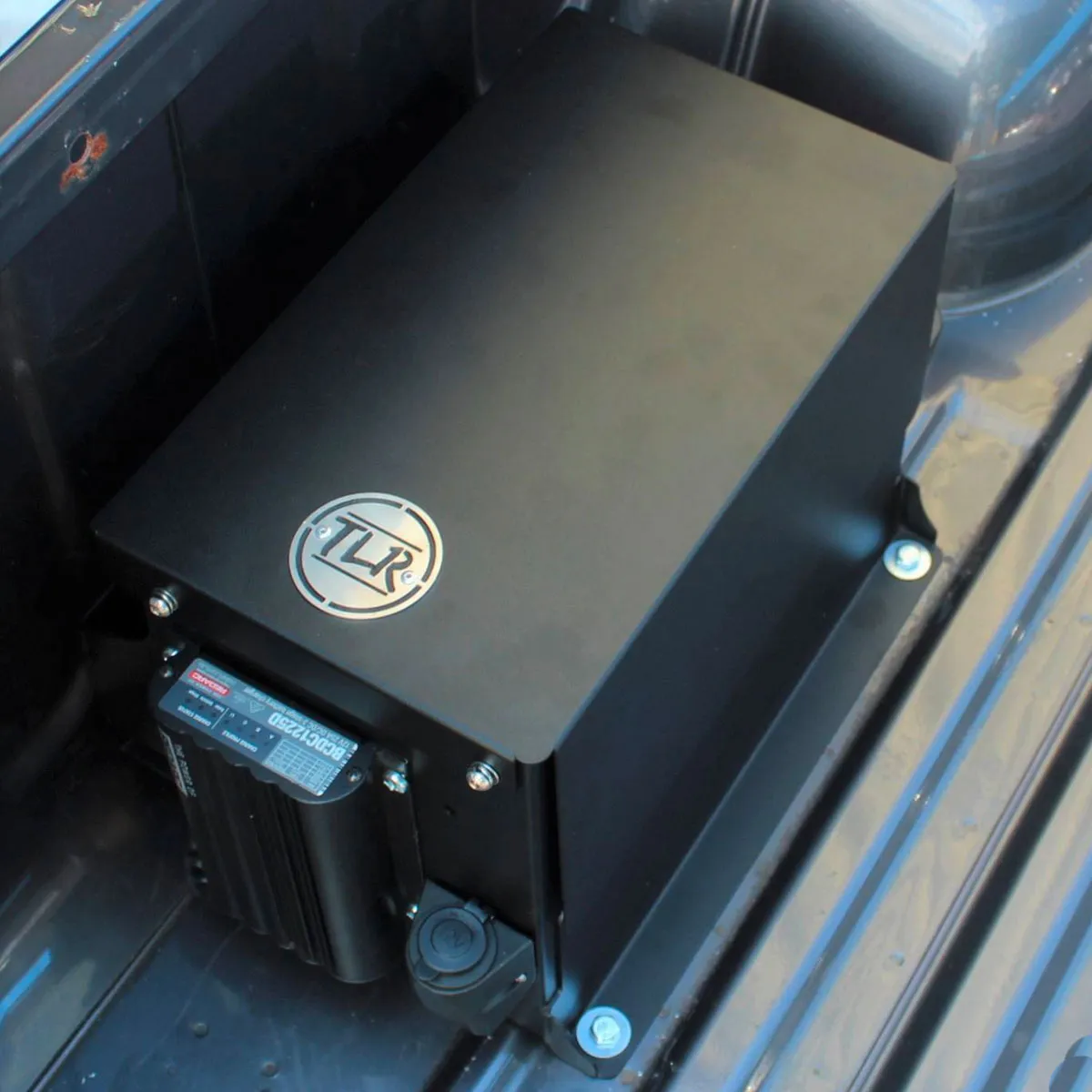

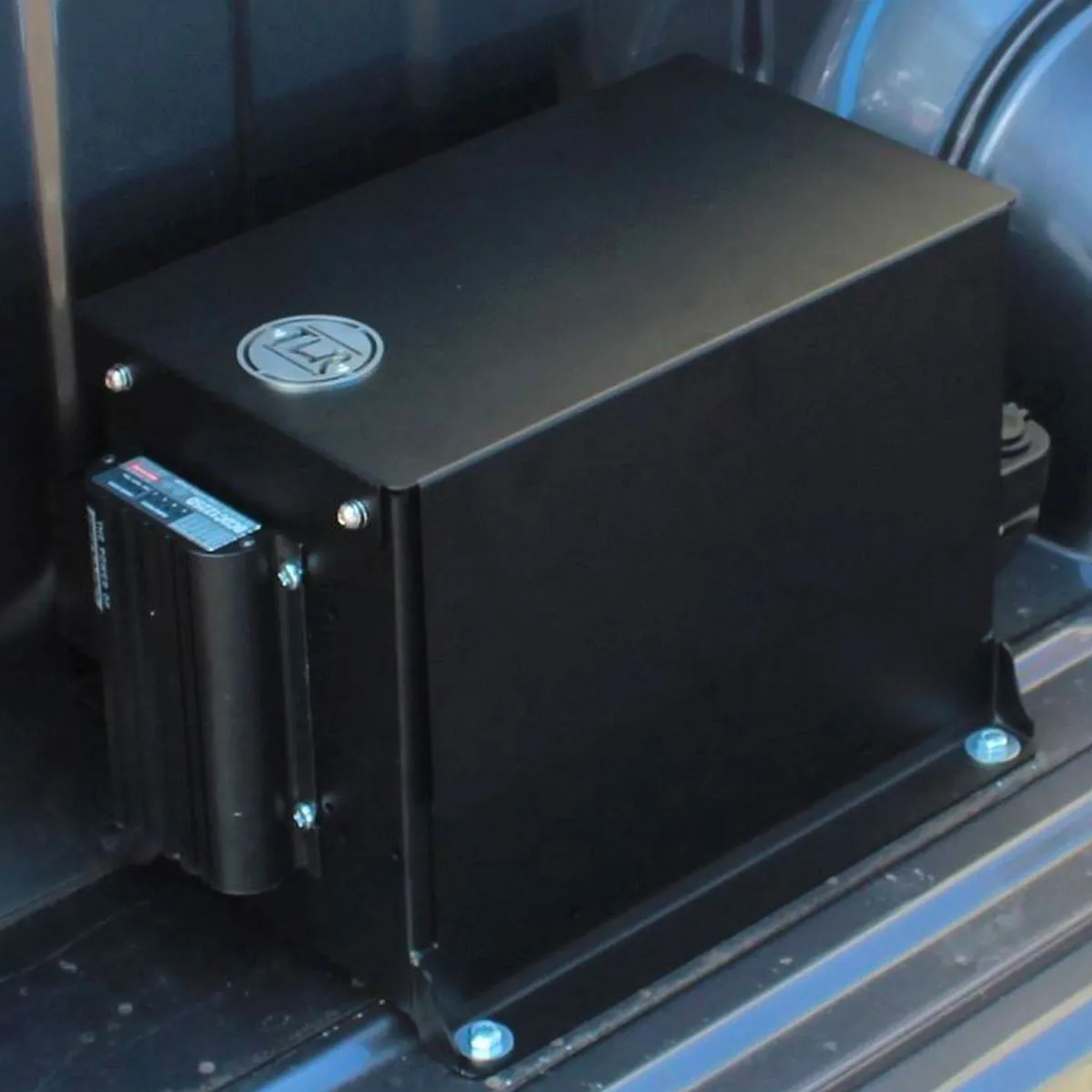

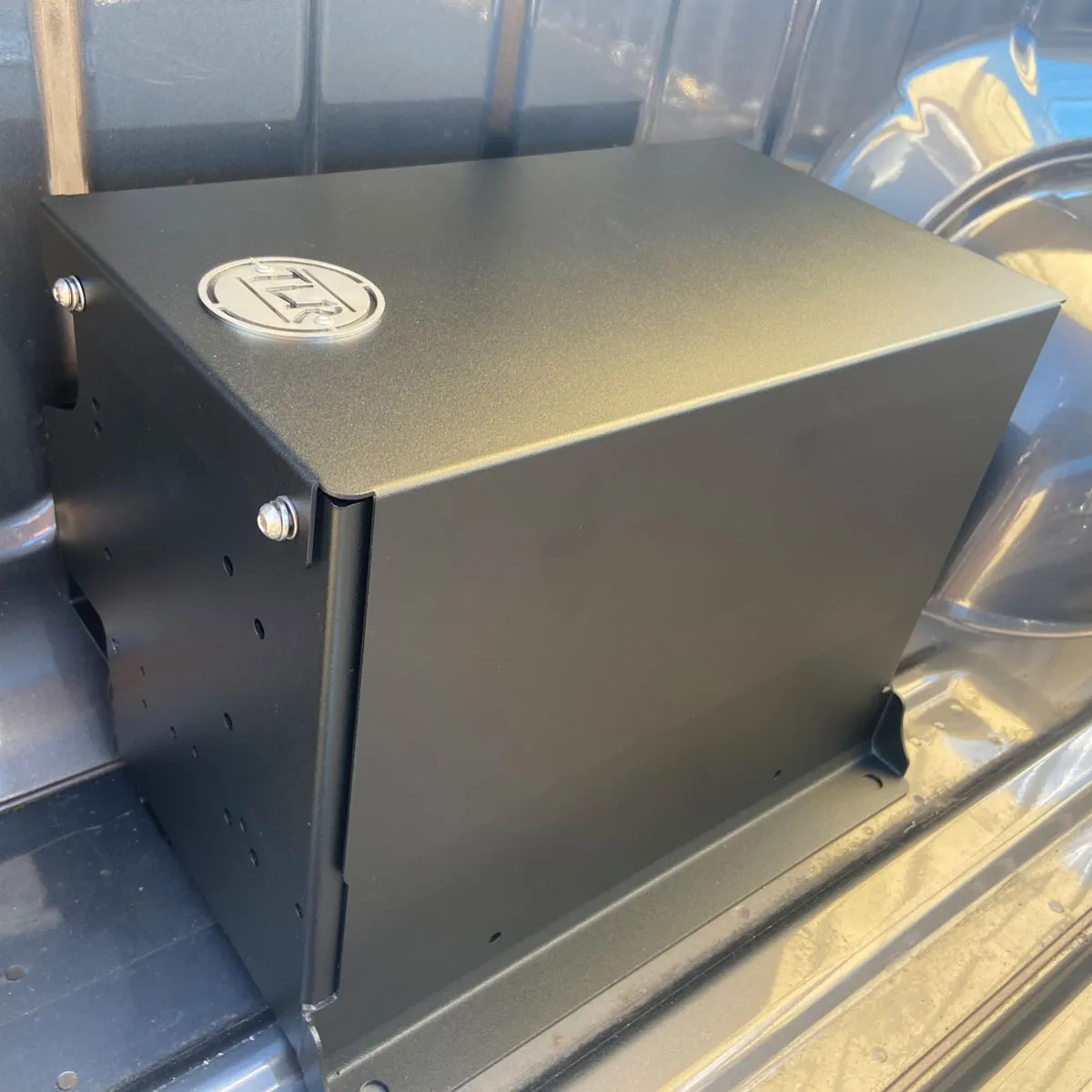

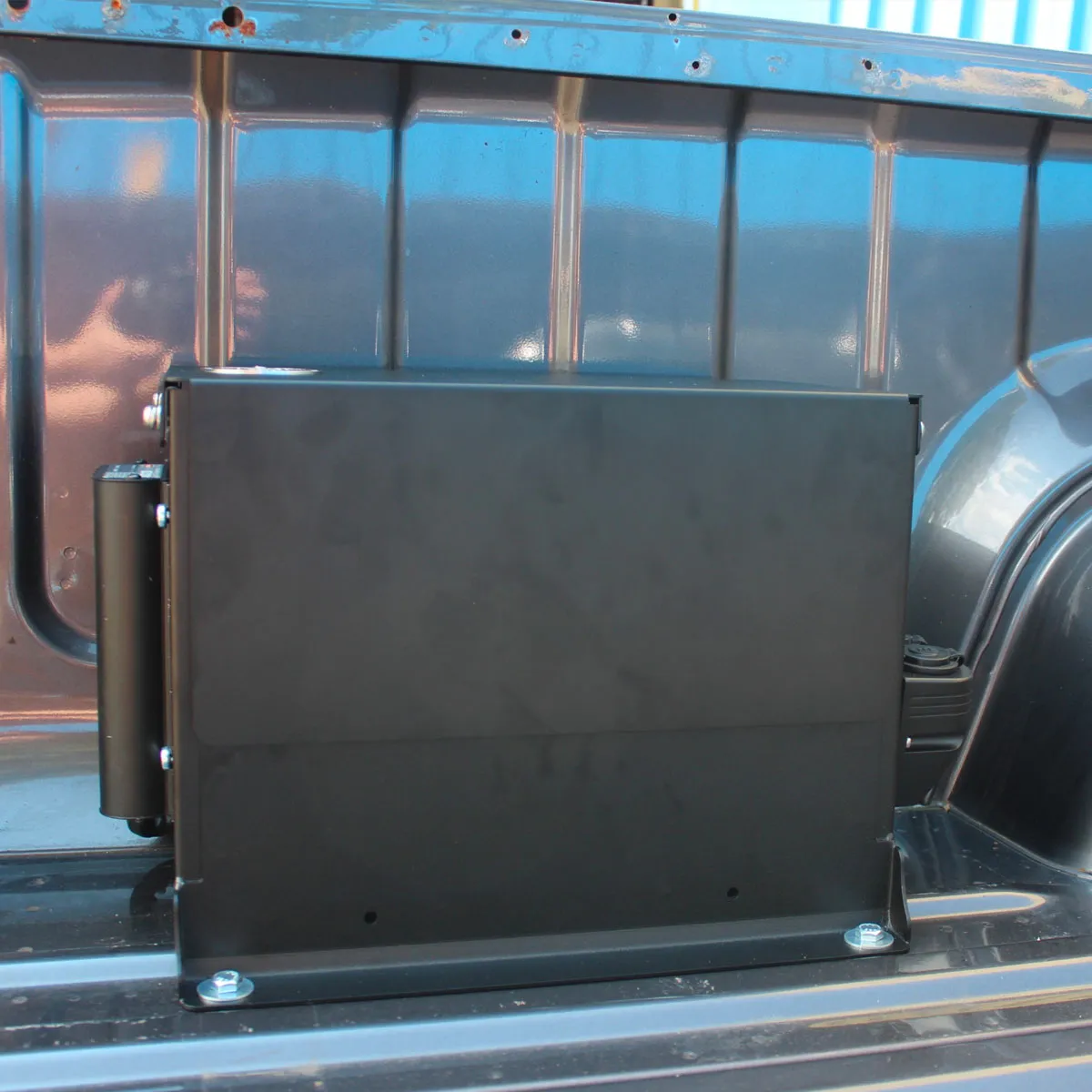

The TLR Products battery box is designed to mount in the rear left-hand side corner of the OEM tub on Toyota Hilux N80 and N90 series (2015 on). It provides a secure, weather-resistant housing for a vehicle battery and accessory fittings.
Features:
- Manufactured from zinc coated 2 mm steel with a 1.5 mm cover panel
- Textured black powder coat finish for added corrosion resistance

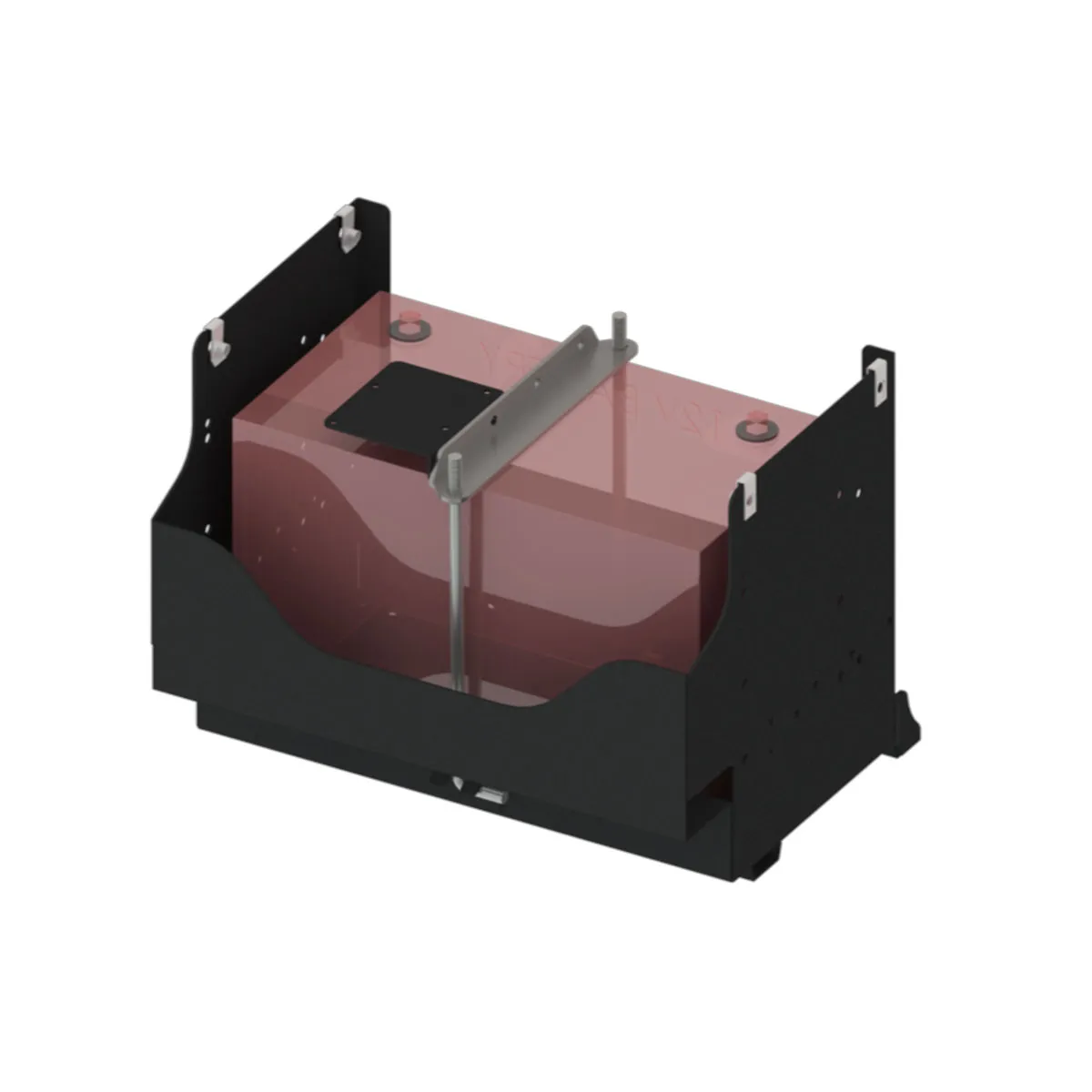

- Accommodates most 120Ah batteries

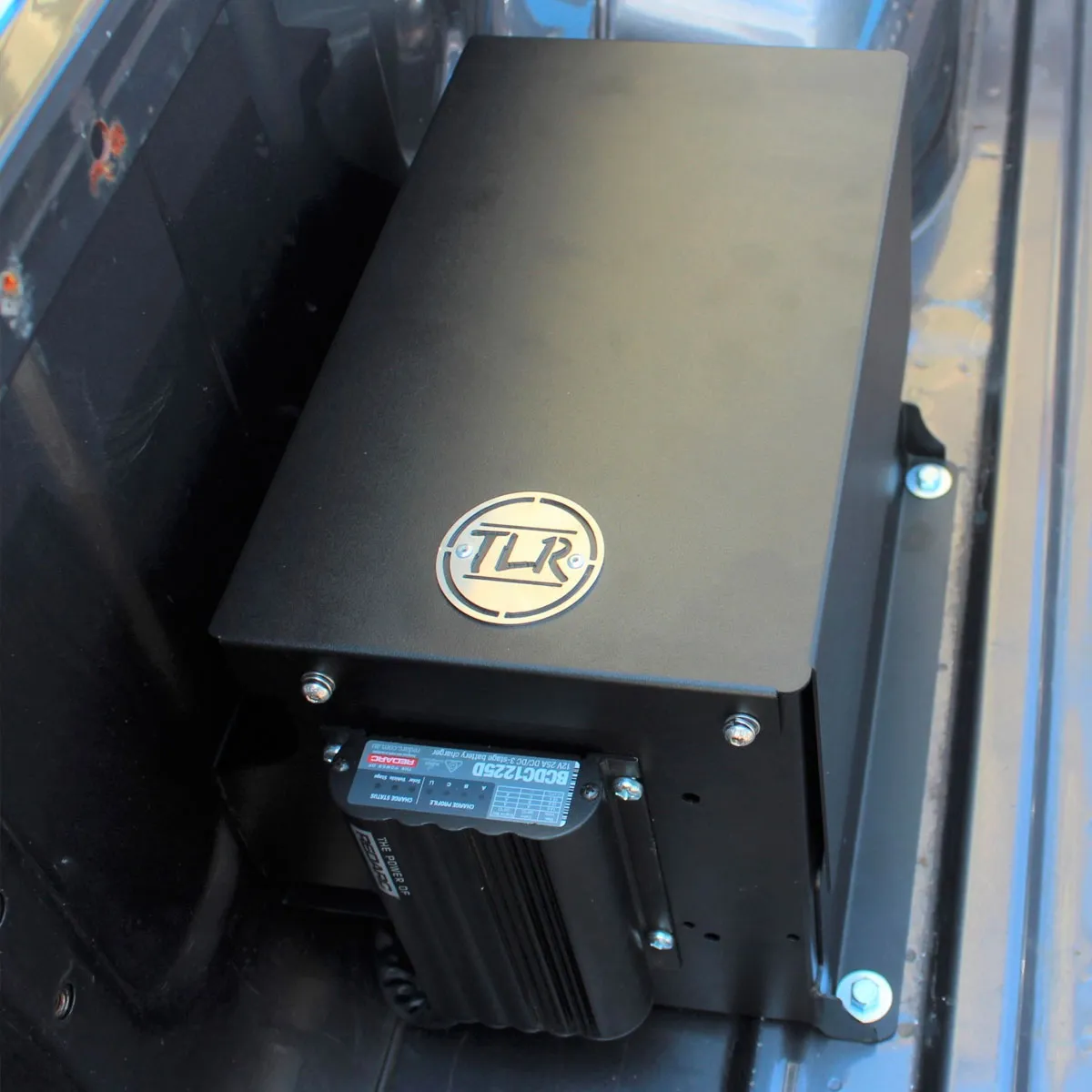

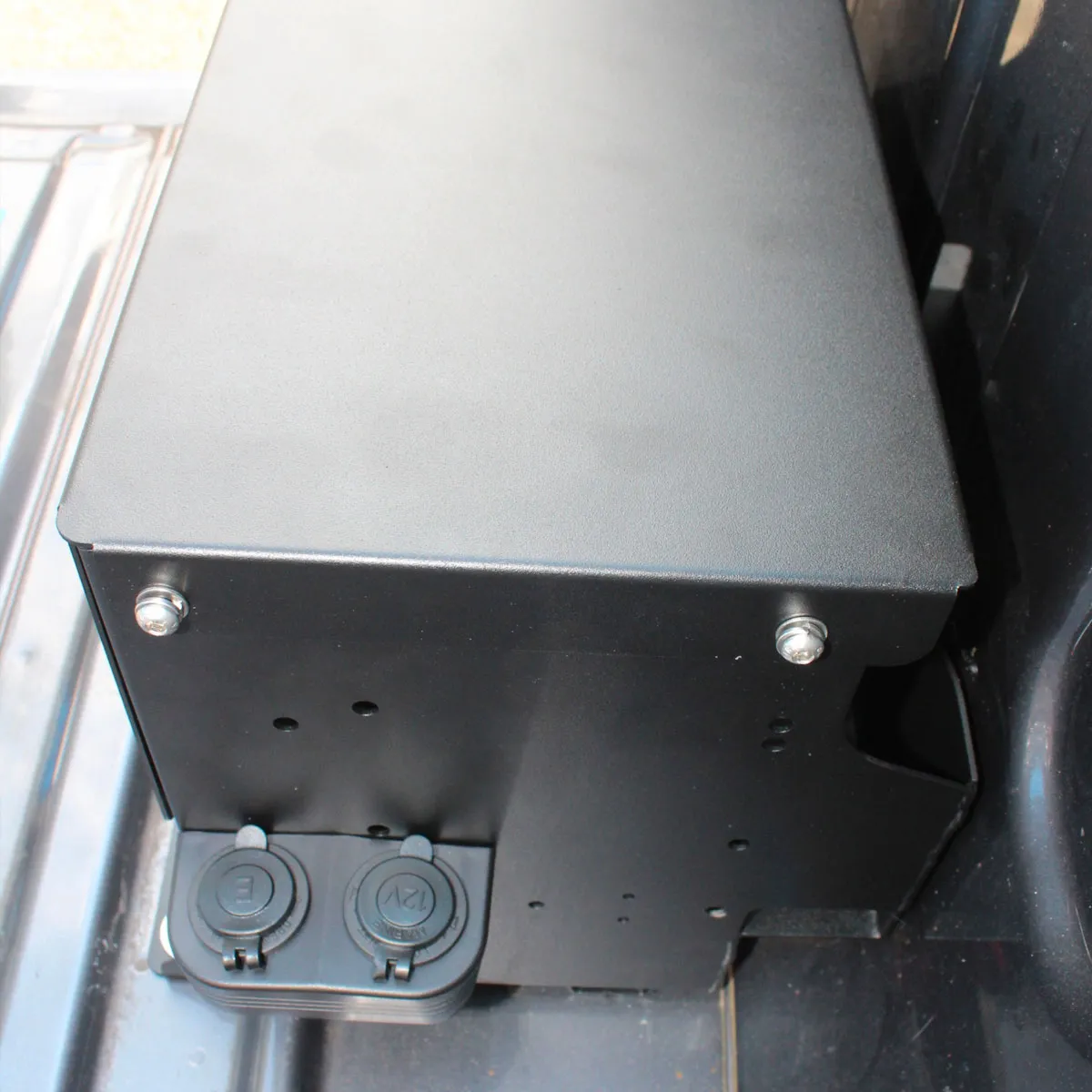

- Multiple mounting locations for REDARC BCDC, midi fuse, Anderson plugs and 12V power outlets
- Compatible with most popular drawer units on the market
Suits:
- Toyota Hilux N80 2015-on
- Toyota Hilux N90 2015-on
(TLR791401)
| Material | Zinc coated 2 mm steel |
|---|---|
| Cover panel thickness | 1.5 mm |
| Finish | Textured black powder coat |
| Internal dimensions | 345 x 166 x 255 mm |
| External dimensions | 540 × 300 × 320 mm |
| Battery capacity | Accommodates most 120AH batteries |
| Warranty | 3 years |
| Estimated fitting time | 30 mins (additional time required if vehicle has plastic tub liner installed) |
| SKU | TLR791401 |
| Model # | TLRBT38 |
| Barcode # | 9343983005688 |
| Brand | TLR Products |
| Shipping Weight | 7.5000kg |
