TLR Products Air Compressor Bracket - Suits Toyota Hilux N80/N90 Series

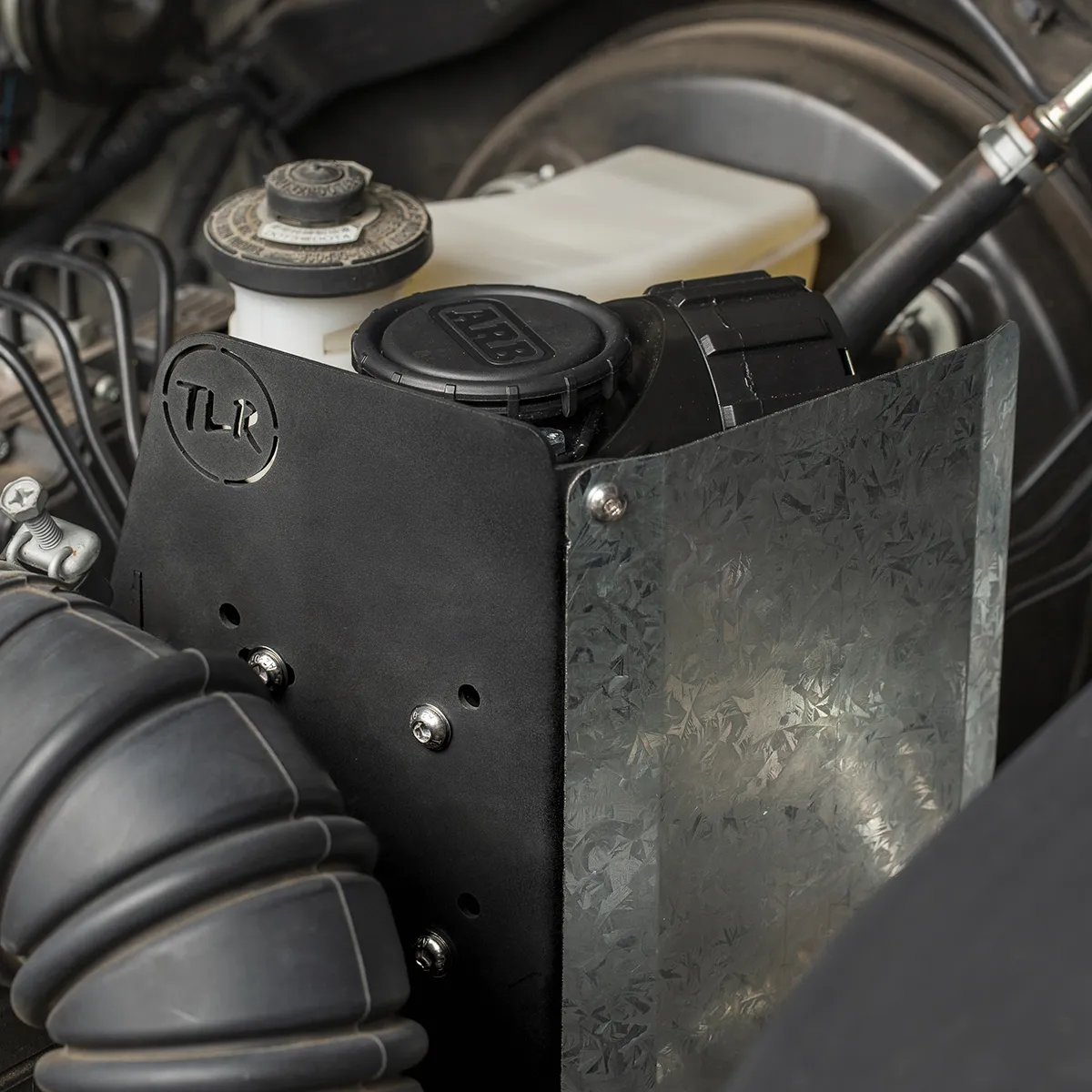

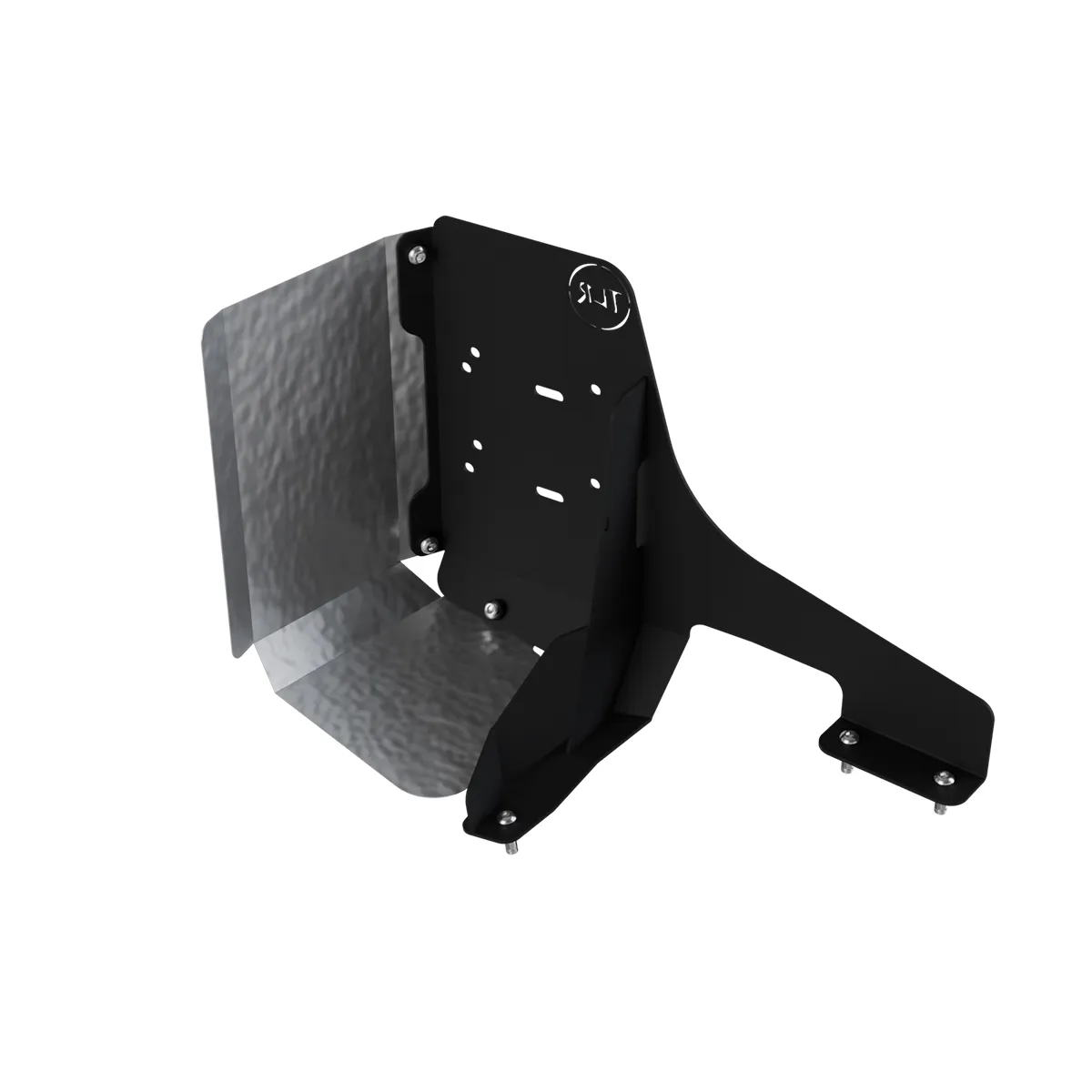

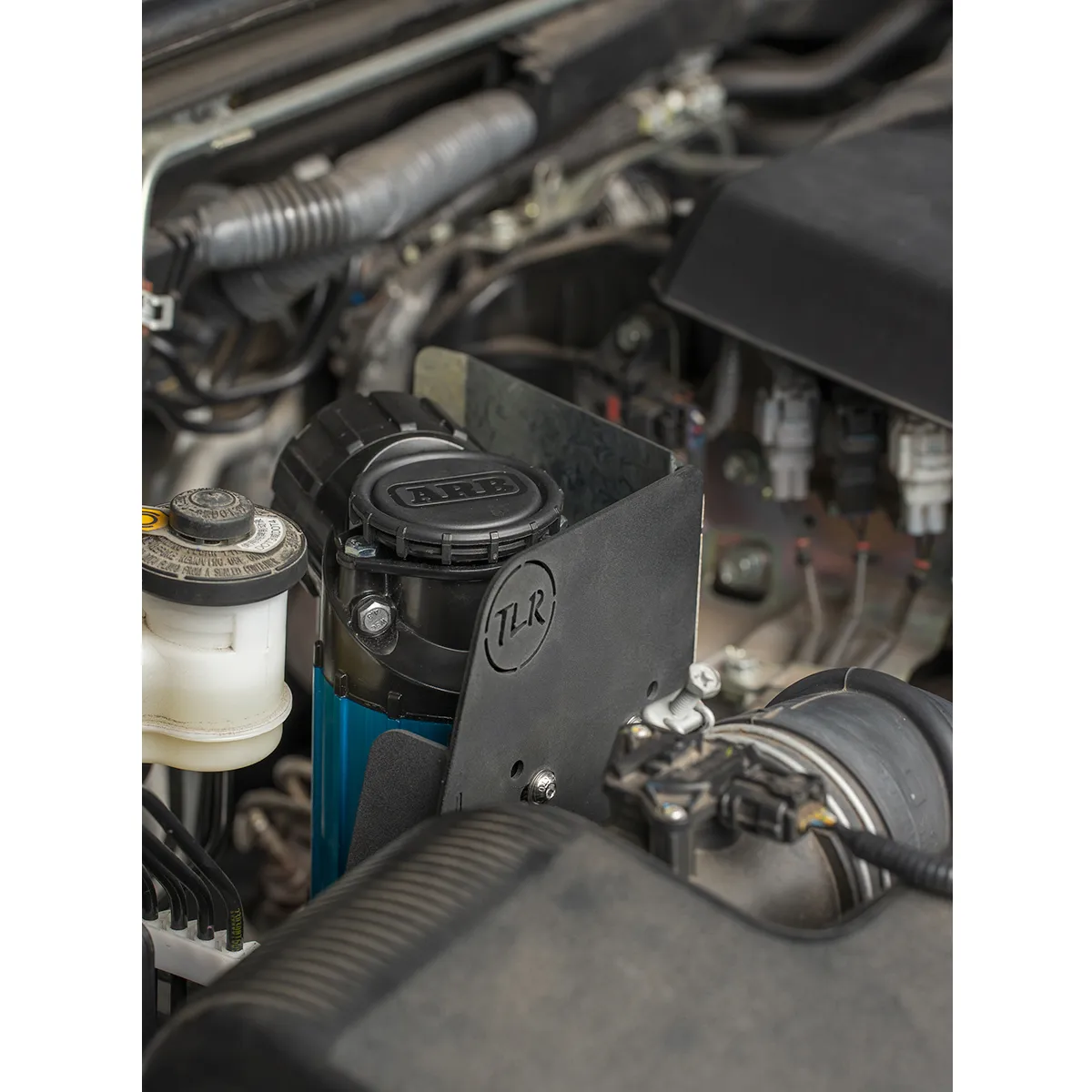

The TLR Products Air Compressor Bracket is designed to fit the Toyota Hilux N80 and N90 Series engine bay and accepts either ARB brushless or brushed single air compressors. The bracket locates on the right-hand side front of the engine bay, uses existing mounting holes and includes an integrated heat shield to deflect DPF heat.

Features:

• Compatible with ARB brushless or brushed single air compressor models.
• Integrated heat shield to reduce heat exposure from the DPF.
• Designed to use pre-existing holes; no drilling of bodywork required.
• Laser cut from zinc-coated 2.00mm steel for strength.
• Powder coated in a black textured finish for corrosion resistance.

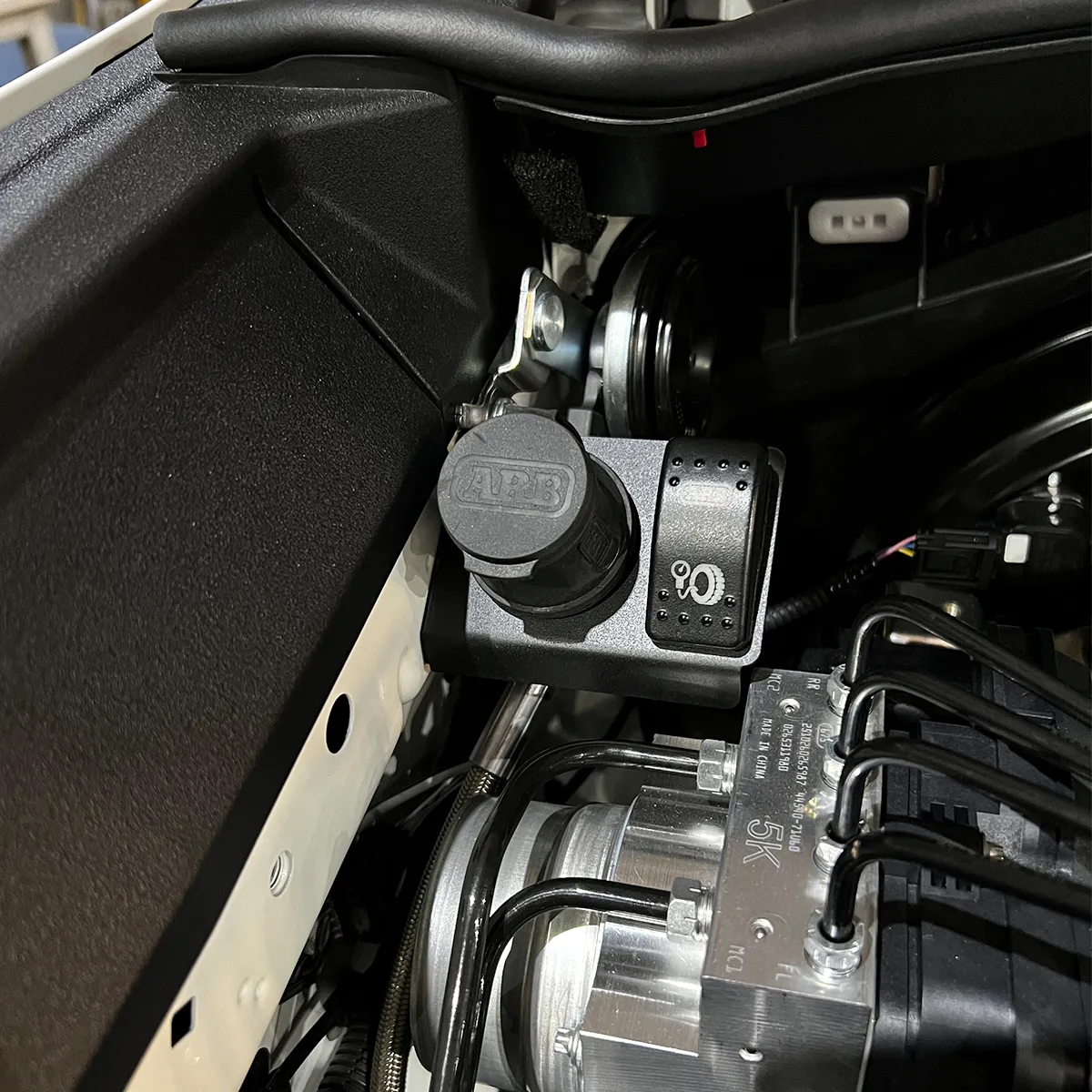

• Includes electrical switch and coupling mount for a neat installation.

Kit Includes:

• TLR681403 TLR Products Compressor Bracket set.
• Fitting kit including all hardware and fasteners required for fitment.

Suits:

• Toyota Hilux N80
  • Does not suit N80 48V models due to power steering reservoir location
• Toyota Hilux N90 Series

Additional components required for installation: 1 x ARB single compressor (brushless or brushed), ARB Pump Up Kit (171302V2), ARB 90 degree elbow (0740104), ARB JIC-4 hose coupling (0740111) and ARB reinforced hose 0.5m (0740202). Bracket set only; compressor, fittings and accessories sold separately.
