TLR Products Multi Trailer 3 Plug Bracket - Isuzu MU-X 08-2021-02/2025

The need for additional plugs when towing is increasing with some caravans and large trailers now requiring plugs mounted on the vehicle to power not only the trailer lights but also 12v battery systems, ABS brakes etc.

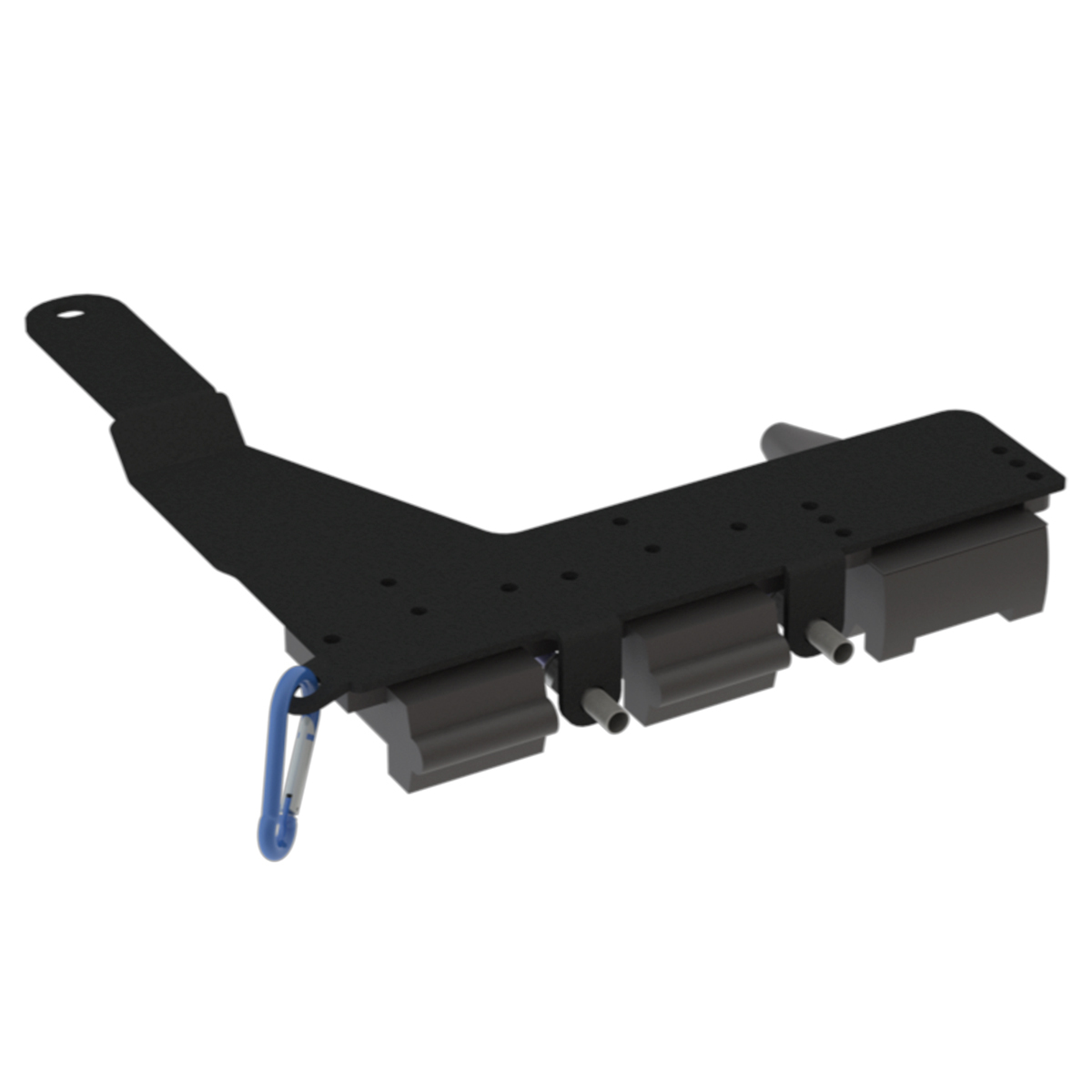

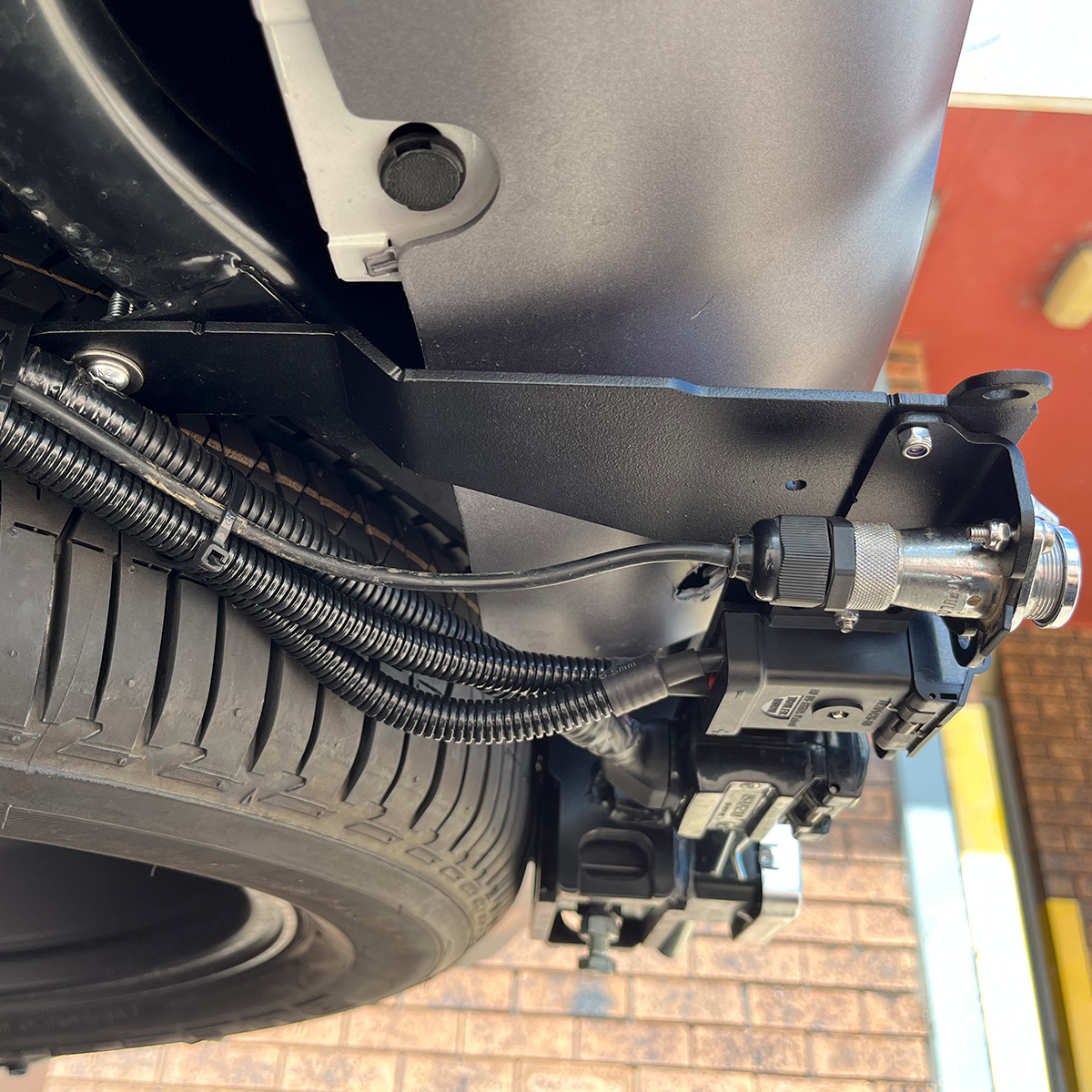

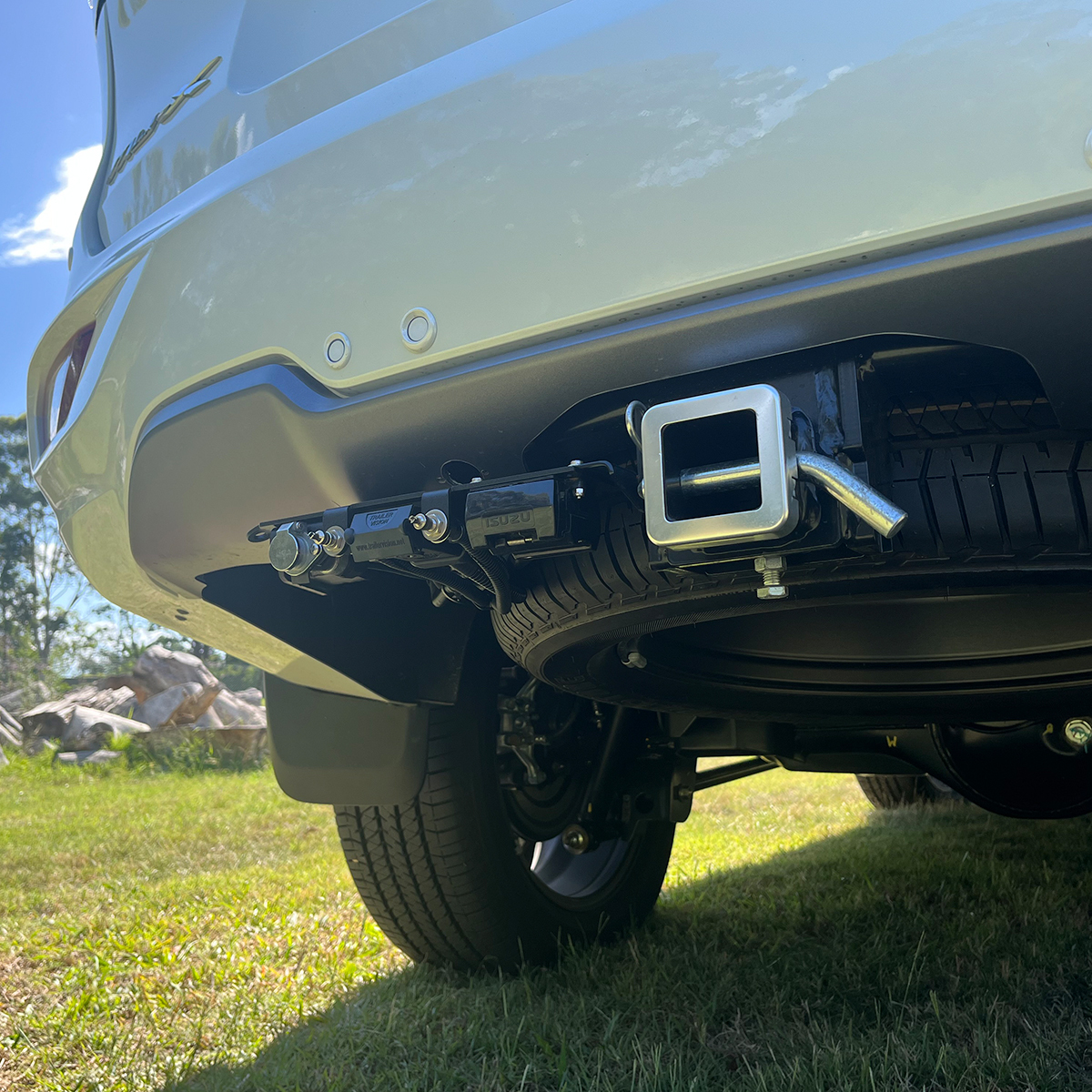

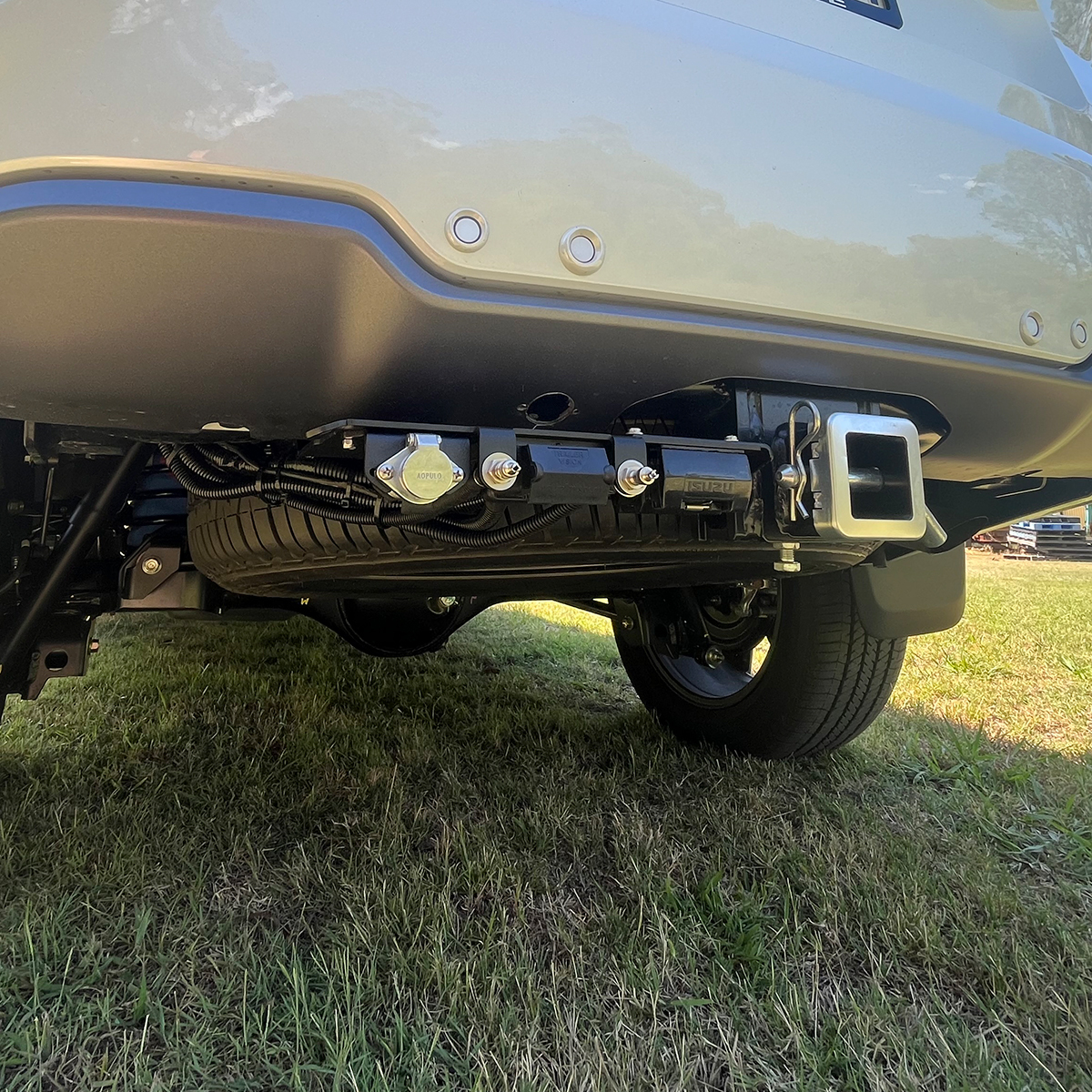

This TLR Products Multi Trailer Plug Bracket is designed to mount to existing mounting bolts located in the OEM trailer plug location and is shaped to the bumper bar of the Isuzu MUX RJ series to create a super neat and secure mounting location for the electrical plugs and connections.

This bracket is a 3-plug bracket which includes a mounting location for:

• 1 x 7 or 12 pin trailer plug.
• 2 x Additional plugs or connections (Anderson plug, Camera plug, Air Compressor Coupling)
• Break away clip location.

Features:

• Laser cut from 3 mm stainless steel.
• Powder coated in a black textured finish for added corrosion resistance.
• Easy fitment mounts to existing mounting bolts.
• Accommodates a 7 or 12 pin trailer plug, up to 2 x Anderson plugs, 1 x Camera plug socket, 2 air bag inlet valves, a breakaway cable location or Air compressor Coupling.

Includes:

• 1 x TLR Products Multi Trailer Plug Bracket
• Fitting kit including all hardware and fasteners required for fitment.

Note:

• Weight: .8 kg
• Dimensions: 230 x 265 x 50 mm
• Warranty: 3 years
• Fitting time: 30 mins
• Designed to suit the OEM towbar.
• Plugs and accessories are sold separately.
