Tough Dog TD-R Pro 40mm Lift Kit - Next Gen Ford Everest UB 05/2022-On

Ready to take control of any road, any track, and any challenge?  Tough Dog’s TD-R Pro Series remote reservoir shock absorbers have you covered.

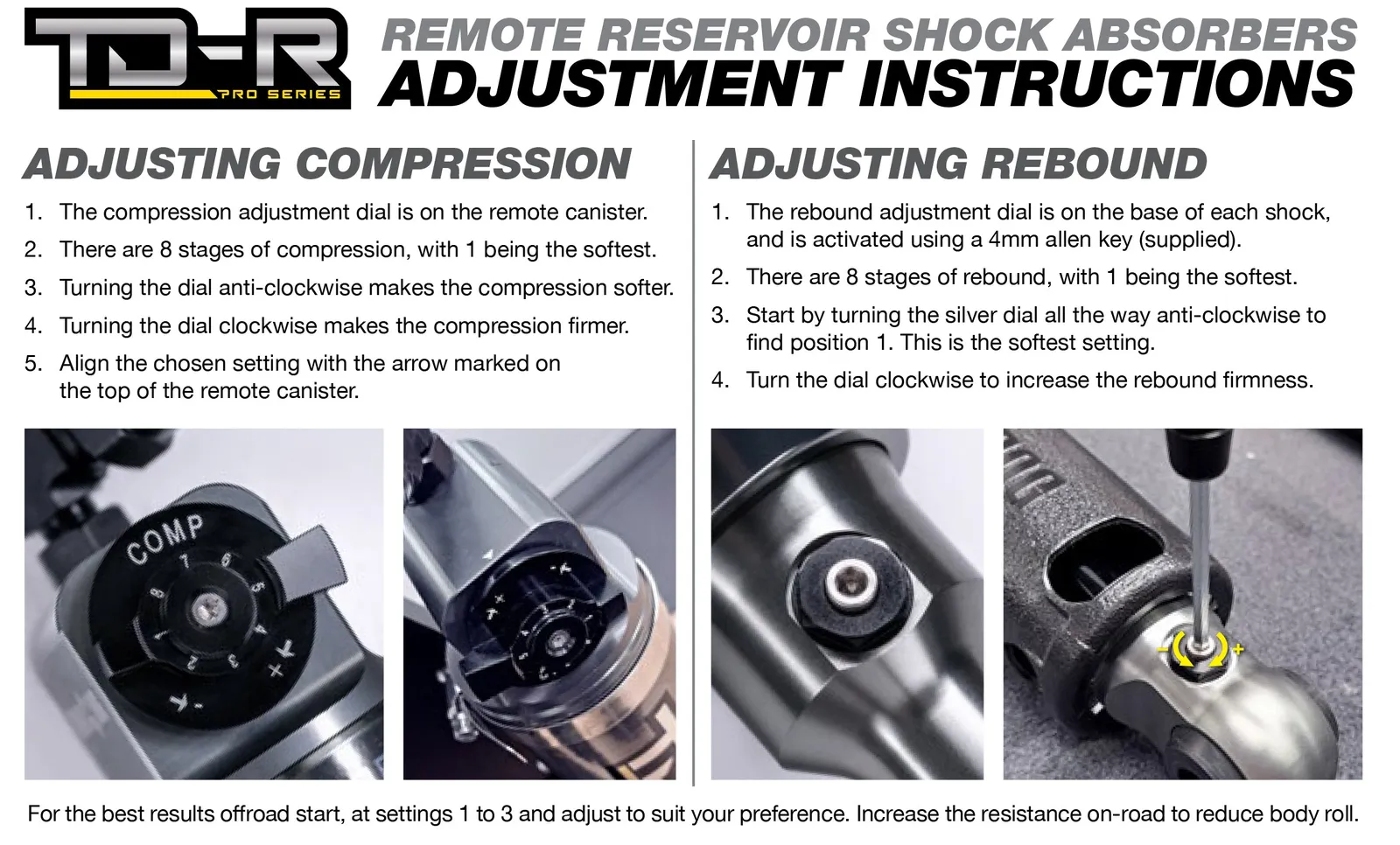

TD-R Pro Series lets you dial in your ride with 8-stage rebound and 8-stage compression adjustment.

Whether you’re loaded with gear or facing changing terrain, you can fine-tune your setup on the fly for ultimate control.

Fully rebuildable and backed by a 3-year, 100,000km warranty

Feel the difference that’s forged in the dirt, built for the extremes, and tuned to perform.

TD-R Pro Series by Tough Dog - race-bred performance that’s ready to take you further!

Heat build-up leads to shock fade - a surefire way to lose control when it matters most. TD-R Pro Series is built to handle the pressure with superior cooling, precision response, and unmatched durability.

More oil. More travel. More control. The monotube design delivers maximum movement through the valving piston, boosting wheel travel, keeping shocks cooler, and providing performance you can feel.

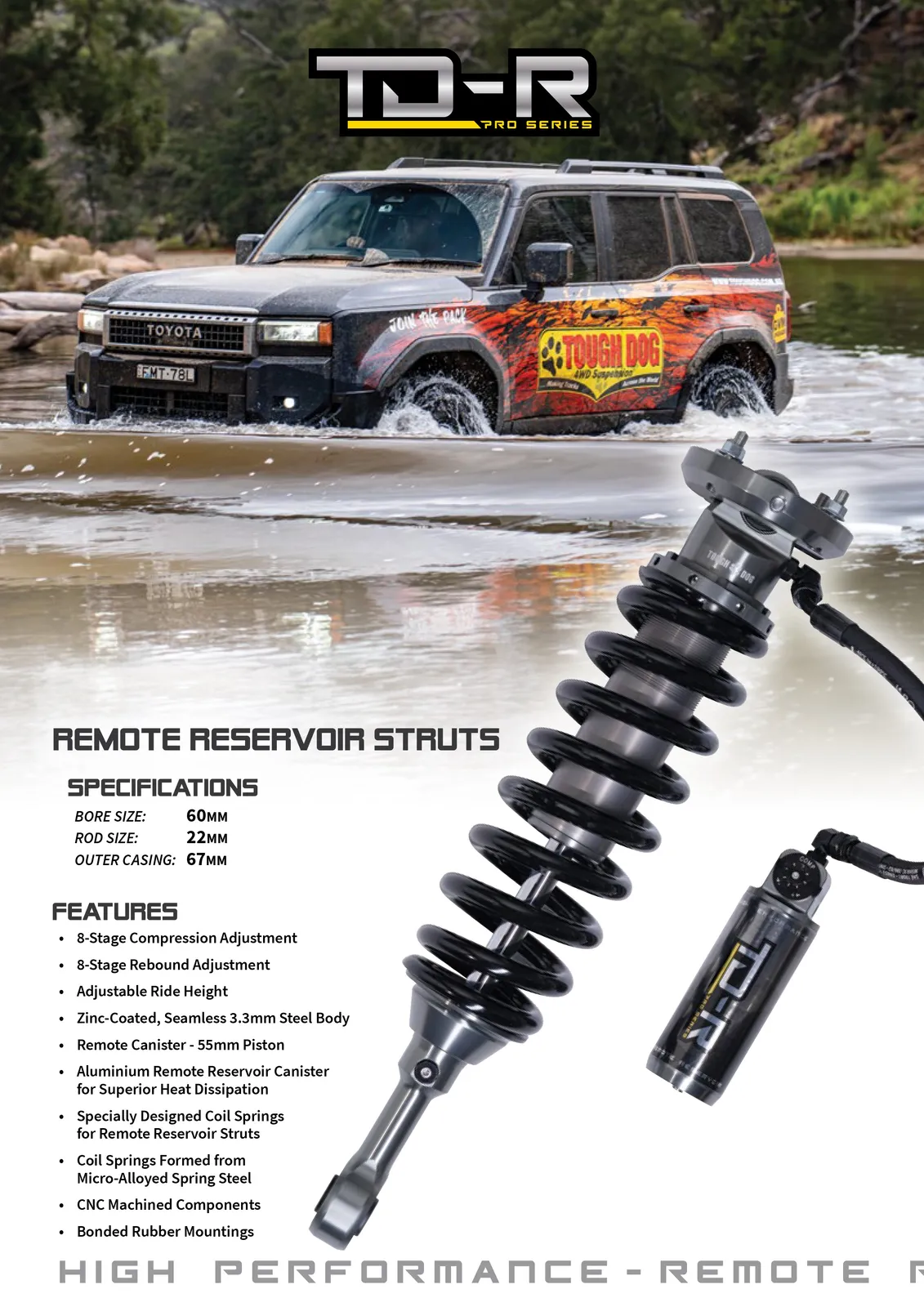

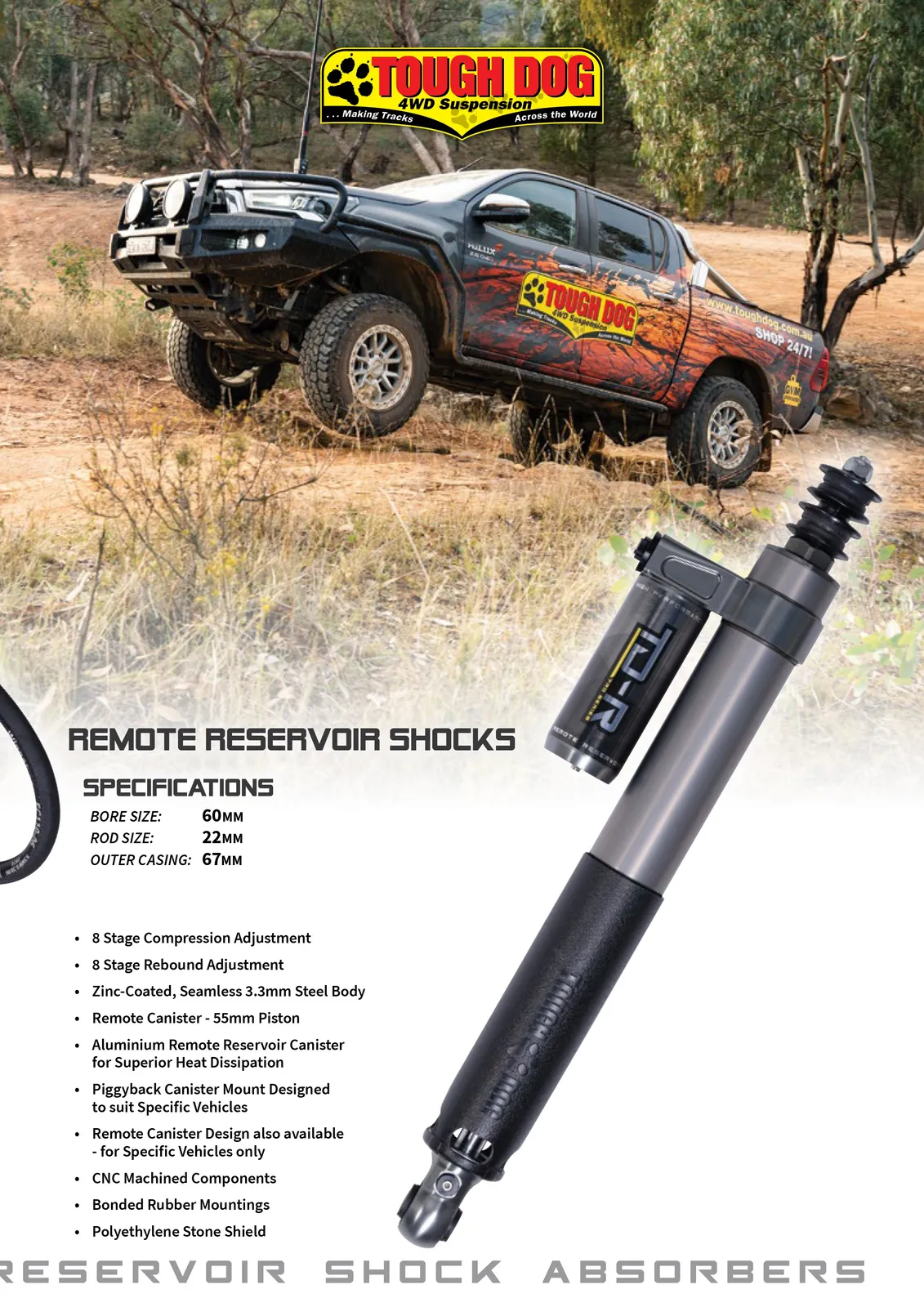

With a 60mm high-flow race piston, 67mm diameter steel body, CNC-machined components, and a 22mm chrome piston rod protected by a 360º rugged stone shield, this is serious hardware built to take serious punishment.

The threaded body also allows precise ride height adjustment to suit your specific vehicle setup. And with an inverted design to reduce unsprung weight, you get faster suspension response and a smoother, more controlled ride - on and off the road.

Note:

• The factory fitted, position-sensitive Bilstein® Dampers system in TREMOR models will be removed when the front and rear shocks are replaced with Tough Dog Suspension. Tremor models may gain an additional lift over factory.

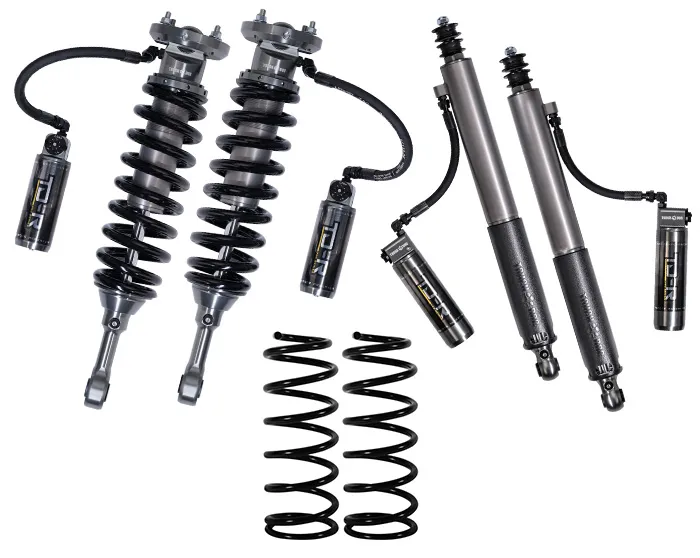

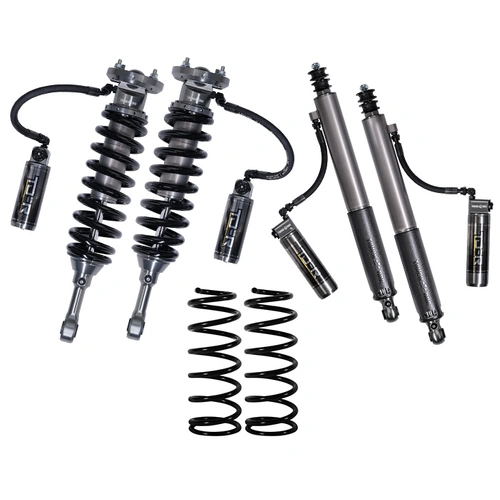

Kit Includes:

• Front Tough Dog TDR Remote Res Struts
• Front Tough Dog raised coils
• Rear Tough Dog raised coils
• Rear Tough Dog TDR Remote Res Shocks
• Rear sway bar extension bracket kit

Suits:

• Next Gen Ford Everest UB 05/2022-On
• The factory fitted, position-sensitive Bilstein® Dampers system in TREMOR models will be removed when the front and rear shocks are replaced with Tough Dog Suspension. Tremor models may gain an additional lift over factory.

Important Notes for setting up your Vehicle Correctly:

• When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
• Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
• Please do not put Occasional Loads into your "Constant" Load determinations.
• Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

• All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.
• Estimated Lift Height 40mm
