Tough Dog TD-R Pro 45mm Suspension Lift Kit - Gen2 Volkswagen Amarok 04/2023-On

Ready to take control of any road, any track, and any challenge?  Tough Dog’s TD-R Pro Series remote reservoir shock absorbers have you covered.

TD-R Pro Series lets you dial in your ride with 8-stage rebound and 8-stage compression adjustment.

Whether you’re loaded with gear or facing changing terrain, you can fine-tune your setup on the fly for ultimate control.

Fully rebuildable and backed by a 3-year, 100,000km warranty

Feel the difference that’s forged in the dirt, built for the extremes, and tuned to perform.

TD-R Pro Series by Tough Dog - race-bred performance that’s ready to take you further!

Heat build-up leads to shock fade - a surefire way to lose control when it matters most. TD-R Pro Series is built to handle the pressure with superior cooling, precision response, and unmatched durability.

More oil. More travel. More control. The monotube design delivers maximum movement through the valving piston, boosting wheel travel, keeping shocks cooler, and providing performance you can feel.

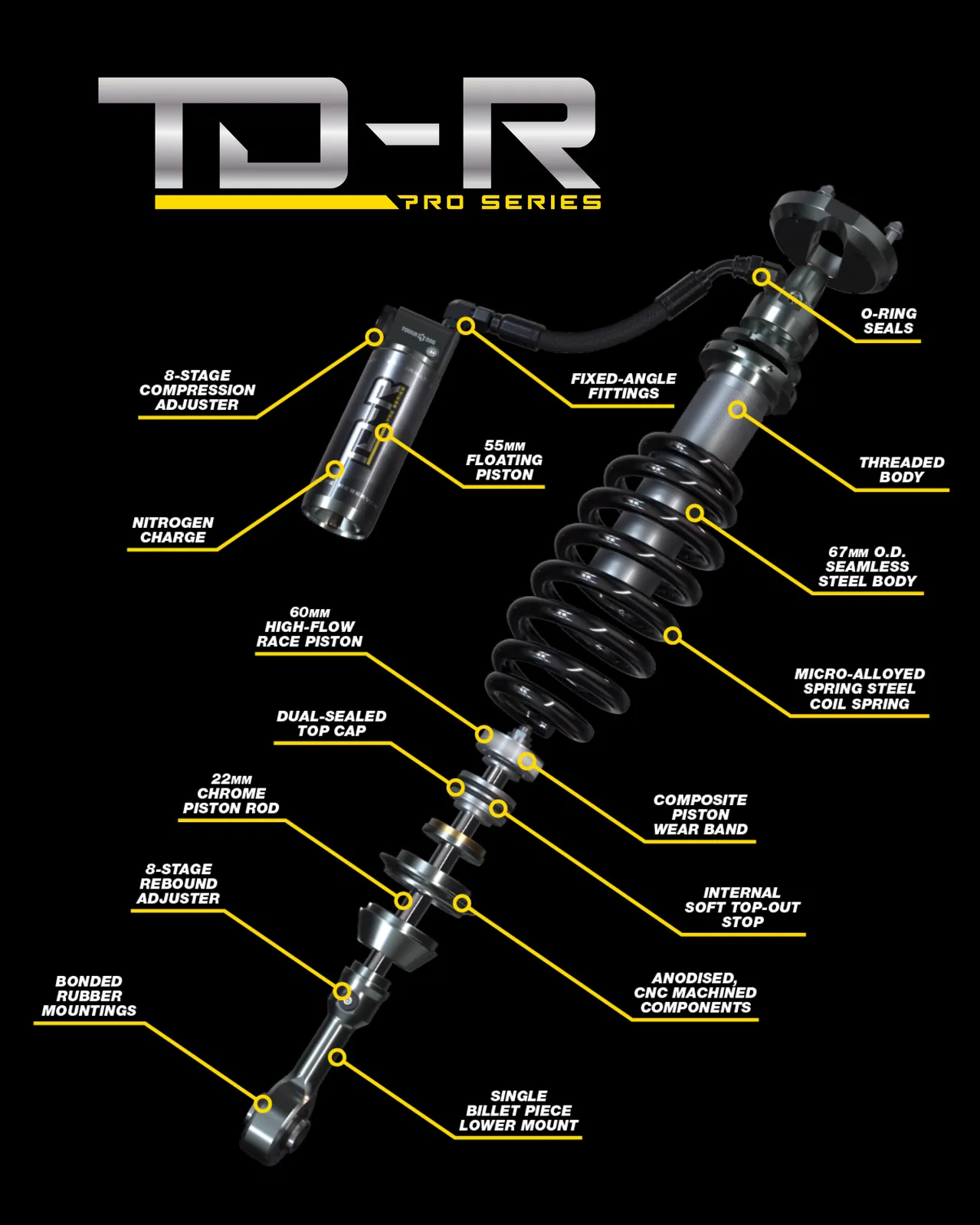

With a 60mm high-flow race piston, 67mm diameter steel body, CNC-machined components, and a 22mm chrome piston rod protected by a 360º rugged stone shield, this is serious hardware built to take serious punishment.

The threaded body also allows precise ride height adjustment to suit your specific vehicle setup. And with an inverted design to reduce unsprung weight, you get faster suspension response and a smoother, more controlled ride - on and off the road.

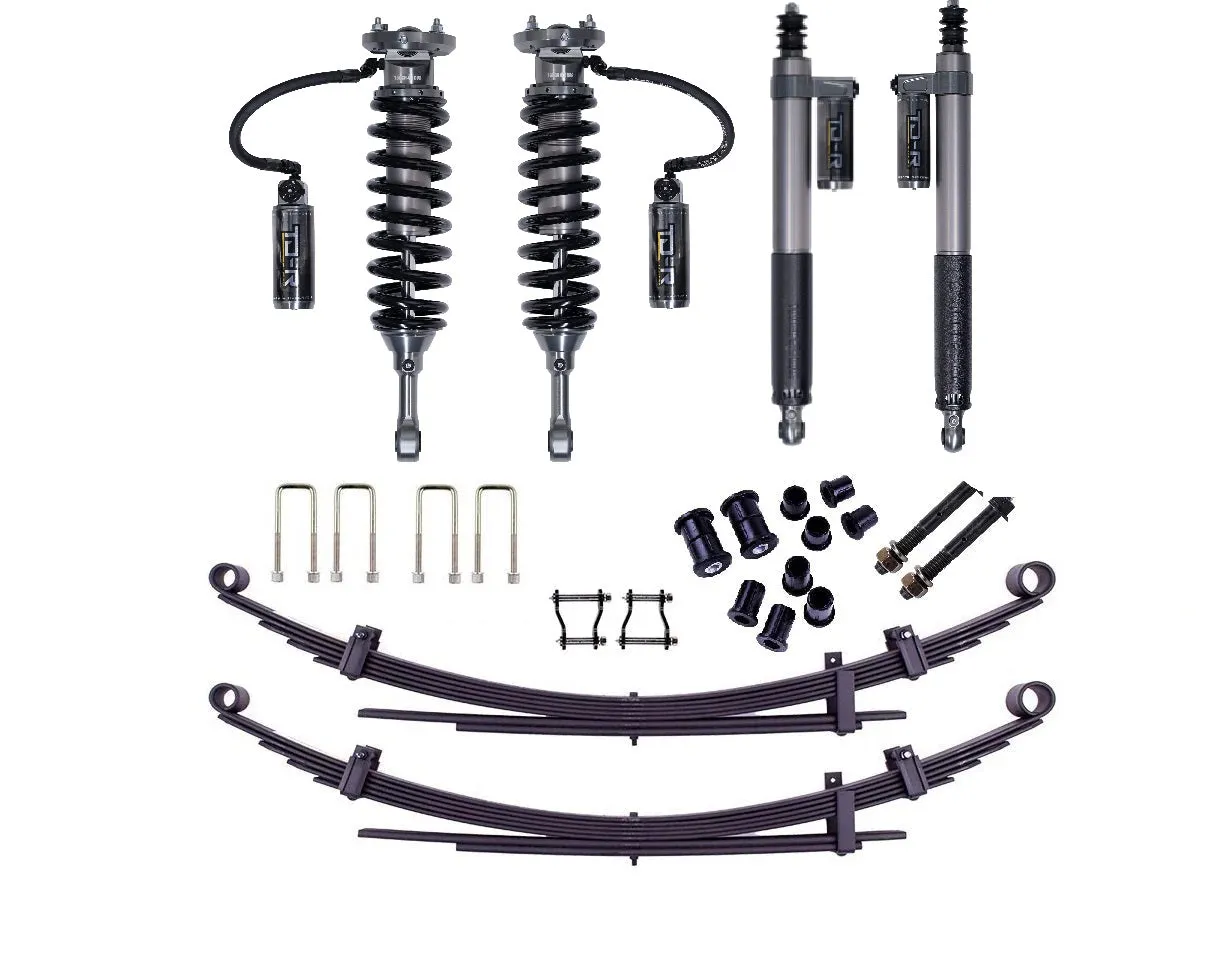

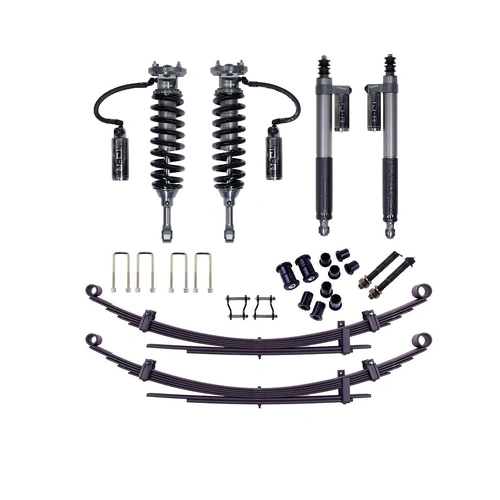

Kit Includes:

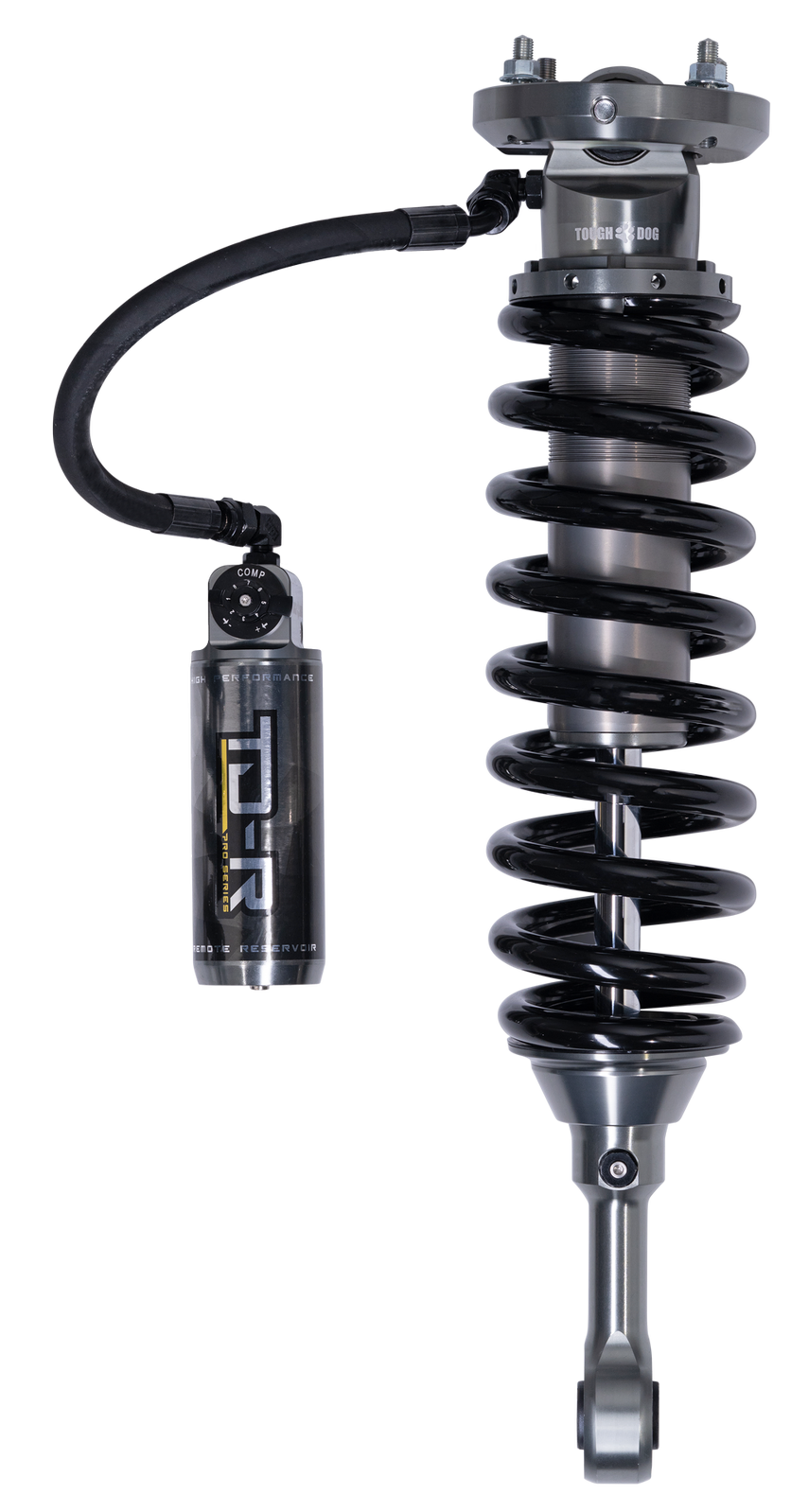

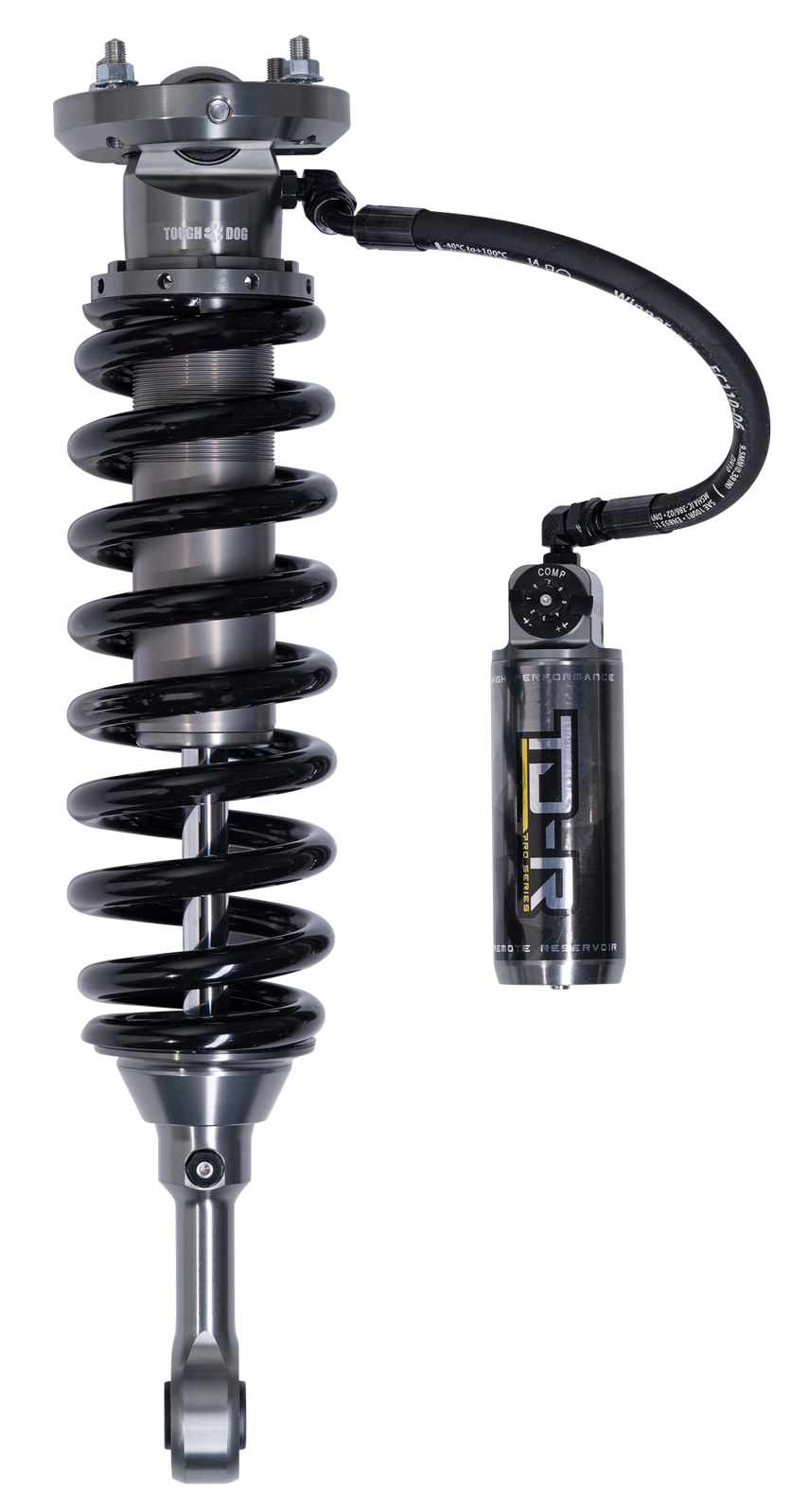

• Front TD-R Pro Series Remote Reservoir Struts, assembled with coil to suit your selected weight range
• Rear 0-300KG Leaf Springs (heavier options available)

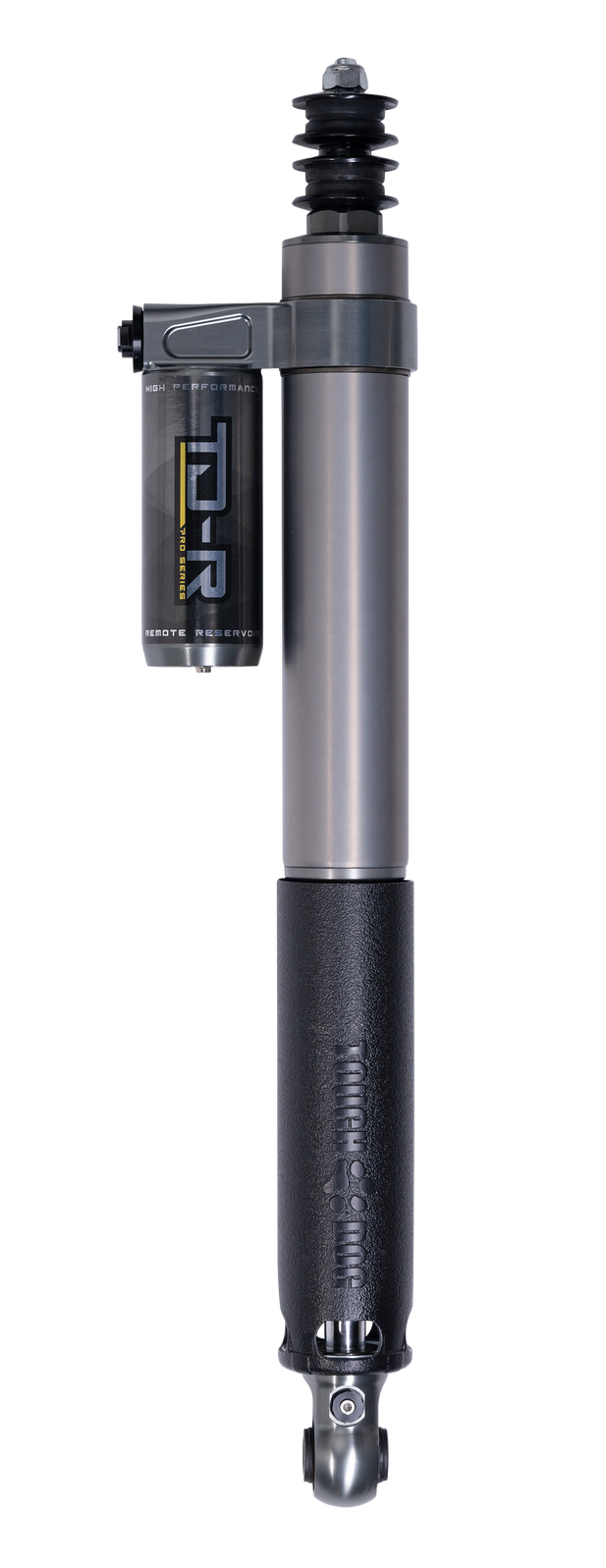

• Rear TD-R Pro Series Remote Reservoir shocks
• Rear Urethane Spring Bush kit
• Rear Greaseable Pin & Shackles
• Rear Upgraded U-Bolts
• Tailshaft Spacer Kit

Suits:

• Ford Ranger Next Gen 05/2022-On
• Excluding super Duty & Raptor

Important Notes for setting up your Vehicle Correctly:

• When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
• Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
• Please do not put Occasional Loads into your "Constant" Load determinations.
• Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

• All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.
• Estimated Lift Height 45mm
