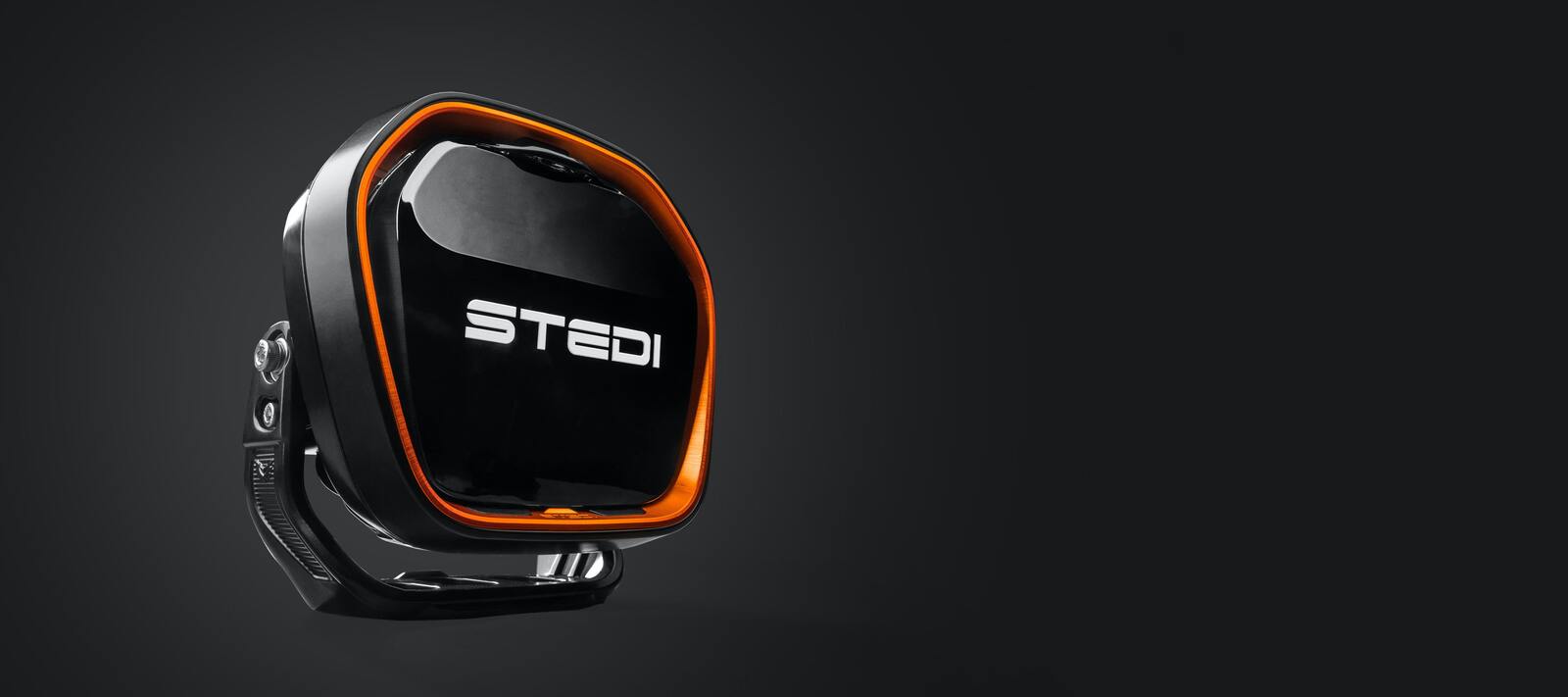

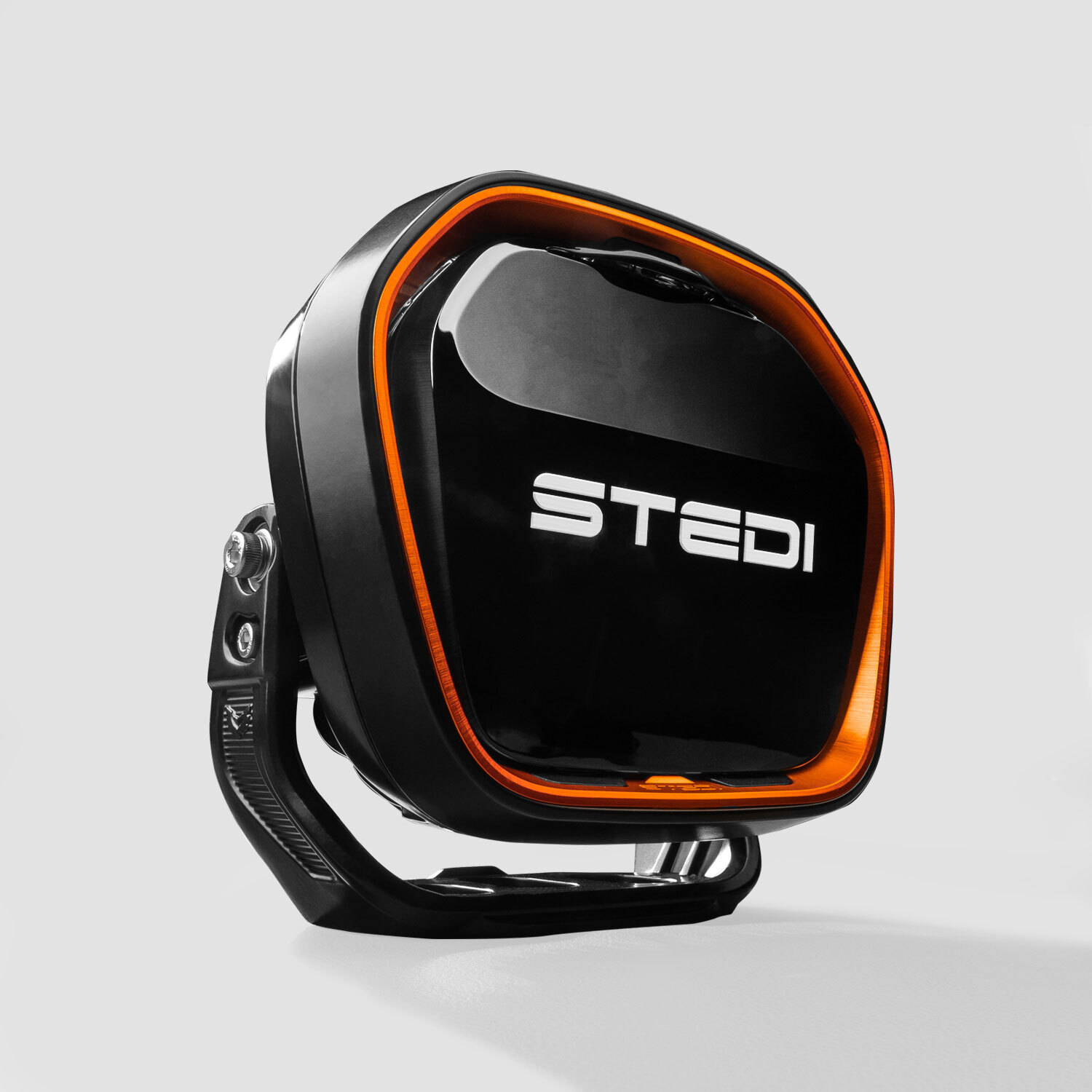

Type-X EVO | Spot Beam (Single)

Forget everything you know about round lights. The Stedi Type-X EVO represents a bold step forward in driving light design—purpose-built for modern vehicles that have evolved well beyond circular forms. Inspired by the flowing lines and grille structures of contemporary vehicle styling, the Type-X EVO blends automotive design principles with serious lighting performance. The result? A next-generation LED spotlight that not only looks the part but pushes the boundaries of what’s possible in beam distance and lateral spread.

Designed from the ground up, the Type-X EVO features a 3D lens that plays with light and shadow like no other, complemented by a minimal, metallic bezel and customisable coloured rings—all housed in a compact yet powerful footprint. The improved CREE XP LEDs deliver remarkable throw and spread, while dual beam options (spot or flood) allow you to tailor your lighting to your driving style. Whether you're chasing distance on open roads or lighting up critical zones in the scrub, the EVO has you covered.

Features:

• Modern Automotive Design: Silhouette and bezel inspired by current vehicle grille architecture for a seamless aesthetic fit.

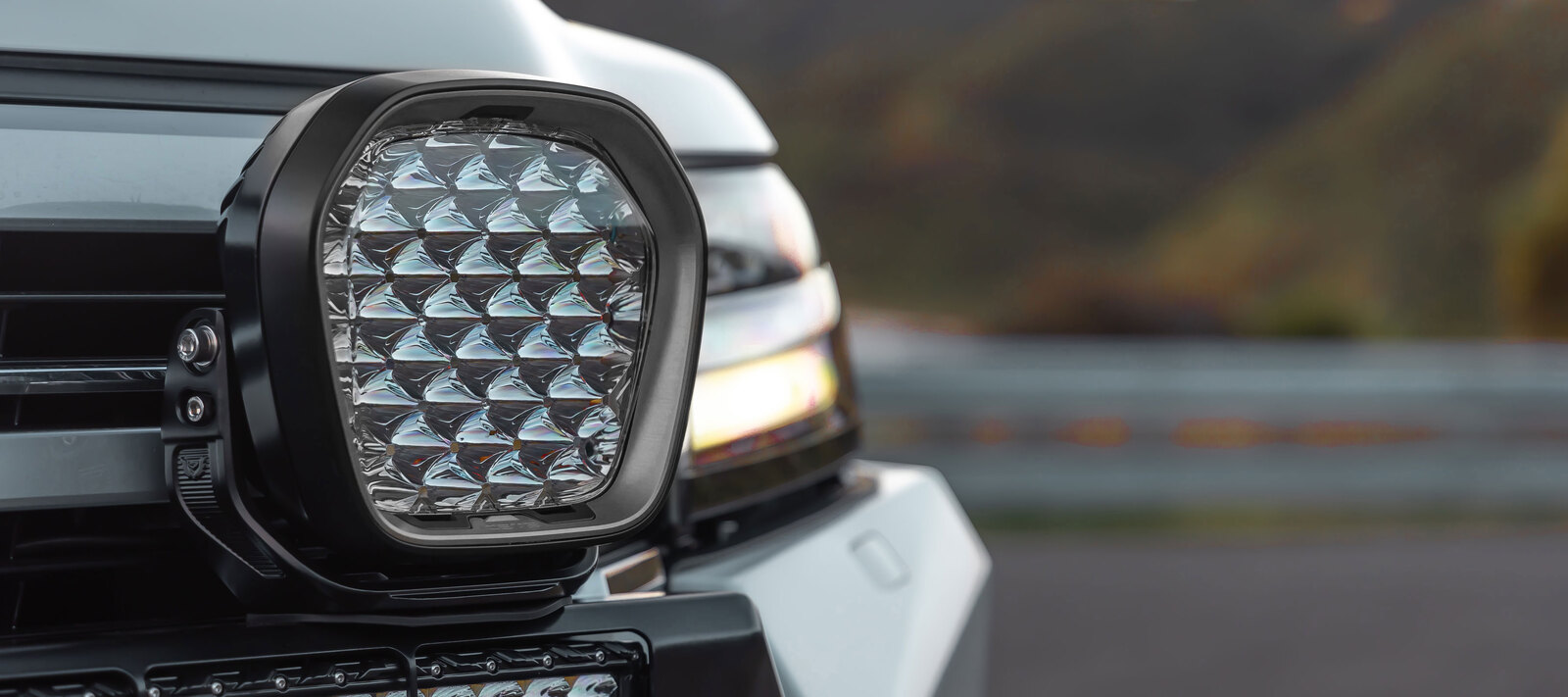

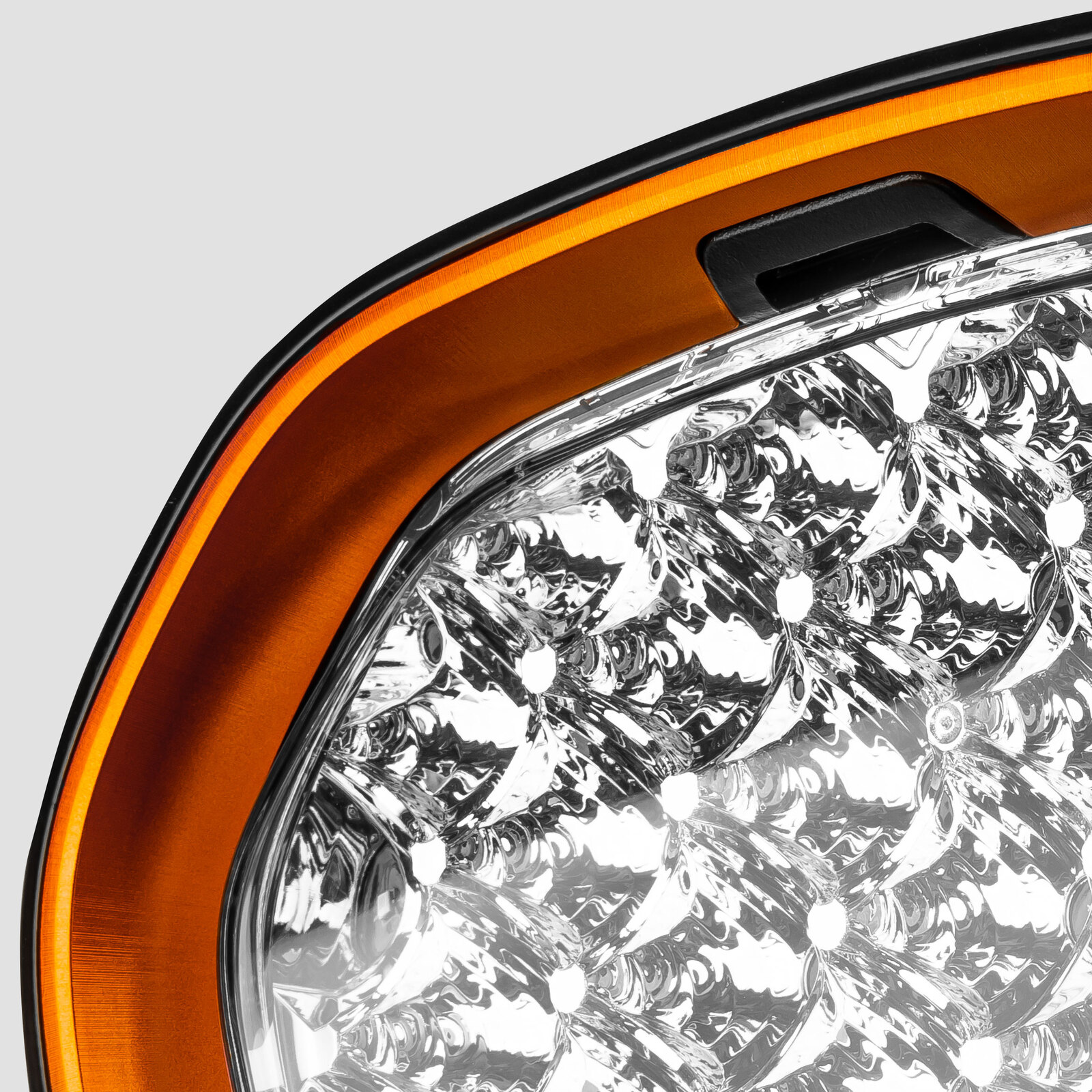

• 3D Primary Lens: Reflects sky and terrain to produce dynamic visual depth; light dances with every angle shift.
• Dual Beam Options: Choose between dedicated spot or flood variants, or pair both for ultimate coverage.
• Flood Beam Performance: 475m+ of wide horizontal spread—ideal for illuminating the critical braking zone from 100 km/h.
• Spot Beam Performance: Up to 1470m of long-range throw, perfect for high-speed highway use.
• 44 CREE XP LEDs: More diodes than Type-X Pro in a compact housing for unmatched output in its class.

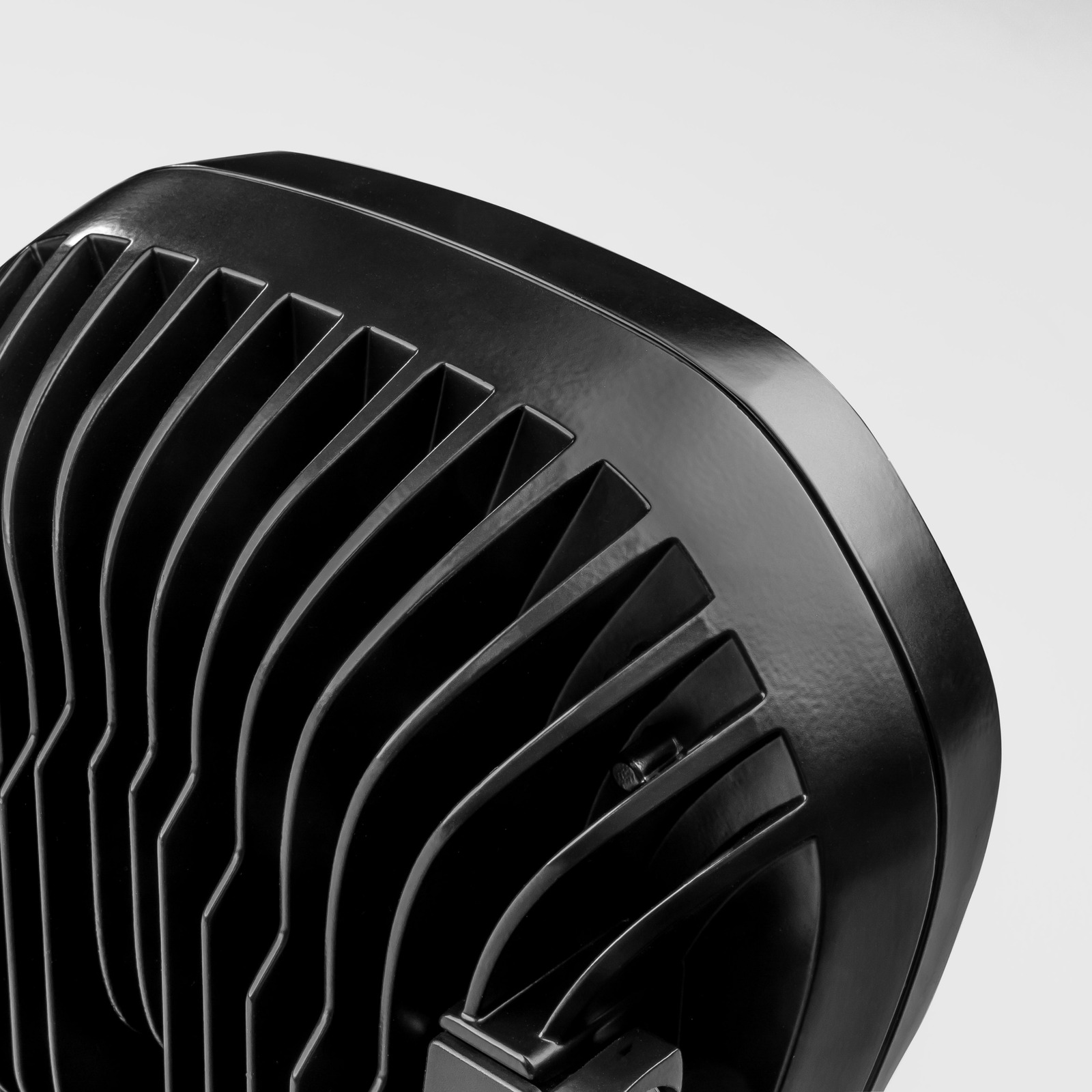

• Thermal Management: Upgraded heat sink tech to handle 150W of power efficiently.
• Durable & Sustainable Packaging: Water-resistant hard case with STEDI filigree, mesh organiser pocket, and repurposable construction.

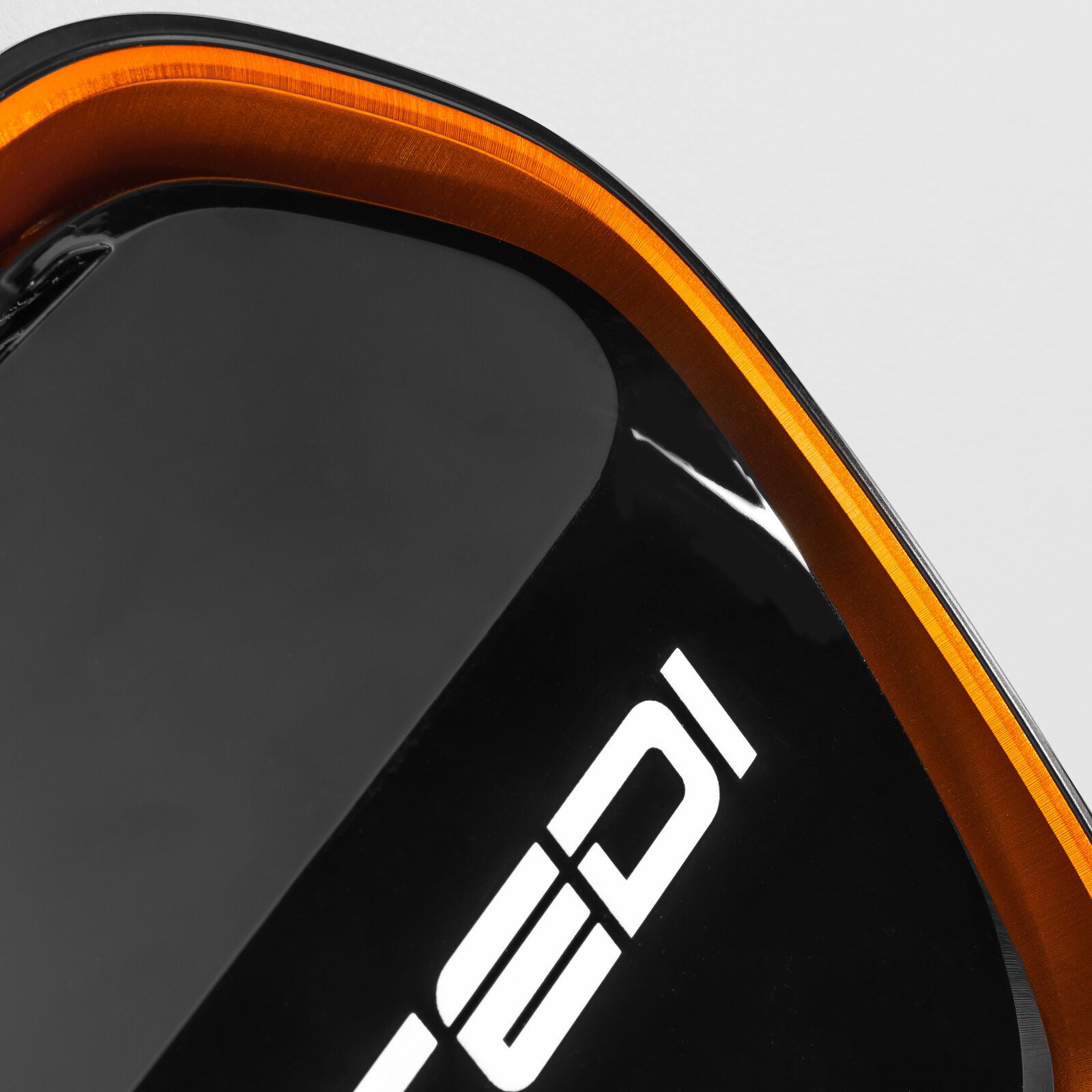

• Tool-less Customisation: Brushed metallic colour rings easily swapped without tools.
• 3-Bolt Aluminium Bracket: Gusseted and slotted for flexibility and rock-solid mounting—even on shallow bullbars.

Specifications:

• LED Chips: 44 x CREE XP (each)
• Raw Lumens: 18,920 lm (each)
• Effective Lumens: 11,920 lm (each)
• Current Draw: 12.5A @ 13.2V
• Power: 150W
• Beam Pattern: 44 x 50° Flood / 44 x 5.8° Spot
• IP Rating: IP68 (submersible to 3m)
• Colour Temp: 5000K
• Voltage: 12V & 24V compatible
• Weight: 3.3kg (each)
• Operating Temp: -40°C to 60°C

Kit Includes:

• 1 x Stedi Type-X EVO Driving Light
• 3-Bolt Gusseted Mounting Bracket & Hardware
• Hard Storage Case with Internal Pocket
• Coloured Trim Ring (installed)
• Wiring & DT Connector
