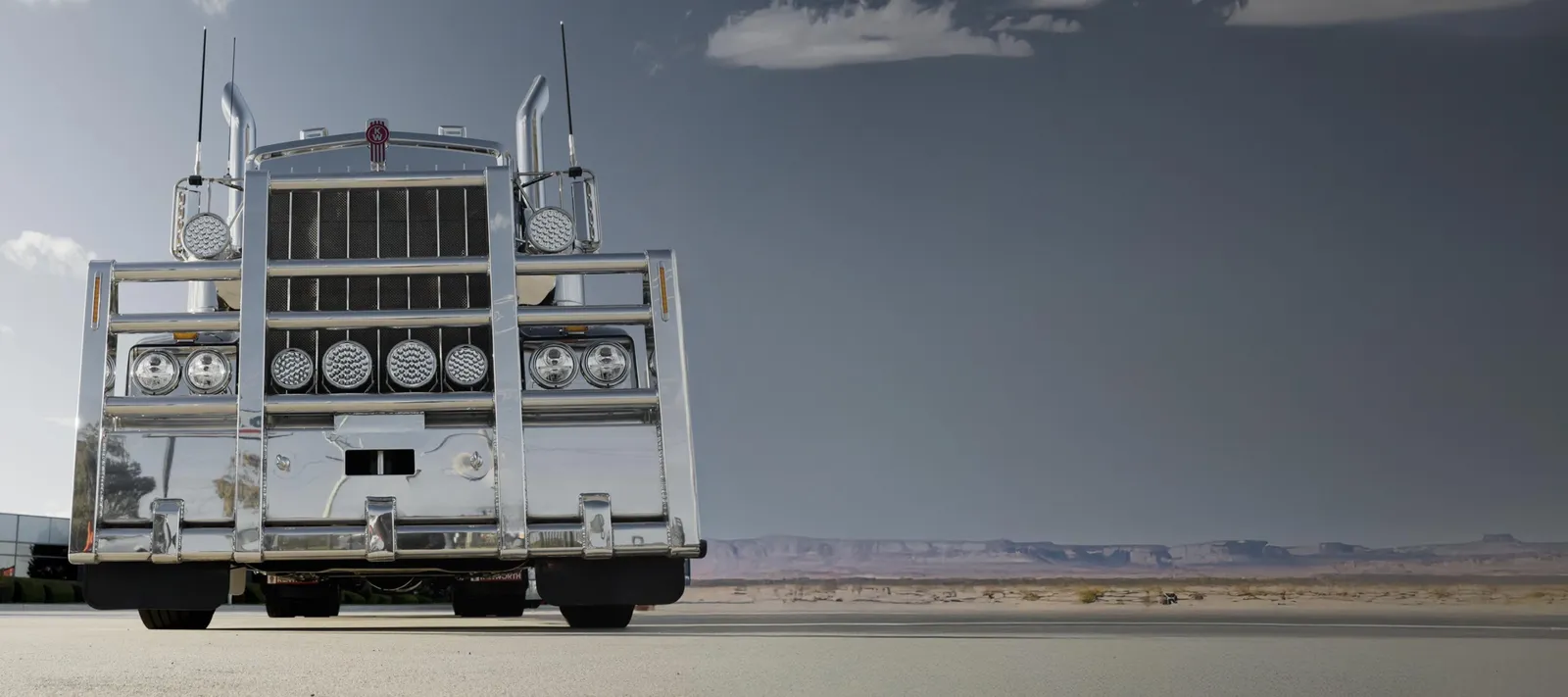

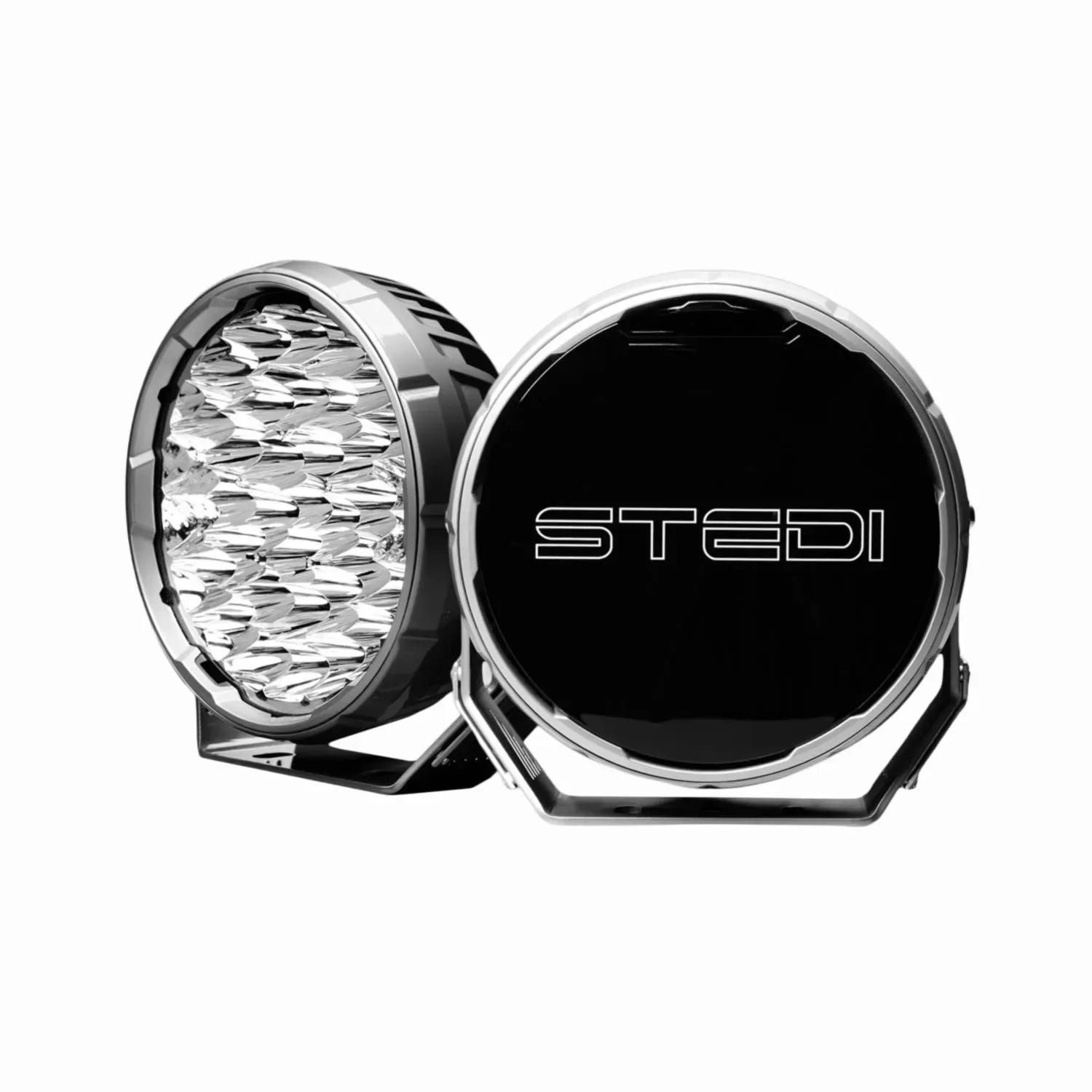

The Stedi Type-X Sport Plus 7 Inch Silver Edition is a high-performance LED driving light presented in a liquid-silver DuPont powder coat finish. It is built for truck and heavy vehicle applications with a cast aluminium housing, GE Lexan lens and an IP68 rating for dust and water resistance.
Features:

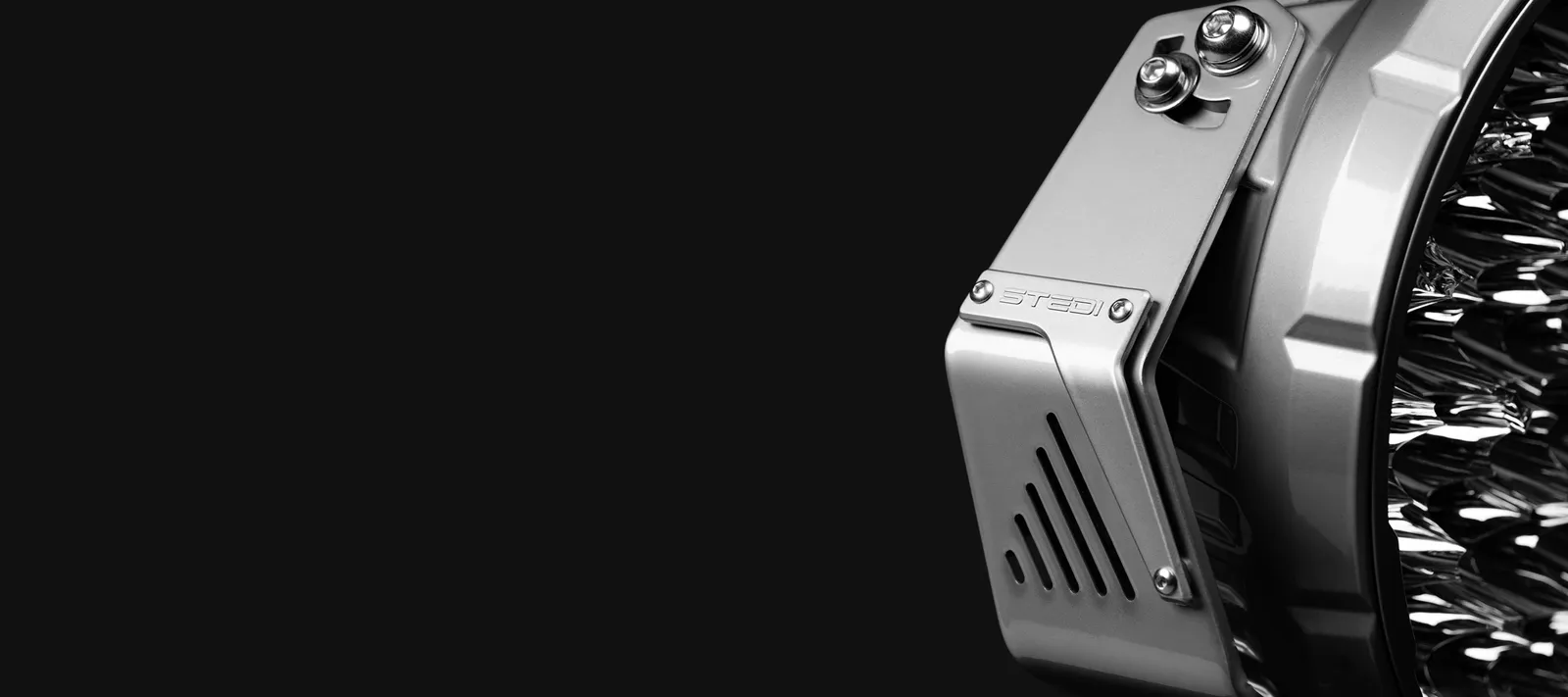

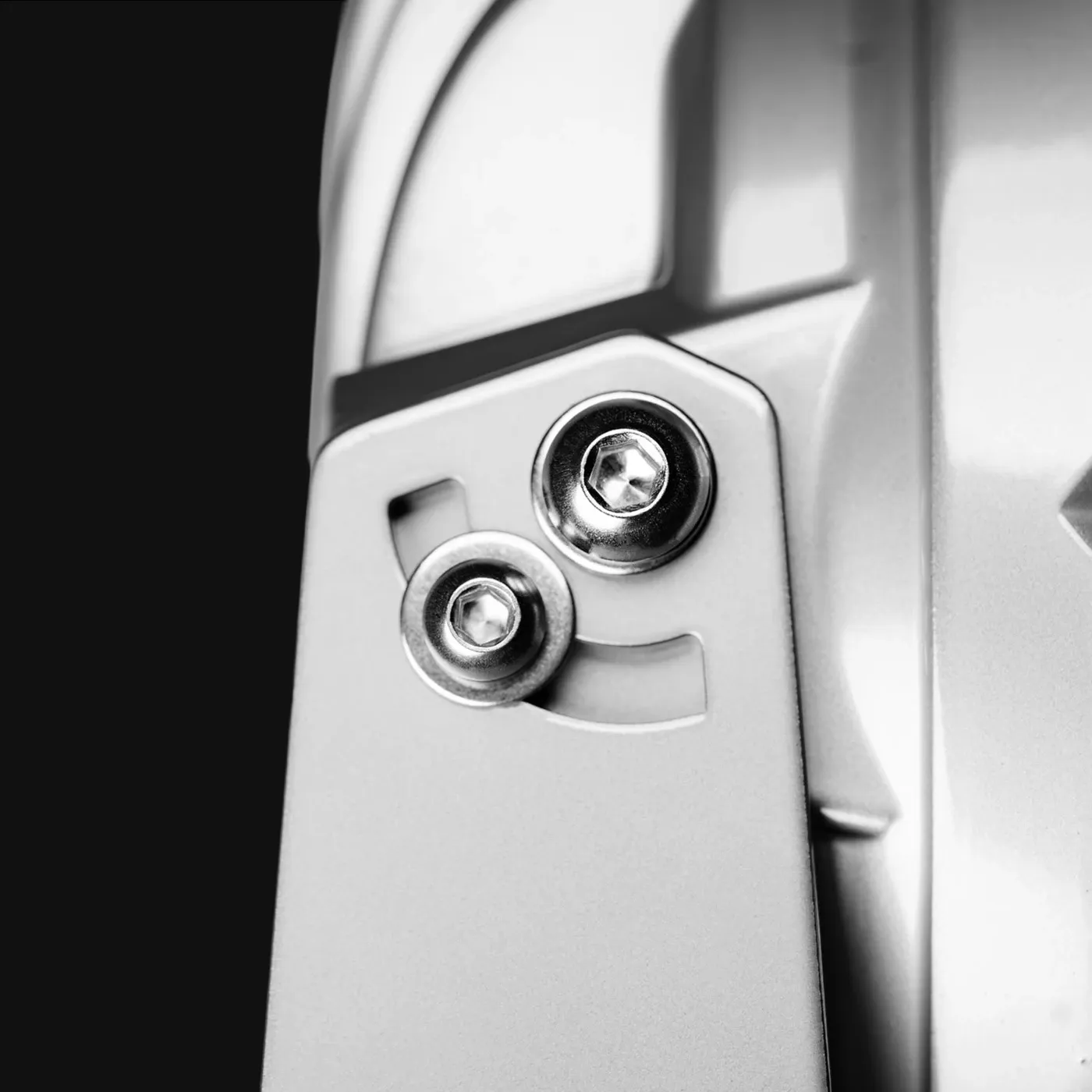

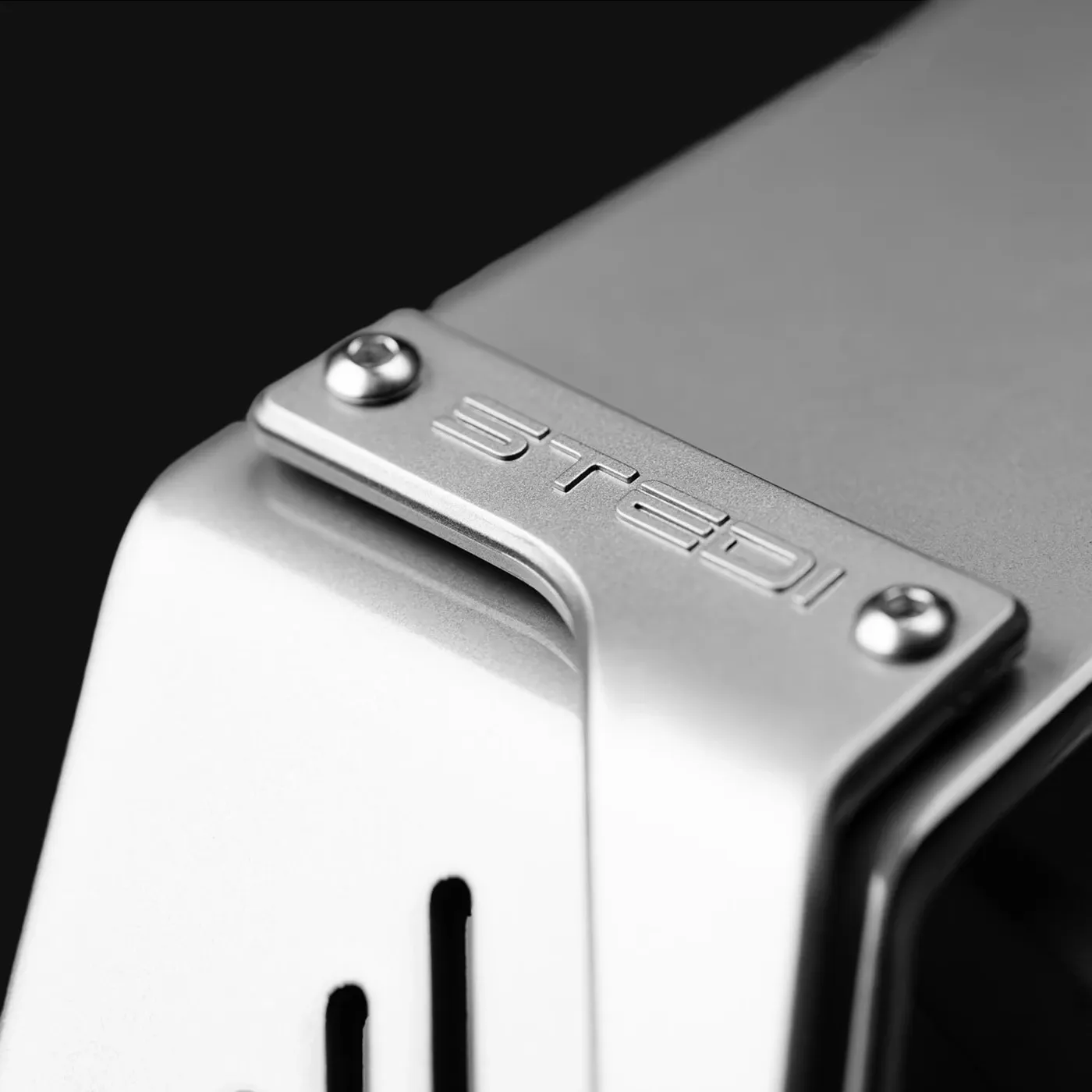

- 4mm thick 304 series stainless mounting bracket with rubber dampener and additional 3mm upper plate

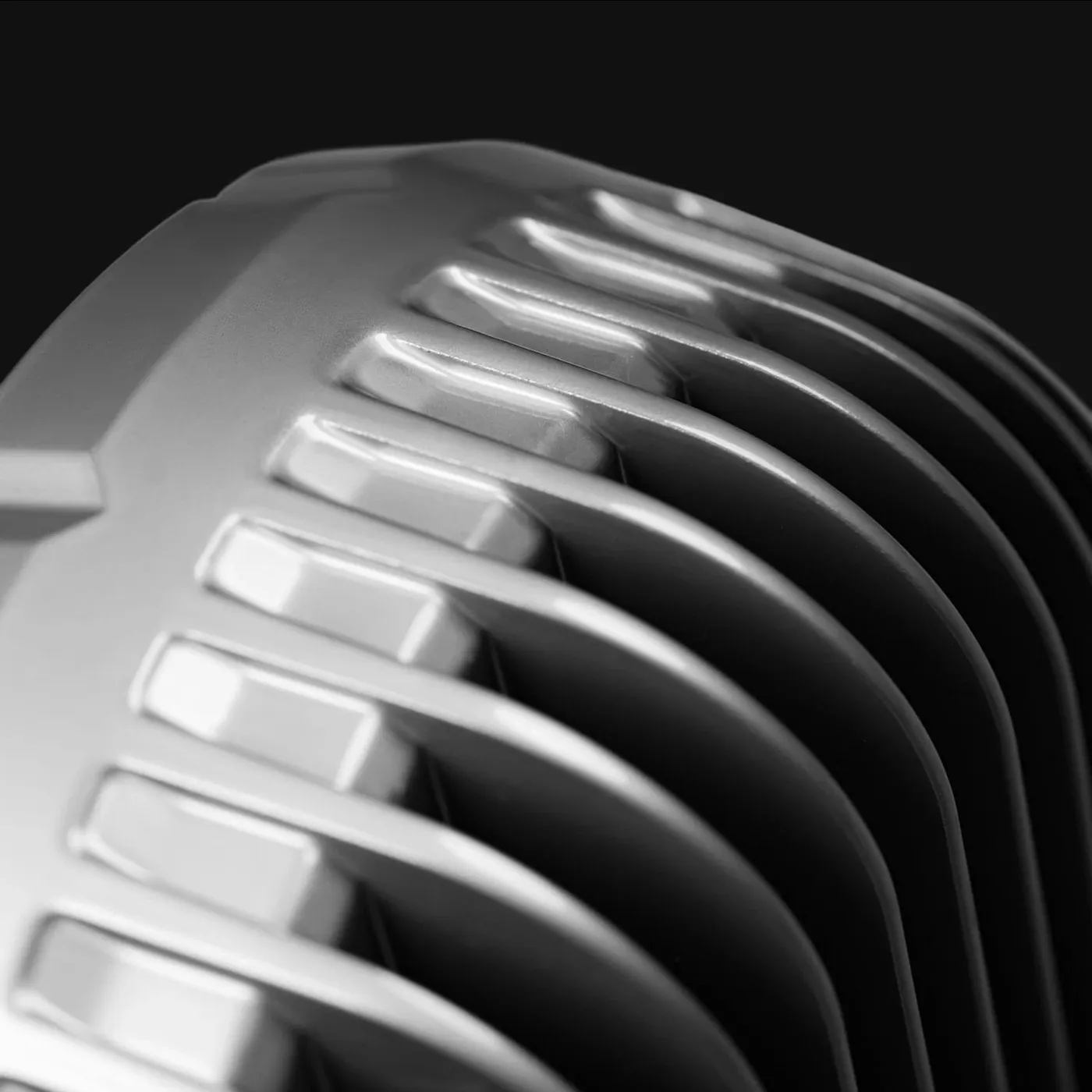

- Cast aluminium housing for strength and corrosion resistance
- GE Lexan lens with hard coating for scratch resistance
- DuPont UV and abrasion-resistant powder coat finish
- IP68 rated: dust tight and waterproof up to 3 metres
- Nitto Denko pressure equalisation vent with membrane to protect against water ingress and contaminants
- Environmentally sealed Deutsch DTP-2 connector
- EMI & RFI suppression circuitry
- Combination of OSRAM P8 & CREE XP20s LEDs for clarity

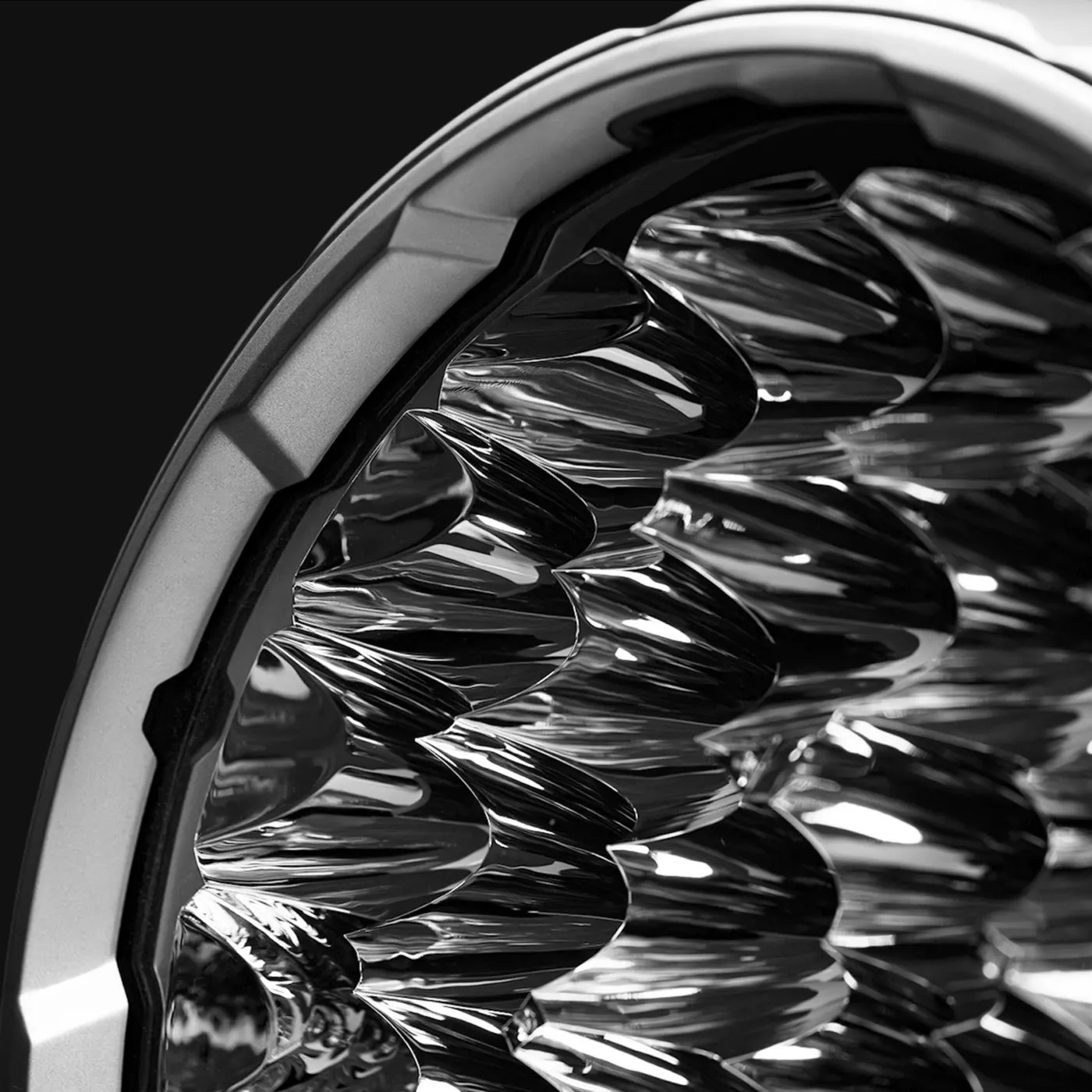

- Four wide-beam reflectors for a lateral-shaped flood pattern
- 5000K CCT for clear, high-definition light
(ST-01-SRT-702)
| Housing material | Cast aluminium |
|---|---|
| Mounting bracket | 304 series stainless steel (4mm) with 3mm upper plate |
| Lens | GE Lexan with hard coating |
| Finish | DuPont UV & abrasion-resistant powder coat (liquid-silver) |
| Connector | Deutsch DTP-2 |
| Vent | Nitto Denko pressure equalisation vent with membrane |
| Voltage compatibility | 10V & 30V |
| Colour temperature (CCT) | 5000K |
| Lumen maintenance | 50,000 LM-80 |
| Ingress protection | IP68; submersible up to 3m |

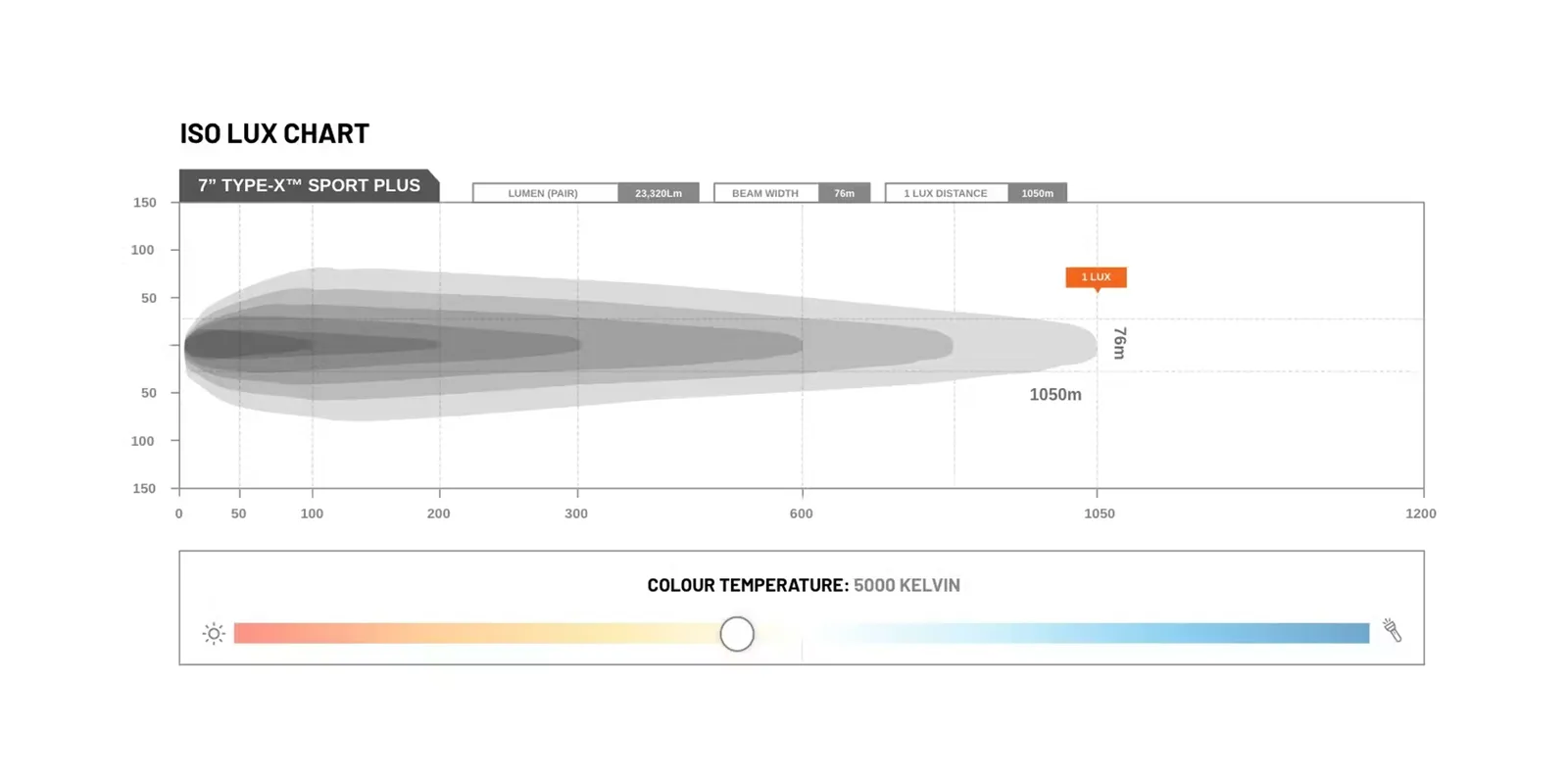

| Candela | 1,067,828 cd (pair) |
| Beam pattern | Combo (33 Spot + 4 Flood) |
| Operating temperature | -40°C - 60°C |
| SKU | ST-01-SRT-702 |
| Brand | Stedi |
| Shipping Weight | 2.2400kg |
