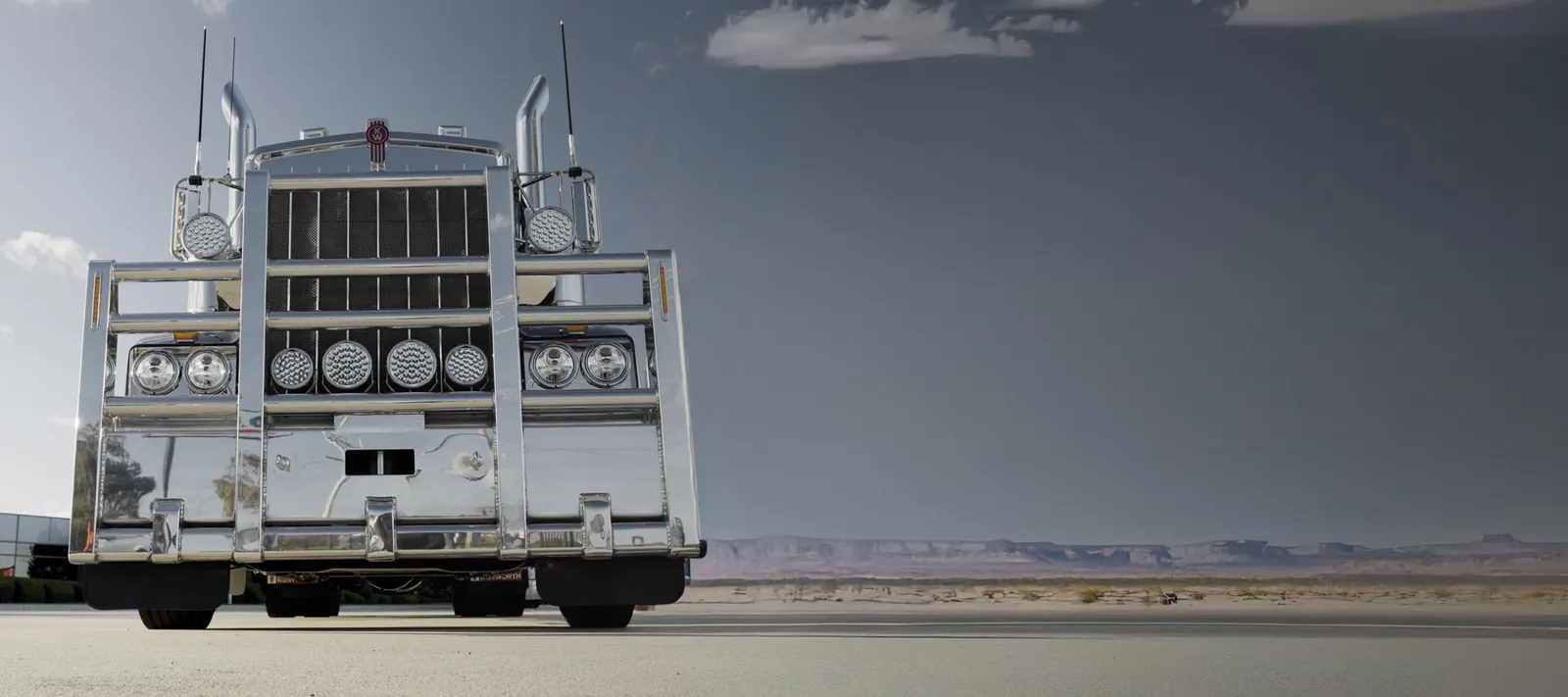

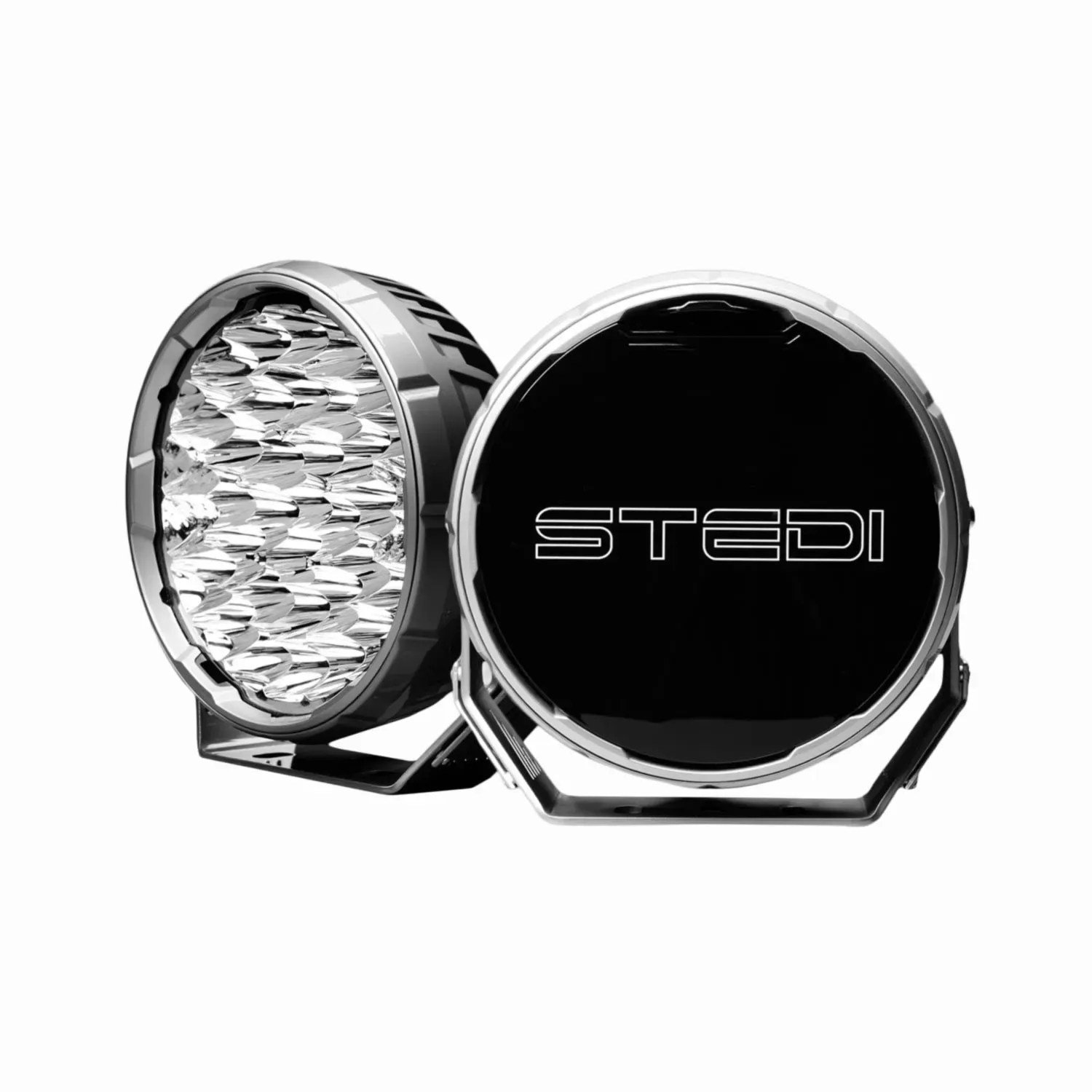

The Stedi Type-X Sport Plus 8.5 Inch Silver Edition is a high-performance LED driving light designed for truck and heavy vehicle applications. It pairs a cast aluminium housing and DuPont silver powder coat with a GE Lexan hard-coated lens and robust environmental sealing for long-term on-road and off-road use.
Features:

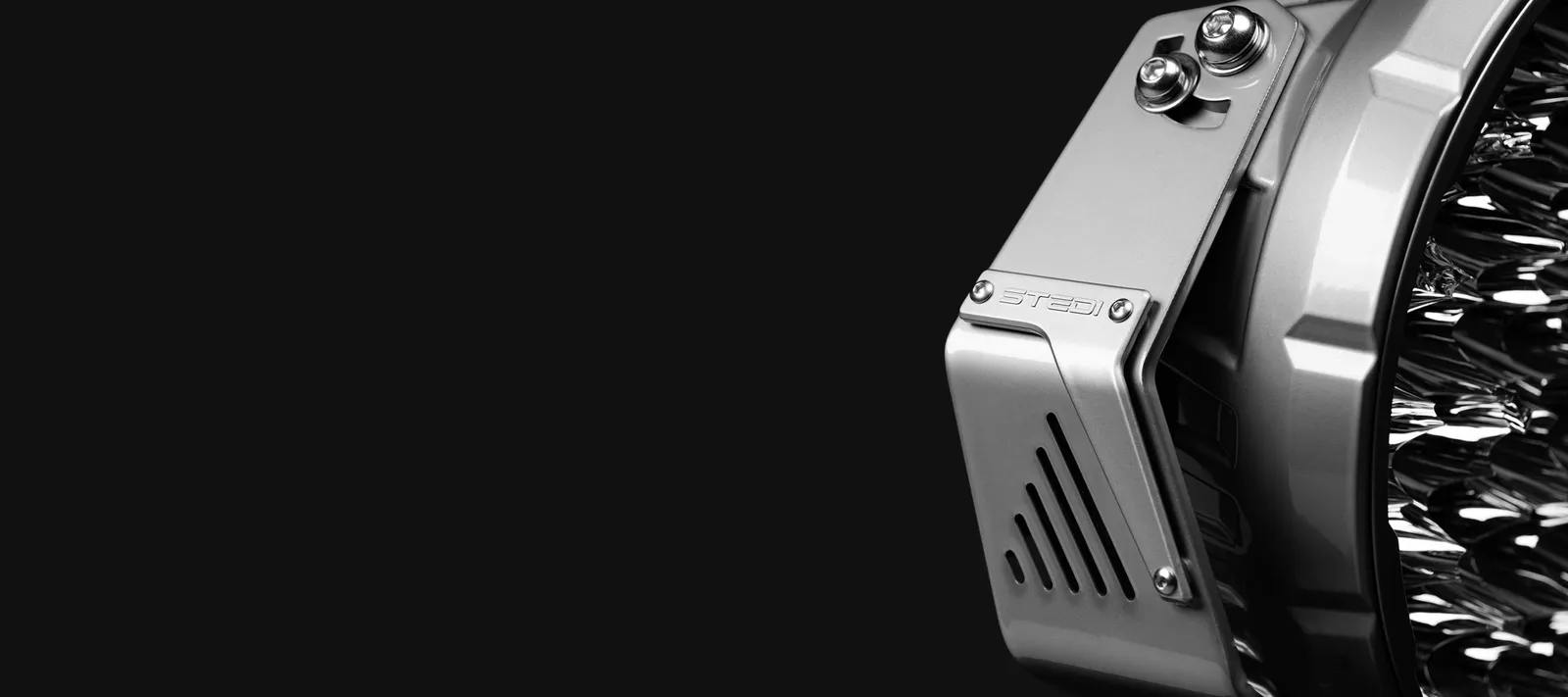

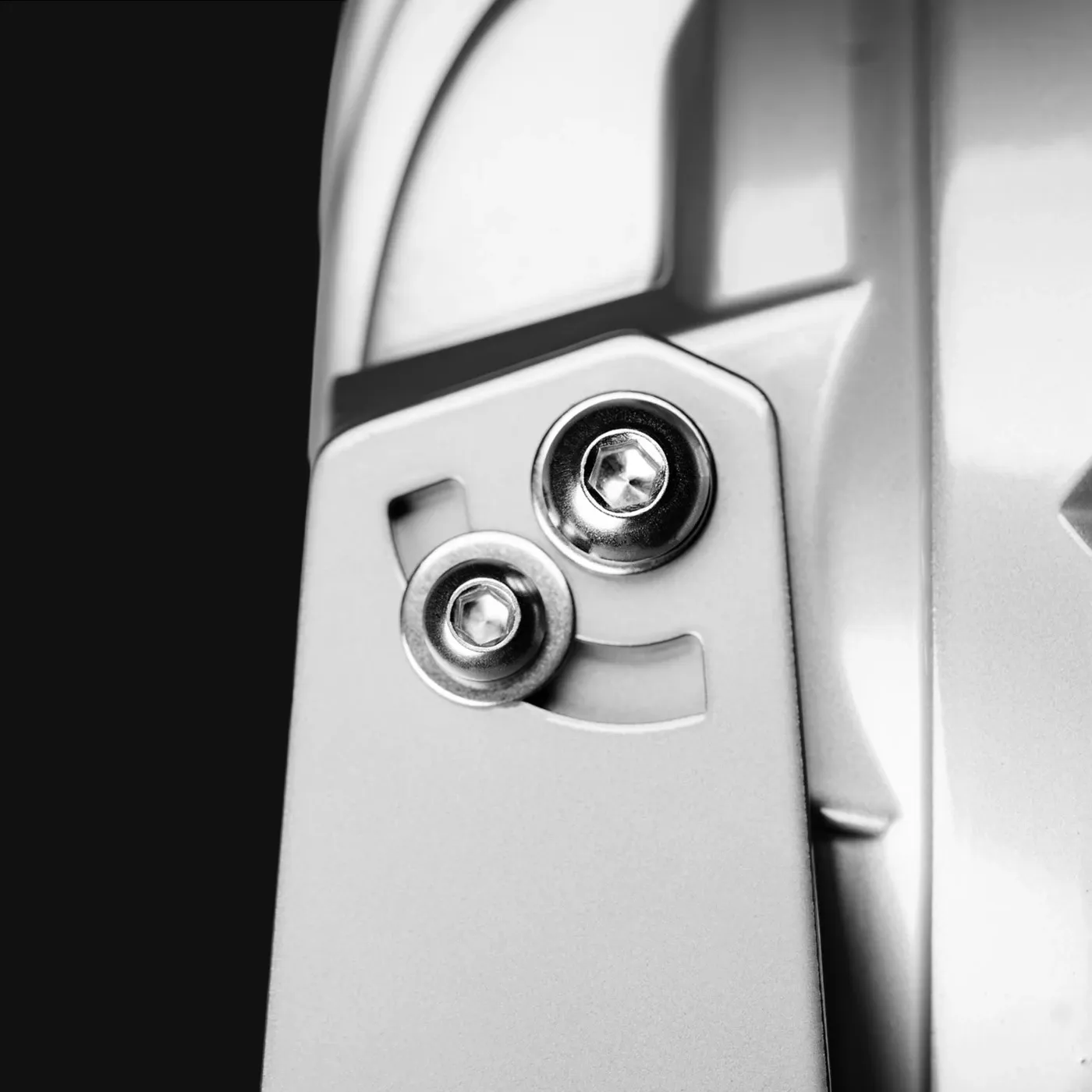

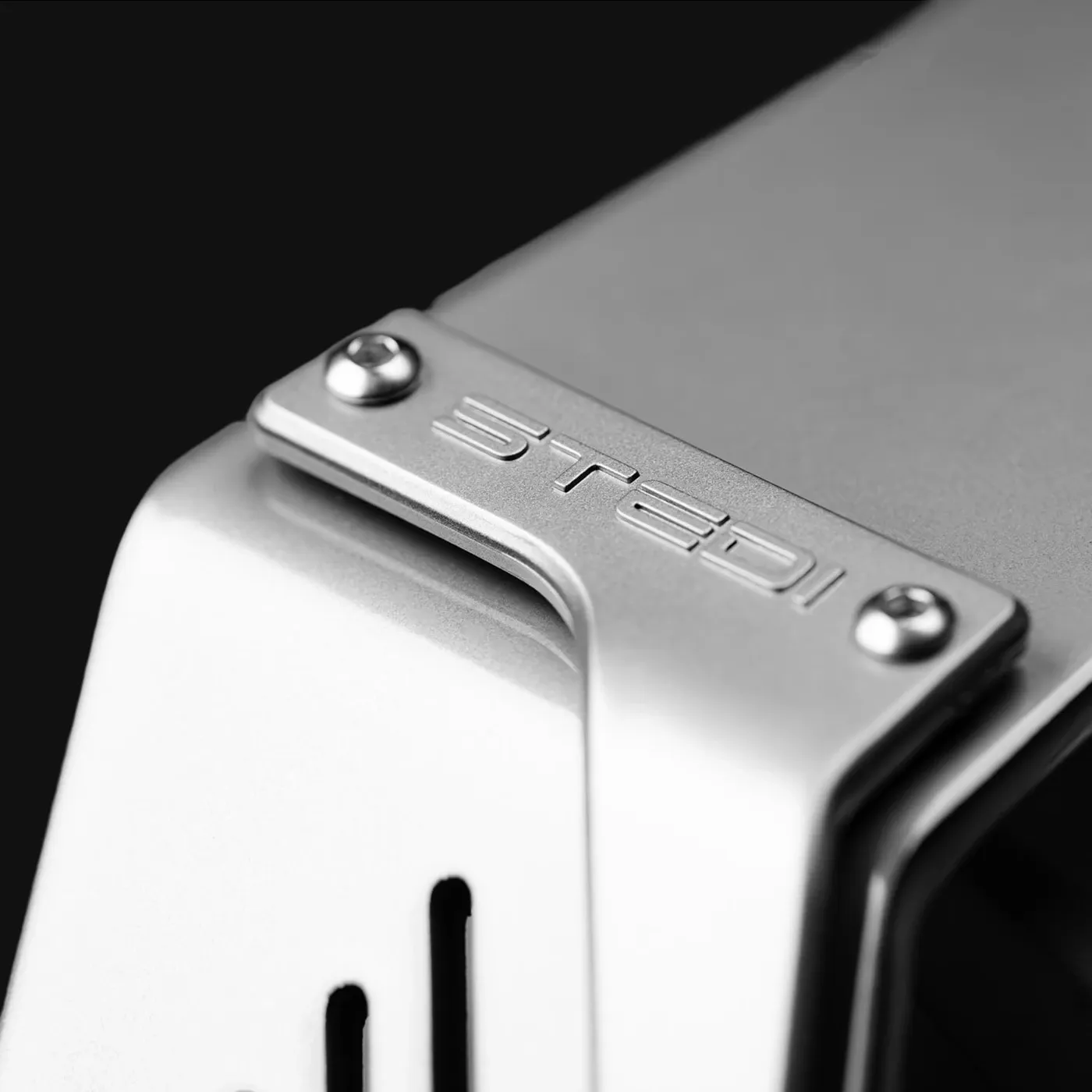

- 4mm thick 304 series stainless steel mounting bracket with rubber dampener and additional 3mm upper plate

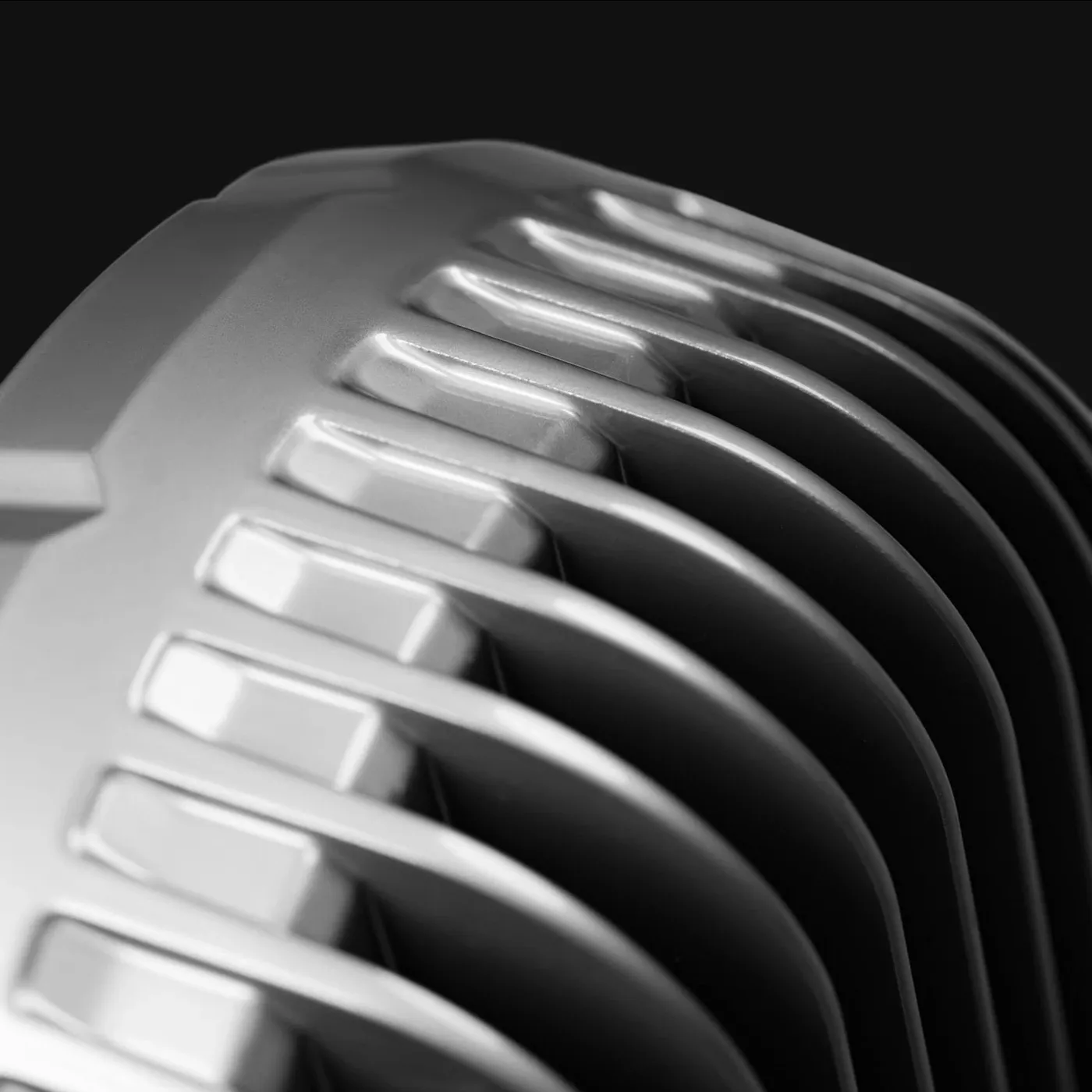

- Cast aluminium housing for strength and corrosion resistance
- GE Lexan lens with hard coating for scratch resistance
- DuPont UV and abrasion-resistant powder coat finish
- IP68 rated; dust and particle tight, waterproof up to 3 metres
- Nitto Denko pressure equalisation vent with membrane
- Environmentally sealed Deutsch DTP-2 connector
- EMI and RFI suppression circuitry
- Combination of OSRAM P8 & CREE XP20s LEDs for clarity

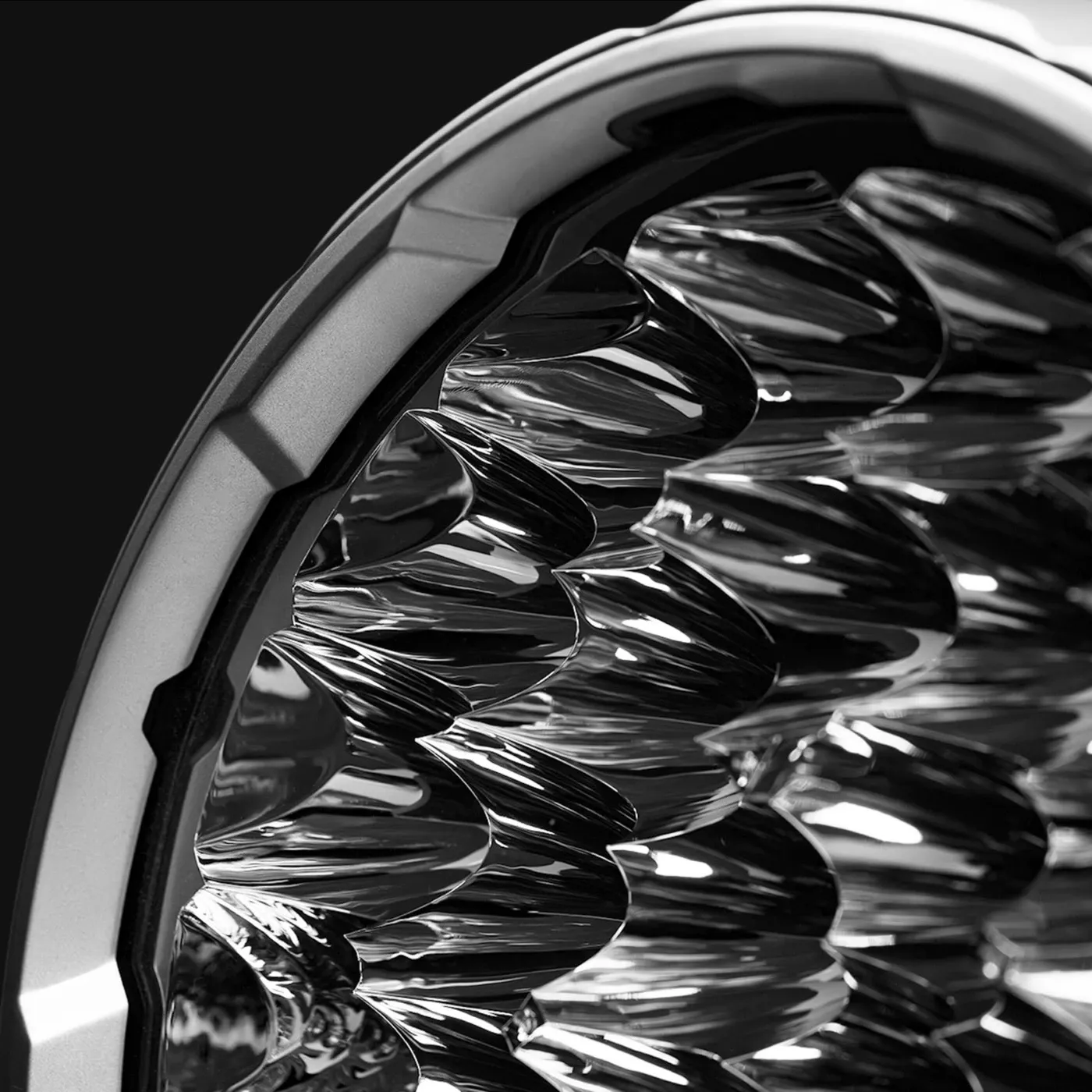

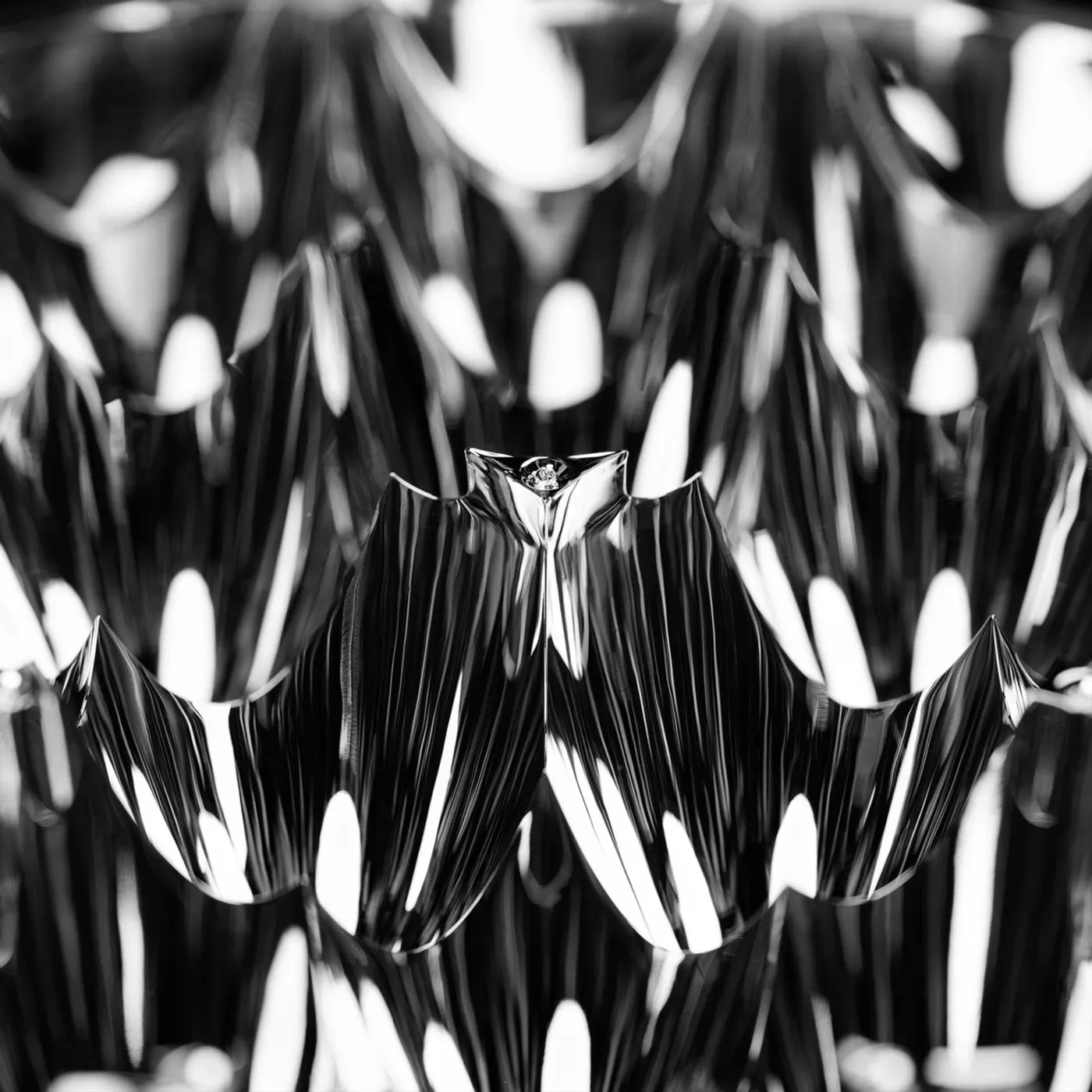

- Four wide-beam reflectors for a lateral-shaped flood pattern
- 5000K CCT for clear, high-definition light

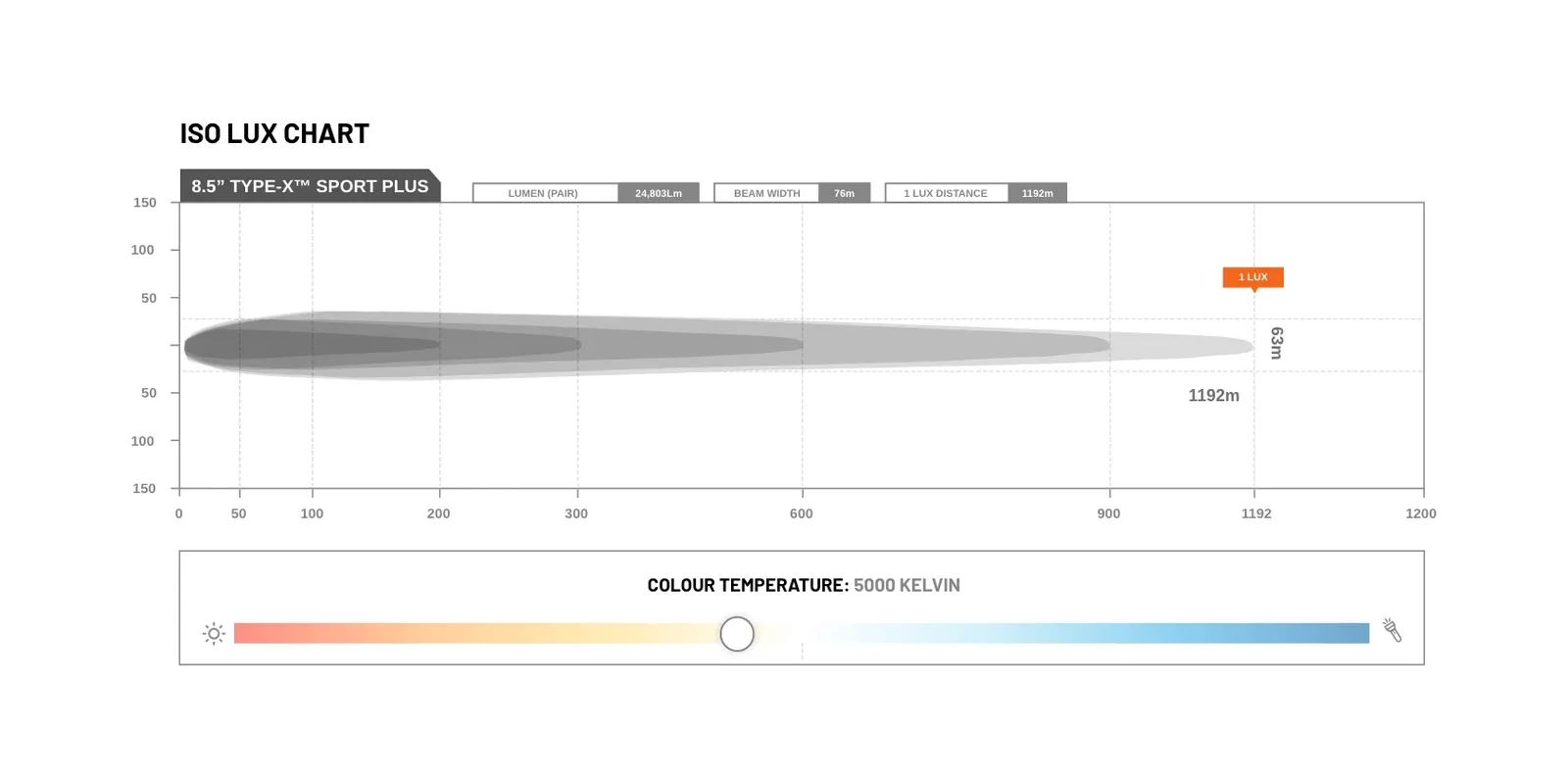

- 7 and 8.5 inch size variants will throw light well over 1 km
(ST-01-SRT-802)
| Mounting bracket | 4mm 304 series stainless steel with 3mm upper plate and rubber dampener |
|---|---|
| Housing | Cast aluminium |
| Lens | GE Lexan with hard coating |
| Finish | DuPont UV and abrasion-resistant powder coat (silver) |
| Ingress protection | IP68; waterproof up to 3 metres |
| Vent | Nitto Denko pressure equalisation vent with membrane |
| Connector | Deutsch DTP-2 |
| EMI/RFI | Suppression circuitry included |
| LEDs | Combination of OSRAM P8 & CREE XP20s |
| Reflectors | Four wide-beam reflectors (lateral-shaped flood) |
| Colour temperature | 5000K CCT |
| SKU | ST-01-SRT-802 |
| Brand | Stedi |
