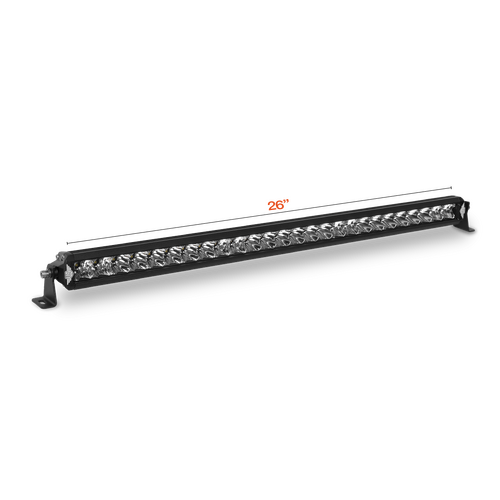

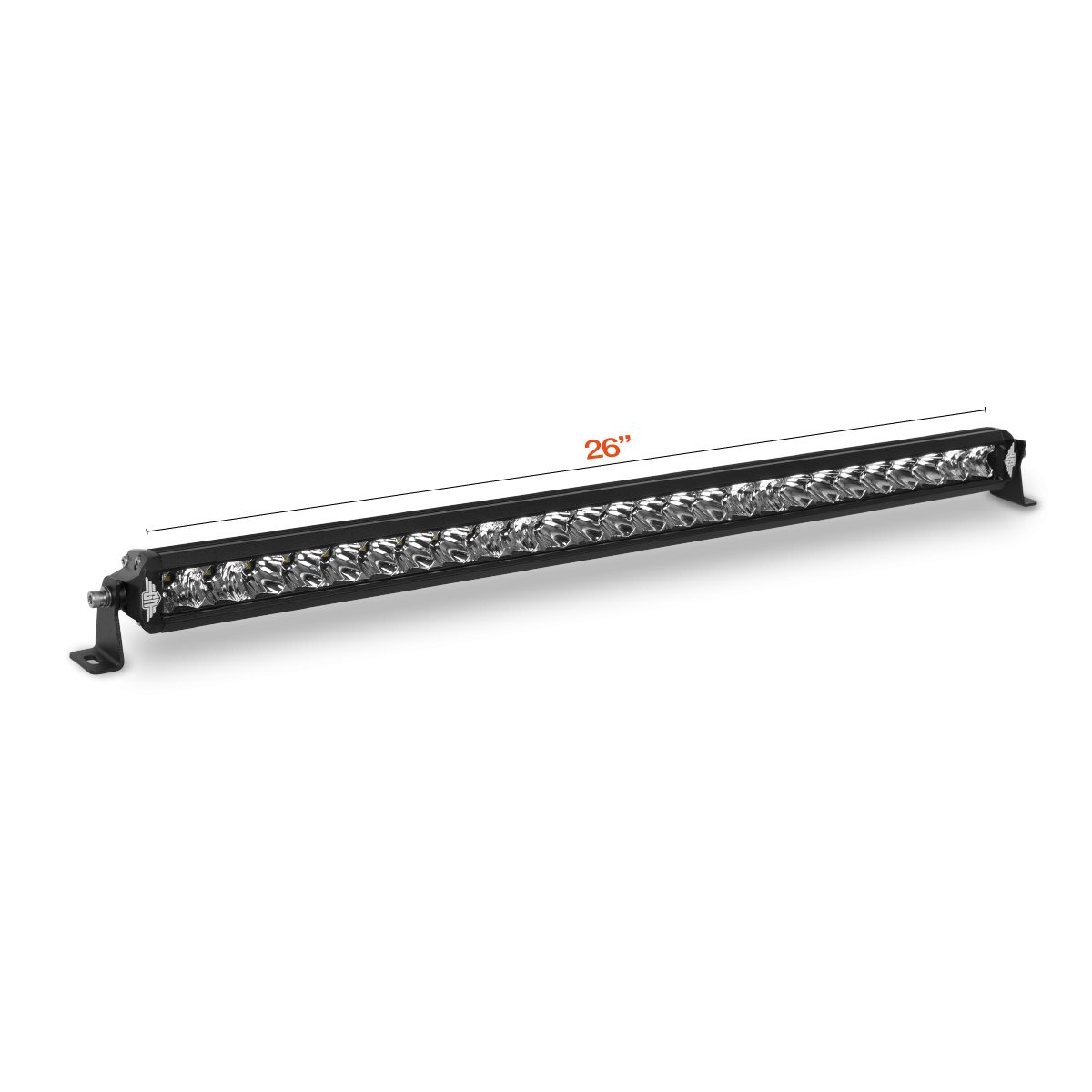

Ultimate9 LED Light Bar 26"

$209.95
In Stock

Add A Wiring Harness?




Calculate Shipping



Road Shipping - $9.95
We will email you your tracking number once dispatched.

Face the challenges of the dark with the Ultimate9 LED Light Bars.


Our sleek, single-row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore PolyVents for ultimate housing ventilation.
Encased in high-grade aluminium and protected by impact-resistant Lexan Polycarbonate lenses, their rugged construction will last for years to come.

Features:

  • Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
    • IP68 for long term submersion and total dust ingress.
    • IP69K for stream jet cleaning.

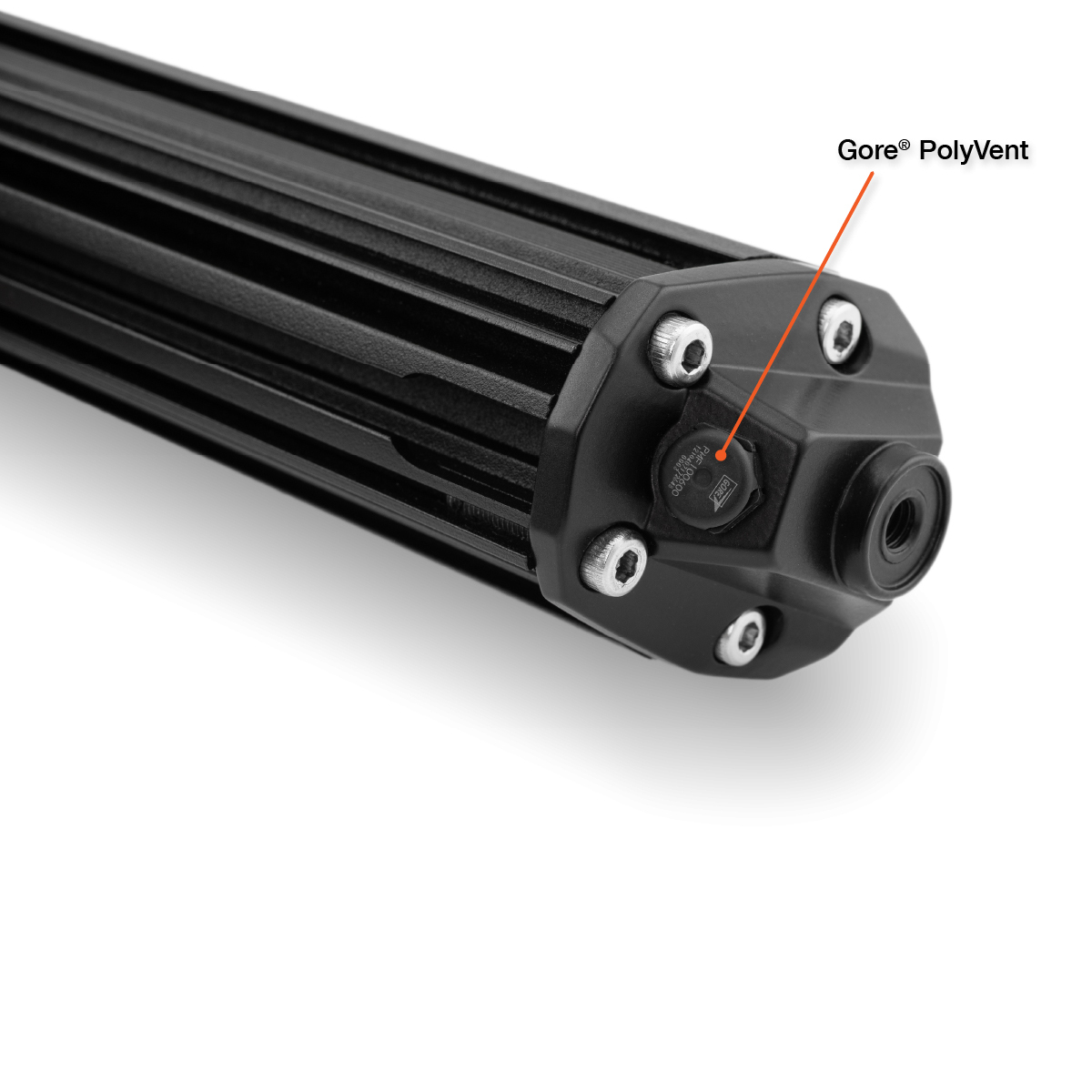

  • Ventilation: Gore PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
  • Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont coating.
  • Lens: GE Lexan Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
  • Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
  • Technology: Grade A Osram 5W LED chips & sealed DT connectors.


Specifications:

  • Input Power: 9-36V
  • Beam Pattern: Flood & Spot Combination
  • Beam Spread: 8° Spot & 20° Flood
  • Power: 130W
  • Current Draw: 8.7A @ 13.2V
  • Raw Lumen: 12,376 lm
  • Effective Lumen: 6,238 lm

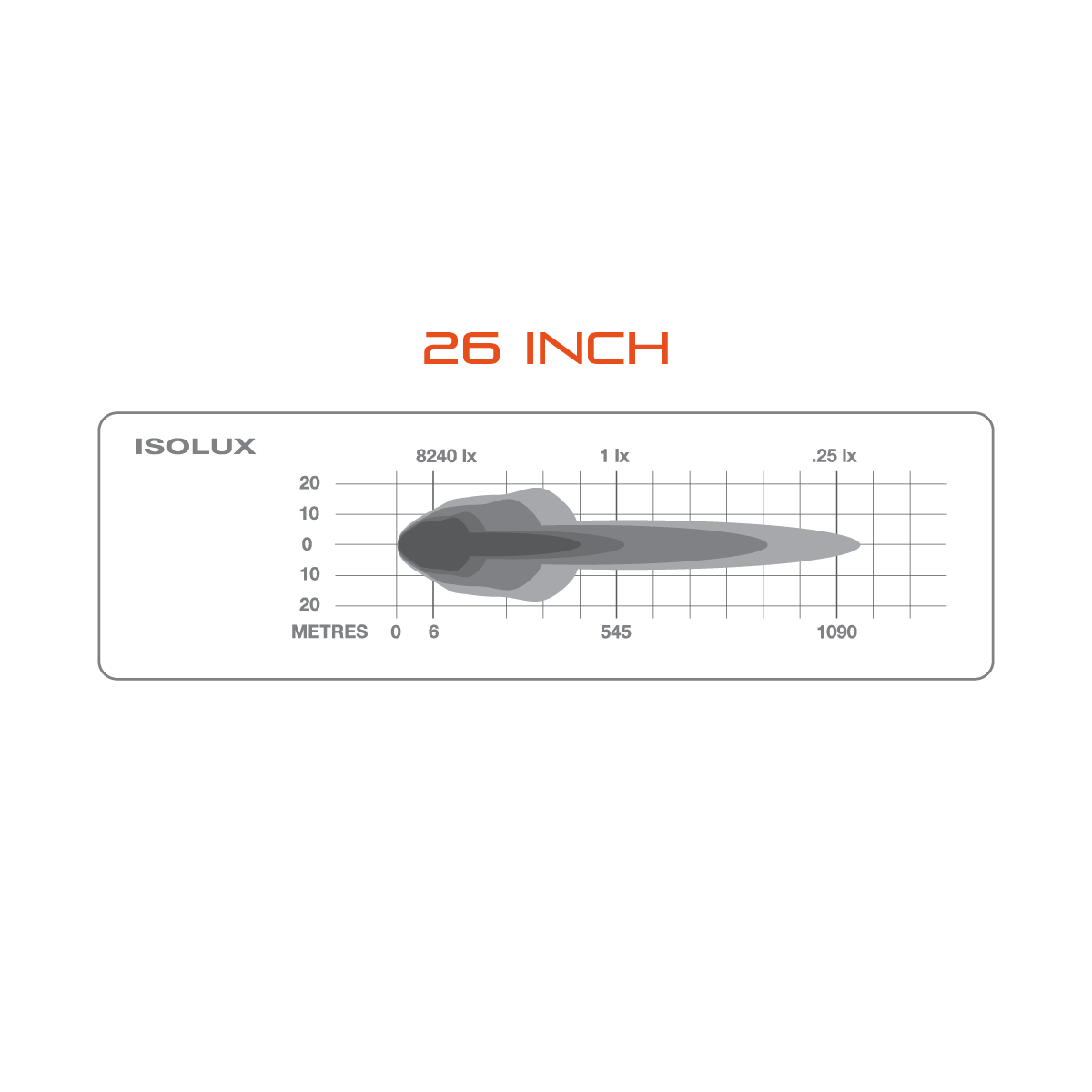

  • Beam @ 1 Lux: 545m
  • LED Chips: Osram 5W
  • Colour Temp: 6000-6500K
  • Housing Material: 6063 Aluminium
  • Housing Coating: DuPont
  • Lens Material: GE Lexan Polycarbonate
  • IP Rating: IP68 / IP69K
  • Ventilation: Gore PolyVent
  • Weight: 2.1Kg

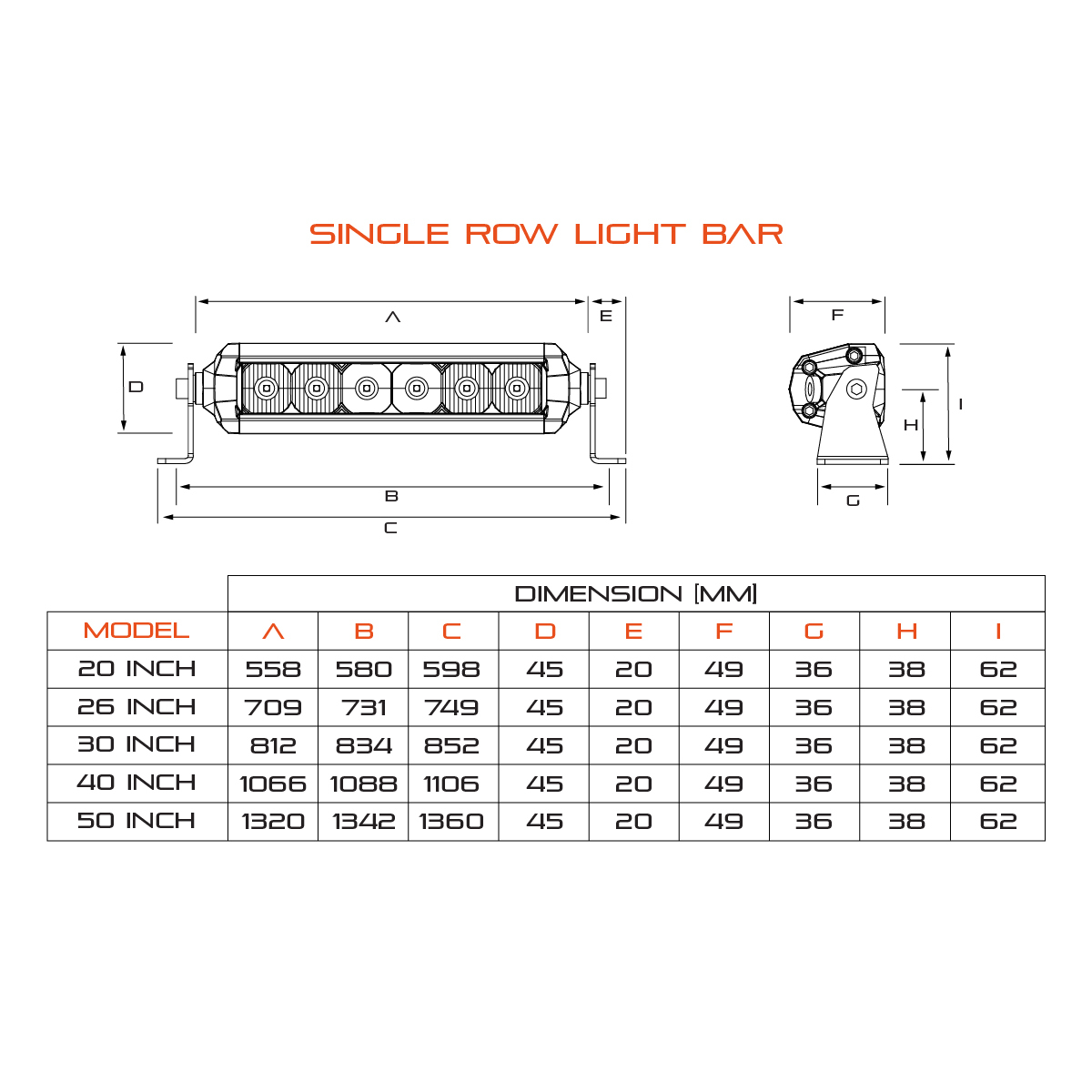

  • Body Dimensions: (L)709 x (H)46 x (W)49mm
  • Lens Dimensions: 26" (660mm)

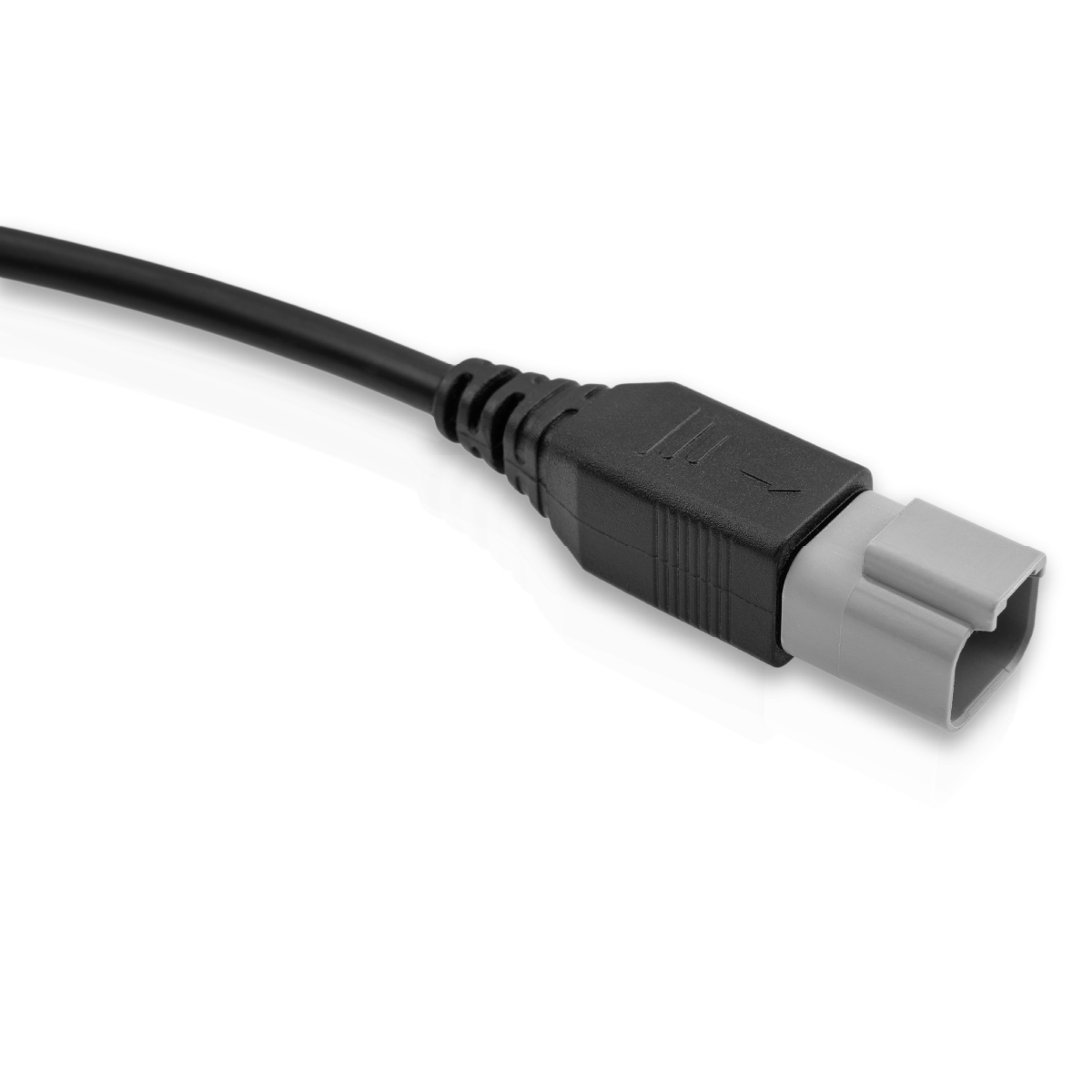

  • Connector Type: DT Sealed
  • Operating Temp: -40ºC - 145ºC
  • Certification: CE, RoHS, RCM
  •

Kit Includes:

  • LED Light Bar

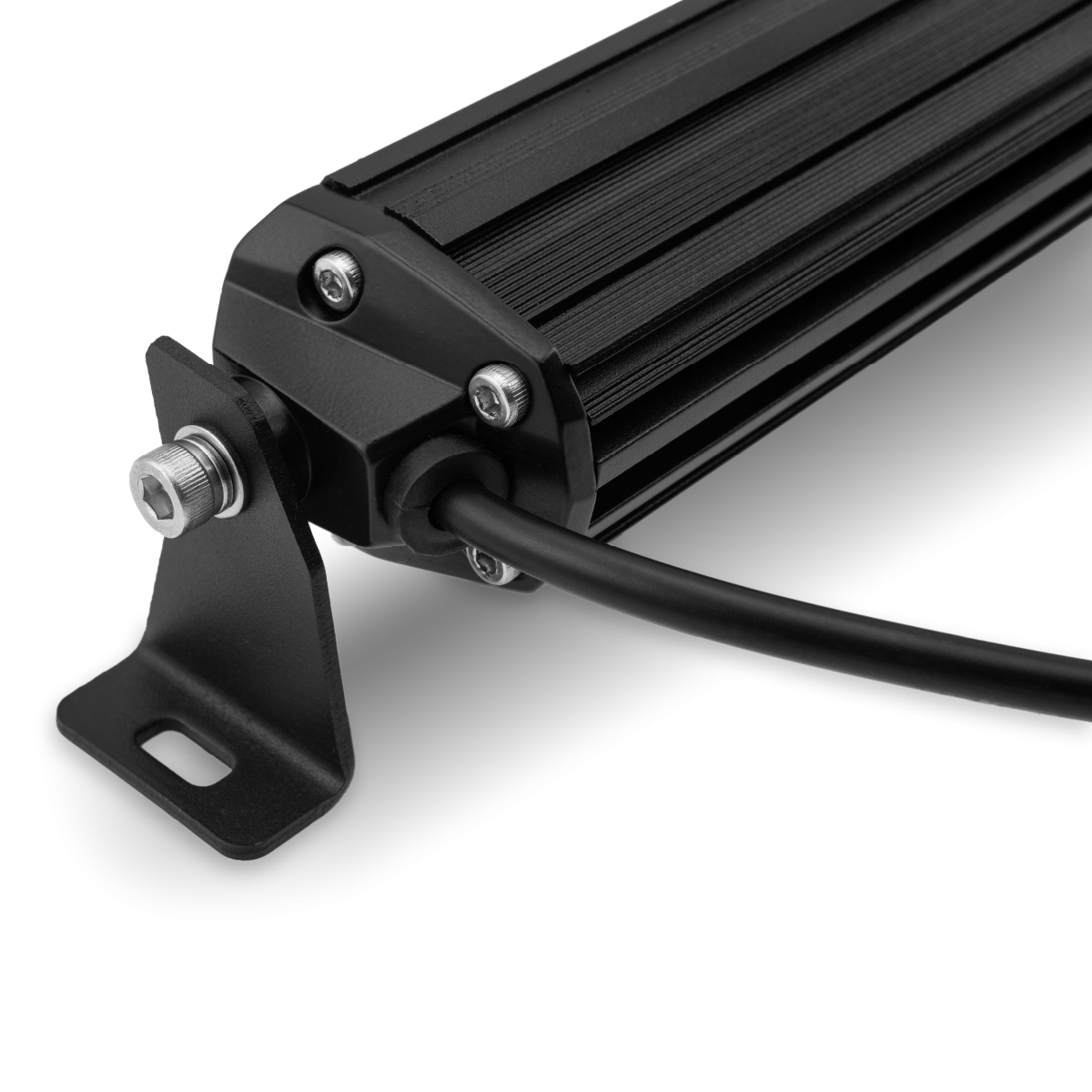

  • Side-Mount Brackets & Hardware


(ULTLED26C)

SKU ULTLED26C
Barcode # 787099449209
Brand Ultimate 9
Shipping Weight 1.6900kg
