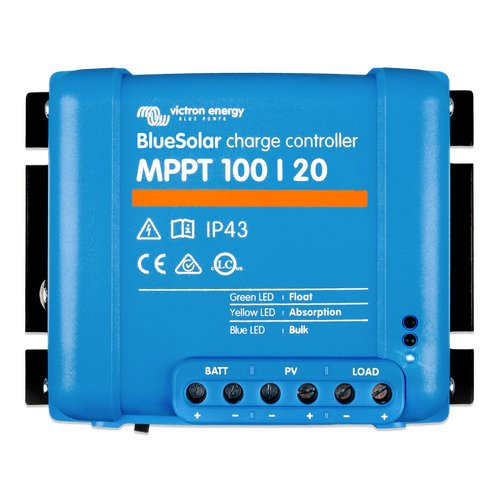

Victron BlueSolar MPPT 100/20 Solar Charge Controller
BlueSolar MPPT 100/20_48V
$137.50
RRP $152.00
SAVE $14.50 (10%)
In Stock
The Victron BlueSolar MPPT 100/20 is an ultra-fast MPPT solar charge controller that maximises energy harvested from solar panels. It provides a robust 20A charge output, automatically selects 12/24/48V battery systems, and is suited to off-grid, marine and mobile installations where a secure, hardwired connection is preferred.
Features:
- Ultra-fast MPPT tracking optimises solar energy yield under rapidly changing light conditions.
- Operates at up to 98% peak efficiency with a fanless, passive-cooled design using an integrated black aluminium heatsink.
- Intelligent load output with automatic disconnect to protect the battery and BatteryLife algorithm to prevent chronic undercharging.
- VE.Direct communication port for monitoring and configuration via a GX device, MPPT control display or VE.Direct cable.
- Secure non-Bluetooth design; VE.Direct Bluetooth Smart dongle can be added separately for wireless access.

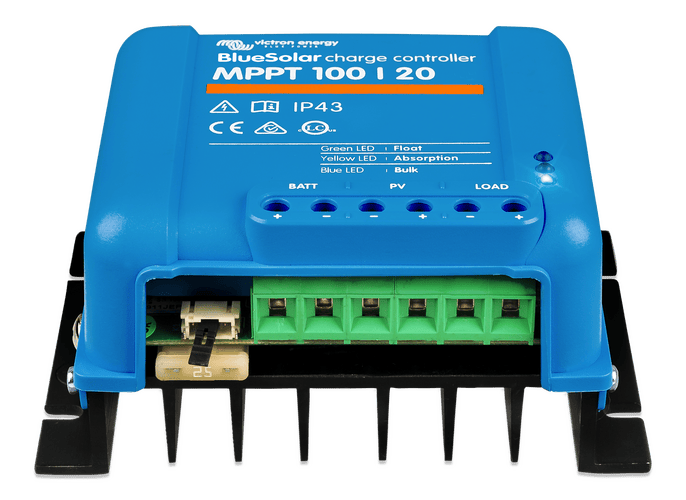

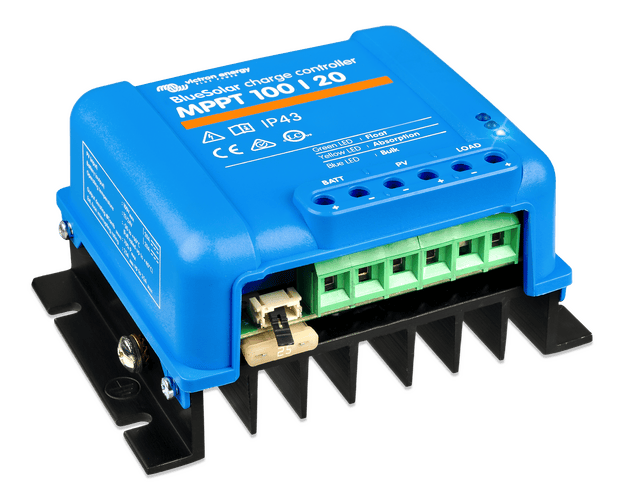

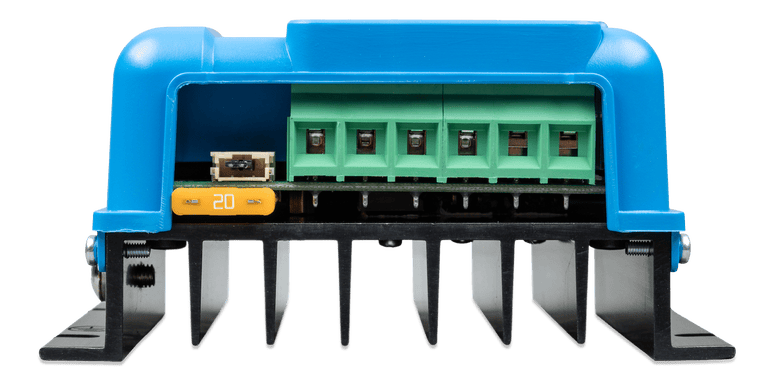

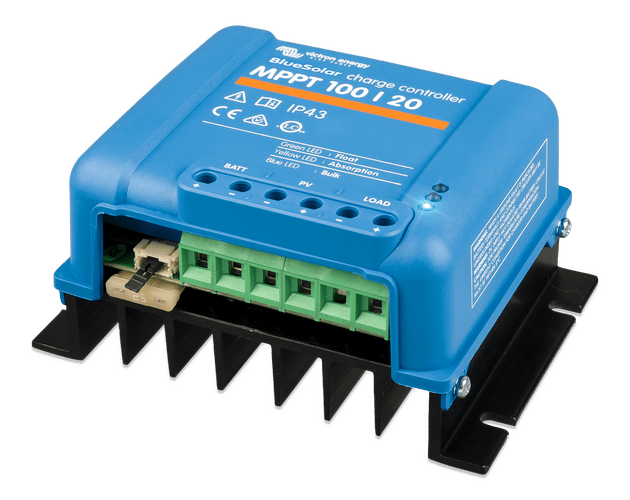

- Robust connection area with clearly labelled 6mm² (AWG10) screw terminals and a replaceable 20A automotive blade fuse for over-current protection.
- IP43 protection for internal electronic components and IP22 for the connection area.
- Safety: EN/IEC 62109-1
- Safety: UL 1741
- Safety: CSA C22.2

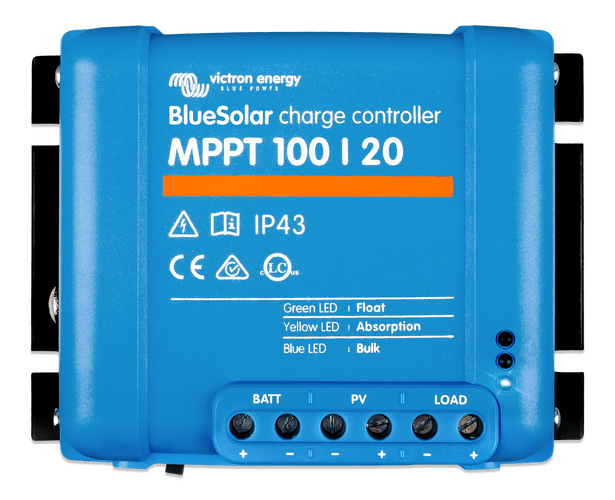

- Status LEDs indicate Bulk, Absorption and Float charging stages.
(SCC110020170R)

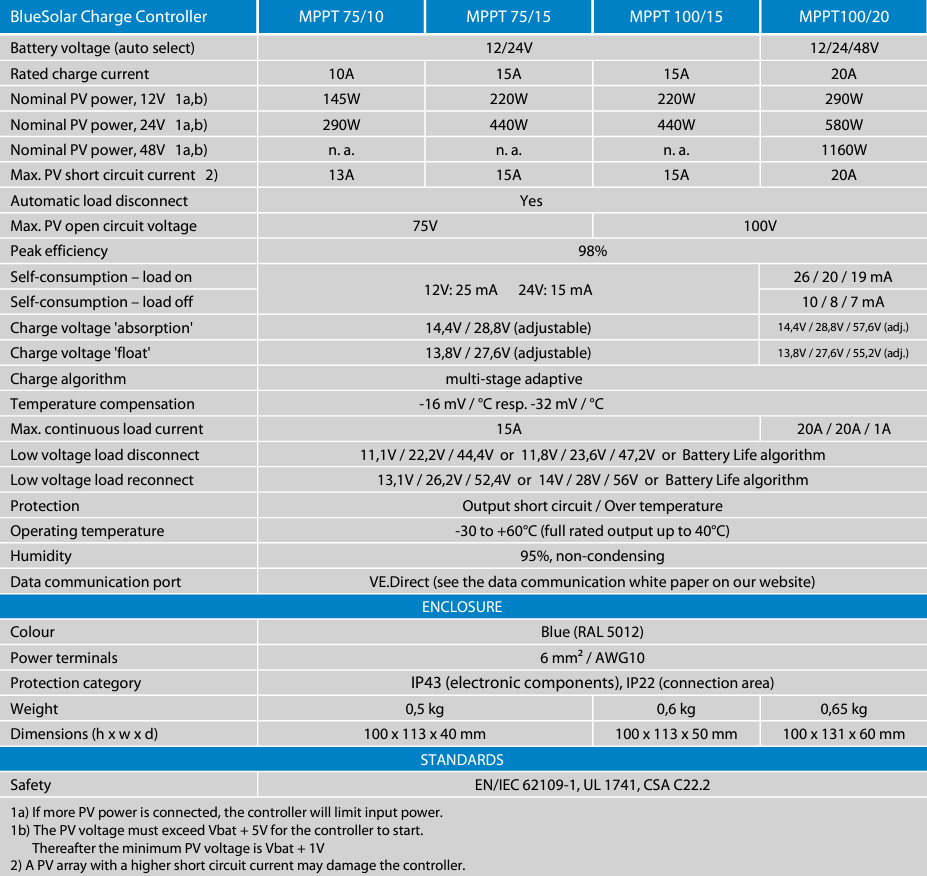

| Model | BlueSolar MPPT 100/20 |
|---|---|
| Battery voltage (auto select) | 12/24/48V |
| Rated charge current | 20A |
| Nominal PV power, 12V (1a,b) | 290W |
| Nominal PV power, 24V (1a,b) | 580W |
| Nominal PV power, 48V (1a,b) | 1160W |
| Max. PV short circuit current (2) | 20A |
| Automatic load disconnect | Yes |
| Max. PV open circuit voltage | 100V |
| Peak efficiency | 98% |
| Self-consumption - load on | 26 / 20 / 19 mA |
| Self-consumption - load off | 10 / 8 / 7 mA |
| Charge voltage 'absorption' | 14.4V / 28.8V / 57.6V (adj.) |
| Charge voltage 'float' | 13.8V / 27.6V / 55.2V (adj.) |
| Charge algorithm | Multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. -32 mV / °C |
| Max. continuous load current | 20A / 20A / 1A |
| Low voltage load disconnect | 1.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm |
| Low voltage load reconnect | 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm |
| Protection | Output short circuit / Over temperature |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Data communication port | VE.Direct |
| Colour | Blue (RAL 5012) |
| Power terminals | 6 mm² / AWG10 |
| Protection category | IP43 (electronic components), IP22 (connection area) |

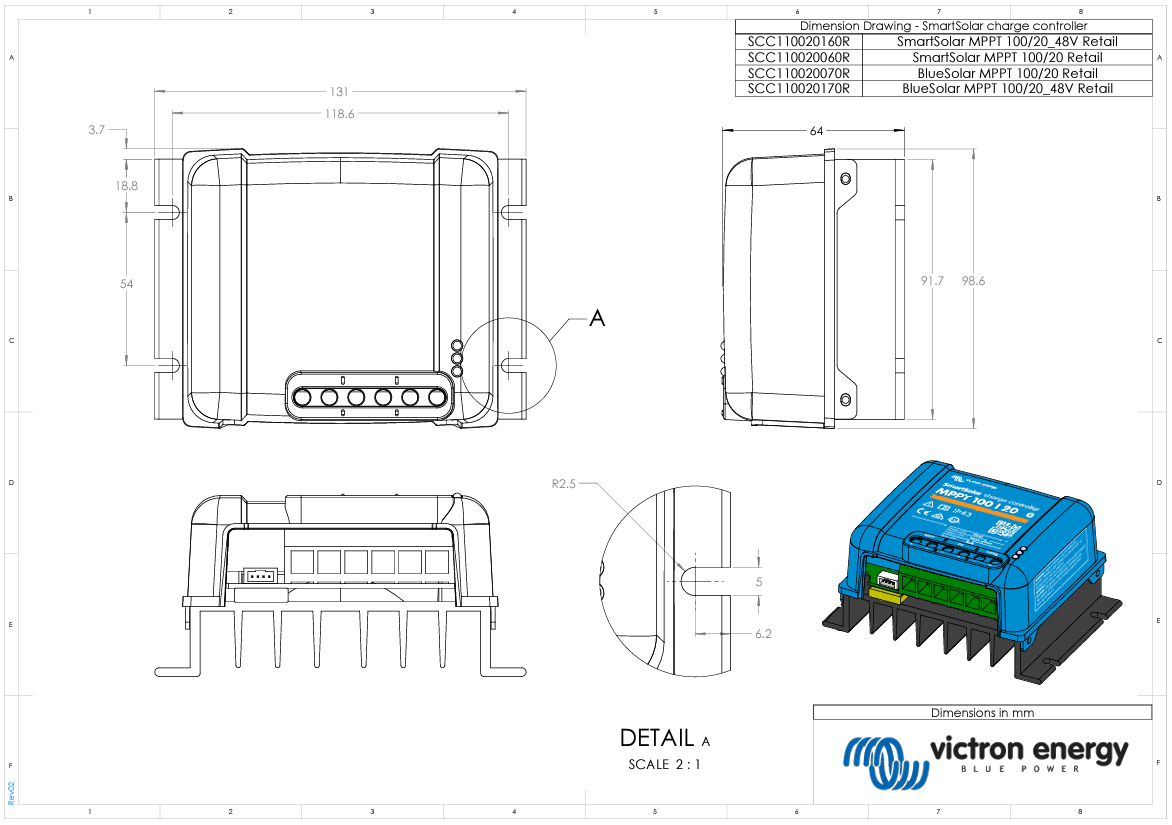

| Dimensions (h x w x d) | 100 x 131 x 60 mm |
| SKU | SCC110020170R |
| Barcode # | 8719076043027 |
| Brand | Victron Energy |
| Shipping Weight | 750.0000kg |
| Shipping Width | 0.113m |
| Shipping Height | 0.100m |
| Shipping Length | 0.060m |
