All Terrain Industries Spacer/Shackle Lift Kit - Ford Ranger PXI/PXII/PXIII 2011-2022

The ATI spacer/shackle lift kit provides a 2" (approximately 50mm) lift over factory height using front strut spacers and rear extended shackles. It is designed for Ford Ranger PXI/PXII/PXIII 2011-2022, Ford Ranger Next Gen 2022-on and Mazda BT50 2011-2020.

Features:

• 25mm strut spacers lift the front approximately 45mm over standard
• Strut spacers mount onto the standard strut to create lift without limiting wheel travel or affecting ride quality
• Strut spacers machined from billet alloy and anodised for corrosion protection
• Extended shackles feature greasable pins top and bottom with grease nipples on either side for easier servicing
• Shackles offer two adjustable height options to give approximately 25mm or 50mm of lift over the original equipment units
• Shackles can be fitted with rubber or urethane bushes
• Maintains factory ride quality
• Heavy duty components
• Lifetime warranty

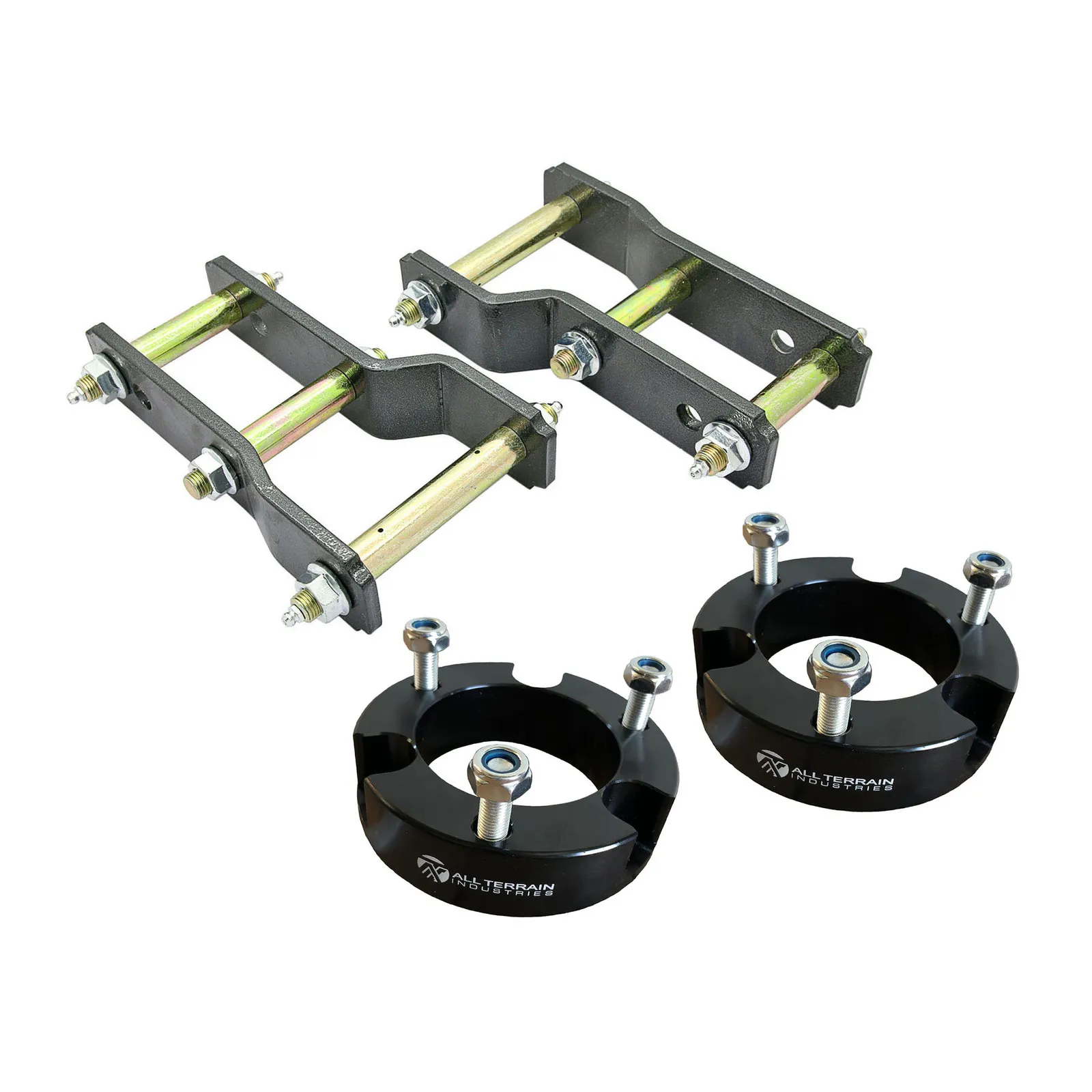

Kit Includes:

• 2 x 25mm Strut spacers
• 6 x Nyloc nuts
• 4 x Shackle plates
• 4 x Greasable shackle pins
• 2 x Centre non greasable pins
• 12 x Shackle nuts
• 8 x Grease nipples

Suits:

• FORD RANGER PXI/PXII/PXIII 2011-2022
• FORD RANGER NEXT GEN 2022-on
• MAZDA BT50 2011-2020
