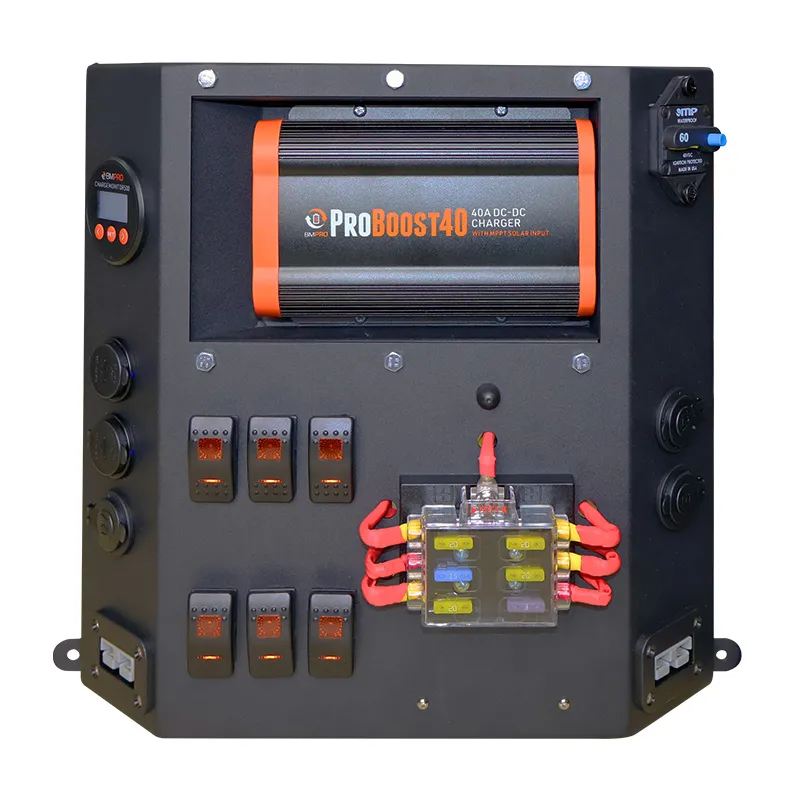

BMPRO 40A Battery Charging & Power Distribution Station
BMPRO’s Canopy DCBoard 40 is a versatile 12V battery charging and power distribution station.

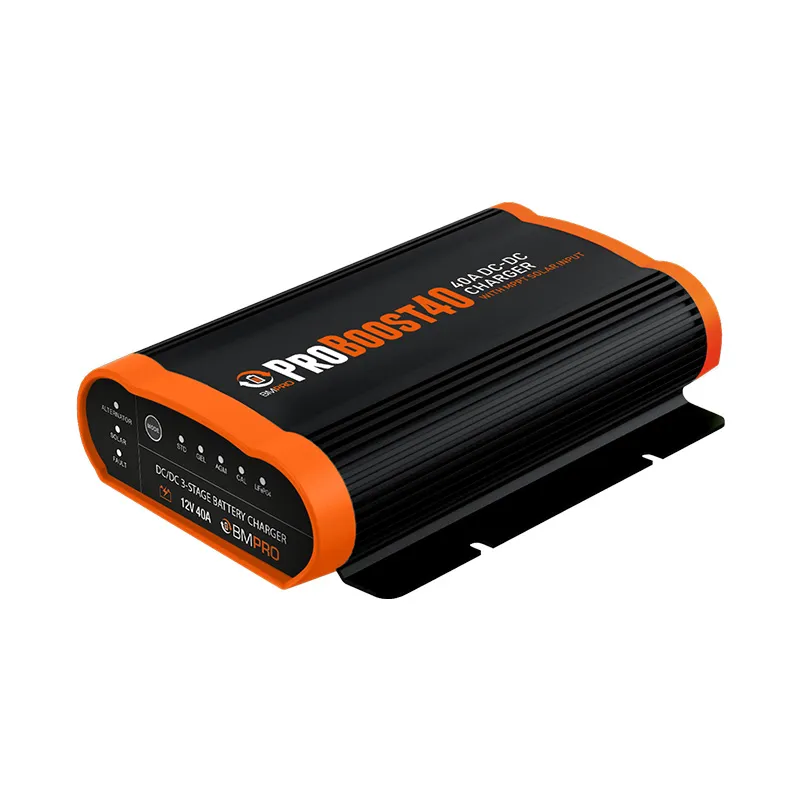

It features multiple Anderson connections, a 500A shunt and battery monitor, a 60A battery isolator, and a ProBoost40 DC-DC charger with MPPT solar charging.
The panel includes various outlets such as 12V accessory sockets, dual USB-A/USB-C sockets, and an Engel fridge socket with six pre-wired and fused rocker switches.
Key Features:
- Angled board for easy viewing & access
- Comes pre-wired and fused, ready to install
- 40A MPPT solar & DC-DC charger
- 60A battery isolator
- Incorporated top and bottom mounting points
- Battery monitor incorporated for peace of mind
- 407mm Wide inc mounting tabs
- 400mm Tall
- 118mm Deep inc fuse box
Specifications:
|
Battery Output / Connection |
Back of panel Grey Anderson |
|
Aux Input to DC-DC Charger |
Back of panel Grey Anderson |
|

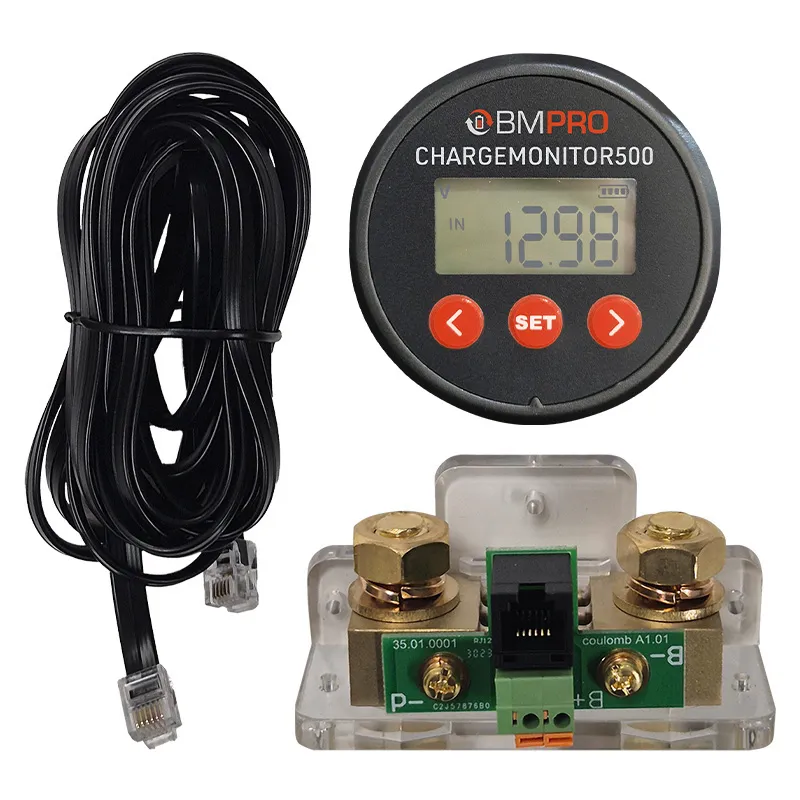

Shunt and Battery Monitor |
500A shunt with integrated display |
|
Battery Isolator |
60A |
|
Mounting Brackets |
Top/bottom |
|
Solar Input |
Red Anderson on top of panel |
|
Solar & DC Boost Battery Charging |
40A MPPT |
|
12V Accessory Sockets |
x2 |
|
50A Grey Anderson Plugs |
x2 |
|
USB Sockets |
x2 dual USB-A / USB-C sockets |
|
Engel Fridge Socket |
x1 |
|
Fused Rocker Switches |
x6 |
(CANOPY40)
| SKU | CANOPY40 |
| Brand | BMPro |
