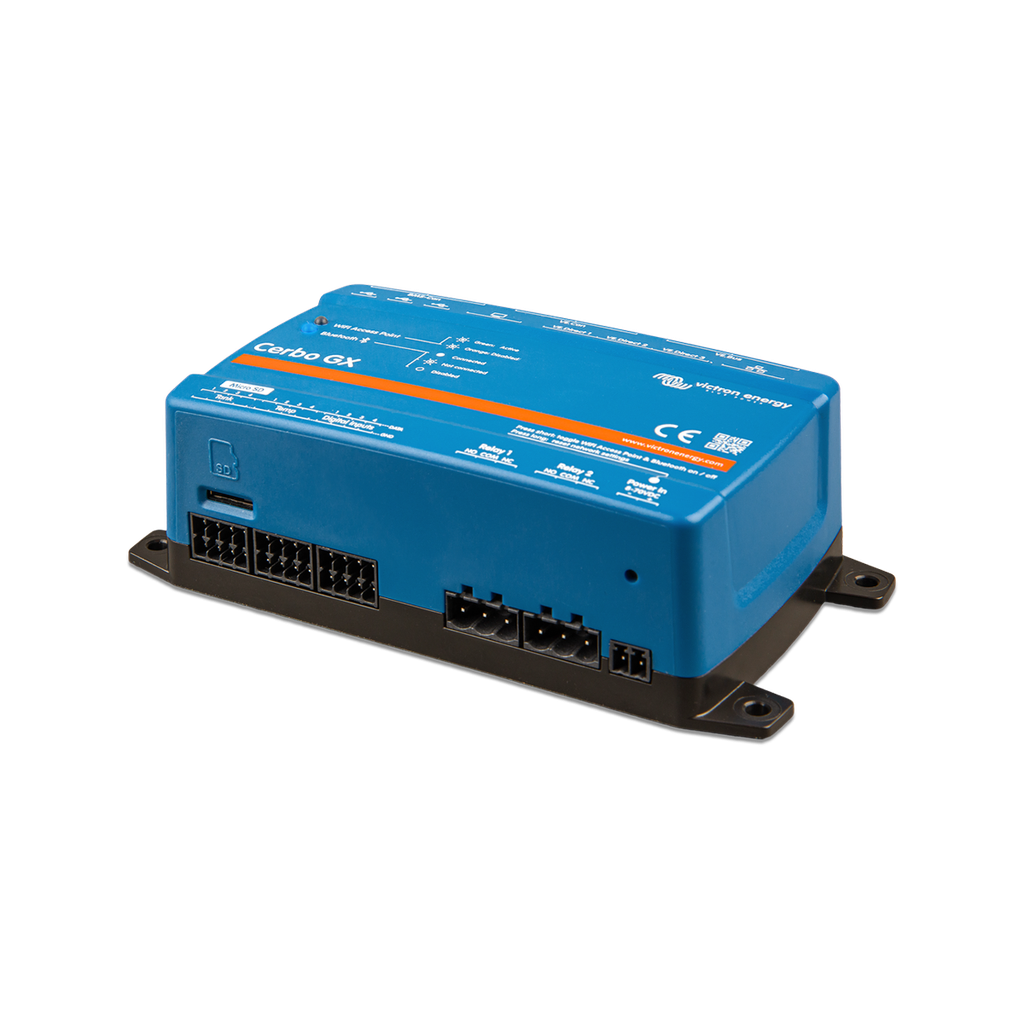

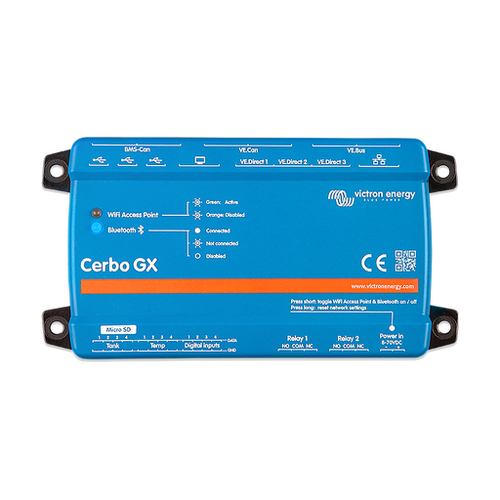

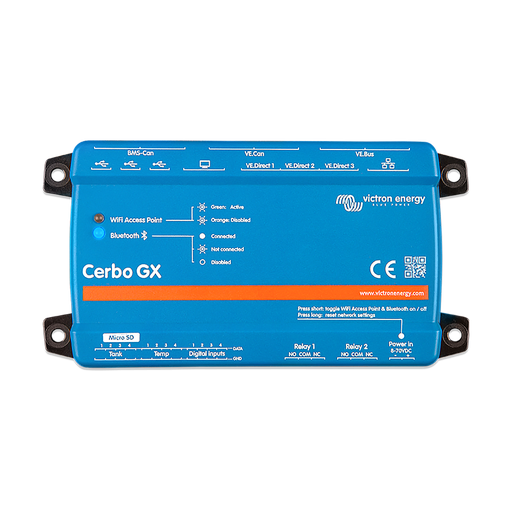

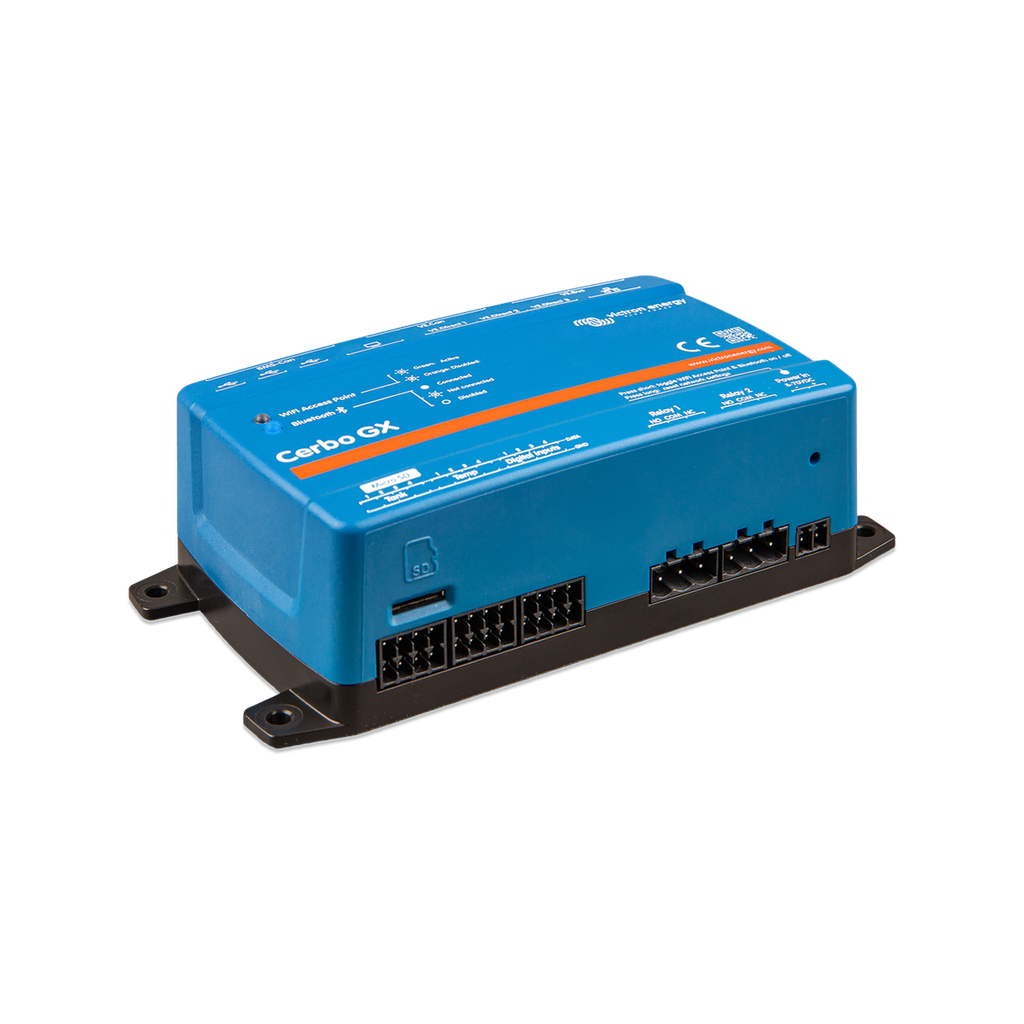

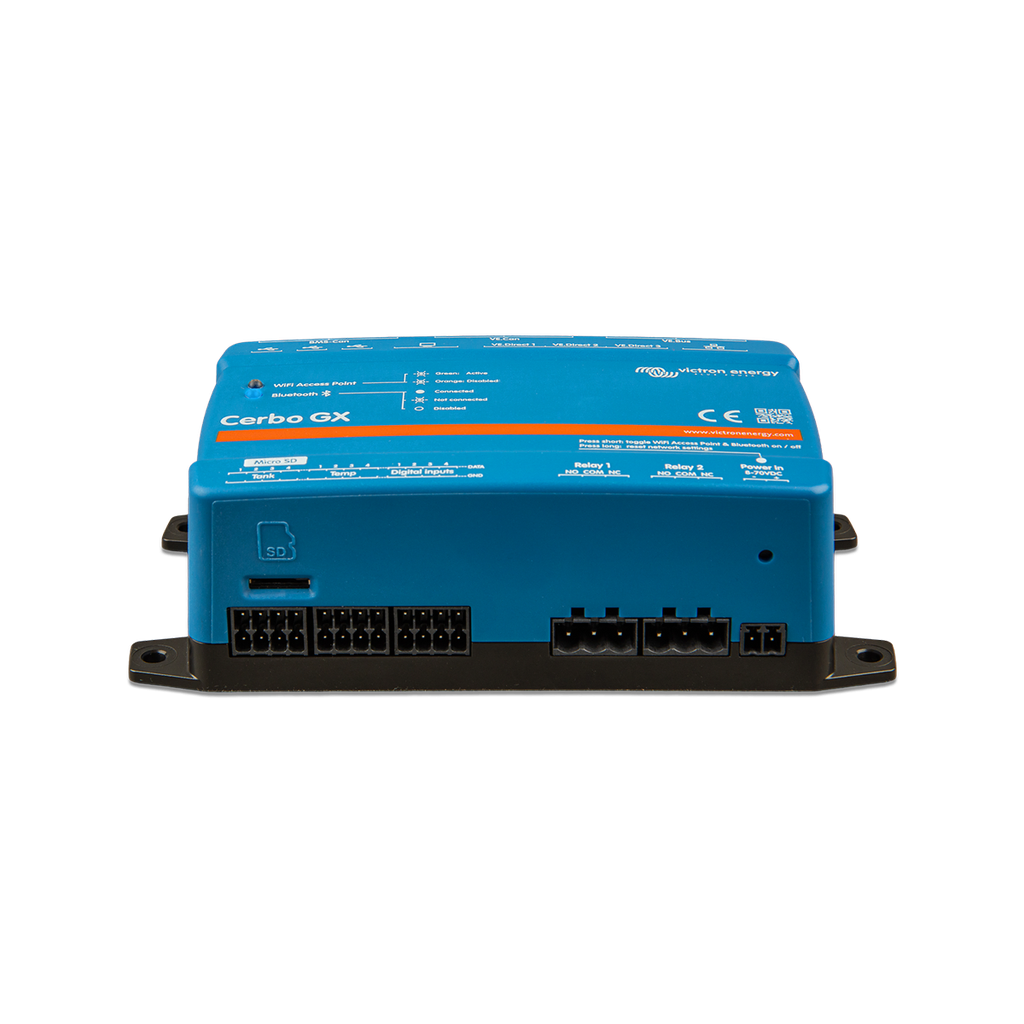

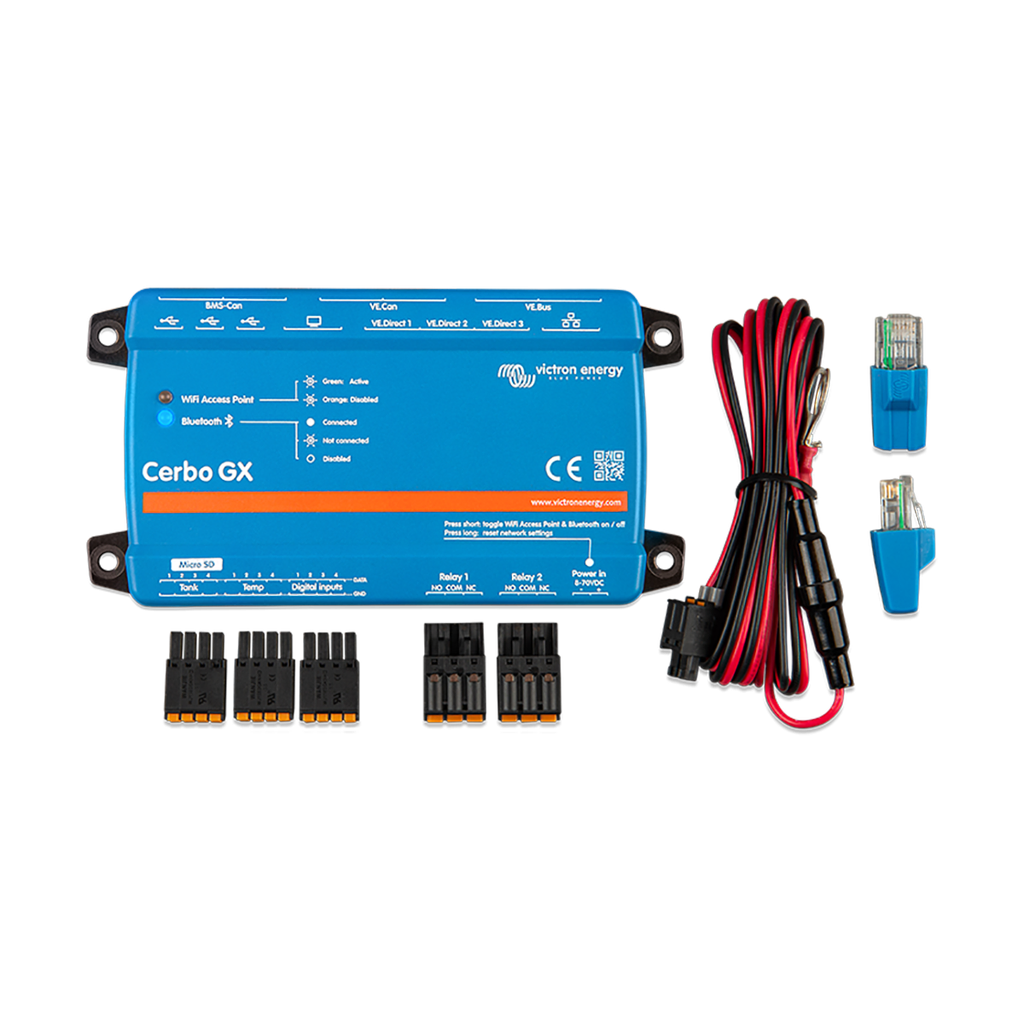

Victron Cerbo GX MK2

The Victron Cerbo GX MK2 is a system communication centre that connects inverter/chargers, solar chargers and batteries to provide central monitoring and control. It runs Victron's Venus OS and supports remote access via the VRM Portal, VictronConnect and an optional GX Touch 50 display.

Features

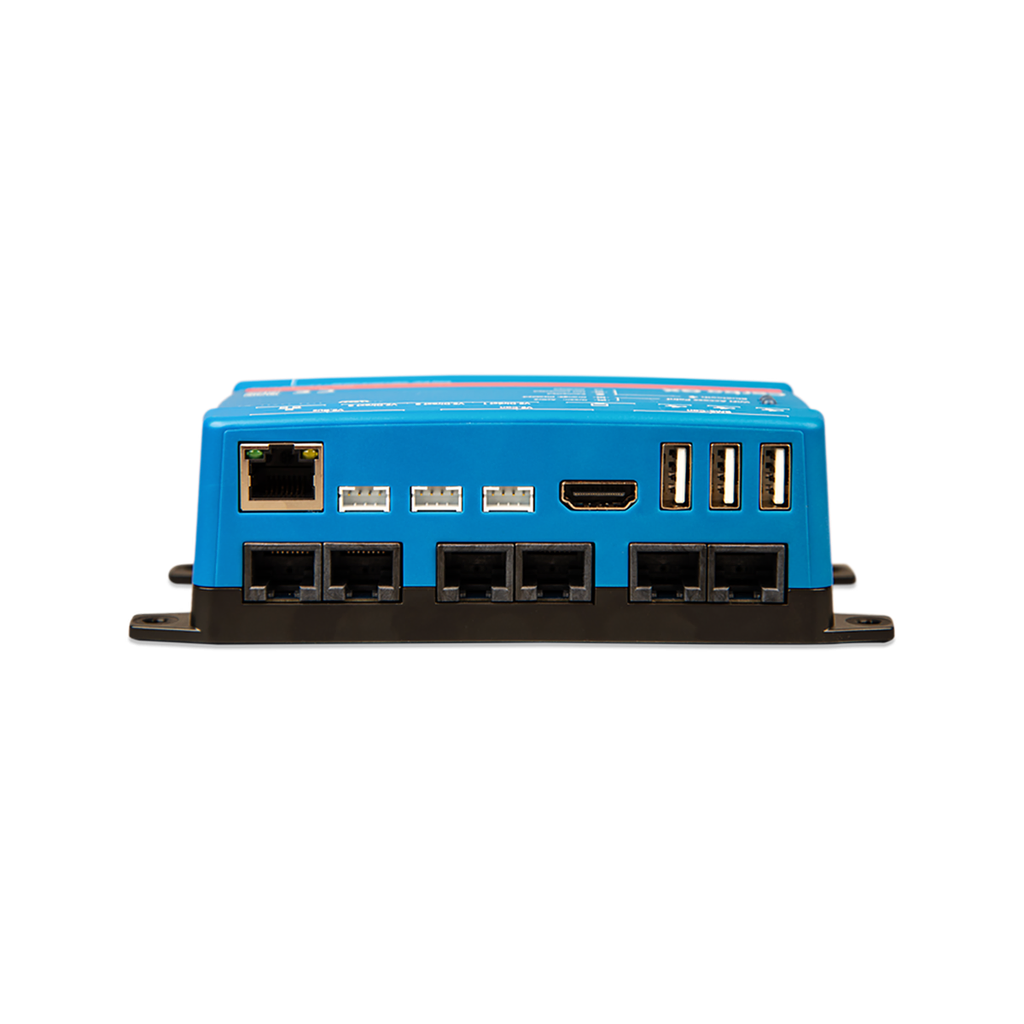

• System communication centre with VE.Direct, VE.Bus, VE.Can, USB and Ethernet ports
• Built-in WiFi and Bluetooth for local configuration via the VictronConnect app
• Smart power solution that coordinates multiple power sources and system components
• MK2 improvements: isolated VE.Can port option, dual full-function CAN-bus ports and three fully functional USB ports
• Supports remote firmware updates and remote settings changes via the VRM Portal

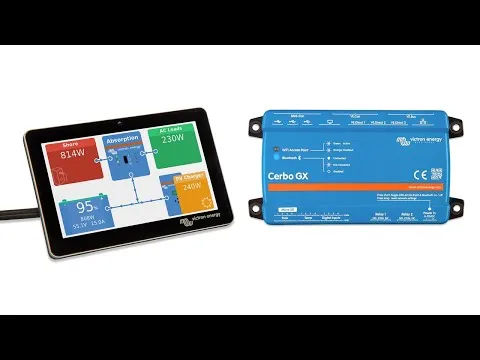

• Optional GX Touch 50 display for local system overview and configuration

Specifications

• Supply voltage: 8 – 70 VDC
• Mounting: Wall or DIN rail (35 mm)
• VE.Direct ports (always isolated): 3 (max. possible VE.Direct devices: 15)
• VE.Bus (always isolated): 2 paralleled RJ45 sockets
• VE.Can: Yes - non isolated
• BMS-CAN port: Yes
• Bluetooth: Yes
• Resistive tank level inputs: 4
• Temperature sense inputs: 4
• Digital inputs: 4
• Relays: 2 x NO/NC; DC up to 30 VDC: 6 A; DC up to 70 VDC: 1 A; AC: 6 A, 125 VAC
• Outer dimensions: 78 x 154 x 48 mm
• Operating temperature range: -20 to +50 °C
• IP rating: IP20
• Safety: IEC 62368-1
• EMC: EN 301489-1, EN 301489-17
• Automotive: ECE R10-6
