Clearview Tyre Spider Inflator/Deflator

When travelling offroad especially in sand we find a need to deflate our tyres and re-inflate our tyres for a wider and longer tyre patch. The Clearview Tyre Spider allows you to deflate all 4 tyres at the same time, re-inflate your tyres at the same time without having to spend time on your knees at each wheel.

The Tyre Spider will allow you to easily stagger your tyre pressures allowing more air for the rear tyres and less for the front if needed.

The Tyre Spider will allow you to borrow air from the other three tyres from your vehicle without the aid of a compressor.

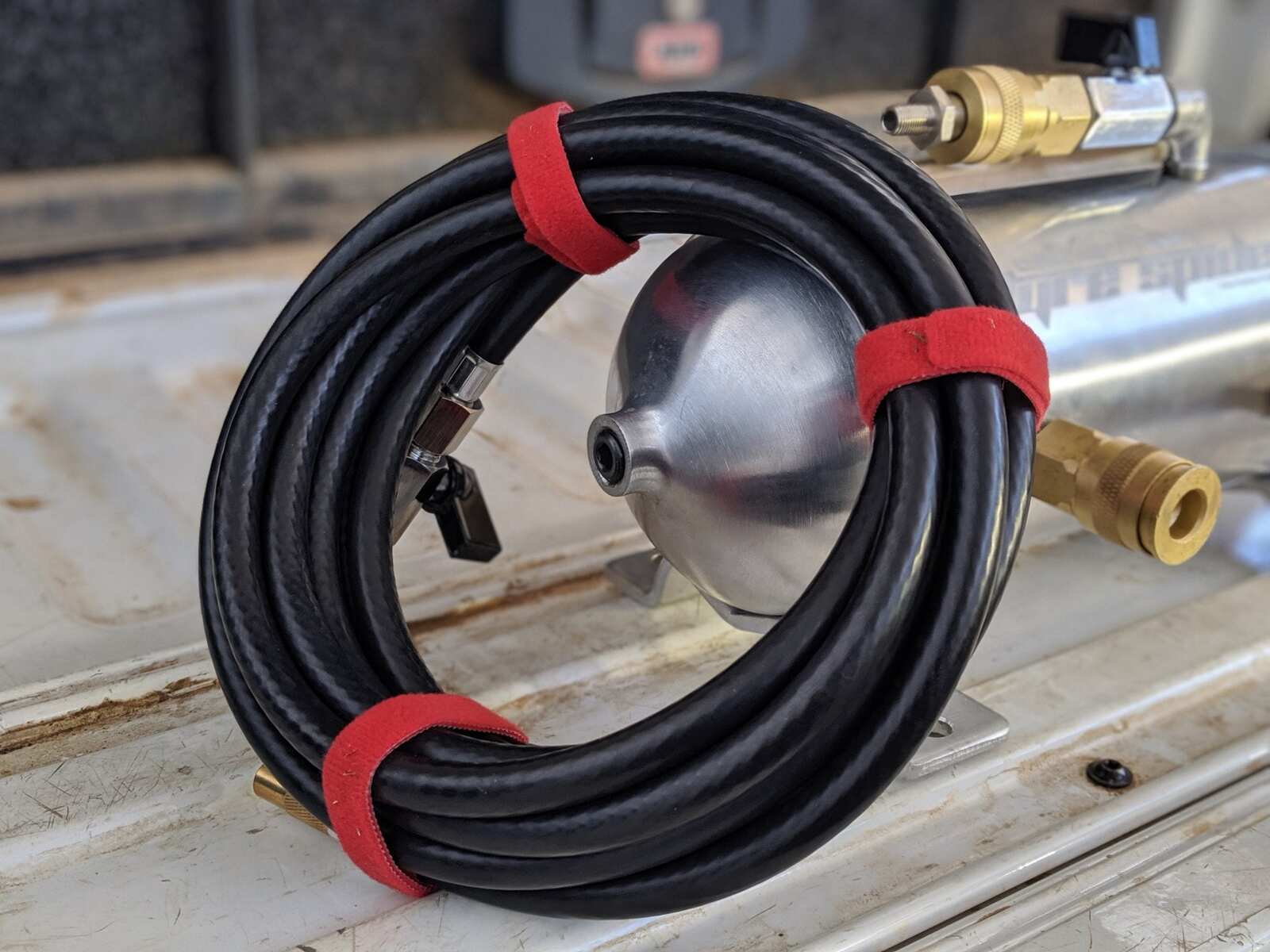

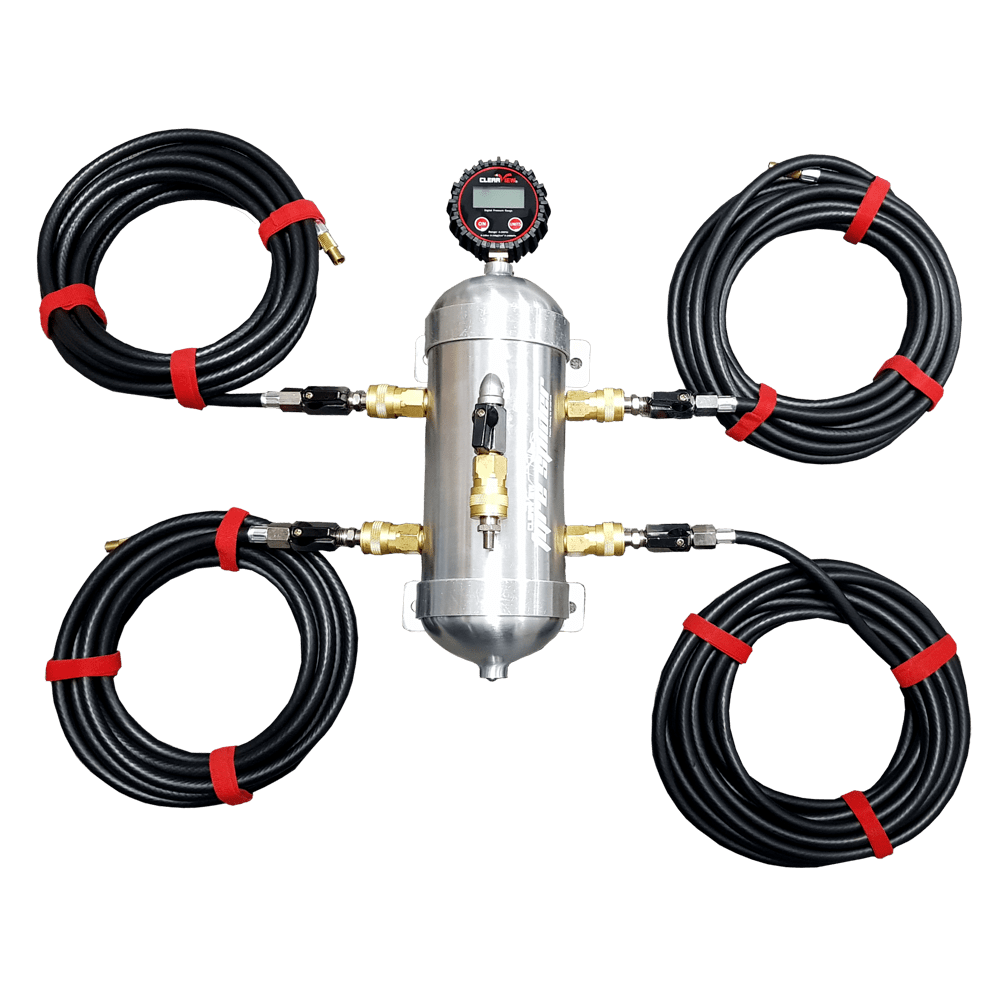

With two 5 metre hoses and two 8 metre hoses in each kit, this allows for the use of the longest wheel-based vehicles.

Save time, knees and back pain by efficiently inflating, deflating and equalising your tyres without the need of a chiropractor.

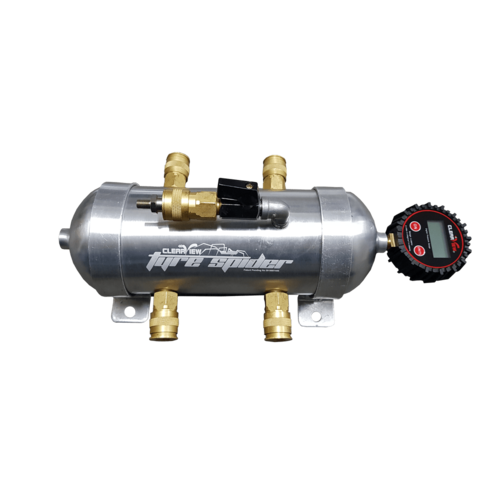

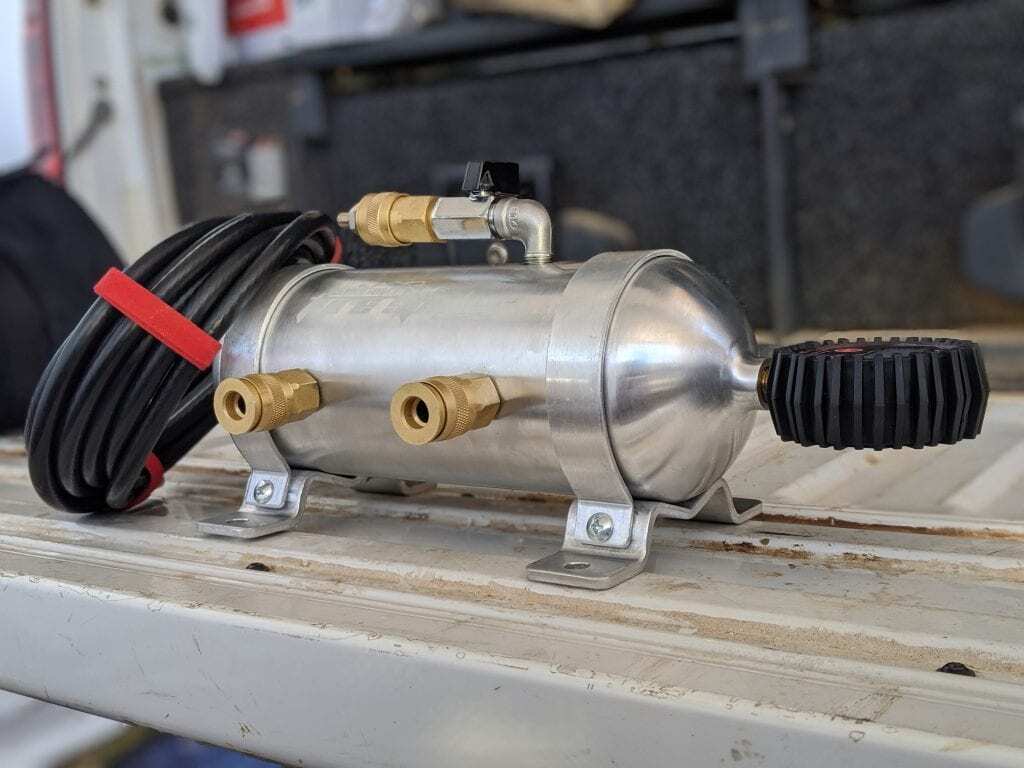

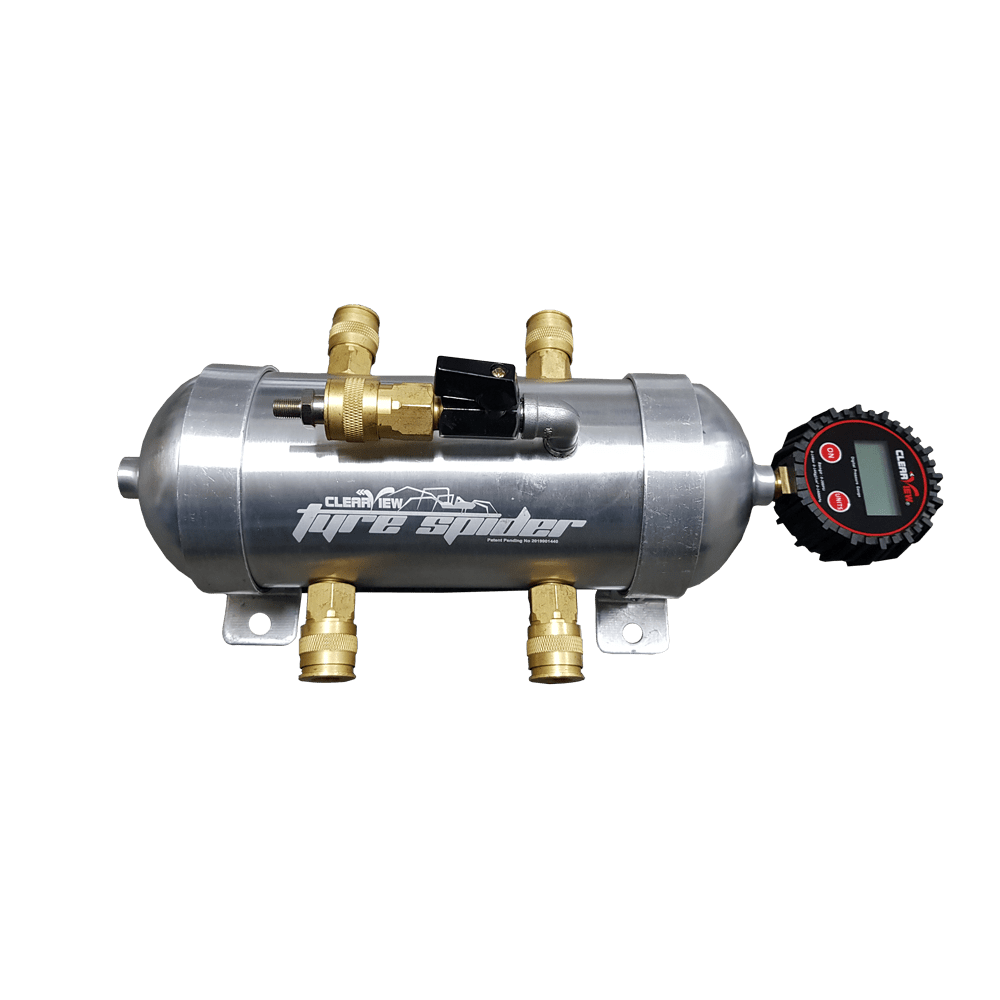

The Tyre Spider contains 4 individual valves, one for each tyre and 1 main valve.  The main valve has three main purposes:

1. Inflation – connect an air-compressor for inflation purposes
   – borrow air from tyres for inflation without the need of an air compressor.
2. Disconnected – open while not connected to a hose for deflation
3. Closed – closed for tyre pressure equalisation.



INSTRUCTION:



Tyre Inflation – with air compressor
Connect the Tyre spider up to a maximum of 4 tyres on your vehicle or caravan at the same time.  Ensuring the main valve is closed, open all 4 individual valve hoses to begin pressure equalisation.  Once equalised, close the individual valves, connect your air-compressor and re-open all 5 valves and turn on your air-compressor to begin inflating all four tyres at the same time.  If you require staggered pressure across your tyres, close the individual valves where the ideal pressure has been achieved and continue inflating the remaining tyres.
***This will reduce the overall load on the air-compressor, reduce overall inflation time and reduce the chances of your air compressor overheating.

Tyre Inflation – without air compressor
Connect the Tyre spider up to a maximum of 4 tyres on your vehicle or caravan at the same time.  Ensuring the main valve is closed, open all 4 individual valve hoses to begin sharing air across all 4 tyres.  This will utilise the air in the inflated tyres to re-inflate the deflated tyres.  If you require staggered pressure across your tyres, close the individual valves where the ideal pressure has been achieved and continue inflating the remaining tyres.

Tyre Deflation
Connect the Tyre spider up to a maximum of 4 tyres on your vehicle or caravan at the same time. Ensuring the main valve is closed, open all 4 individual valve hoses to begin tyre pressure equalisation.  This will equalise and balance the pressure across all 4 tyres.  Once equalised, open the main valve and the pressure of all 4 tyres will decrease at the same time.  If you require staggered pressure across your tyres, close the individual valves where the ideal pressure has been achieved to allow deflation of the remaining tyres.

Tyre Equalisation
Connect the Tyre spider up to a maximum of 4 tyres on your vehicle or caravan at the same time. Ensuring the main valve is closed, open the 4 individual valve hoses to begin tyre pressure equalisation.  This will equalise and balance the pressure across all 4 tyres.  Close any individual valves if you require different pressure balance from front to back and once completed close the main valve.
