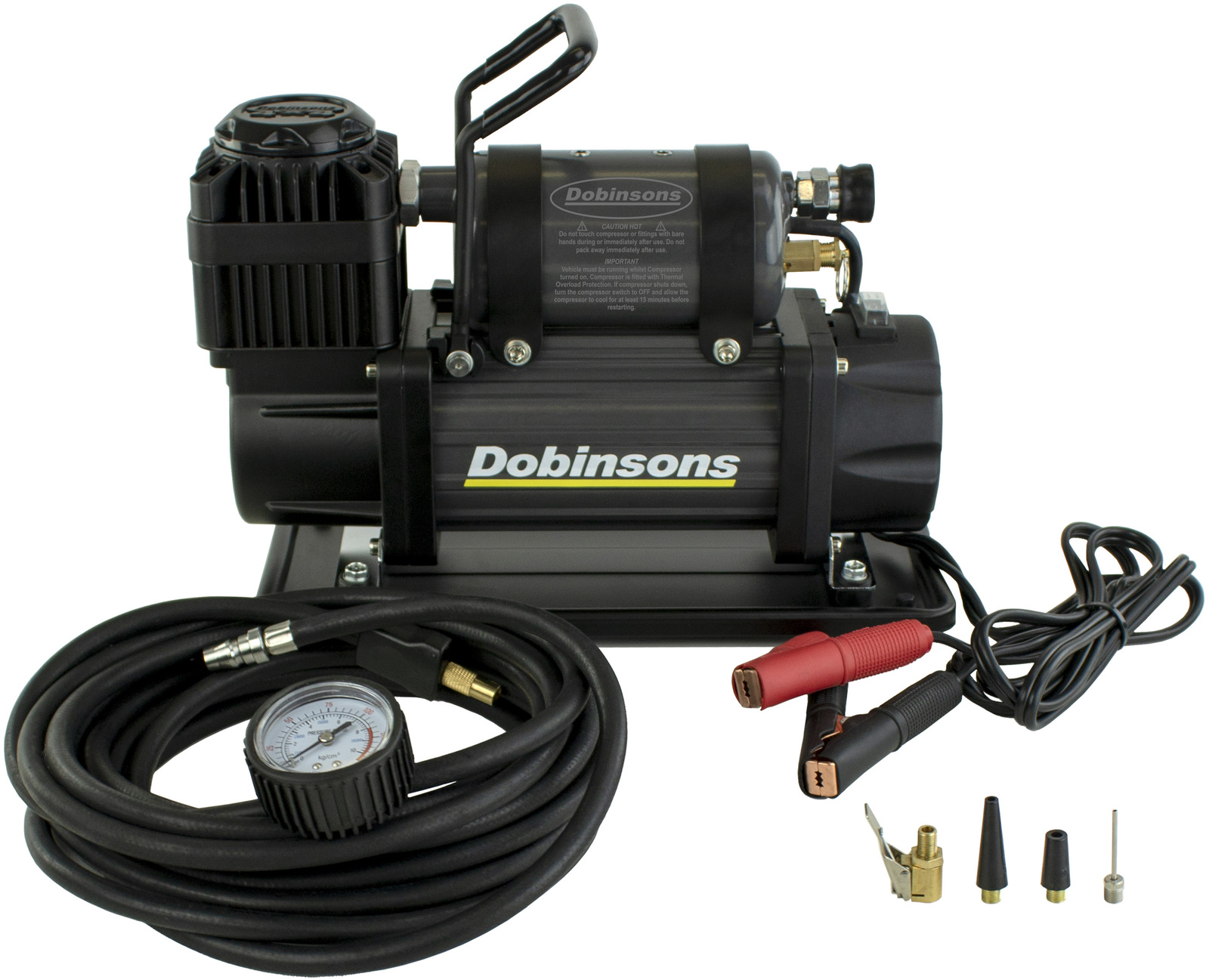

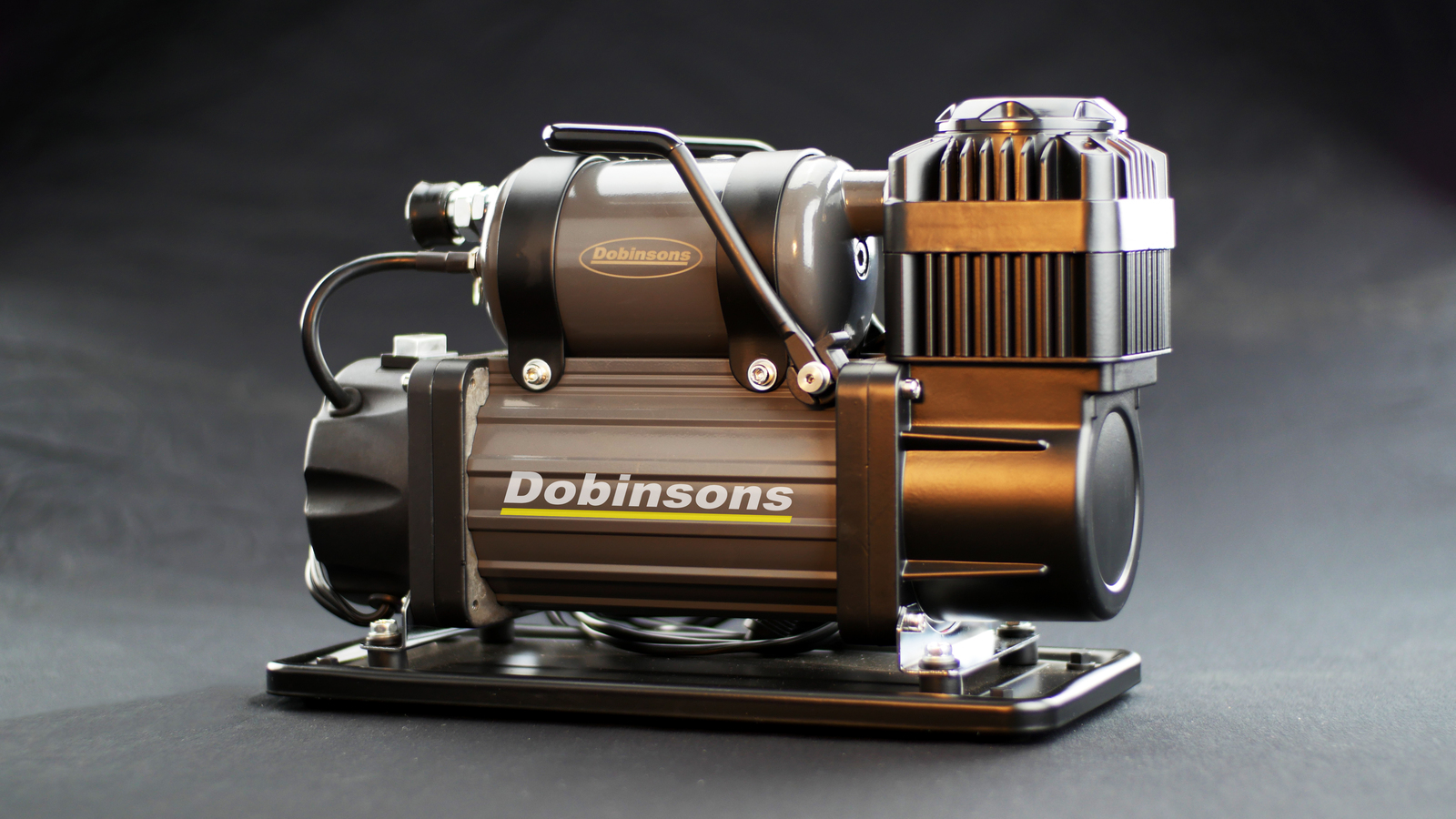

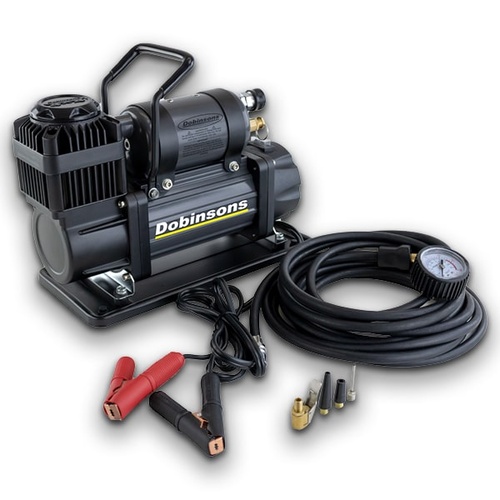

Dobinsons High Flow Air Compressor

Dobinsons by Zenith latest high output Air Compressor has been designed and tested in Australia to combine high volume air-flow for quick tyre inflation as well an integrated air tank, pressure cut-off switch and auxiliary ports for a variety of different applications.

Features:

170L/ minute Air Flow

Integrated Air Tank

2 x 1/8” NPT Auxiliary fittings

Carry Bag

6.5 m Rubber Hose

Pressure Cut Off Switch

Safety Release Valve

Removable Base for Permanent Mounting

Quick Release Tyre Chuck


Specifications:

Nozzle Adapters

Pressure Gauge & Fuse

Voltage: 12 Volts DC

Motor Rating: 700 Watts

Max Current Draw: 60 Amps

Air Flow: 170L per minute

Maximum Pressure: 125 PSI

Cylinder Diameter: 60mm Full Metal

Duty Cycle: 40min at 40 psi at 20°C

Overload: 90 Amp

Air Hose: Rubber 6.5 metre

Air Tank Size: 0.19 Litres Approx

Auxiliary Tank Fittings: 1/8” NPT

Pressure Switch Cut-Off: 125 Psi

Pressure Switch Cut-In: 90 Psi

Dimensions mm (L x H x W): 340 x 240 x 15
