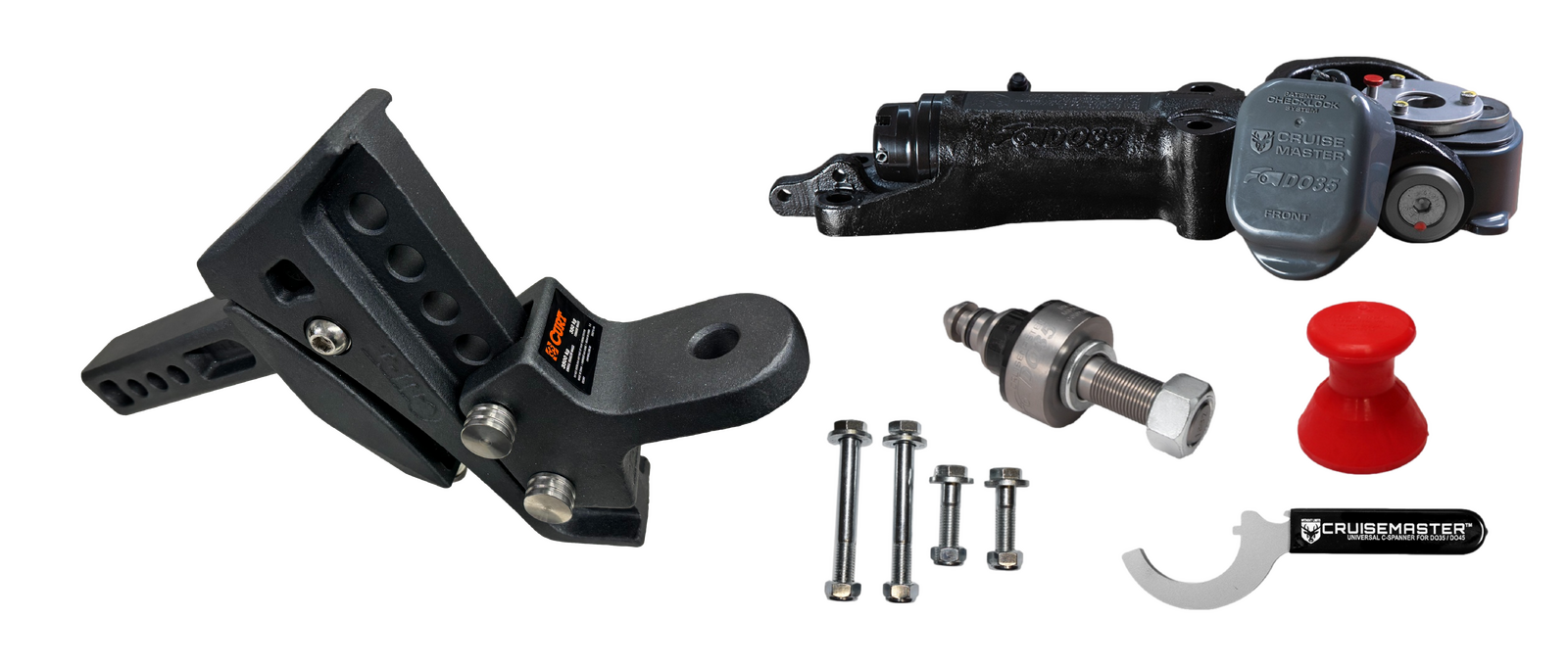

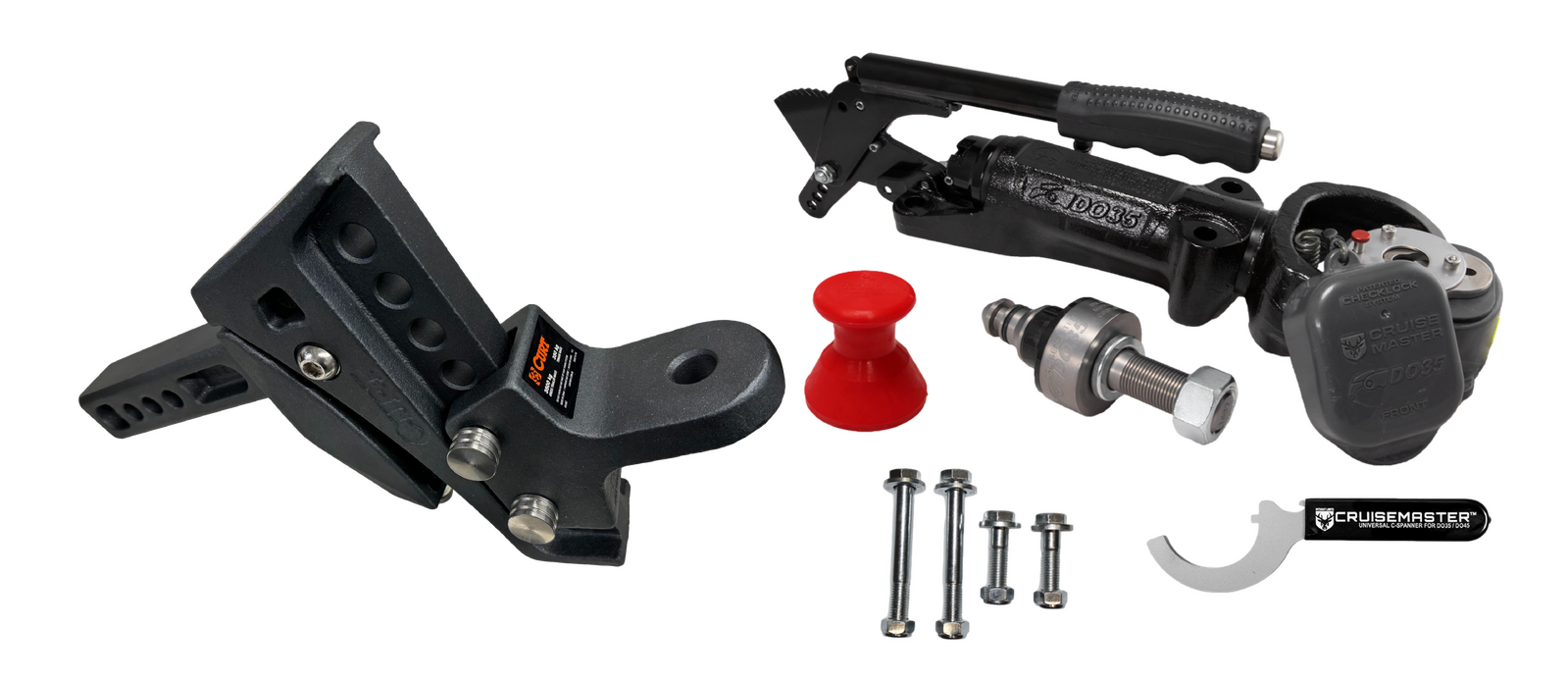

Curt Rebellion XD Shock Drop Kit + Cruisemaster DO35 V3 Plus Kit with 7/8" 3500kg Tow Pin

The Ultimate Complete Tow Hitch and Coupling solution to suit your Towing Needs.



Curt Rebellion Features:

• 4.5 Tonne Towing Capacity (3500kg with DO35 V3 Kit)

• The six height adjustment positions ensure level towing of the trailer, and it is perfect for all kinds of pickup trucks and SUVs, including larger and lifted trucks.

• Adjustable, six-position head for precise levelling with different trailers

• 152mm maximum drop (shank cannot be flipped)

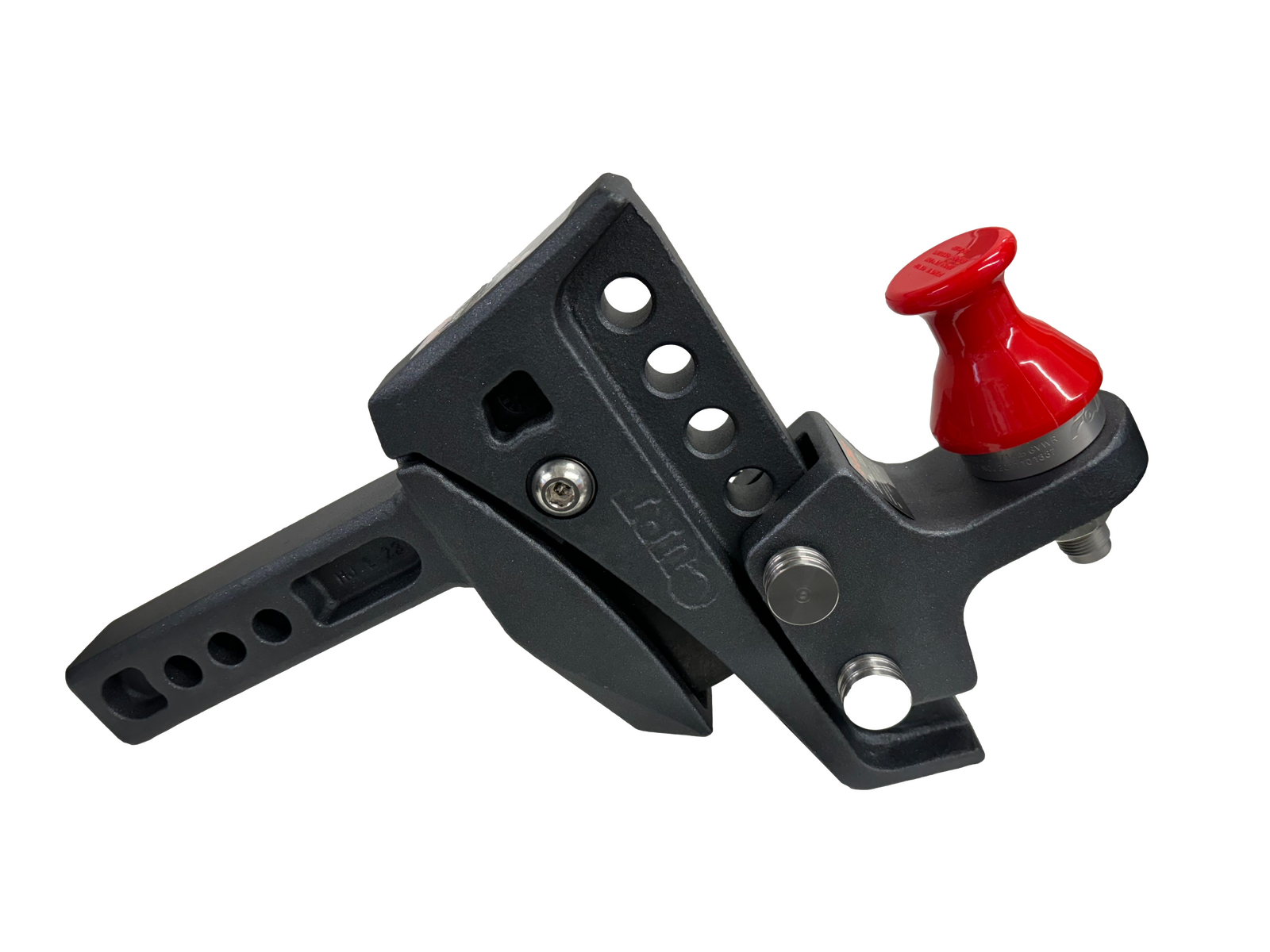

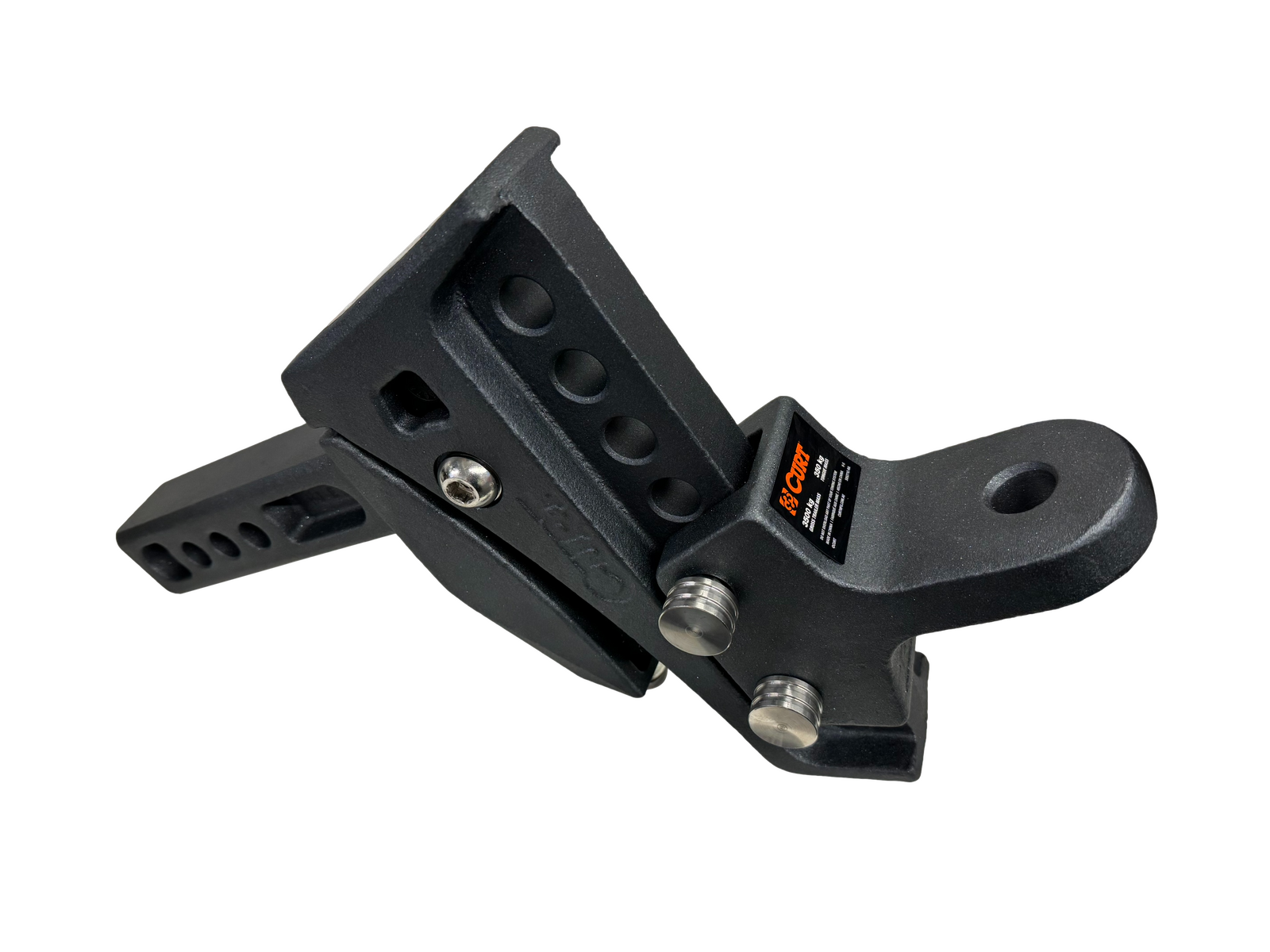

CURT Rebellion XD ShockDrop Ball Mount 50mm Square Hitch (Class 4) is a leap forward in Towing technology.

It provides more control, confidence, and a more comfortable ride, all while protecting your towing system from jerking, jarring, rattling, and trailer sway.

CURT Rebellion XD Ball Mount is constructed with ShockDrop technology.

Built into the ball mount is a cushioned isolator that inserts between the receiver shank and vertical shank.

The isolator provides dynamic, adaptive suspension of the coupling point giving you a comfortable towing experience and provides increased control in events of sudden braking.

Unlike other cushioned ball mounts, the CURT Rebellion XD ShockDrop Ball Mount has no airbags or bearings, making the unit virtually maintenance-free.

When you're ready to tow, simply mount it onto your receiver hitch like you would any other ball hitch.

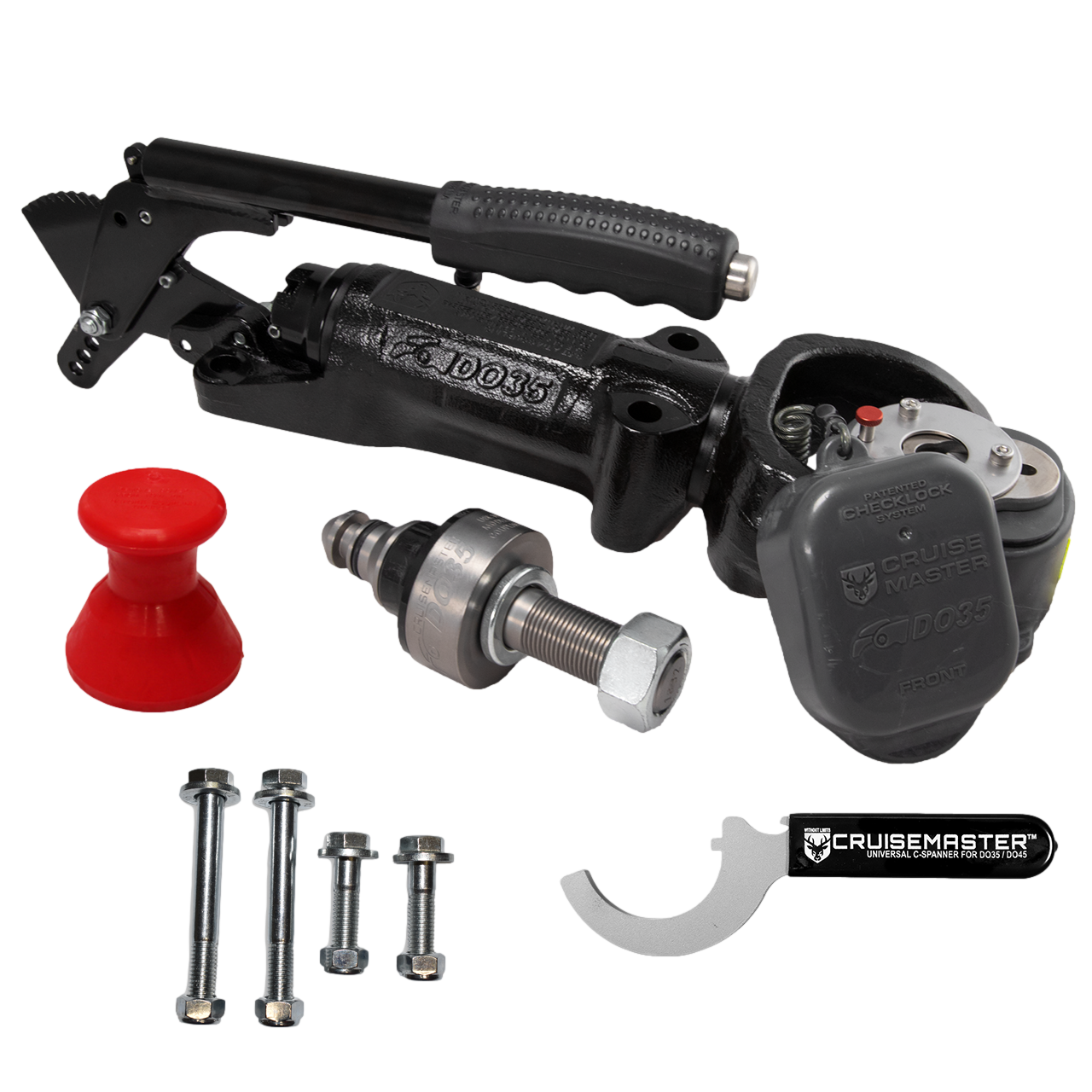

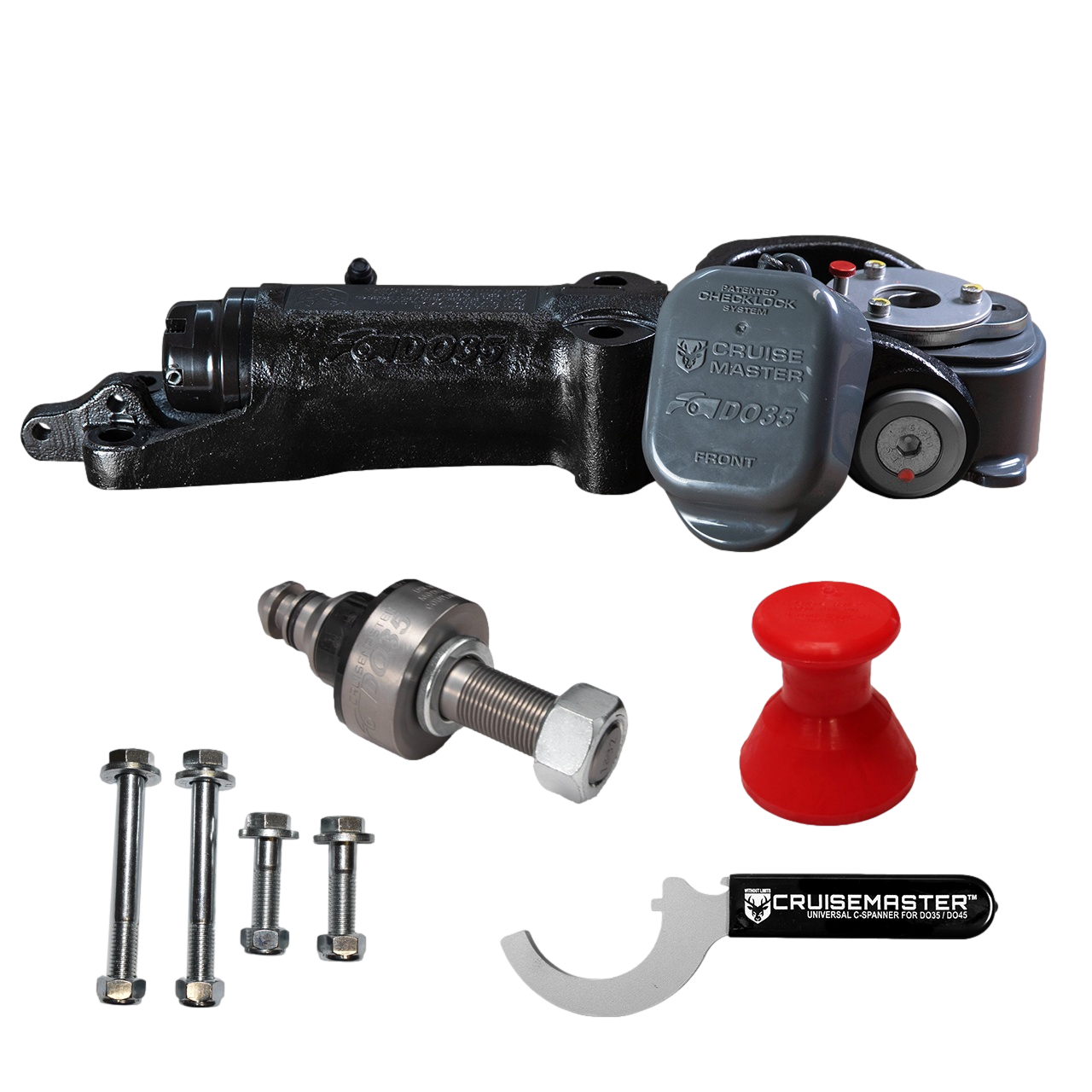

Cruisemaster DO35 V3 Features:

• 3.5 Tonne Towing Capacity
• 2 Stage ADR compliant locking mechanism
• Low profile Bumper & Cap for impressive clearance
• High articulation for improved handling off-road and on unmaintained roads
• Patented “Checklock” Gen.2 Dust Cap & Bumper for an easy, secure seal
• Improved Bumper molding gives the from reflector strip improved staying power
• Rear support webbing allows for mounting upside down on the underside of the drawbar
• Available with or without handbrake, just order the one required to suit your needs.
• Suitable for use with most Weight Distribution System’s
• Forged Yoke and Rear Nut for added strength
• Exceeds ADR 62/01 and 62/02 strength requirements
• One piece light weight Cast Housing
• Standard Aus bolt pattern for easy fitment
• 7/8” shaft to fit most std. tow tongues
• Improved towing safety
• Combination of zn-ni and e-coat for superior corrosion protection
• Greaseable Bushes for easy maintenance and noise free towing
• No tow ball height restrictions
• R.A.T Run Tested and Proven



ARTICULATION:	360 degrees axial, minimum 70 degrees other axes.
LOCKING:	Fully ADR 62/02 compliant including automatic secondary lock
BOLT PATTERN:	4 bolts at 185mm x 54mm
RATING:	3.5 Tonne
ACTION:	Drop-On
MAINTENANCE:	Fully Greasable



For instructions on installation, maintenance and use refer the DO35 User Guide.



*Please note*
While the DO35’s Zn-Ni with E-Coat provides superior corrosion protection it may fade with extended exposure to UV.

This does not affect the operation of the DO35.

To best maintain the finish of the product, we recommend covering the DO35 coupling when not in use if stored outside and exposed to direct UV.
