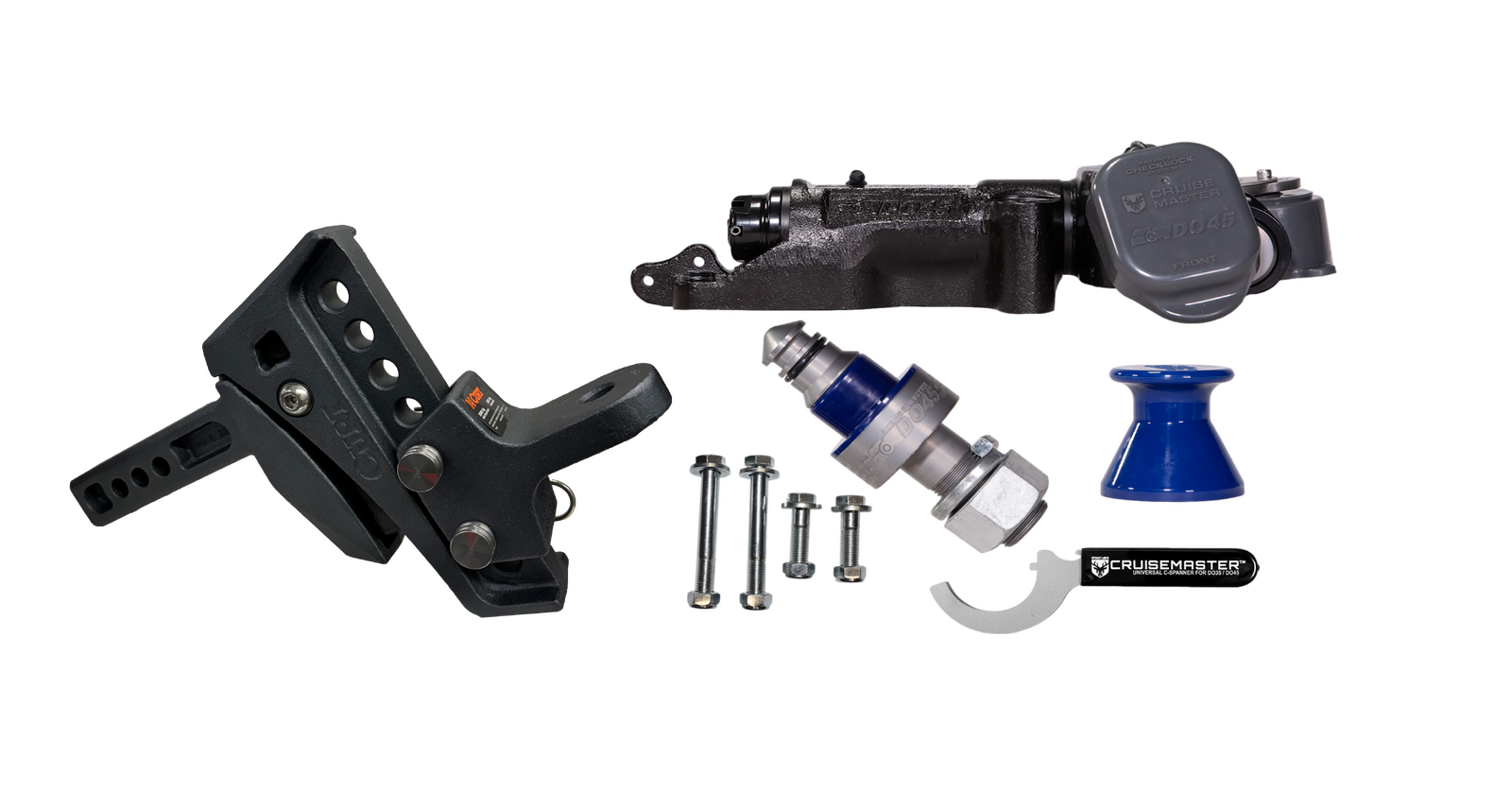

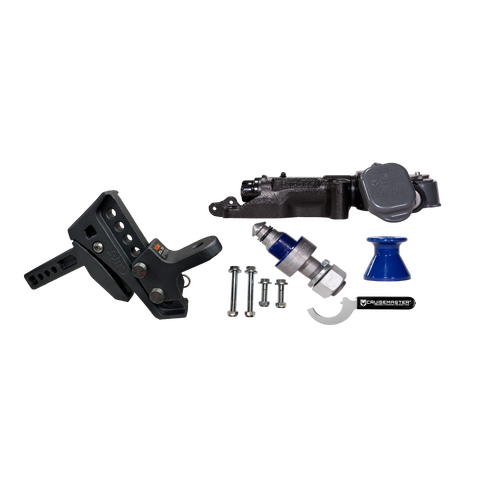

Curt Rebellion XD Shock Drop Kit + Cruisemaster DO45 Plus Kit with 1,1/4" 4500kg Tow Pin

The Ultimate Towing Setup

In Stock


Calculate Shipping

The Ultimate Complete Tow Hitch and Coupling solution to suit your Towing Needs.


Curt Rebellion Features:

  • 4.5 Tonne Towing Capacity
  • The six height adjustment positions ensure level towing of the trailer, and it is perfect for all kinds of pickup trucks and SUVs, including larger and lifted trucks.
  • Adjustable, six-position head for precise levelling with different trailers

  • 152mm maximum drop (shank cannot be flipped)

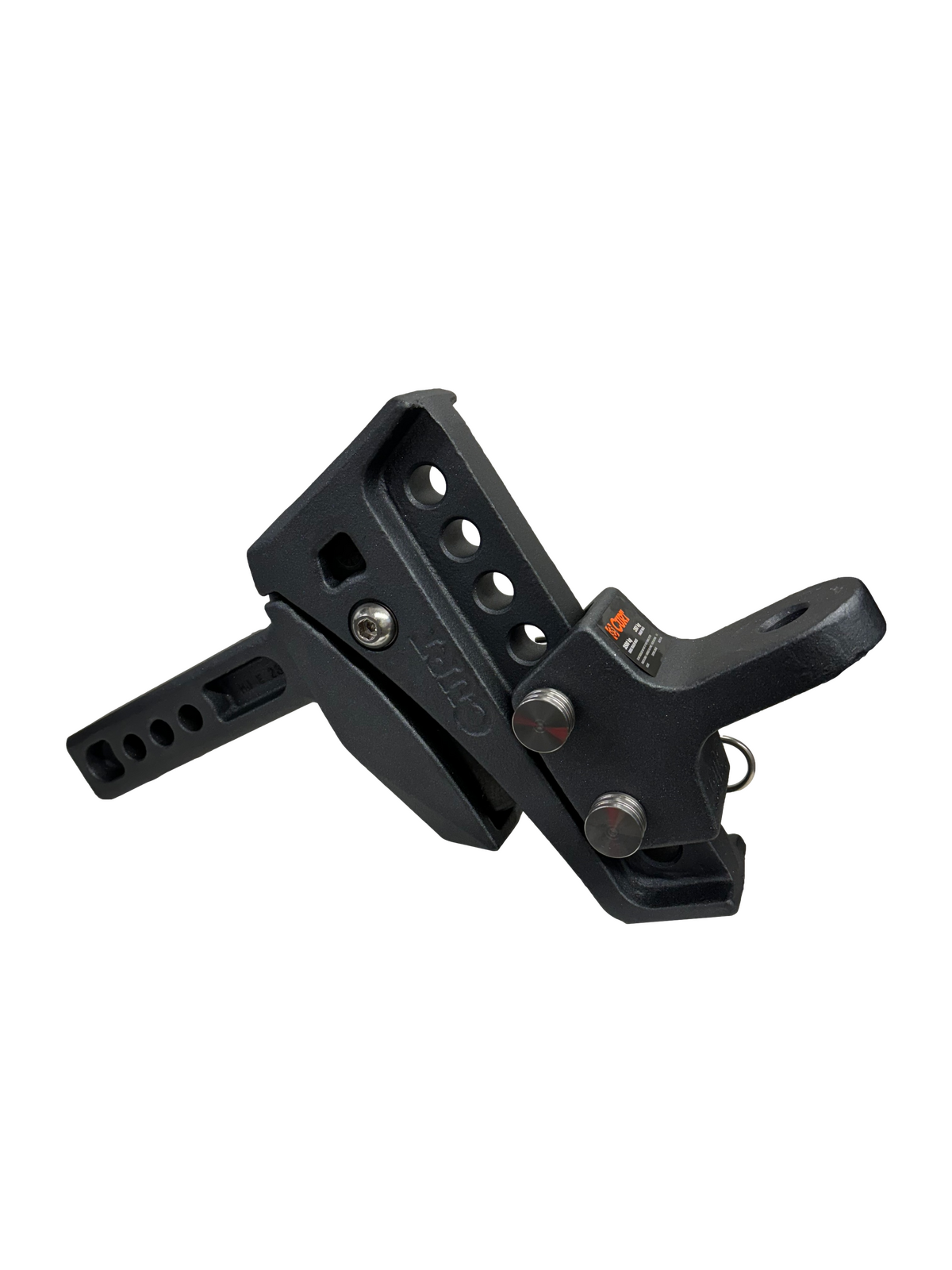

CURT Rebellion XD ShockDrop Ball Mount 50mm Square Hitch (Class 4) is a leap forward in Towing technology.

It provides more control, confidence, and a more comfortable ride, all while protecting your towing system from jerking, jarring, rattling, and trailer sway.

CURT Rebellion XD Ball Mount is constructed with ShockDrop technology.

Built into the ball mount is a cushioned isolator that inserts between the receiver shank and vertical shank.

The isolator provides dynamic, adaptive suspension of the coupling point giving you a comfortable towing experience and provides increased control in events of sudden braking.

Unlike other cushioned ball mounts, the CURT Rebellion XD ShockDrop Ball Mount has no airbags or bearings, making the unit virtually maintenance-free.

When you're ready to tow, simply mount it onto your receiver hitch like you would any other ball hitch.



Cruisemaster DO45 Plus Features:

  • 4.5 Tonne Towing Capacity
  • D-Value & V-Value ADR Compliant
  • 2 Stage ADR compliant locking mechanism
  • Low profile Bumper & Cap for impressive clearance
  • High articulation for improved handling off-road and on unmaintained roads
  • Available with or without handbrake
  • Suitable for use with Weight Distribution System’s (where applicable)
  • Forged Yoke and Rear Nut for added strength
  • One piece light weight Cast Housing
  • Improved towing safety
  • Combination of zn-ni and e-coat for superior corrosion protection
  • Greaseable Bushes for easy maintenance and noise free towing
  • No tow ball height restrictions
  • R.A.T Run Tested and Proven


ARTICULATION: 360 degrees axial, minimum 70 degrees other axes.
LOCKING: Fully ADR 62/02 compliant including automatic secondary lock
BOLT PATTERN: 4 bolts at 185mm x 76mm (Front) x 54mm (Rear)
RATING: 4.5 Tonne
MAINTENANCE: Fully Greasable


For instructions on installation, maintenance and use refer the DO45Plus User Guide


*Please note* While the DO45Plus’s Zn-Ni with E-Coat provides superior corrosion protection it may fade with extended exposure to UV.

This does not affect the operation of the DO45Plus.

To best maintain the finish of the product, we recommend covering the DO45Plus coupling when not in use if stored outside and exposed to direct UV.

 DO45 Version 1 & DO45Plus accessories and fittings are not interchangable



SKU 341905
