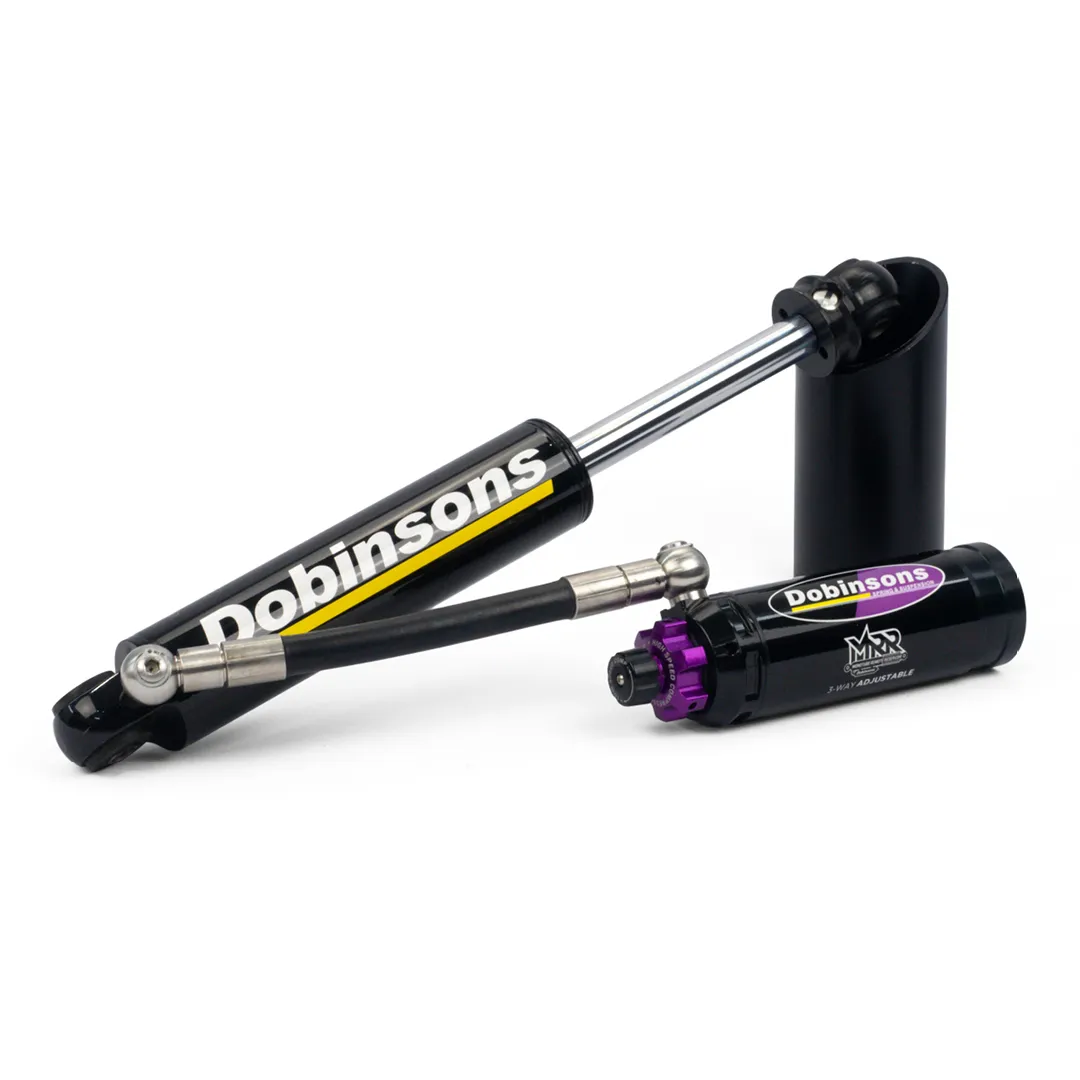

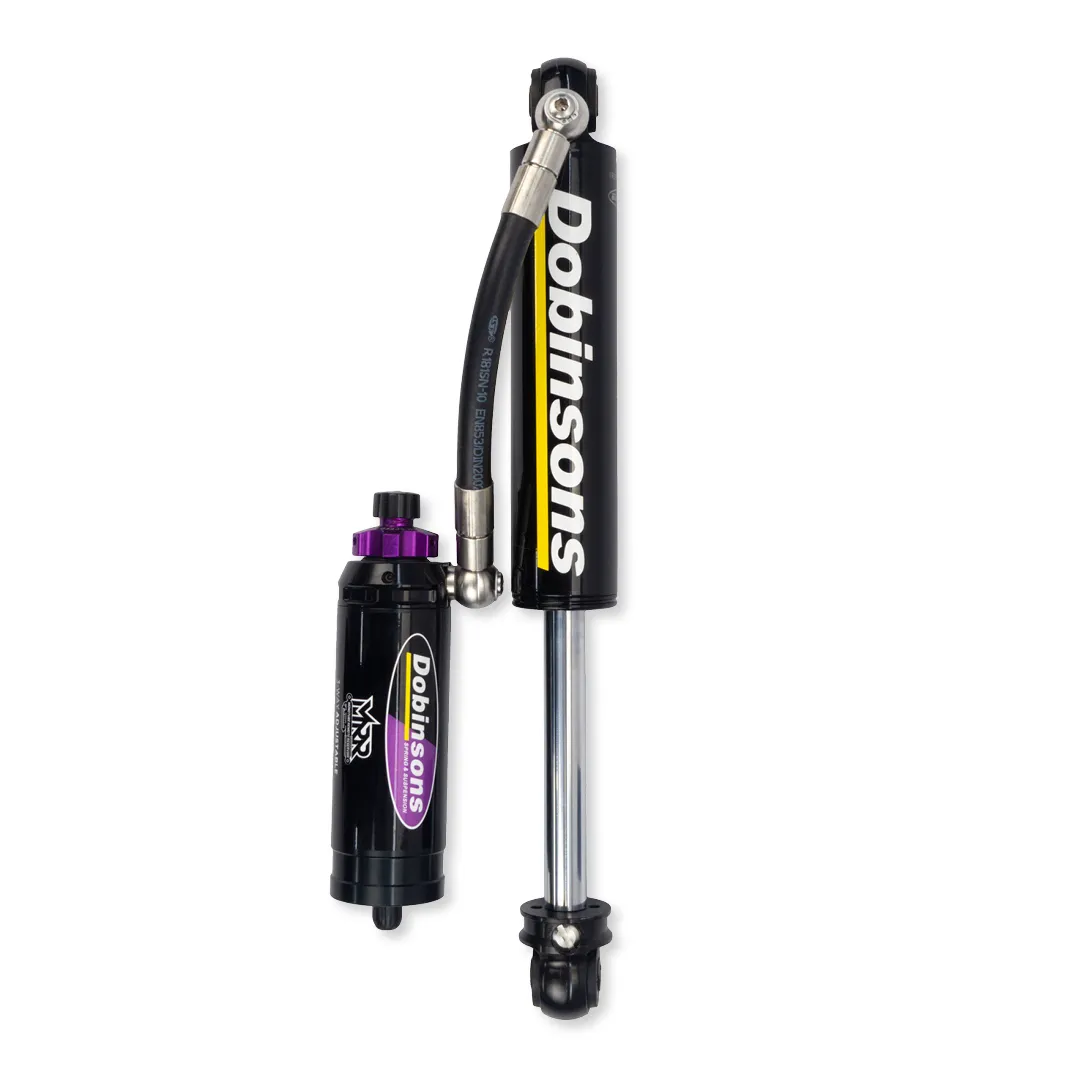

Dobinsons MRA 3-Way Adjustable Shock Absorber Pair - Camper Trailer or Caravan

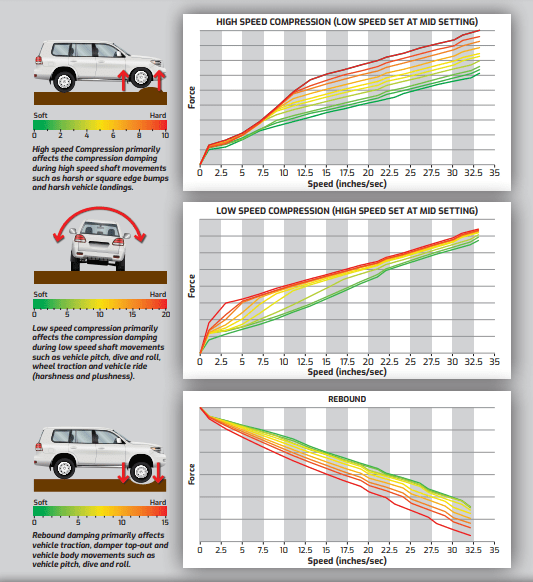

The MRR 3-Way Adjustable Shock Absorber combines race-bred monotube technology with a three-way damping adjustment system to improve ride quality, vehicle control and off-road performance. Each component is precision machined and refined for durable, serviceable use.

Sold individually. 2-4 required per vehicle.

Features:

• 50 / 60mm CNC machined high flow billet aluminium race piston
• 3mm thick heavy duty DOM seamless 56mm / 66mm O.D. shock body precision honed to +/- 0.04mm
• Upgraded 3 stage FKM-HNBR sealing system
• TSUGAMI™ CNC machined components for precise tolerances
• Parker™ braided high pressure hoses
• 5140 HV900 hard chrome plated, heat treated 18 / 22mm micro-polished high strength shock shaft with a minimum tensile strength exceeding 700MPA
• T6 6061 height adjustable spring seat (where applicable)
• Carbon-fibre/PTFE/disulphide composite wear band for low friction and low wear
• 60mm 6063 aluminium remote reservoir
• Lightweight CNC machined low friction floating piston
• High quality O.E.M. grade natural rubber bushings
• Fully rebuild-able design
• Single piece lower leg (where applicable)
• EDP surface protection
• Direct bolt-on design

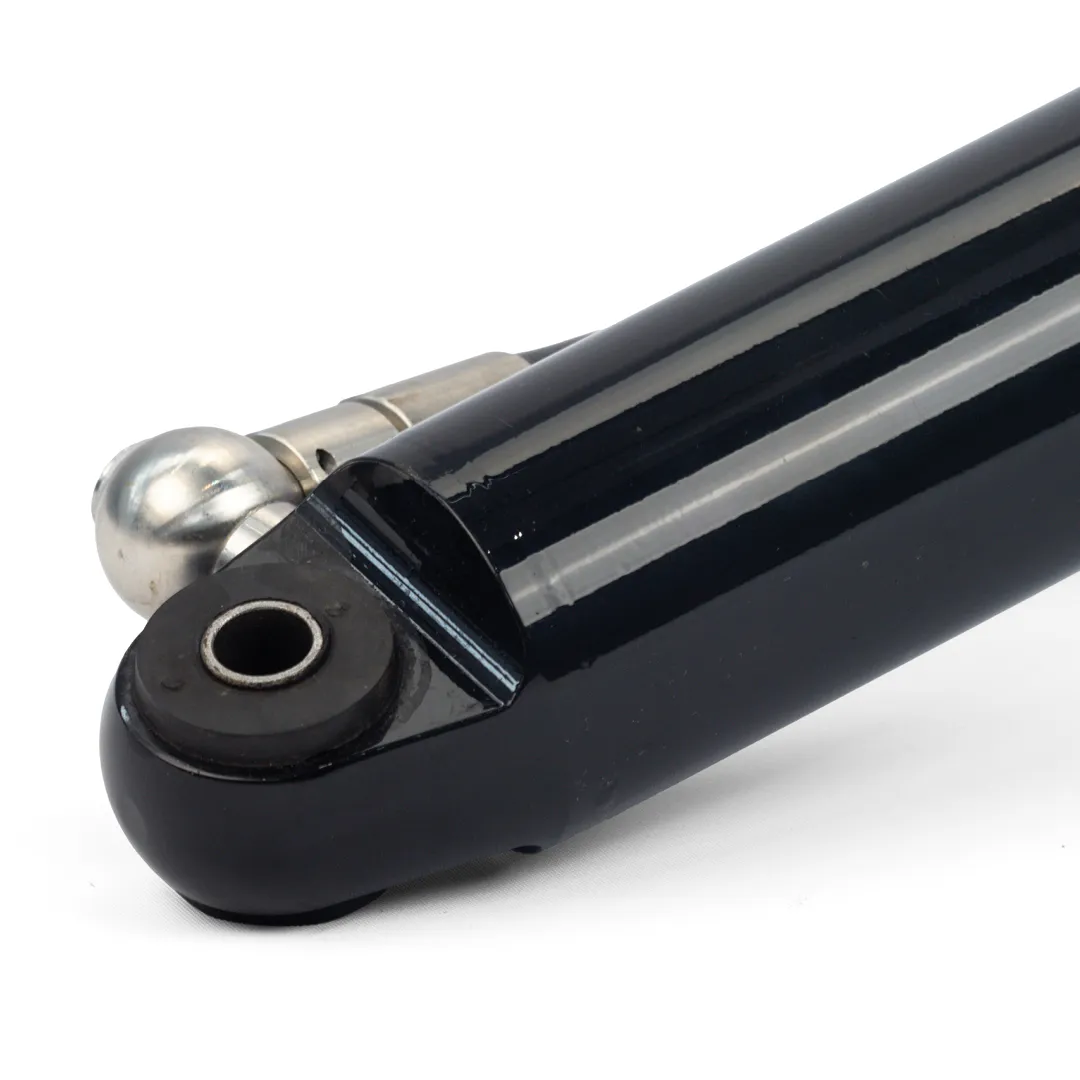

• CNC TIG precision welded body end mounts

Kit Includes:

• 1 x MRR 3-Way Adjustable Shock Absorber (MRA97-A561)

  • Part Number	Extended inch/mm)	Compressed (inch/mm)	Reservoir Length (inch/mm)	Travel Length (inch/mm)	Hose Length (inch/mm)	Rod Diameter (mm)
    MRA97-A561	17.9/457	11.7/299	7.8/200	6.2/158	9.8/250	22

Please note:

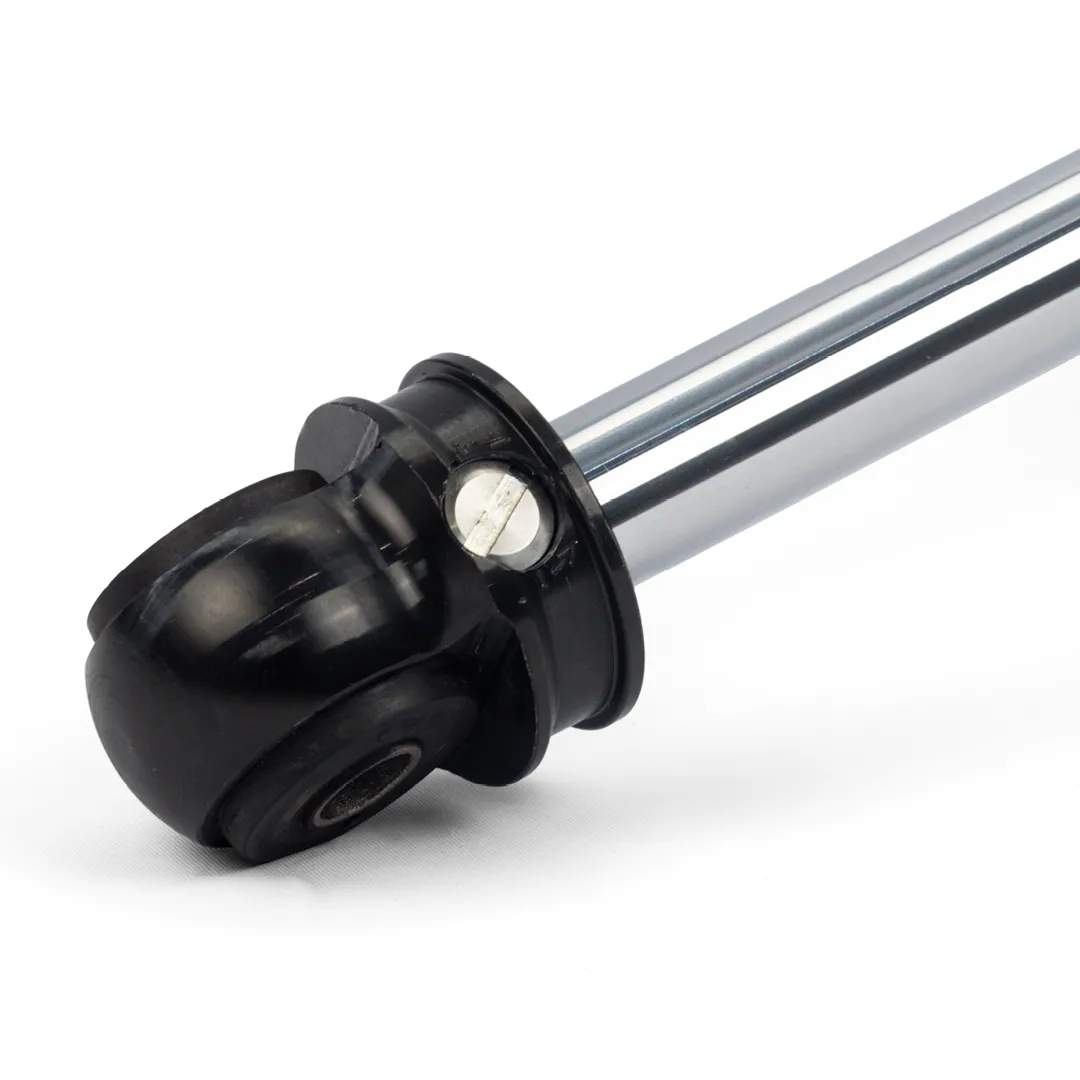

• Mounting configuration - supplied with both 16 x 36mm wide rubber and additional 12mm x 36mm wide sleeved bush.
