GMF 4X4 Handbrake & ABS Cable Relocation Kit - Isuzu D-Max RG 08/2020-On & Gen 3 Mazda BT-50 09/2020-On

GMF MY21+ D-Max and BT-50 Hand Brake and A.B.S line relocation bracket kit, will free up the cable length neededs to run longer travel rear shocks.

NOTE: Now supplied in Raw Stainless Finish, not Powdercoated Mild Steel.

Designed and manufactured in Australia by GMF on request from APC4WD.

When we started pushing the boundaries of Longer Travel Shocks on the new D-Max / BT-50 Platform, we ran into issues that we used to incur on the old D-Max platform also.

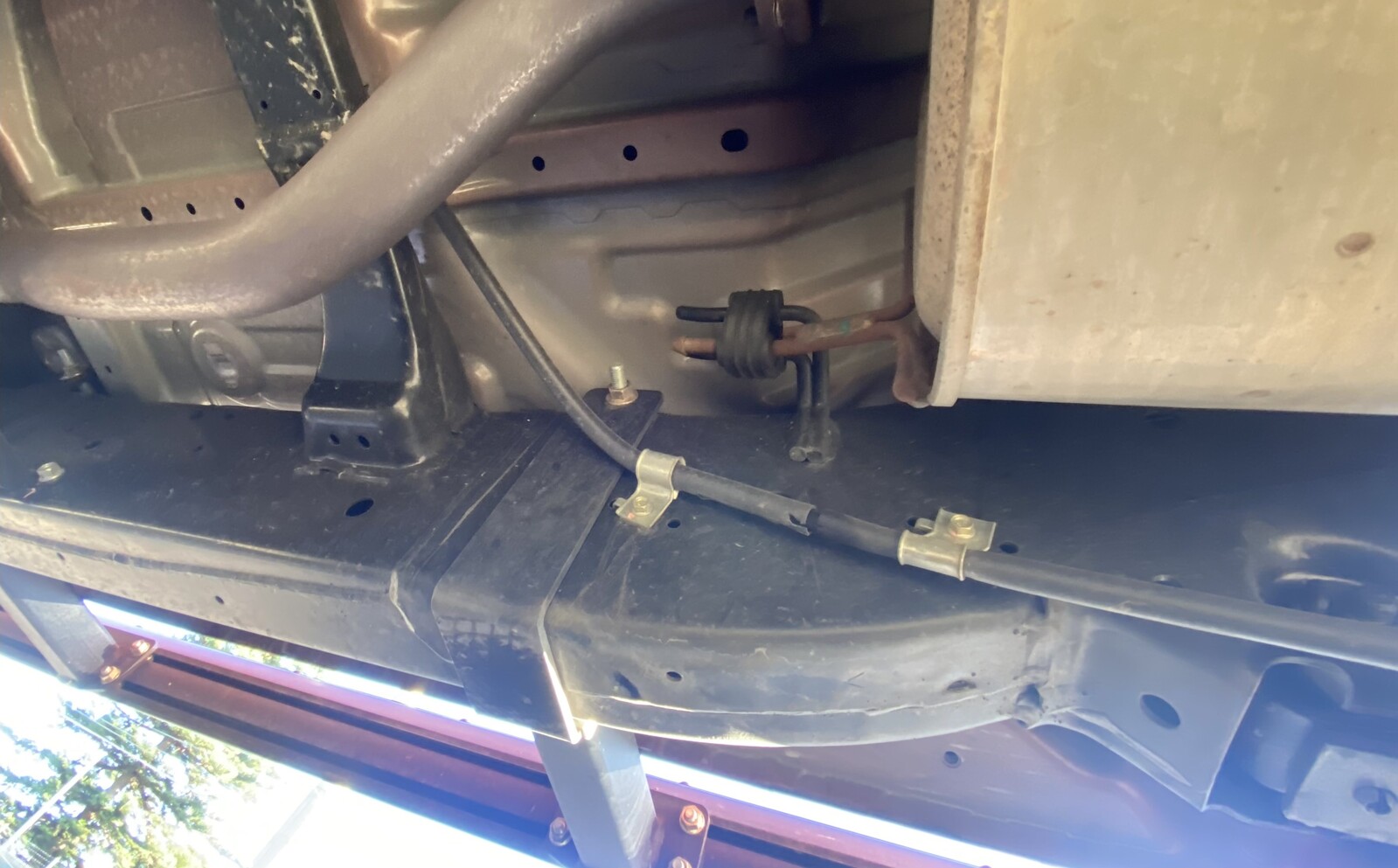

When you run Long Travel Shocks on these models, the Handbrake cables become too short on Downtravel & they start to apply the Brakes to the wheel on Droop.

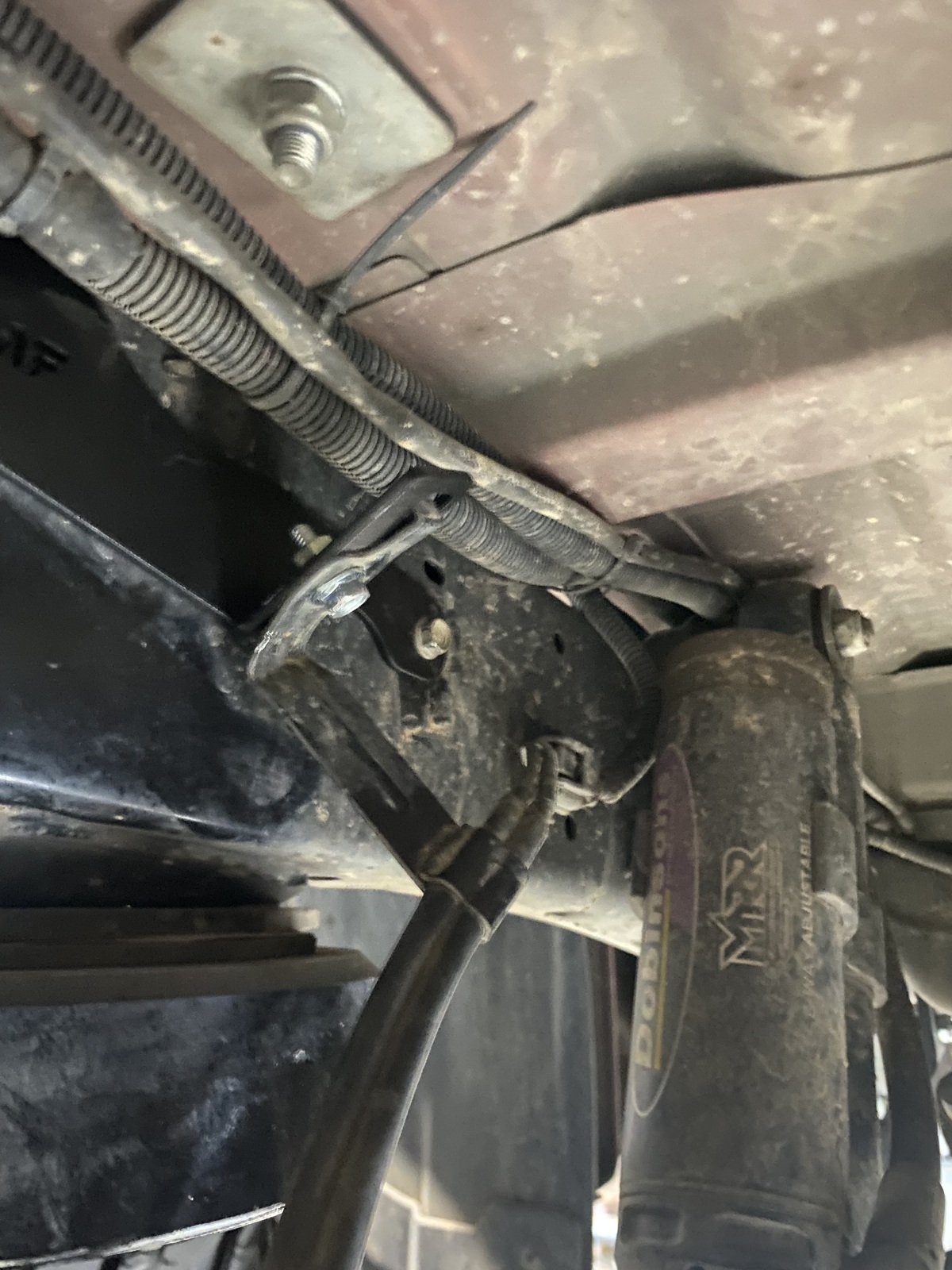

Another issue we ran in to is that the ABS Cables that run on the RH Chassis Rail become too tight also & this can lead to an expensive fix if you break them.

This will help with our 2" and 3" Long Travel Kits and also for those wishing to push the boundaries further like we have with Super Long Travel rear end setups.

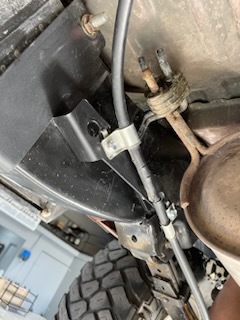

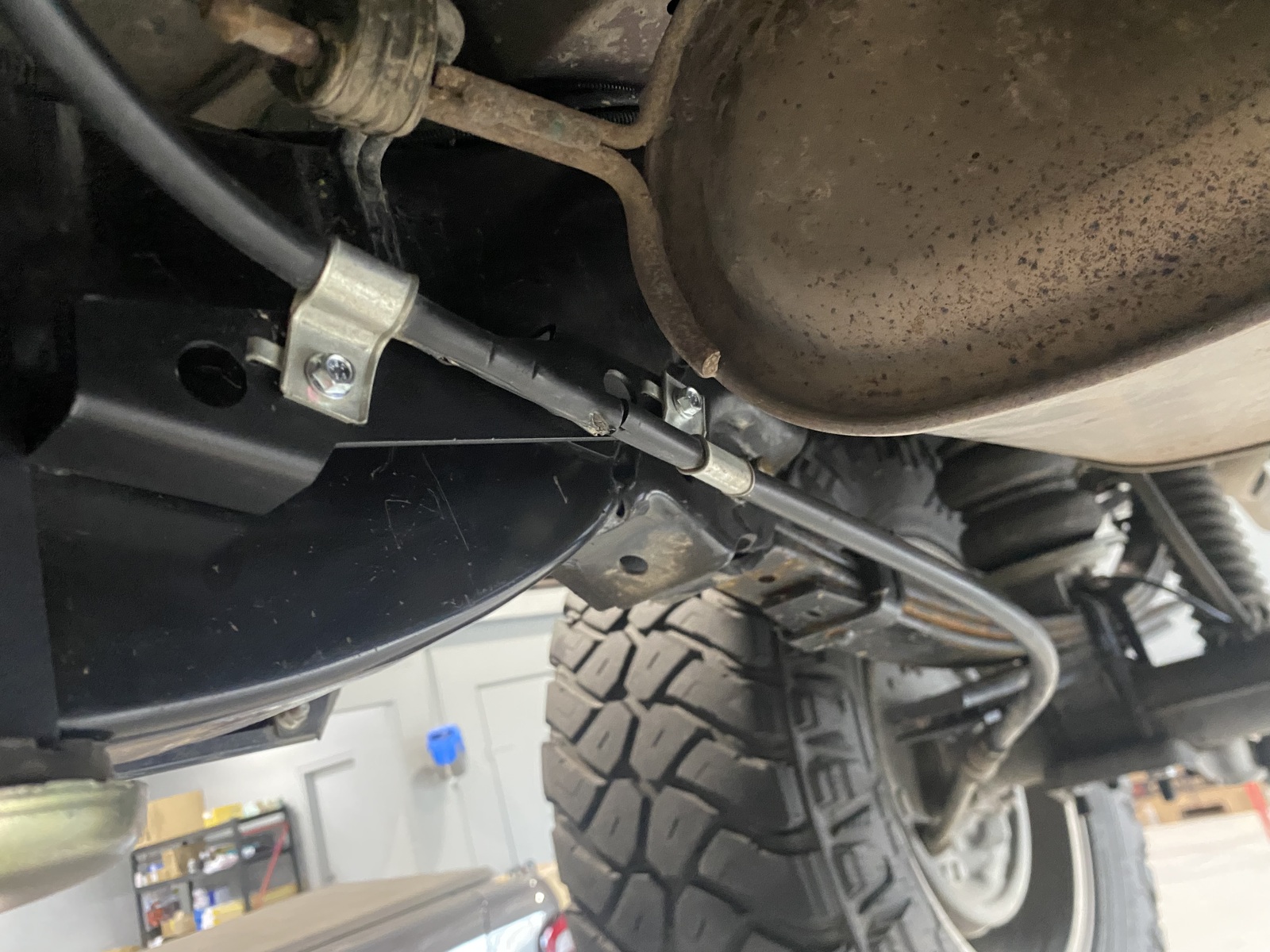

GMF has helped us out and developed this relocation kit that helps with Shicks of 625mm open & above and will allow you to run Rear Shocks in excess of 700mm Open Length without binding up on the Handbrake Cables & also gives enough slack in the ABS cables to not damage them.





Package Includes

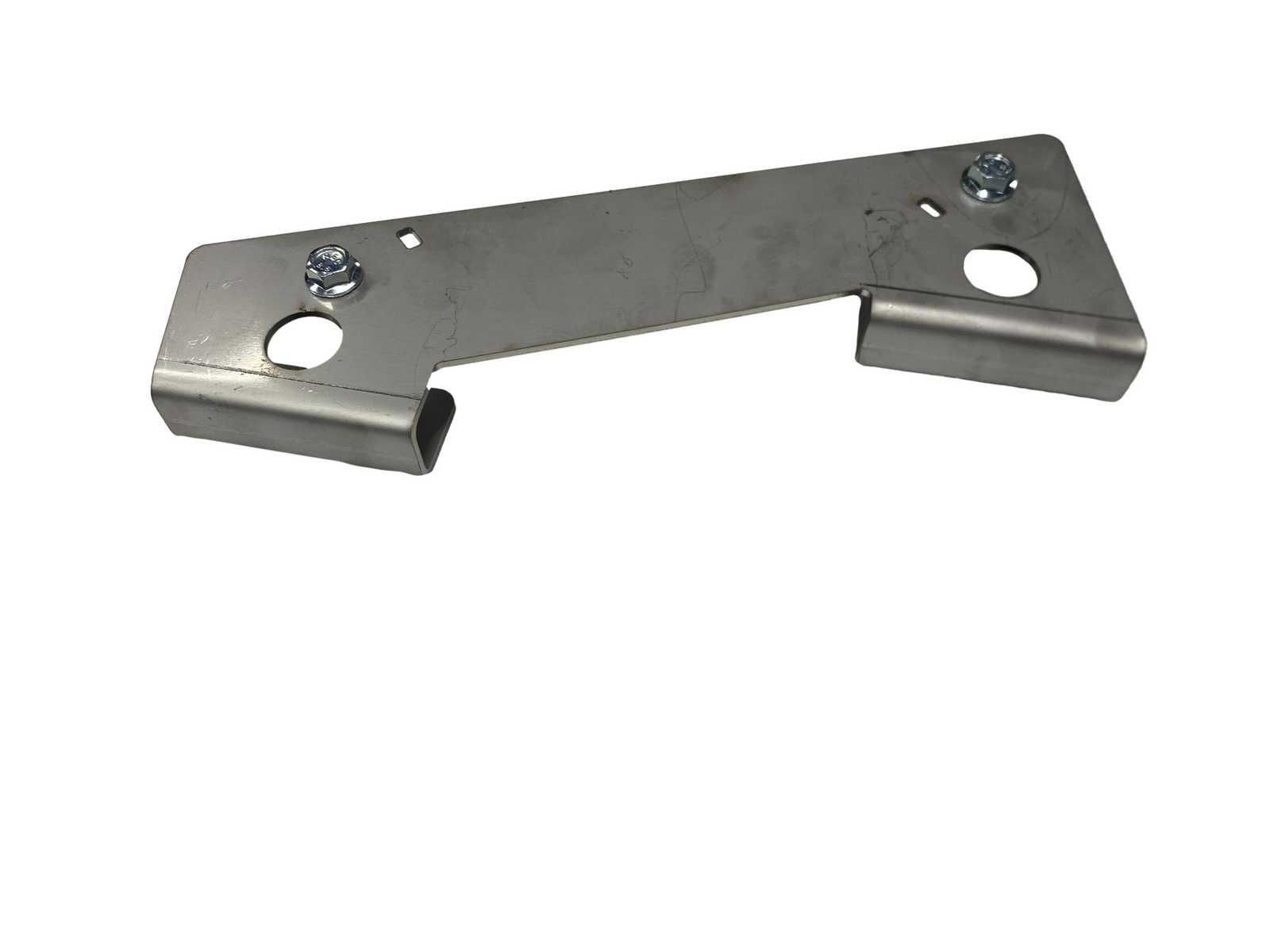

• 1x Stainless GMF4X4 Handbrake Cable Relocation Bracket LH
• 1x Stainless GMF4X4 Handbrake Cable Relocation Bracket RH

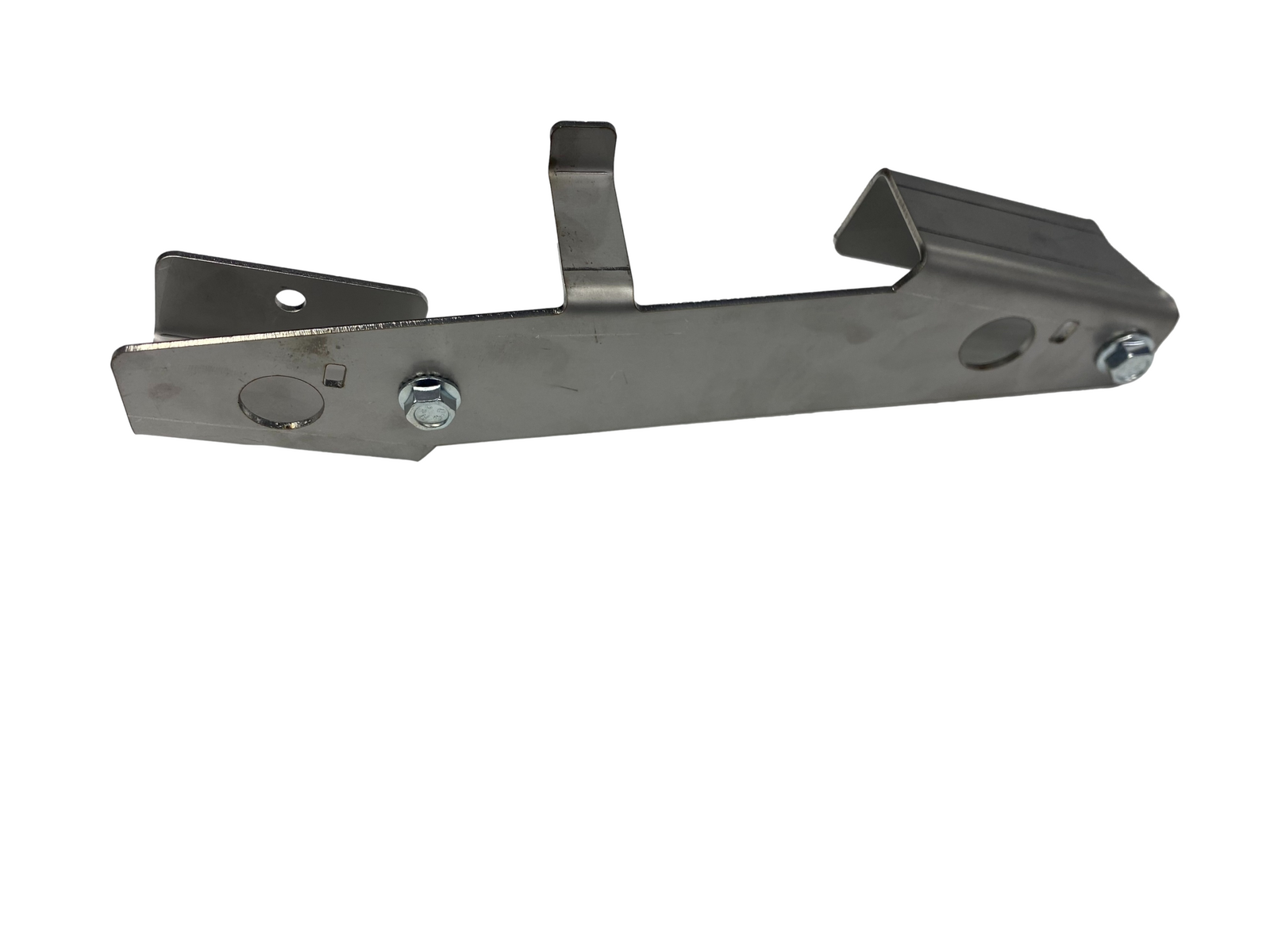

• 1x Stainless GMF4X4 ABS Cable Relocation Bracket
• 1x Set of Hardware
• Installation Instructions





Suits:

• Gen 3 Mazda BT-50 09/2020-On
• Isuzu D-Max RG 08/2020-On





Please Note:

If you are wanting to run Longer Shock Absorbers outside of the specified part numbers for these Models, you will need to also fit:

• Extended Brake Hoses
• Extended Bumpstops
• Extended Shackles
