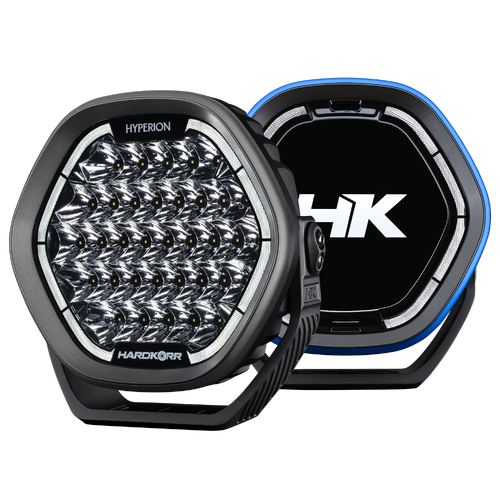

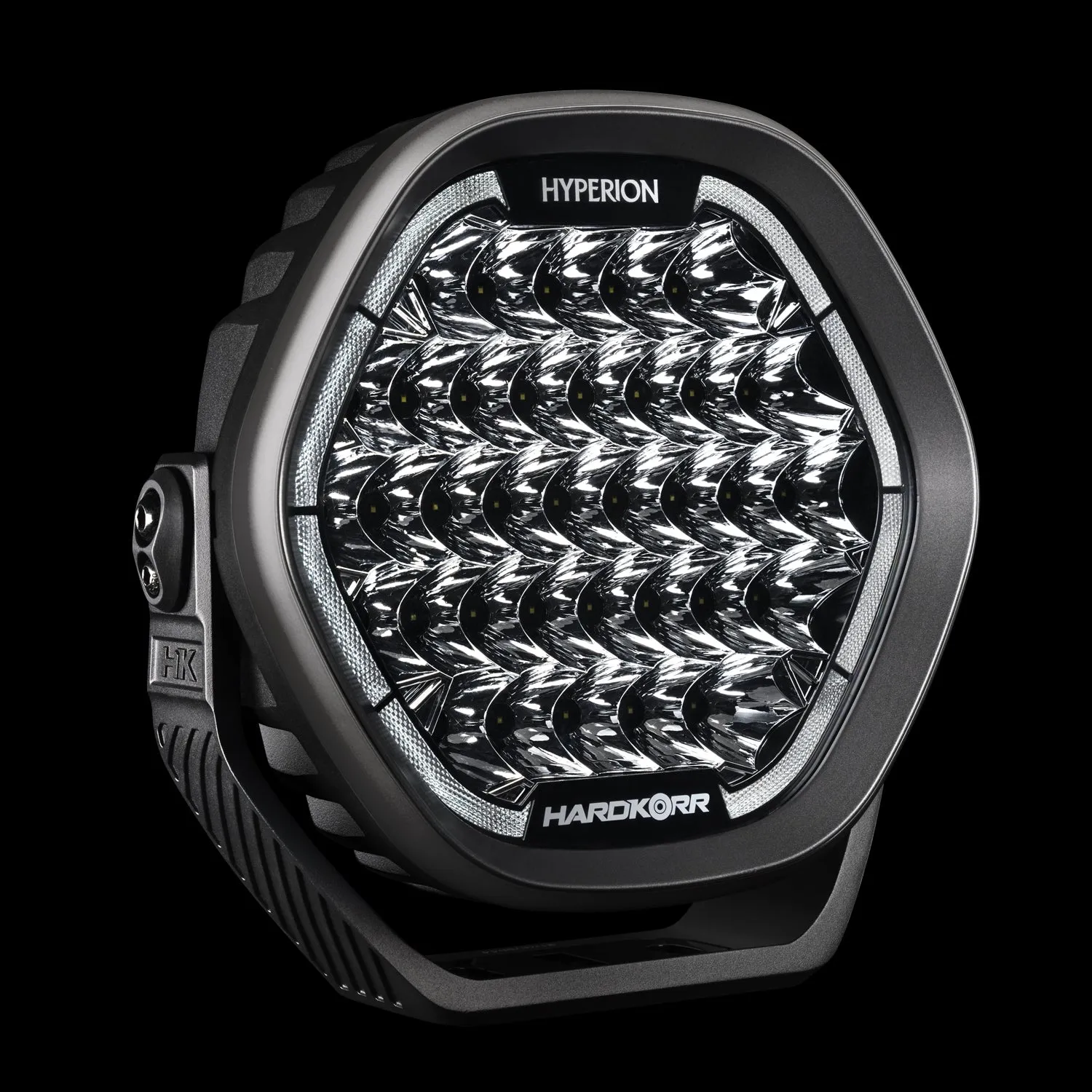

The Hyperion 9" Driving Light is a heavy-duty LED driving light engineered for long-range visibility and wide-area coverage. It combines a 110° spread and a 1 lux distance of 1,183m (pair) with durable construction and integrated daytime running lights.
Features:
- Massive 110° beam spread for wide field of view
- 1 lux distance of 1,183m (pair) for long-range illumination
- Integrated daytime running light (DRL) signature that remains visible even with covers fitted

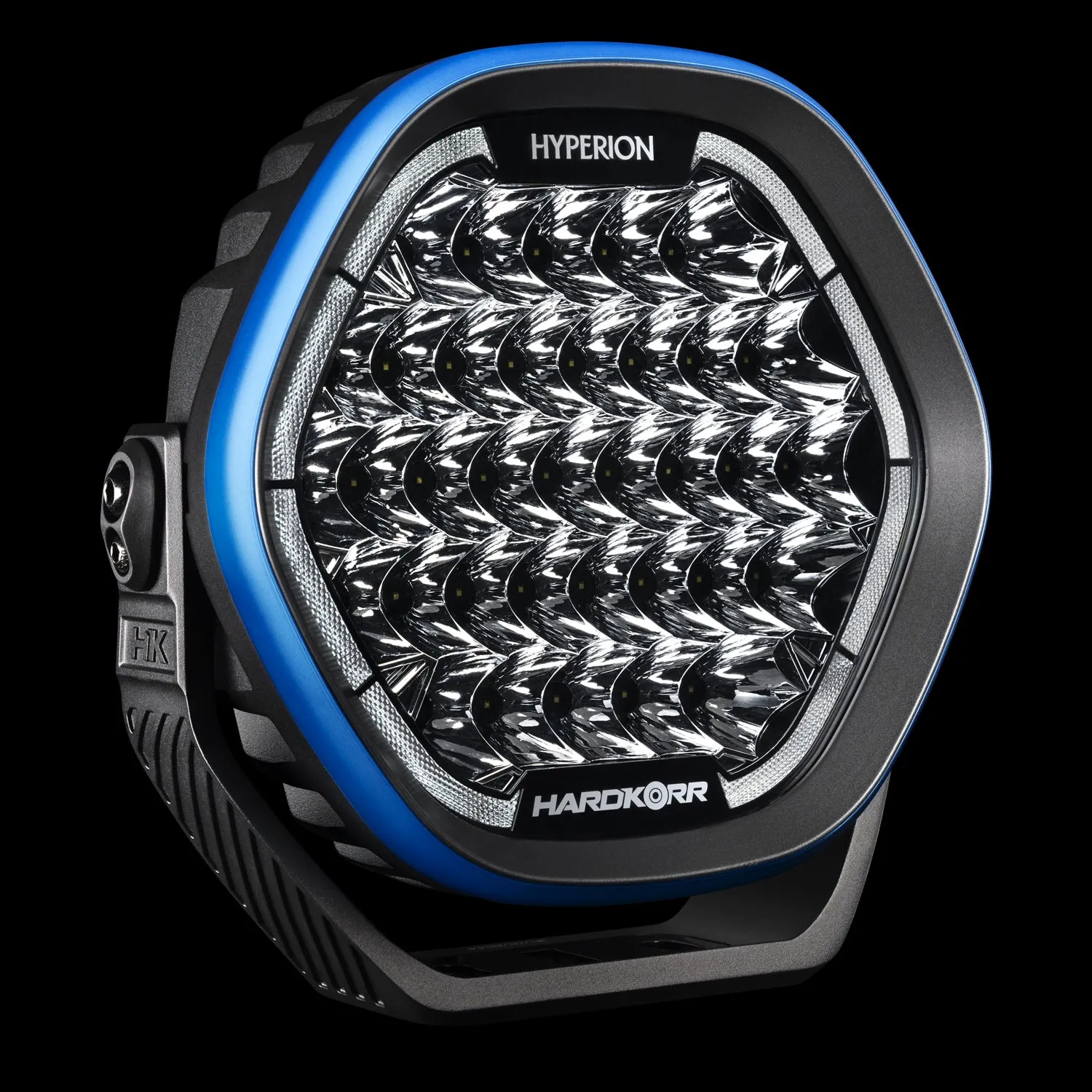

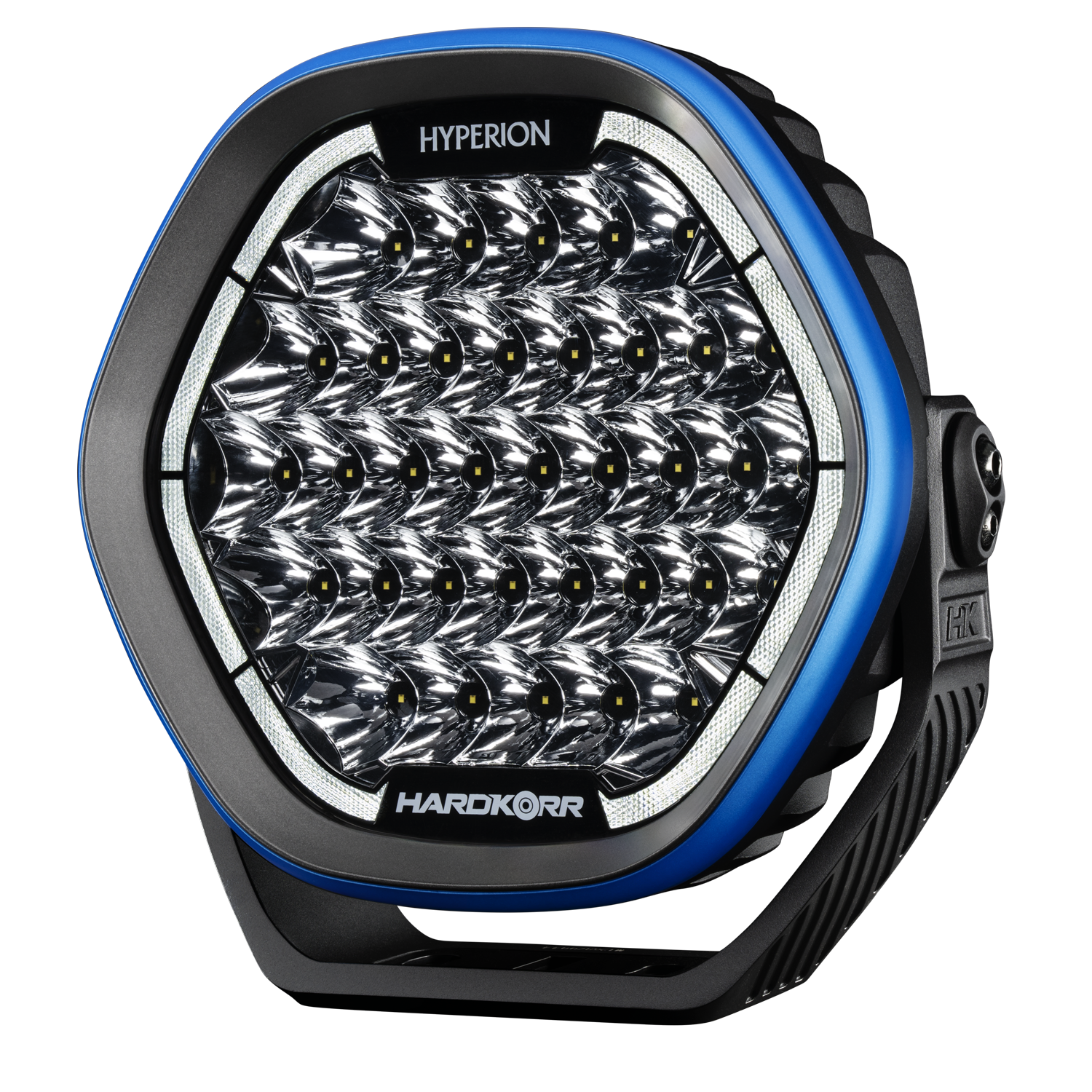

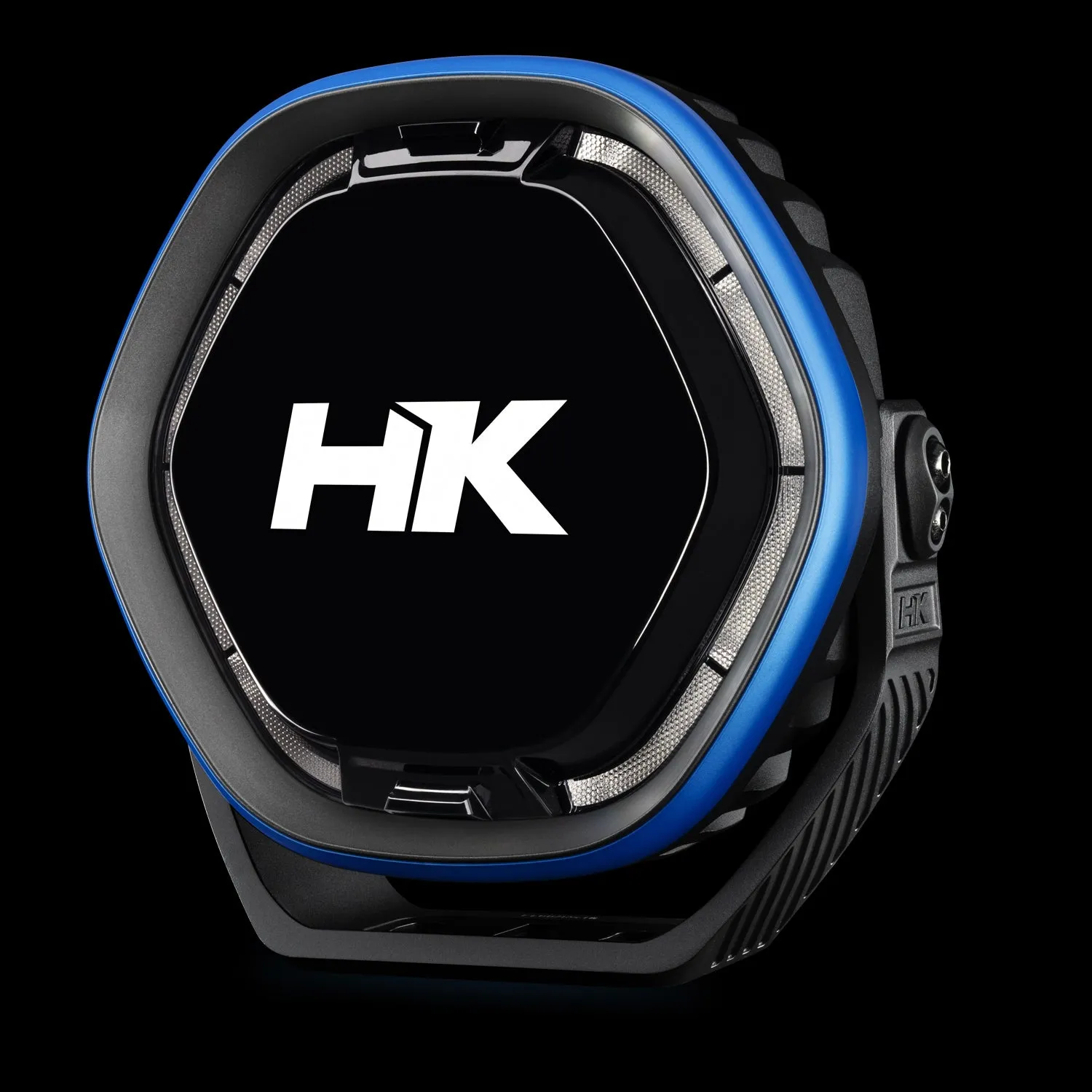

- Swappable accent rings using the included lever tool for visual customisation

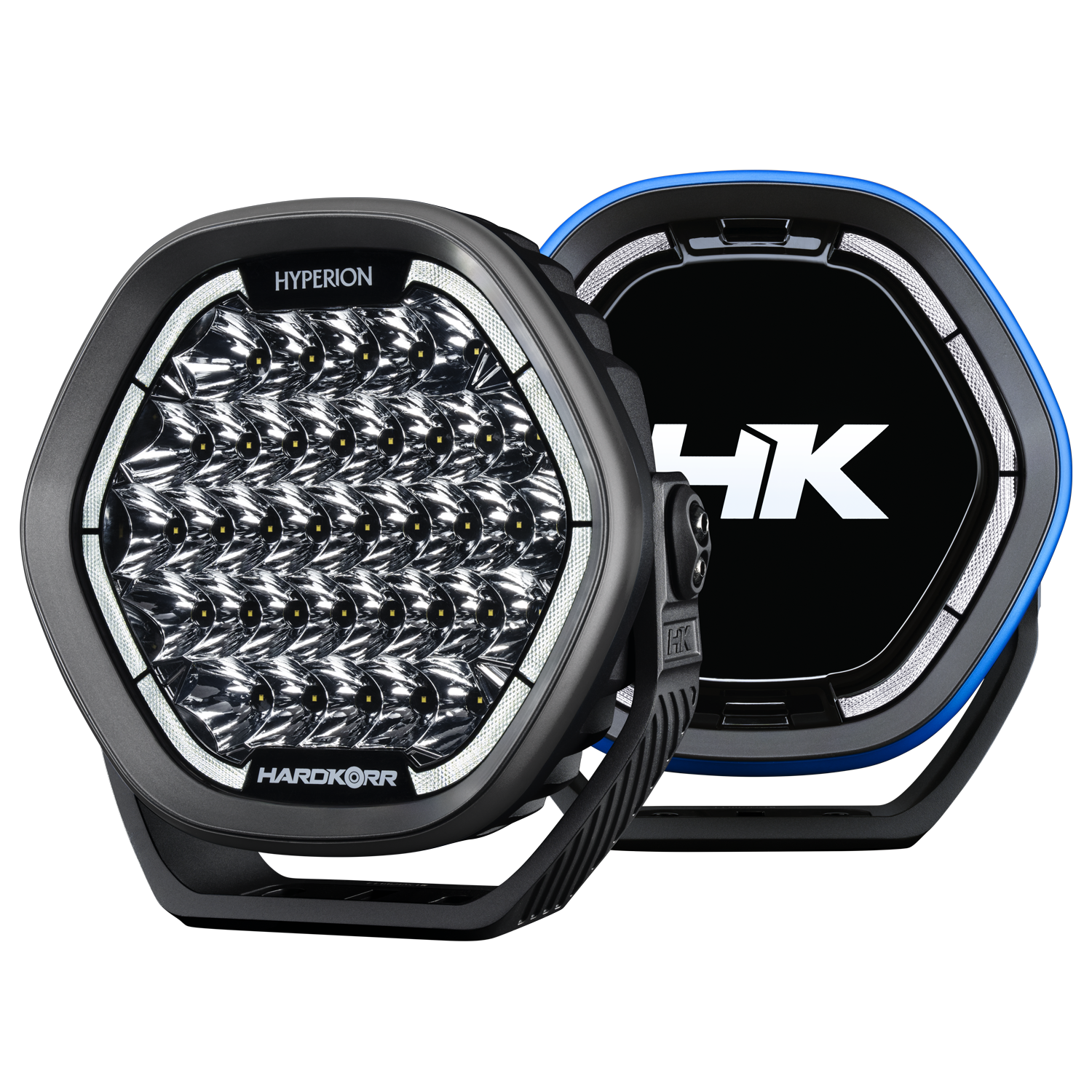

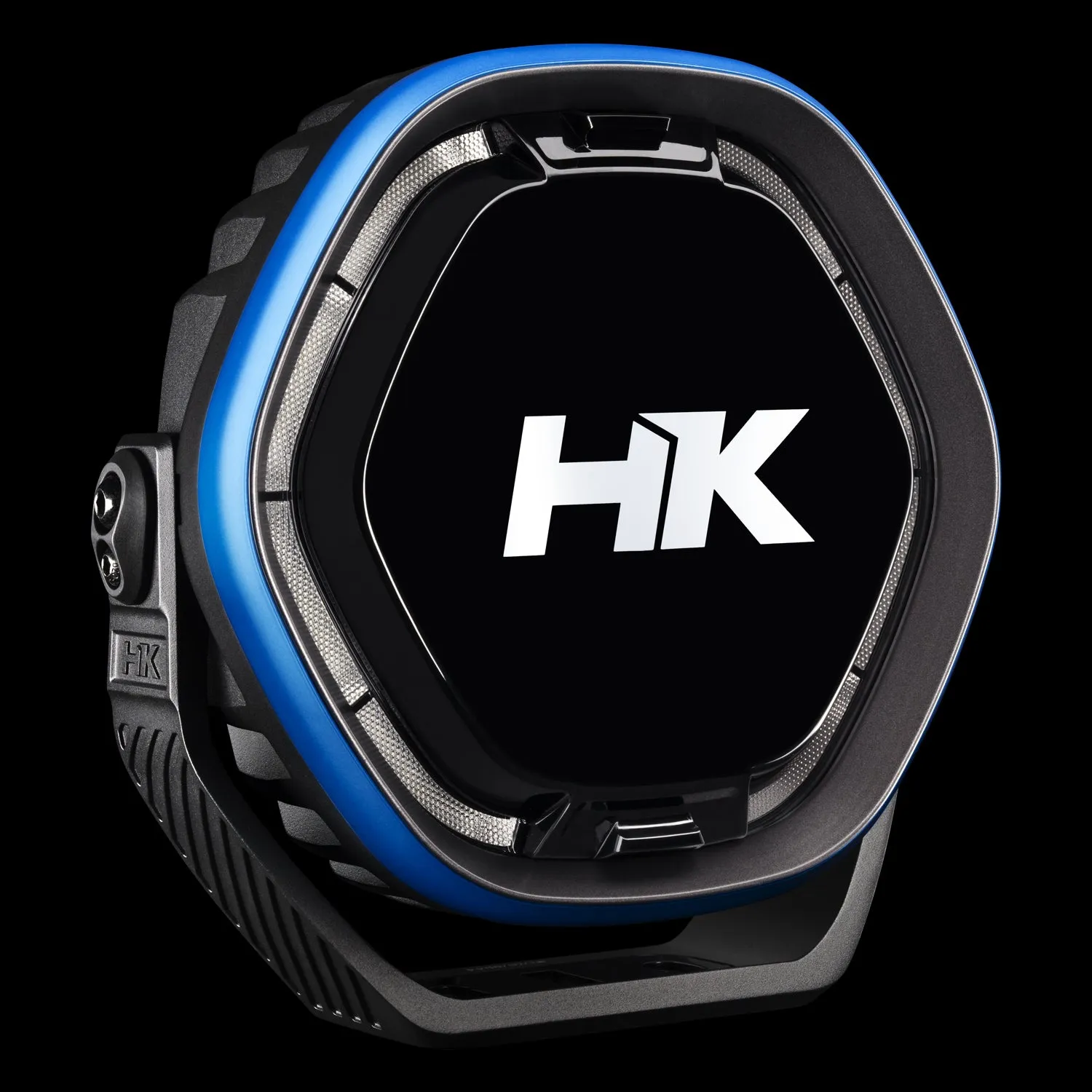

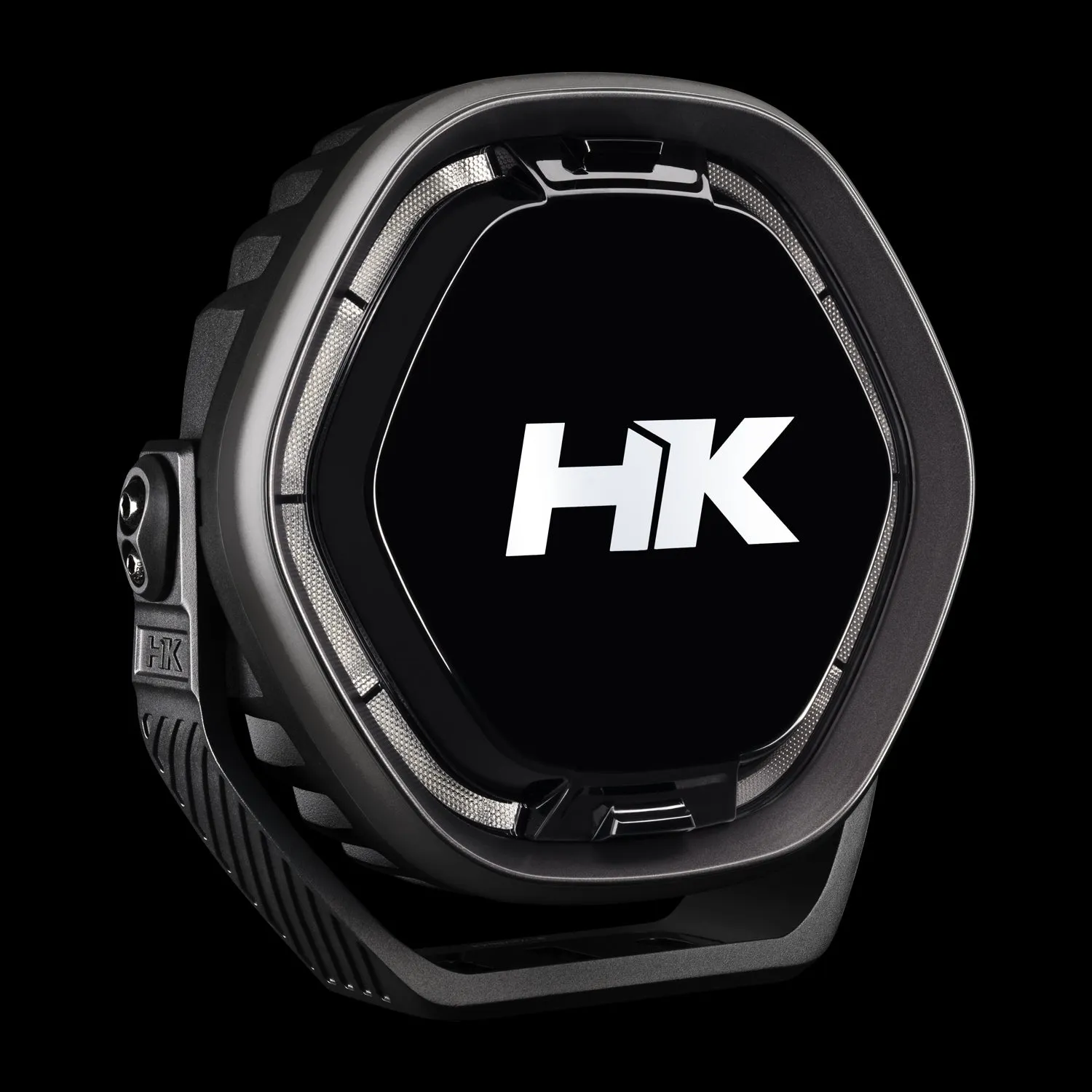

- Ultra-durable shatterproof polycarbonate lens with clip-on HK lens covers included

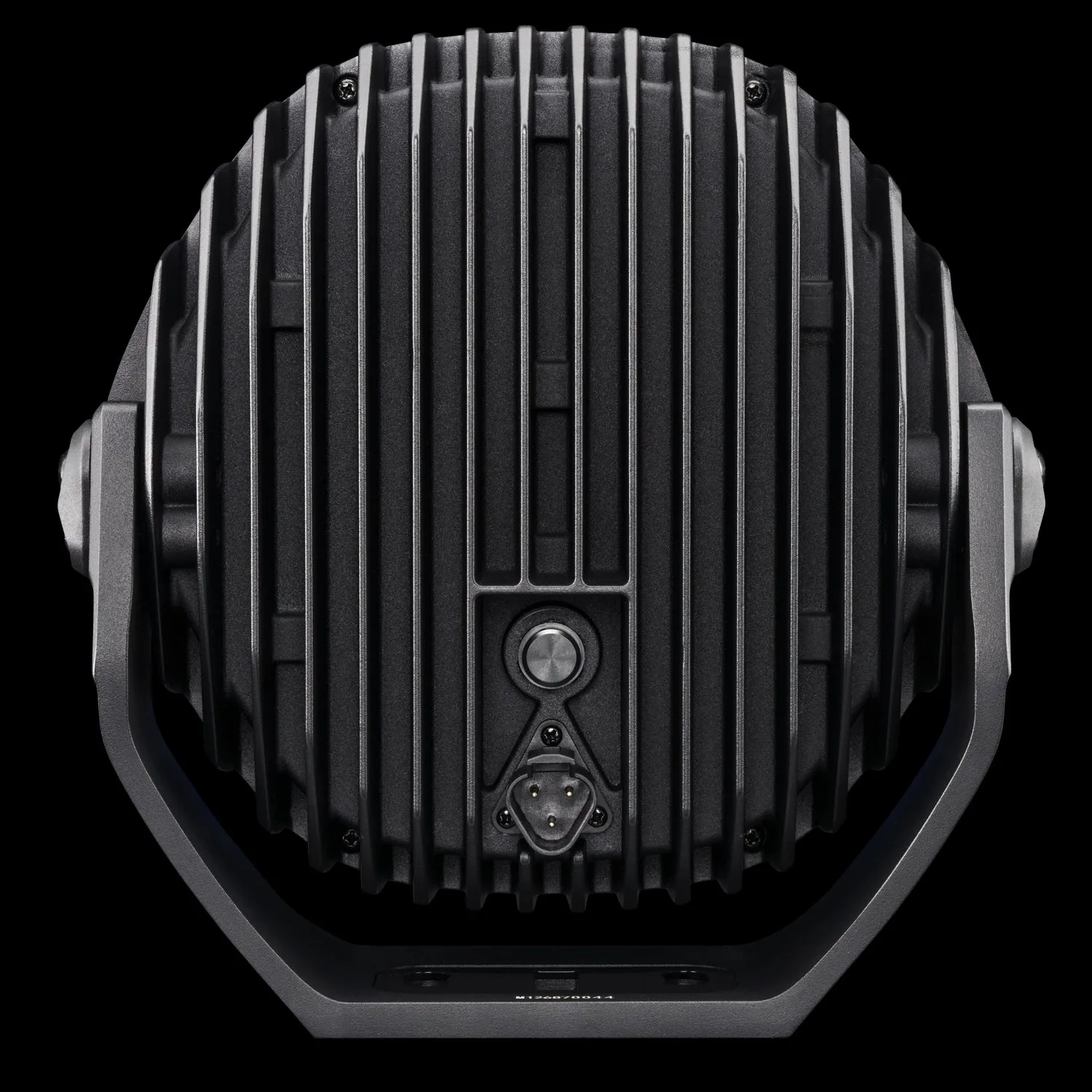

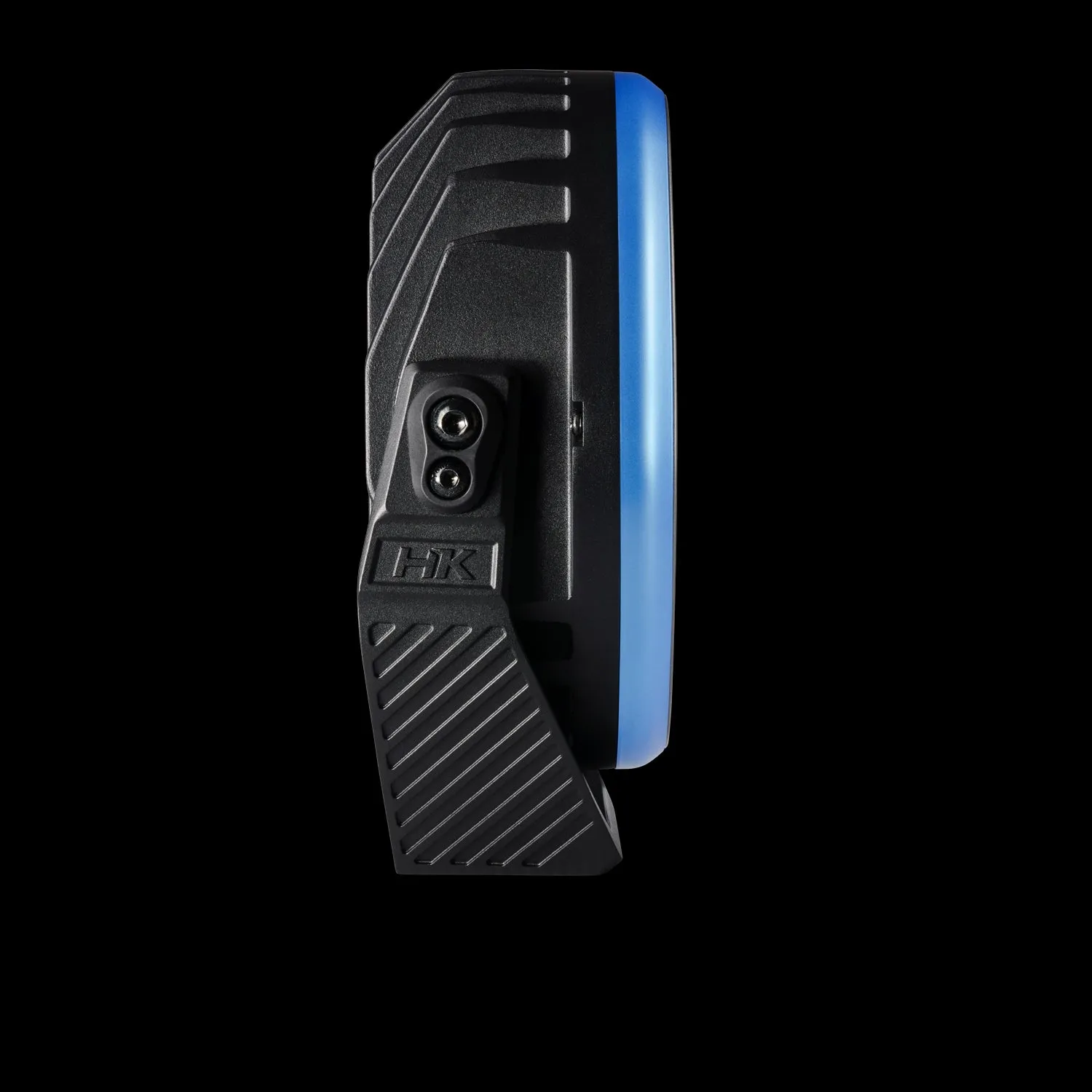

- Powder-coated die-cast aluminium housing and bracket with heat-dissipating fins and low-profile bezel to aid cooling and reduce vibration
- Survives IP68 / 9K ingress protection
- Peak vibration and shock test ratings (as stated by the manufacturer)

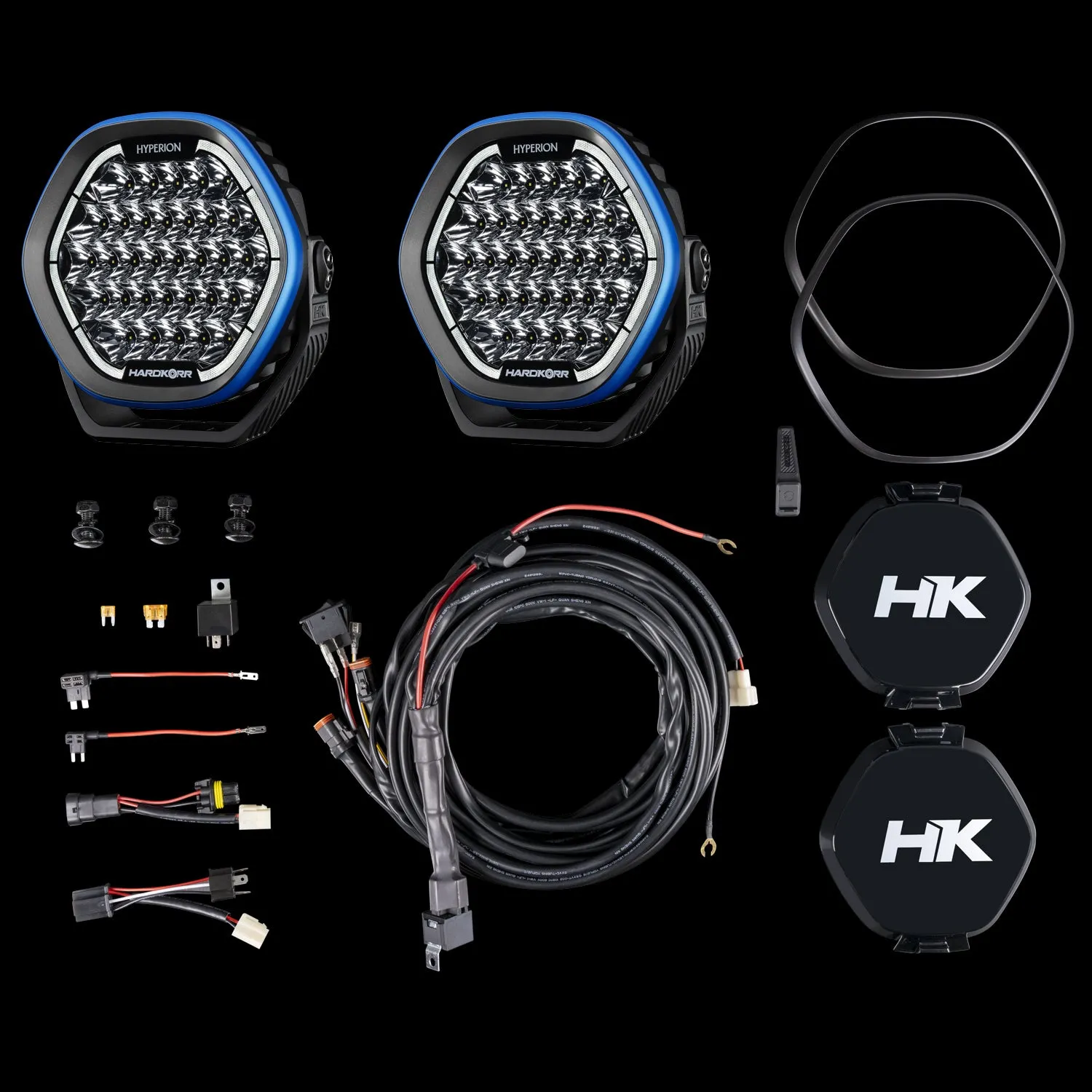

Kit Includes:
- 2x Hyperion 9" driving lights
- Black lens covers

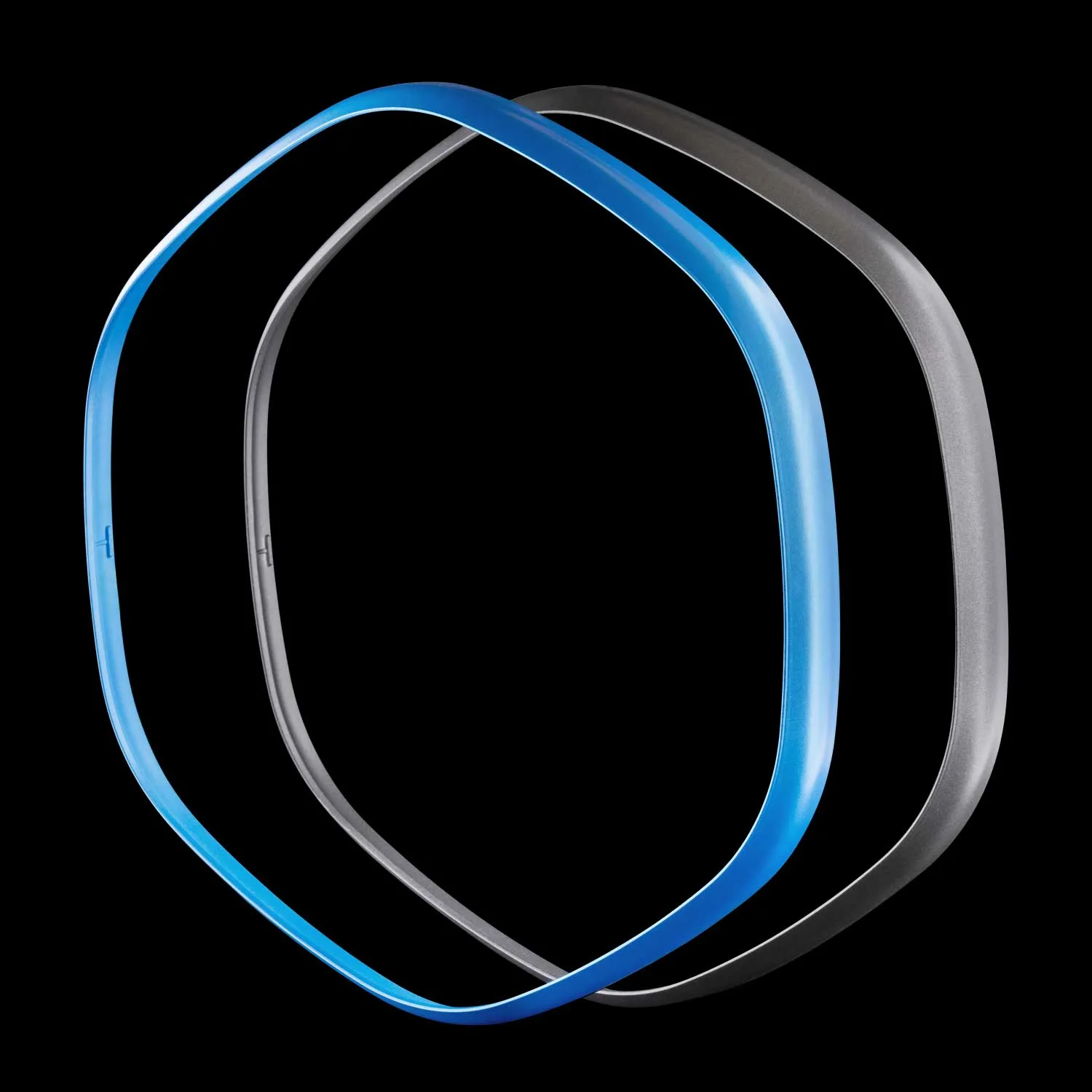

- Blue accent rings
- Titanium grey accent rings
- 1x Accent ring pry-tool
- Wiring harness with 12V relay
- H4 piggyback adaptor - HB4 piggyback adaptor
- 24V relay
- 5A blade fuse tap - 5A mini blade fuse tap
- 6x Hardware sets (M10 bolt, flat washer, spring washer, lock nut)
- Rubber mounting pads
(DLHPR9)
| Housing material | Powder-coated die-cast aluminium |
|---|---|
| Bracket material | Powder-coated die-cast aluminium |
| Lens material | Polycarbonate |
| Reflector material | Polycarbonate |
| Cover material | Polycarbonate |
| Accent ring material | Polycarbonate |
| LED type | 35x 5W 2016 LEDs |
| Operating voltage | 10-32V DC |
| Raw lumens (pair) | 22,000lm |
| 1 lux distance (pair) | 1,183m |
| Ingress protection | IP68 / 9K |
| Colour temperature | 5500K |
| Current draw 12V (pair) | 23.8A |
| Current draw 24V (pair) | 11.9A |
| DRL power draw 12V (pair) | 1.2A |
| DRL power draw 24V (pair) | 0.6A |
| Operating temperature | -40°C - 85°C |
| Weight (each) | 2.8kg |
| Certifications | CE, RoHS, R10/CISPR 25 |
| Warranty | 5 years |
| SKU | DLHPR9 |
| Brand | Hardkorr |
