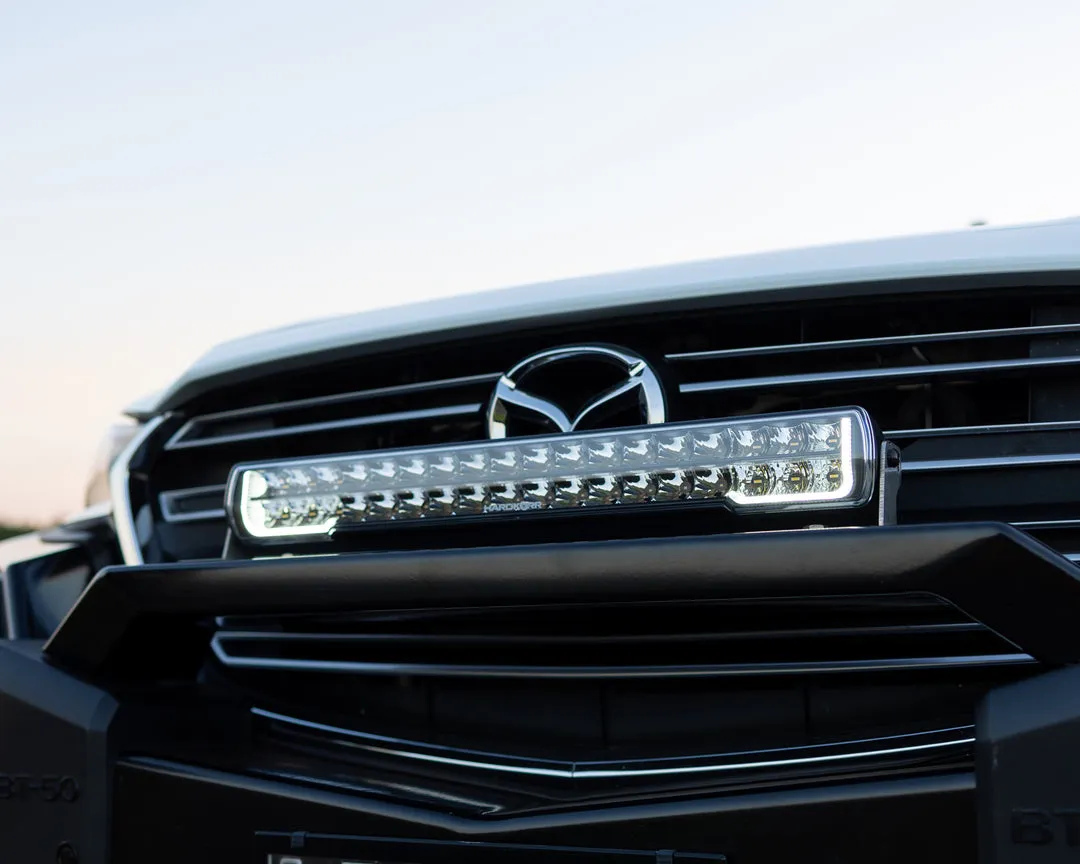

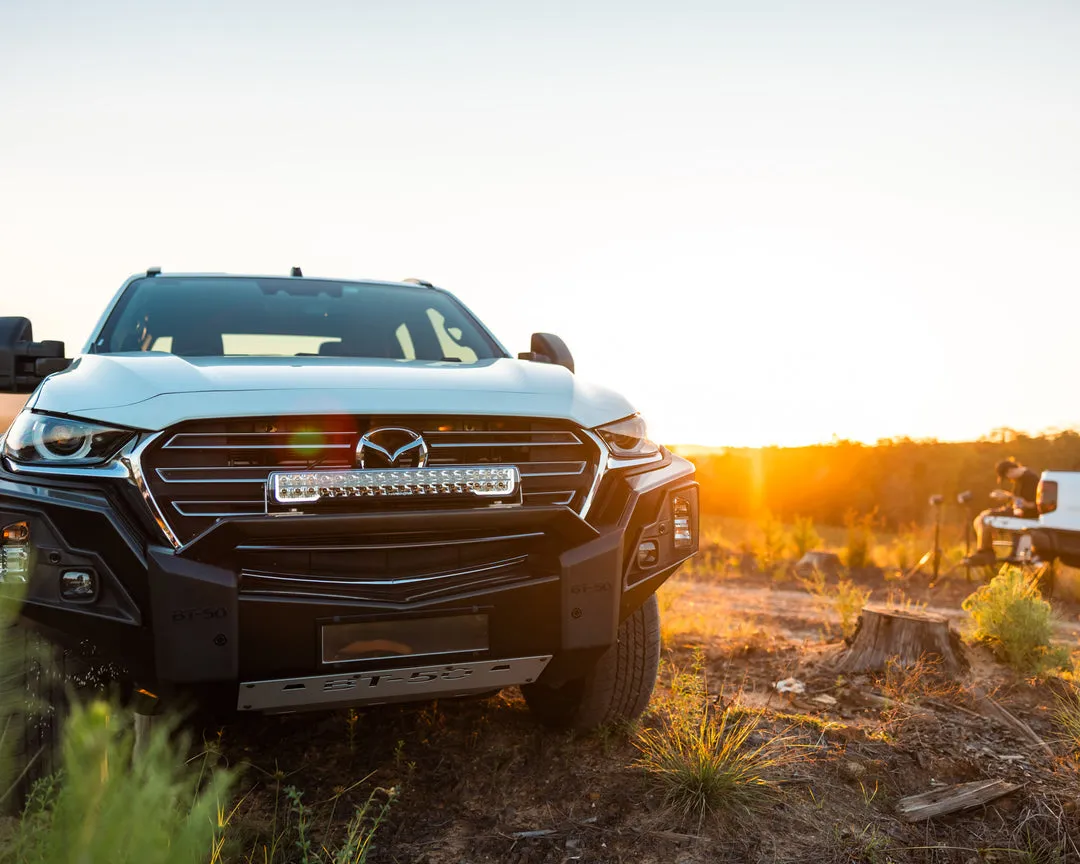

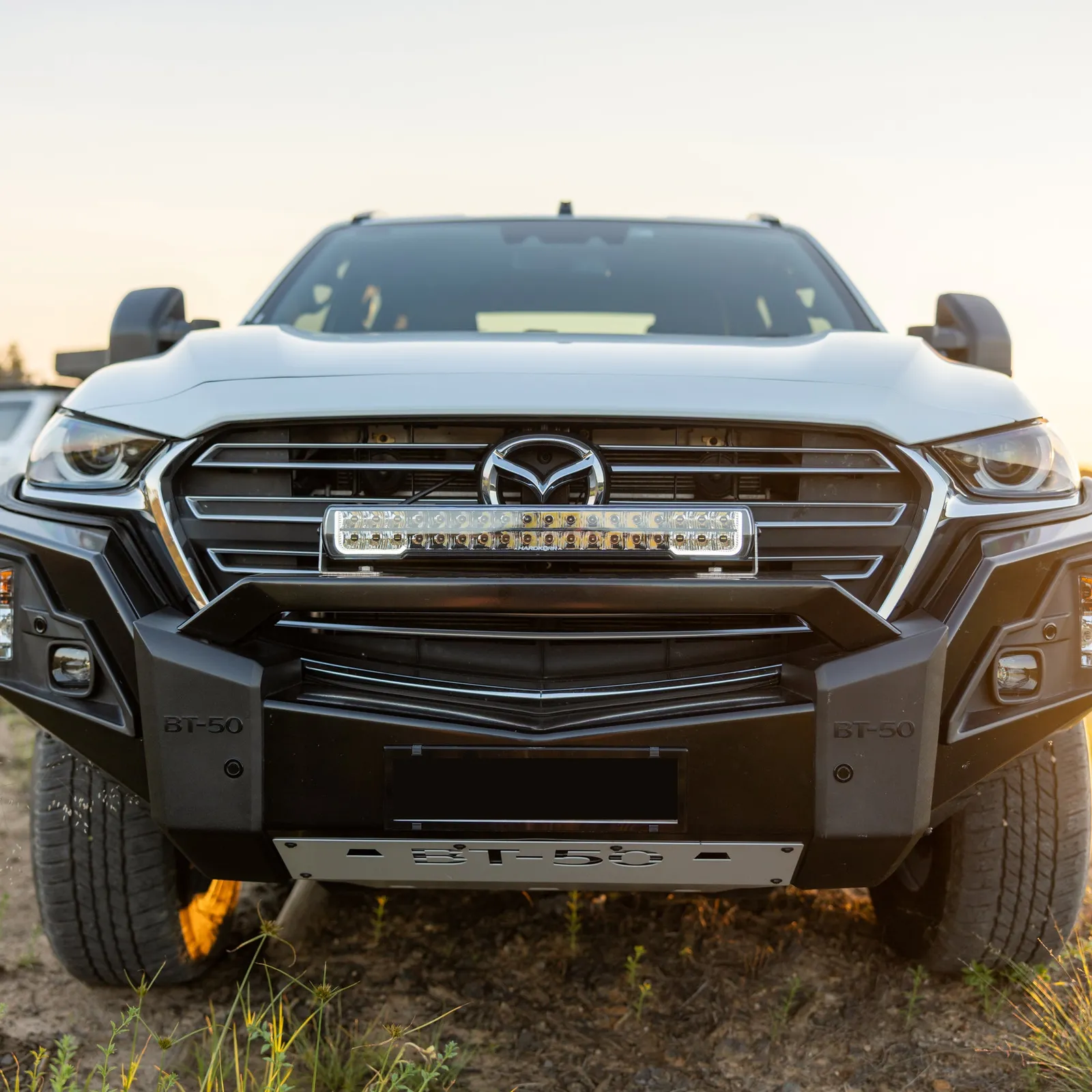

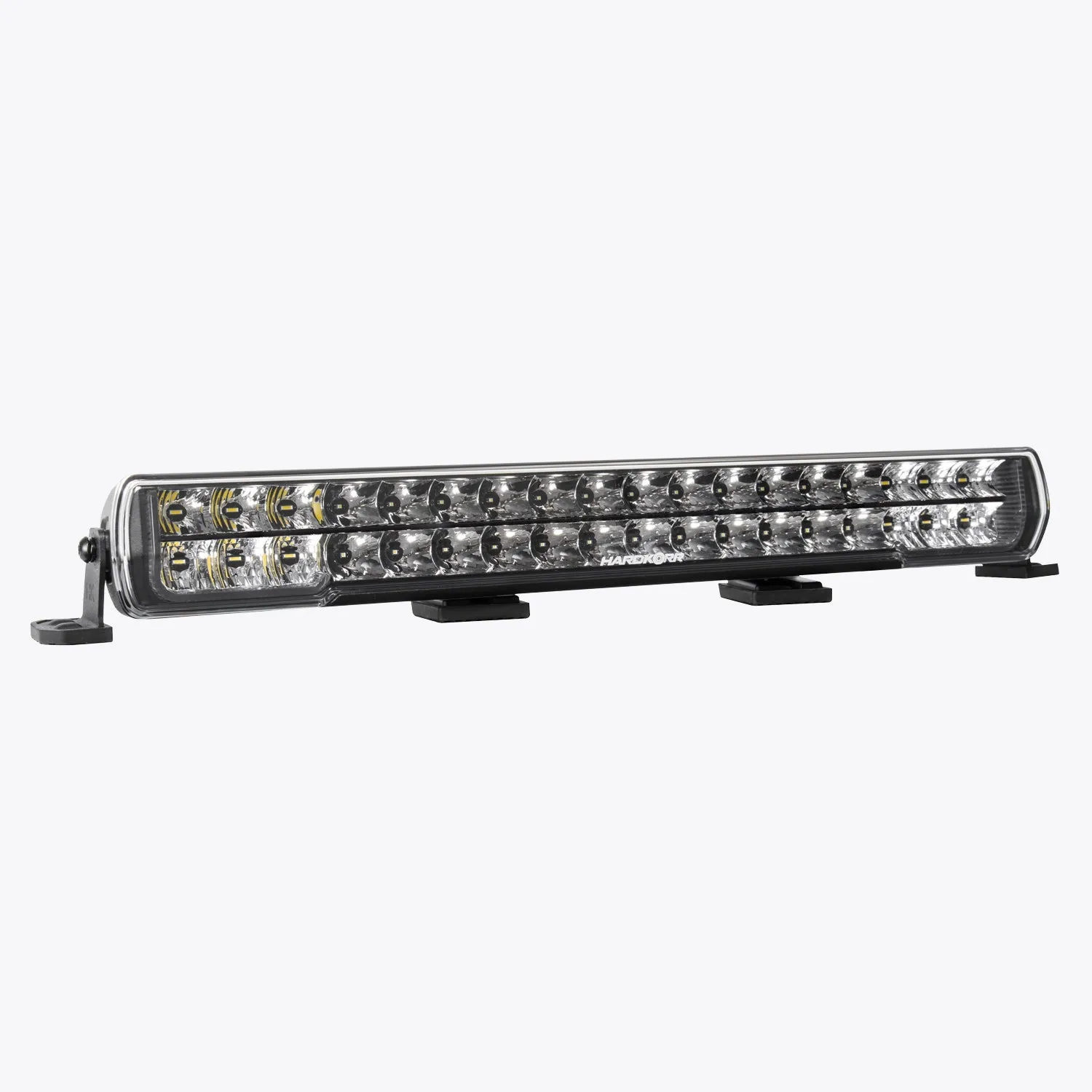

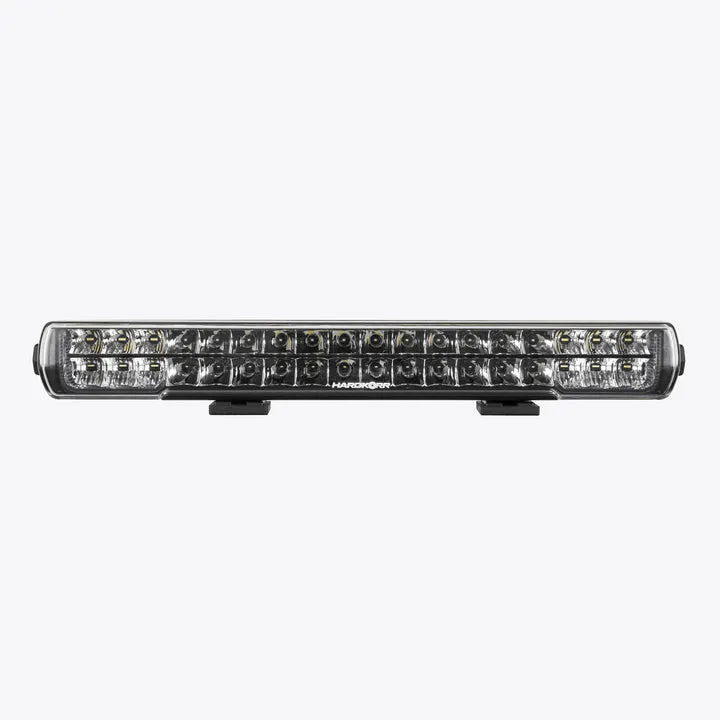

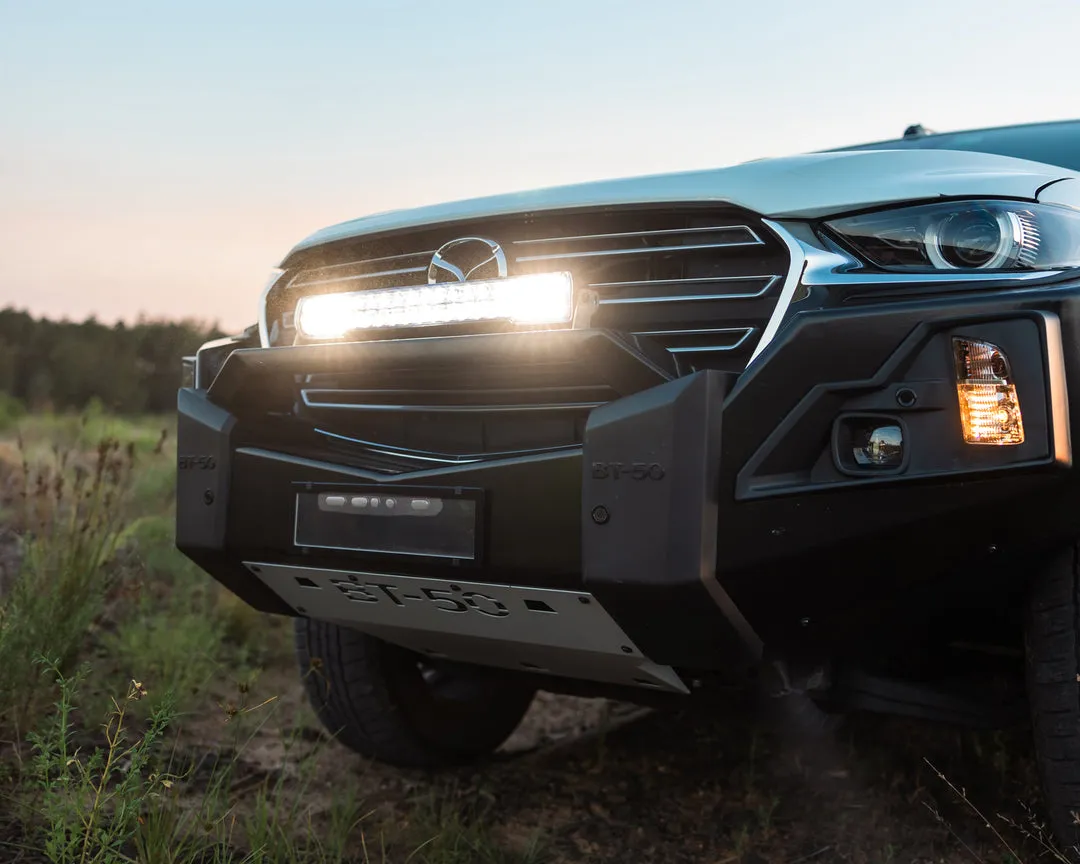

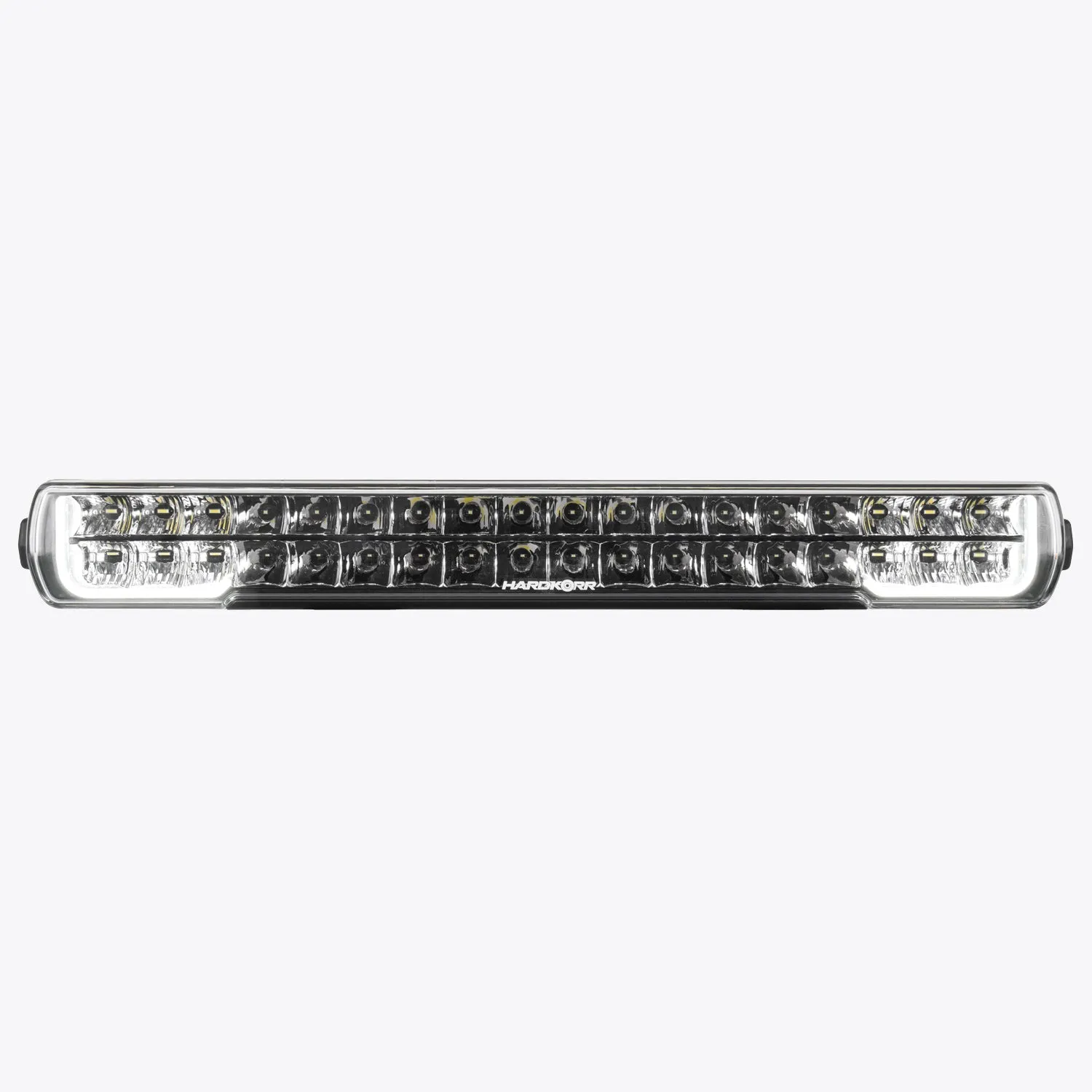

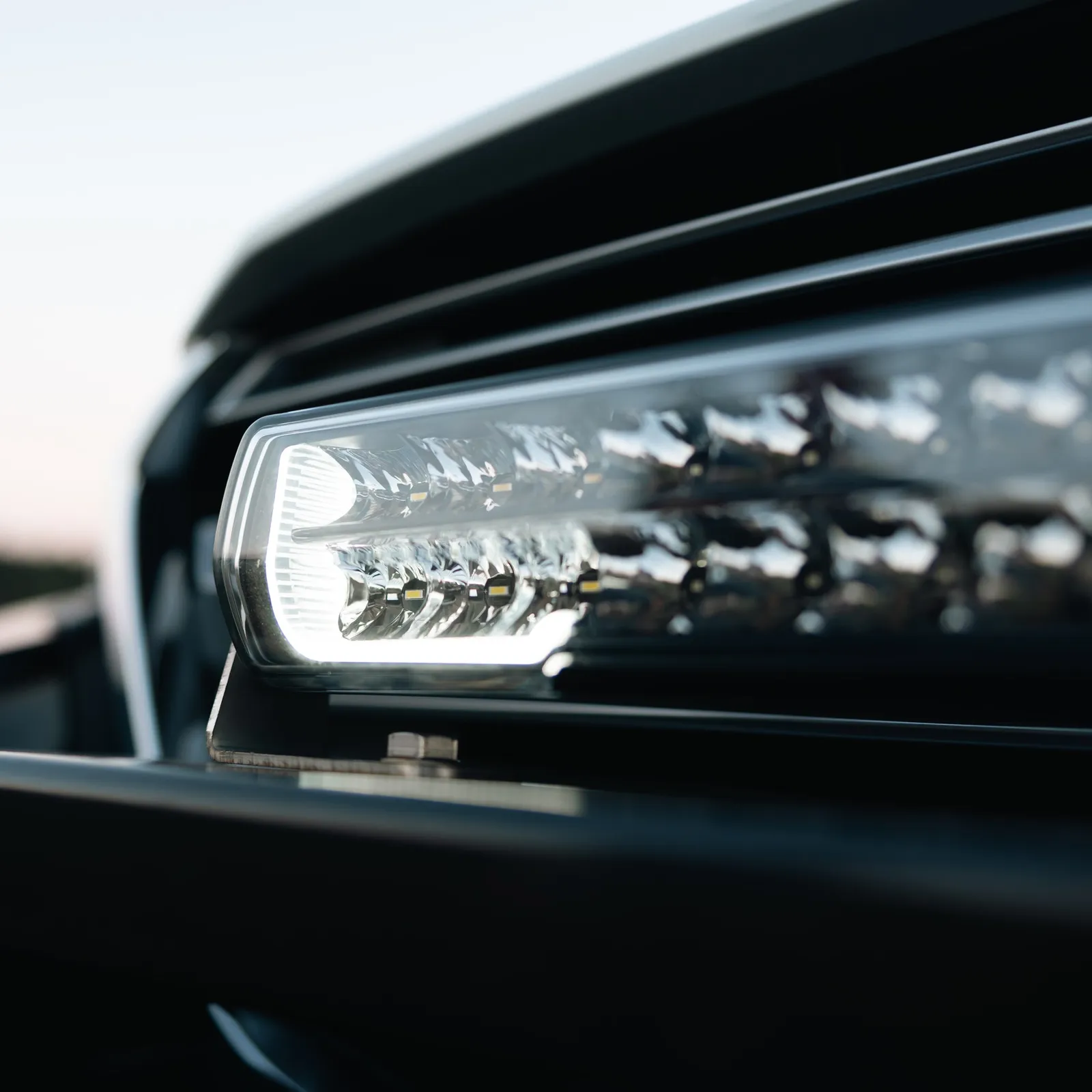

Hardkorr XD Series 20" Double Row LED Light Bar LBXD-20D

The Hardkorr XD Series 20" Double Row LED Light Bar (LBXD-20D) provides long-range illumination with a 1-lux rating of 672m and a wide 118° beam angle. The 5,500K colour temperature delivers clean, natural light for good contrast in a range of conditions.

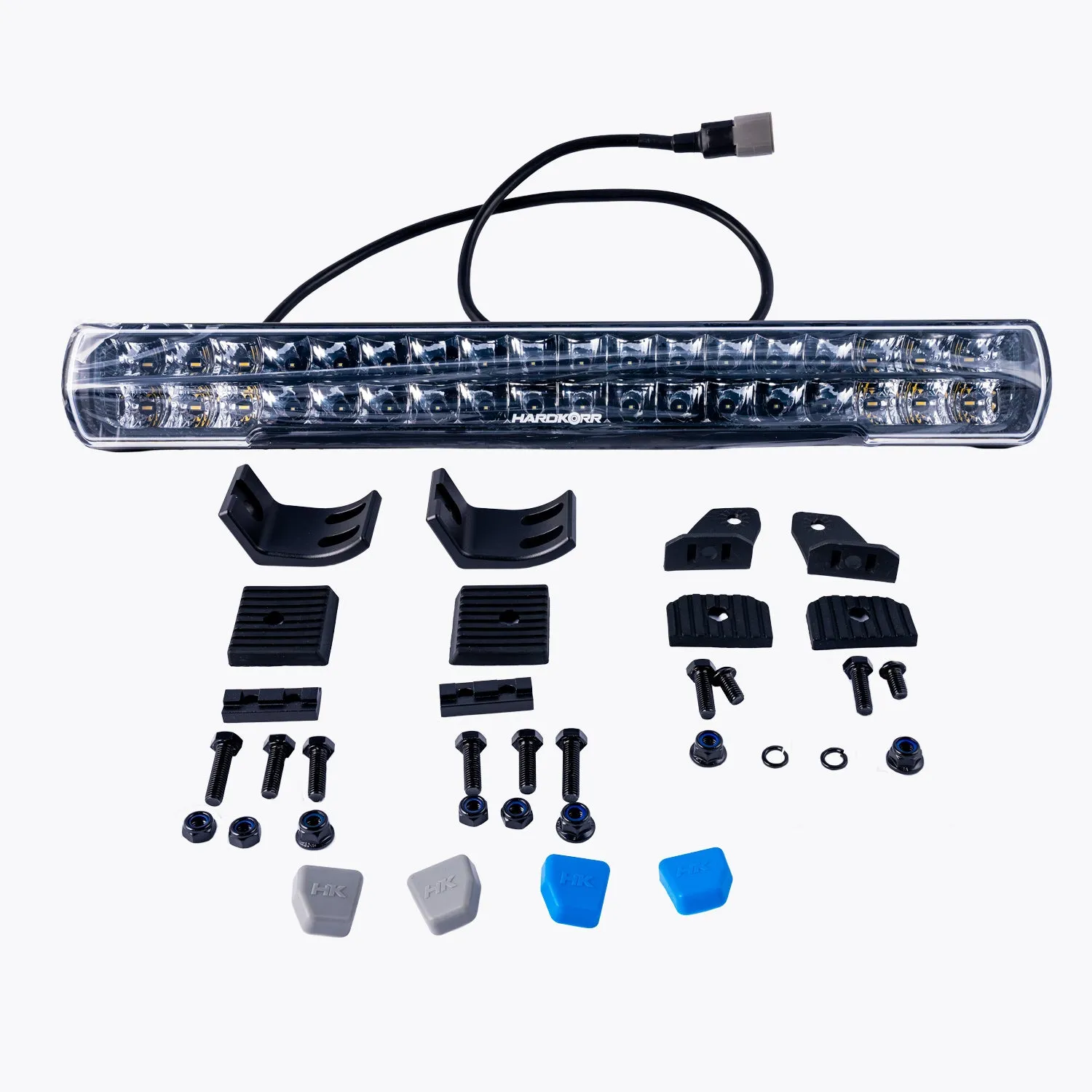

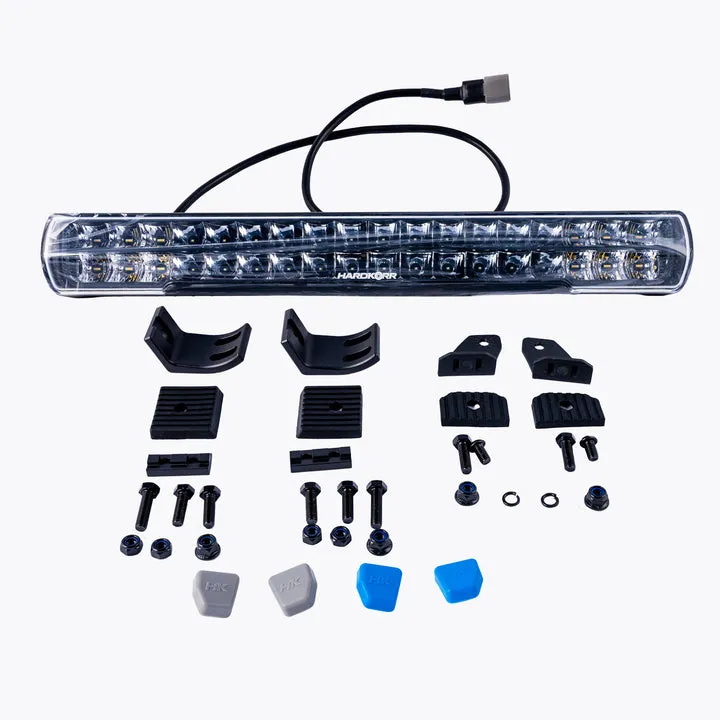

Built with powder-coated die-cast aluminium housing and brackets plus a UV-coated polycarbonate lens, the light bar is rated IP68 / 9K for ingress protection and engineered for high vibration and shock resistance.

• Housing material: Powder-coated die-cast aluminium
• Bracket material: Powder-coated die-cast aluminium
• Lens material: UV-coated polycarbonate
• Size: 560 (L) x 71 (H) x 63 (D) mm
• Weight: 2.0kg
• Raw lumens: 27,600lm
• Effective lumens: 12,595lm
• 1-lux rating: 672m
• Beam angle: 118°
• Peak intensity (candela): 410,000cd
• Colour temperature: 5,500K
• LED chips: 24x 2016 + 12x 1860
• Operating voltage: 10–30V DC
• Current draw: 15.82A @ 12V / 7.74A @ 24V
• DRL draw: 0.48A @ 12V / 0.27A @ 24V
• Operating temperature: -30°C - 65°C
• Ingress protection: IP68 / 9K
