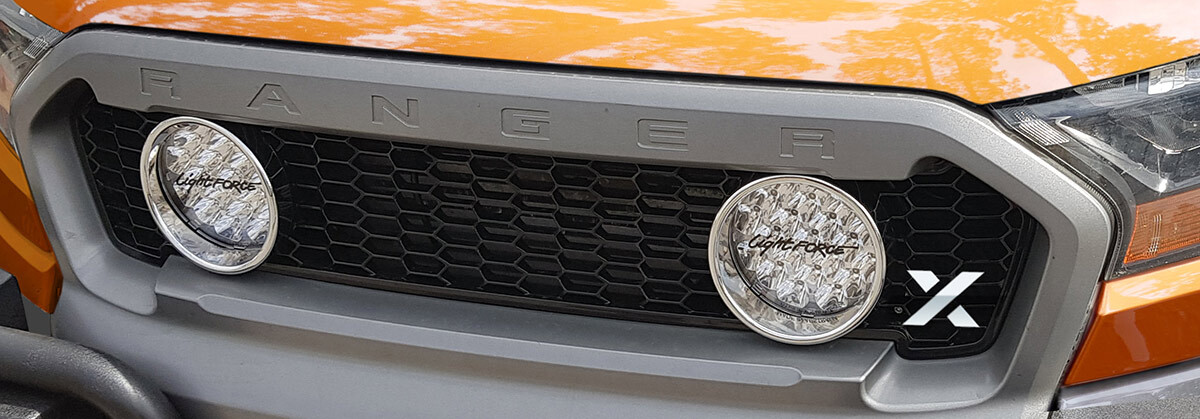

Lightforce Ford Ranger PX2 Grille with Integrated Venom LED Driving Lights

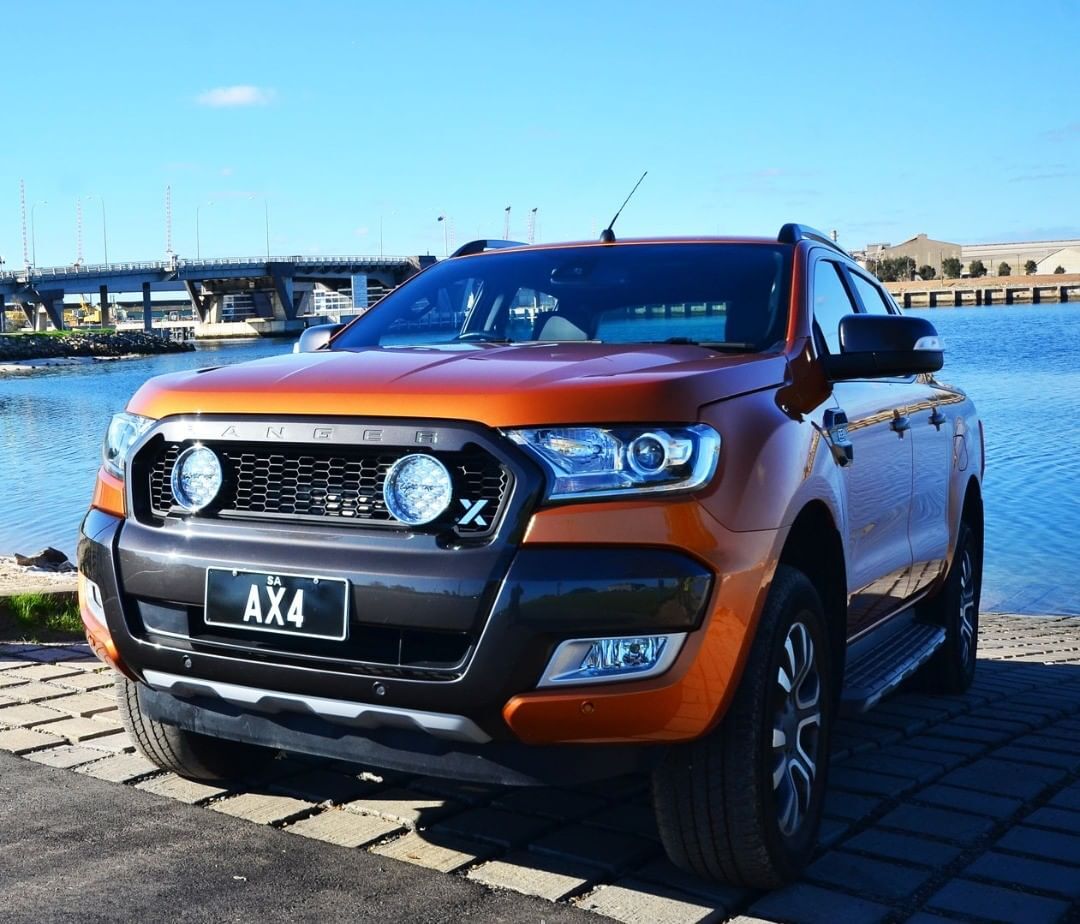

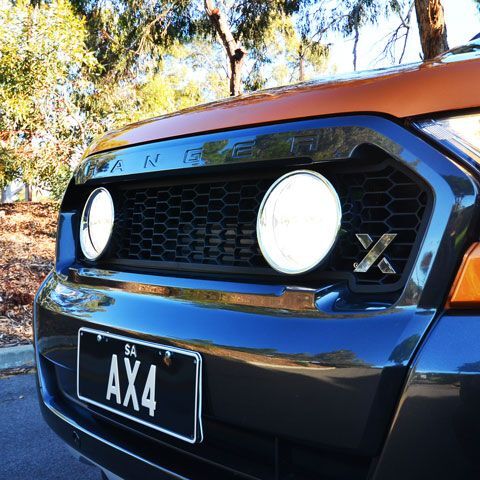

Designed by AX4 and powered by Lightforce, the X Grille is the newest innovation in driving lights. It is a complete replacement radiator grille with an integrated pair of high-performance Venom LED driving lights. The first X Grille kit, to suit the popular Ford Ranger, is a custom package that looks awesome as if it came straight from the factory. It eliminates the need for bull bars, nudge bars or bulky mountings to add driving lights.



The car's original grille is removed, and only minor modification is required to install the X Grille. There’s no exposed wiring, fastenings are out of sight and secure under the bonnet, and the lights are fully supported and maintain their full range of adjustability. Unlike some bull bars and other light mounting solutions, the X Grille does not affect the car’s safety rating or interfere with any of the sensors in modern vehicles.



SPECS

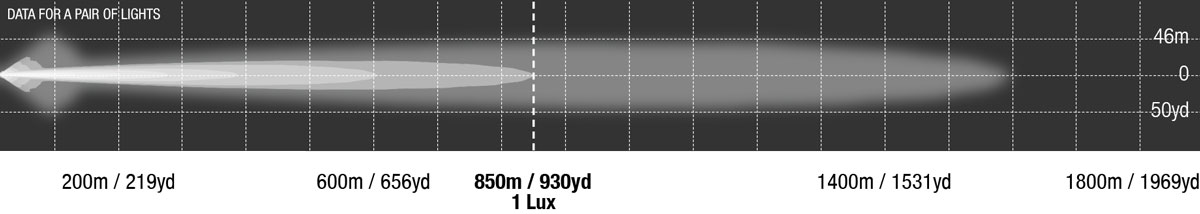

• Distance: 1 lux at 850m
• Distance: 0.25 lux at 1700m
• Effective Lumens 4407
• Raw Lumens 7850
• Colour Temperature 5000K
• CRI 70
• Current Draw 5.7Amps @ 13.2V
• Voltage Range 10V - 32V DC
• Wattage 75W
• Ingress Protection Rating IP68 and IP69K
• Weight 3kg

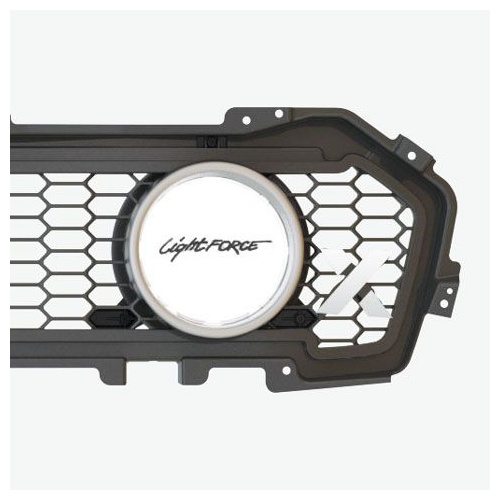

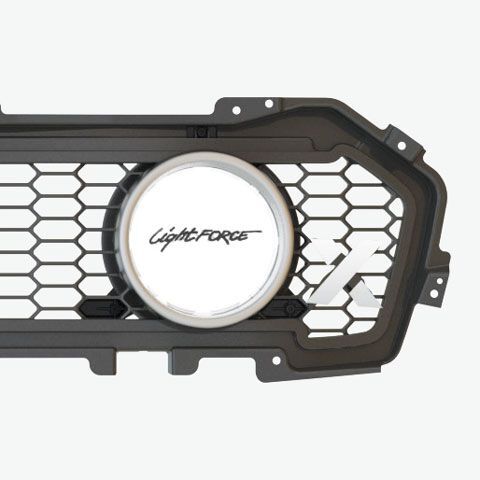

ENHANCED X GRILLE FEATURES

• Reinforced, UV stable glass-filled nylon
• High strength and shock-resistant
• Vehicle collision avoidance compliant
• Sleek, modern and innovative
• Bright chrome trim
• Weight: 1kg/2.2lb



VENOM INSERT LED FEATURES

• 75W LED / 7850lm (raw) / 4407m (effective) for industry-leading output per light
• 21 Lumileds LEDs per light operate at 5000K colour temperature reducing driver fatigue
• CE Certified
• Vertical and horizontal beam adjustment provides optimal alignment
• IP68 & IP69K rated / Gore water-proof membrane to protect against water and dust ingress
• Reverse polarity / overload protection
• Colour temperature: 5000K
• LED lifespan: 50,000 hours
• Operating temperature: -40C to 63C





KIT INCLUSIONS

• 1 x X Grille for Ford Ranger PX2 models
• 2 x Integrated Lightforce Venom LEDs with clear spot filters
• 1 x Full plug-and-play wiring harness & switch
• 1 x Dedicated plug-and-play headlight patch harness
• 1 x Installation instructions.



The X Grille kit contains a wiring harness, switch and connectors – everything needed for a seamless fit. The instructional video below provides a step-by-step guide, making installation a straightforward DIY job. Alternatively, owners can choose to have the X Grille professionally installed, a process that takes under two hours.



Optional Extras

• Venom LED Clear Combo Filters
• Venom LED Clear Amber Filters
• Venom LED Crystal Blue Spot Filters
• Ford Ranger Switch Replacement Fascia.
