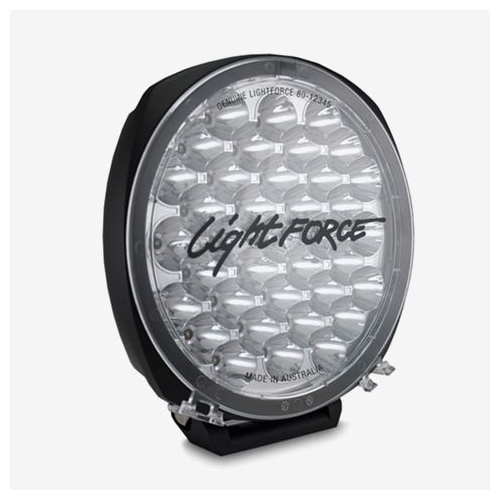

Lightforce Genesis Single 12V/24V Led Driving Light

Pushing the limits of daylight and truly redefining LED performance with an output of 1 lux @ 1053m (Pair), Lightforce’s Australian designed and made 140W Genesis LED provides increased audio clarity with the inclusion of CISPR25 compliant reduced radio frequency interference technology.



PERFORMANCE

Incredible light performance from 37 LEDs with a total of 13,000+ raw lumens per pair! True light output to over 1000m per pair to give you the optimum amount of light where you really need it. Waterproof, scratch-proof and durable with Lightforce's unique hardened lens material design to output maximum light whilst protecting the internals of the light.





SPECS

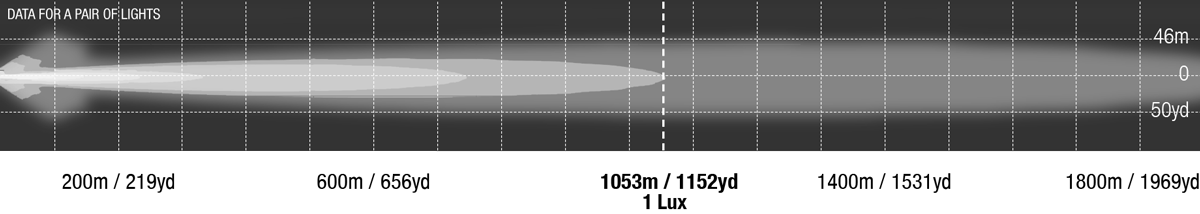

• Distance: 1 lux at 1053m (Pair)
• Distance: 0.25 lux at 2106m (Pair)
• Effective Lumens 7336
• Raw Lumens13,850

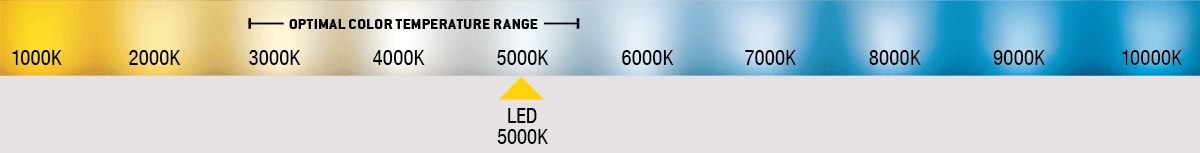

• Colour Temperature 5000K
• CRI 70
• Current Draw 10.5Amps @ 13.2V
• Voltage Range 10V - 32V DC
• Wattage 140W
• Ingress Protection Rating IP69K
• Weight 2.4kg Including Bracket



FEATURES

• 140W LED within a 210mm housing
• 37 LumilLED LEDs provide generous distance
• 3 Stage Operation: switch from daytime running to night time running to full intensity
• CISPR25 compliant reducing radio frequency interference
• Cast aluminium housing and bezel
• Hard-wearing UV stable powdercoat finish
• High current waterproof connector
• Reverse polarity voltage protection
• IP69K rated to protect against moisture / contaminant ingress
• Totally dust tight and resistant to close range, high pressure, high temperature spray downs
• Genuine Gore® Waterproof Membrane with Mechanical Seal
• Thermal overload protection
• Impact resistant polycarbonate filter
• 3 year warranty.



RELIABILITY

Proven to operate in the most extreme conditions the Genesis LED will provide maximum light output even in very cold or very hot conditions. With an expected LED lifespan of over 50,000 hours this light will not let you down!









KIT INCLUSIONS

• 1 x Genesis LED driving light
• 1 x Clear spot filter
• 1 x Reversible mounting bracket (fitted to light)
• 2 x M10 x 35mm stainless steel hex bolts with washers and nyloc nuts (side bolts fitted to light)
• 1 x M10 x 35mm stainless steel hex bolt with washer and nyloc nut (fitted to bracket for mounting)
• 1 x 4 pin high current waterproof harness adaptor
• 2 x 1/4” x 1 1/4” long UNC stainless steel hex bolt with washer and nut (in bag)
• 1 x User instructions.
