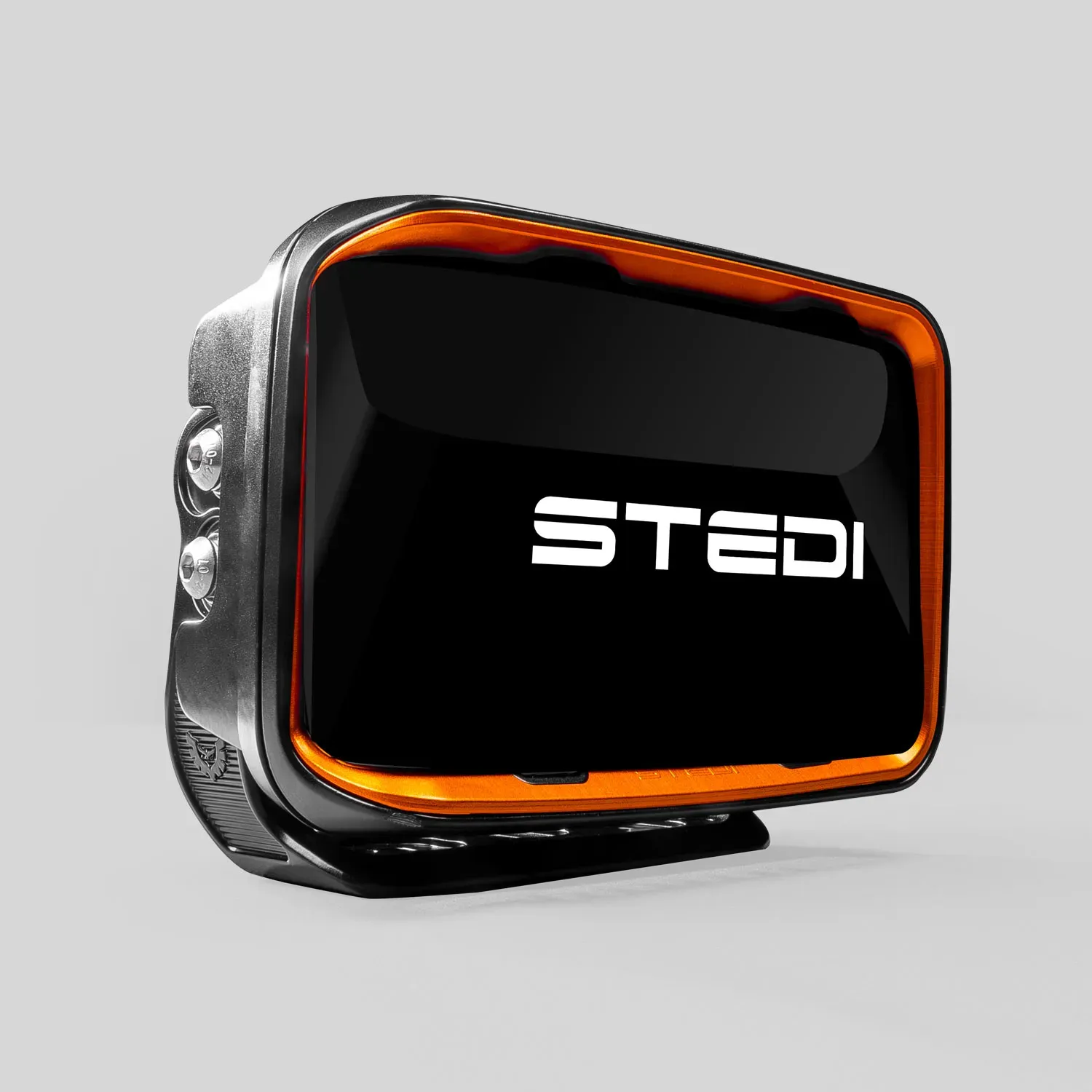

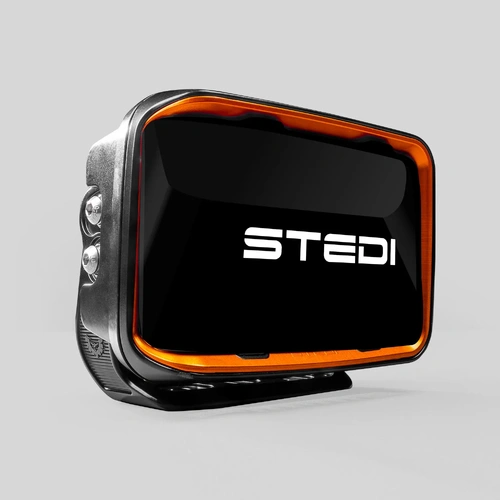

The Stedi Quad EVO Side LED Driving Light is the side module in the Quad EVO modular driving light system. It uses widespread reflectors and 18 CREE XP20 LEDs to produce a broad 210-degree illumination spread and is designed to pair with Quad EVO centre modules for extended range.
Features:
- Modular side module designed to integrate with Quad EVO centre modules for combined reach and distribution.
- Widespread reflectors provide an extended peripheral beam to improve visibility of roadside hazards and surroundings.
- Low profile mounting and a reconfigured bracket system for tighter mounting clearances on modern bull bars and roof racks.
- Engineered fin design to maximise heat dissipation and help protect internal components.
- Snap-fit covers and matching fascias allow visual customisation to suit other EVO products.
Kit Includes:
- Stainless-steel mounting bracket
- Mounting hardware and wiring for initial installation
- Rubber dampener for mounting bracket
- 2x STEDI Black Out Covers (L + R)
- 2x Colour Fascia Grey (L + R)
- 2x Colour Fascia Orange (L + R)
- STEDI custom key (removes fascia; doubles as bottle opener)
- STEDI branded patch
(ST-01-QDE-001)
| LEDs | 18 x CREE XP20 |
|---|---|
| Colour temperature | 5000K |
| Voltage compatibility | 12v - 24v |
| Lumen maintenance | 30,000 LM-80 |
| Lifespan | Up to 30,000 hours |
| Operating temperature | -40°C to 60°C |
| Ingress protection | IP68 (submersible up to 3m) |
| Beam pattern | 32 x 30° Spread; 32 x 4° Pencil Beam |
| Housing | Aluminium ADC12 |
| Lens | Polycarbonate |
| Bracket | Stainless steel |
| SKU | ST-01-QDE-001 |
| Brand | Stedi |
| Shipping Weight | 2.3500kg |
