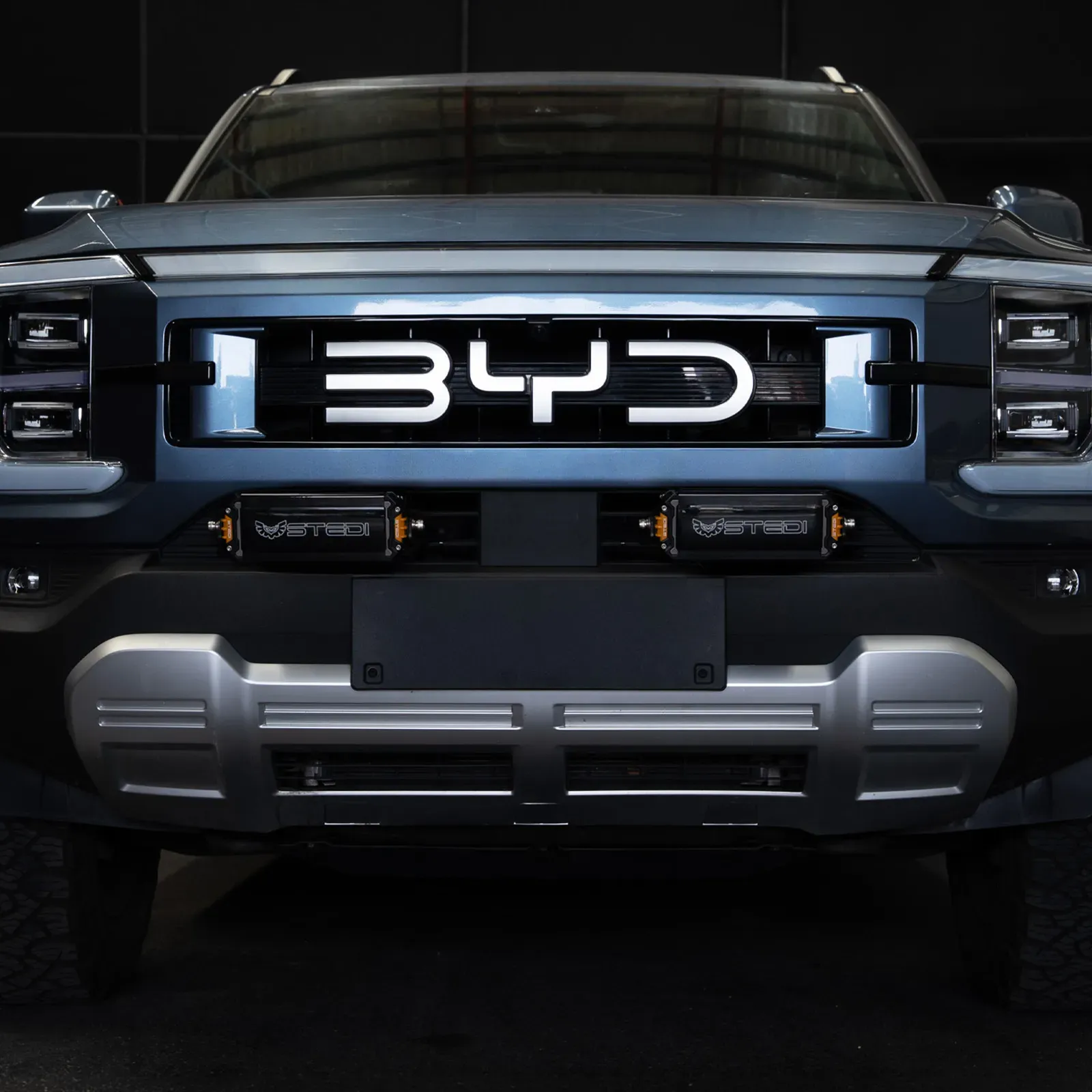

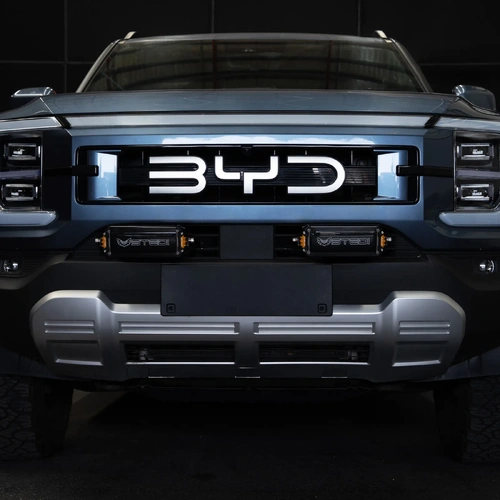

The STEDI 11 Inch Light Bar Mounting Kit is a vehicle-specific mounting solution for the BYD Shark 6. It is custom engineered to deliver a factory fit and finish and provides a secure mounting point for STEDI ST3303 PRO 11 Inch LED light bars.
Features:
- Custom engineered and exclusively design registered using advanced 3D scanning and modelling for accurate fitment.
- Brackets fabricated from 304 stainless steel with a jet black powder coat finish.
- Designed to hold STEDI ST3303 PRO 11 Inch light bars, which carry an IP68 ingress protection rating.

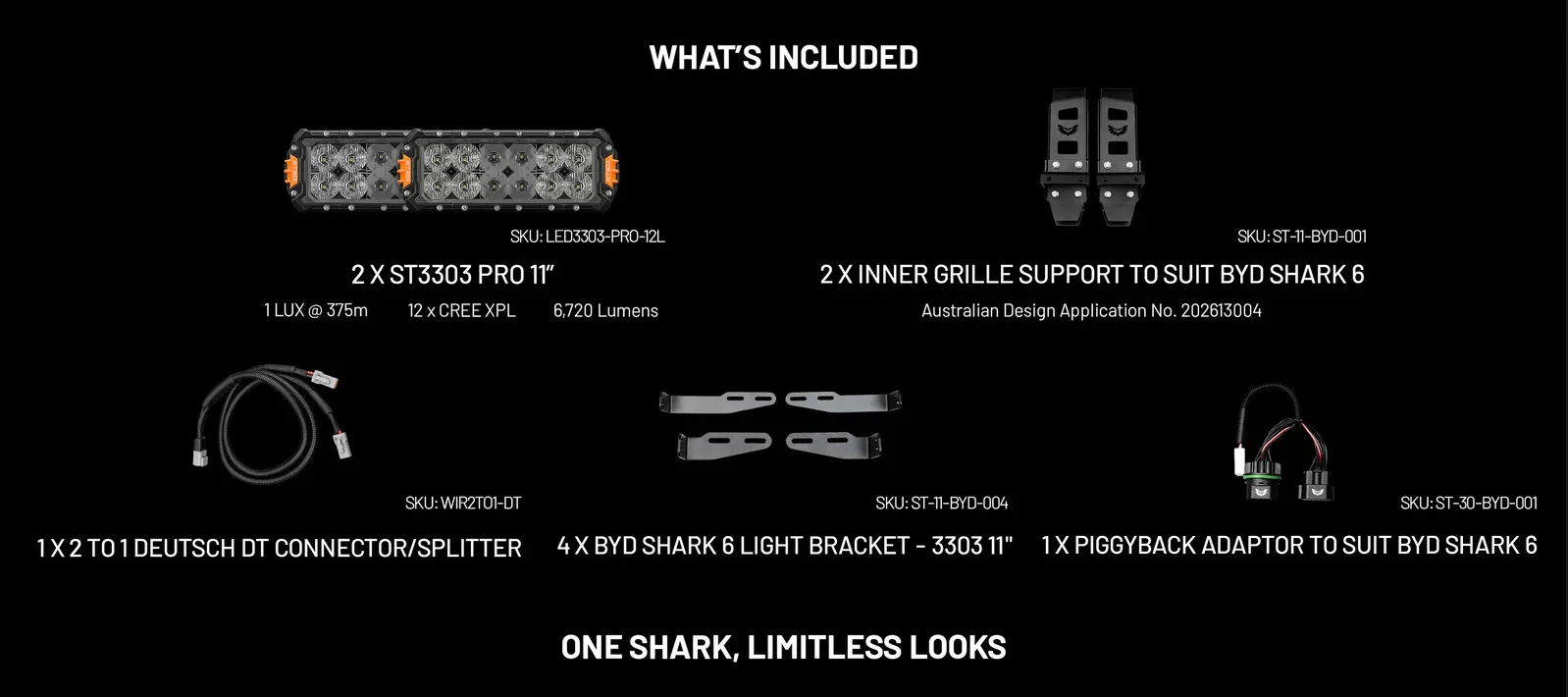

Kit Includes:
- 2 x ST3303 PRO 11 Inch 12 LED Light Bar (LED3303-PRO-12L)
- 1 x Inner Grille Support to suit BYD Shark 6 (ST-11-BYD-001)
- 1 x BYD Shark 6 Light Bracket - 3303 11" (ST-11-BYD-004)
- 1 x Piggyback Adapter to suit BYD Shark 6 (ST-30-BYD-001)
- 1 x 2 to 1 Deutsch Connector / Splitter | 2 Lights with 1 Wiring Harness 1.5m (WIR2TO1-DT)
Suits:
- BYD Shark 6
- Only suited to the STEDI ST3303 Pro 11" Light Bars
(ST-BYDS-3303)
| Bracket material | 304 stainless steel |
|---|---|
| Bracket finish | Jet black powder coat |
| Spot beam | 9° |
| Flood beam | 50° |
| Colour temperature | 5700K |
| Lens material | Optical grade hard-coated Lexan |
| Housing material | A360.0 cast face plate, extruded aluminium heat sink |
| Ingress protection | IP68 |
| Lifespan | 50,000 hrs |
| Peak intensity (candela) | 360,800 cd |
| Effective lumens | 6,720 Lm |
| Raw lumens | 13,140 Lm |
| Current draw | 5.9 A @ 13.6 V |
| Operating temperature | -40°C to +150°C |
| SKU | ST-BYDS-3303 |
| Brand | Stedi |
| Shipping Weight | 1295.0000kg |
