Stedi Rally Bar Bundle - Ford Ranger PX2 & PX3
$1,073.00
RRP $1,181.00
SAVE $108.00 (9%)
In Stock
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock. Please contact us via the 'Contact Us' page if you would like to confirm stock prior to ordering.

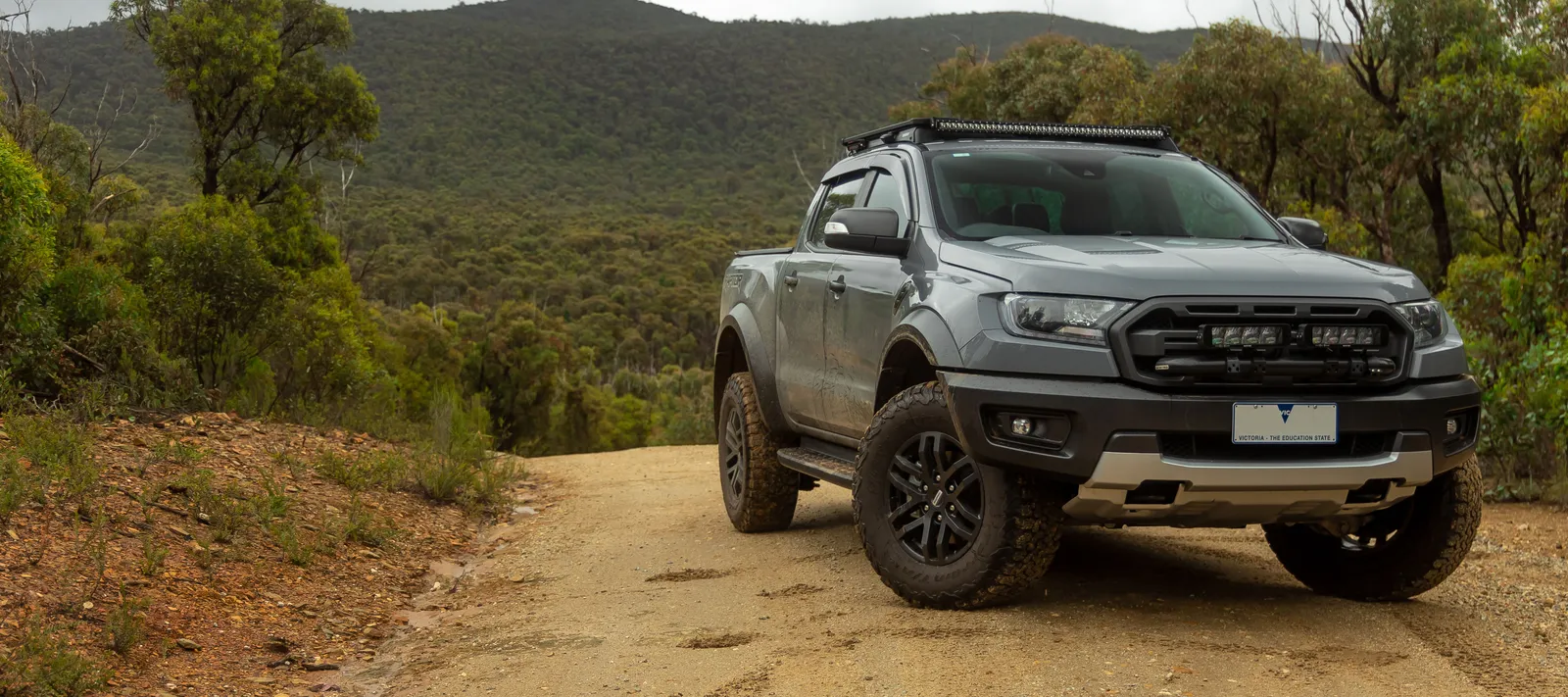

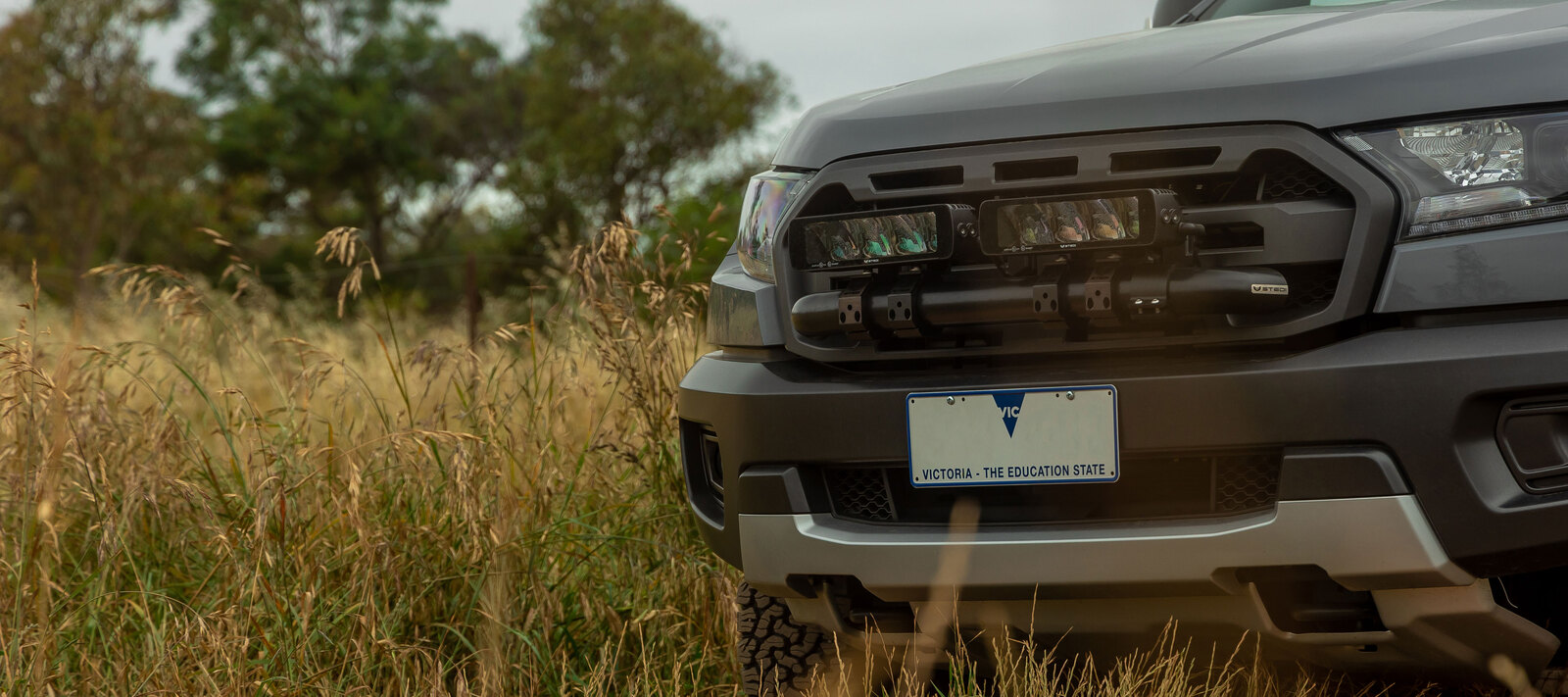

The Stedi Rally Bar Bundle pairs a purpose-designed rally bar with twin ST-X 12 inch LED light bars and HEX mounting brackets. It provides a streamlined alternative to conventional nudge bars and is engineered for a seamless, fully reversible installation (grill dependent).
Features:

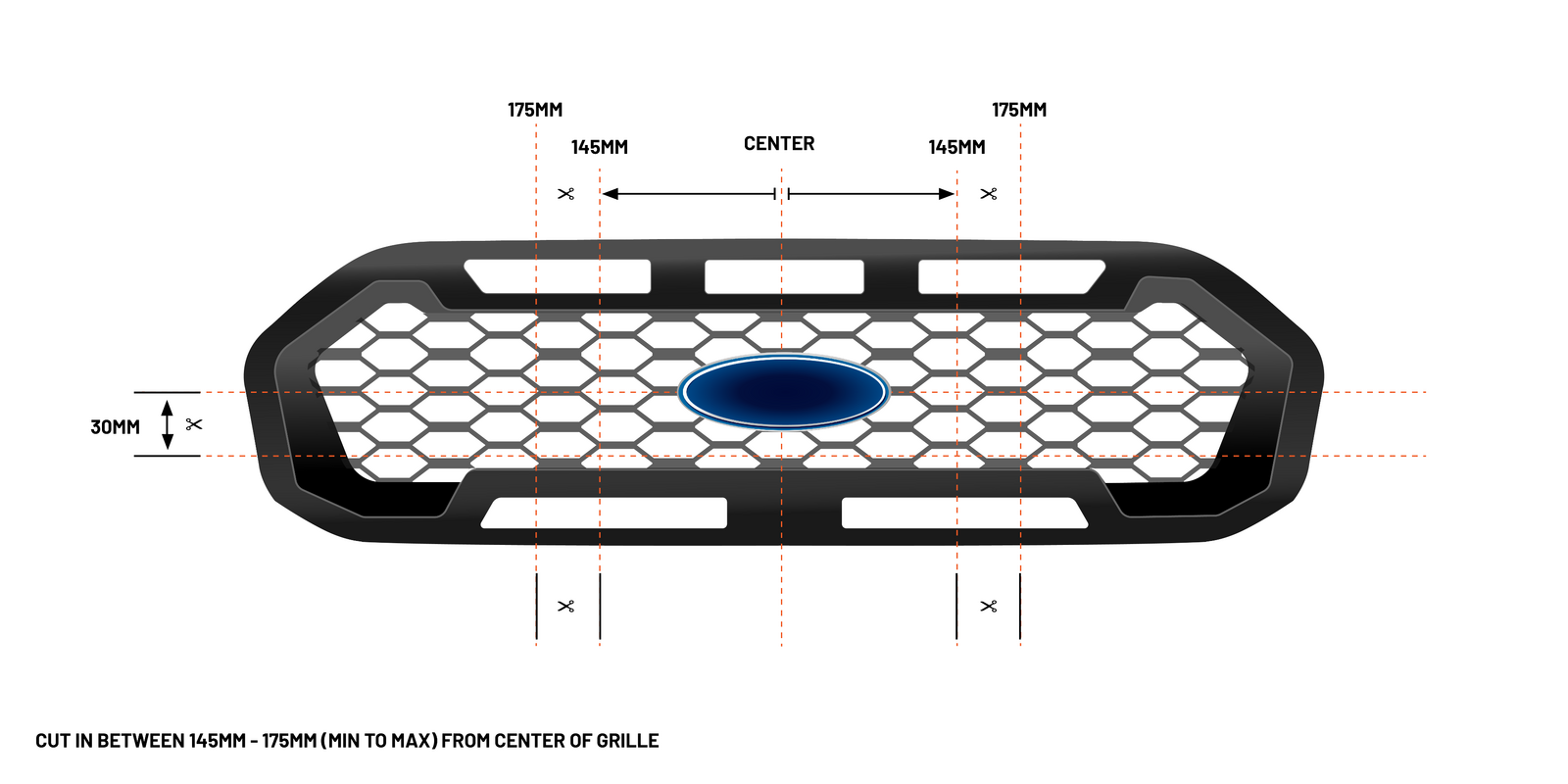

- Reversible, non-intrusive installation (grill dependent)
- Designed to fit seamlessly with the Ford Ranger, Ranger Raptor & Everest
- Pairs two ST-X 12 inch light bars using the HEX brackets

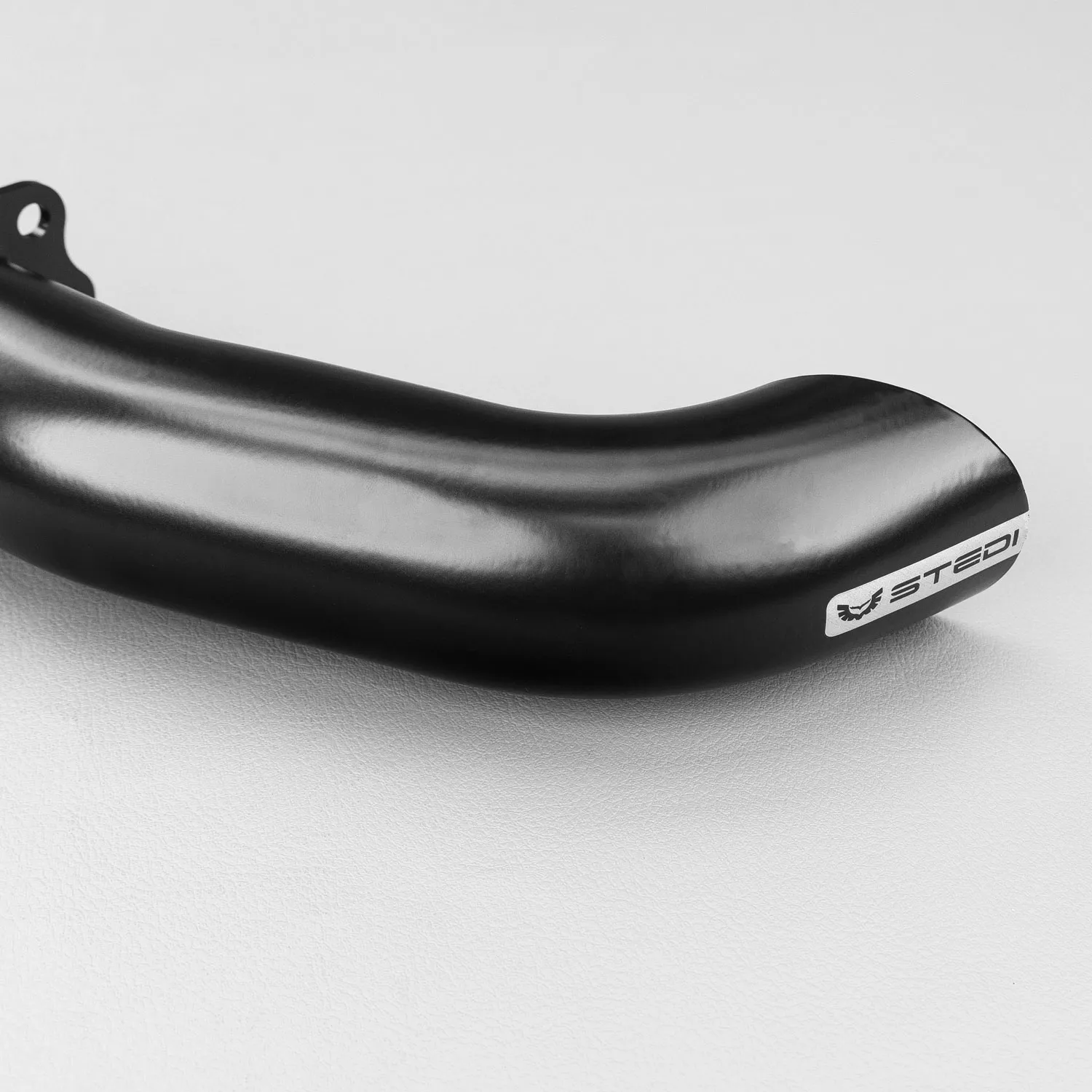

- Powder-coated mounting tube for a modern finish
- Connector: 60cm cable with DTP 4in
- Amperes: 8.16A
- Ingress protection: IP68
- Candelas: 368,328
- Photometric data: 1 lux @ 605M
- Certificates: R112, ref. 45 and R10
- Colour temperature: 5000K
- Power: 48.96W
- Amp rating: 0.1A
- Lifespan: 50,000hrs (LM80)
- Operating temperature: -40°C ~ +60°C
- Lens material: Optical grade, hard-coated LEXAN
- Housing material: 6063 extrusion
- Lumens: 4200LM
- Product weight: 5.1kg
- Voltage: 9-36V
- Thickness: 2mm
- Diameter: 60mm
- Material: Stainless steel (front tube)
Kit Includes:

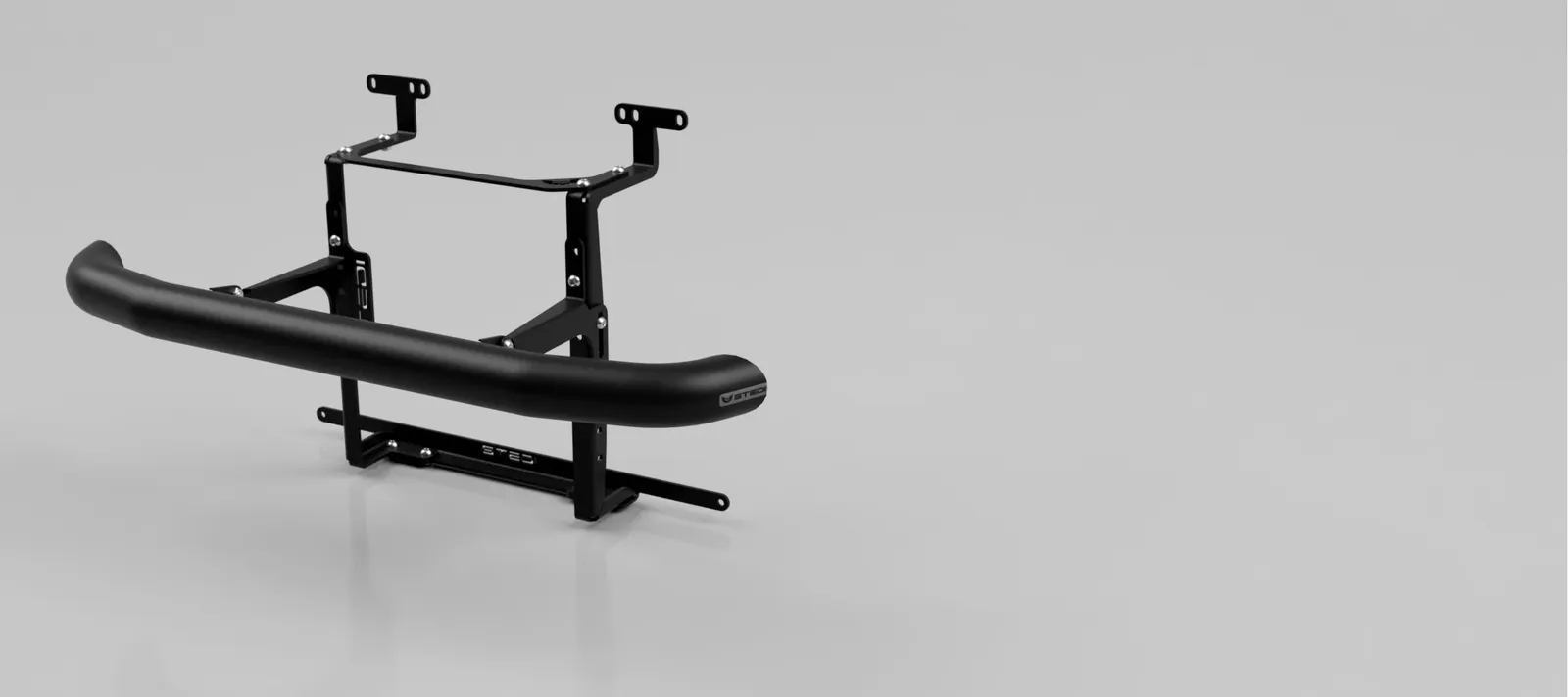

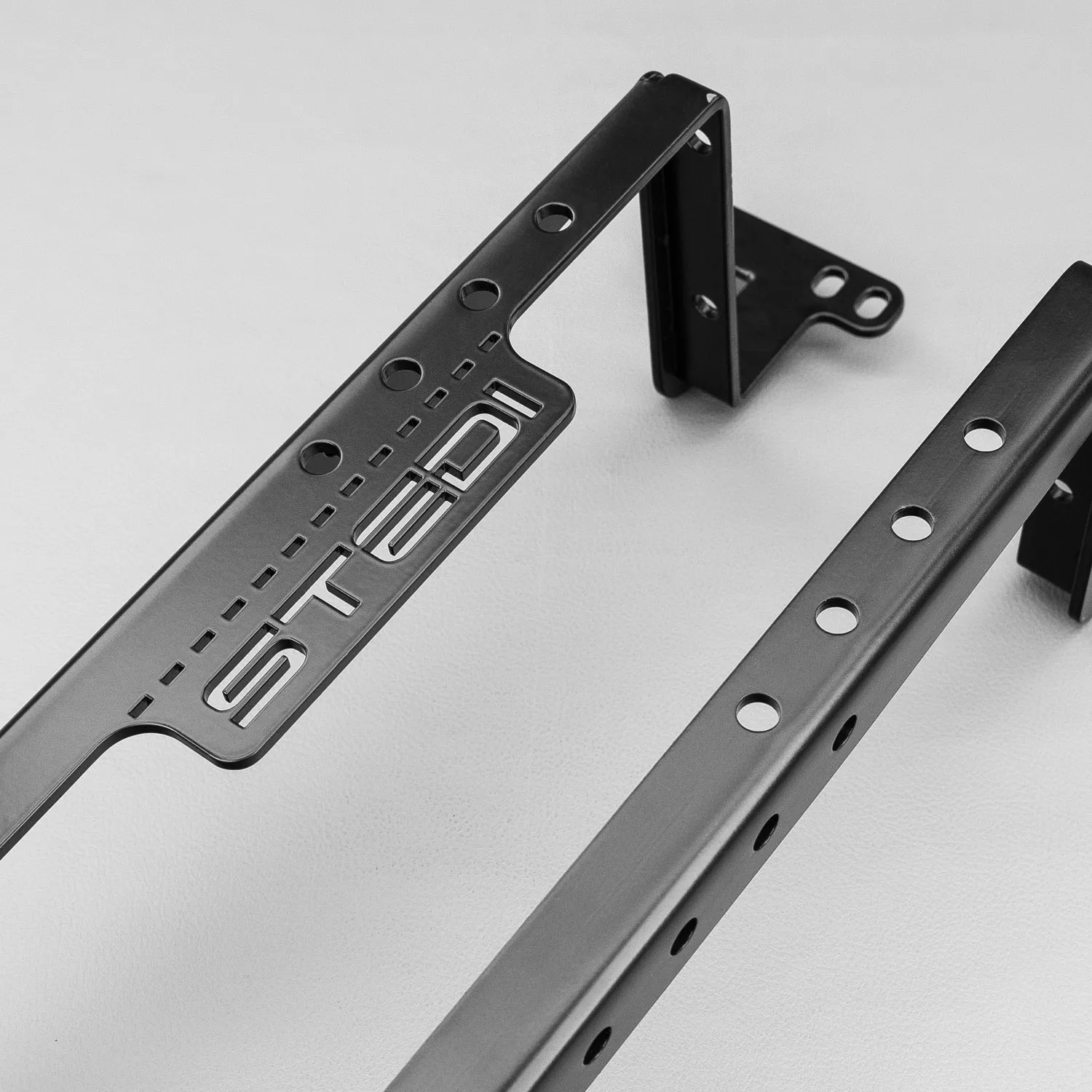

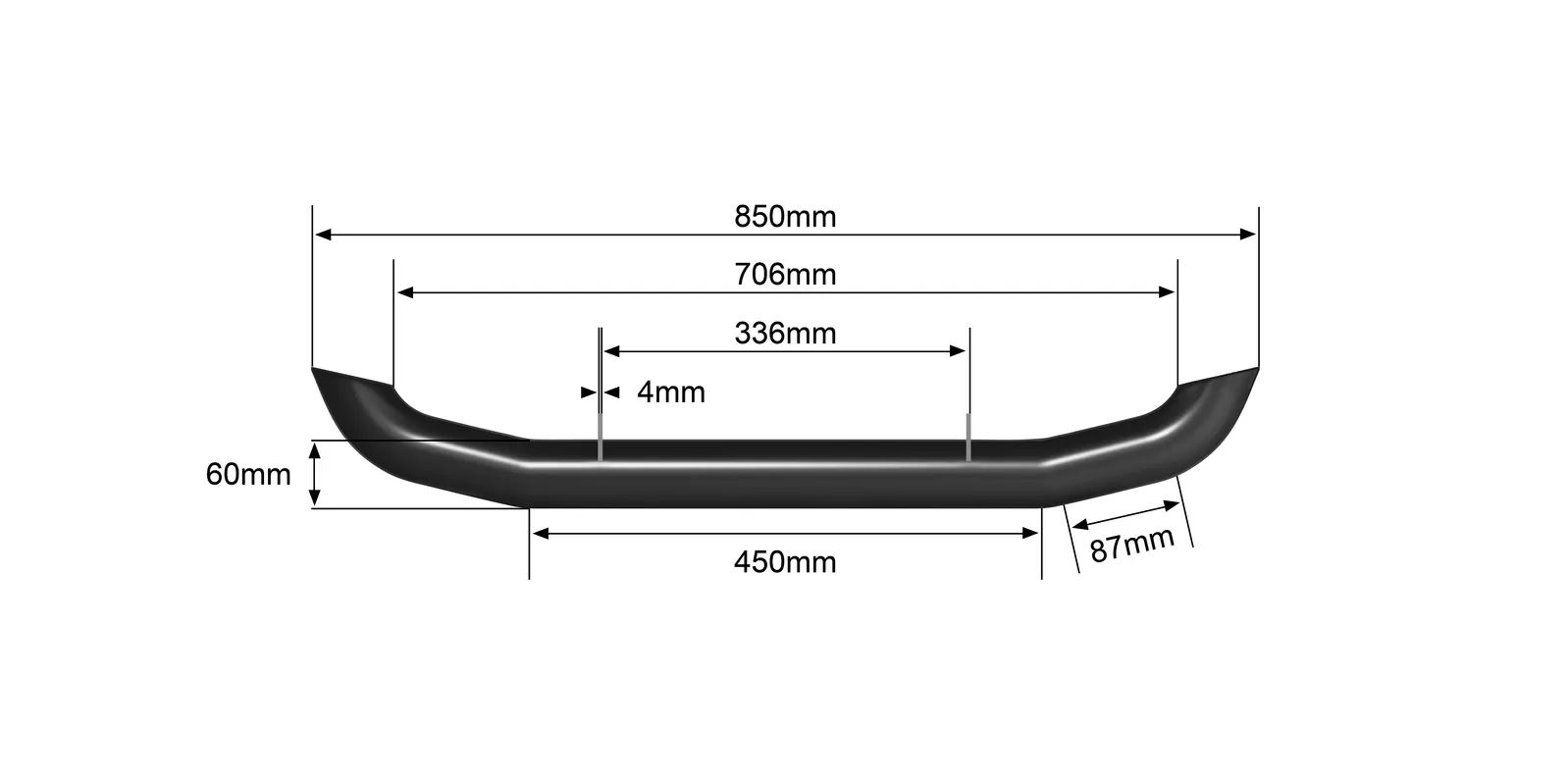

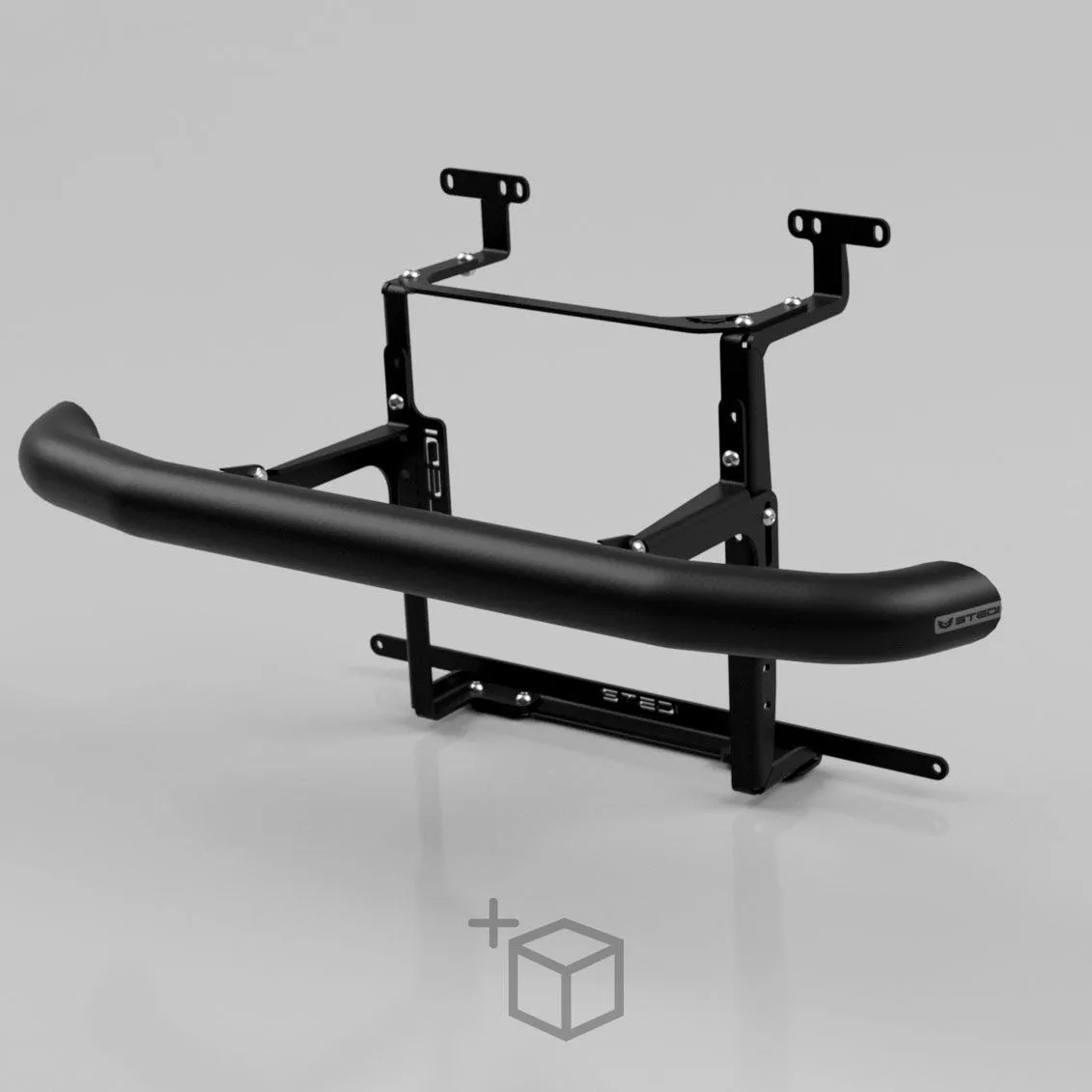

- 1 x Rally Bar to Suit PX2/3 Ford Ranger (FORD-RANGER-NUDGE)

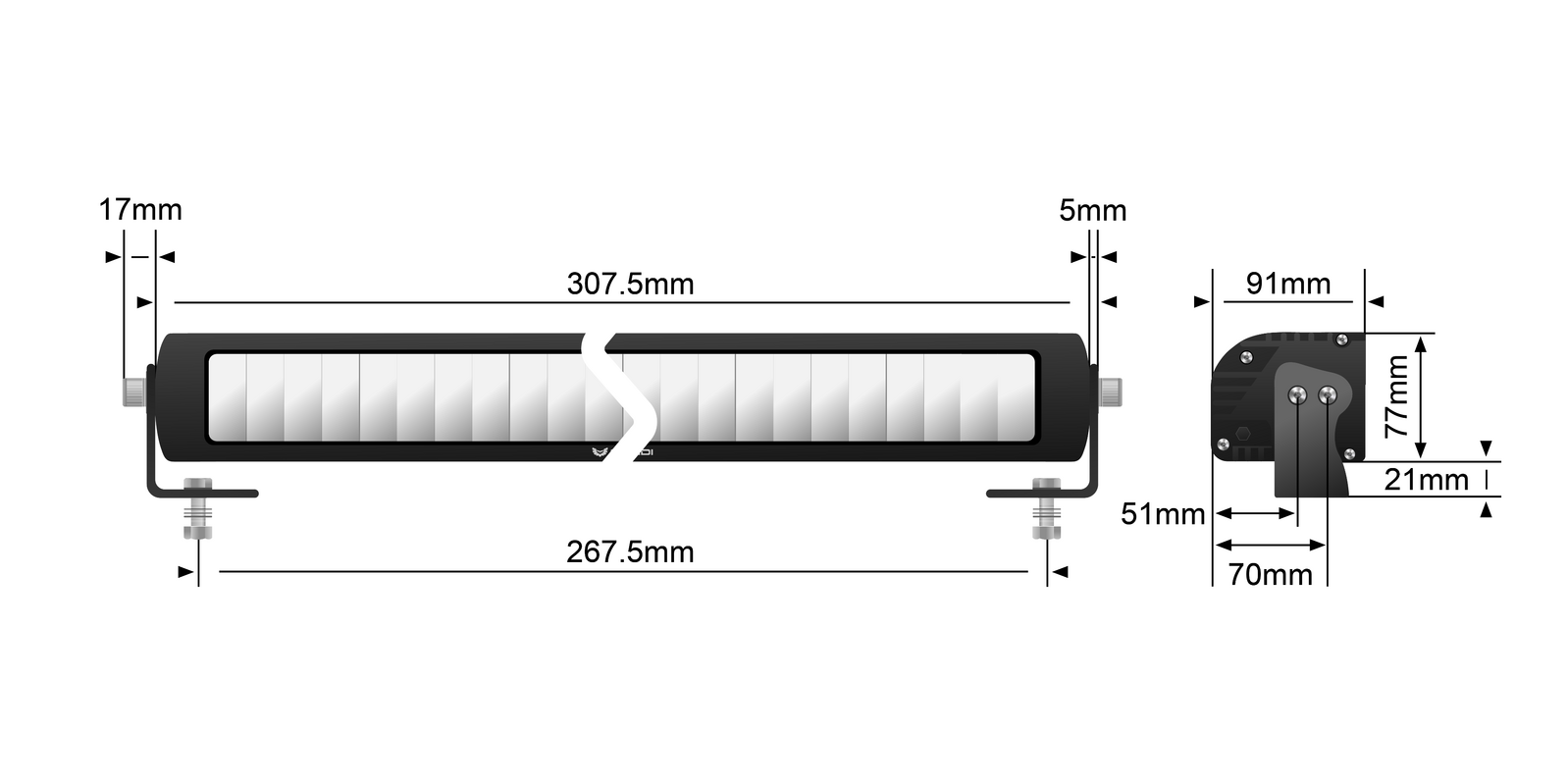

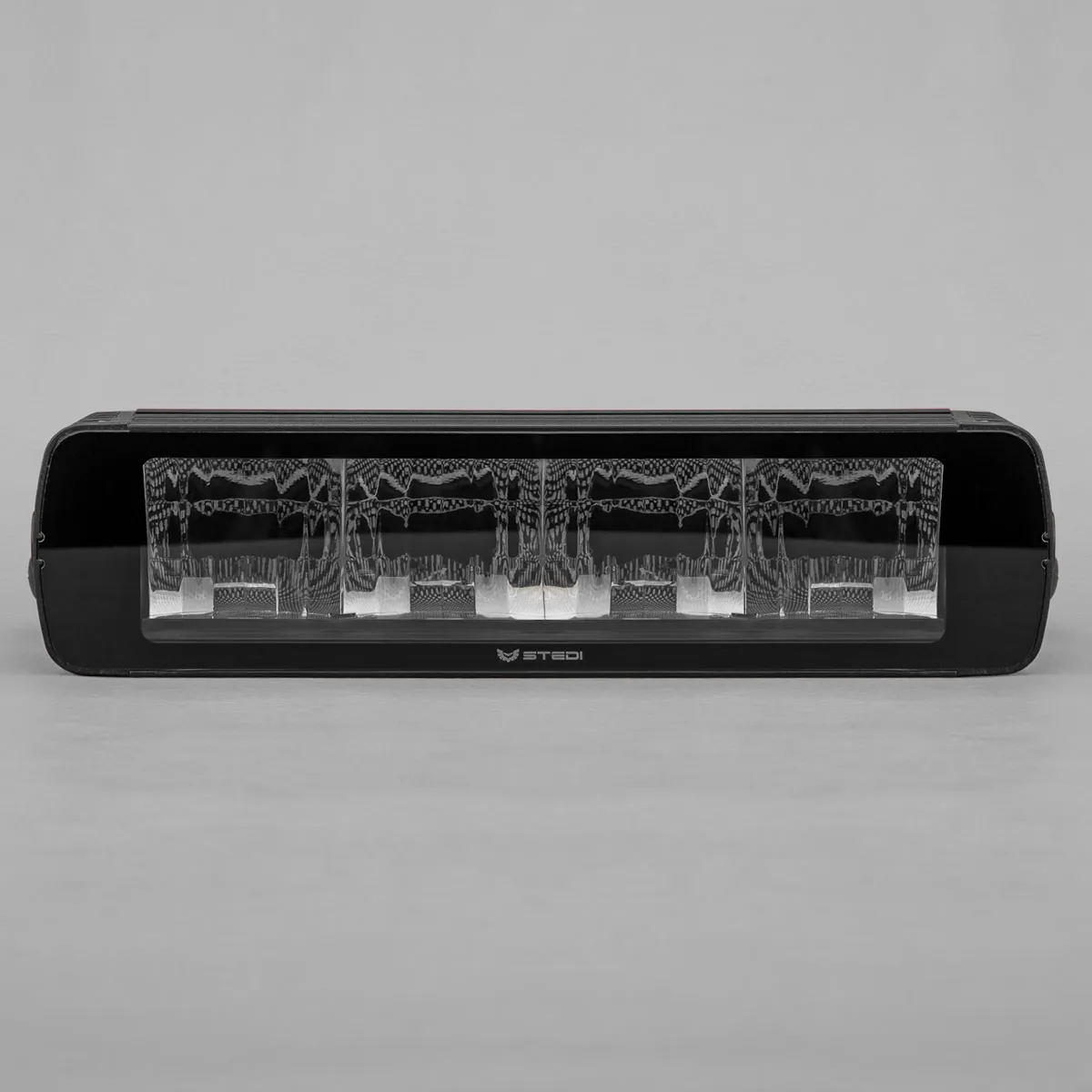

- 2 x ST-X 12 inch LED Light Bar (LEDST-X-12-4L)

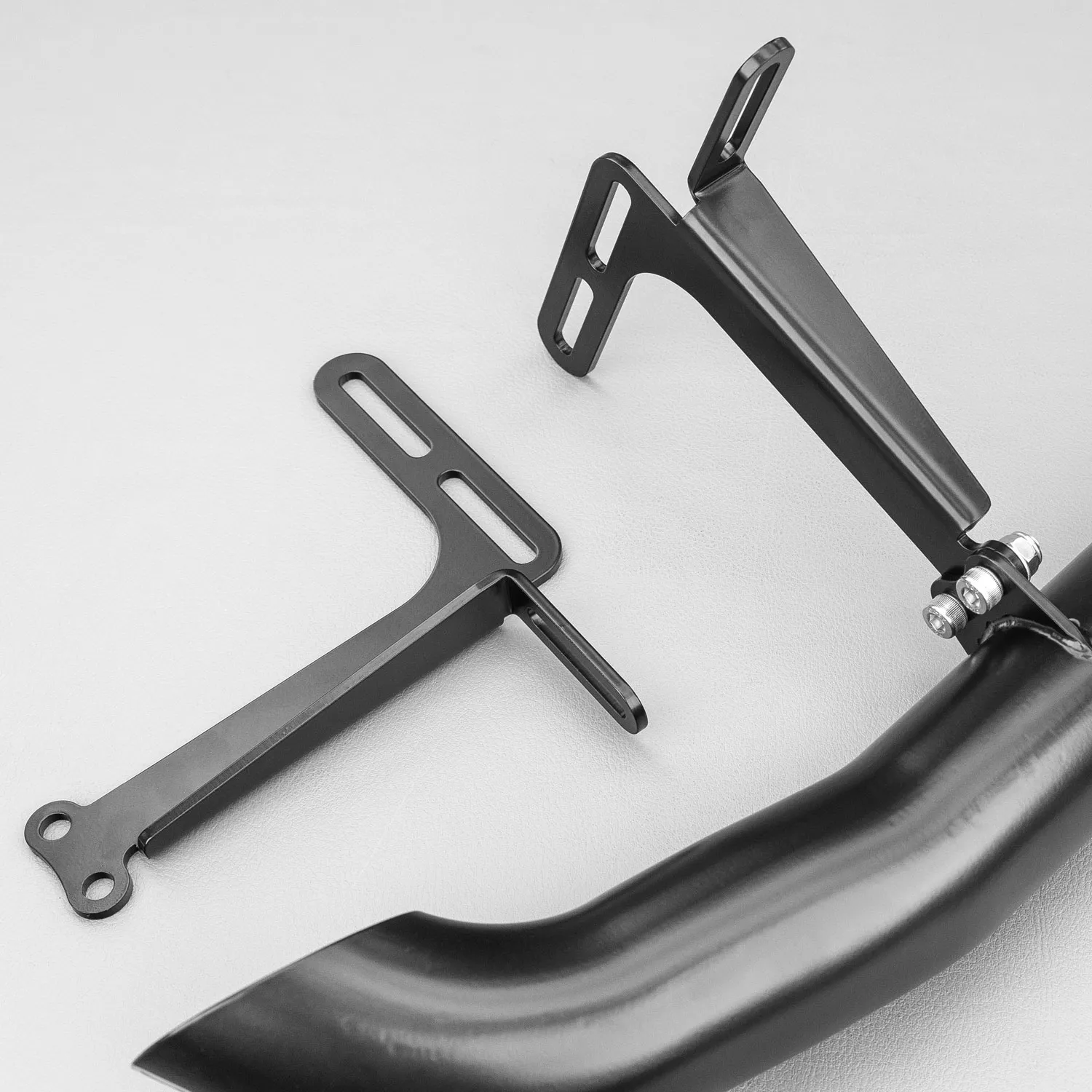

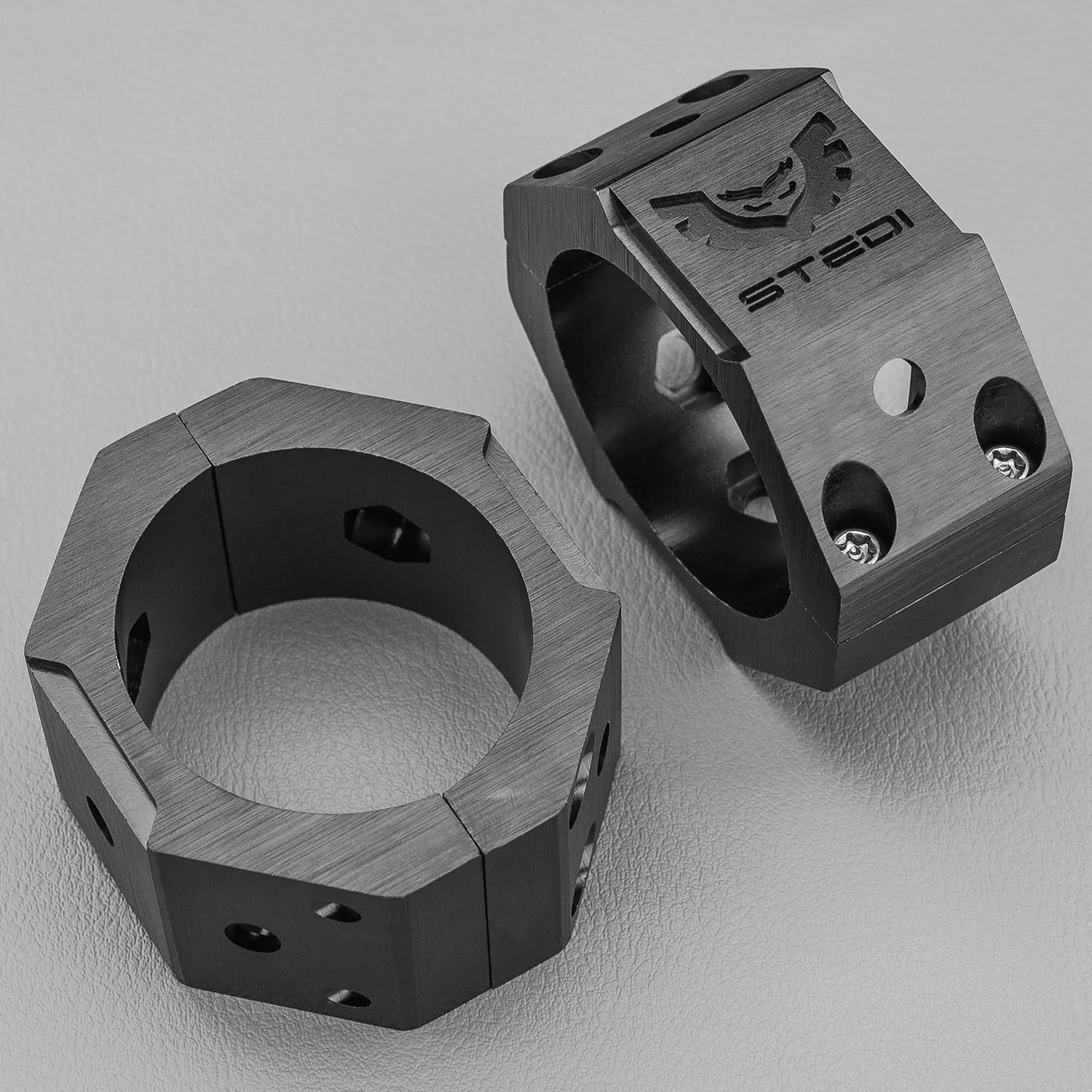

- 2 x 60mm - 66mm HEX Bull Bar Tube Mounting Brackets (BRK-6066-TBE)
- 2 x Ford Ranger Raptor & Everest Piggy Back Adapter (FORD-ADAPTER)
Suits:
- Ford Ranger
- PX2 & PX3
- Ranger Raptor
- Piggy back adapter included
- Everest
- Piggy back adapter included
(FORD-NUDGE-ST-X)
| Connector | 60cm cable with DTP 4in |
|---|---|
| Amperes | 8.16A |
| Ingress protection | IP68 |
| Candelas | 368,328 |
| Photometric data | 1 lux @ 605M |
| Certificates | R112, ref. 45 and R10 |
| Colour temperature | 5000K |
| Power | 48.96W |
| Amp rating | 0.1A |
| Lifespan | 50,000hrs (LM80) |
| Operating temperature | -40°C ~ +60°C |
| Lens material | Optical grade, hard-coated LEXAN |
| Housing material | 6063 extrusion |
| Lumens | 4200LM |
| Product weight | 5.1kg |
| Voltage | 9-36V |
| Thickness | 2mm |
| Diameter | 60mm |
| Material | Stainless steel (front tube) |
| SKU | FORD-NUDGE-ST-X |
| Brand | Stedi |
| Shipping Weight | 6.3000kg |
