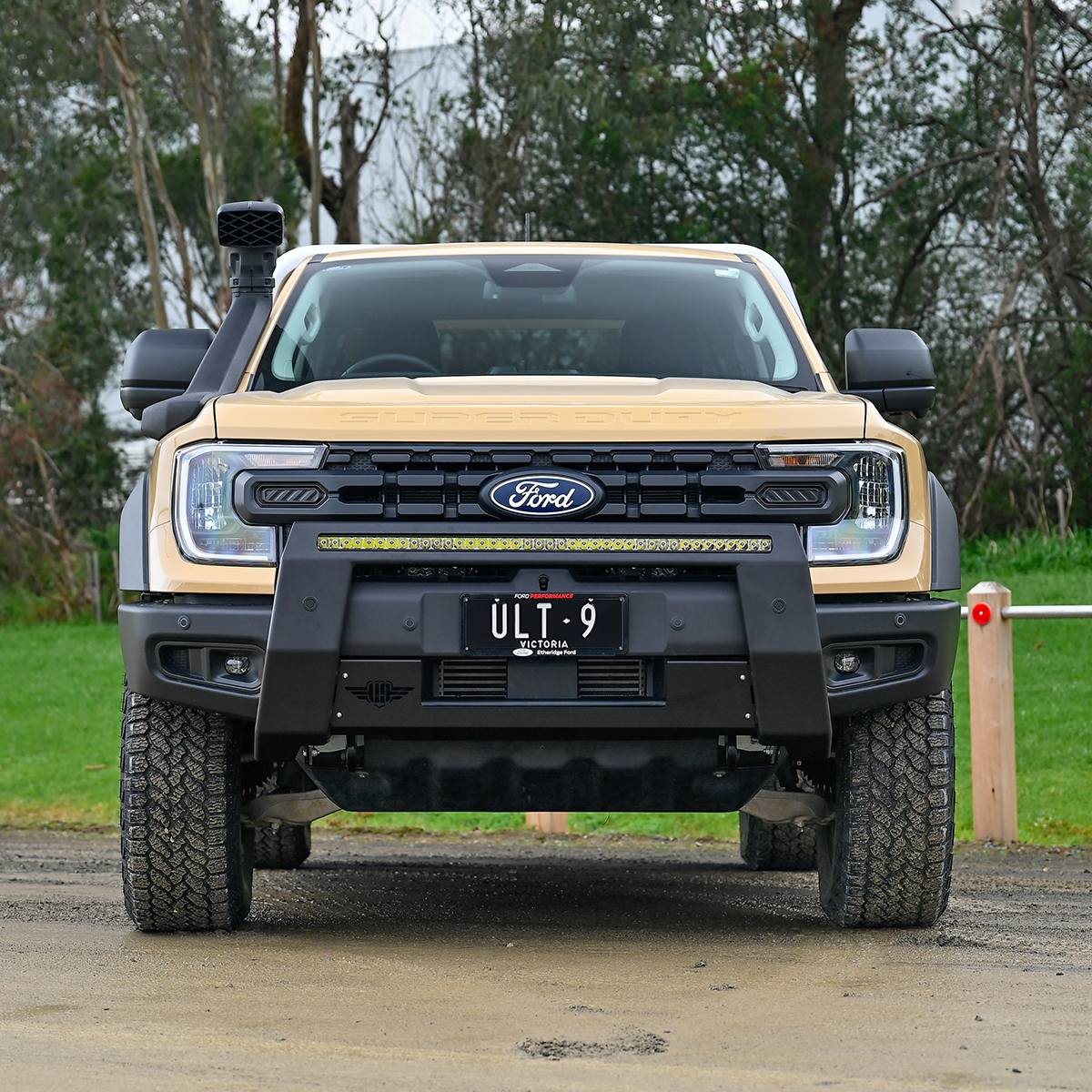

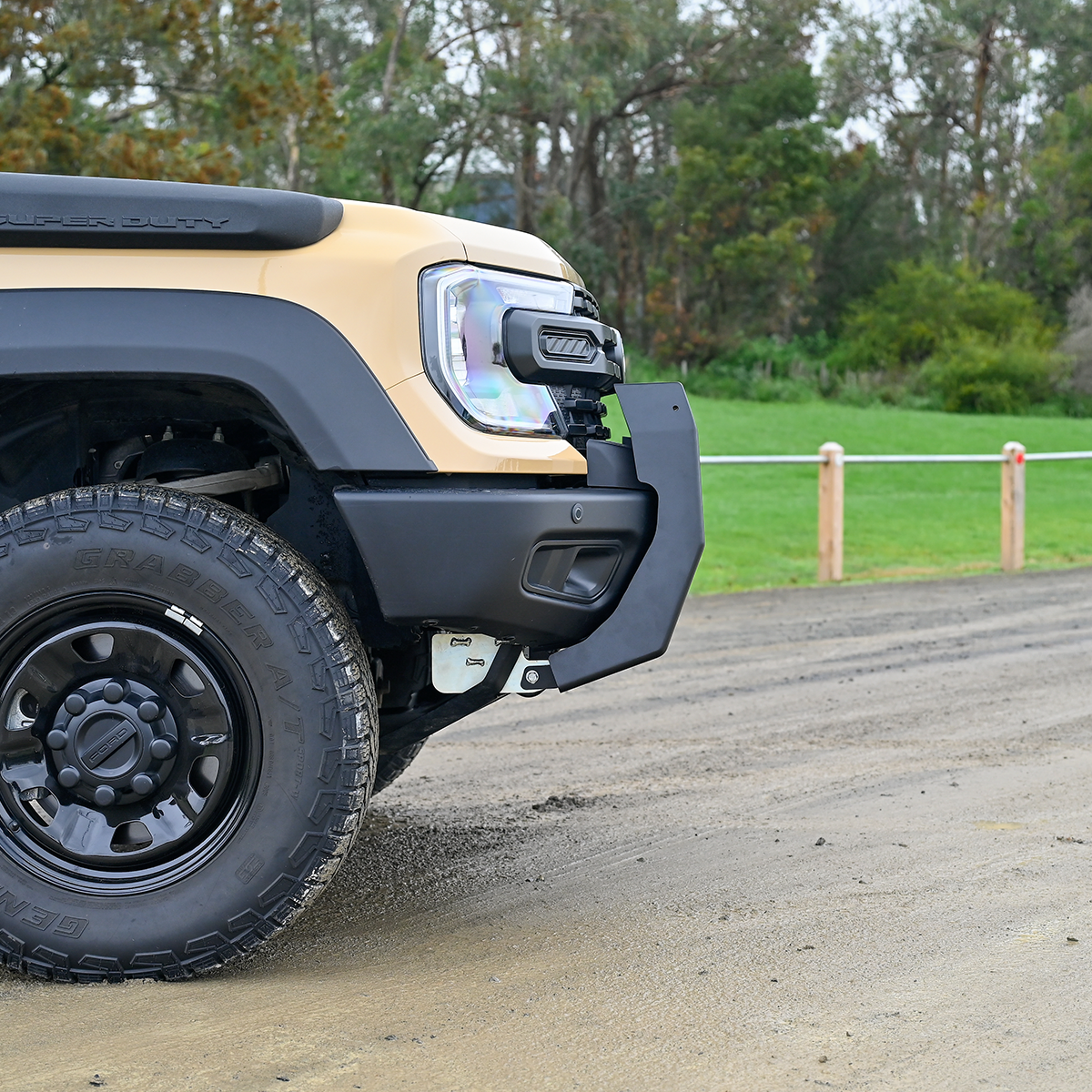

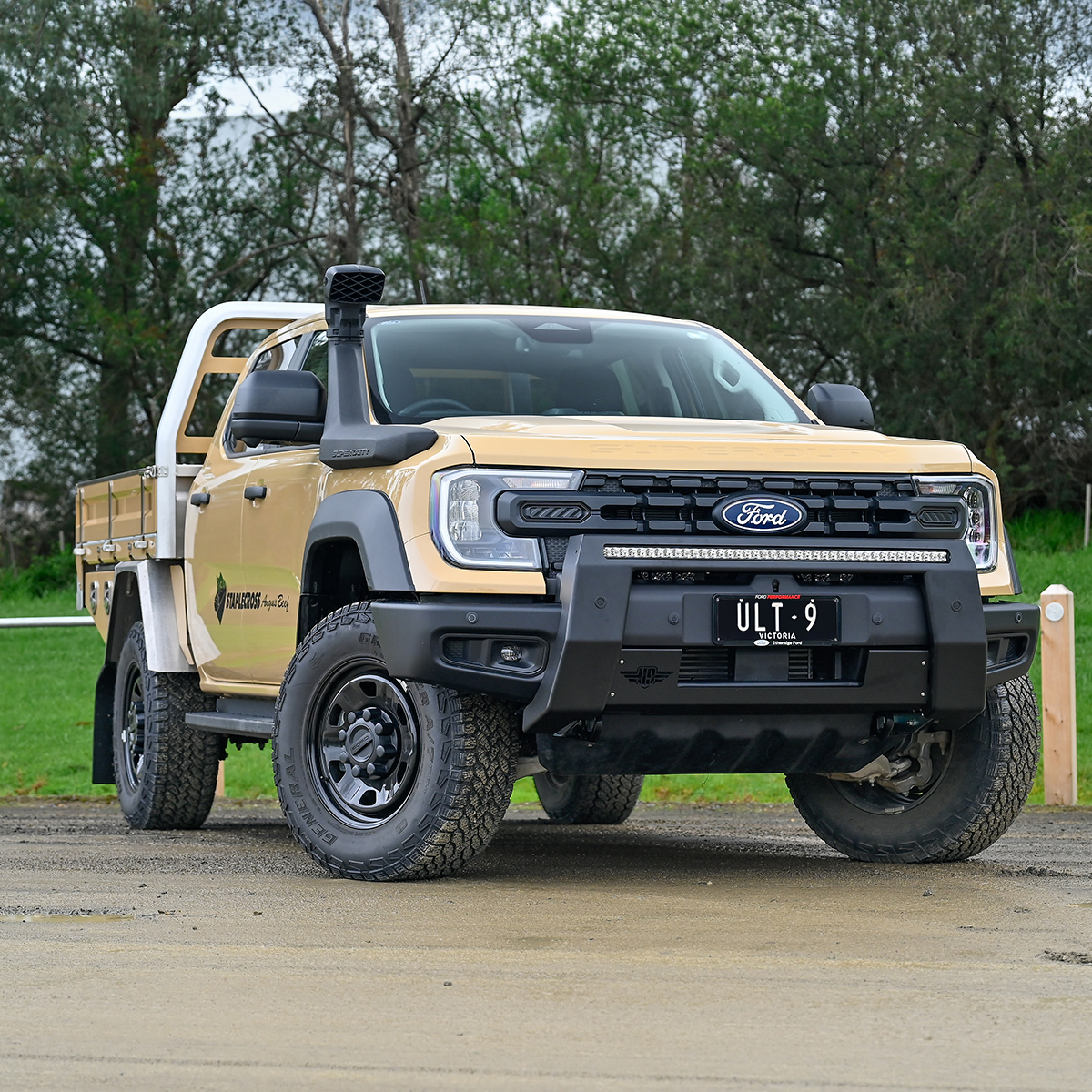

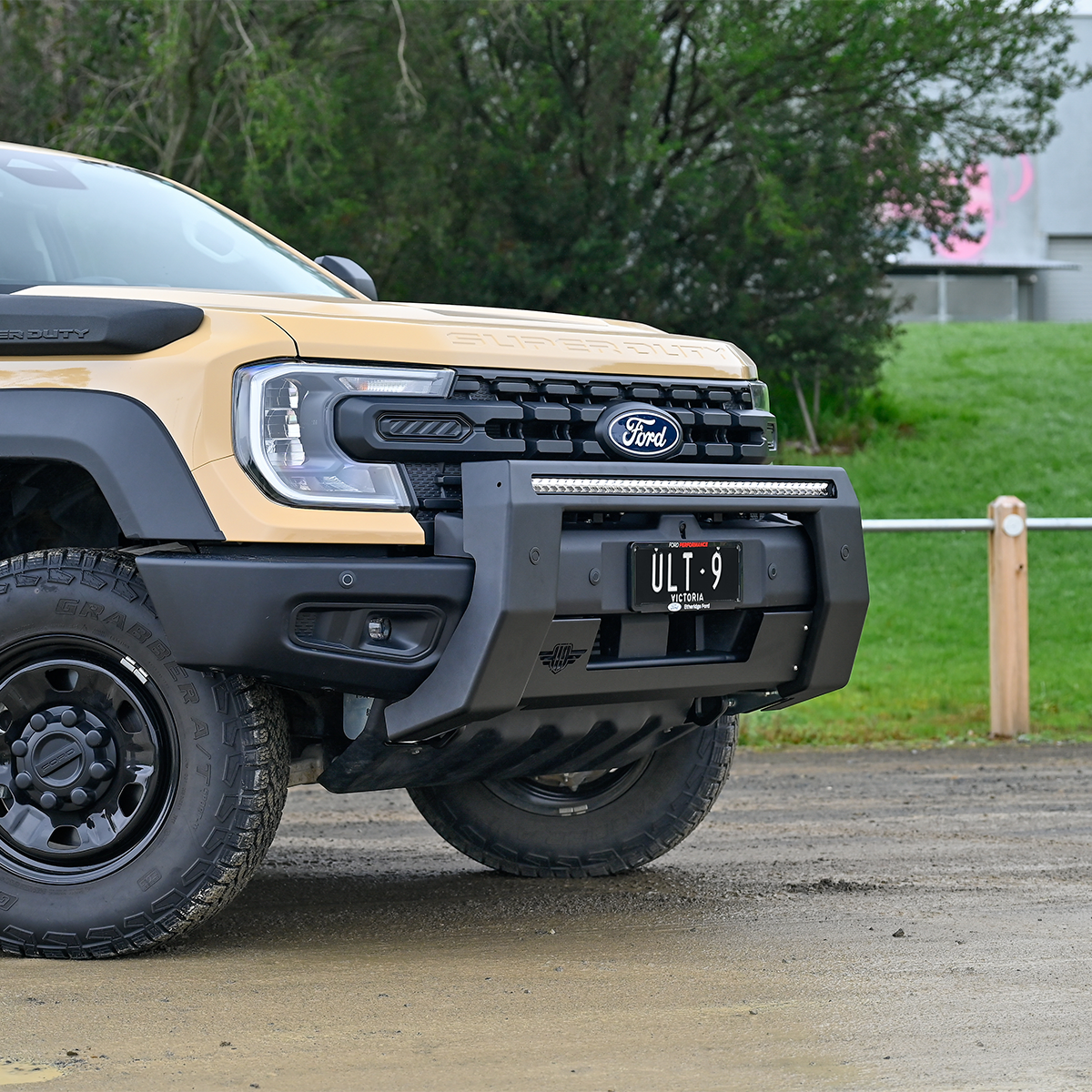

The Ultimate9 Nudge Bar is an Australian-designed, engineered and manufactured over-bumper protection accessory for Ford Ranger Super Duty 2026-on (T6.2 - RA). It combines a low-profile appearance with heavy-duty steel construction and an integrated 40" Ultimate9 LED light bar.
Features:
- Proudly Australian made and engineered.
- High-strength construction using 3mm steel for the nudge bar with 6mm steel mounts and a 1.6mm steel centre pan.
- Integrated Ultimate9 40" LED light bar mounted behind the front face with access holes for adjustment.
- Over-bumper, low-profile styling that follows vehicle lines and provides mounting provisions for UHF/mobile antennas and sand flags.
- Designed to allow integration of factory parking sensors, forward-facing radars and front cameras where applicable.
- Zinc-plated protective coating with a black textured powder coat finish on the nudge bar and a silver-coated centre pan for corrosion resistance.
- Fully ADR compliant and airbag compatible.
- Weighs under 30Kg including the included light bar.
- Includes a 12-month warranty against manufacturing faults for the original purchaser.
Kit Includes:
- 1 x ULTN05060 Ford Super-Duty Nudge Bar (Vehicle Specific)
- 1 x ULTLED40C Ultimate9 40" LED Combo Light Bar
Suits:
- Ford Ranger Super Duty 2026-on
(ULTN05060)
| Material (nudge bar) | 3mm steel |
|---|---|
| Material (centre pan) | 1.6mm steel |
| Material (mounts) | 6mm steel |
| Protective coat | Zinc plated |
| Finish coat (nudge bar) | Black textured powder coat |
| Finish coat (centre pan) | Silver powder coat |
| LED lighting | Includes an Ultimate9 40" LED light bar |
| Corrosion protection | Zinc-plated |
| ADR / airbag | ADR compliant; Airbag compatible |
| Weight | < 30Kg (including light bar) |
| Dimensions | (L) x (W) x (H) |
| SKU | ULTN05060 |
| Brand | Ultimate 9 |
| Shipping Weight | 30.0000kg |
