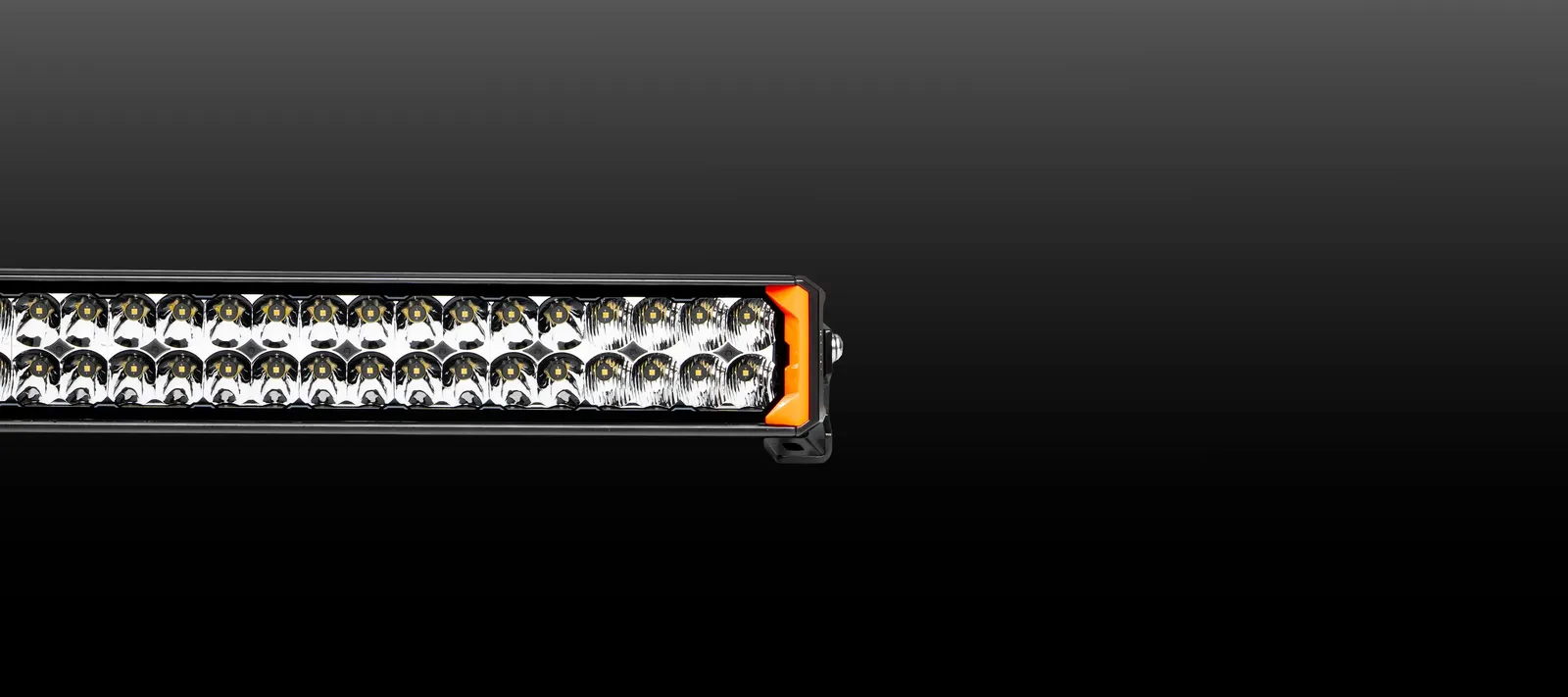

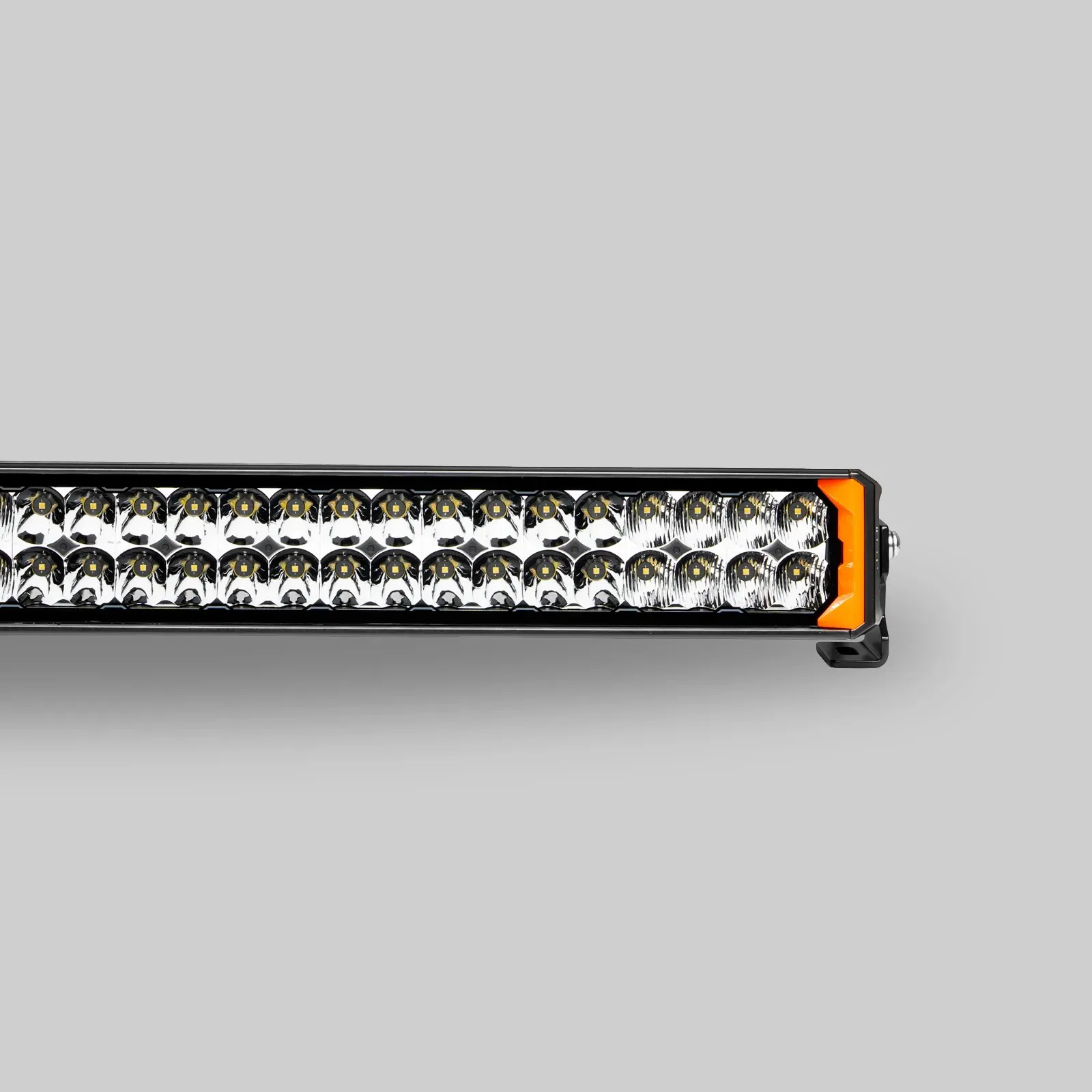

Stedi Sport Plus Double Row 22 Inch 40 LED Light Bar
$289.00
RRP $318.00
SAVE $29.00 (9%)
In Stock

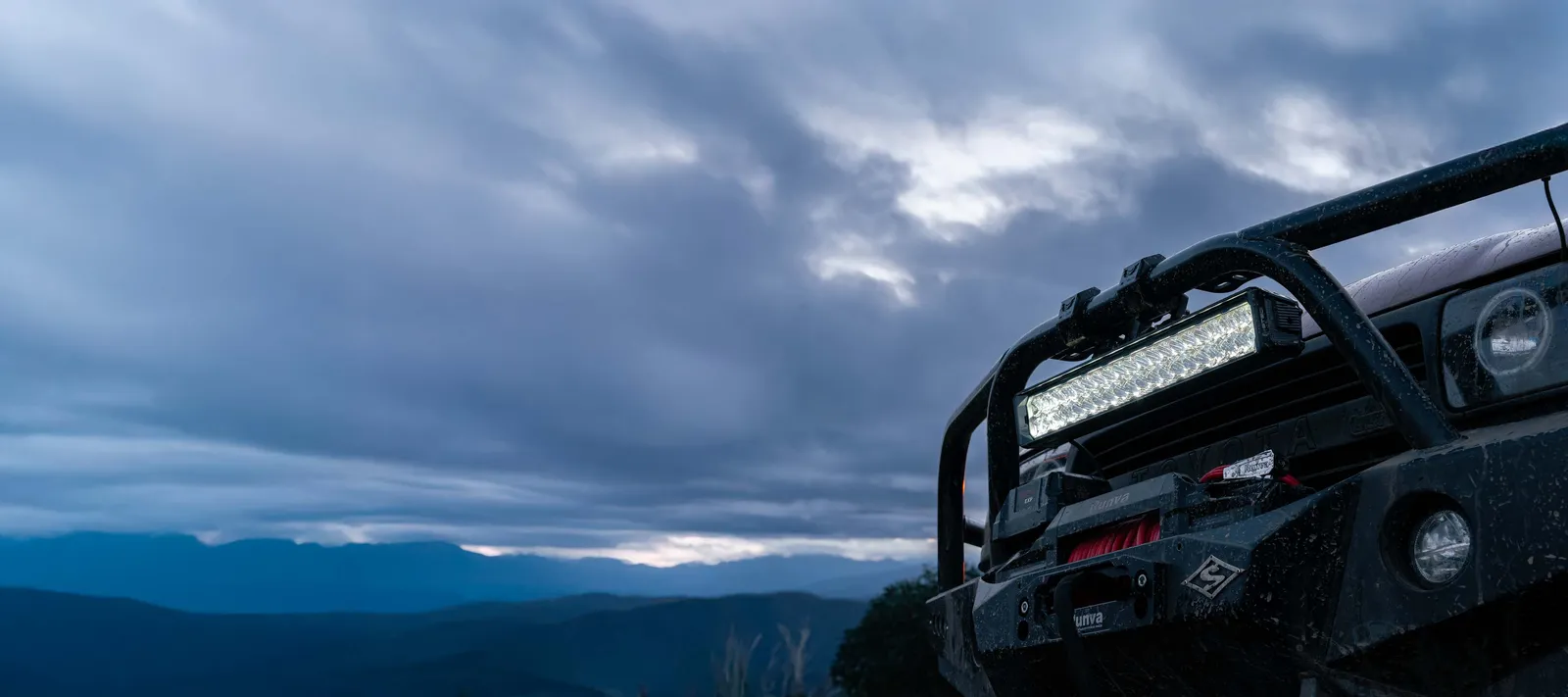

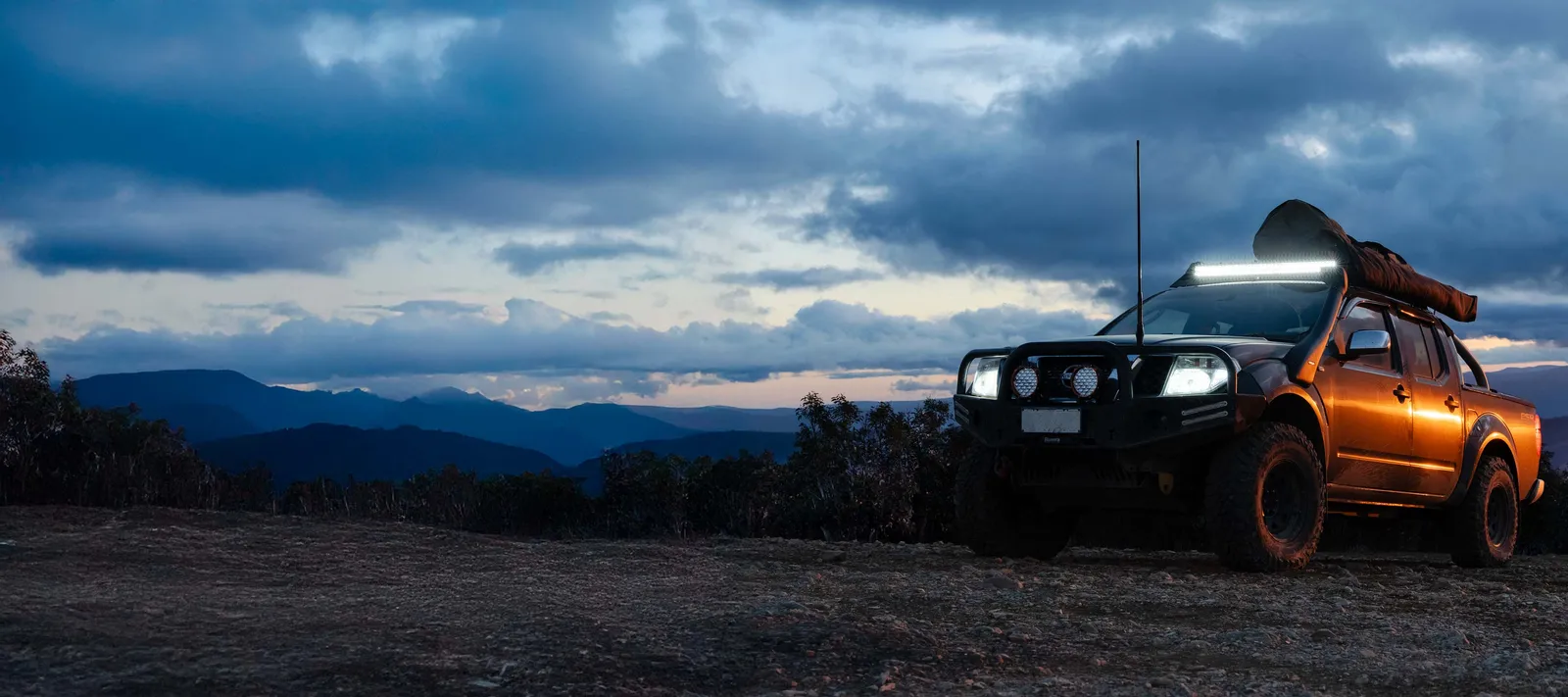

The Stedi Type-X Sport Plus Double Row 22 inch 40 LED Light Bar is a high-output auxiliary light designed for demanding off-road and touring use. It uses OSRAM LEDs and refined optics to deliver a wide, long-range combination beam while offering IP68 waterproof protection and a powdercoated exterior.
Features:
- Engineered with high-performance OSRAM LEDs
- Produces over 20% more lumen output than previous generations

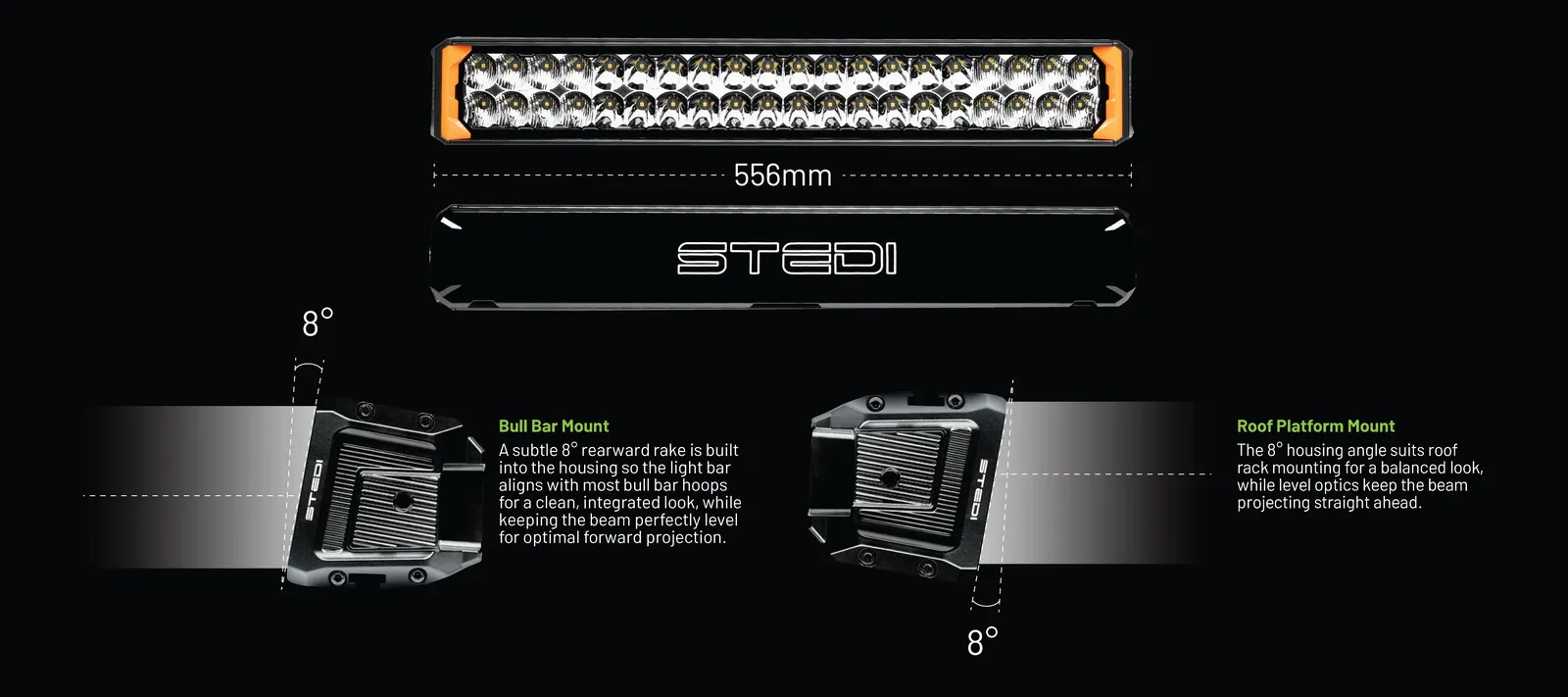

- 8° angled housing for alignment and reversible roof-platform mounting
- Larger reflectors and refined optics to maximise beam spread and distance
- Hardened polycarbonate lens for impact resistance and long-term durability
- IP68-rated waterproof construction

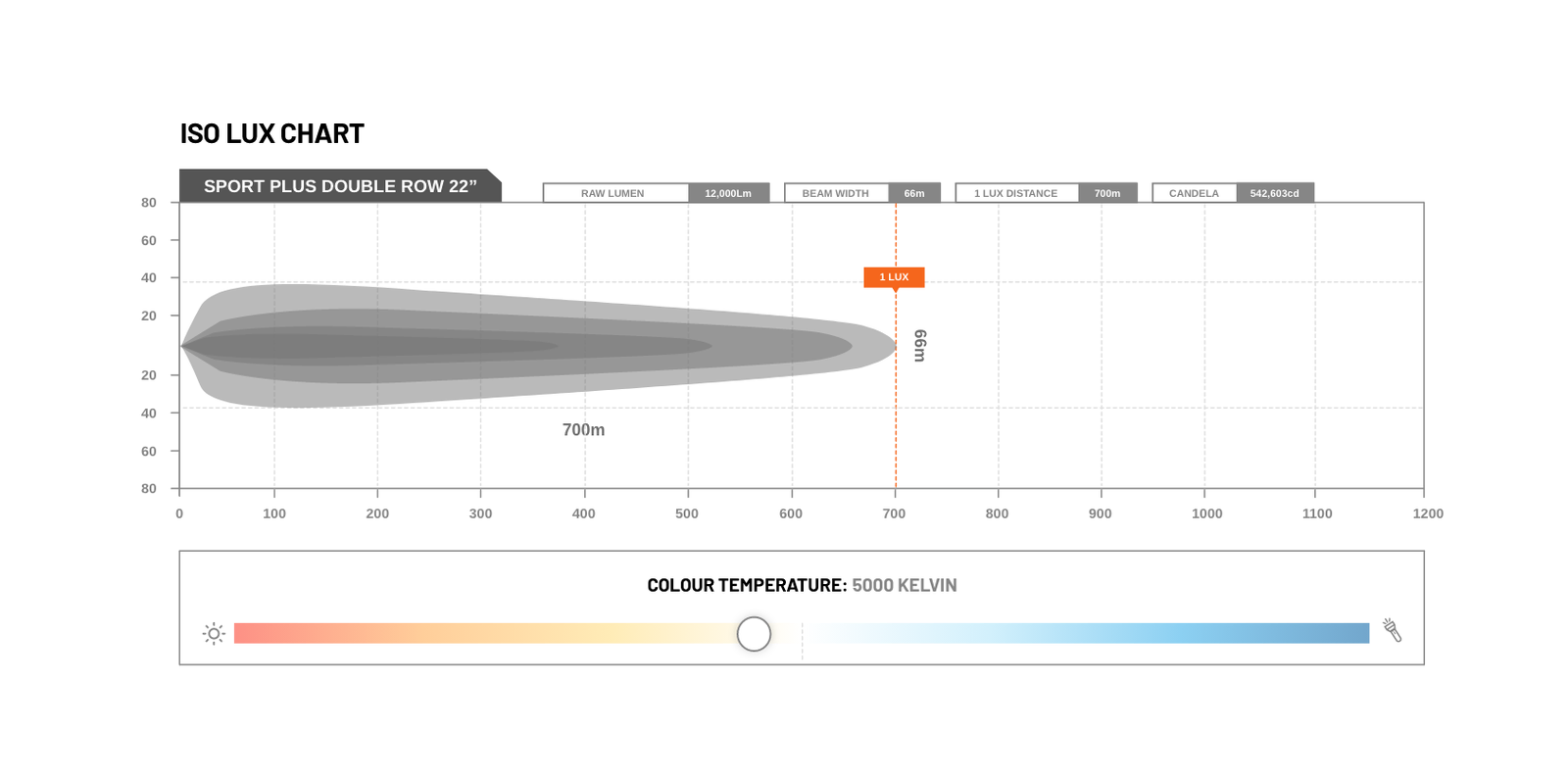

- Lights 700 metres at 1 Lux
- Includes a sliding mounting bracket for easy adjustment of the mounting position
- Registered designs: 202615237 / 202615238
Kit Includes:
- 304 stainless steel brackets
- Wiring harness
- Blackout cover
(ST-02-SRT-240)
| Material | Extruded Aluminium housing |
|---|---|
| Warranty | 5 Years |
| Life span | 50,000 Hours |
| Colour temperature (CCT) | 5000K |
| Amp draw | 10A@12V 5A@24V |
| Operating temperature | -40°C to 60C |
| Voltage compatability | 10-30V |
| Mounting brackets | Stainless Bracket |
| Power draw (each) | 120W |
| Finish | Powdercoat |
| IP rating | IP68 |
| Lens type | Clear |
| Bolts & fitting detail | Included |
| Lumens (raw) | 12000 |
| Lumens (tested) | 8255 |
| Beam pattern | Combination (8 Flood + 24 Spot + 8 Flood) |
| LED count | 40 |
| SKU | ST-02-SRT-240 |
| Brand | Stedi |
