Stedi Type X Pro 8.5" LED Driving Lights

Rated 5/5 based on 5 reviews.
$689.99
In Stock
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock. Please email support@autopartsco.com.au if you would like to confirm stock prior to ordering.

Add Stedi Accessories




Calculate Shipping

1.15KM BEAM DISTANCE

MARKET LEADING!

STEDI Type X LED Spot Lights Night Shot

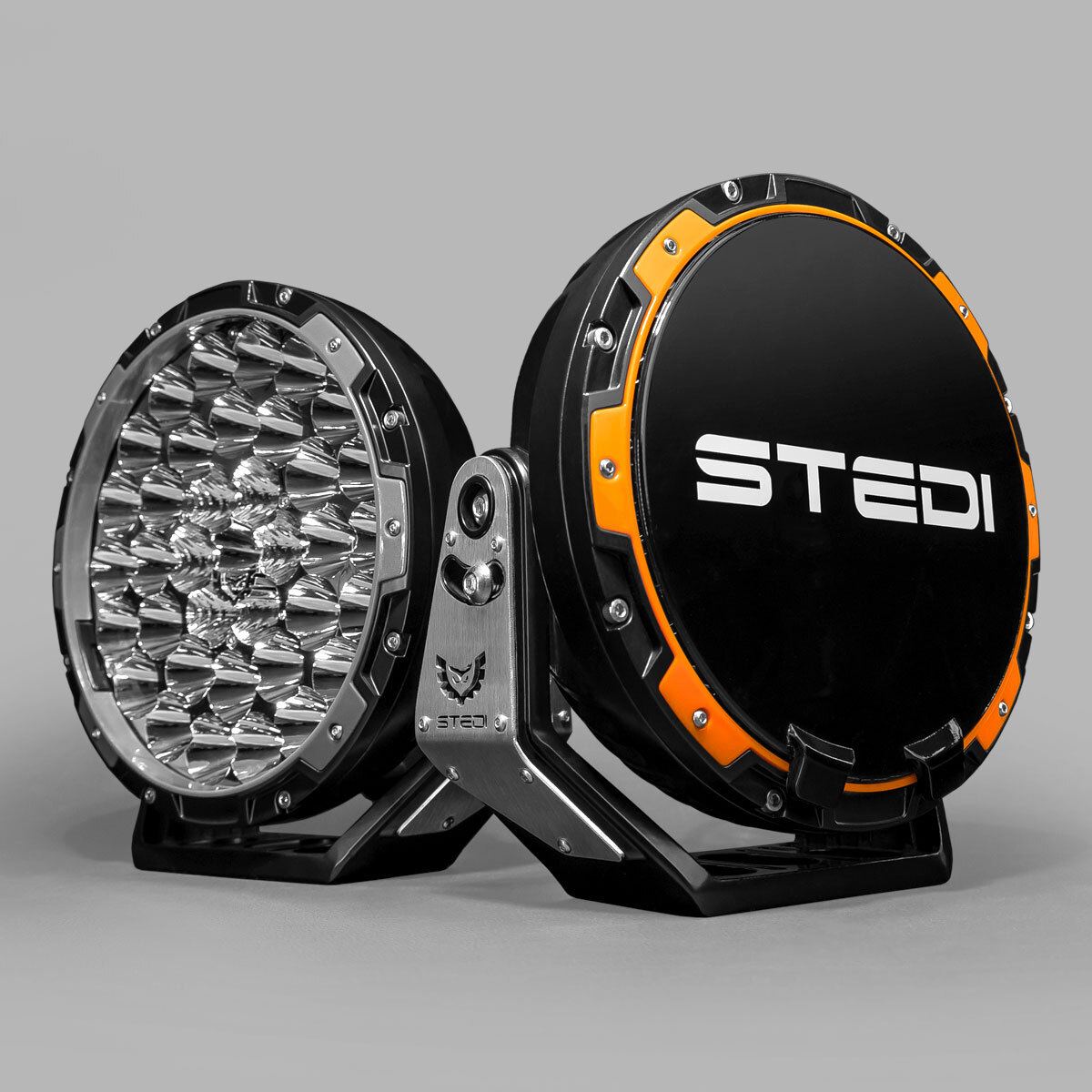

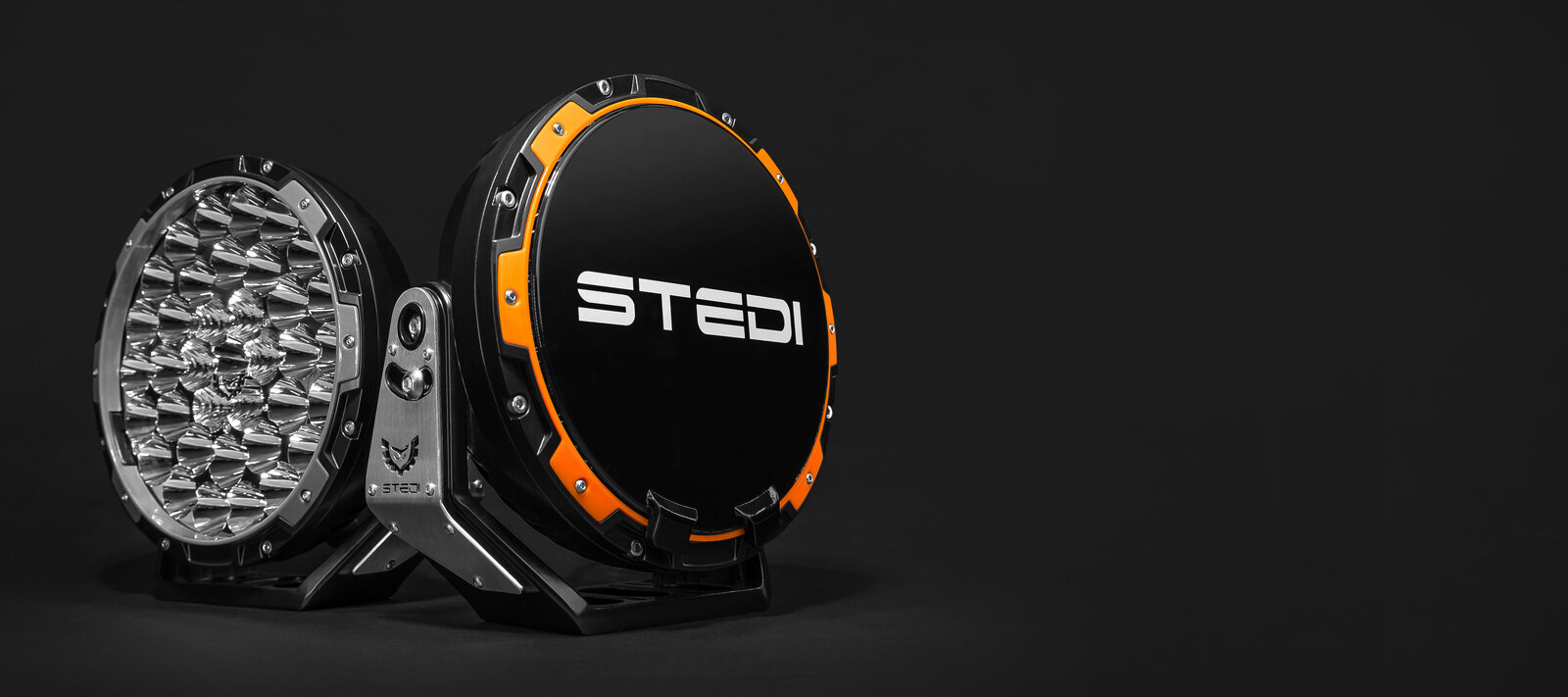

STEDI Type X Pro LED Driving Spot Lights 8.5 Inch





THE PRO STANDARD

You only need one glance to realize that the sky was the limit when designing the STEDI TYPE-X ™ PRO (Registered Design Number 201814836 & Registered Trademark)

Back in 2016, we released the original Type-X™ and completely disrupted the high performance driving light market. If you haven’t heard about the legendary reputation of V1.0 TYPE-X™, start by checking out the Youtube comparisons. With the introduction of our PRO Edition, we are yet again redefining the auxiliary driving light category. Our all-new Type-X™ PRO edition epitomizes our commitment to maximizing light output and reliability at levels that surpass the most respected players in the industry.









1.15KM BEAM THROW

Using the latest optic simulation modeling, the reflector geometry was tweaked over and over again to achieve a highly-functional beam pattern.  No doubt the attention grabber is the unrelenting beam distance of 1.155km, however, the real strength of our Type-X™ PRO is in mid to long-range light distribution that really sets it apart. Astonishing beam throw coupled with a homogeneous wide beam will have you insist on driving only when the sun's down.





YOUR LIGHTS YOUR WAY.

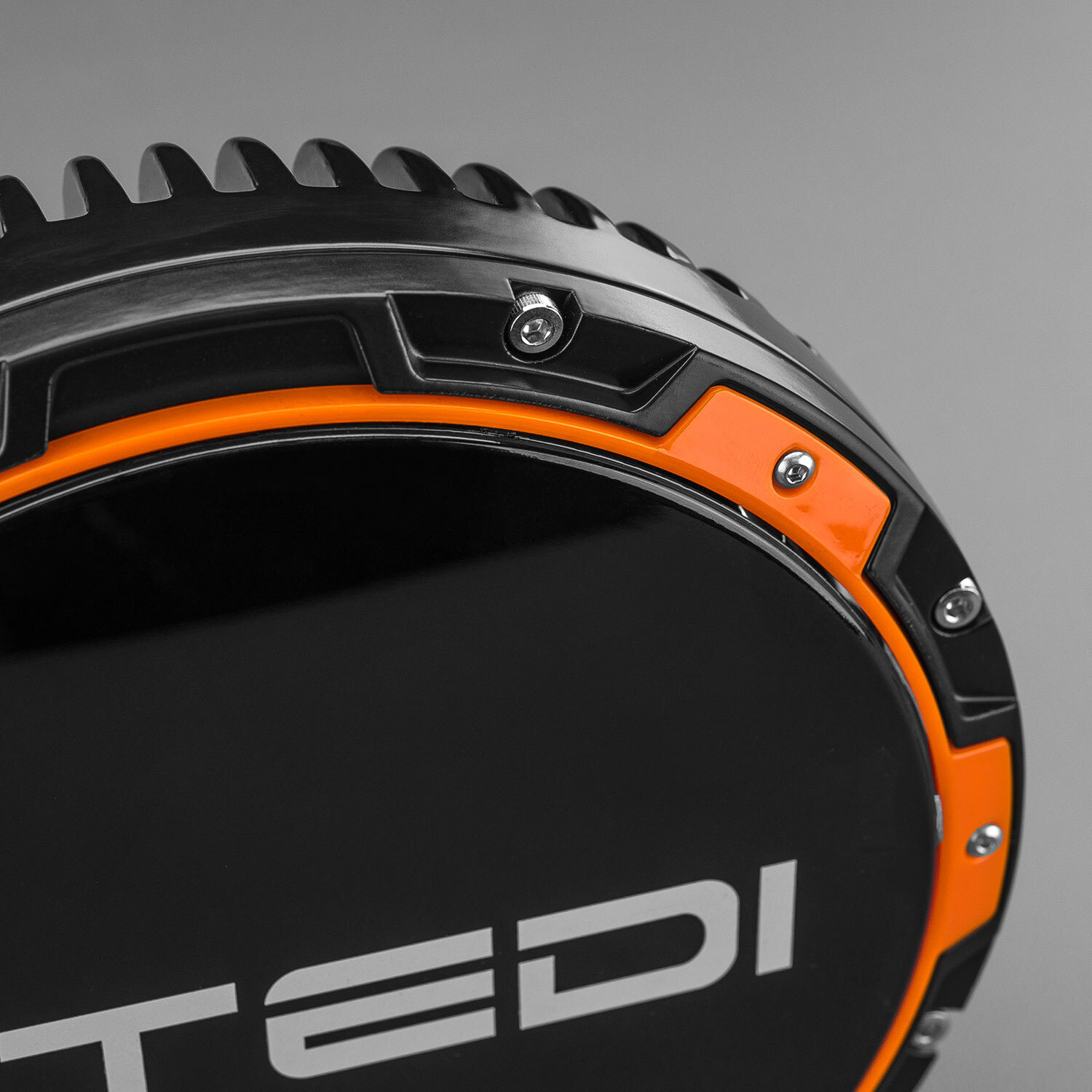

Pink? Green? Blue? Orange? Grey or all Black? The choice is yours. We've designed the inner ring fasteners to be independent of the main sealing structure, allowing you to change the colour that best suits. We've included grey and orange in the kit to get you started, or if you prefer all black, simply don't fit any ring at all.  Our coloured filters and iconic STEDI smile covers are backward compatible too.

Additional colours sold separately.









A WOLF IN WOLF'S CLOTHING

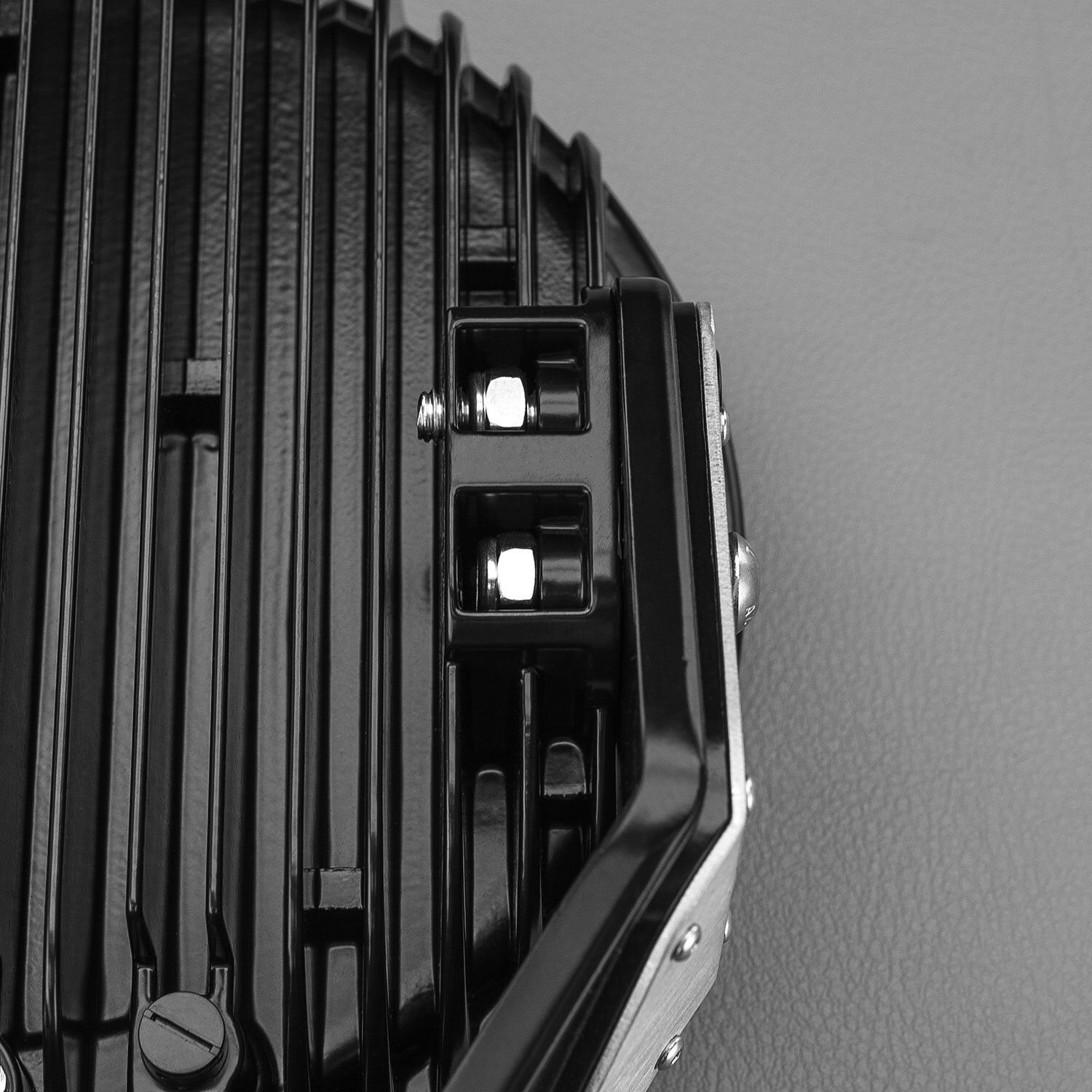

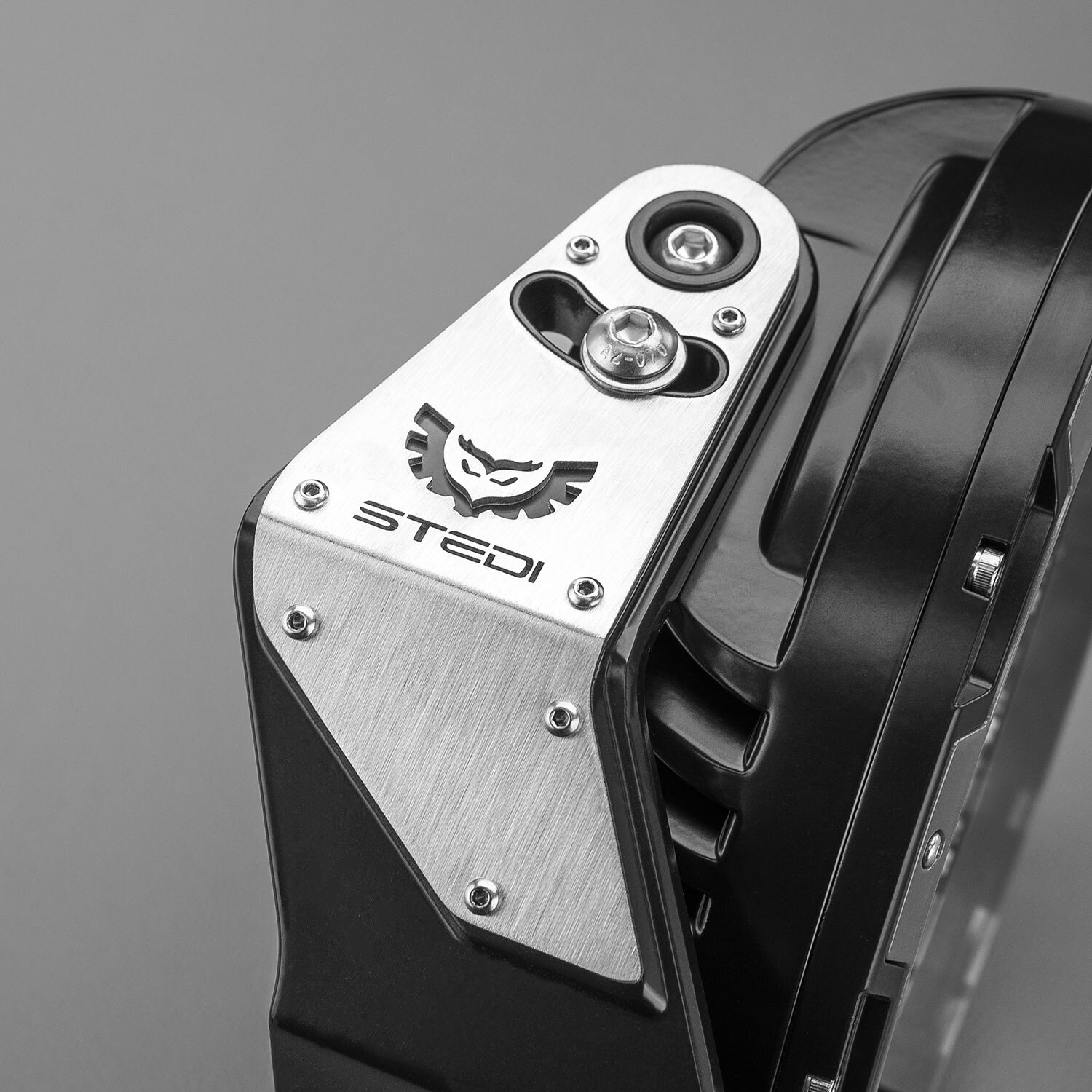

Forget folded steel brackets 3mm 4mm or 5mm it's all yesterday's news. Type-X™ PRO is all about pushing boundaries, the bracket system is a 10mm thick high-pressure die-cast aluminum marvel of engineering. Ribbed in all the right places to ensure no vibration and no prospect for fatigue. Our Type-X™ PRO bracket was designed to withstand extreme and prolonged corrugations time and time again. True to STEDI's signature design principles we’ve added brushed stainless steel shoulder plates, which will look just as comfortable on a tricked out 70 series as it will be mounted to a PRO race buggy.





PROPER TESTED PHOTOMETRIC DATA

Don’t confuse our Isolux and Lumens with the baseless numbers circulating around the internet. Our published specifications are comprehensively tested by a  photometric laboratory. We stand by our photometric data.

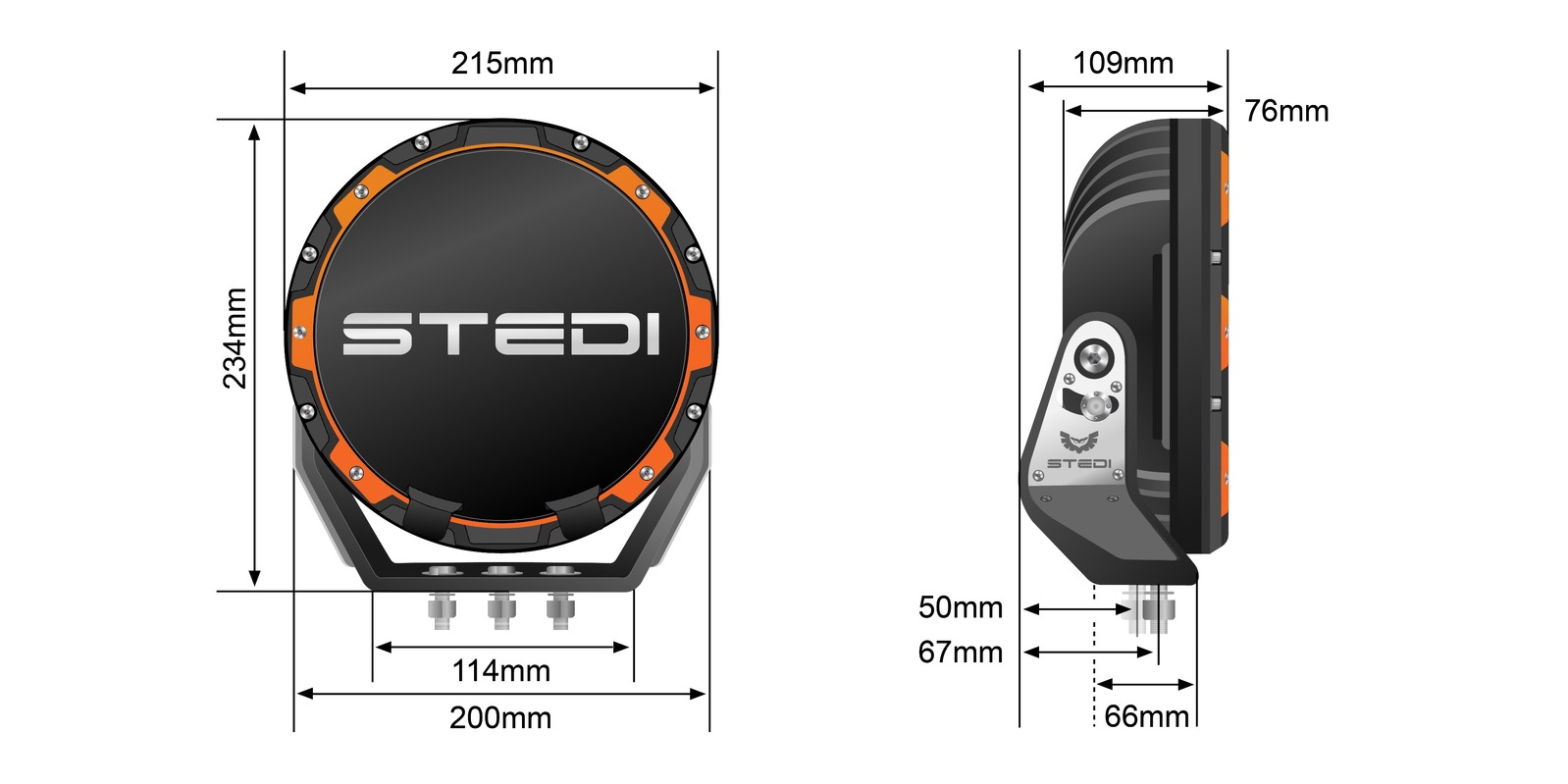

Type X Pro LED Spot Light Dimensions

STEDI Type X Pro Lux Graph

5700 Kelvin (Pure White)





DETAILS



ALWAYS ON THE CUTTING EDGE.



Cutting edge performance starts with cutting edge LED technology. To achieve genuine category-leading performance our Type-X™ Pro is equipped with 37 x Oslon High-Flux LEDs, selected for having the #1 highest lumen density per mm2 of any other comparable LED on the market. Compared to the two other leading spotlights brands similar offerings, the LEDs used in Type-X™ PRO have + 23% and +42% higher lumen density per mm2 in comparison. The net result is higher net light volume and unrivalled beam throw.

A WOLF IN WOLF’S CLOTHING

The hard-coated optical grade lens shares the same DNA as ballistic glass making it virtually indestructible. A UV stabiliser has also been added to ensure our lenses truly withstand the test of time with no discolouring or UV degradation. This has allowed us to do away with any secondary lens covers or filters which are known to significantly reduce light transmission.

ICONIC PERFORMANCE

Using the latest optic simulation modelling, the reflector geometry was tweaked over and over again to achieve a highly usable beam pattern.  No doubt the attention grabber is the unrelenting beam distance of 1,155m (tested in pairs, combo beam), however, the real strength of our Type-X™ PRO is in mid to long light distribution that really sets it apart.

Our key focus was on driver confidence, by increasing the beam throw the driver has longer analysis time. We maximised driver comfort by smoothing out the beam eliminating shadows. We reduced the light wasted in unimportant zones like treetops and immediately in front of the vehicle. The result is a homogeneous, unrelenting beam that will support you well in any adventure. .

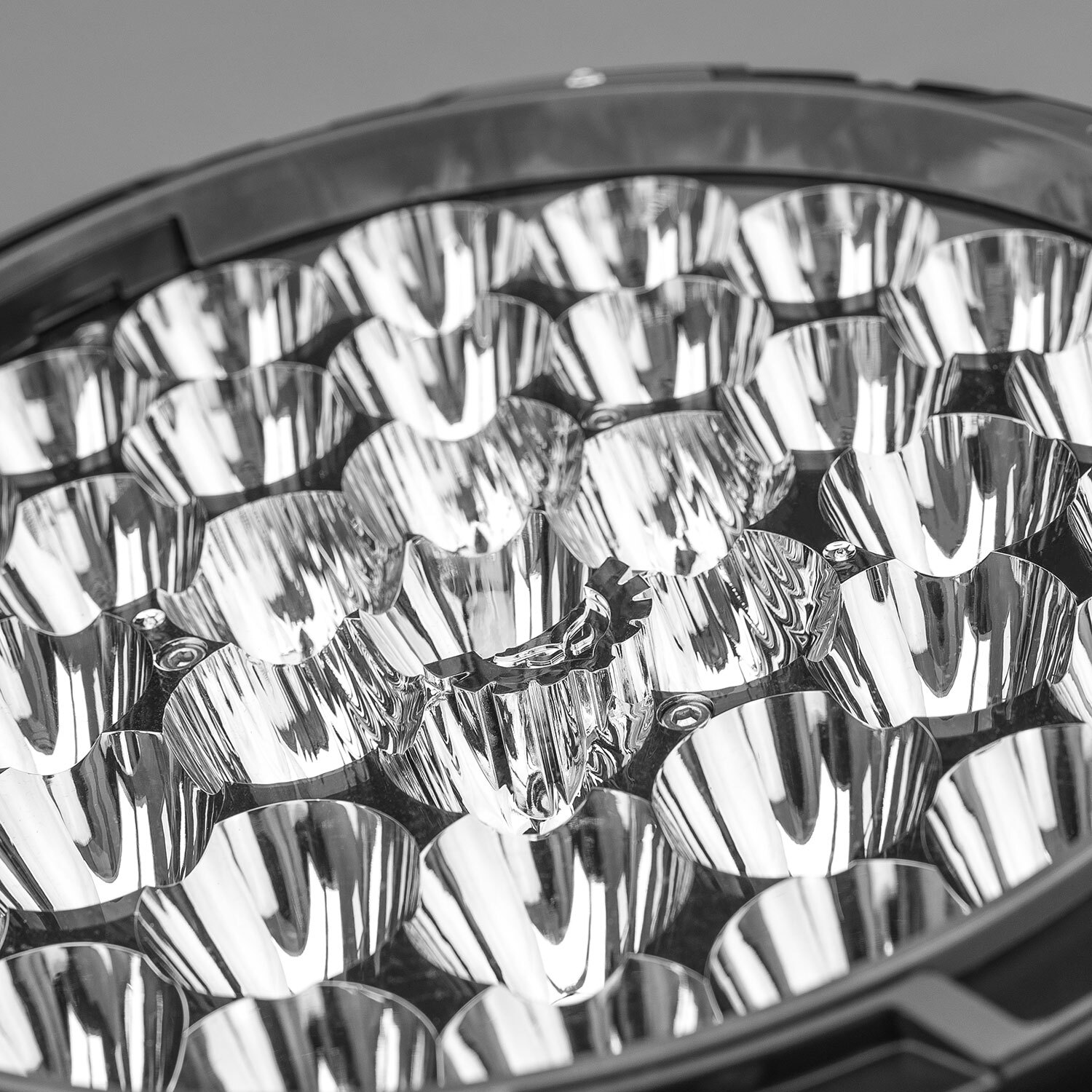

Unlike our competitors, each Type-X™ PRO lamp has 6 built-in flood reflectors for improved light distribution out into the road shoulders. The built-in wide-beam reflector eliminates the need to add any wide beam covers, which are not only less efficient at distributing light, covers also withhold valuable light transmission.

 Type X Pro Exploded Diagram





SPECIFICATIONS



LED 37 x Oslon High-Flux LED
RAW LUMENS 26,270 (Pair)
TESTED LUMENS 15,870 (Pair)
AMP DRAW  10.4A @ 13.2v (each)
POWER DRAW 137W
CANDELA 1,334,025cd
BEAM PATTERN 6 x Spread 31 x Pencil Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT)  5700K
VOLTAGE COMPATIBILITY  12v & 24v
LUMEN MAINTENANCE  50,000 LM-80
WEIGHT 2.860kg (each)
PHOTOMETRIC DATA
10 M 13,340 Lx
50 M  533 Lx
200 M 33 Lx
300 M 14 Lx
400 M 8 Lx
1,000 M 1.3 Lx
1,155 M 1 Lx





WHAT’S IN THE BOX

  • 2 x STEDI Type-X PRO LED Driving Lights
  • 2 x Protective STEDI Black Out Covers
  • 2 x Grey Colour Rings
  • 2 x Orange Coloured Rings

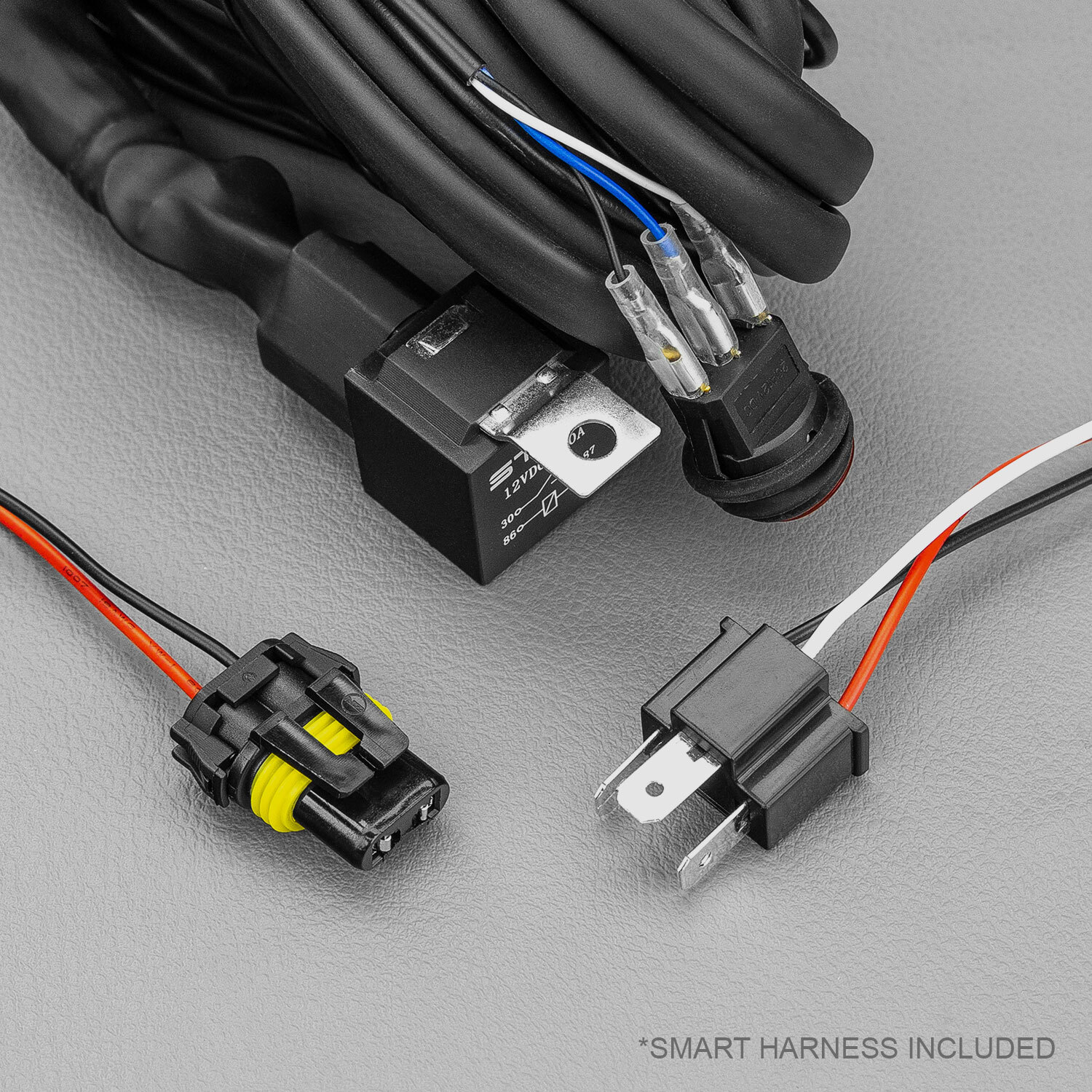

  • 1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
  • Complete Stainless Steel fastener kit.
  • Wiring & Fitting Instructions



(LEDTYPE-X-PRO)

SKU LEDTYPE-X-PRO
Brand Stedi
Shipping Weight 10.0000kg
Shipping Width 0.560m
Shipping Height 0.150m
Shipping Length 0.400m
Shipping Cubic 0.033600000m3

Check our Warranty Page

Type x driving lights

By: Craig on 21 April 2017
If you've ever wondered when it will be possible to combine the throw of hid with the instant light and spread of led then look no further than these beasties. These lights significantly outperform my previous combination of 2x 55w genuine 9" hid and genuine 22" cree lightbar in every area. Finally I don't have to wait for the hid warmup and peer over my lightbar for obstacles when offroad. The natural colour rendering of the osrams is superb, and the throw has to be seen to be believed - the photo simply does not do justice to the incredible penetration and near perfect pattern of these lights. Add to that the impeccable build quality, solid stainless brackets and capable wiring loom with low voltage drop, and they really are a standalone lighting solution for every situation. I had previously tried another cheaper, similar looking product from a well known 4wd warehouse, yes they were 'bright' but not anywhere in the same league for colour and penetration, and the road dazzle made them fatiguing on my eyes. For the additional money these are a huge step up in quality, performance and efficiency, you won't be disappointed! My only gripe is that the supplied 6x stainless mounting bolts are too long and need to be cut to fit an ARB bar - how about some 25-30mm ones? Top product, top service. Get some.
(5)

In awe

By: Pauly on 21 April 2017
My goodness these are magnificent. The only way to really appreciate just how good these are is to drive with them. From the moment I opened the packaging, to the minute I held the lights in my hands it was clear that these lights were designed with no detail left to chance. I thought they looks amazing in the photos, but even better when your holding them. I've read all the reviews about Stedi and knew you guys are the ducks nuts, and now i see exactly why. Other sellers should take a leaf out of Stedi's book, quality product, outstanding performance, great customer service, and fair prices. thanks lads you guys have a customer for life.
(5)

Type x driving lights

By: Matt on 21 April 2017
Easy to install well worth the money bloody awesome light output. Fast postage and a pleasure to deal with
(5)

Turns night into day!!

By: Pattsy on 21 April 2017
I have had many sets of spot lights on various cars through the years and never before have I seen lights so bright and whiter than these STEDI lights. Pure white light and a beam that seems to go forever. Easy to install and well worth the price. Awsome lights!!!! Also fast delivery. 1 week from eastern states to WA
(5)

Brilliant

By: Simon on 21 April 2017
Fitted to a new SR Hilux. improved night time visibility by about 300%. Customer service - outstanding. Item and supply quality - outstanding. Visibility improvement- outstanding. Cannot recommend highly enough.
(5)
