Stedi Type-X Pro Plus 8.5" DRL Rugged Pair
$839.00
RRP $923.00
SAVE $84.00 (9%)
In Stock
The Type-X Pro Plus 8.5" DRL Rugged Pair is a fixed kit that builds two rugged-style Type-X Pro Plus driving lights. Each unit includes an integrated daytime running light and rugged bezel and trim components in orange. The kit requires assembly of the final product.
Features:
- Integrated DRL with a combo optical beam: 36 spot, 9 flood and 4 DRL elements.

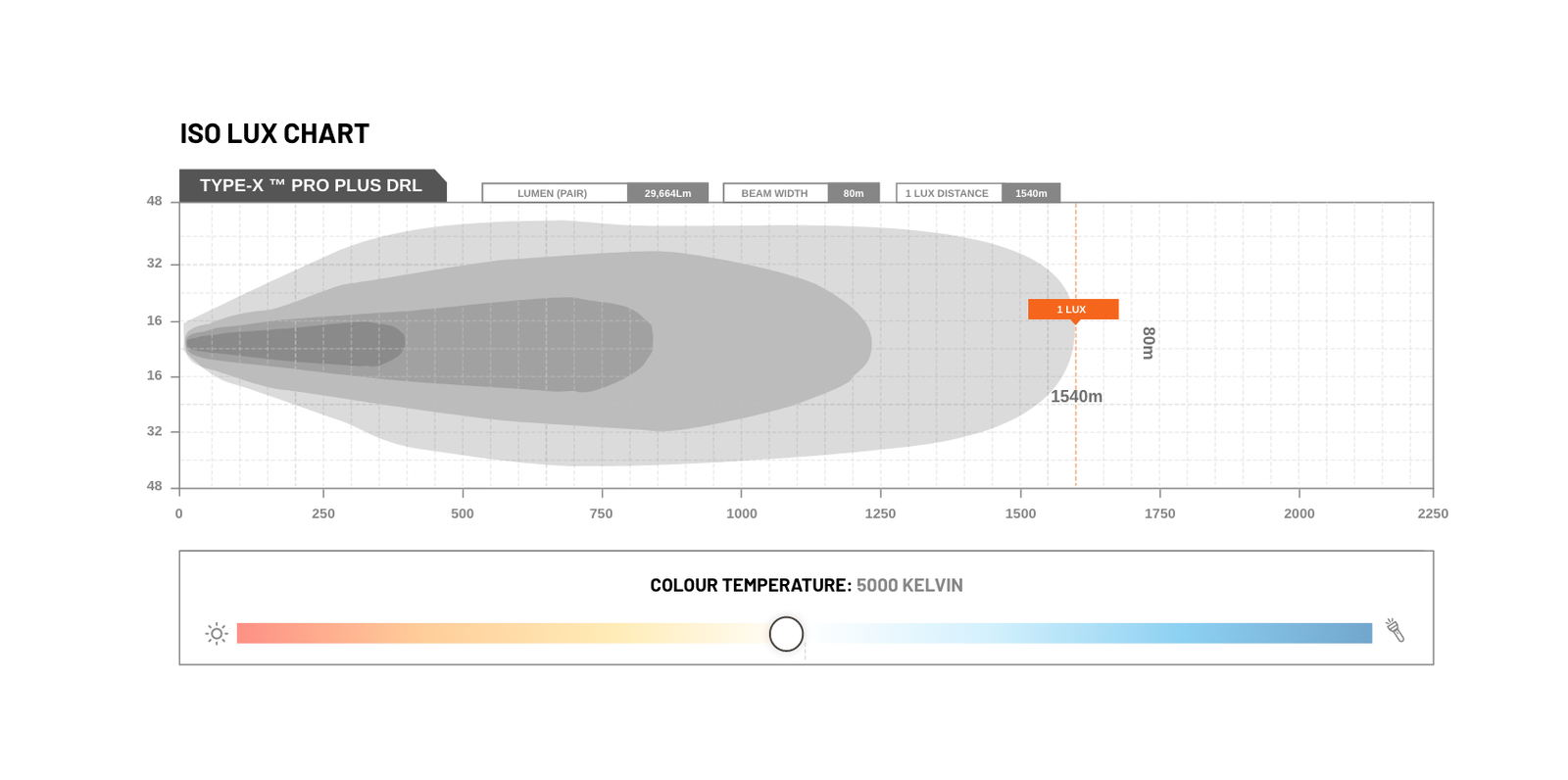

- Long-range performance: 1 lux at 1540 metres (pair).
- High tested lumen output: 29,664 lm (pair).
- Colour temperature 5000K for clear on-road definition.
- Wide voltage compatibility: 10 - 30V DC.
- Ingress protection IP68; submersible up to 3 m.
Kit Includes:
- 2 x Type-X Pro Plus DRL Base Module (ST-01-PRP-801)
- 2 x Type-X Pro Plus Bezel Rugged (ST-14-PRP-001)
- 2 x Type-X Pro Plus Rugged Ring Orange (ST-12-PRP-101)
- 2 x Type-X Pro Plus Rugged DRL Cover Stedi (ST-12-PRP-201)
- 2 x Type-X Pro Plus Shoulder Trim Rugged Orange (ST-14-PRP-101)
- 1 x Dual Connector DT-4 Plug & Play SMART Harness High Beam Driving Light Wiring (ST-31-DT4-002)

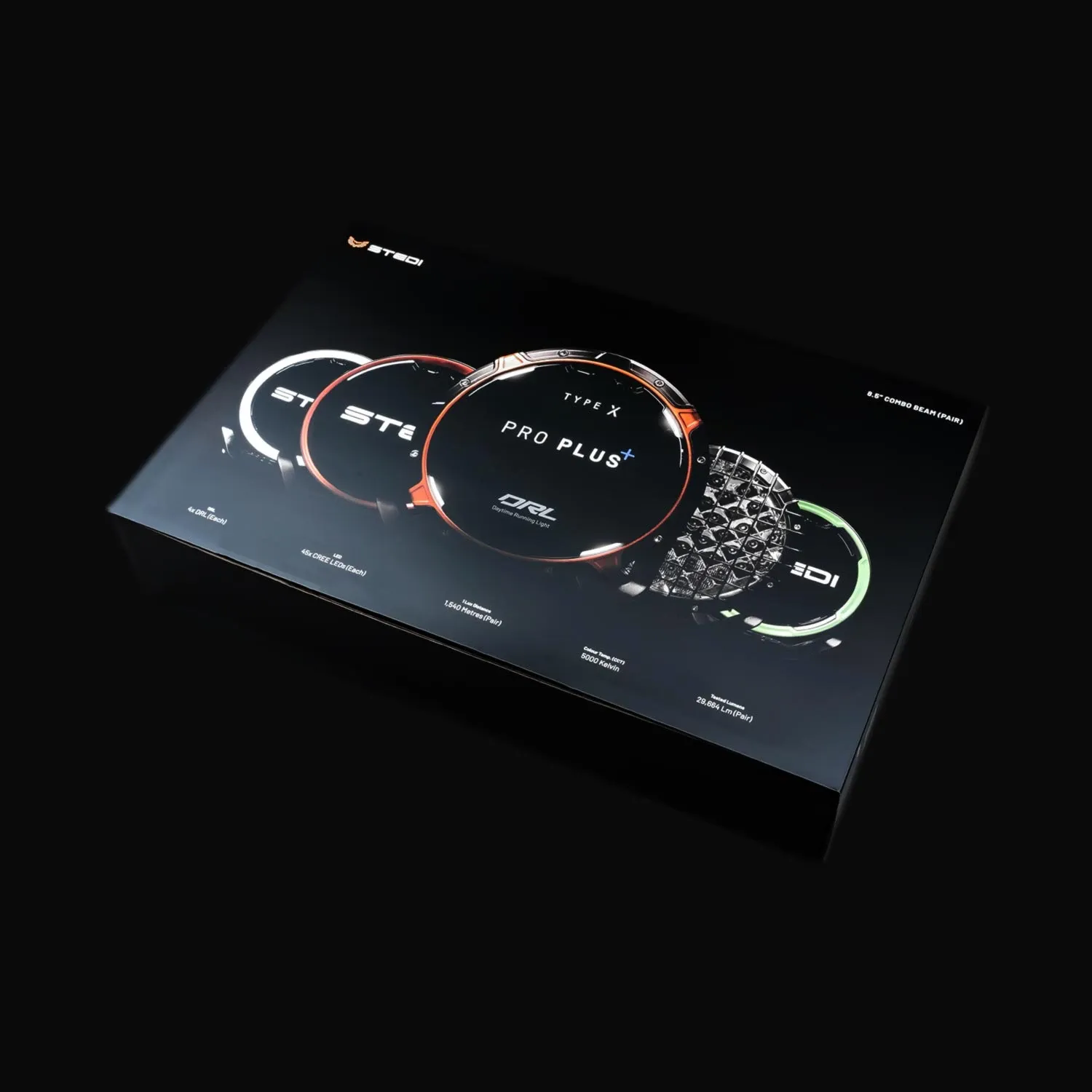

- 1 x Pro Plus Custom Spec Box (ST-14-PRP-008)
- 1 x Pro Plus Custom Spec Shipping Carton (ST-14-PRP-009)
(PRP-RUGGED-DRL-BND)
| Optical beam (DRL) | Combo Beam (36x Spot | 9x Flood | 4x DRL) |
|---|---|
| Tested lumens (DRL) | 29,664lm (Pair) |
| 1 lux @ (DRL) | 1540 Metres (Pair) |
| Candela (DRL) | 1,846,240cd (Pair) |
| Amp draw (DRL) | 15.9 @ 12V |
| Ingress protection | IP68 | Submersible up to 3m |
| Colour temp (CCT) | 5000 Kelvin |
| Voltage compatibility | 10 - 30V DC |
| Weight (each - DRL) | 3.65kg (Each) |
| Operating voltage | -40°C to 60°C |
| SKU | PRP-RUGGED-DRL-BND |
| Brand | Stedi |
