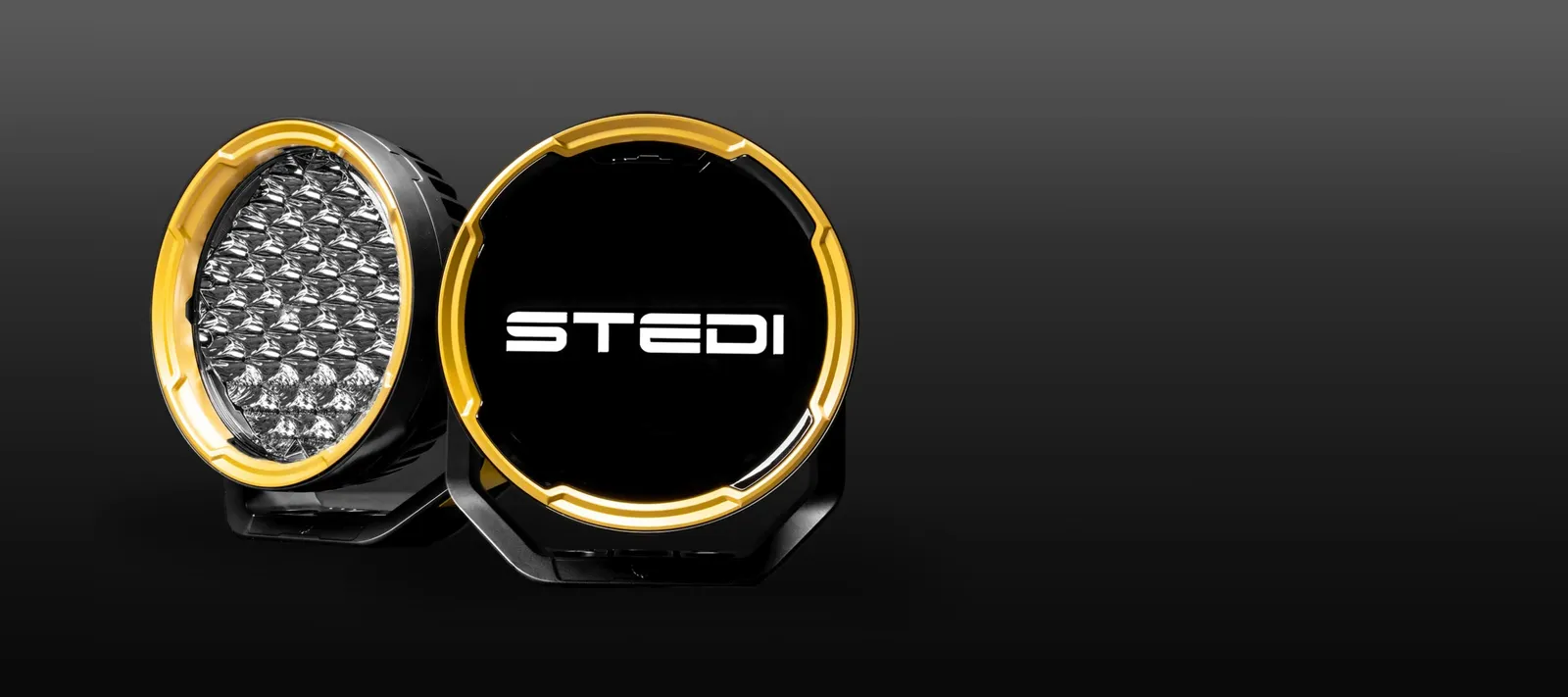

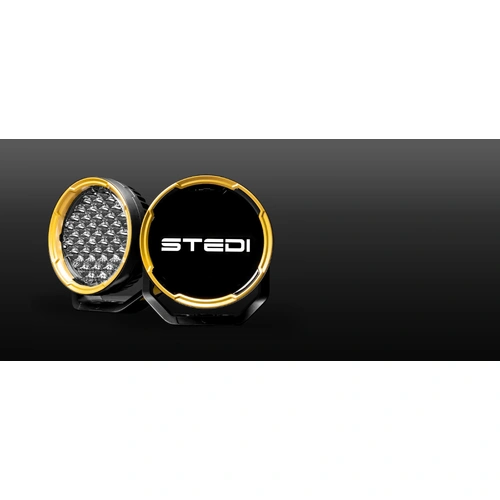

Stedi Type-X Pro Plus 8.5" Non-DRL Modern Rugged Pair
$839.00
RRP $901.00
SAVE $62.00 (7%)
In Stock
The Type-X Pro Plus 8.5" Non‑DRL Modern Rugged Pair combines a slim, contemporary bezel and refined cover with rugged yellow trim pieces for a clean, personalised look. This kit is supplied as components that require final assembly.
These non‑DRL driving lights produce a long‑range combo beam and are rated for harsh conditions with IP68 ingress protection.
Features:
- Combo optical beam: 36 spot LEDs plus 9 flood LEDs per light
- Tested lumen output for the pair: 30,9222 lm

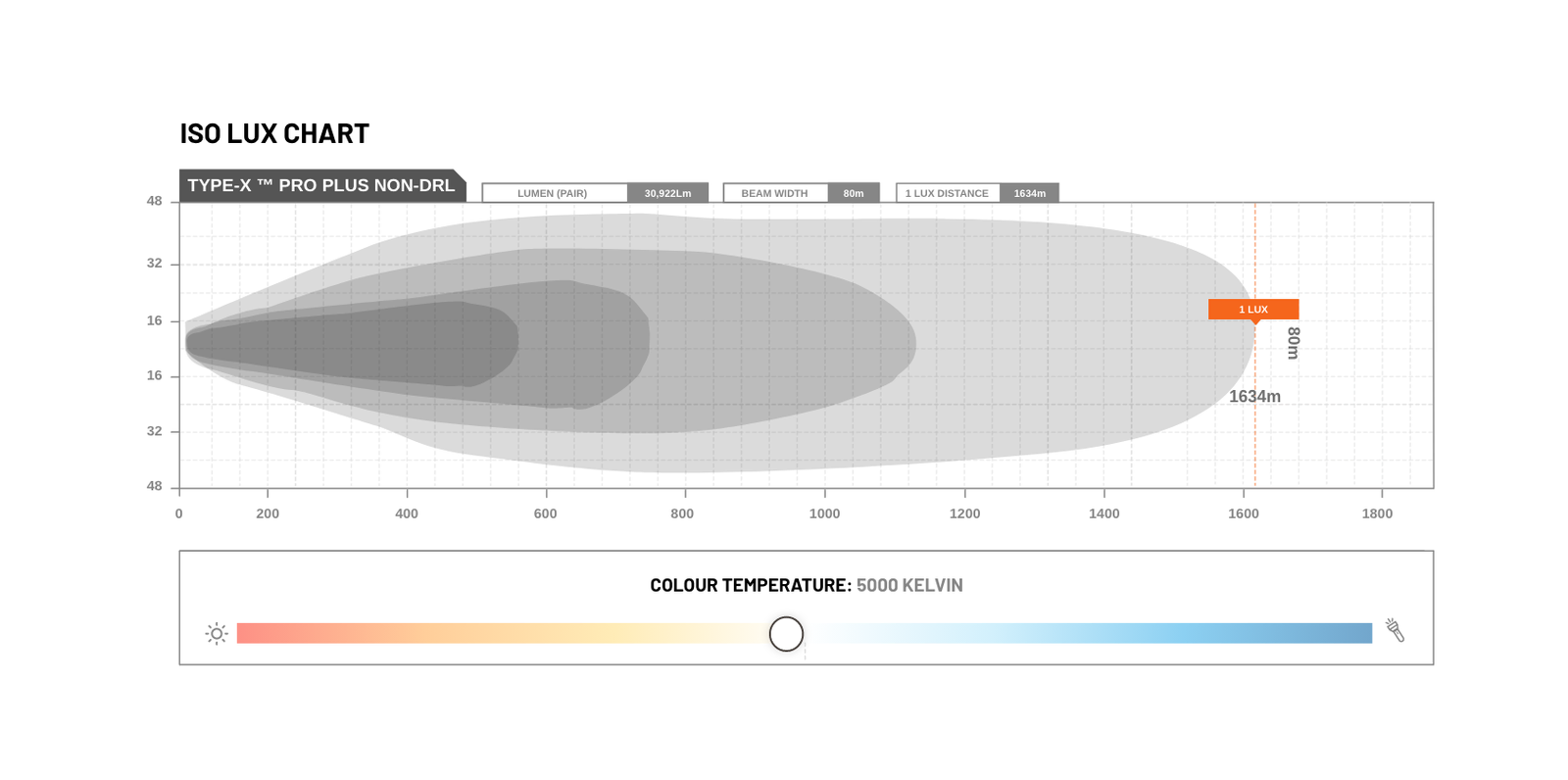

- 1 lux at 1634 metres for the pair
- Candela for the pair: 1,952,000 cd
- Colour temperature: 5000K
- Amp draw (non‑DRL): 15.9A @ 12V
- Voltage compatibility: 10 - 30V DC
- Ingress protection: IP68; submersible up to 3m
- Operating temperature range: -40°C to 60°C
Kit Includes:
- 2 x Type‑X Pro Plus Non‑DRL Base Module (ST-01-PRP-802)
- 2 x Type‑X Pro Plus Bezel Modern (ST-14-PRP-002)
- 2 x Type‑X Pro Plus Modern Rugged Ring Yellow (ST-12-PRP-123)
- 2 x Type‑X Pro Plus Modern Rugged Non‑DRL Cover Stedi (ST-12-PRP-225)
- 2 x Type‑X Pro Plus Shoulder Trim Rugged Yellow (ST-14-PRP-105)
- 1 x Dual Connector Plug & Play SMART Harness High Beam Driving Light Wiring (WIRQKFT-SMART)

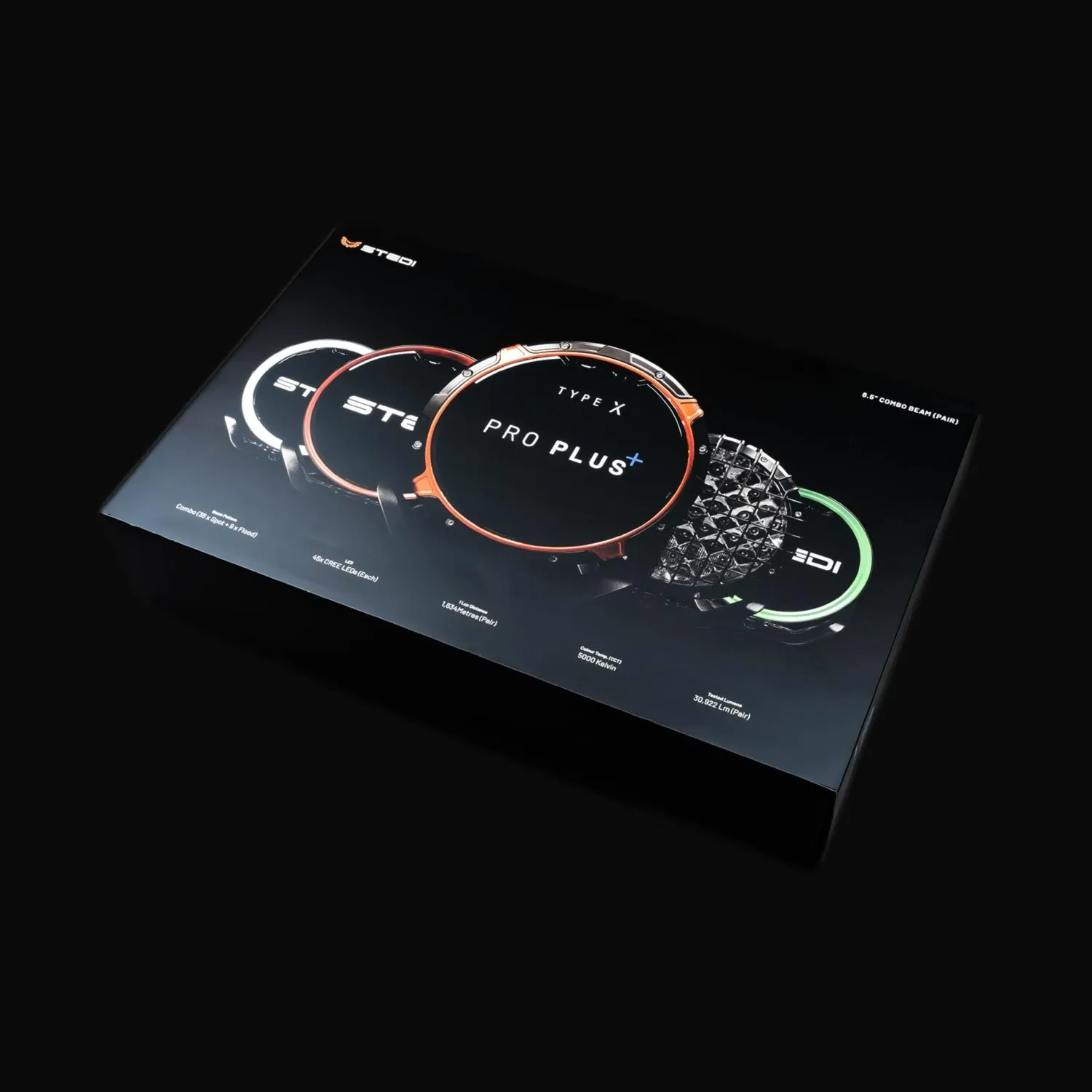

- 1 x Pro Plus Custom Spec Box (ST-14-PRP-008)
- 1 x Pro Plus Custom Spec Shipping Carton (ST-14-PRP-009)
(PRP-MDRNRGD-NDRL-BND)
| Optical beam (non‑DRL) | Combo Beam (36x Spot | 9x Flood) |
|---|---|
| Tested lumens (non‑DRL) | 30,9222 lm (Pair) |
| 1 lux @ (non‑DRL) | 1634 Metres (Pair) |
| Candela (non‑DRL) | 1,952,000 cd (Pair) |
| Amp draw (non‑DRL) | 15.9 @ 12V |
| Ingress protection | IP68 | Submersible up to 3m |
| Colour temperature (CCT) | 5000 Kelvin |
| Voltage compatibility | 10 - 30V DC |
| Weight (each - non‑DRL) | 2.84 kg |
| Operating temperature | -40°C to 60°C |
| SKU | PRP-MDRNRGD-NDRL-BND |
| Brand | Stedi |
