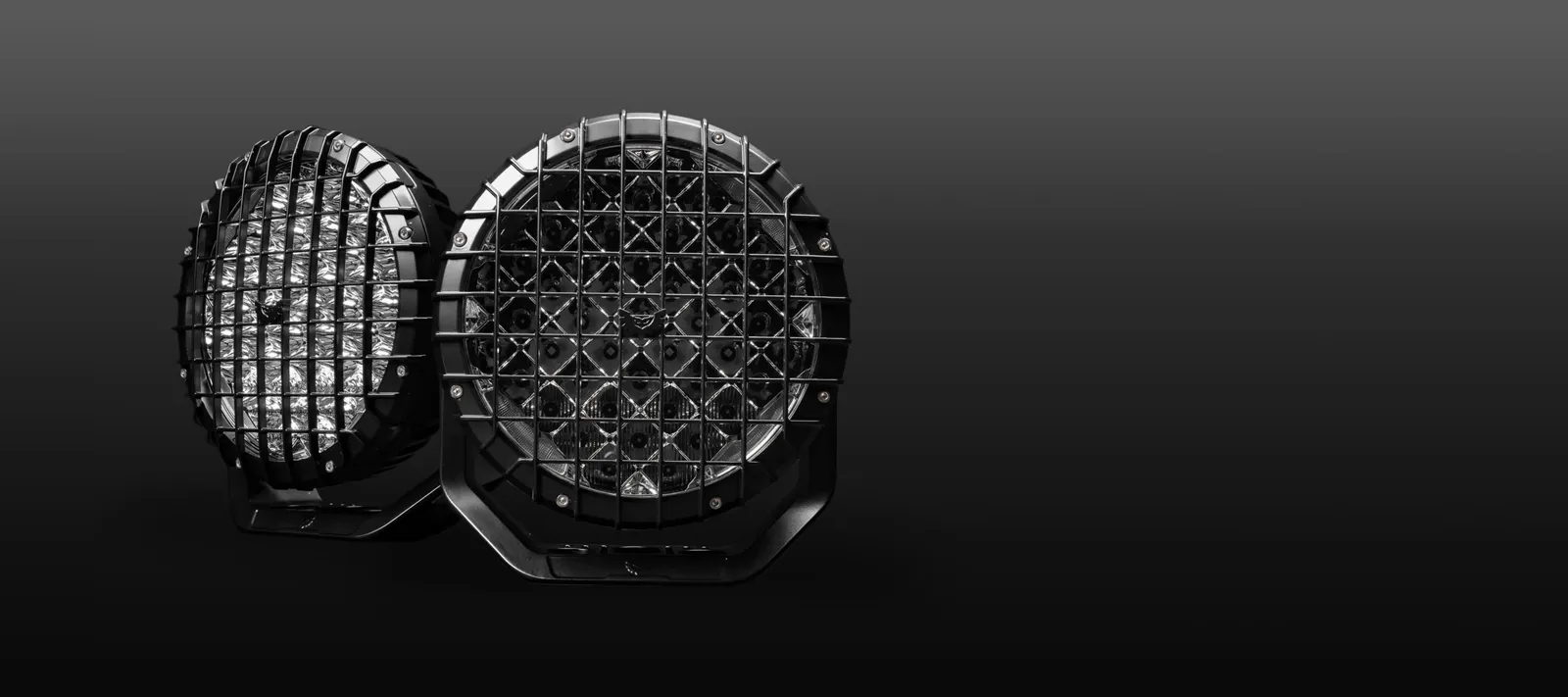

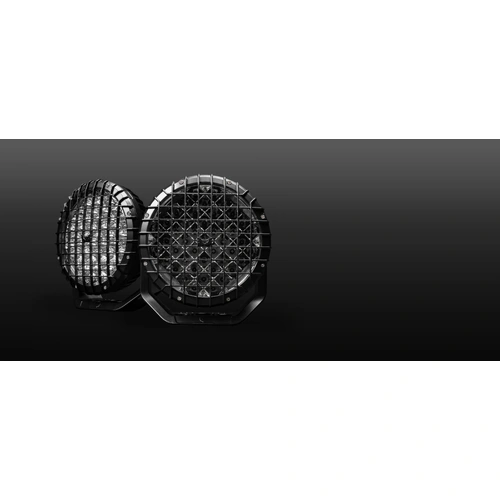

Stedi Type-X Pro Plus 8.5" Non-DRL Caged Pair
$759.00
RRP $835.00
SAVE $76.00 (9%)
In Stock
The Type-X Pro Plus 8.5 Inch Non-DRL Caged Pair is a fixed kit of long-range driving lights with a powder-coated cast alloy caged bezel for a rugged, military-inspired appearance. The non-DRL pair is engineered for both on-road and off-road use and provides a precise driving beam for distance visibility.
Features:
- Combo beam: 36x spot and 9x flood optical layout
- Pair tested lumens: 30,9222lm

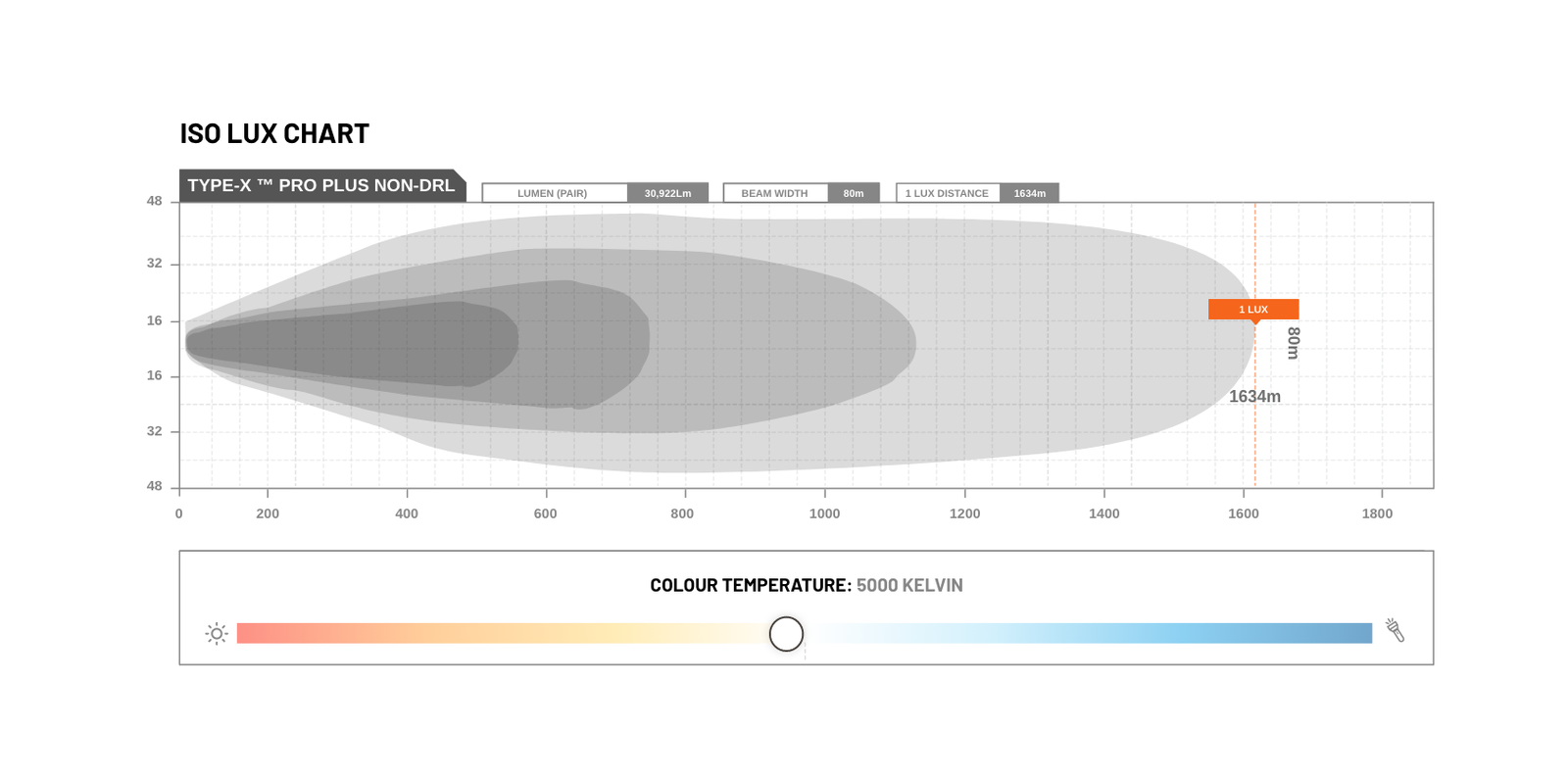

- 1 lux at 1634 metres (pair)
- Candela (pair): 1,952,000cd
- Amp draw (non-DRL): 15.9 @ 12V
- Ingress protection: IP68 | Submersible up to 3m
- Colour temperature (CCT): 5000 Kelvin
- Voltage compatibility: 10 - 30V DC
- Weight (each - non-DRL): 2.84kg
- Operating temperature: -40°C to 60°C
Kit Includes:
- 2 x Type-X Pro Plus Non-DRL Base Module (ST-01-PRP-802)
- 2 x Type-X Pro Plus Bezel Cage (ST-14-PRP-003)
- 2 x Type-X Pro Plus Shoulder Trim Rugged Orange (ST-14-PRP-101)
- 1 x Dual Connector Plug & Play SMART Harness High Beam Driving Light Wiring (WIRQKFT-SMART)
- 1 x Pro Plus Custom Spec Box (ST-14-PRP-008)
- 1 x Pro Plus Custom Spec Shipping Carton (ST-14-PRP-009)
(PRP-CAGE-NDRL-BND)
| Optical beam (Non-DRL) | Combo Beam (36x Spot | 9x Flood) |
|---|---|
| Tested lumens (Non-DRL) | 30,9222lm (Pair) |
| 1 lux @ (Non-DRL) | 1634 Metres (Pair) |
| Candela (Non-DRL) | 1,952,000cd (Pair) |
| Amp draw (Non-DRL) | 15.9 @ 12V |
| Ingress protection | IP68 | Submersible up to 3m |
| Colour temperature (CCT) | 5000 Kelvin |
| Voltage compatibility | 10 - 30V DC |
| Weight (each) | 2.84kg (Each) |
| Operating temperature | -40°C to 60°C |
| SKU | PRP-CAGE-NDRL-BND |
| Brand | Stedi |
