Stedi Type-X Pro Plus 8.5" Non-DRL Modern Classic Pair
$839.00
RRP $923.00
SAVE $84.00 (9%)
In Stock
The Modern Classic Type-X Pro Plus 8.5 inch Non-DRL pair combines a slim, contemporary bezel and refined cover with long-range illumination for on-road and off-road use. This kit ships as components for final assembly.
Features:
- Minimalist modern classic styling with a refined cover and slim bezel.
- 1 lux distance of 1360 m (pair).
- Candela: 976,000 cd (single) and 1,952,000 cd (pair).
- Raw lumens: 18,280 lm (each); tested lumens: 14,893 lm (each) and 30,922 lm (pair).
- Beam pattern: Combo（36 Spot + 9 Flood）.
- Colour temperature: 5000K.
- Ingress protection: IP68. Submersible up to 3 m.
- Operating temperature: -40°C - 60°C.
- Voltage compatibility: 10v - 30v.
- Lumen maintenance: 50,000 LM-80.
- Power draw: 190W (each); amp draw: 15.9 A @ 12V (each).
Kit Includes:

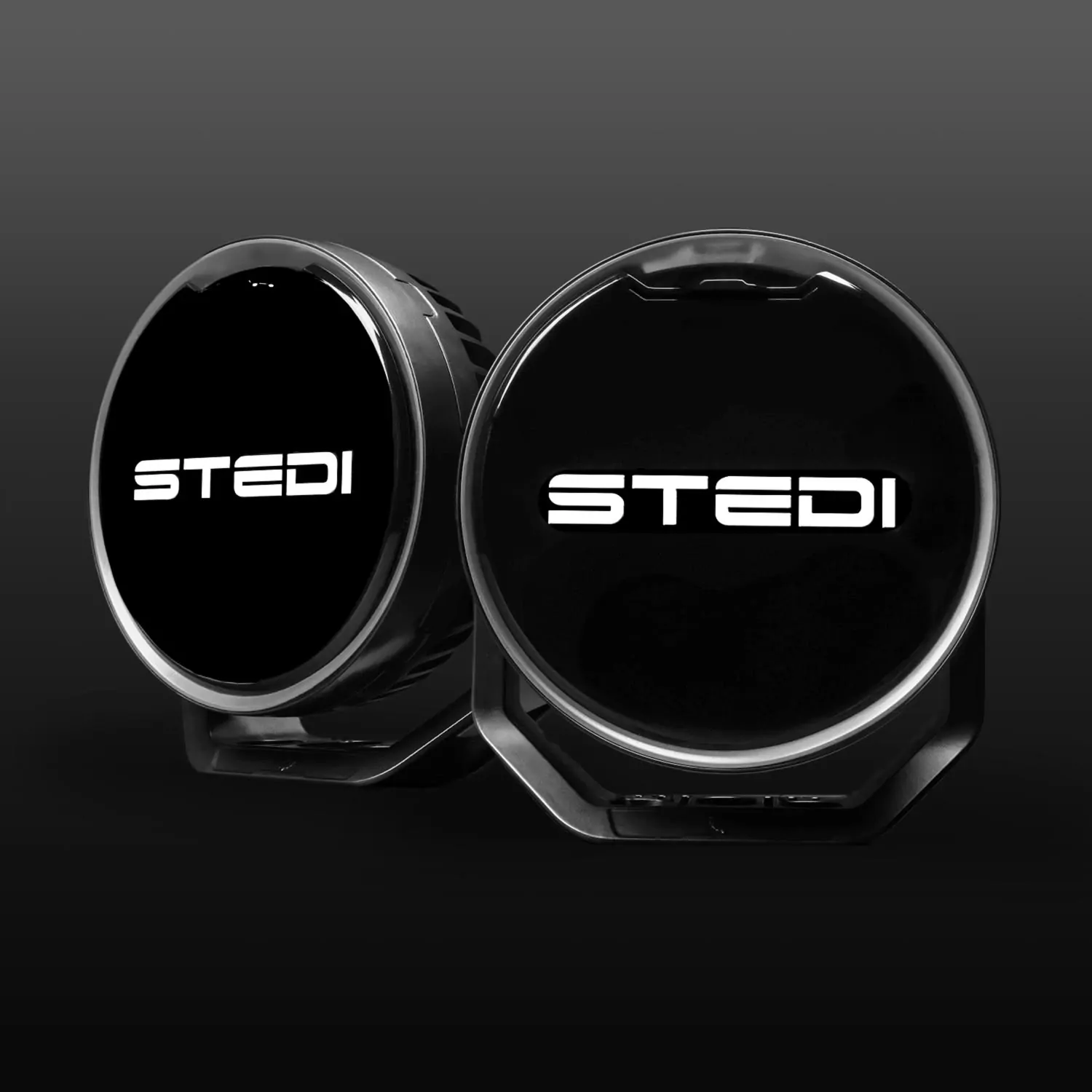

- 2 x Type-X Pro Plus Modern Classic LED Driving Lights
- 2 x Type-X Pro Plus Modern Classic Bezel
- 2 x Type-X Pro Plus Modern Classic Fascia (User Selected)
- 2 x Type-X Pro Plus Modern Classic Covers (User Selected)
- 2 x Type-X Pro Plus Modern Shoulder Trim (User Selected)
- 1 x (Optional) Type-X Pro Plus Anti-Theft Kit
- 1 x High Beam Triggered Wiring Harness (User Selected)
(PRP-MDRNCLASS-NDRL-BND)
| Operating temperature | -40°C - 60°C |
|---|---|
| Voltage compatibility | 10v - 30v |
| Ingress protection | IP68 |
| Submersion depth | Submersible up to 3m |
| Lumen maintenance | 50,000 LM-80 |
| Beam pattern | Combo（36 Spot + 9 Flood） |
| Colour temperature (CCT) | 5000K |
| Candela | 976,000 cd (Single) | 1,952,000 cd (Pair) |
| Power draw | 190W (each) |

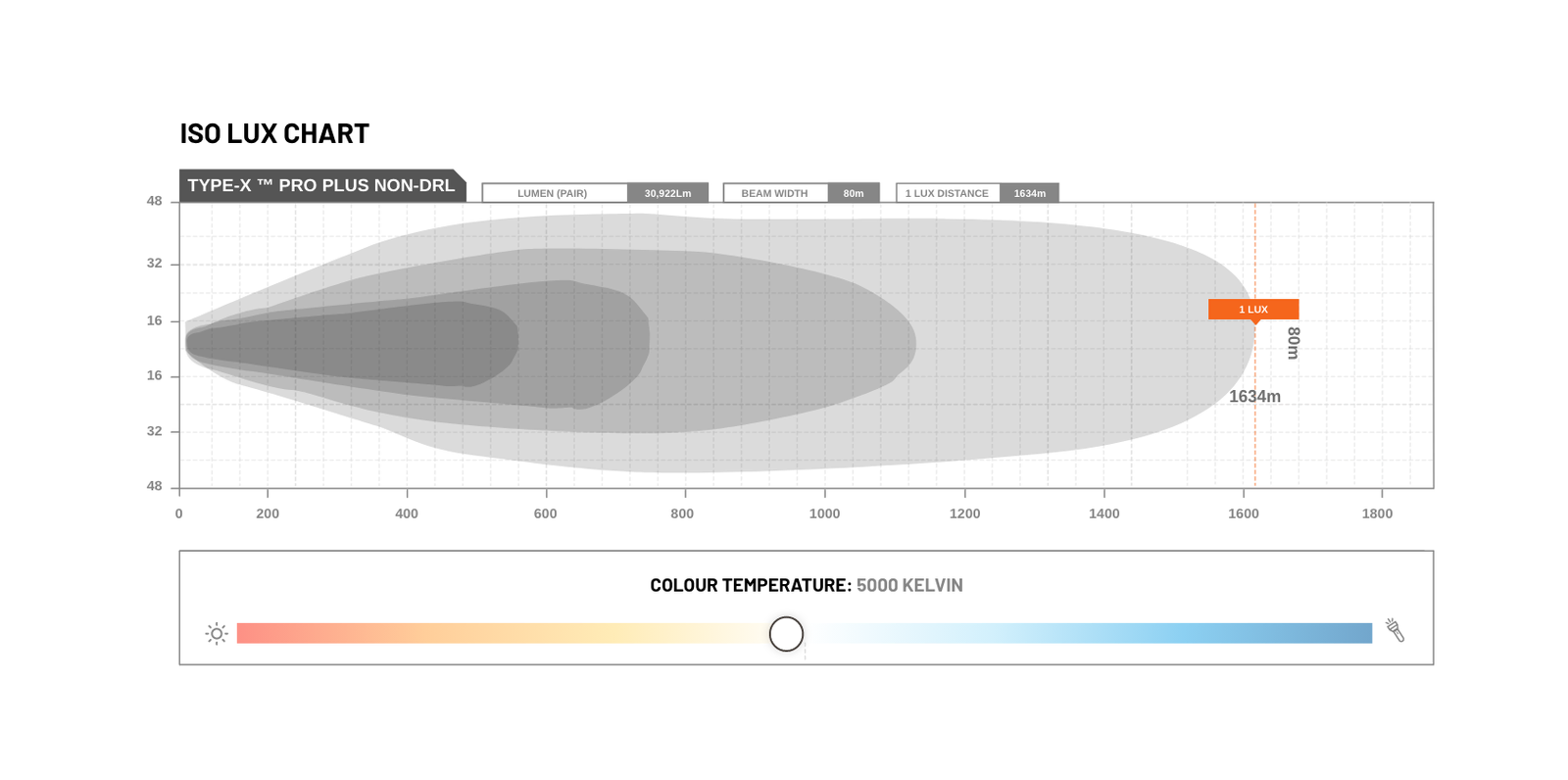

| 1 lux distance | 1634m: 1 LX (Pair); 990m: 1 LX (Single) |
| Raw lumens | 18,280 lm (each) |
| Tested lumens | 14,893 lm (each) | 30,922 lm (Pair) |
| Amp draw | 15.9 A @ 12V (each) |
| SKU | PRP-MDRNCLASS-NDRL-BND |
| Brand | Stedi |
| Shipping Weight | 3.2000kg |
