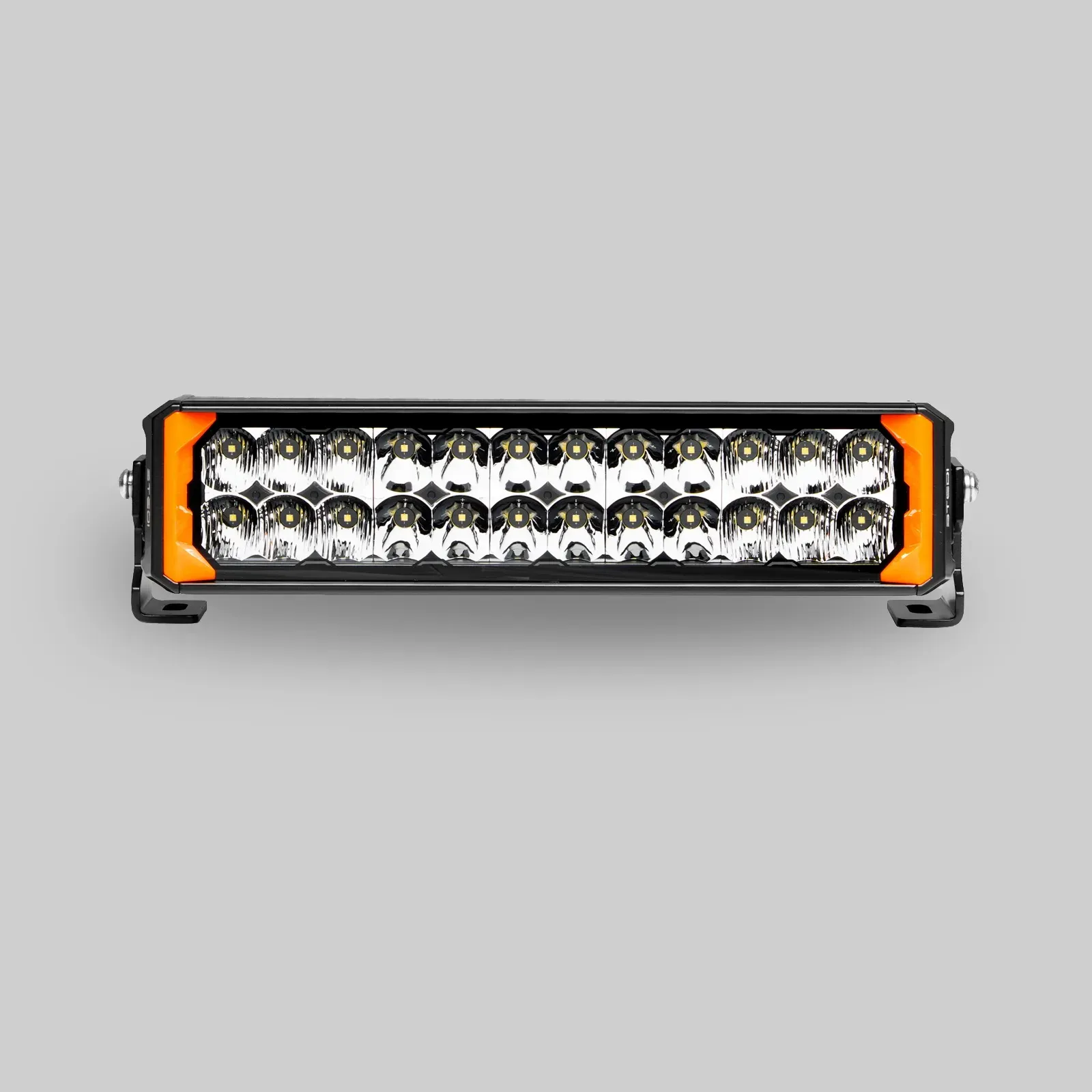

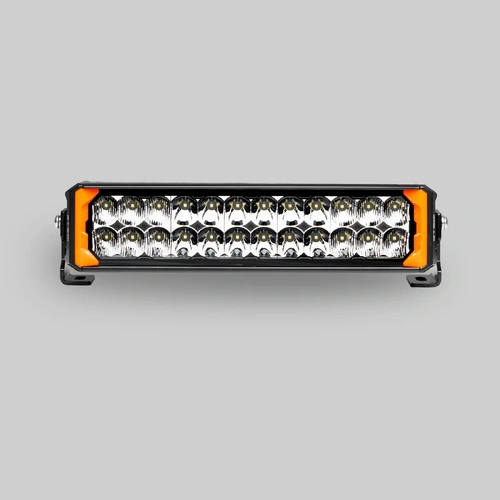

Stedi Sport Plus Double Row 14 Inch 24 LED Light Bar
$205.00
RRP $226.00
SAVE $21.00 (9%)
In Stock
The Stedi Type-X Sport Plus double row 14 inch 24 LED light bar is a compact combination-beam auxiliary light engineered for improved off-road visibility and a clean, integrated appearance. It uses high-performance OSRAM LEDs and a precision 8° angled housing suitable for mounting on bull bars or roof platforms.
Features:
- Engineered with high-performance OSRAM LEDs.
- Produces over 20% more lumen output than previous generations.
- Colour temperature optimised to 5000K to improve visual contrast and reduce eye fatigue.

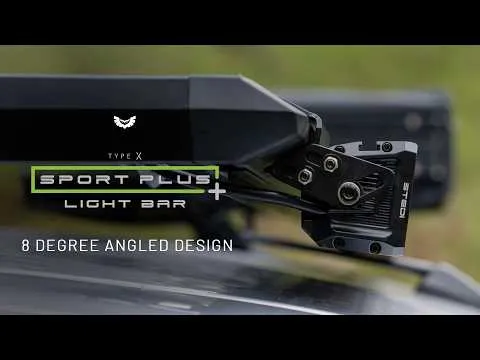

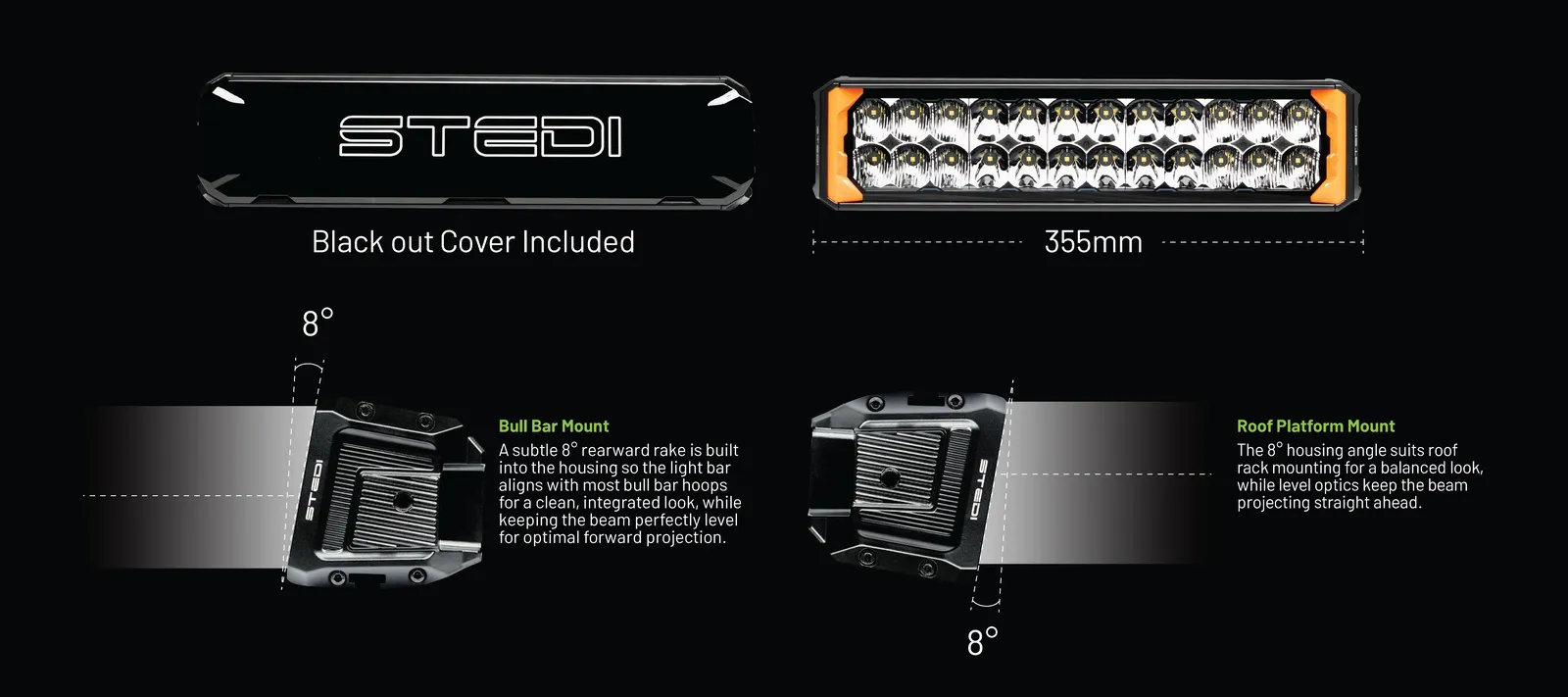

- Precision-engineered 8° angled housing for alignment when mounted to a bull bar or roof platform.
- Bolt-free exterior with a snap-on blackout cover and interchangeable trims for a customised look.
- Larger reflectors and refined optics to maximise beam spread and distance.
- Hardened polycarbonate lens for increased impact resistance.
- IP68-rated waterproofing.

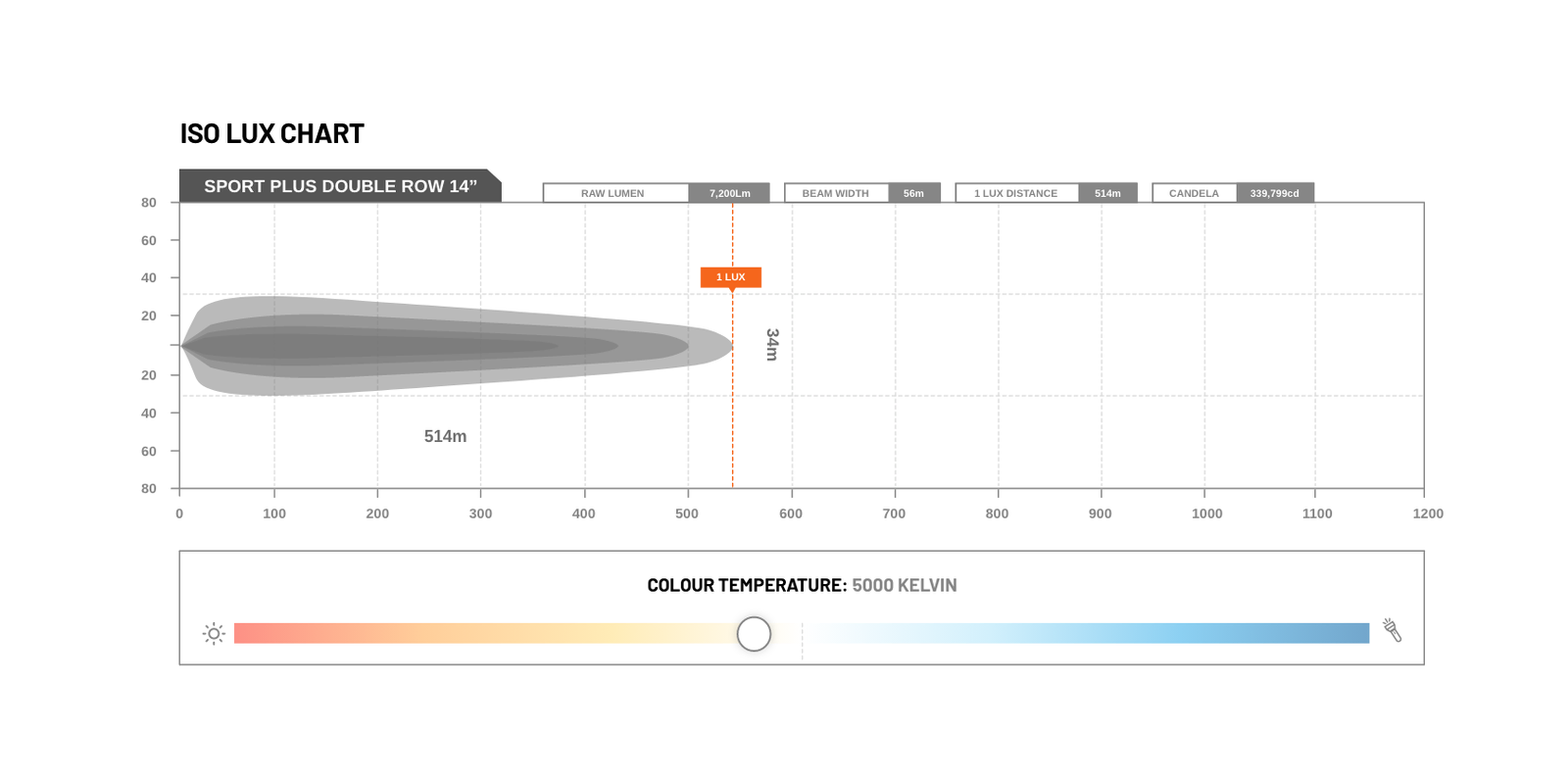

- Lights 514 metres at 1 Lux.
- Comes complete with 304 stainless steel brackets, a wiring harness and a blackout cover.
- Backed by a 5-year warranty with Australian based customer support.
- Registered designs: 202615237 / 202615238.
Kit Includes:
- 304 stainless steel brackets
- Wiring harness
- Blackout cover
(ST-02-SRT-224)
| Material | Extruded Aluminium housing |
|---|---|
| Colour temperature (CCT) | 5000K |
| Operating temperature | -40°C to 60C |
| Amp draw | 6A@12V 3A@24V |
| Power draw (each) | 72W |
| Voltage compatibility | 10-30V |
| Lens type | Clear |
| Life span | 50,000 Hours |
| Finish type | Powdercoat |
| Mounting brackets | Stainless Bracket |
| IP rating | IP68 |
| Bolts & fitting | Included |
| LED count | 24 |
| Lumens (raw) | 7200 |
| Lumens (tested) | 6232 |
| Beam pattern | Combination (6 Flood + 12 Spot + 6 Flood) |
| Warranty | 5 Years |
| SKU | ST-02-SRT-224 |
| Brand | Stedi |
