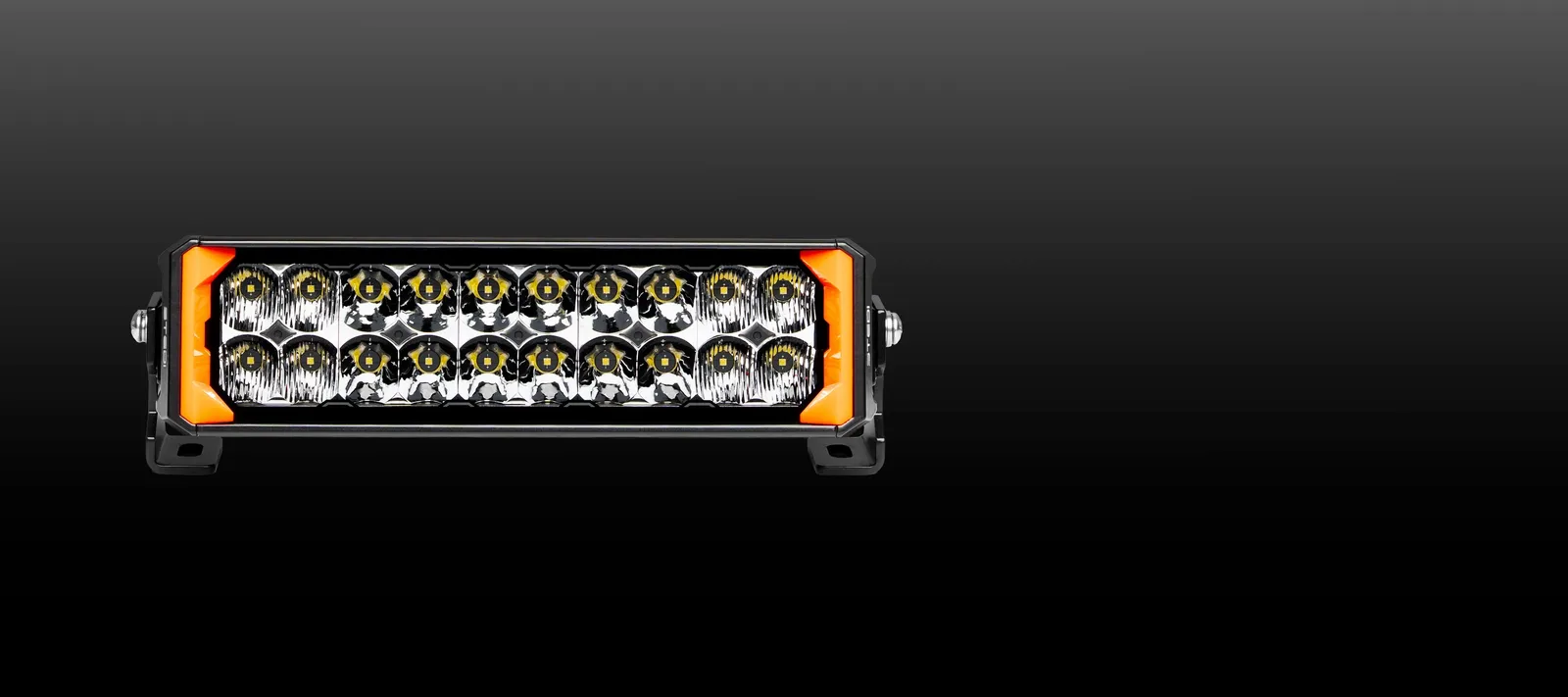

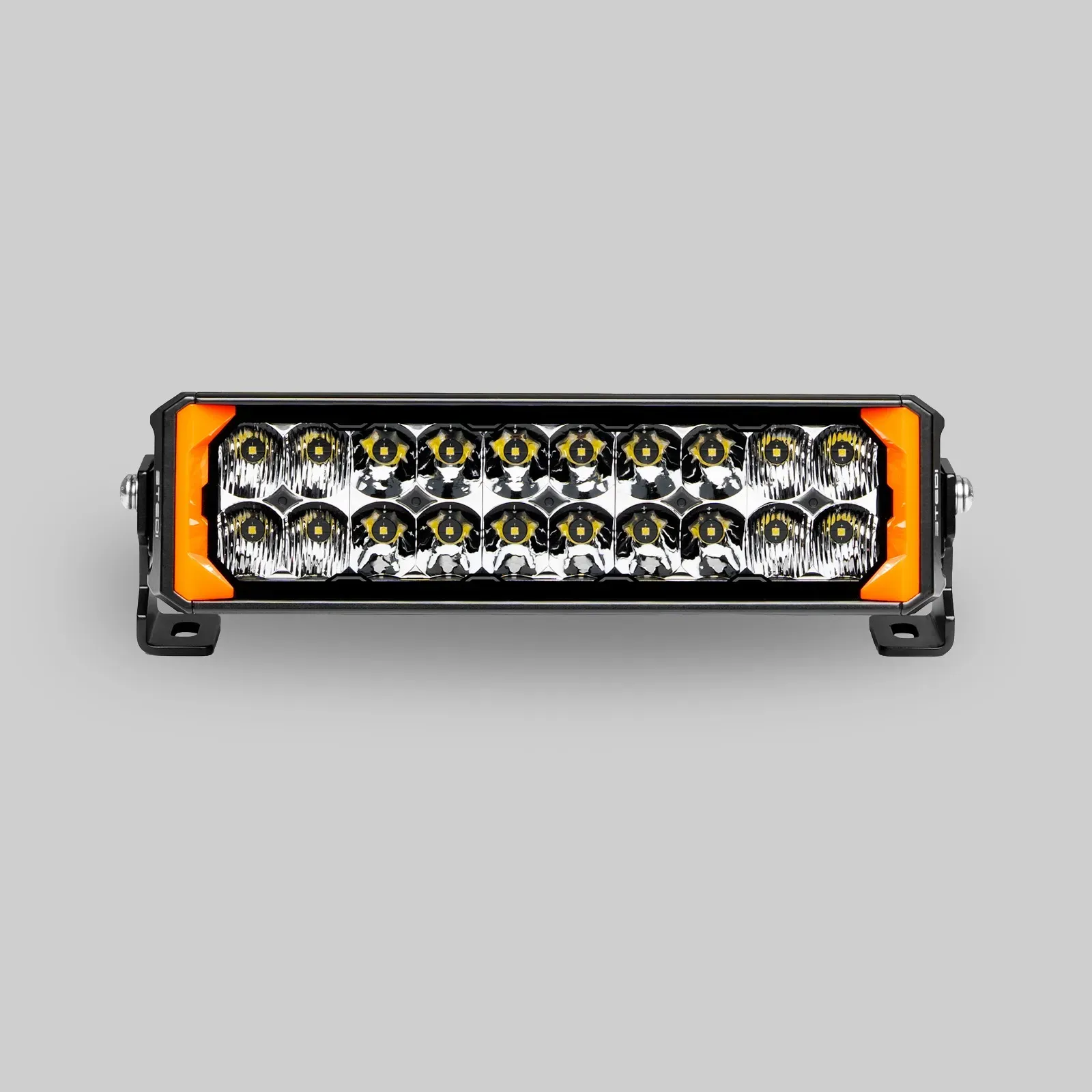

Stedi Sport Plus Double Row 12 Inch 20 LED Light Bar
$190.00
RRP $210.00
SAVE $20.00 (10%)
In Stock
The Stedi Type-X Sport Plus Double Row 12 inch 20 LED Light Bar is a compact auxiliary light for 4WD and off-road applications, providing a combination beam pattern for both distance and spread. It is designed with a bolt-free exterior, snap-on blackout cover and interchangeable trims for a clean, integrated look.
Features:
- Engineered with high-performance OSRAM LEDs
- Produces over 20% more lumen output than previous generations
- Optimised 5000K colour temperature to improve visual contrast and reduce eye fatigue
- Combination beam pattern: 4 flood + 12 spot + 4 flood

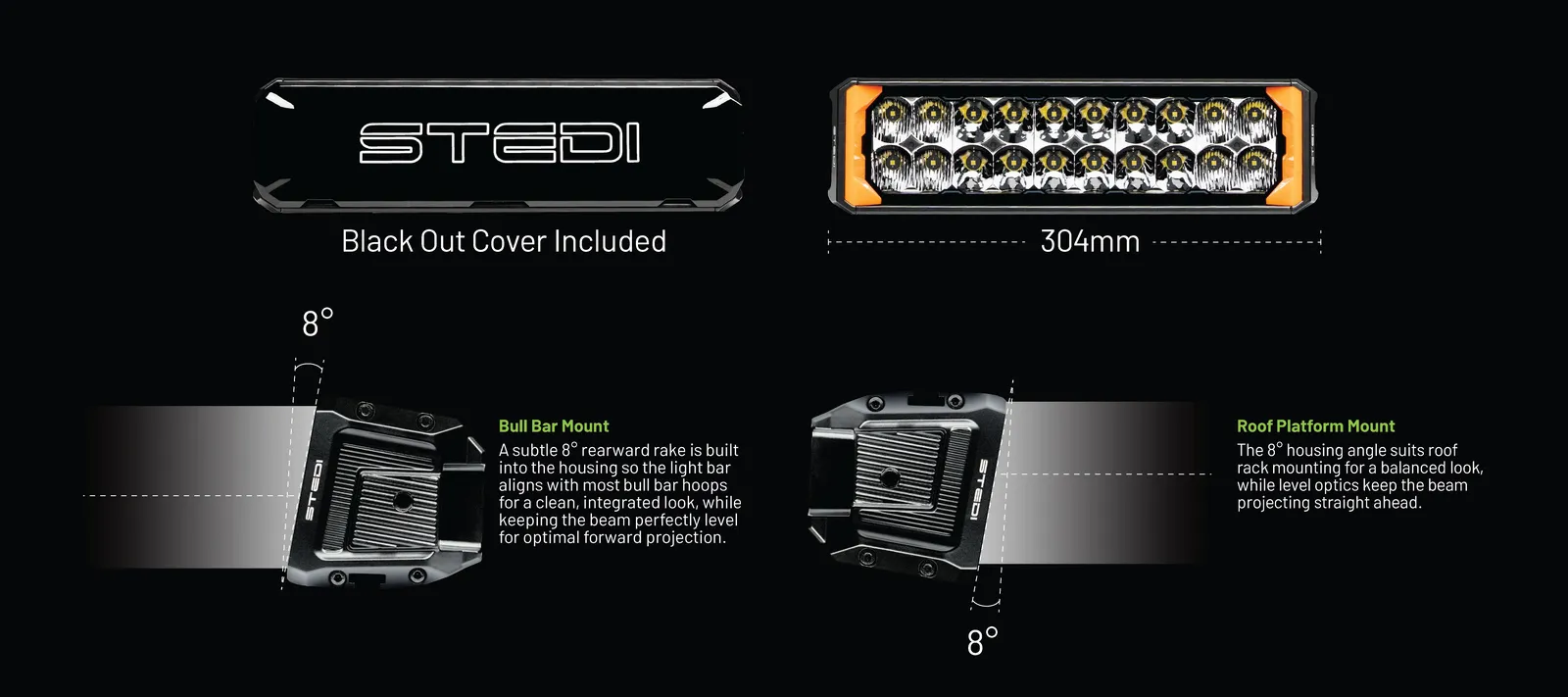

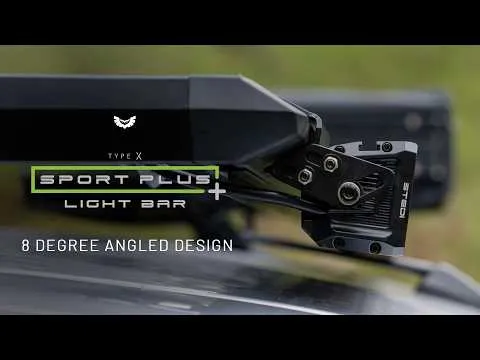

- Intentionally angled 8° housing for alignment with bull bars or roof platforms and reversible mounting on roof platforms
- Bolt-free exterior with snap-on blackout cover and interchangeable orange and grey trims
- Sliding mounting bracket and stainless steel side brackets for easier adjustment and fitment
- IP68 rated waterproof construction
- Hardened polycarbonate lens for impact resistance
- Jet black powdercoat finish

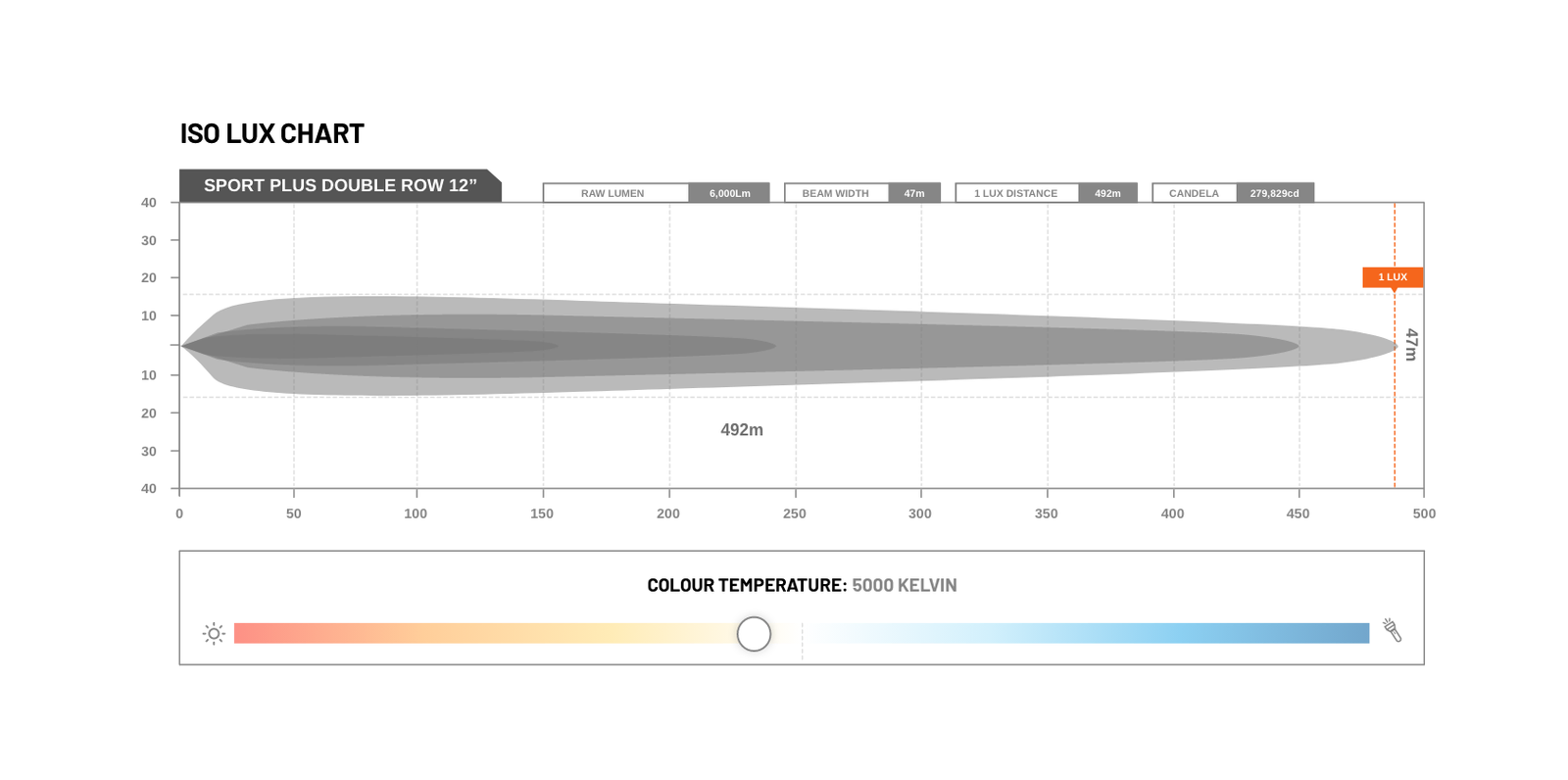

- Lights 492 metres at 1 Lux
- Backed by a 5 year warranty with Australian-based customer support
- Registered designs: 202615237 / 202615238
Kit Includes:
- 304 stainless steel brackets
- wiring harness
- blackout cover
- interchangeable orange and grey trims
(ST-02-SRT-220)
| Material | Extruded aluminium housing |
|---|---|
| Lens type | Clear hardened polycarbonate |
| Colour temperature (CCT) | 5000K |
| Operating temperature | -40°C to 60°C |
| Amp draw | 5A @ 12V; 2.5A @ 24V |
| Voltage compatibility | 10-30V |
| Mounting brackets | 304 stainless steel brackets |
| Life span | 50,000 Hours |
| Power draw | 60W |
| Finish | Jet black powdercoat |
| Warranty | 5 Years |
| IP rating | IP68 |
| LED count | 20 |
| Beam pattern | Combination (4 Flood + 12 Spot + 4 Flood) |
| Raw lumens | 6000 |
| Tested lumens | 4900 |
| SKU | ST-02-SRT-220 |
| Brand | Stedi |
