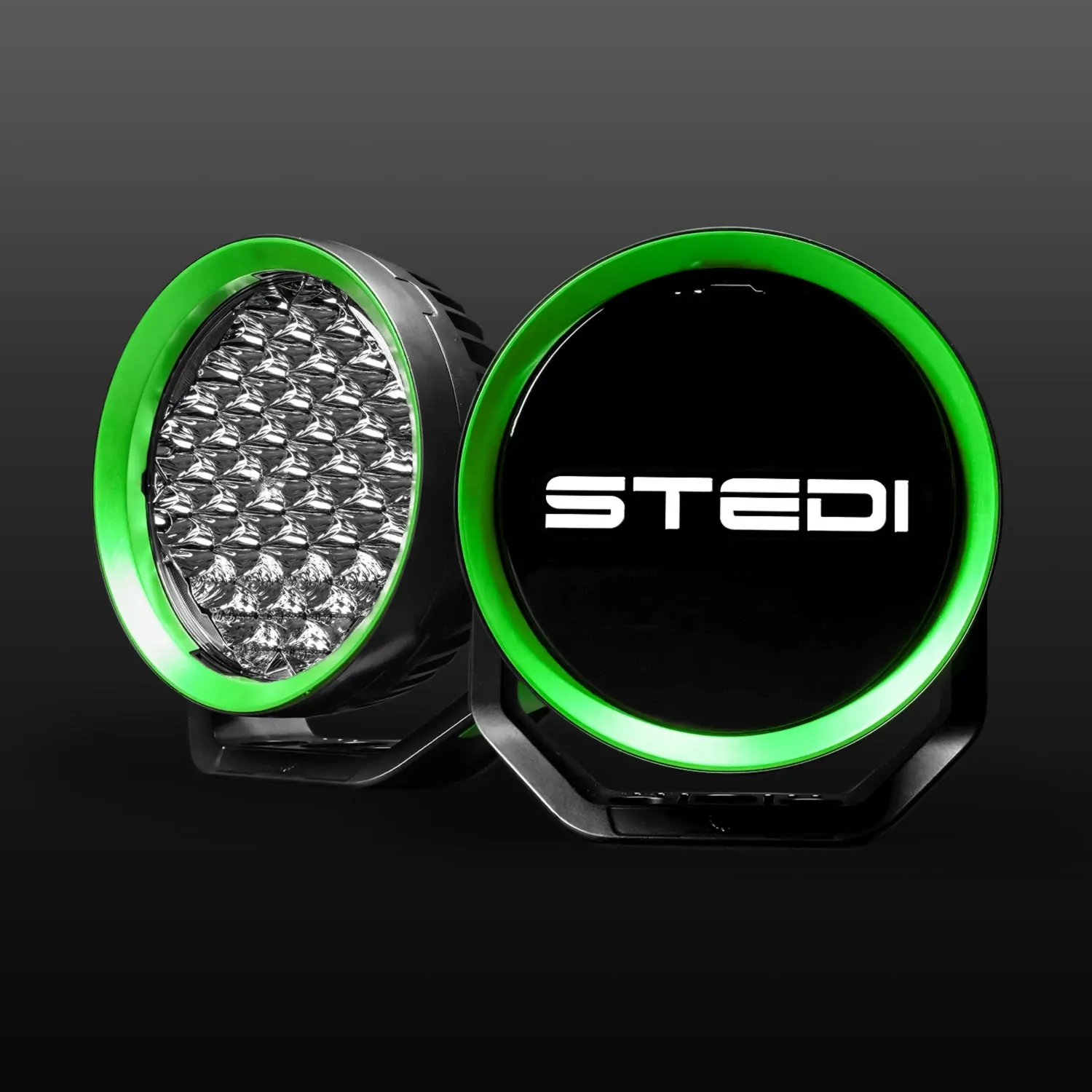

Stedi Type-X Pro Plus 8.5" Non-DRL Modern Pair
$839.00
RRP $901.00
SAVE $62.00 (7%)
In Stock
The Type-X Pro Plus 8.5" Non-DRL Modern pair combines a sleek modern bezel and fascias with high-performance optics to provide long-range driving illumination. This kit includes the components needed to build the finished lights and requires final assembly.
Features:
- Optical beam (non-DRL): Combo Beam (36x Spot | 9x Flood)
- Tested lumens (non-DRL): 30,9222lm (Pair)
- 1 lux @ (non-DRL): 1634 Metres (Pair)
- Candela (non-DRL): 1,952,000cd (Pair)
- Amp draw (non-DRL): 15.9 @ 12V
- Ingress protection: IP68 | Submersible up to 3m
- Colour temp (CCT): 5000 Kelvin
- Voltage compatibility: 10 - 30V DC
- Weight (each - non-DRL): 2.84kg (Each)
- Operating voltage: -40°C to 60°C
- Designed with a modern bezel, modern fascia and modern covers for a contemporary appearance
Kit Includes:
- 2 x Type-X Pro Plus Non-DRL Base Module (ST-01-PRP-802)
- 2 x Type-X Pro Plus Bezel Modern (ST-14-PRP-002)
- 2 x Type-X Pro Plus Modern Ring Green (ST-12-PRP-112)
- 2 x Type-X Pro Plus Modern Non-DRL Cover Stedi (ST-12-PRP-217)
- 2 x Type-X Pro Plus Shoulder Trim Modern Green (ST-14-PRP-112)
- 1 x Dual Connector Plug & Play SMART Harness High Beam Driving Light Wiring (WIRQKFT-SMART)
- 1 x Pro Plus Custom Spec Box (ST-14-PRP-008)
- 1 x Pro Plus Custom Spec Shipping Carton (ST-14-PRP-009)
(PRP-MODERN-NDRL-BND)
| Optical beam (non-DRL) | Combo Beam (36x Spot | 9x Flood) |
|---|---|
| Tested lumens (non-DRL) | 30,9222lm (Pair) |
| 1 lux @ (non-DRL) | 1634 Metres (Pair) |
| Candela (non-DRL) | 1,952,000cd (Pair) |
| Amp draw (non-DRL) | 15.9 @ 12V |
| Ingress protection | IP68 | Submersible up to 3m |
| Colour temp (CCT) | 5000 Kelvin |
| Voltage compatibility | 10 - 30V DC |
| Weight (each - non-DRL) | 2.84kg (Each) |
| Operating voltage | -40°C to 60°C |
| SKU | PRP-MODERN-NDRL-BND |
| Brand | Stedi |
