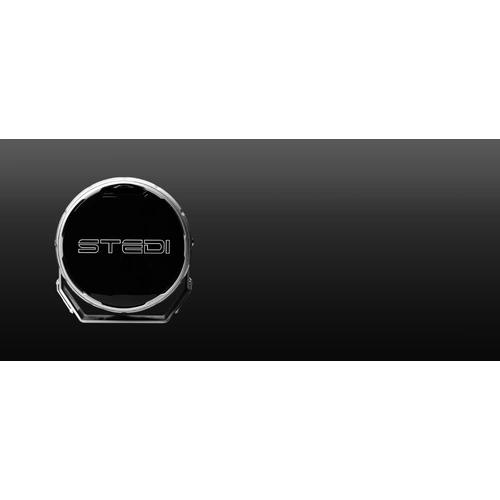

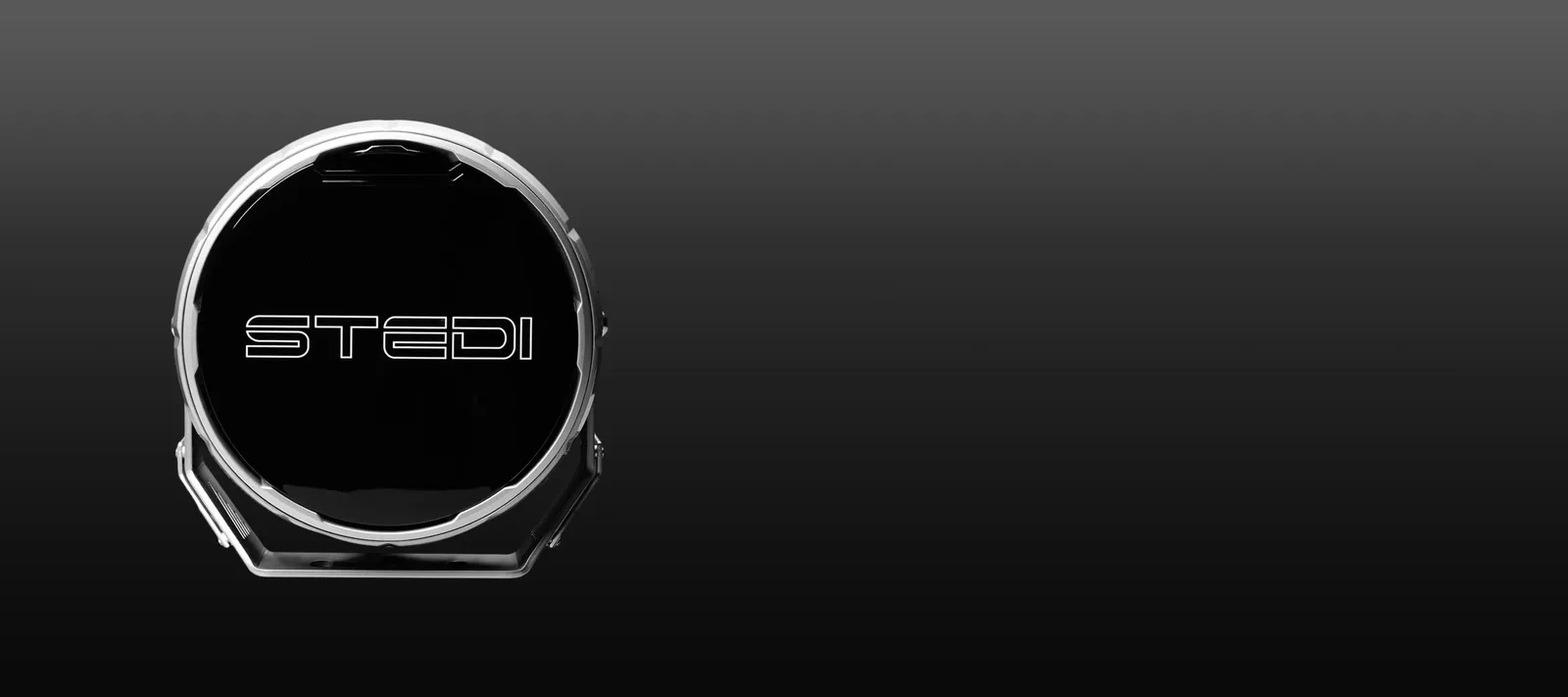

STEDI Type-X Sport Plus 8.5" Silver Edition Driving Light (Single)

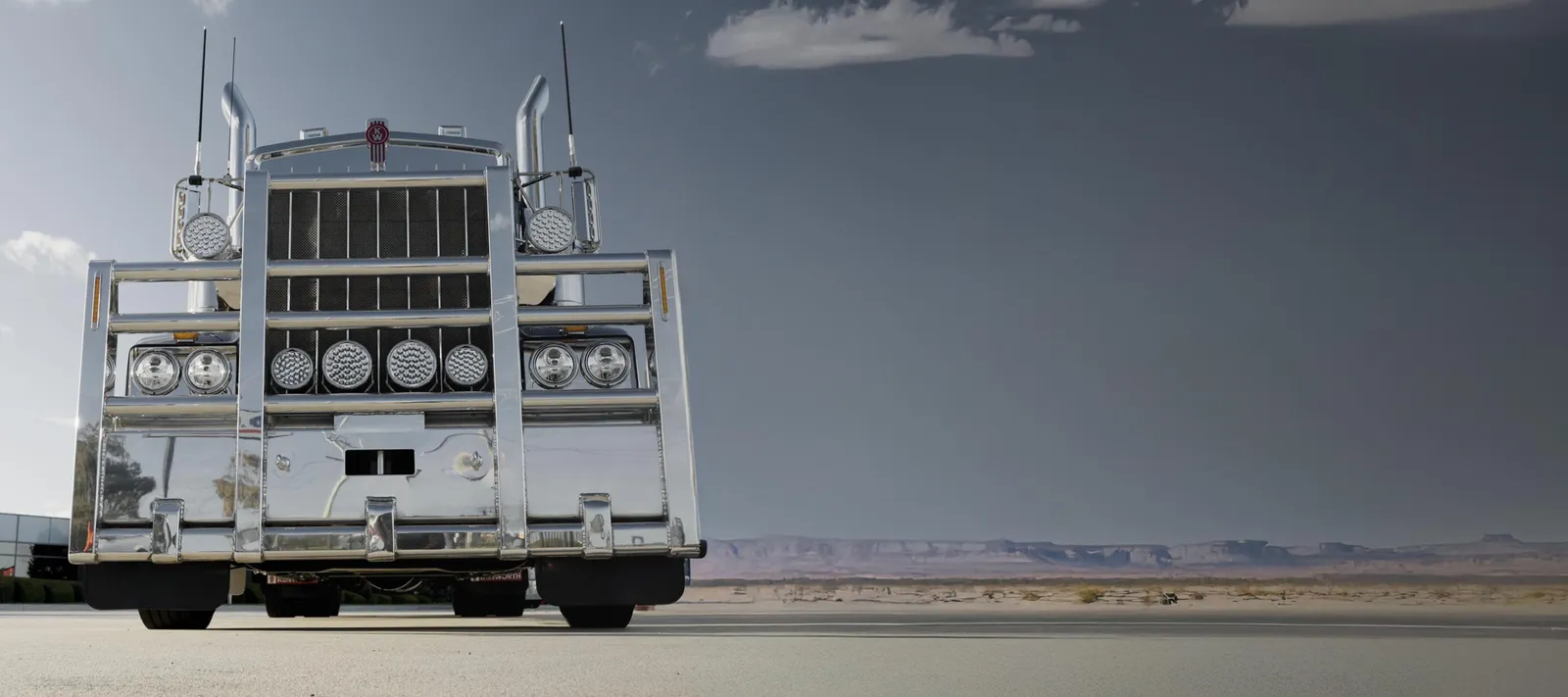

The STEDI Type-X Sport Plus Silver Edition is an 8.5" combo LED driving light finished in a liquid-silver DuPont powder coat. Designed for truck and heavy vehicle applications, it pairs OSRAM P8 and CREE XP20 LEDs with a robust construction and IP68 ingress protection.

Features

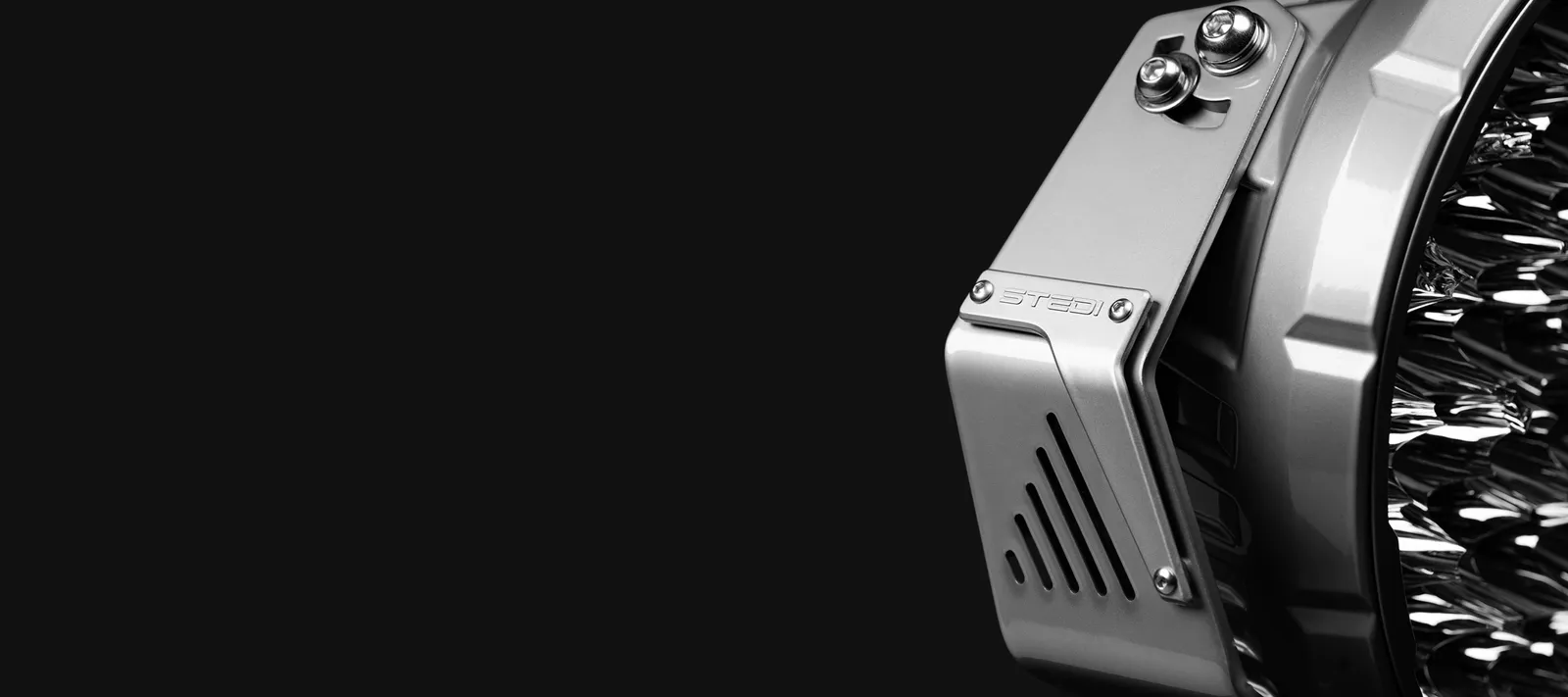

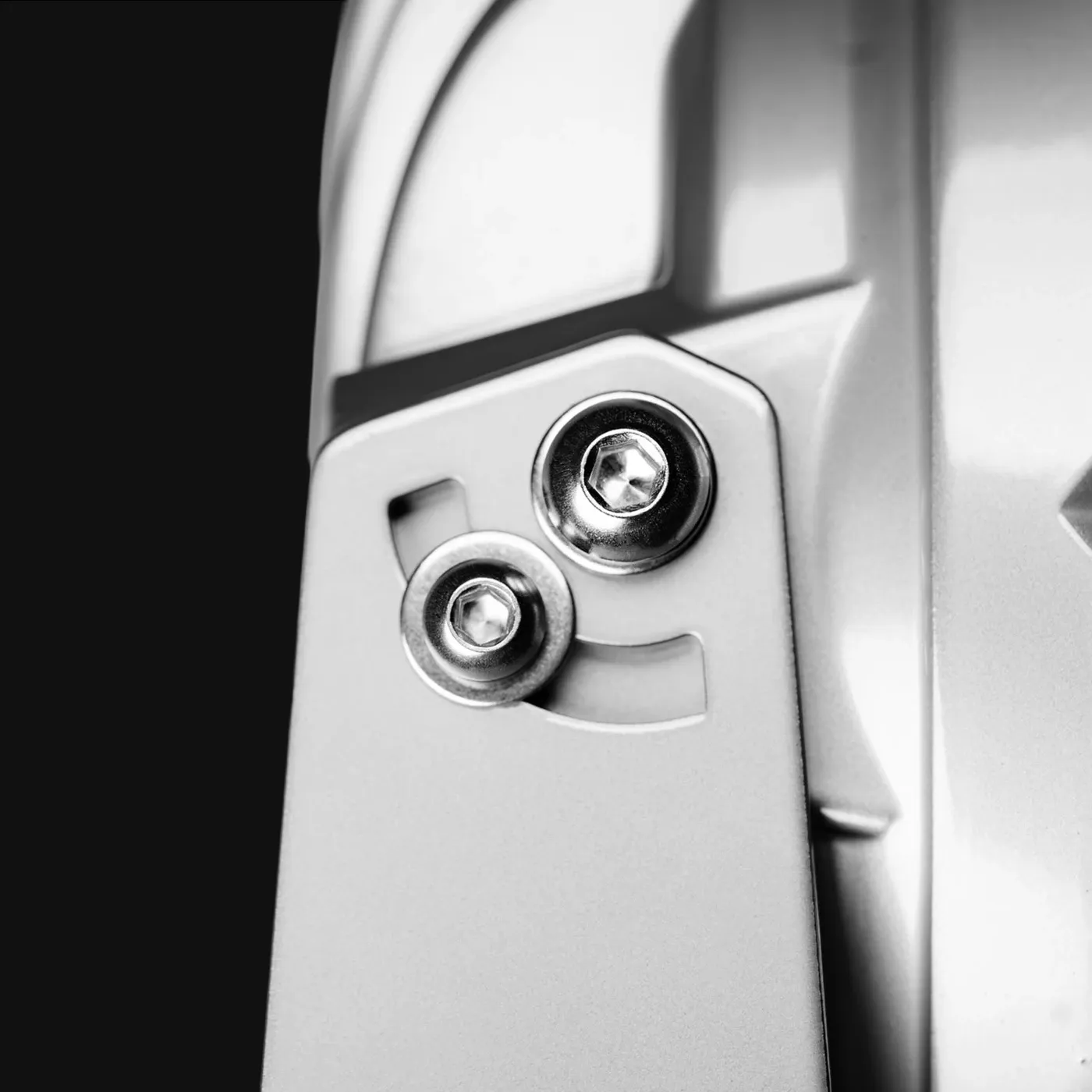

• 4mm thick 304 series stainless mounting bracket with rubber dampener and additional 3mm upper plate

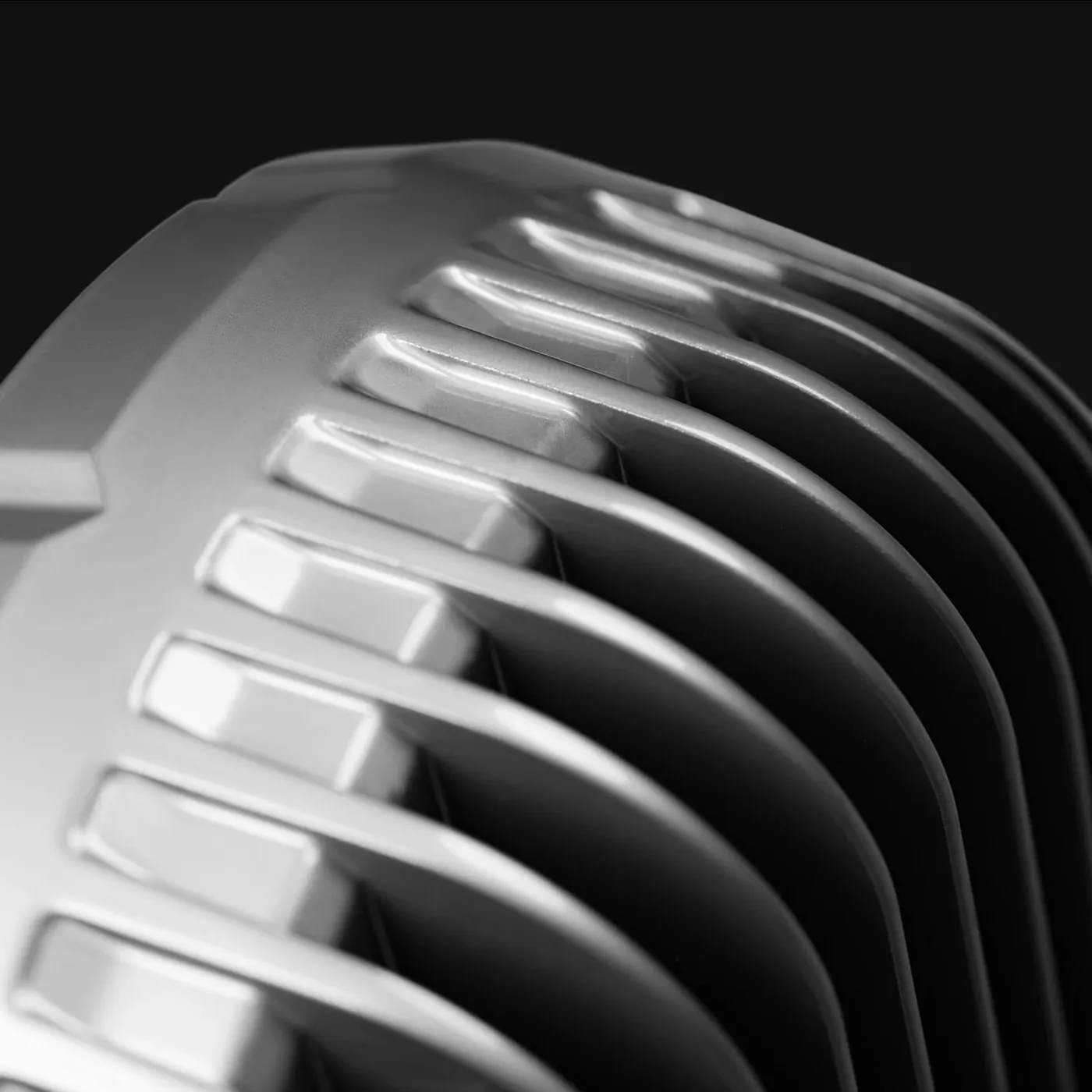

• Cast aluminium housing for strength and corrosion resistance
• GE Lexan lens with hard coating for virtually unbreakable scratch resistance
• DuPont UV and abrasion-resistant powder coat
• IP68 rated & submersible up to 3 metres
• Nitto Denko pressure equalisation vent with membrane to protect against water ingress, dust & contaminants
• Environmentally sealed Deutsch DTP-2 connector
• EMI & RFI suppression circuitry
• Combination of OSRAM P8 & CREE XP20 LEDs for clarity

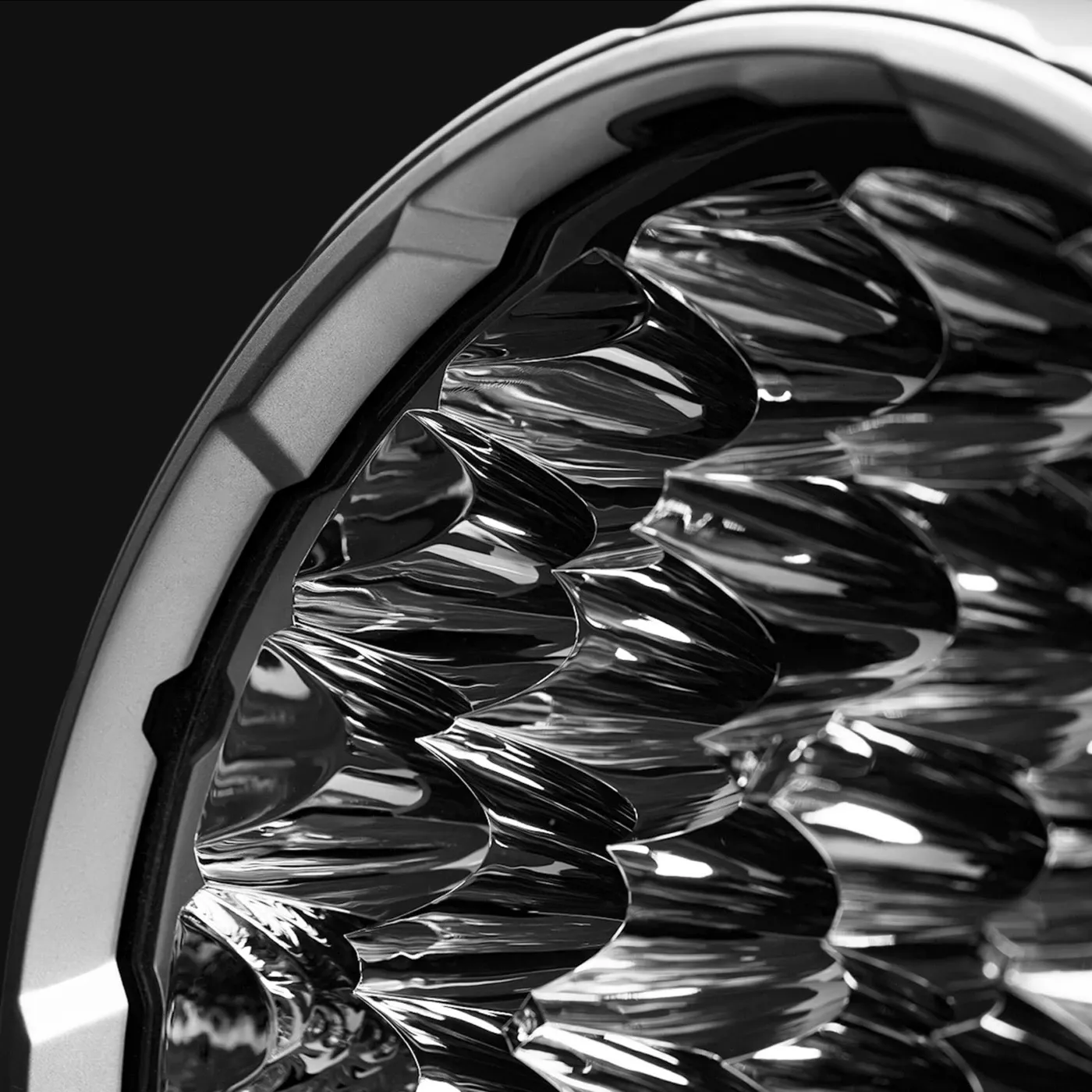

• Four wide-beam reflectors for a lateral-shaped flood pattern
• 5000K CCT for clear colour rendering

Specifications

• LED: 30x OSRAM P8 + 6x CREE XP20
• Raw lumens: 19,020 Lm
• Tested lumens: 12,385 Lm (each)
• Amp draw: 4.5A @ 24V | 9.0A @ 12V (each)
• Power draw: 108W (each)
• Candela: 601,464 (Single) / 1,202,928 (Pair)
• Beam pattern: Combo (32 Spot + 4 Flood)
• Ingress protection: IP68 | Submersible up to 3m
• Colour temperature (CCT): 5000K
• Voltage compatibility: 10V–30V
• Lumen maintenance: 50,000 LM-80
• Weight: 3.35kg (each)
• Operating temperature: -40°C to 60°C

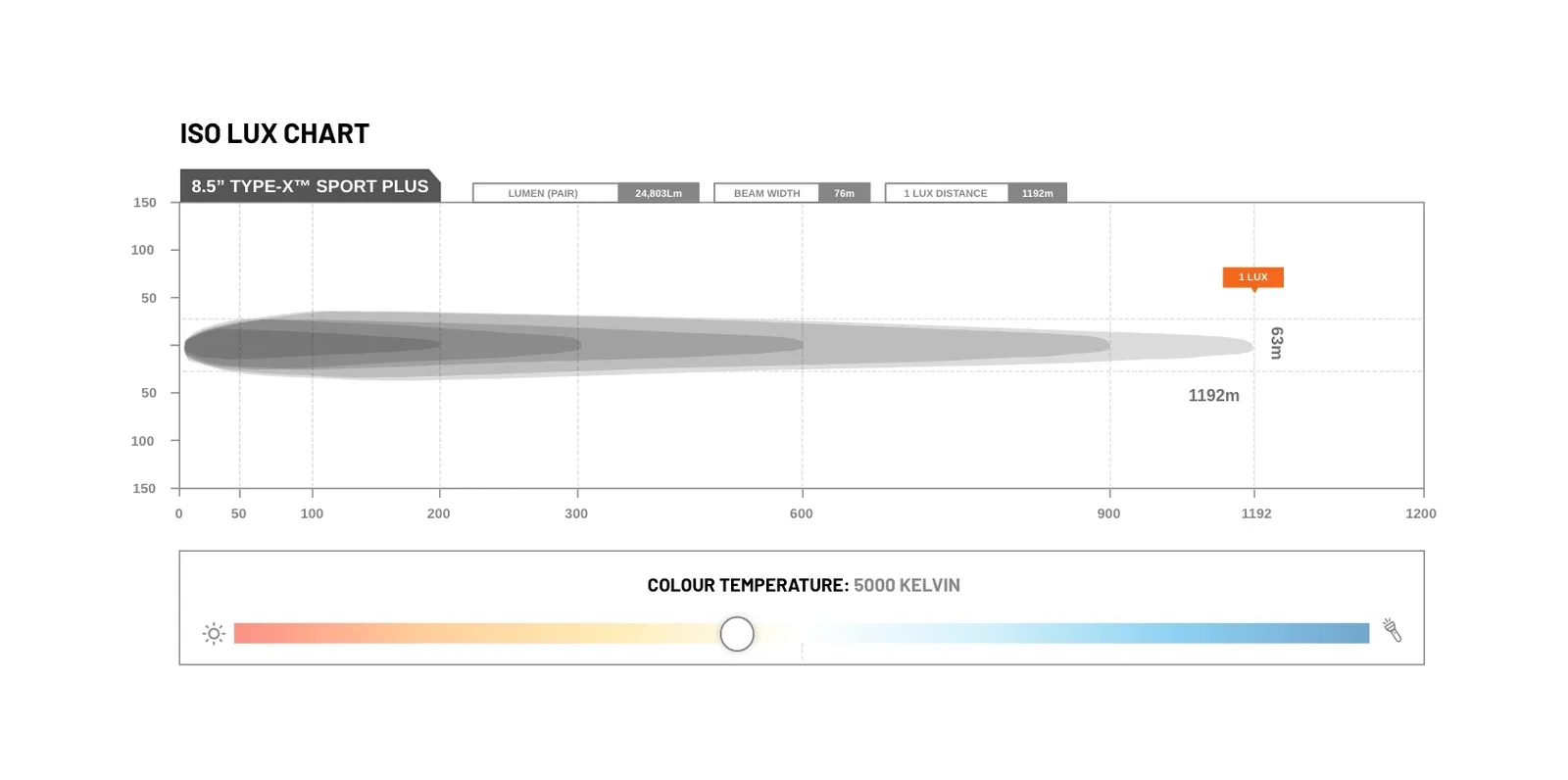

• Range: 770 m: 1 Lx (Single); 1,088 m: 1 Lx (Pair)
