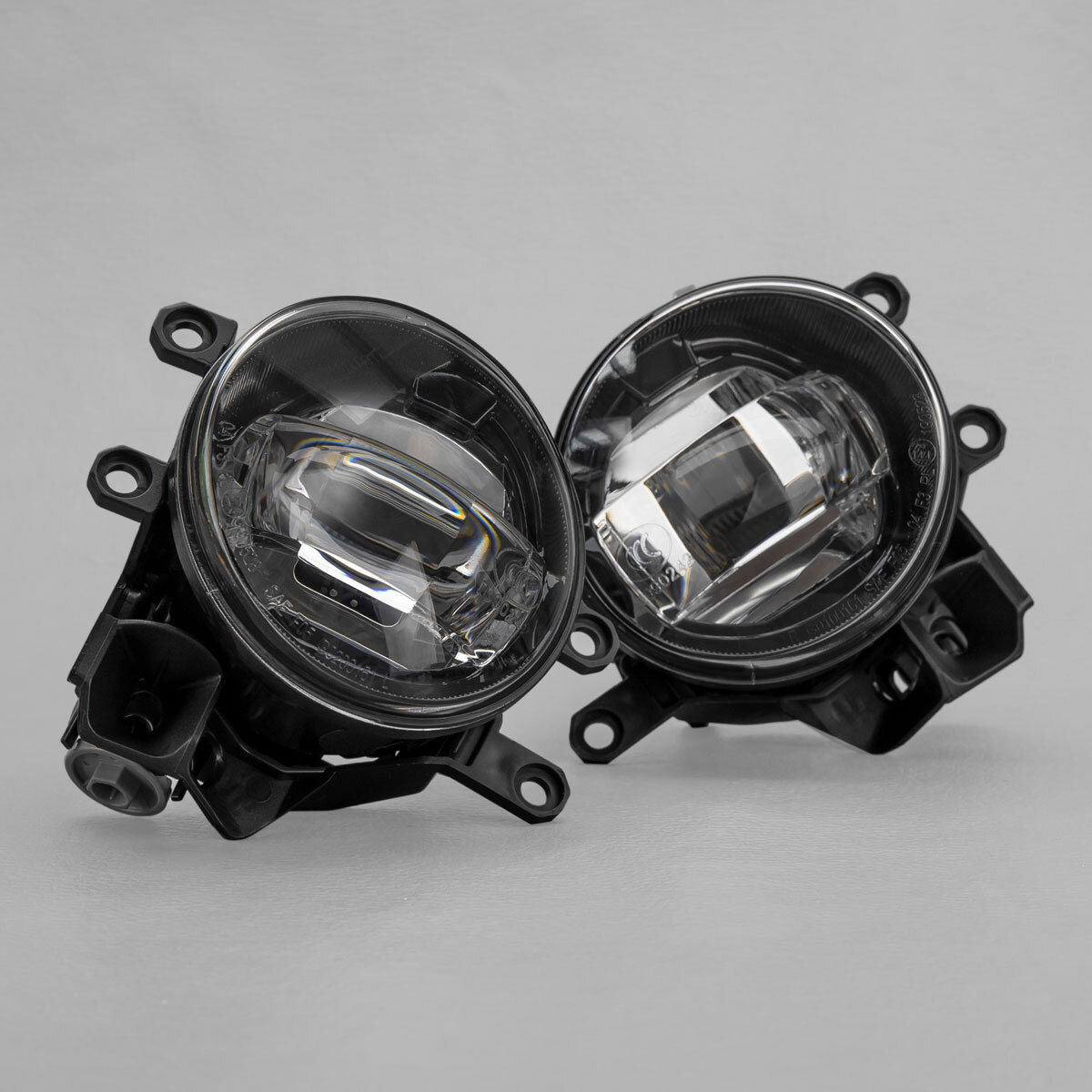

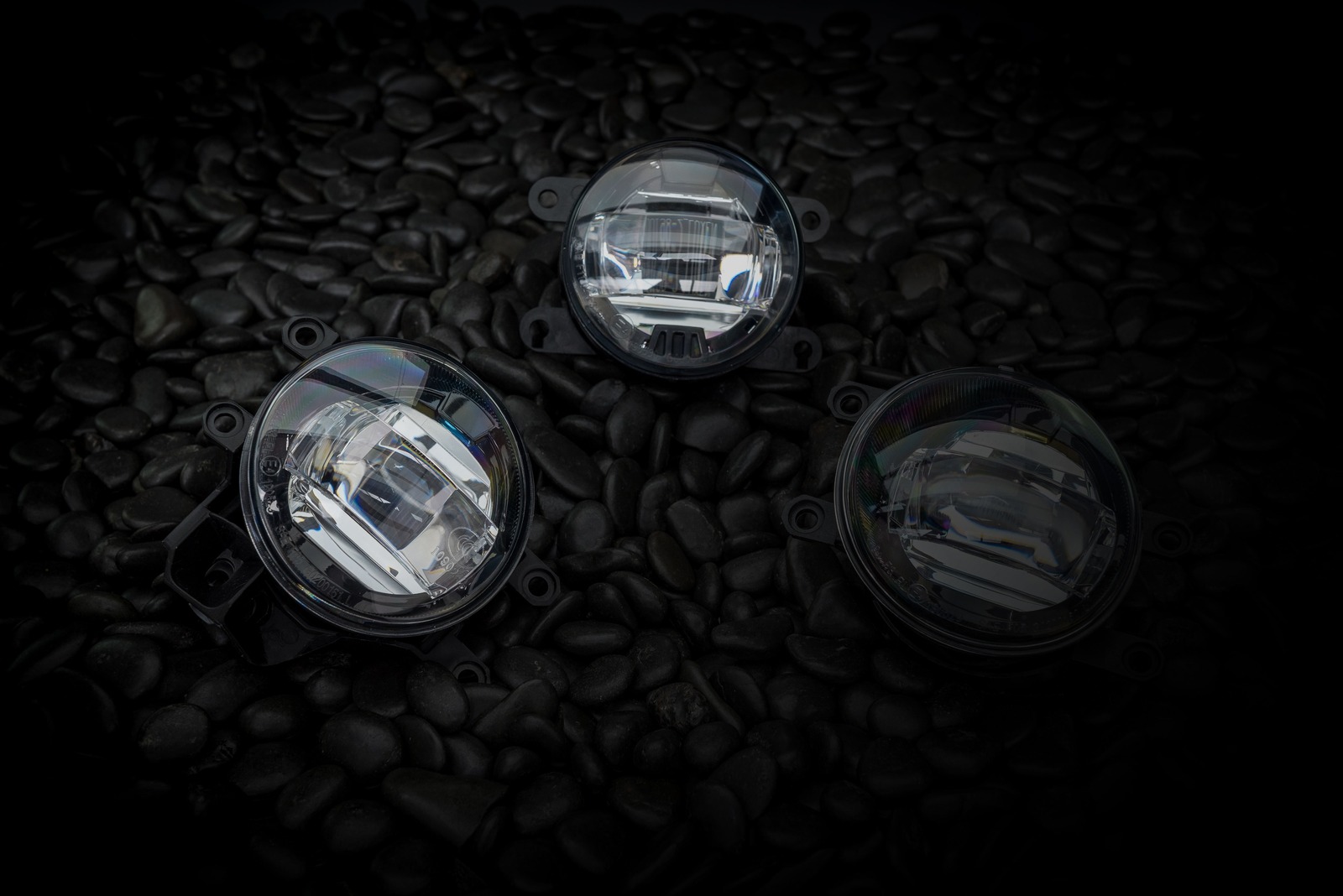

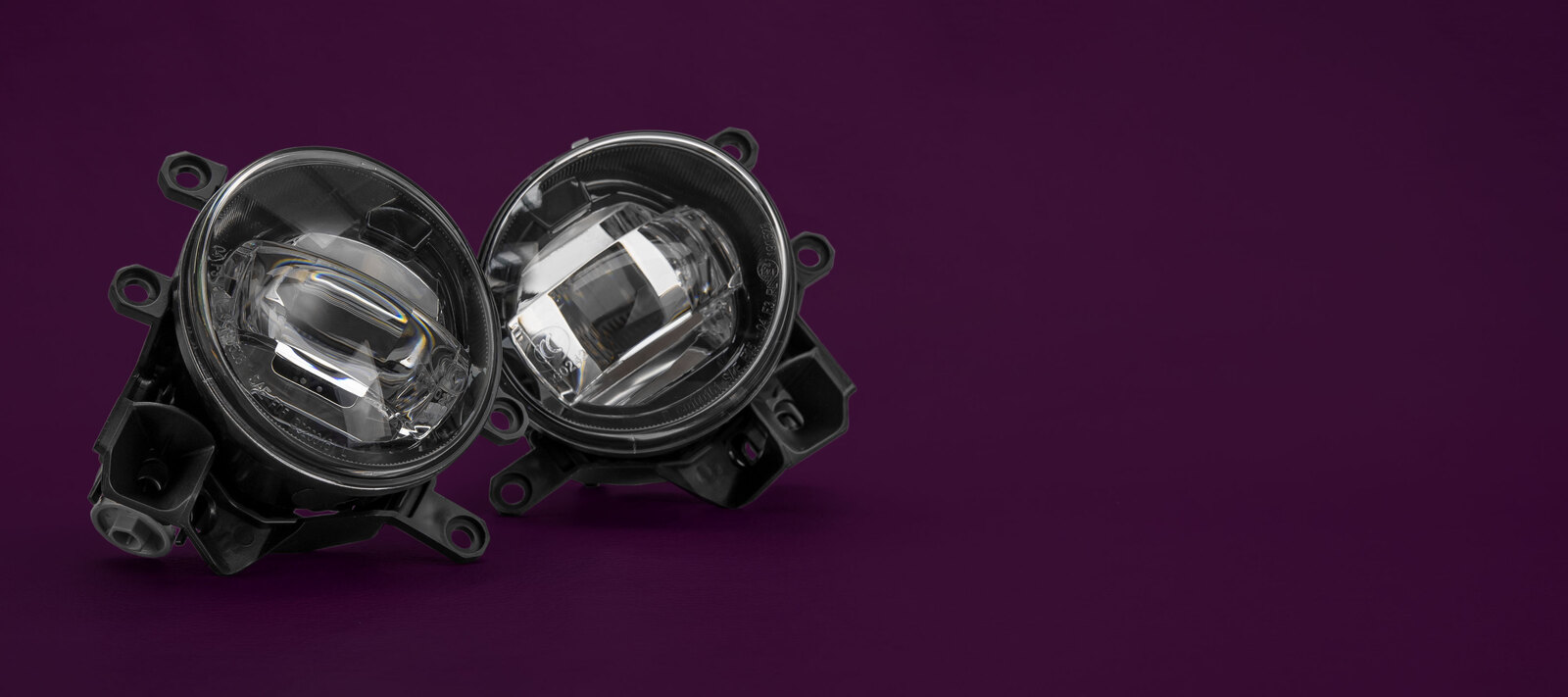

Stedi Universal Type B LED Fog Light Conversion Kit
UTMOST COMPLIANCE.

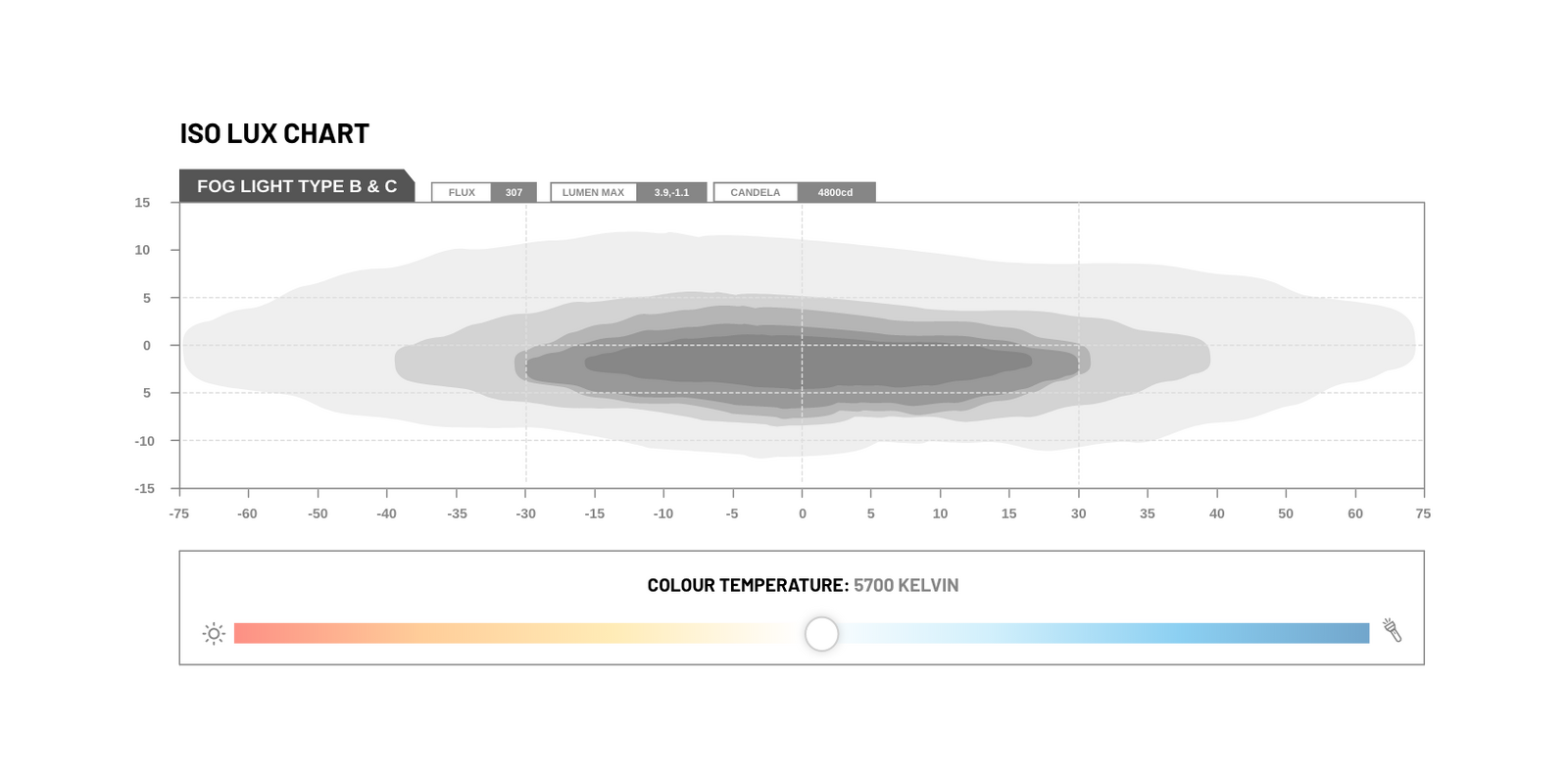

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.
The Nitty Gritty.
STEDI's new Type B Universal LED Fog Light is designed to replace your factory fog lights with a brighter beam and better fog penetration for much more visibility.
KEY TECHNICAL DETAILS

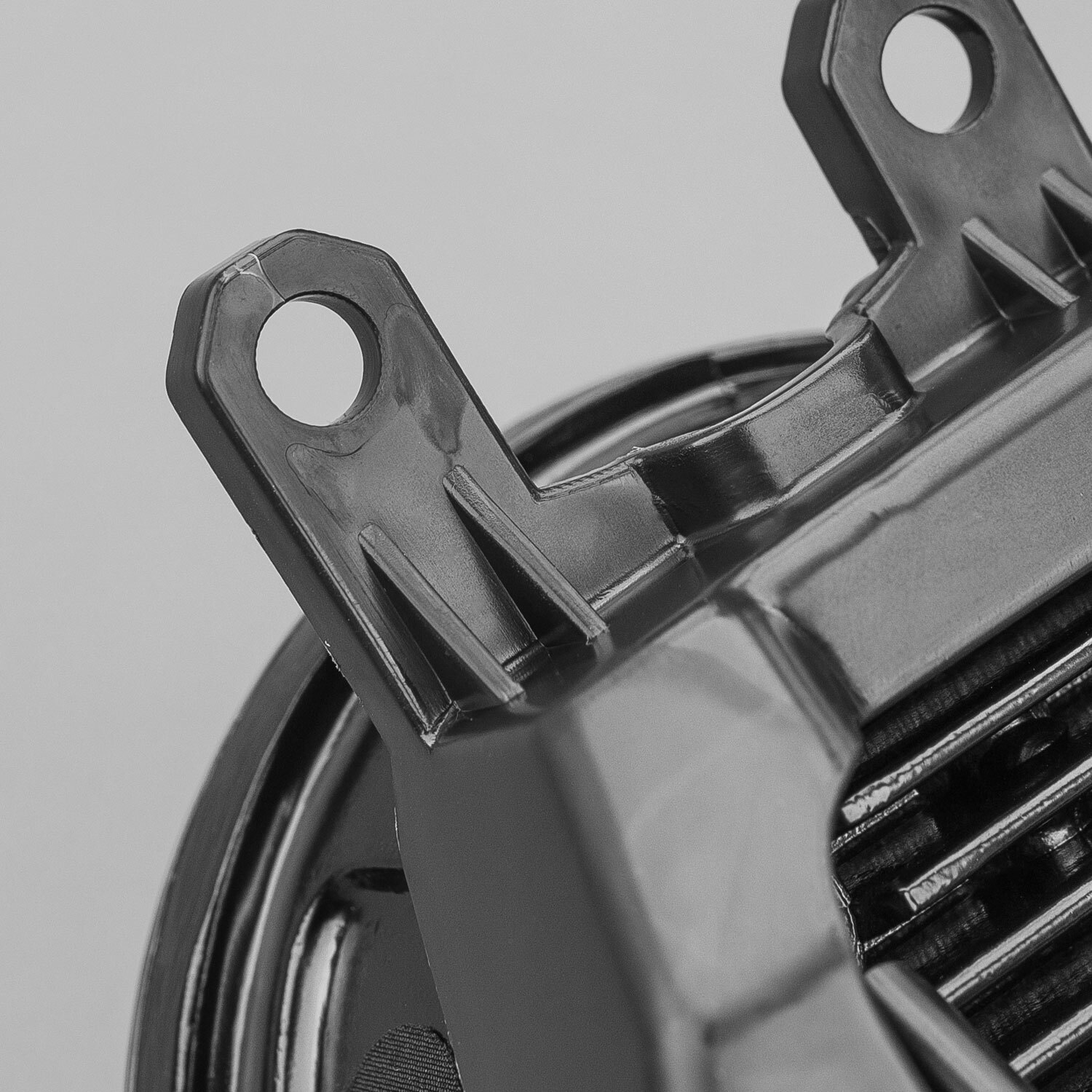

These LED fog lights are a direct fit that uses your factory mounting points in behind the standard front bumper, and some aftermarket bull bars listed below.
The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

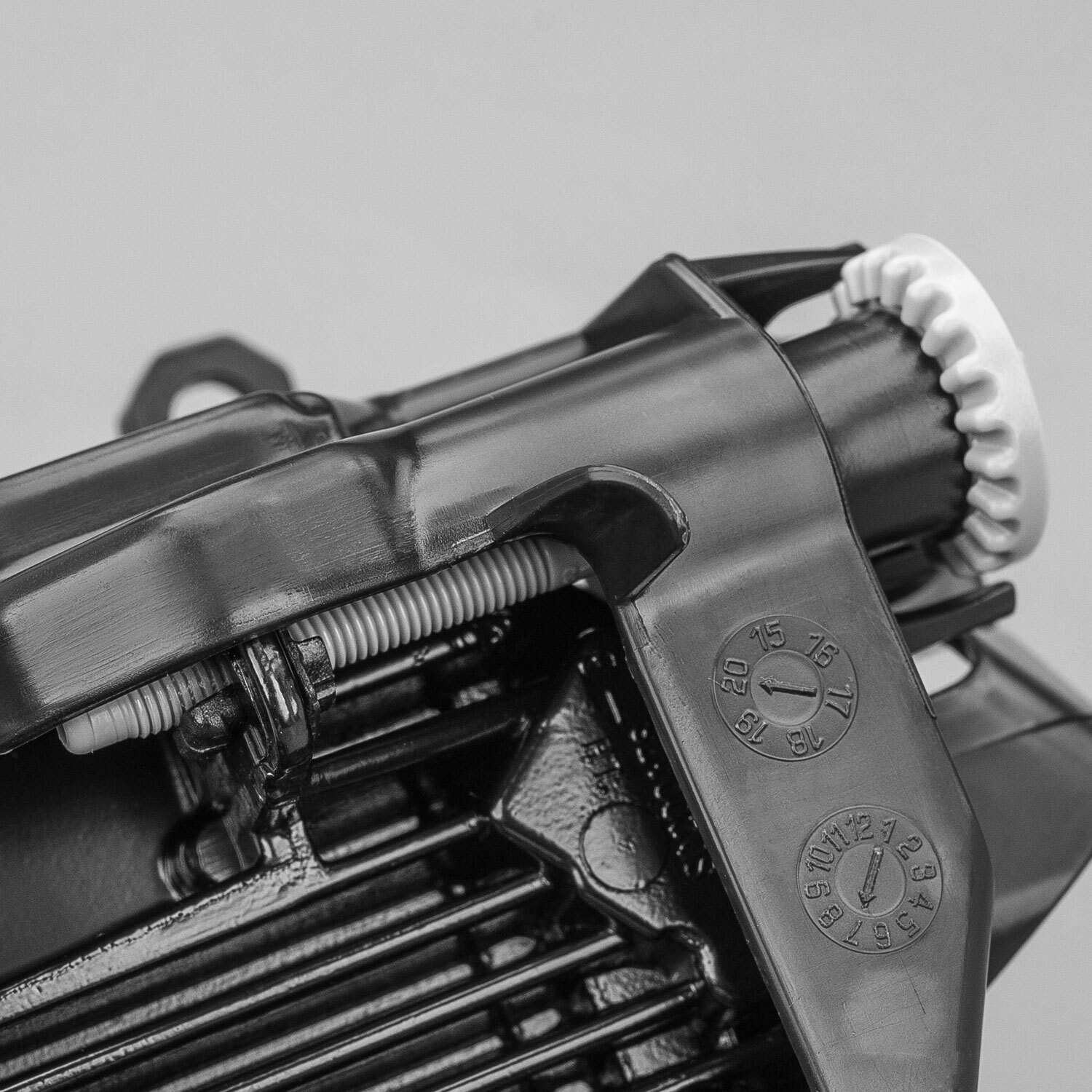

Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.
Please check below for a full list of compatible vehicles.
COMPATIBLE VEHICLES:
LEXUS
- LX570:2008 - 2011
- IS-F:2008 - 2013
- HS250H:2010 - 2012
- RX270 / RX350 / RX450:2010 - 2015
- GS350:2013 - 2015
- LX570:2013 - 2017
TOYOTA
- 4 RUNNER:2014 - 2017
- AURION:2007 - 2017
- AURIS:2007 - 2017
- AVALON:2008 - 2010
- CAMRY:7/2006 - 11/2011
- CAMRY HYBRID:AHV40 2010 - 2011
- COROLLA:3/2007 to 2013
- FORTUNER:2015 - 2017
- HILUX (N80):2016 - 2019
- KLUGER:2007 - 2017
- LANDCRUISER PRADO 150:2009 - 2020
- LANDCRUISER 200 SERIES:2016 - 2020
- PRIUS:2009 - 2015
- PRIUS C:2012 - 2017
- RAV 4:2006 - 2011
- RAV 4:2016 - 2017
- TUNDRA:2013 - 2017
- YARIS:2014 - 2017
PEUGEOT
- 206:1998 - 2005
- 206 SPORT:1998 - 2005
Tech Specs

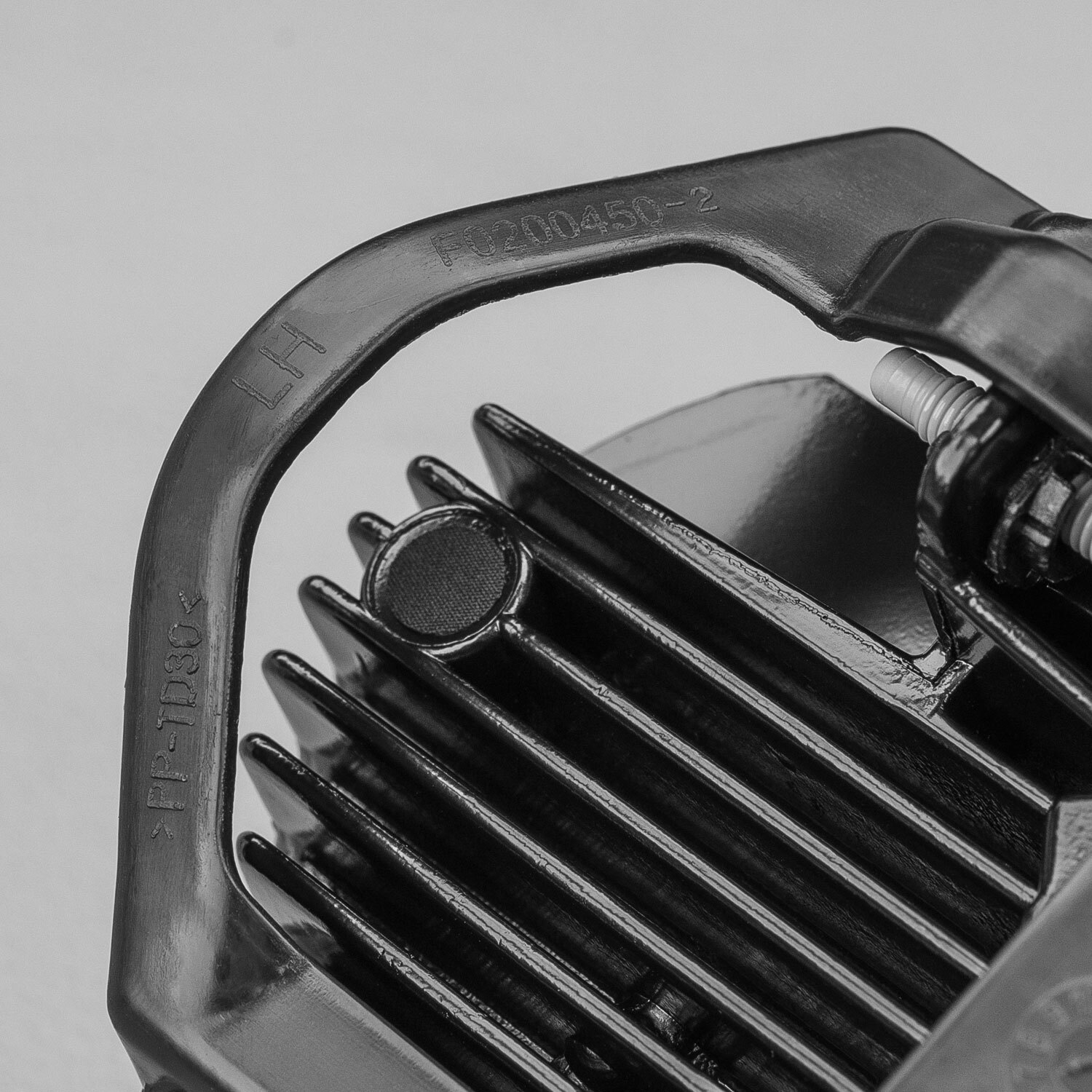

| HOUSING MATERIAL | Alloy Heat Sink |
| LED | High Performance Luxeon T LED |
| LUMEN | 960LM (per light) |
| COMPATIBLE VOLTAGE | 12v and 24v |
| LIFESPAN | 50,000hours |

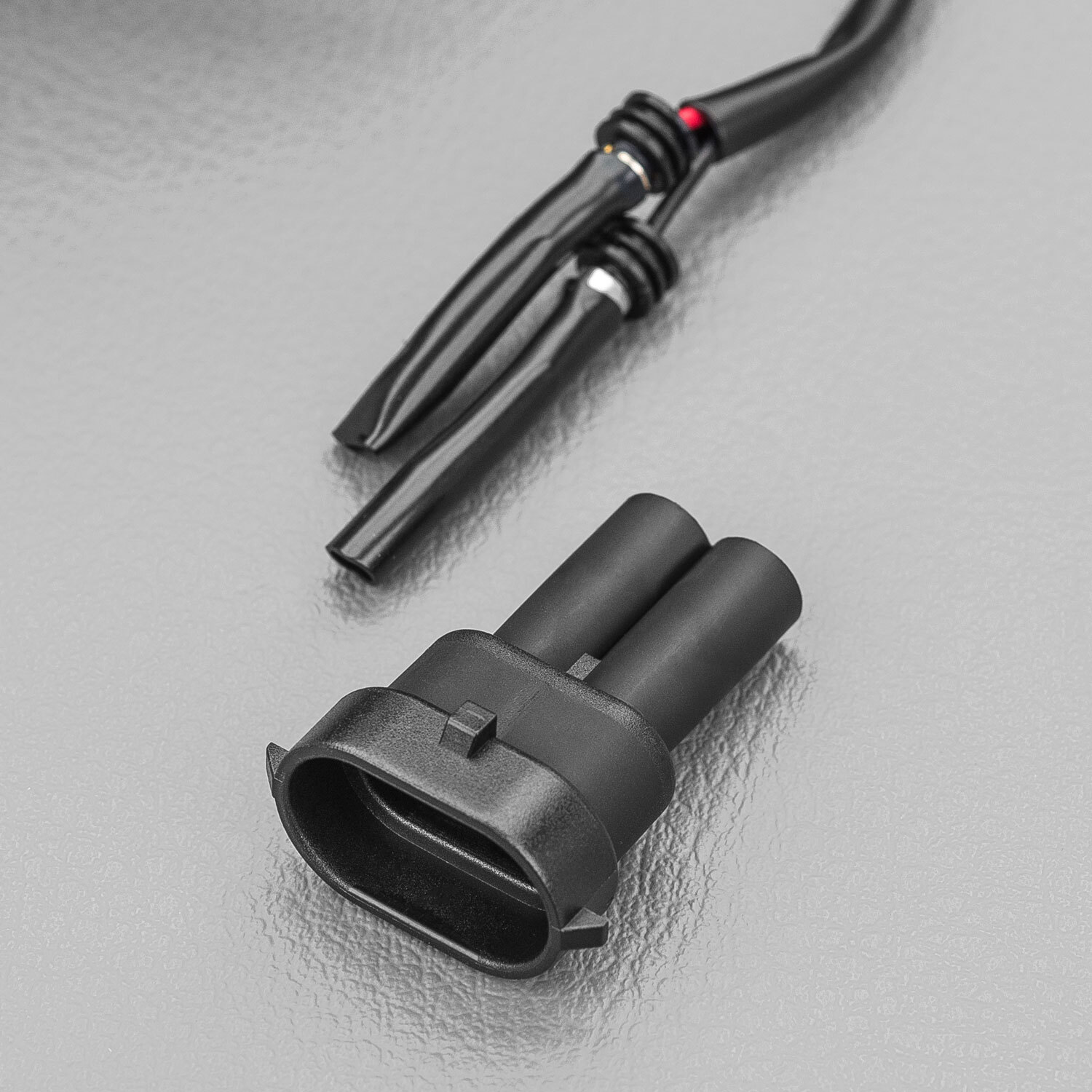

| CONNECTOR TYPE | Sealed |

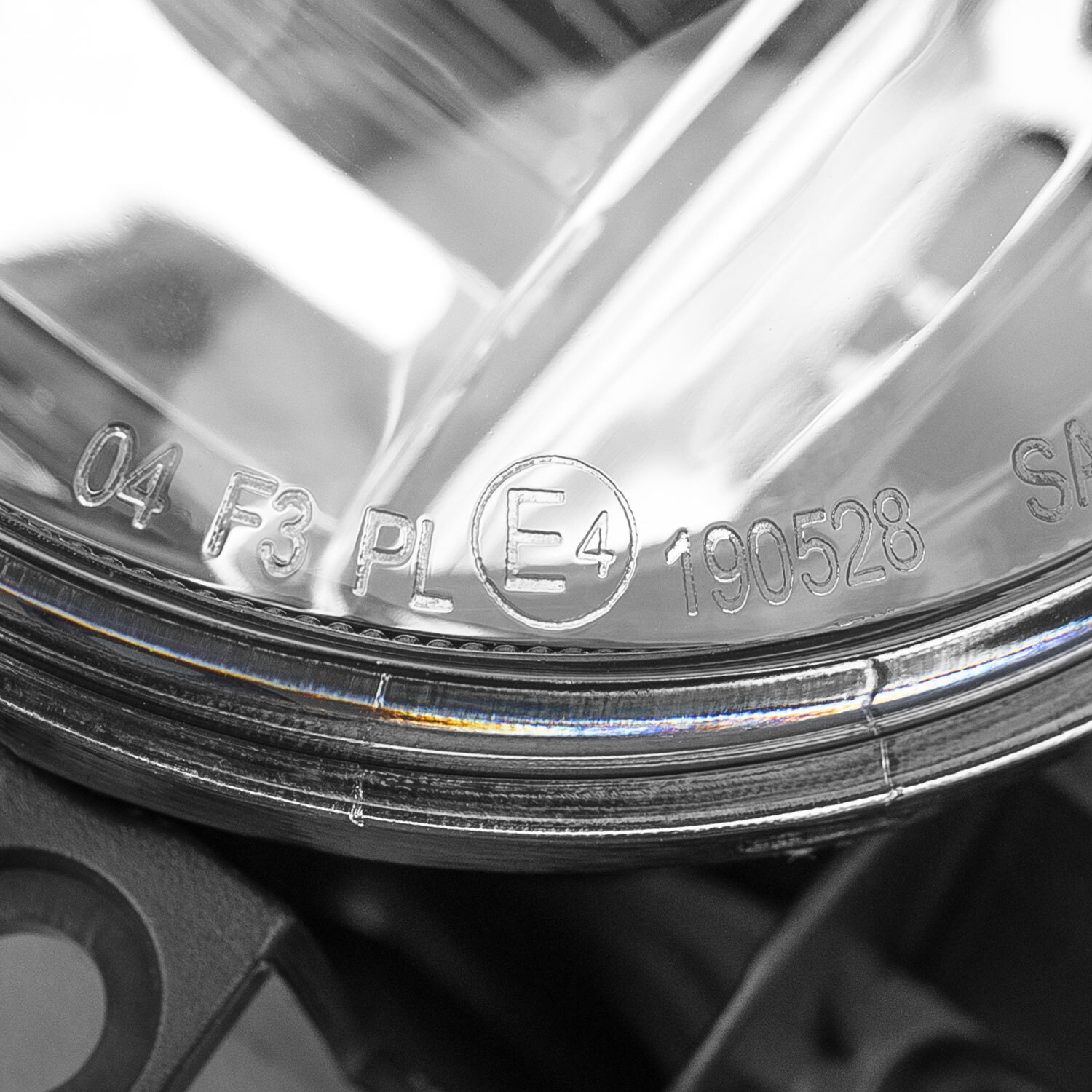

| CERTIFICATION | CE, E4, RoHs, R87, IP67 |
| FOG LIGHT DRAW | 0.5a @ 13.6v |

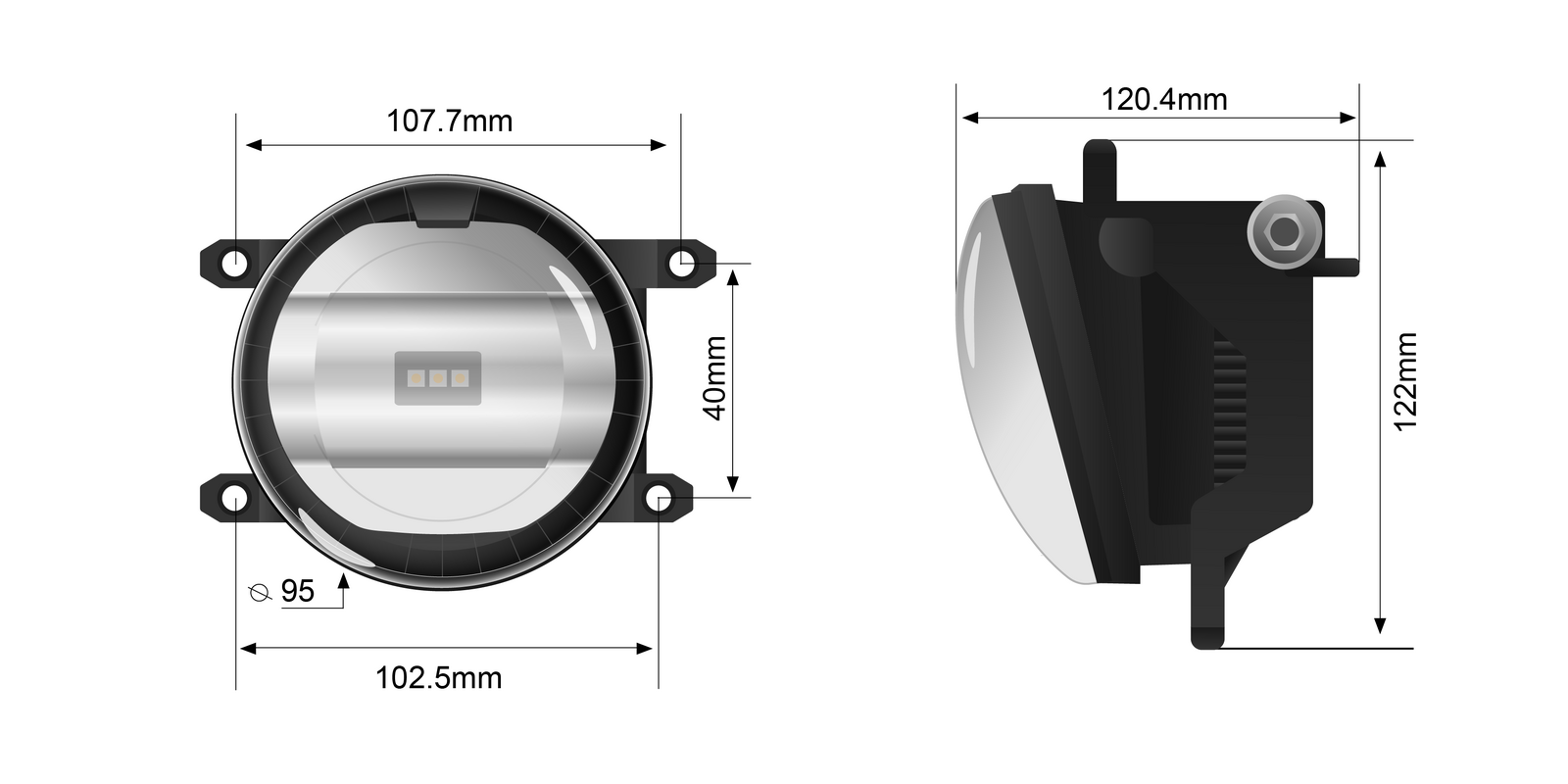

| DIAMETER | 90mm |
OEM PART NO#
R: 81210-0D040 + L: 81220-0D040 / R: 81210-0D041 + L: 81220-0D041
R: 81210-0D042 + L: 81220-0D042 / R: 81210-06052 + L: 81220-06050
R: 35501-57L00 + L: 35502-57L01 / R: 81210-06071 + L: 81220-06071
R: 81025-0W020 + L: 81026-0W020 / R: 81211-12230 + L: 81221-12230
R: 81210-12230 + L: 81220-12230 / R: 81210-0D110 + L: 81220-0D110
R: 81210-02110 + L: 81220-02110
(LEDFOG-ST6046)
| SKU | LEDFOG-ST6046 |
| Barcode # | 935357000-1189-C |
| Brand | Stedi |
