TLR Tub Battery Box - Gen 3 Isuzu D-Max RG 08/2020-On & Mazda BT-50 09/2020-On

This TLR Products Battery Box is to suit a Mazda BT50 TF series, Isuzu D-MAX RG series.

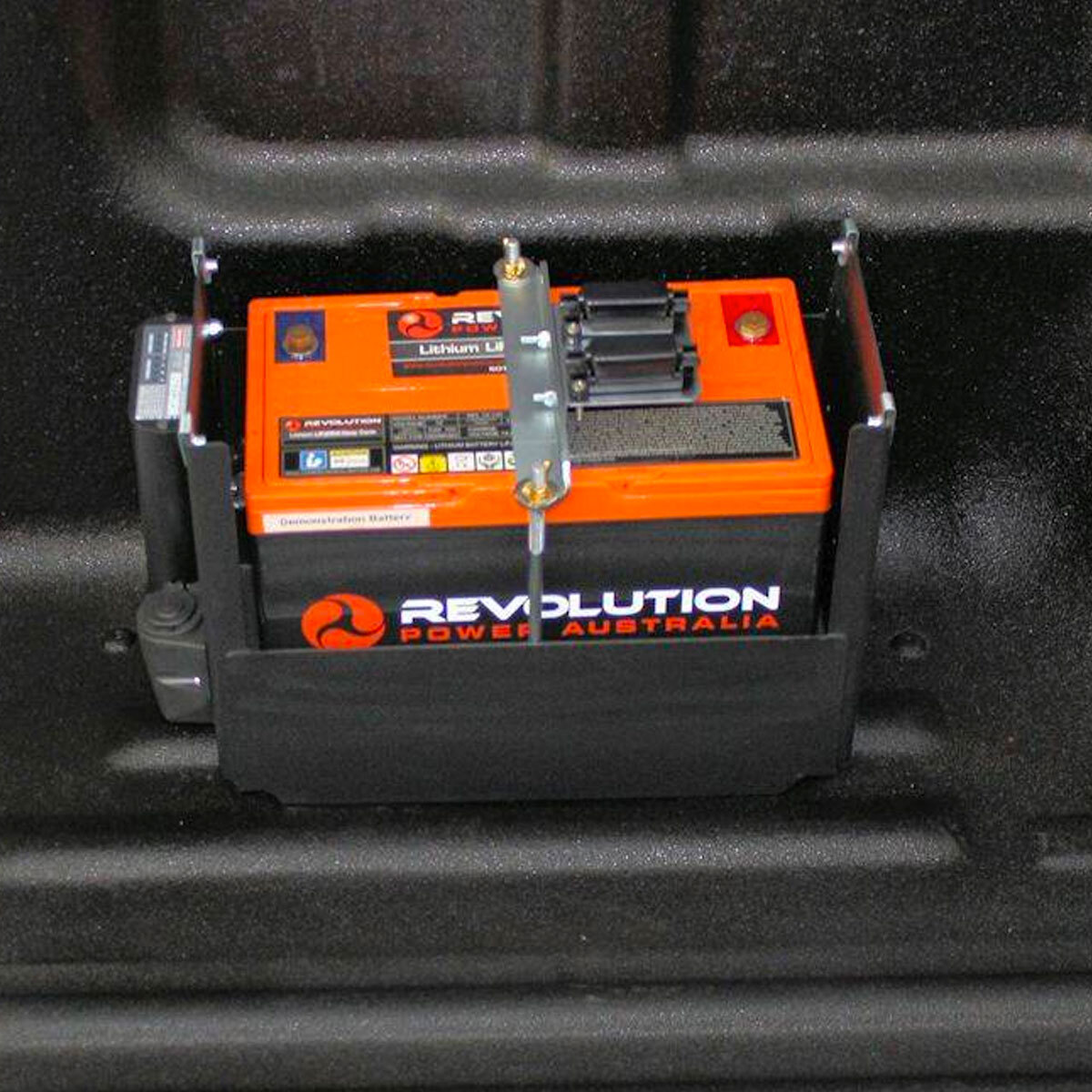

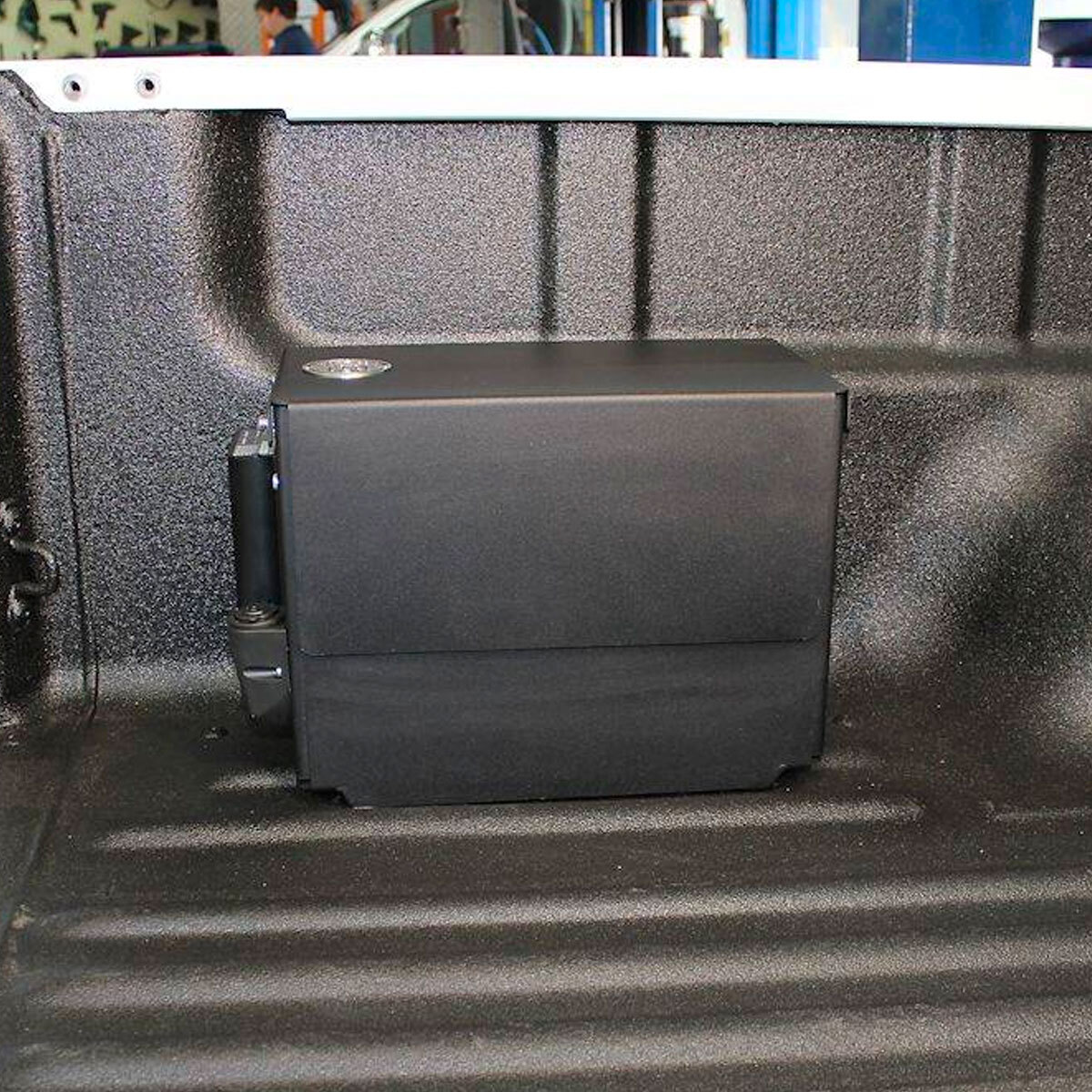

It is designed to mount into the rear left-hand side of the OEM tub (behind the wheel arch) and specifically places mounting holes to ensure the box is mounted to the strongest points EG. Tiedown points, Floor bracing where available in this area.

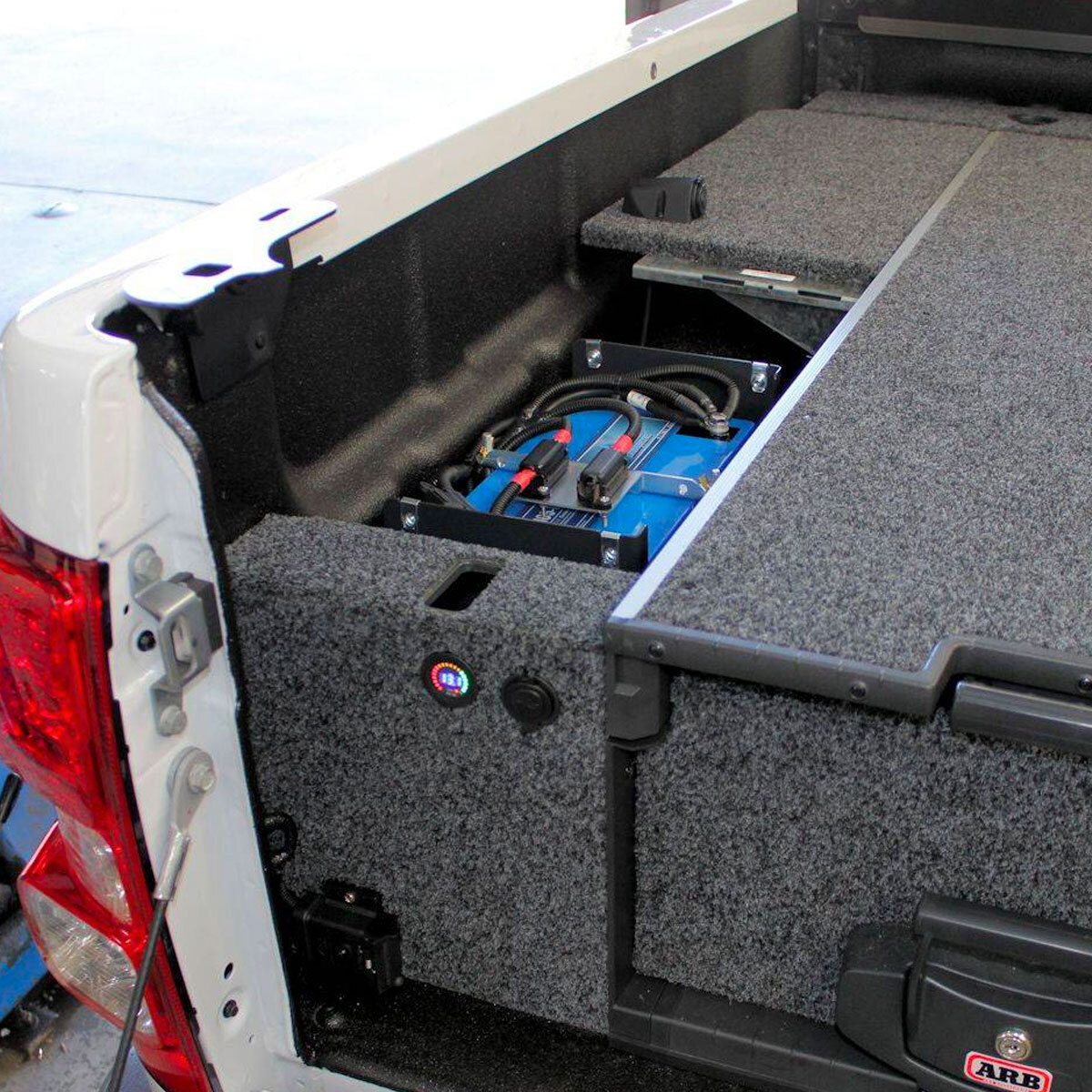

This mounting location also ensures the battery box fits alongside rear drawer’s systems, underneath some wing panels of popular drawers and includes a robust cover panel to help protect the battery from any loose items.

Mounting holes are provided in the battery box to accommodate the REDARC BCDC charger, Midi fuse holders, Anderson plugs and 12v outlets.

Features:

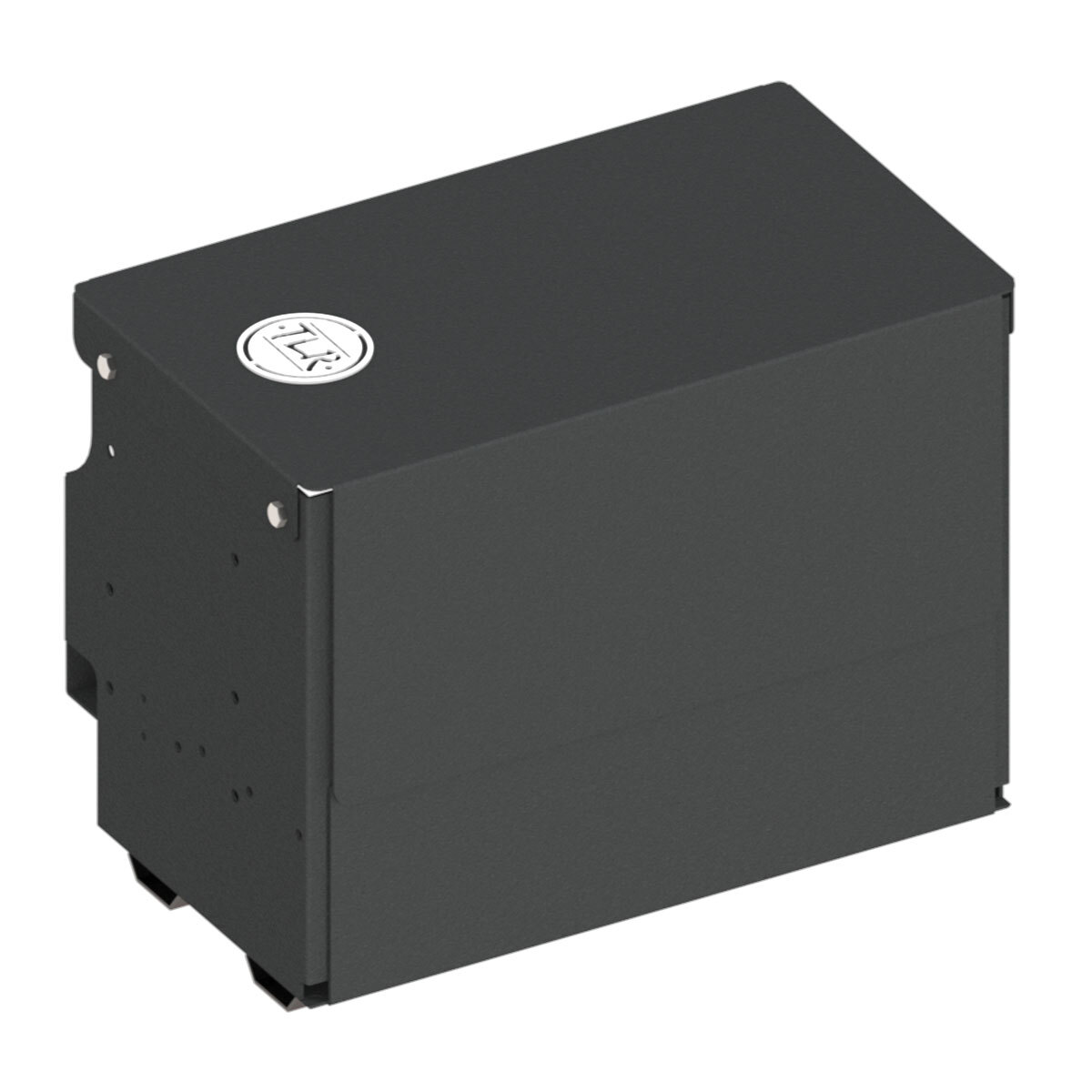

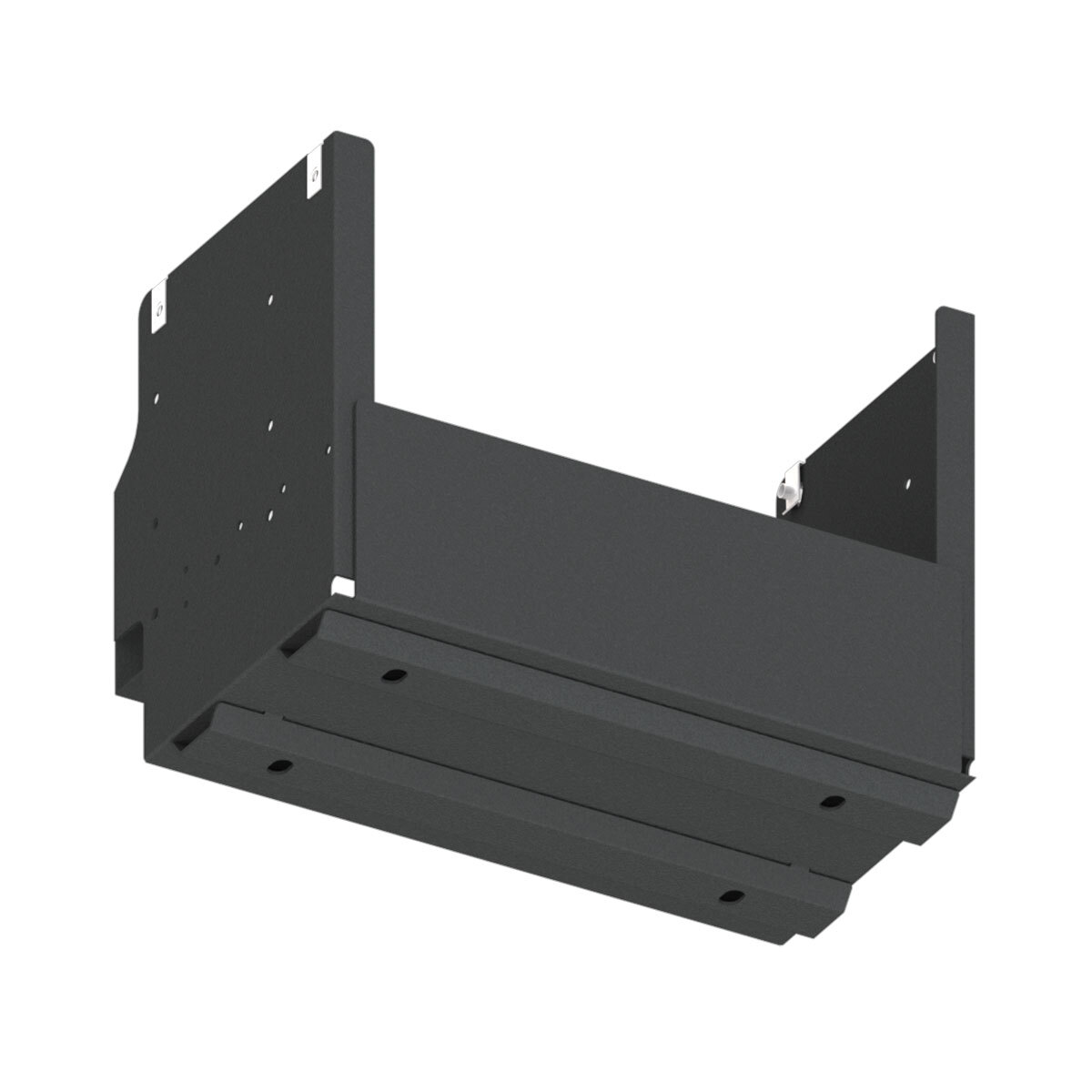

• Manufactured from Zinc coated 2 mm steel with a 1.5 mm cover panel.
• Powder coated in a texture black finish for added corrosion resistance.

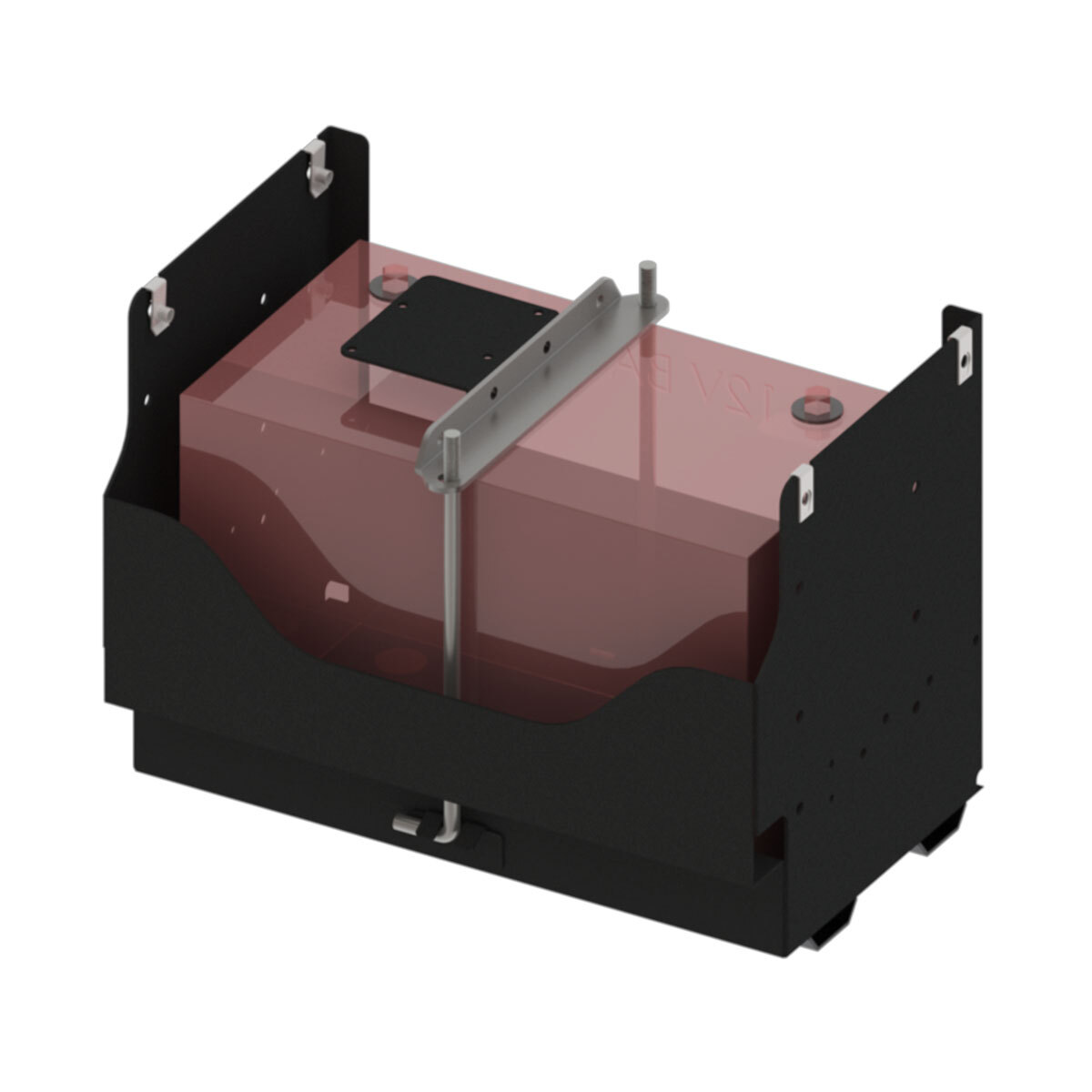

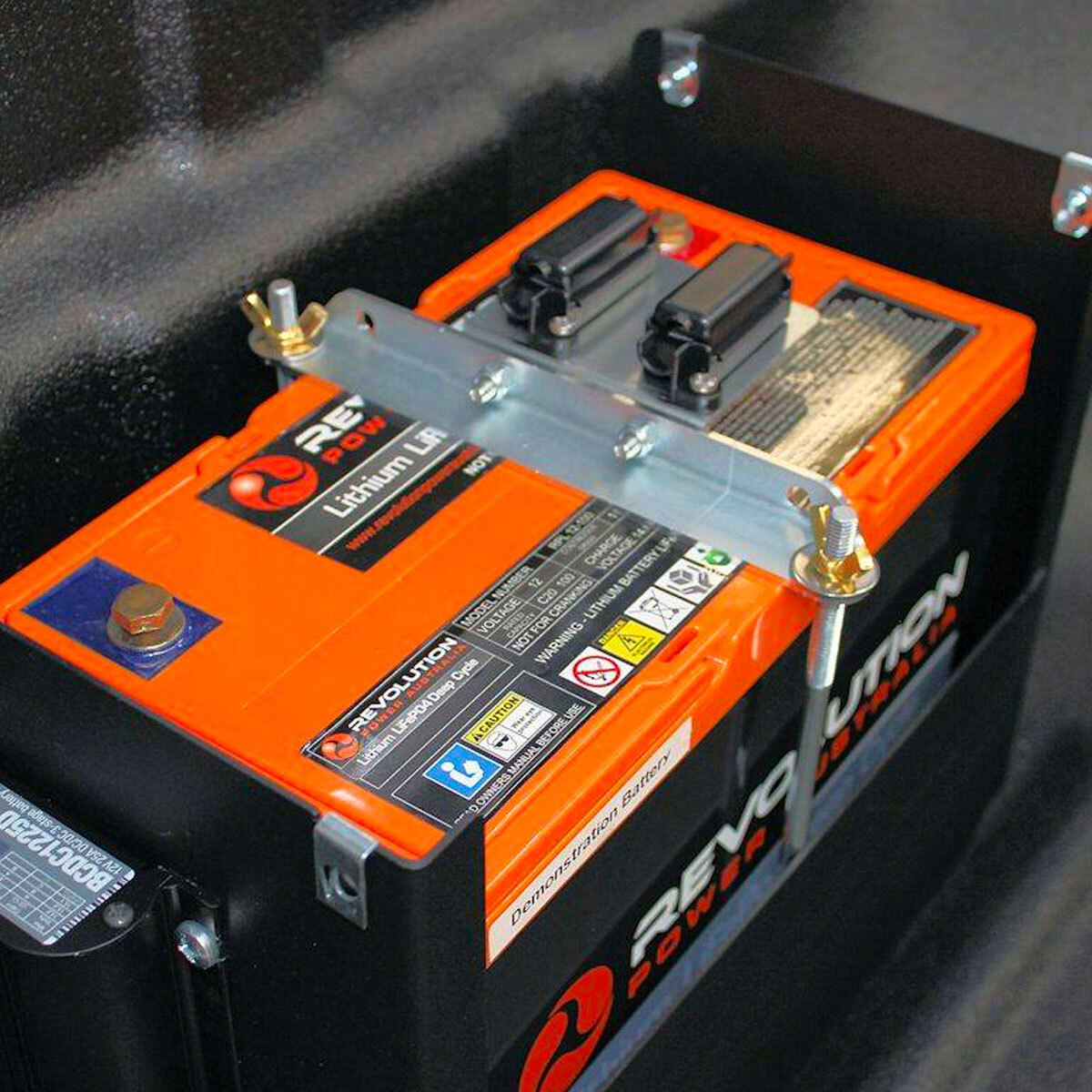

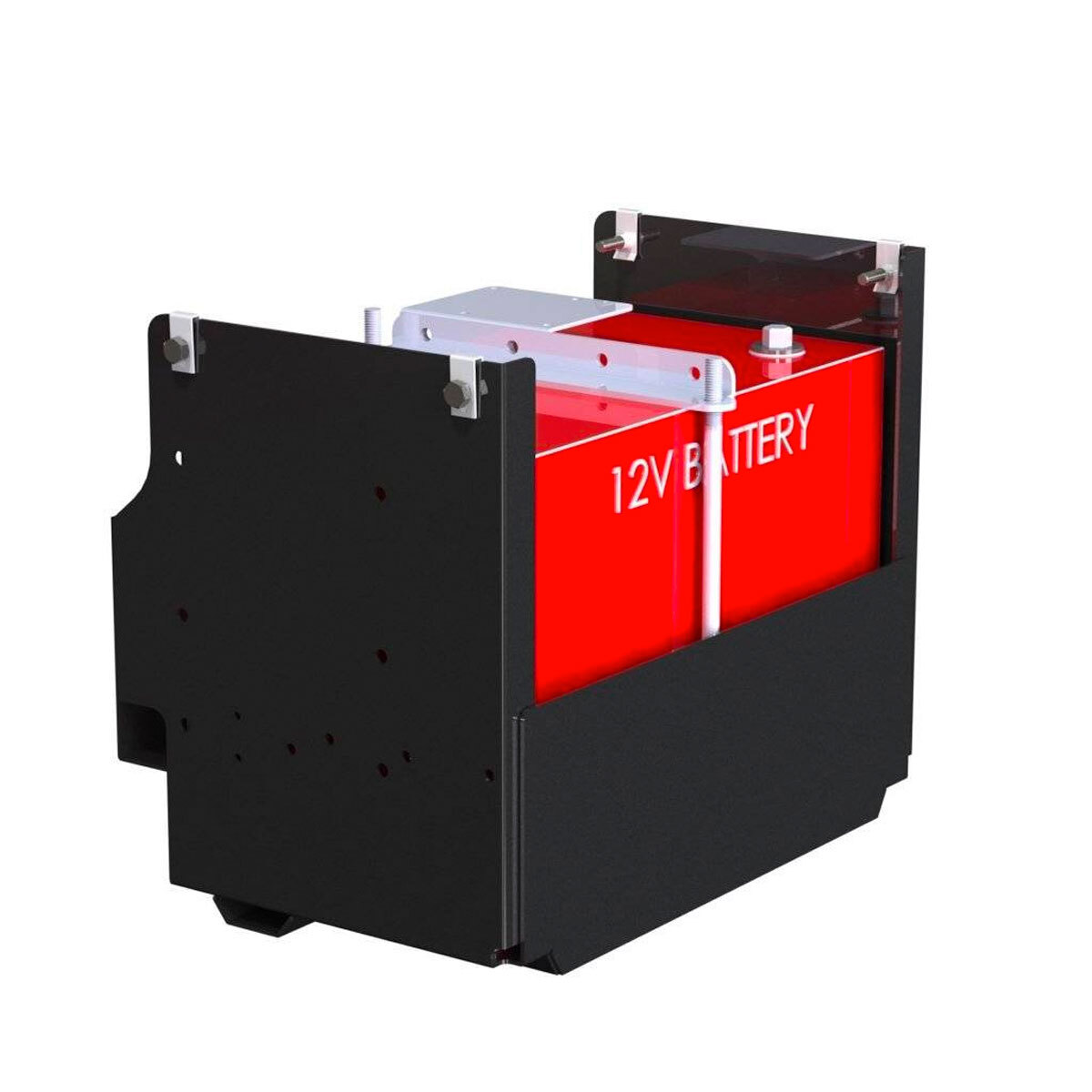

• Accommodates most 120AH batteries.
• Multiple locations for REDARC BCDC, Midi Fuse, Anderson Plugs and 12v power outlets.
• Fits with most of the popular drawer units on the market.

Includes:

• 1 x TLR Products Battery Box
• Fitting kit including all hardware and fasteners required for fitment.

Note:

• Weight:  7.75 kg
• Internal dimensions: 345 x 185 x 255 mm
• External Dimensions: 605 × 205 × 315 mm
• Warranty: 3 years
• Fitting time: 30 mins (additional time required if vehicle has plastic tub liner installed)
• Plastic UTE Liner will need to be modified to suit
• Battery and accessories are not included.
