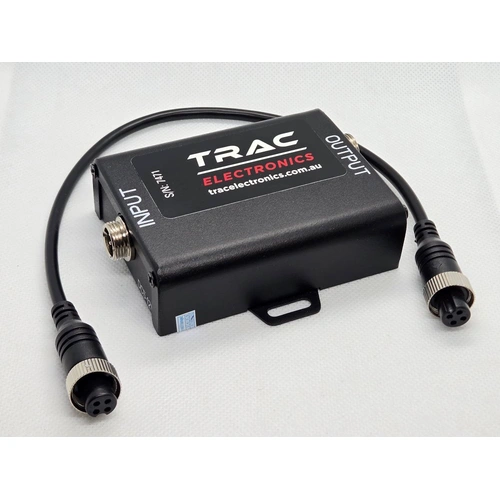

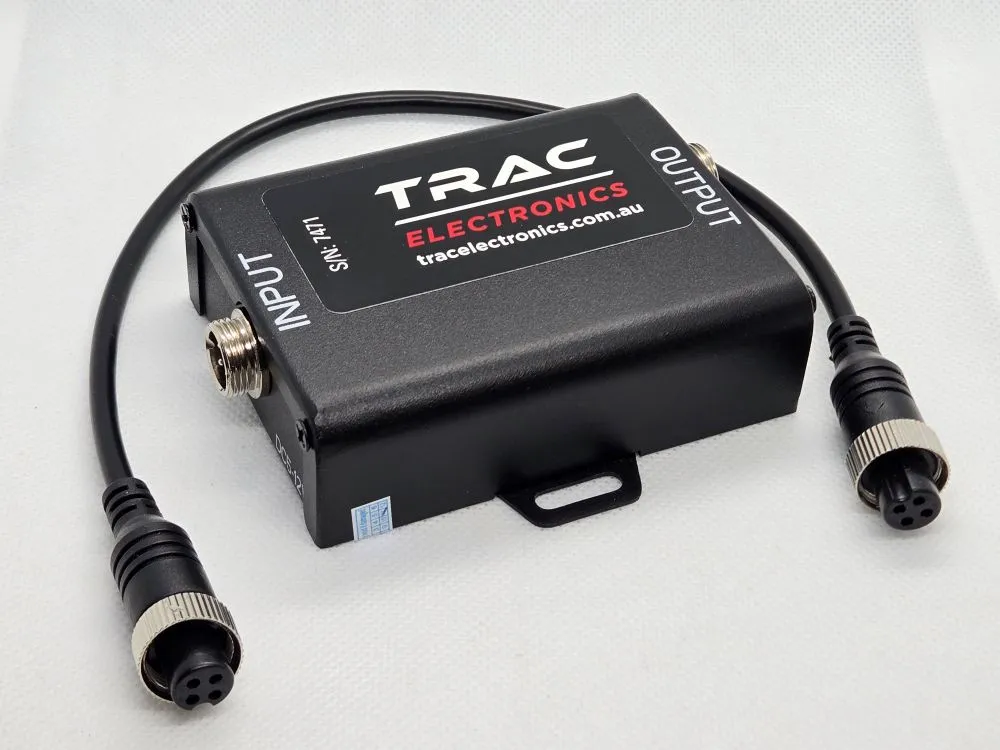

Trac Electronics - AHD to CVBS Systems Converter

This AHD to CVBS systems converter will allow the use of most AHD high definition cameras to be used with our Camera Integration System to be viewed on the factory standard definition screen.

Description:
This simply connects inline between the M12 cabling and our AT2-4PIN camera integration system, so no additional wiring is required as it draws power from our Camera Integration System.

• Connect M12 four pin female connector (from camera) to INPUT connect of systems converter
• Connect the supplied short female adaptor lead to OUTPUT of systems converter
• Connect the other end of the short female adaptor lean to the male M12 four pin connector of camera integration harness.

Features:

• Converts AHD video to standard definition NTSC video
• M12 female to female patch cable included
• Powered by existing 12v M12 four pin connector.

NOTE: AT2-4PINAV can be used however the audio function will be disabled.
