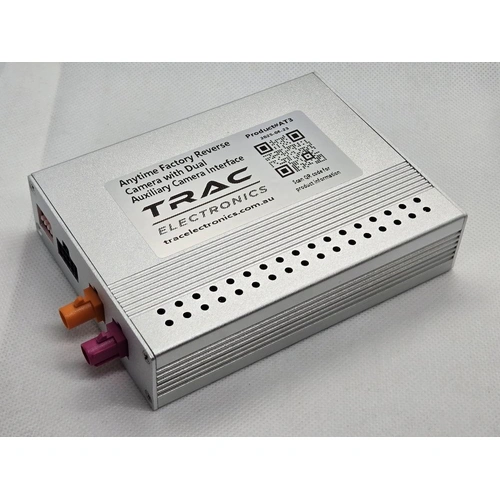

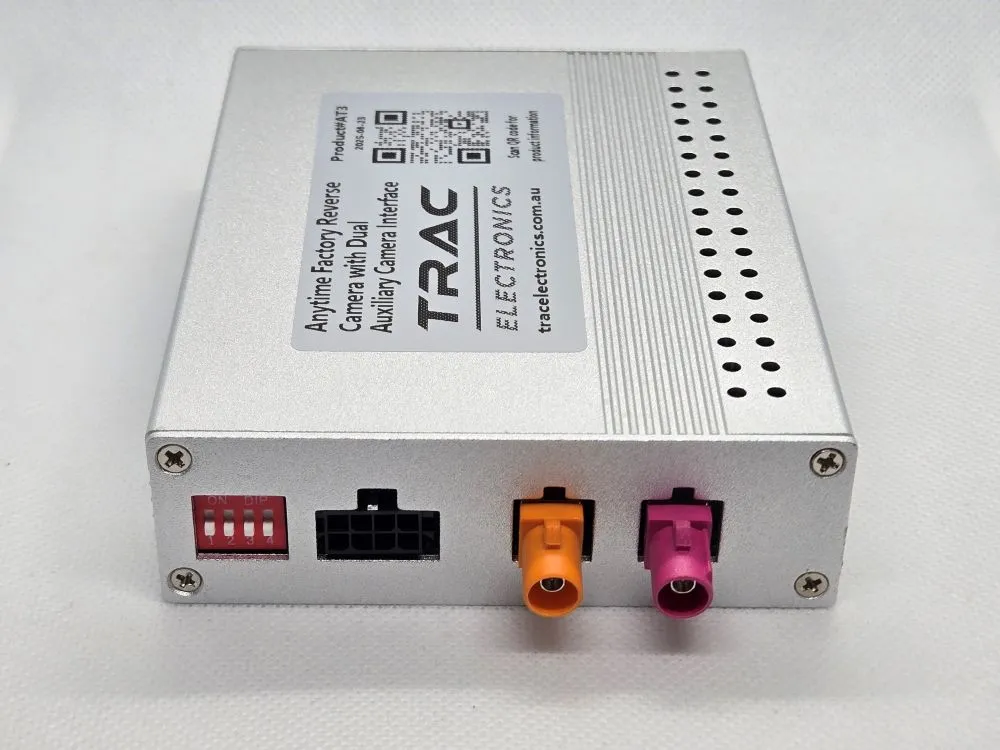

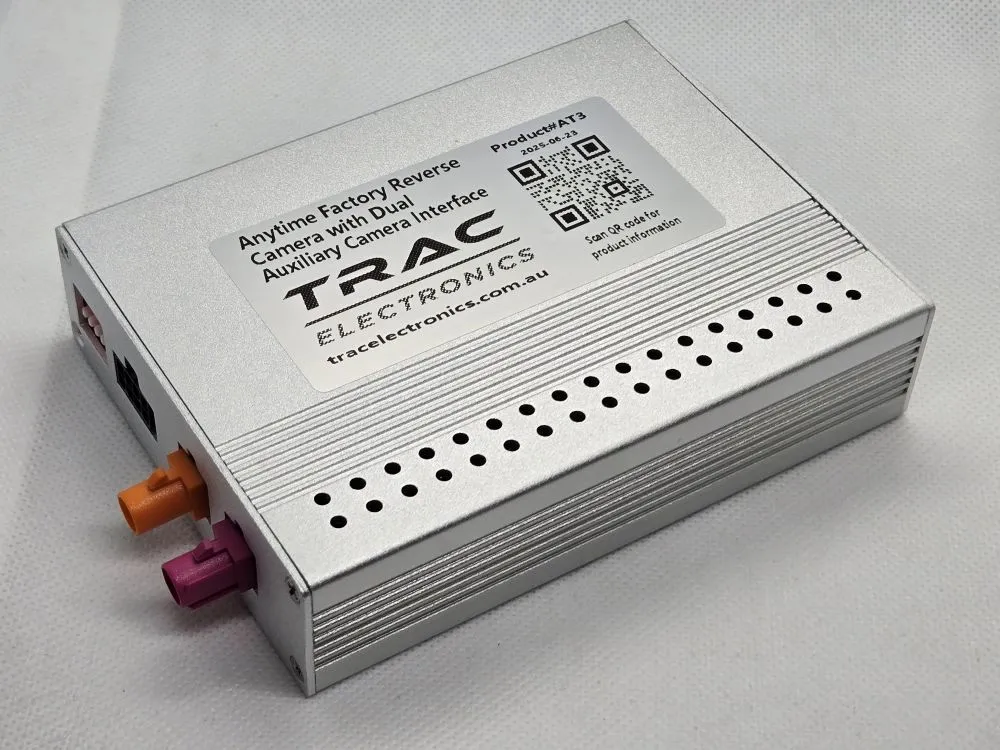

Trac Electronics Camera Integration System for Facelift Isuzu D-Max & Mazda BT-50

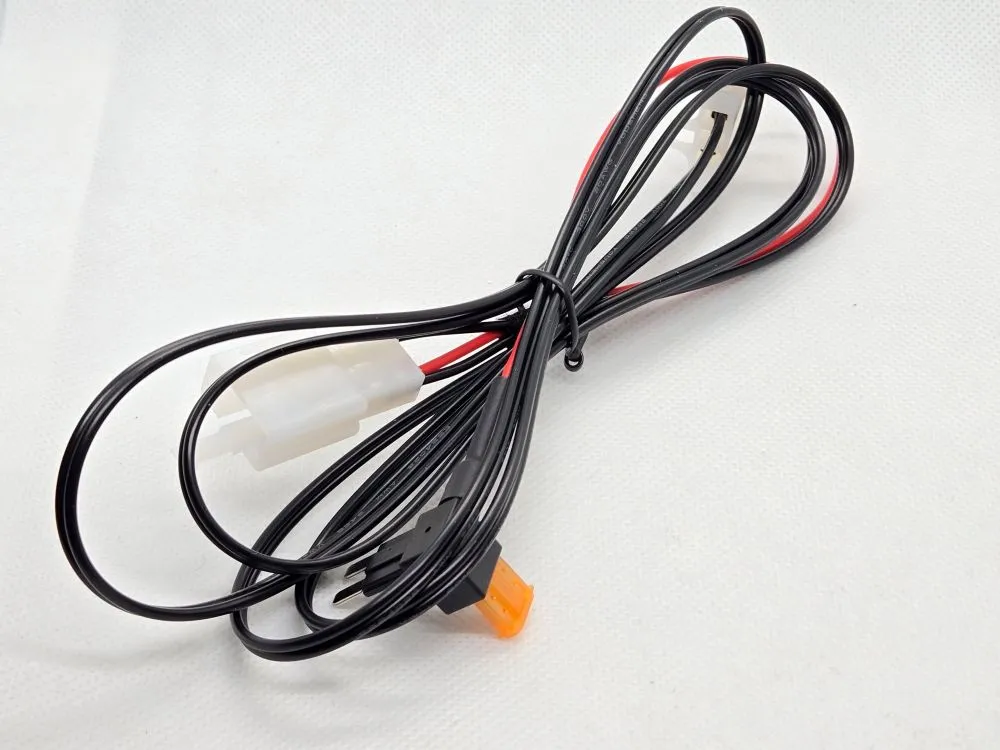

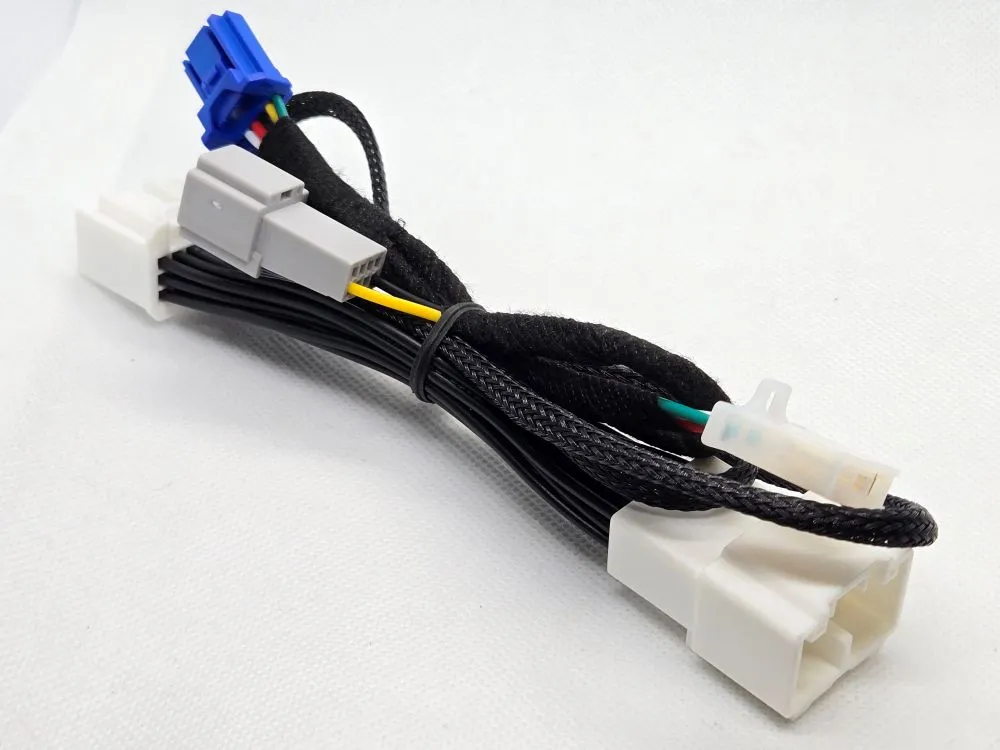

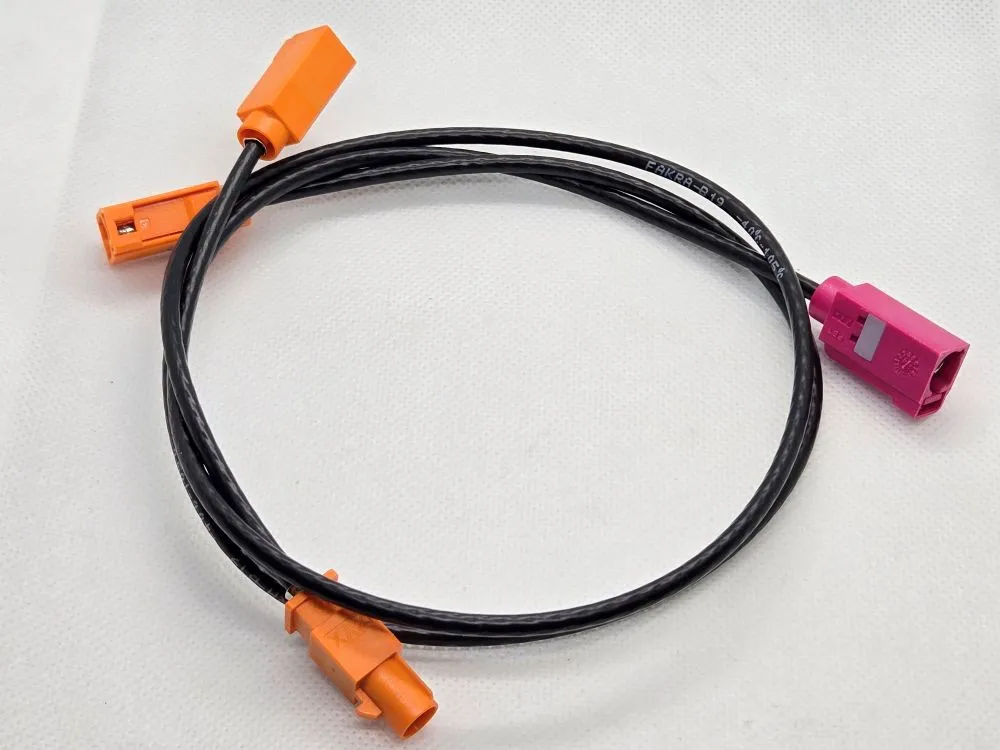

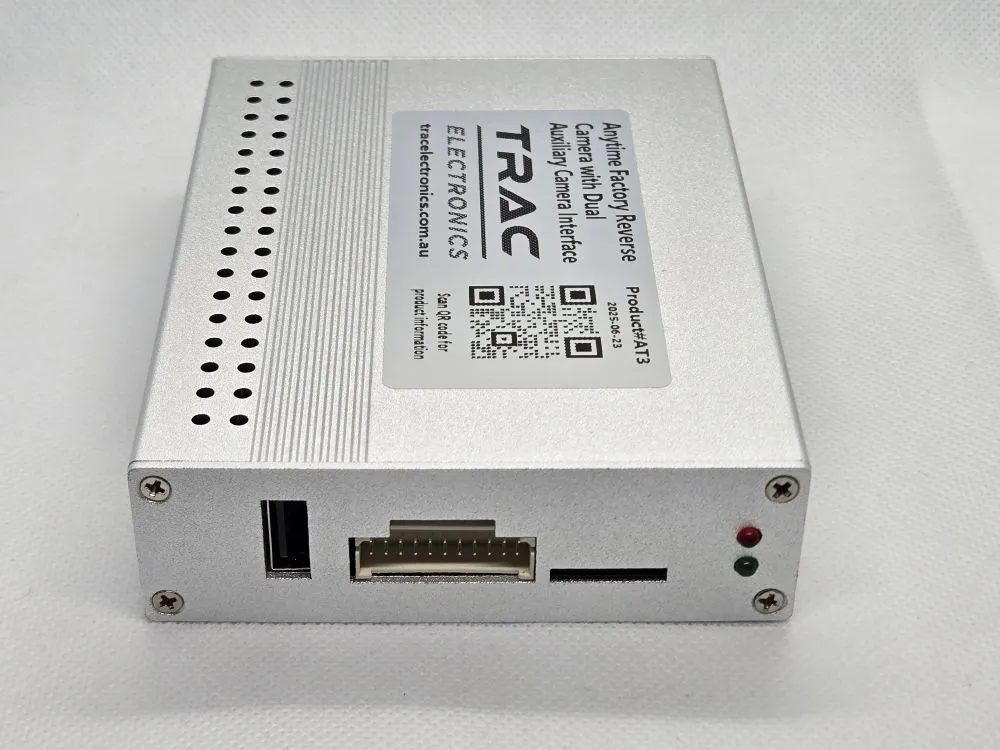

This camera integration system provides simple plug & play connection to the facelift MY24 (and onward) Isuzu D-Max and MY25 Mazda BT-50 factory head units that have the tuning and volume knobs on the front face. The supplied wiring harnesses are fully terminated so no cutting or splicing of factory wiring is required.

The system displays the factory reverse camera and two auxiliary cameras on the existing head unit, controlled via a supplied factory-styled dual function dash switch that fits into an existing switch location on the upper right-hand side of the dash. Auxiliary cameras are not included.

Features

• Fully plug & play installation with no modification to factory wiring required

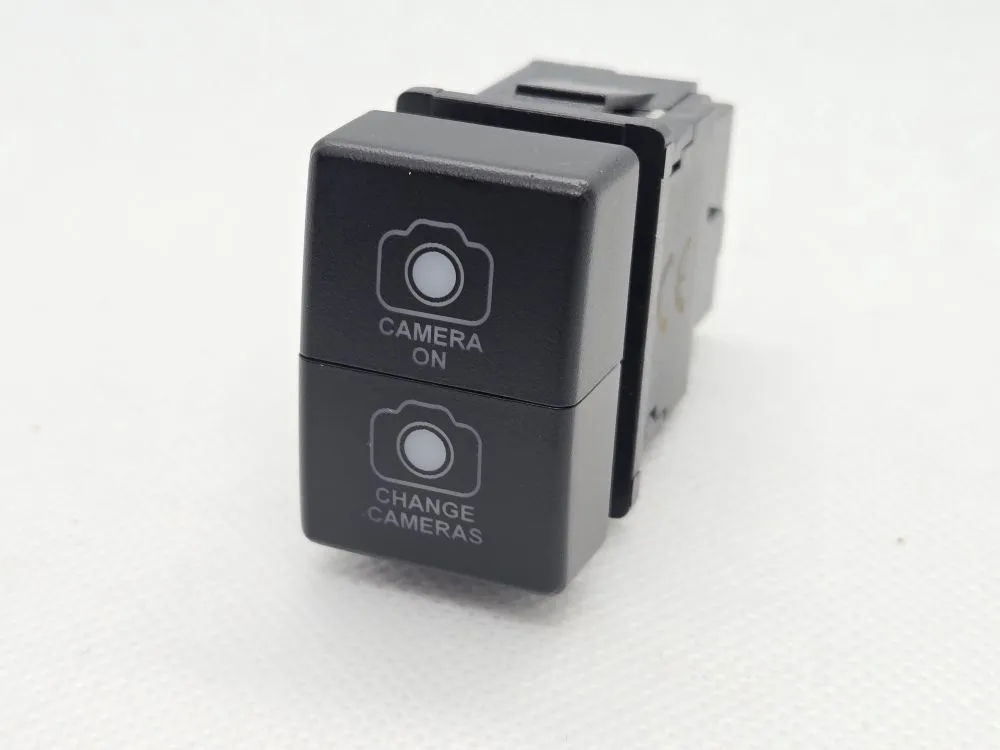

• Factory-styled dual function switch for seamless dash integration
• Display factory reverse camera in any gear when switch is on
• User-selectable camera selection: hold or tap the bottom switch to toggle auxiliary cameras
• Navigation, radio, Bluetooth, Android Auto & Apple CarPlay audio remains uninterrupted when the switch is on
• Factory head unit removal is not required
• Supports auxiliary cameras in 480P, 720P or 1080P (standard or high definition) and PAL or NTSC

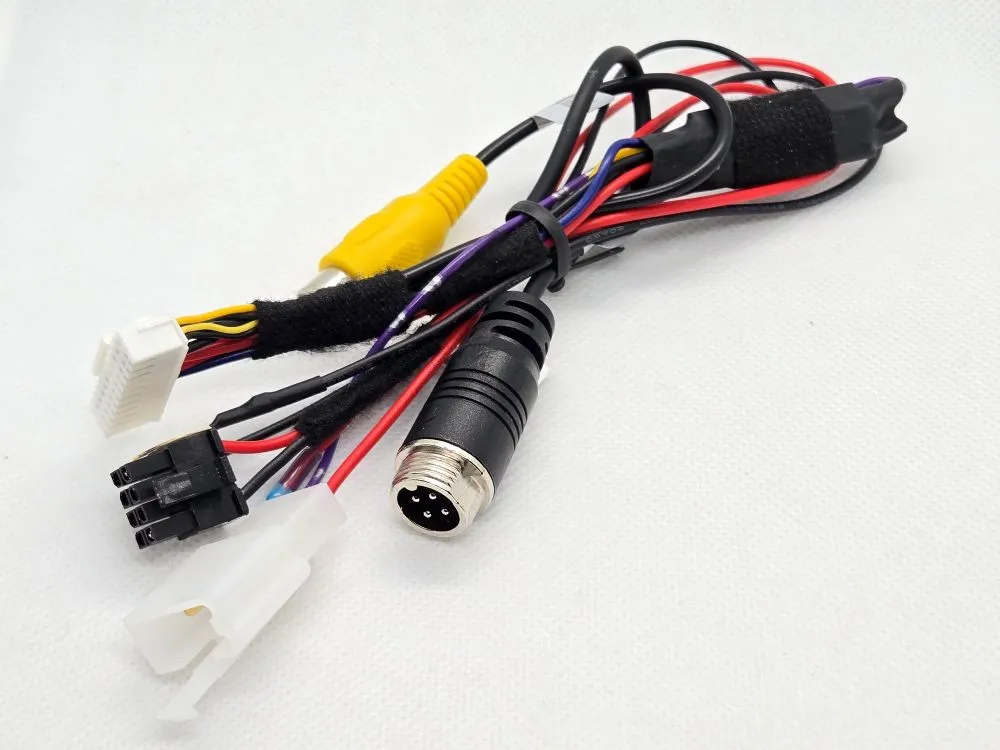

• Two camera inputs: one M12 4-pin connector and one RCA female connector with positive and negative connections (an adaptor is required if two M12 connectors are needed)
• Start up time approximately 3.5 seconds from ignition on; switching between cameras may show a black screen for about one second while formats are processed
• Installation instructions provided via QR code on the packaging and on the interface module
• Tools required: optional trim tool and M10 ring spanner or similar

Specifications

• Weight: 0.550 kg
• Model compatibility: D-Max and BT-50 head units as described above

NOTE: The updated facelift MU-X (MY25) with the volume and tune knobs on the front face of the head unit are NOT currently supported with this system.
