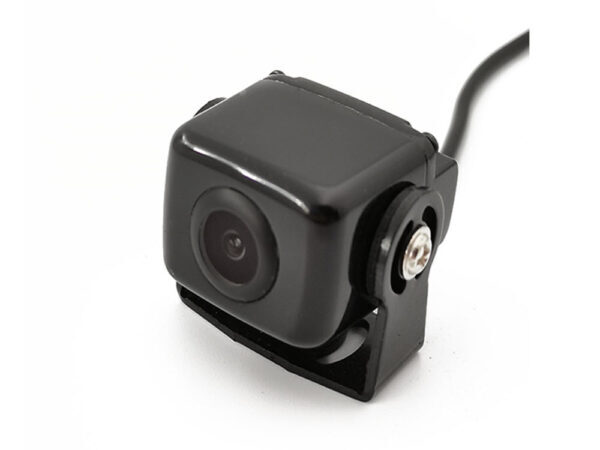

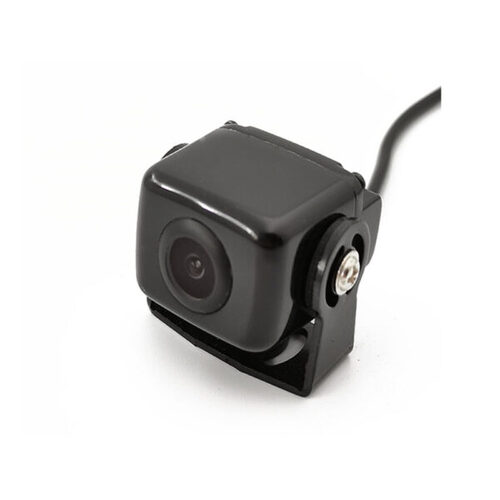

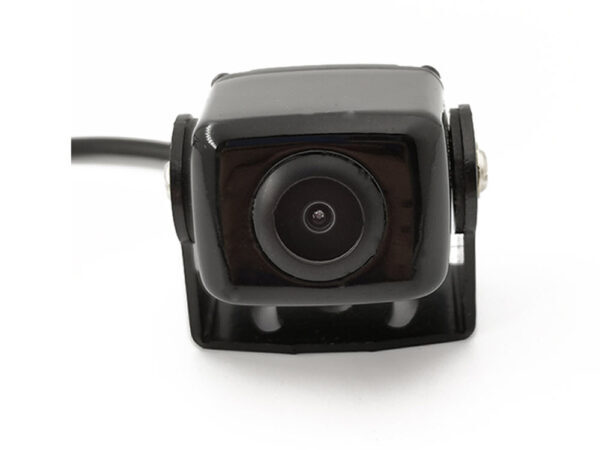

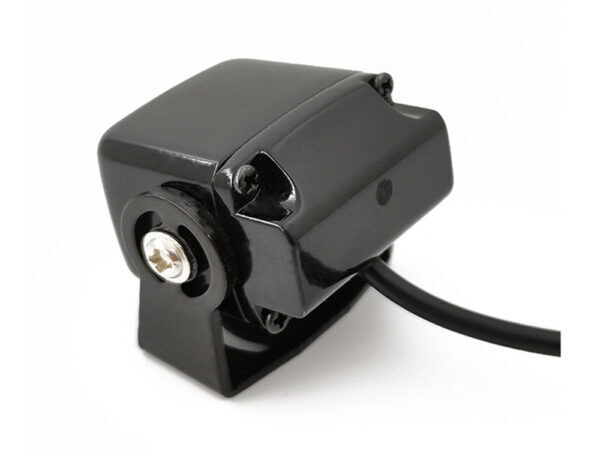

Trac Electronics - Reverse Facing Auxiliary Camera - 170°
WAS $77.00
RRP $77.00
NOW $69.30
SAVE 10%!
Sale Ends in
23:59 pm, 16 September 2025
In Stock
With a large 1/3 inch colour SONY® CCD sensor providing sharper and higher detail in all light conditions, than standard 1/4 inch colour CMOS sensor cameras.
Features
- Ultra low light capability
- High resolution
- SONY® CCD image quality
- IP68 fully encapsulated electronics
- Reverse mountable (no guide line option)
- Wide horizontal viewing angel of 170°
- Fully regulated power supply
- Housing construction die cast zinc alloy (black powder coated)
- Steel adjustable bracket.
- Input voltage is fully regulated to ensure a stable video signal across different input voltages.
Compact heavy duty auxiliary reverse camera is suitable for mounting horizontally (under tray). Mounting vertically prohibits angle adjustment.
SPECIFICATIONS
| Sensor | 1/3 inch colour SONY® CCD | ||
| Signal | CVBS | ||
| TV System | NTSC | ||
| Resolution | 800 TV lines | ||
| Effective pixels | 1280 (h) x 960 (v) | ||
| Viewing angle - diagonal | 170° | ||
| Viewing angle - horizontal | 170° | ||
| Waterproof rating | IP68 (to 1mtr for 30min) | ||
| Lens optics | Glass | ||
| Operating temperature | -30°C - +85°C | ||
| Video output: | 1.0vp-p,750hm | ||
| White balance | Auto | ||
| Automatic gain control (AGC) | Auto | ||
| Rated voltage | 12V DC | ||
| Operating voltage range | 6-24V DC | ||
| Power consumption | 0.3 Watt | ||
| Current | 25mA | ||
| Camera connector | M12 four pin | ||
| Camera input cable length | 600mm | ||
| Housing construction | Die cast zinc alloy | ||
| Dimensions (camera body) | 27mm (w) x 21mm (h) x 32mm (d) | ||
| Dimensions (steel bracket) | 35mm (w) x 22mm (d) | ||
| Weight including bracket and cable | 115 grams |
M12 Connector pin functions
- Pin 1 – 12v positive
- Pin 2 – Negative
- Pin 3 – Not used
- Pin 4 – Video signal
Camera selectable functions - None Fixed reverse facing only non changeable, no guide line option Contents
- Camera (600mm cable)
- Silicon sleeve (pre fitted to cable covers joined connections)
- Camera bracket
- Fixing screws x2
Warranty
- One Year
(TRAC-CCD170HD)
| SKU | TRAC-CCD170HD |
| Model # | CCD170HD |
| Brand | Trac Electronics |
| Shipping Weight | 0.1150kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.030m |
| Shipping Length | 0.120m |
