Trac Idle Stop Eliminator kit with integrated Traction Control Switch - Isuzu D-Max RG 05/2024-On Facelifted Moseld

Once fitted, every time you start the vehicle within a few seconds the control module within the switch harness will automatically deactivate the factory Idle Stop System (ISS) function, there is no requirement to press the switch every time the ignition is turned on.

Should you need to revert back to the idle stop system function, once the engine is operating to temporary turn the idle off system back on, simply press the idle on switch and the function will be reinstated until the vehicle is restarted.

The traction control switch functions in exactly the same way as the factory switch did.

Description

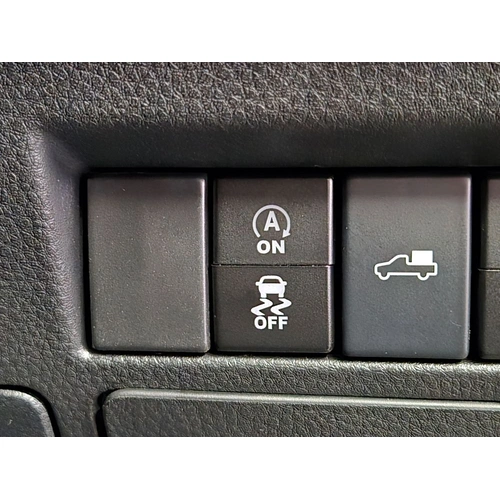

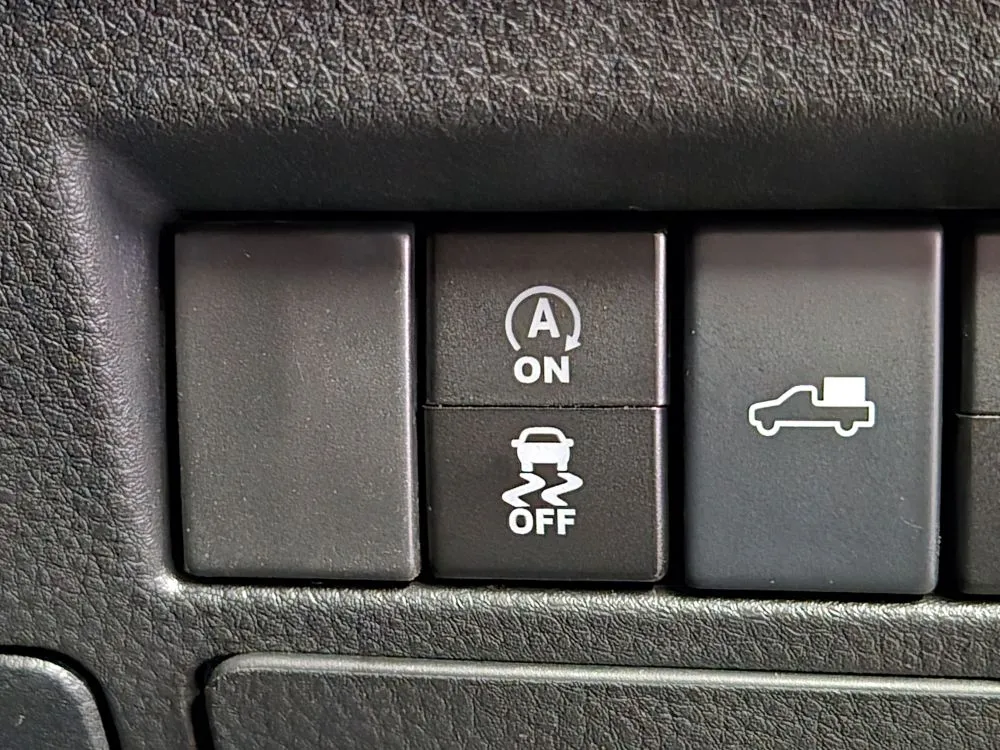

Idle Off (On) and Traction Control (Off) dual switch

Suitable for the facelift D-Max models fitted with Idle Stop System (ISS)

Low on switch locations, this dual switch combines the Idle Stop off module and traction control off function into a single switch location.

Replaces the two separate factory switches with one dual function switch that is a direct replacement, no changes or modifications to the factory wiring required.

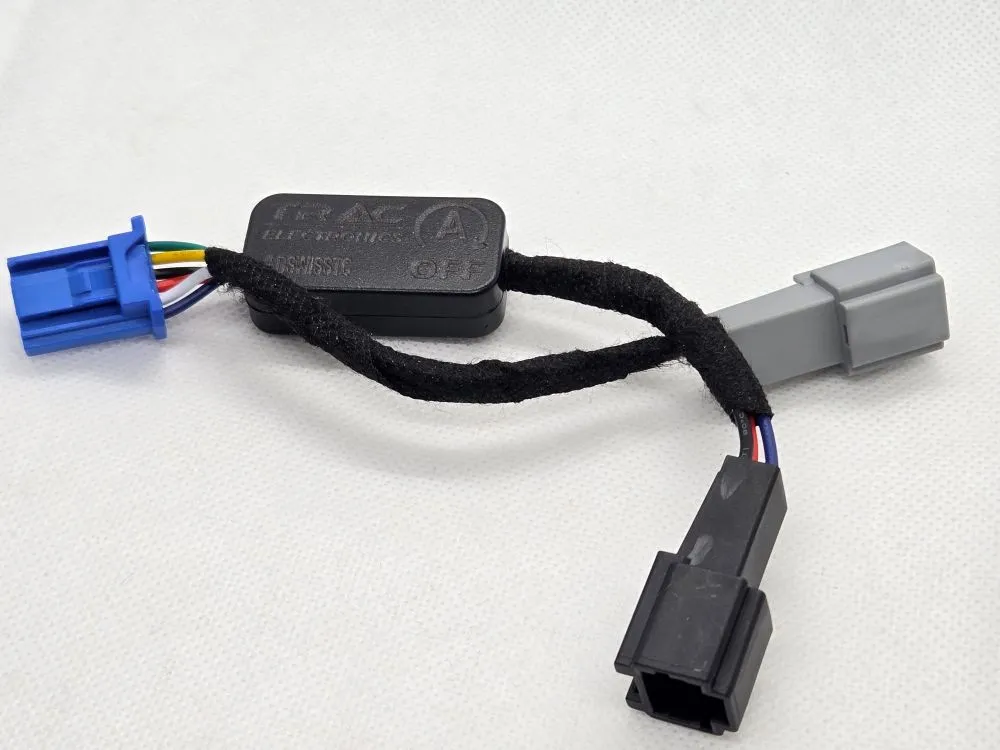

Simply unplug the factory connectors remove the two factory switches and connect the supplied harness to the existing factory connectors and fit the dual switch.

Features:

• Plug and play installation
• No changes to factory wiring required
• All factory functions are maintained (does not permanently turn off ISS it can be reactivated at any time the ignition is on by simply pressing the switch)
• Dedicated connectors preventing incorrect installation
• LED illumination – white (fully dimmable via the factory dash dimmer switch)

NOTE: Once the vehicle has been turned off (for at least fifteen seconds) and back on the auto idle stop system (ISS) will always default to off.

Installation:

• Remove the coin tray then reach up behind the Idle Off switch and Traction Control switch to disconnect the factory connectors, then simply fit to the supplied patch harness between the factory wiring and new dual function switch.
