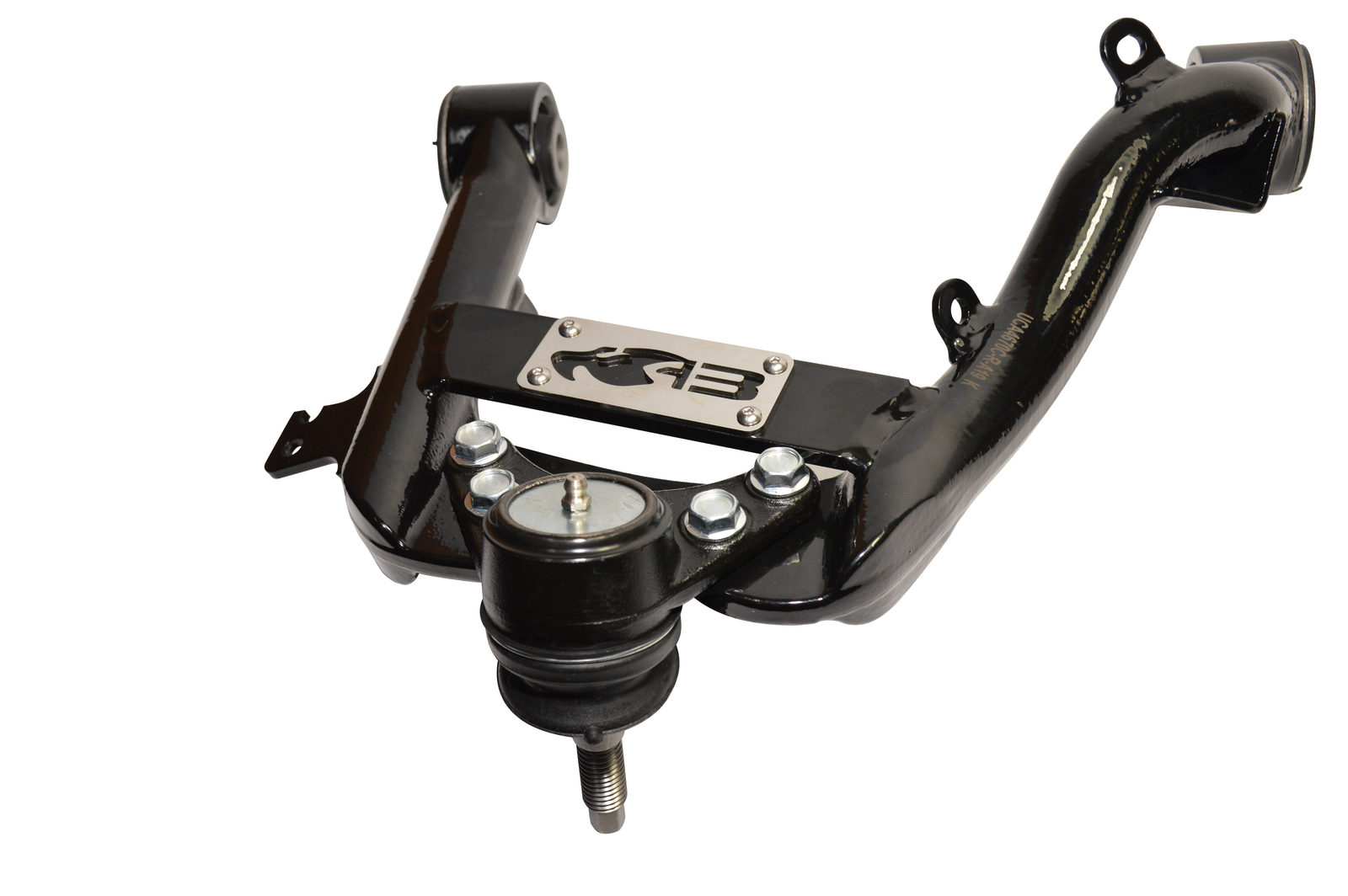

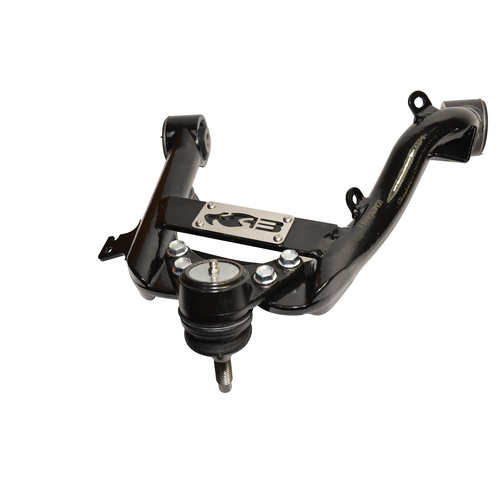

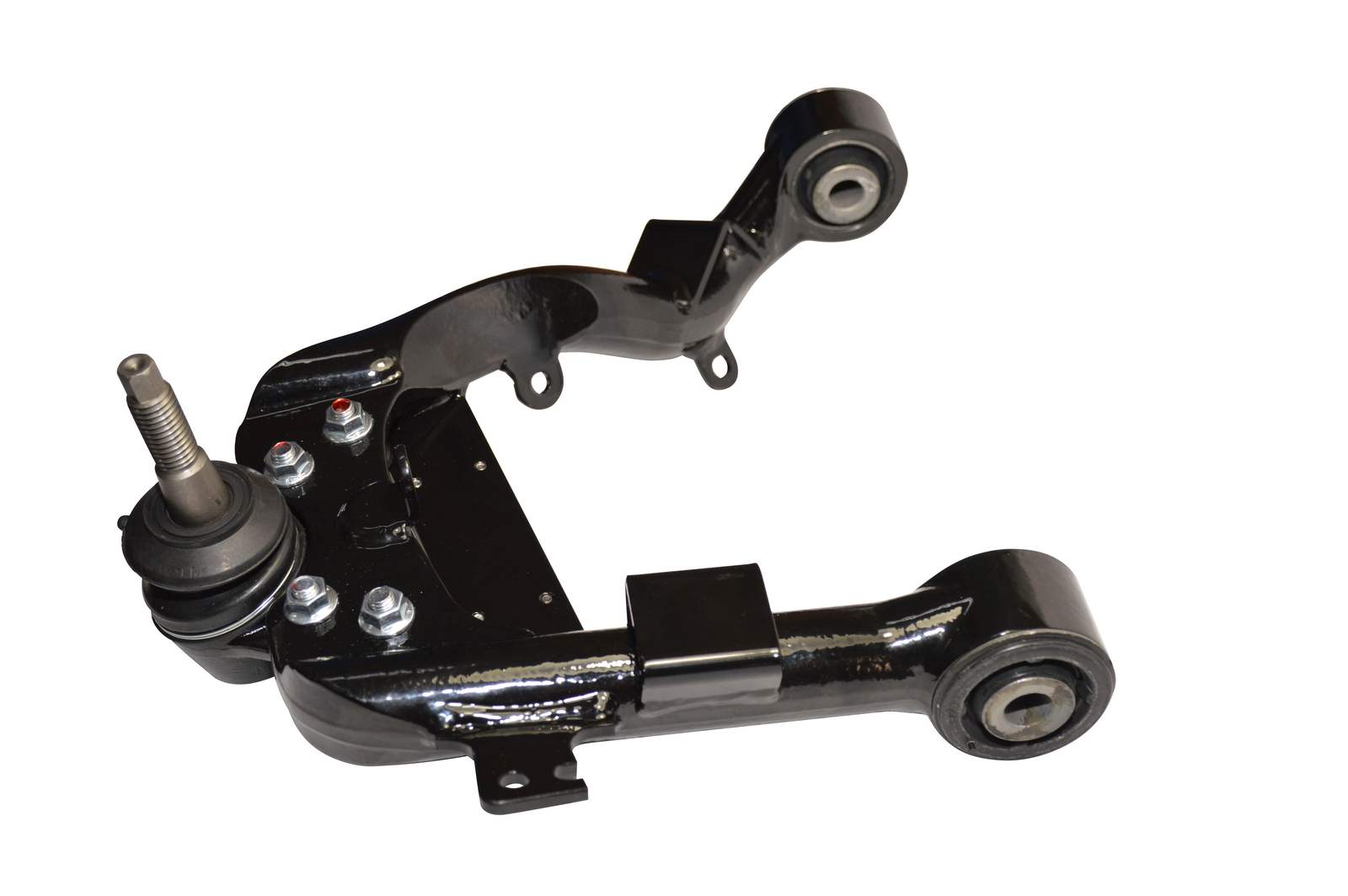

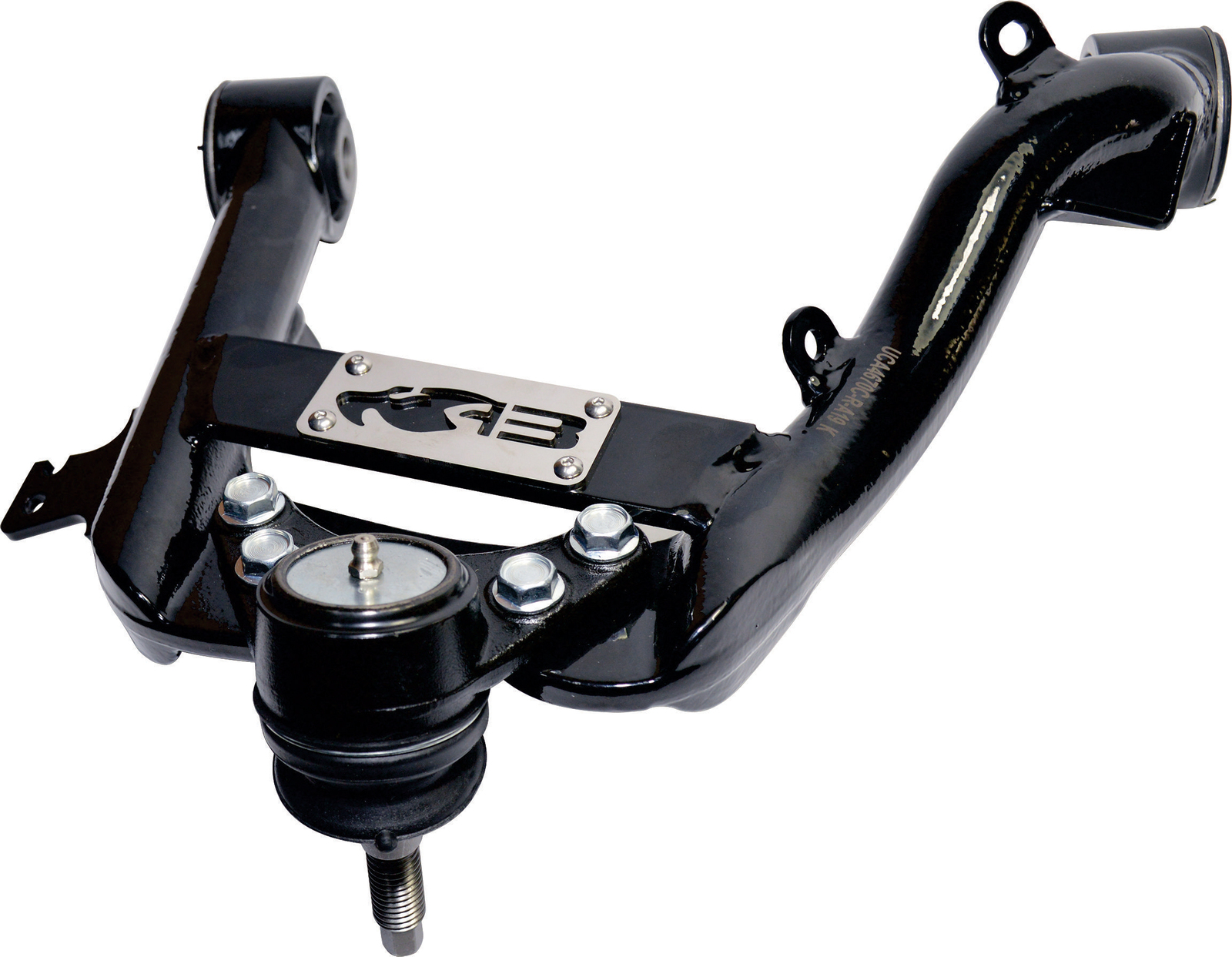

V2 Blackhawk Upper Control Arm - Colorado 2017-on Facelift

Updated V2 Arms with better UCA to Rim Clearance

These have been modified and physically tested with an OE wheel ( 6.5Jx16 ET33 ) and a 9J x 17 ET33.

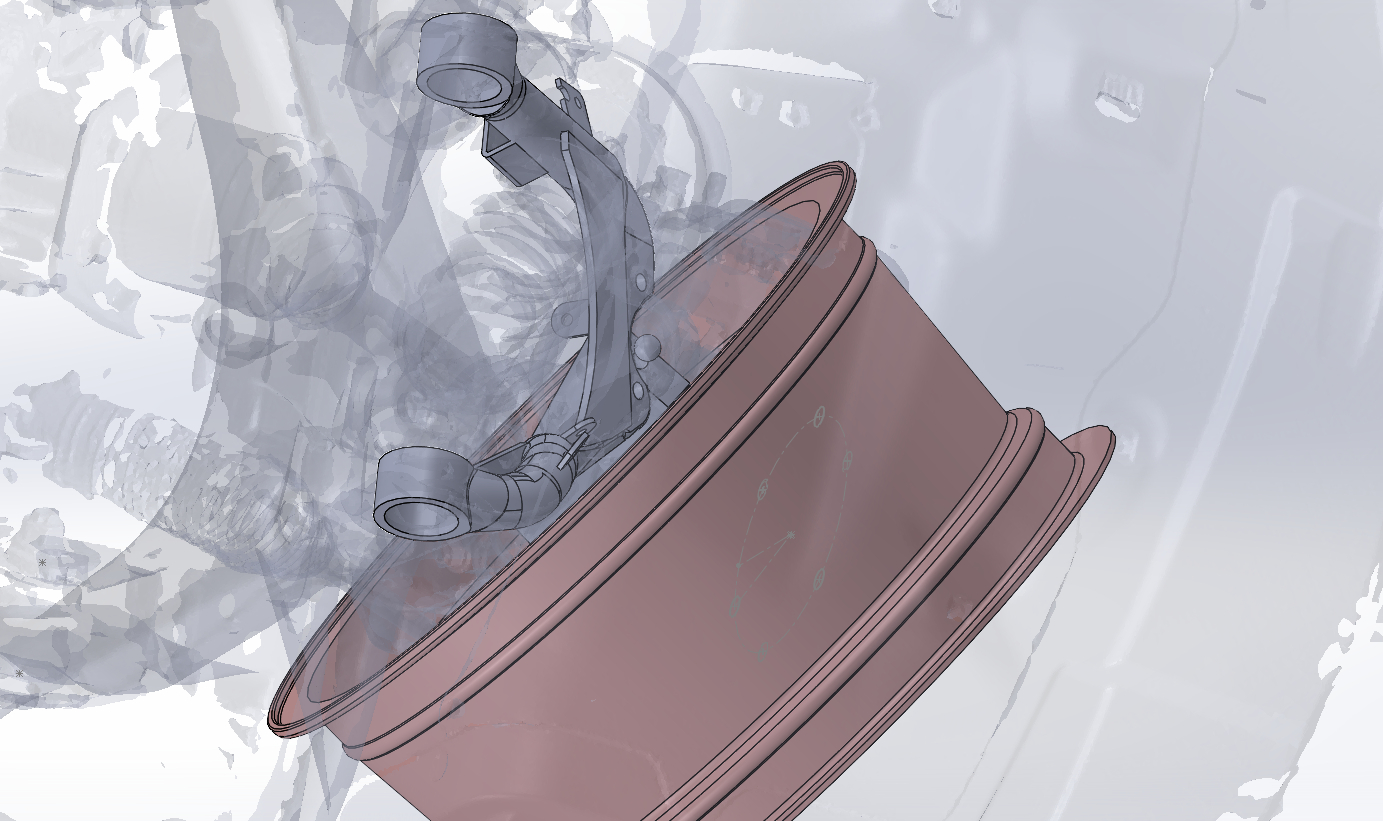

These have also been have modeled an aluminium an 8J x 16 ET40 and simulated the fitting of it in CAD with clearance at full droop full lock as per the CAD image attached.



These Engineered upper control arms are designed to correct the balljoint angle with built in 3deg caster when you lift your vehicle 40mm and over

Blackhawk UCA's are designed with clearance to the coil spring during articulation, as well as strengthening the whole unit over the standard parts.



Sold as a pair kit with hardware included, These UCA's are a cost effective & simple solution to your alignment problems. Blackhawk UCA's use OE size parts (bushes and ball joints) meaning spares can be obtained from any spare parts shop, or genuine from Holden or Isuzu.

Kit Contains:

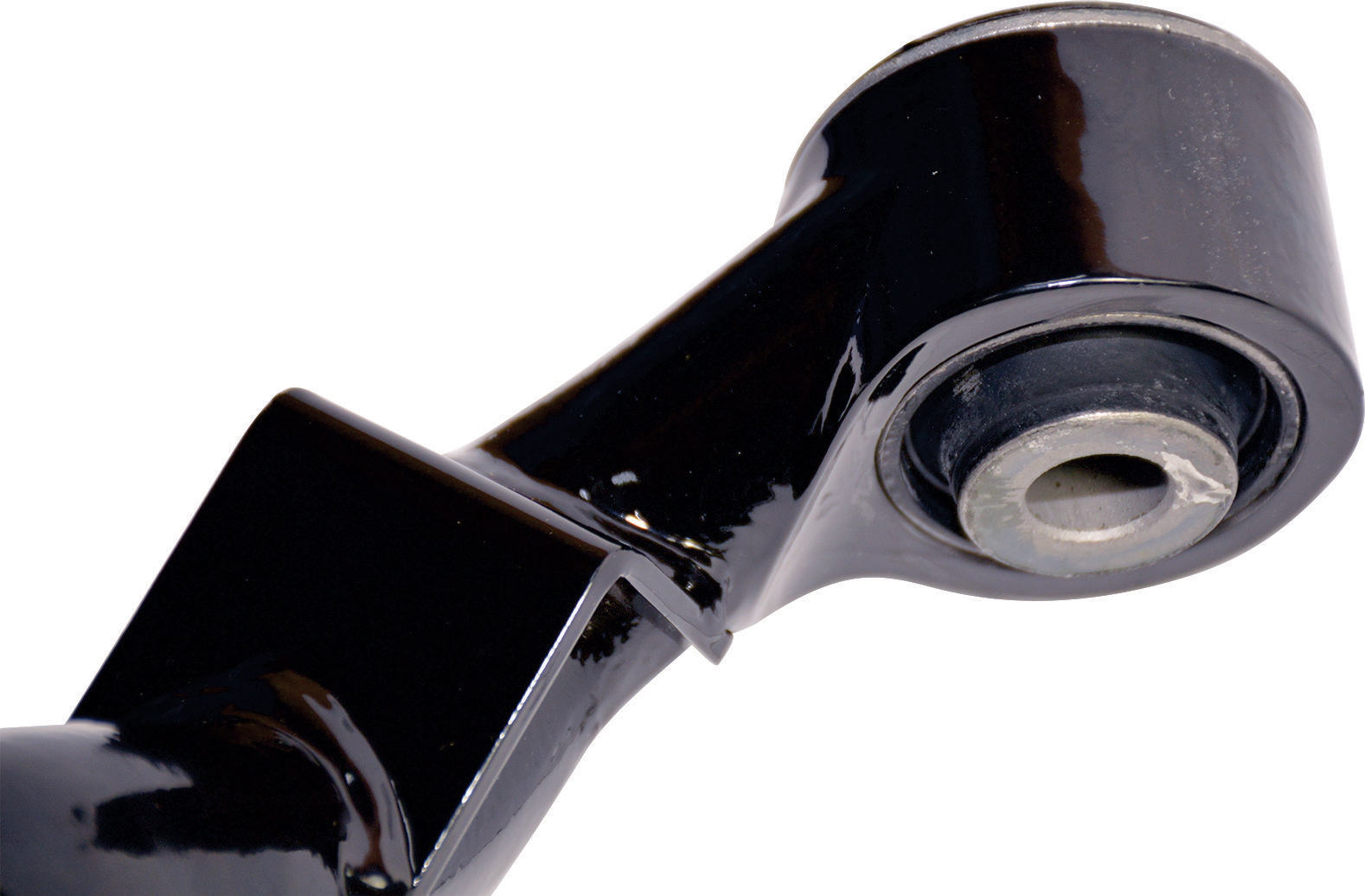

• 2 x Blackhawk UCA's pre-fitted with OE style rubber bushes
• 2x Roadsafe HD Ball Joints pre-fitted to the control arms
• 4 x Washers
• 2 x Blackhawk Ball Joint Dust Caps
• 2 x Dust Cap sealing O-Rings

These UCA's are designed to fit:

• Holden Colorado RG Ute (2017-on)
• Holden Colorado 7 RG7 Wagon (2017-on)



Note: Will only suit vehicles with 17" or larger wheels with no further backspacing than the factory wheels.

Clearance is very minimal with Colorado UCA’s. Make certain the ABS line is secured to the top or bottom of the arm—secured away from the coil spring and the wheel potentially turning in.
