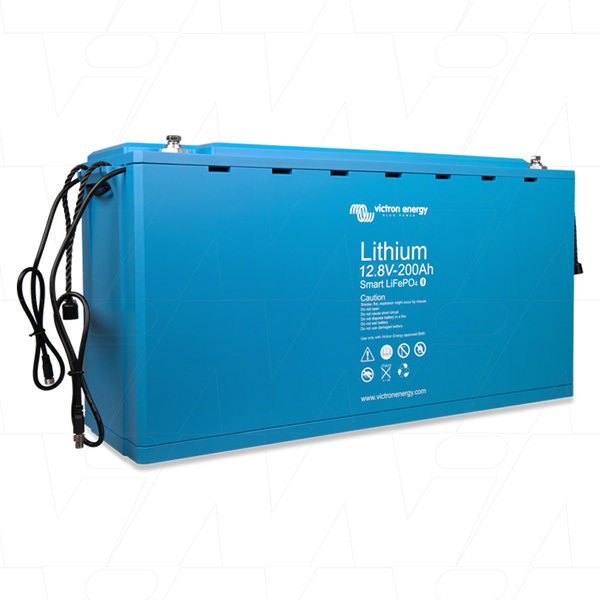

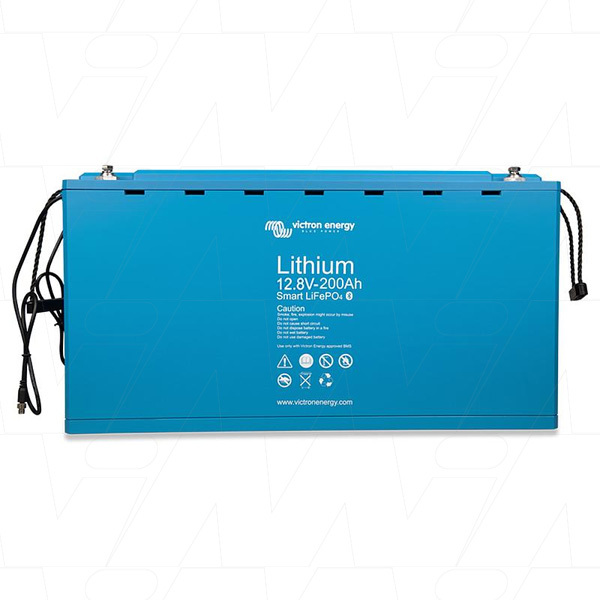

Victron LiFePO4 Battery 12,8V/200Ah Smart



High capacity 12.8V 200Ah Lithium Iron Phosphate (LiFePO4) smart battery module with built-in Bluetooth

With bluetooth capabilities, users can monitor their Victron LiFePO4 battery through the Victron Connect app (available for iOS and Android).

For Optimum efficiency, always update to the latest firmware using the Victron Connect app prior to installation.

Specifications:

• Cycle life: 2500 cycles (80% DoD), 3000 cycles (70% DoD), 5000 cycles (50% DoD)
• Max. continuous discharge current: 400A
• Recommended continuous discharge current: ≤200A
• End of discharge voltage: 11V
• Charge voltage: 14.0V - 14.4V (14.2V recommended)
• Float voltage: 13.5V
• Max. charge current: 500A
• Recommended charge current: ≤100A
• Operating temperature: -20°C to +50ºC
• Storage temperature: -45°C to +70ºC
• Humidity (non-condensing): max. 95%
• Protection class: IP22



Consider implementing Victron Energy's range of Lithium Iron Phosphate modules in high energy demand applications:

• More RUGGED compared to lead acid batteries.

LiFePO4 batteries do not need to be fully charged all the time. A partial charge may even slightly improve service life. In addition, LiFePO4 batteries have a wider operating temperature range, excellent cycling performance, lower internal resistance and higher rate of efficiency than lead acid batteries.

Lead acid batteries will fail prematurely due to sulfation if the battery is rarely, or never at all, fully charged or if the battery is stored for long periods partially or fully discharged.

• Higher ENERGY EFFICIENCY than lead acid batteries.


Round trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of LiFePO4 batteries is 92% compared to lead acid batteries at around 80%. In off-grid applications like solar and/or wind, better energy efficiency means less energy loss.


• SMALLER and LIGHTER than lead acid batteries.


LiFePO4 batteries are up to 70% smaller and 70% lighter than equivalent lead acid batteries.



SHIPPING RESTRICTIONS APPLY This lithium based product is classified as Class 9 DG (UN3480) where it contains more than 20Wh/cell or 100Wh/pack (Lithium Ion) and therefore cannot be sent by airfreight. Transport via ROAD or SEA FREIGHT ONLY for this product.



	VictronConnect Compatible: VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built in, or are connected to a VE.Direct Bluetooth Smart Dongle, or a VE.Direct to USB Interface Find out more about VictronConnect here, or download the App via these links. Click here to download the VictronConnect Manual
