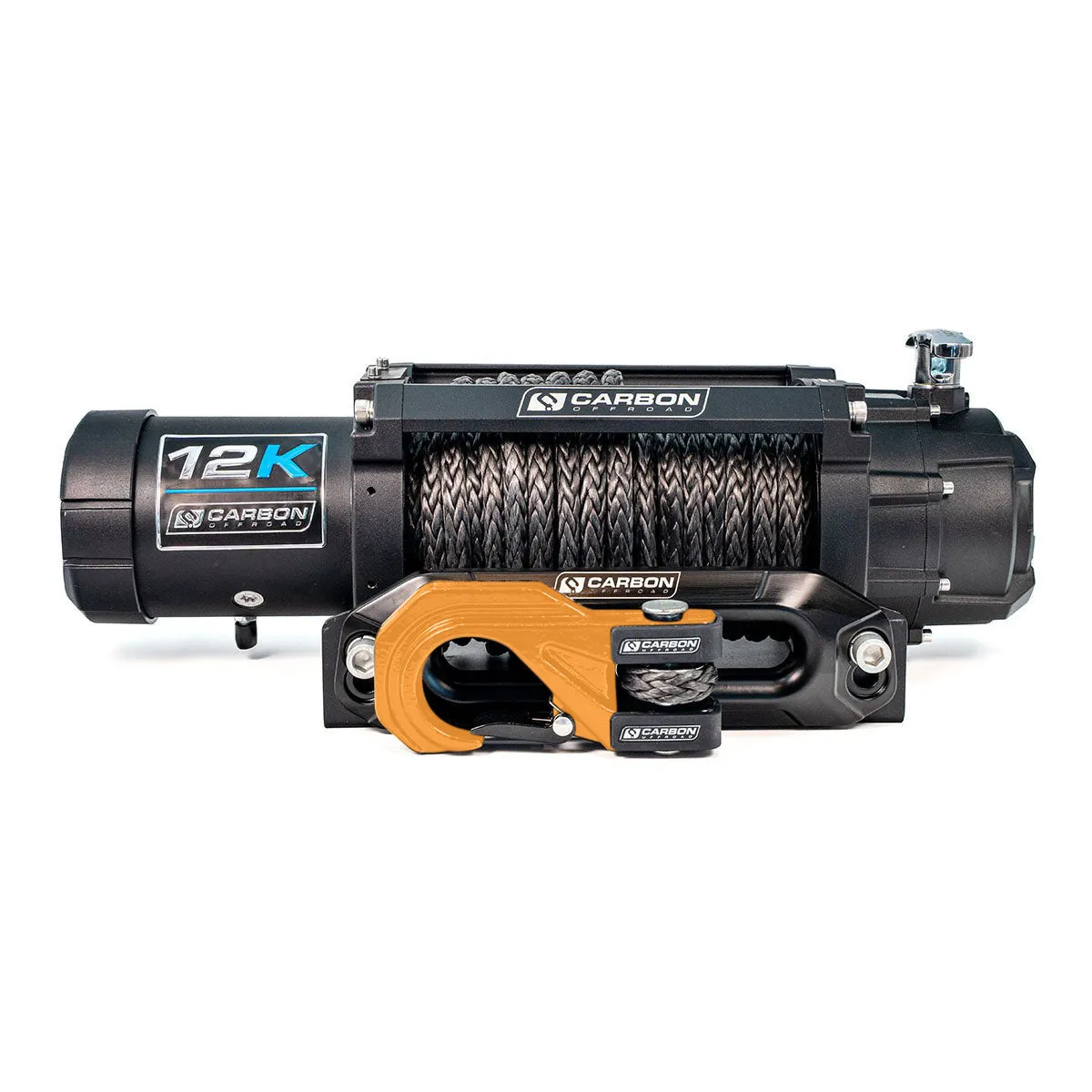

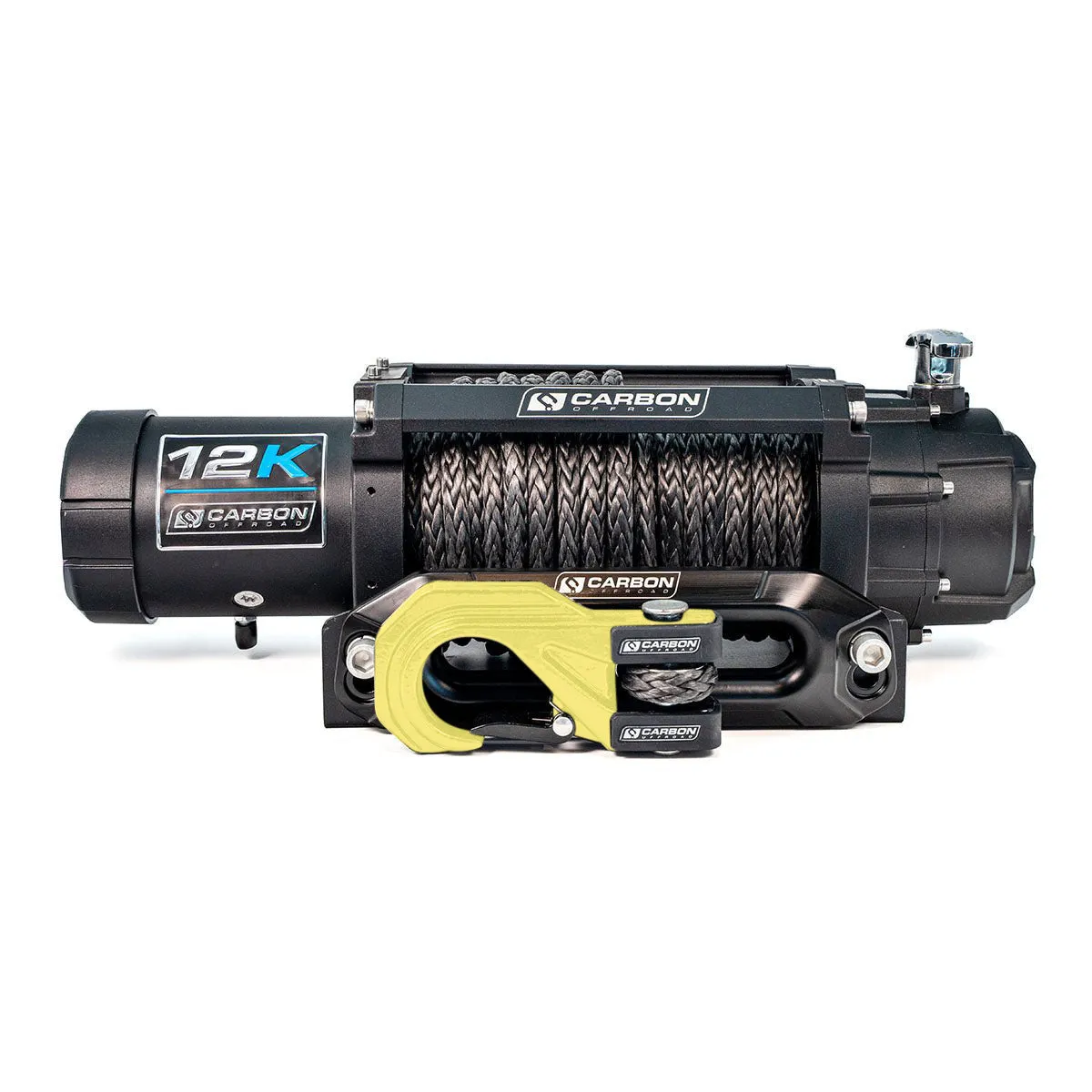

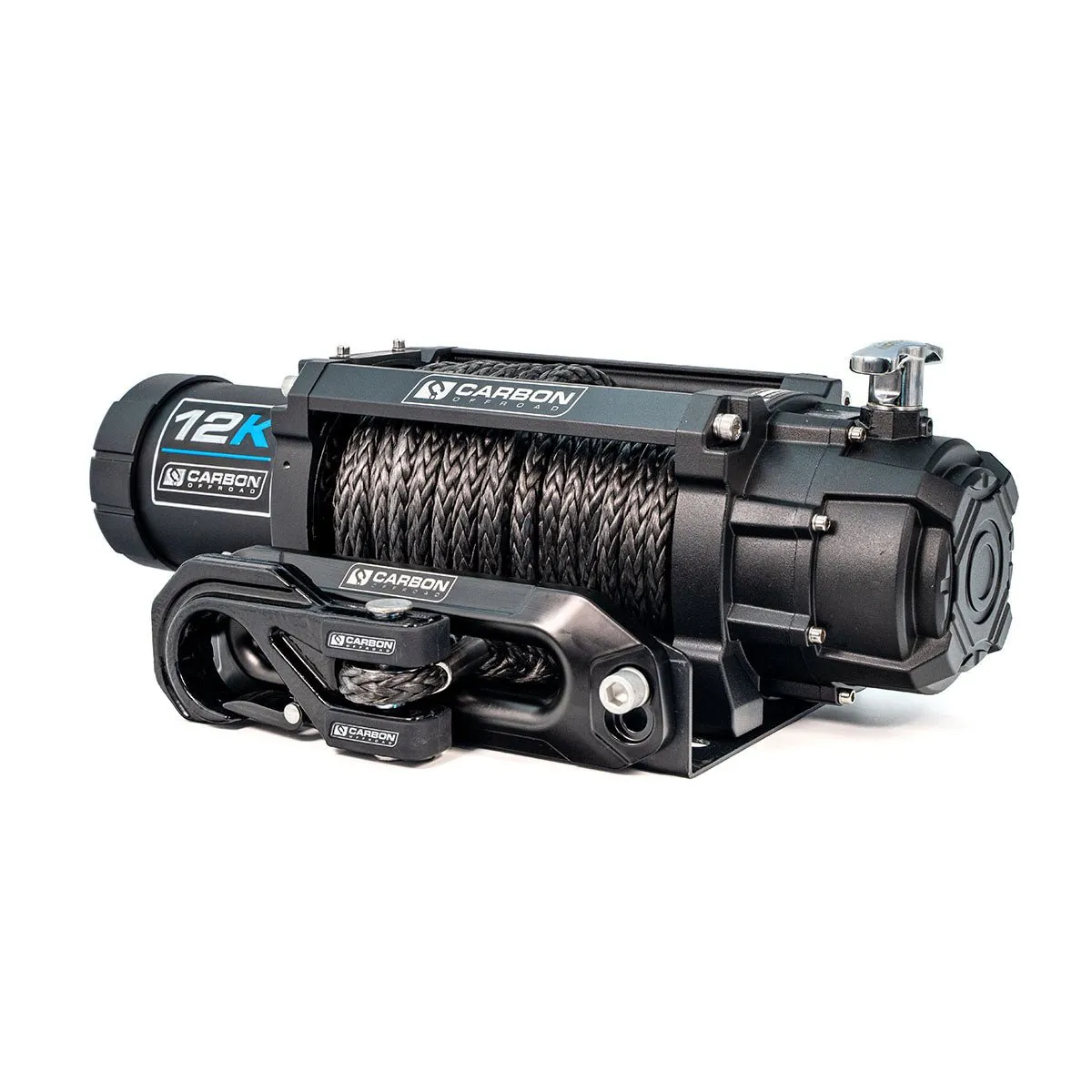

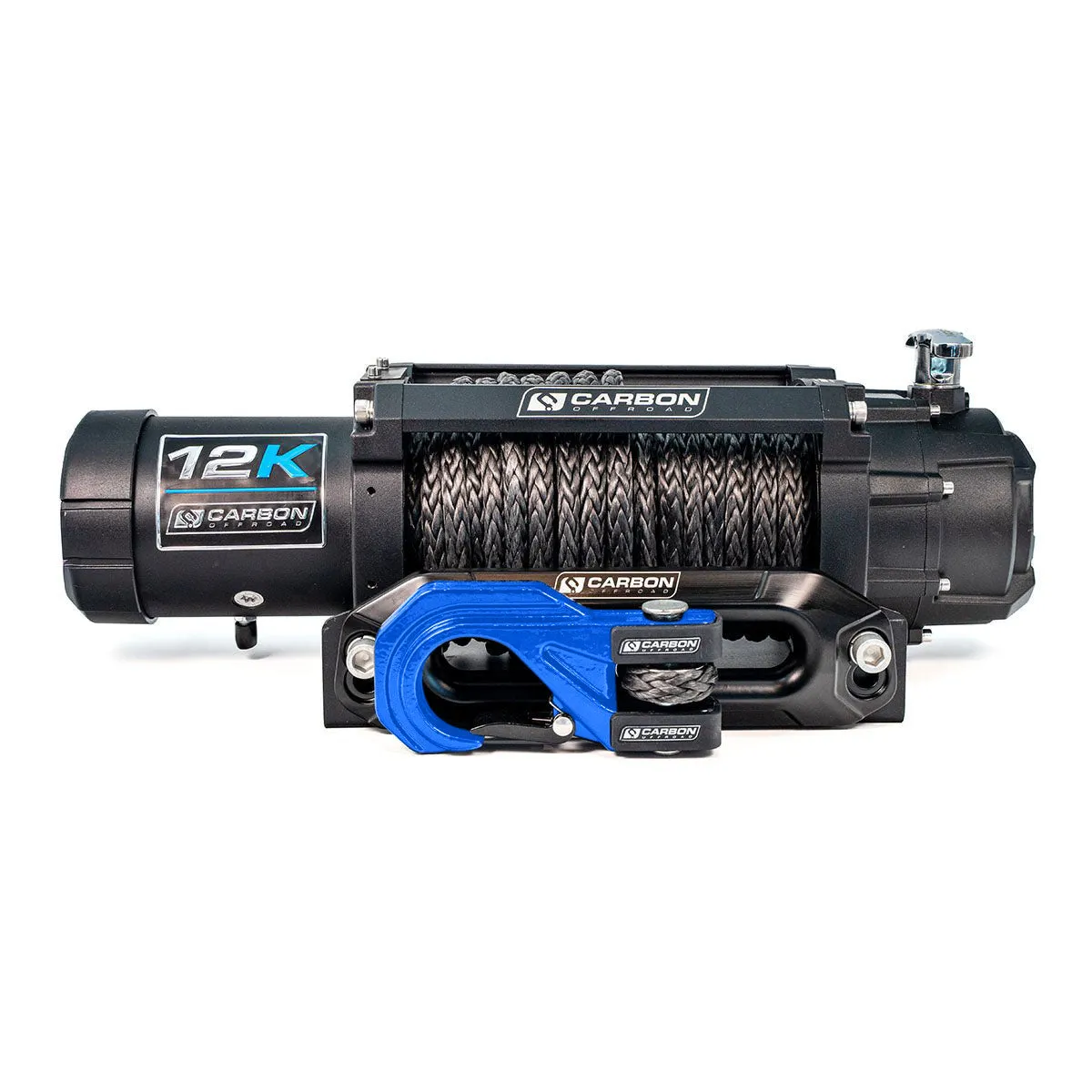

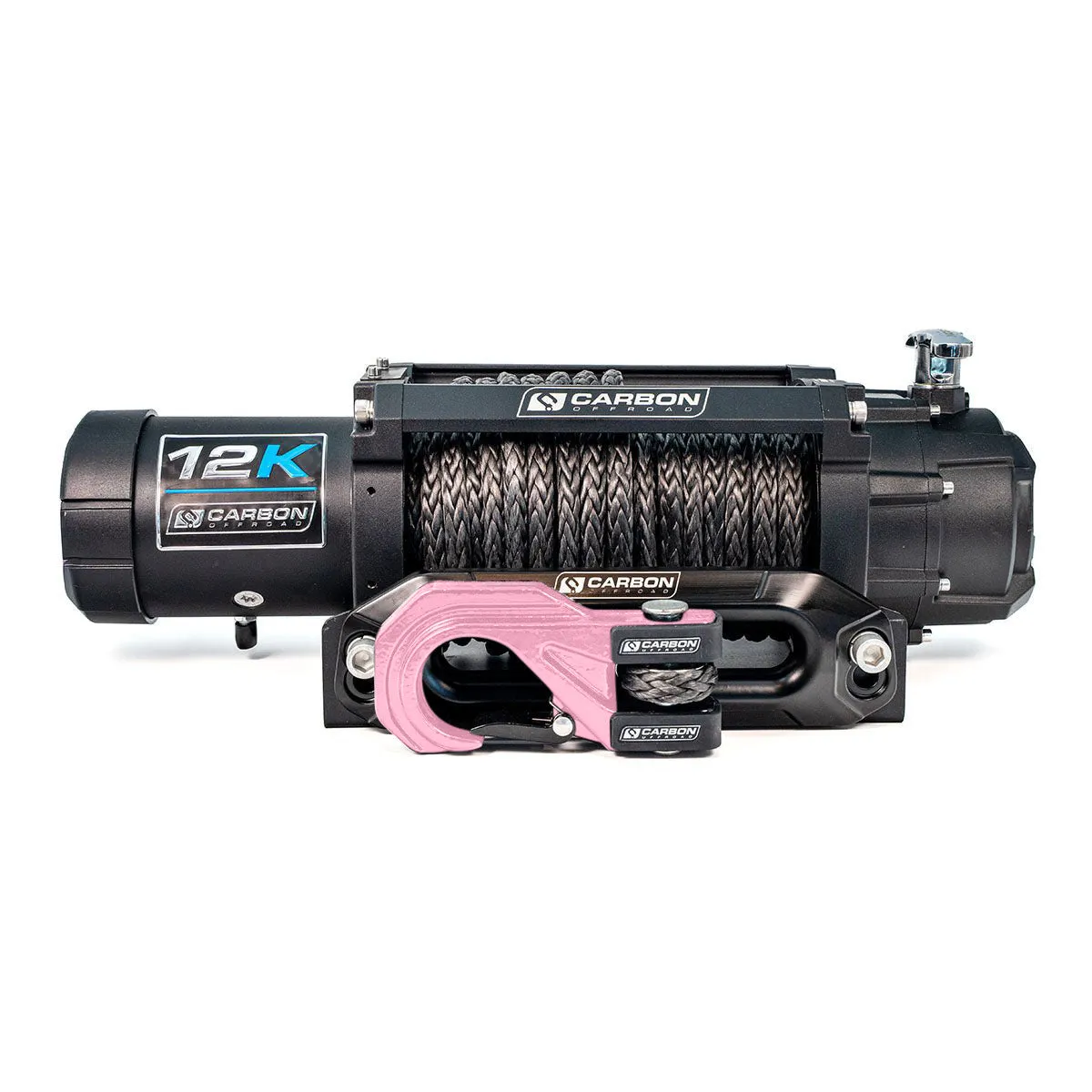

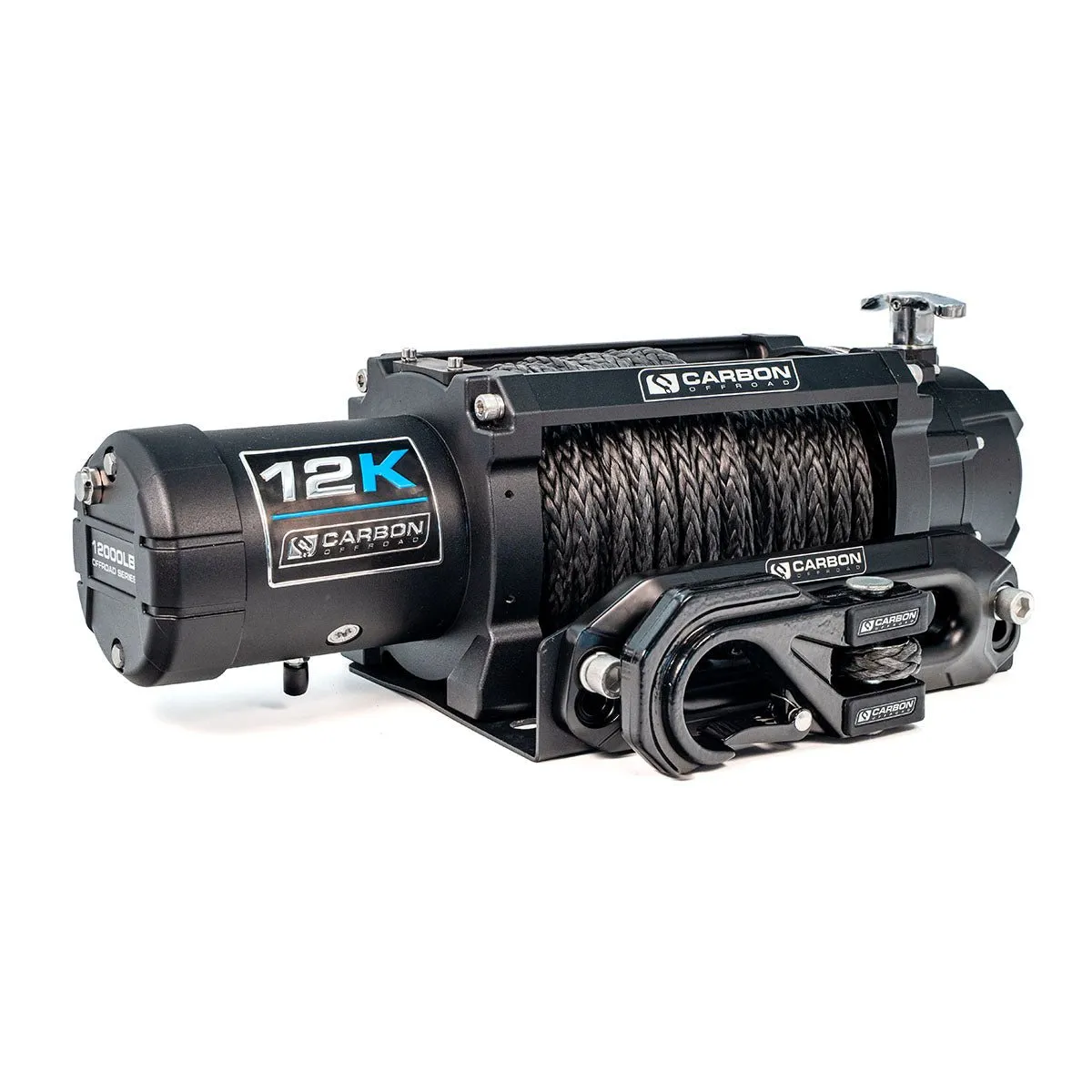

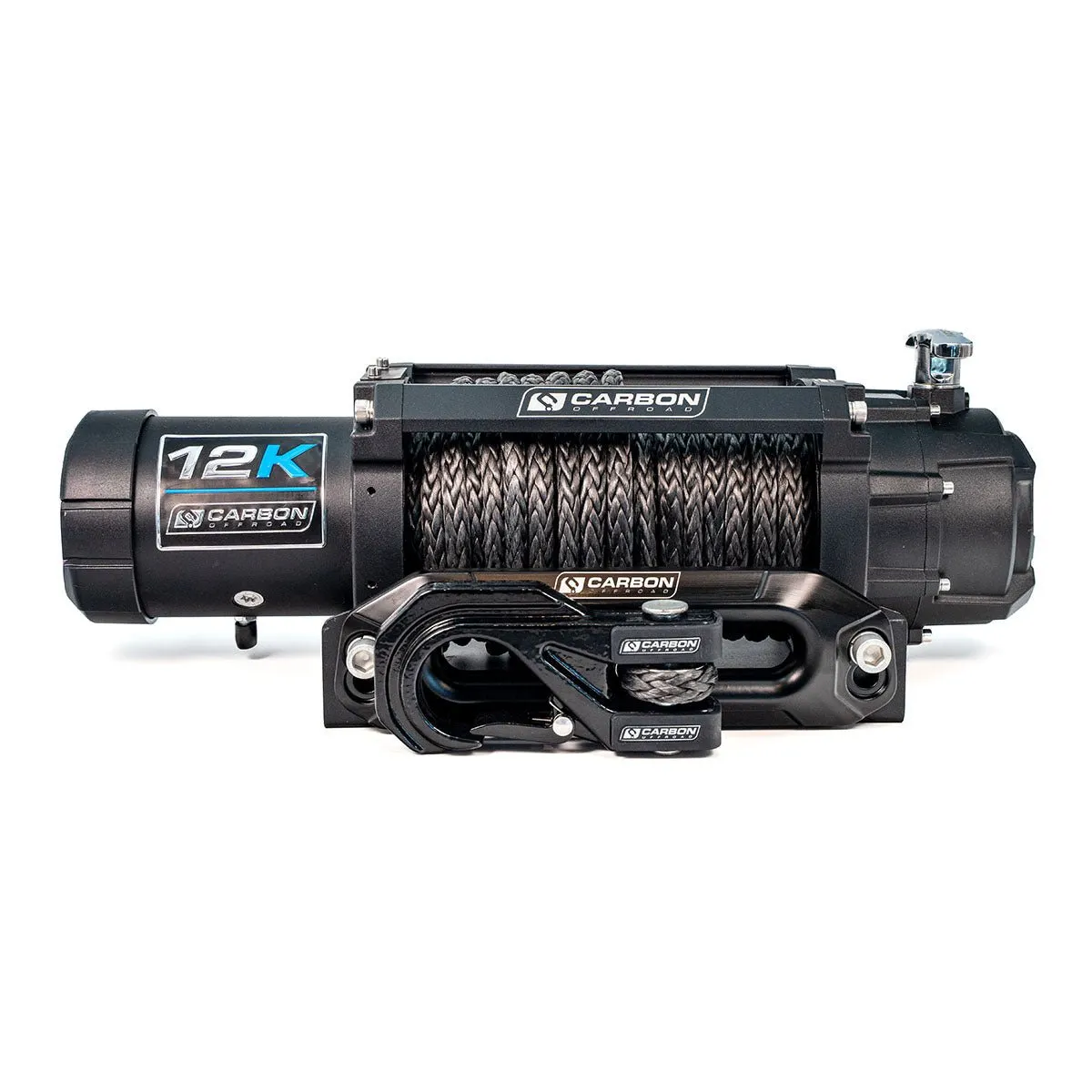

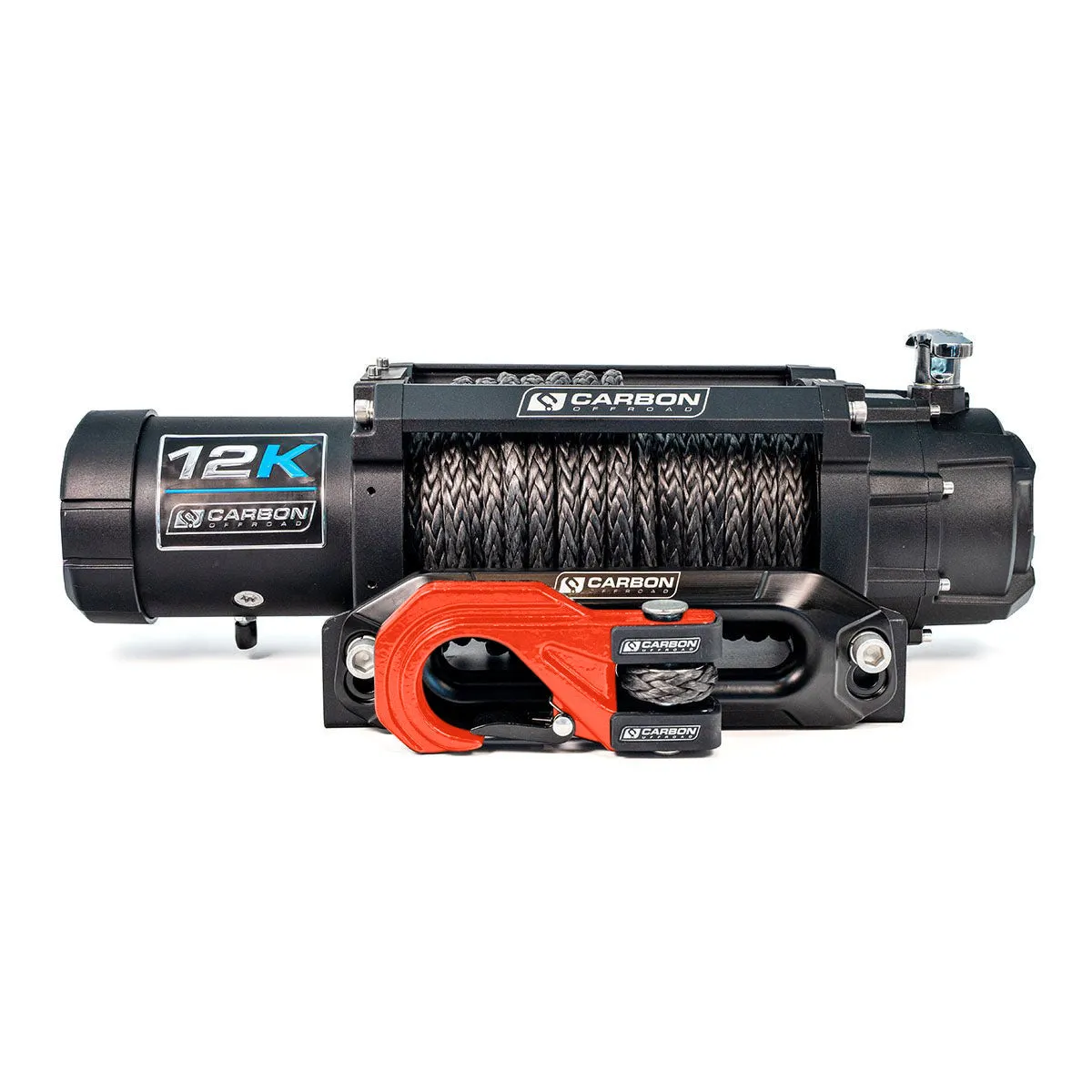

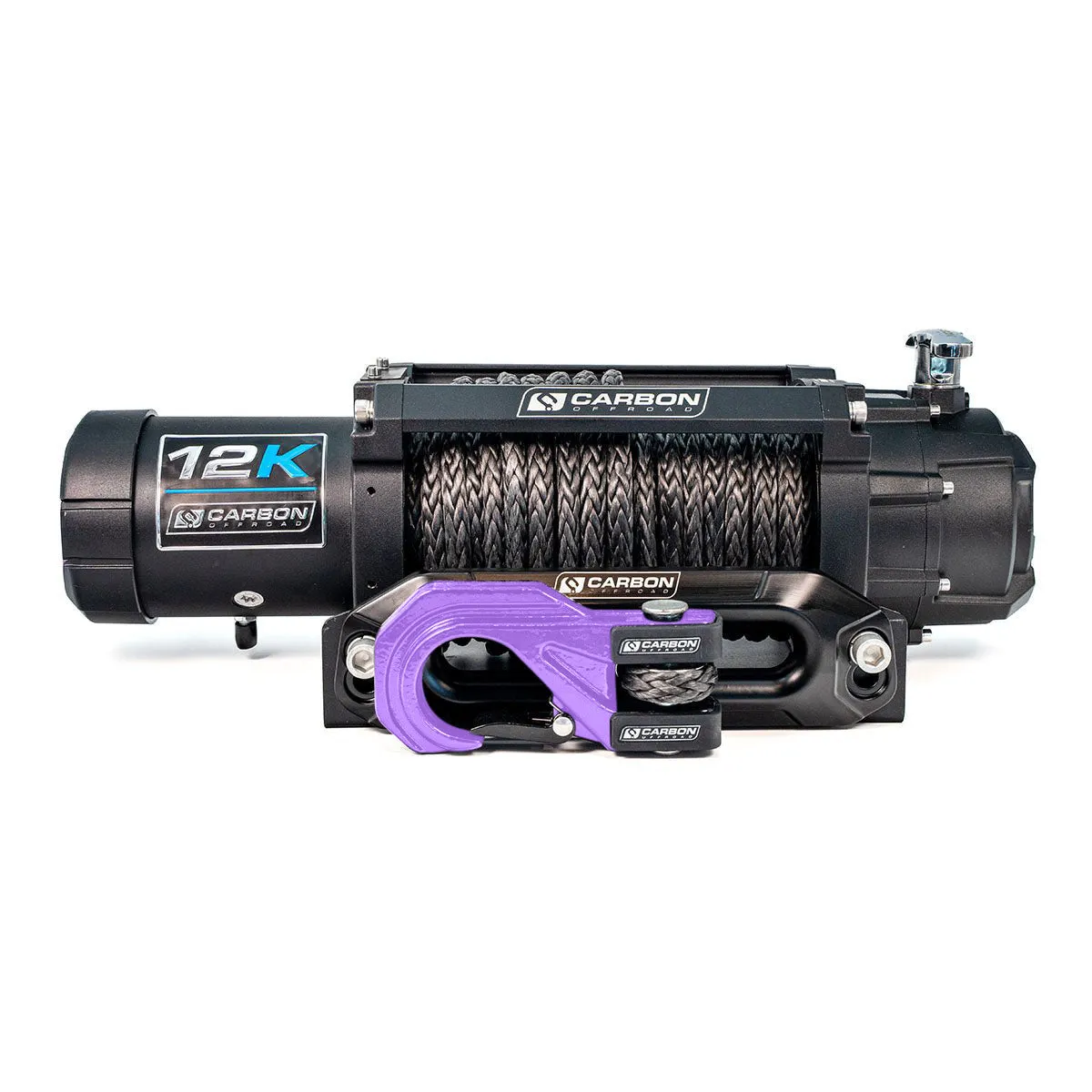

Carbon Offroad 24V 12K - 12000lb Winch V3X with MegaPro Hook

The Carbon 12K V3X is a lightweight, high-performance 24V winch delivering 12,000 lb single-line pull in a compact 19.7 kg package (with synthetic rope attached).

Engineered in Australia with IP68 waterproofing and a triple planetary geartrain, it is supplied as a complete installation kit ready for fitment.

Features:

• 12000 lb (5450 kg) single-line pull driven by a 24V DC 6HP series wound motor.
• IP68 ingress protection: rated for dust, dirt and freshwater submersion for 30 minutes up to 1.5 m depth (not during operation).
• 3-stage planetary geartrain with a 218:1 gear ratio.
• Rotating ring gear clutch with manual pull-and-twist free spooling handle.
• Full load automatic brake installed in the motor housing end plate.
• Breathable membrane-style motor breather for heat expansion and contraction.
• Includes a heavy-duty isolator switch with additional cabling to safely isolate power when not in use.
• Supplied with both wired and wireless remotes for remote operation.
• Comes standard with a CNC billet alloy black anodised fairlead and a robust MegaPro hook.
• Backed by a 5-year electrical warranty and 5-year water ingress warranty, plus lifetime geartrain warranty.

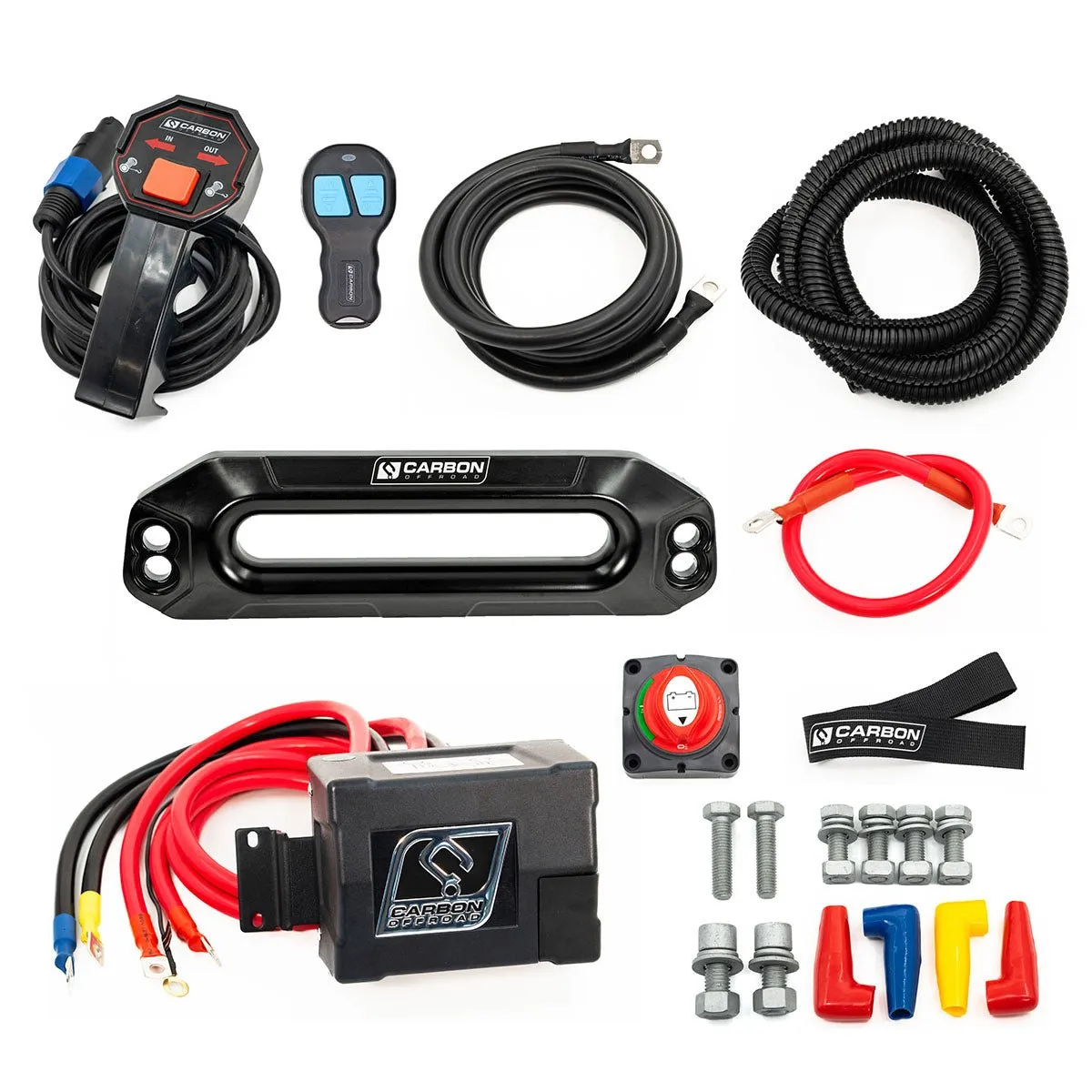

Kit Includes:

• 1 x Carbon 12K Winch V3X (24V)

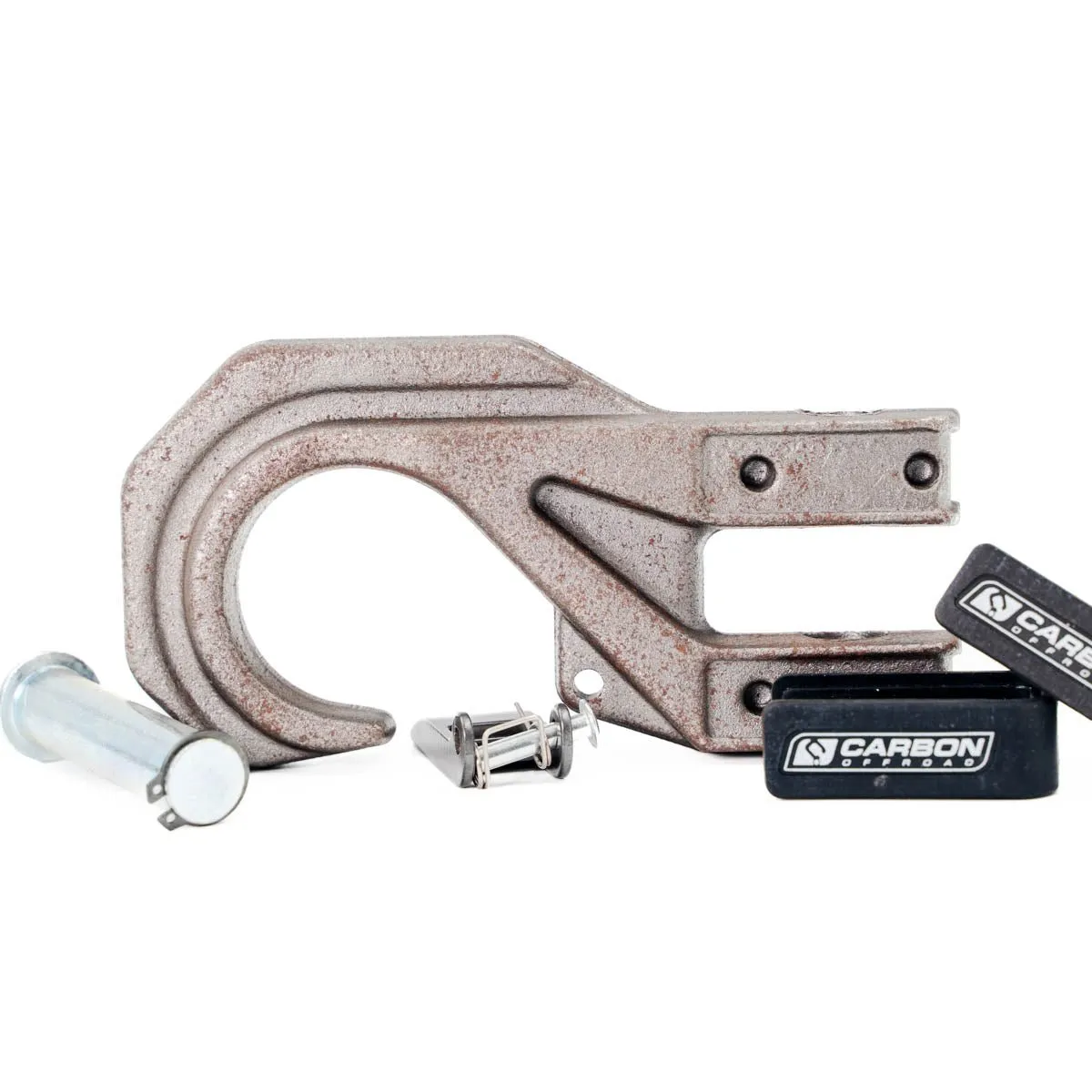

• 1 x MegaPro Hook
• 1 x Synthetic Rope (24m x 10mm diameter)
• 1 x CNC Billet Alloy Black Anodised Fairlead
• 1 x Wired Remote Control (12ft/3.7m lead)
• 1 x Wireless Remote Control
• 1 x Isolator Switch and Cabling
• 1 x Mounting Hardware Set
