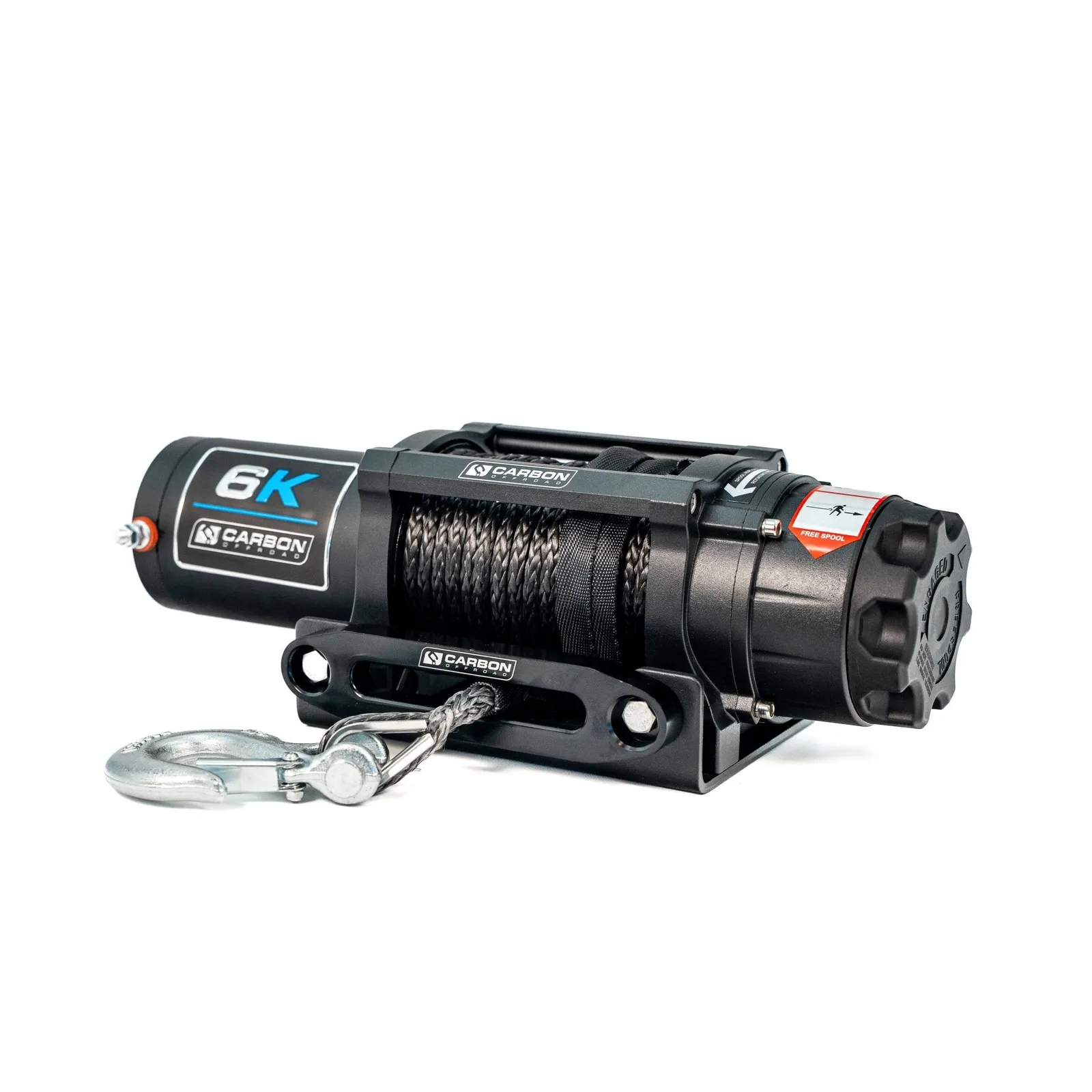

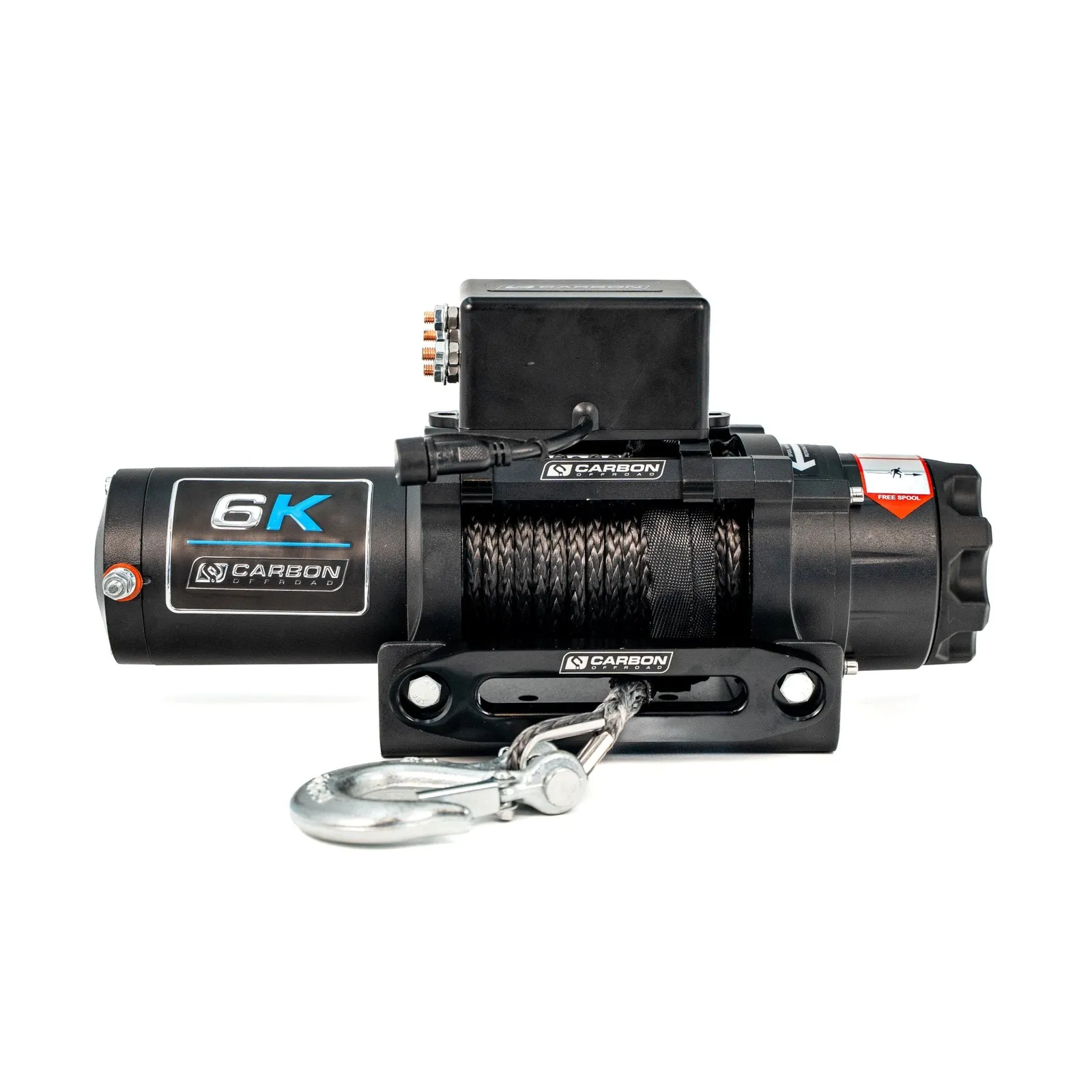

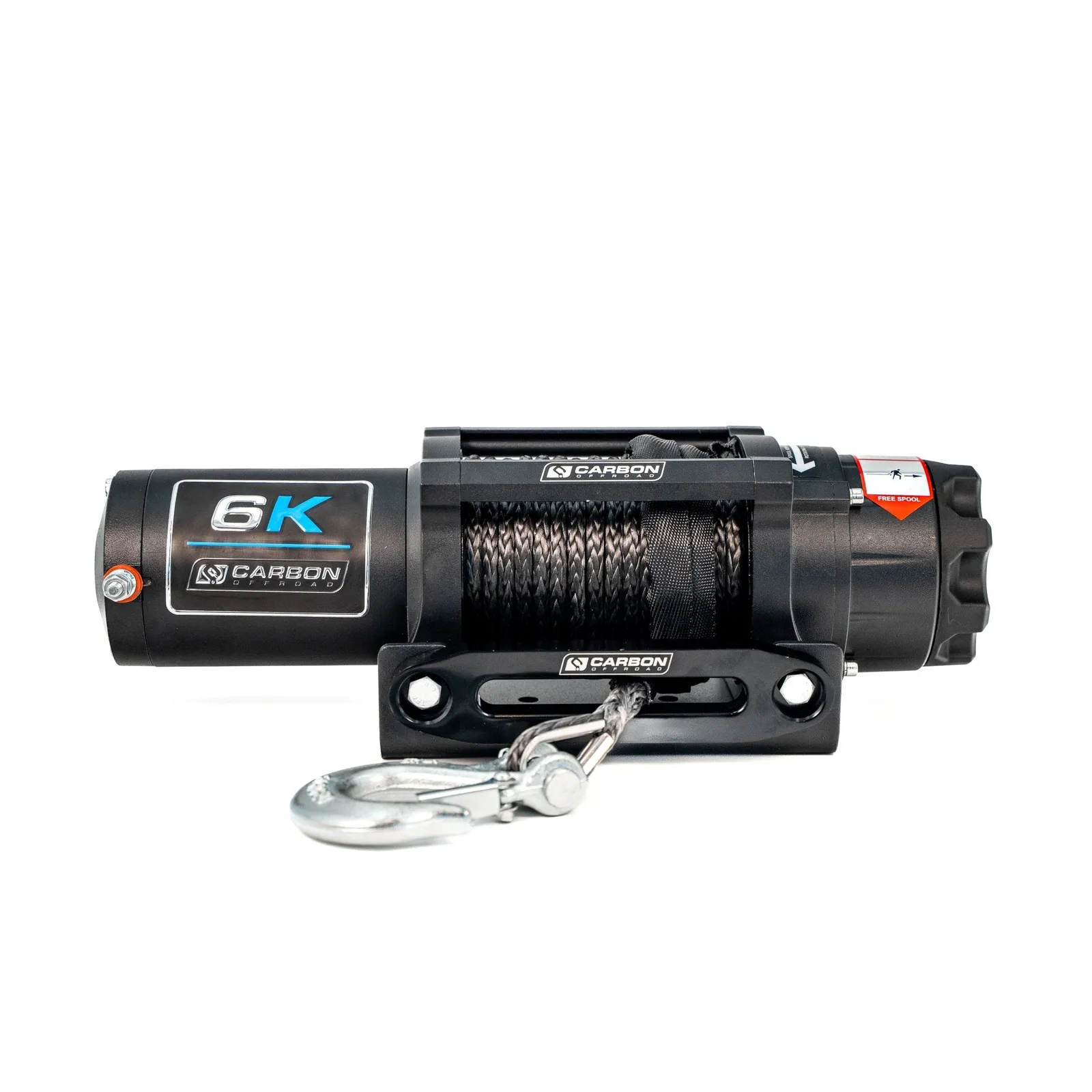

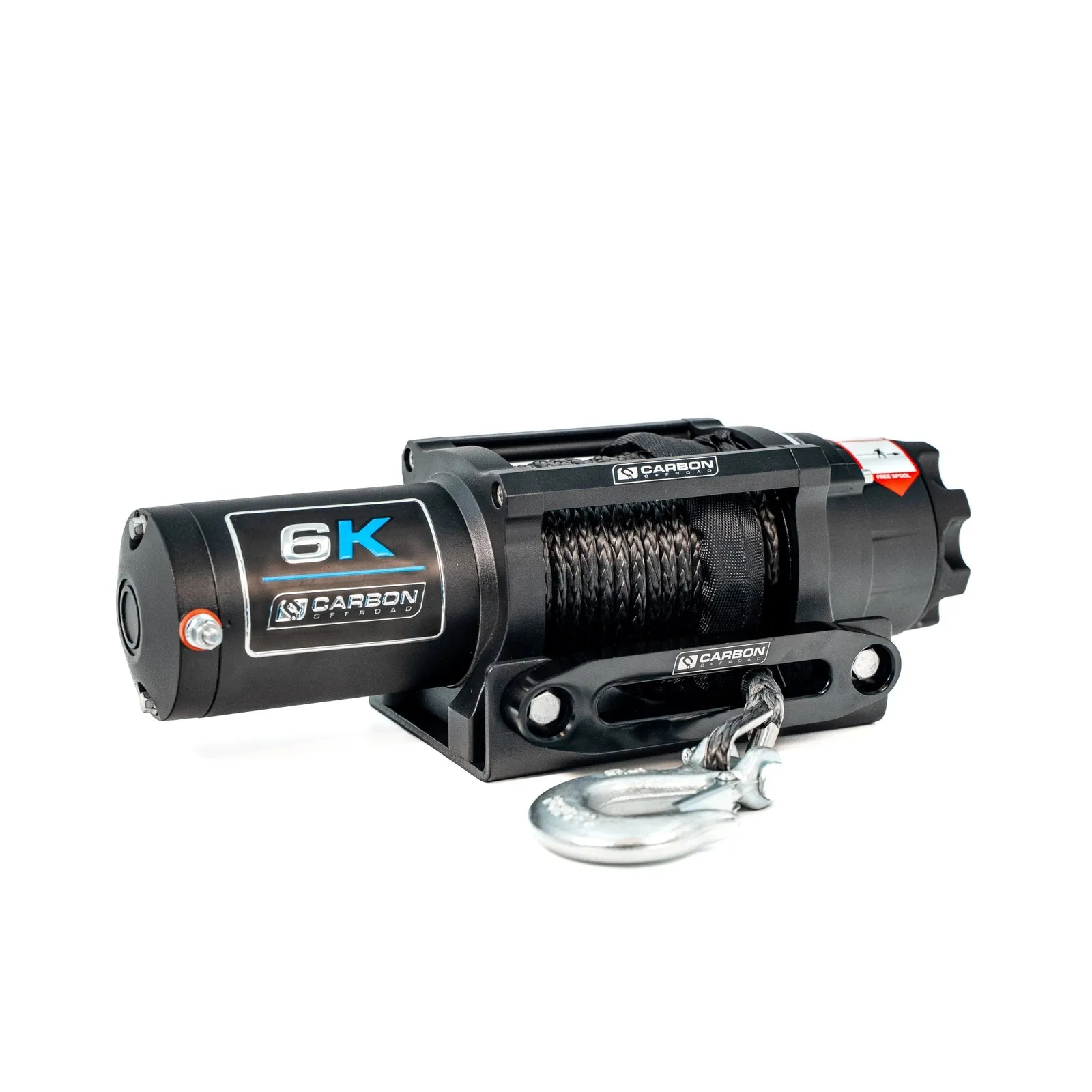

Carbon Offroad 6000lb 12V ATV, UTV, Trailer, Boat, Small 4X4 Winch Kit IP68 Rated
$599.00
RRP $659.00
SAVE $60.00 (9%)
In Stock
The Carbon Offroad 6000lb Winch is a compact recovery and utility winch designed for ATVs, small 4WDs, trailers, caravans and boats.
It includes an integrated mounting plate and both wired and wireless remotes.
Features:
- Rated line pull: 6000 lbs single-line
- 12V DC 2.5 HP permanent magnet motor (24V available)
- 3-stage planetary geartrain
- Gear ratio: 147:1
- Roller disc full load automatic clutch
- Automatic brake in the motor bracket (mechanical and dynamic automatic braking)
- IP68 for winch and solenoid (excludes remotes)
- Spooled with 16m of 6.5mm synthetic rope
- Aluminium hawse fairlead
- Integrated mounting plate with mounting bolt pattern 167mm x 76mm (6.6" x 3.0")
- Recommended battery: 650 CCA minimum for winching
- Includes both wired and wireless remote controls
- Warranty: Lifetime mechanical / 5 year electrical

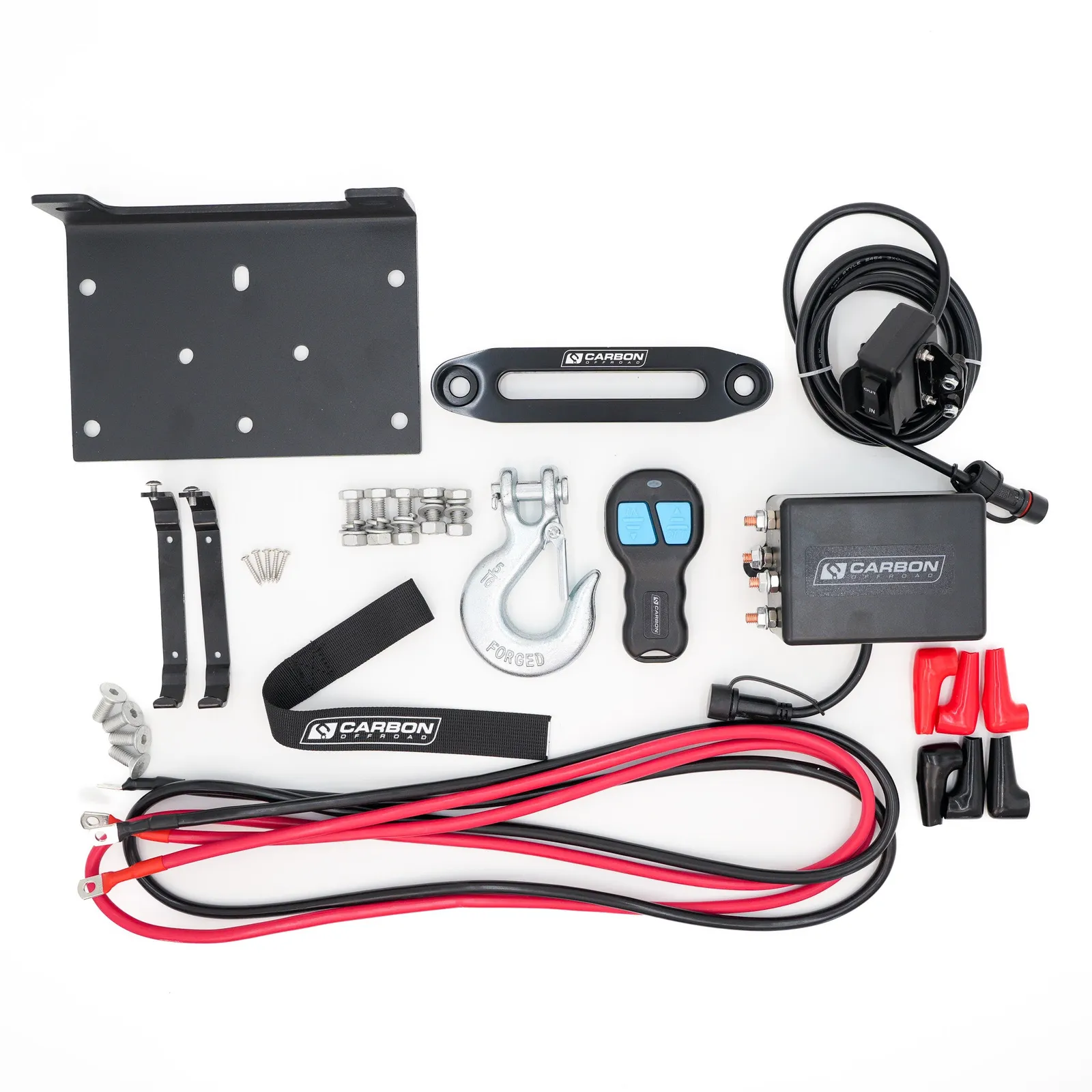

Kit Includes:
- 1 x Carbon Offroad 6000lb Winch (CW-XD6)
- 1 x Synthetic Rope (16m x 6.5mm diameter)
- 1 x Aluminium Hawse Fairlead
- 1 x Handlebar Mini-Rocker Switch
- 1 x Wireless Remote Control
- 1 x Integrated Mounting Plate & Bolt Kit
(CW-XD6)
| Part number | CW-XD6 |
|---|---|
| Rated line pull | 6000 lbs single-line |
| Motor | 12V DC 2.5 HP permanent magnet (24V available) |
| Geartrain | 3-Stage Planetary |
| Gear ratio | 147:1 |
| Clutch | Roller disc full load automatic |
| Brake | Automatic brake in the motor bracket |
| IP rating | IP68 for winch and solenoid (excludes remotes) |
| Synthetic rope | 16m x 6.5mm (52.5 ft x 1/4") |
| Drum dimensions | 51mm x 122mm (2.0" x 4.8") |
| Mounting bolt pattern | 167mm x 76mm (6.6" x 3.0") |
| Recommended battery | 650 CCA minimum for winching |
| Winch dimensions (L x W x H) | 385 x 115 x 119mm (15.2" x 4.5" x 4.7") |
| Packing dimensions (L x W x H) | 530 x 170 x 230mm (20.9" x 6.7" x 9.1") |
| Winch weight (bare) | 8.3kg (18.3 lbs) with synthetic rope attached |
| Total kit weight | 11.2kg (24.7 lbs) including control box, cables, bolts & fairlead |
| Warranty | Lifetime Mechanical / 5 Year Electrical |
| SKU | CW-XD6 |
| Brand | Carbon Offroad |
